Technical Data
Input Power: 5V DC 0.3A
Output Protocol: DMX (3 types of connector)
Output Connector: XLR 3pin (DS) Block 3 pins (RB) RJ45 8 pins (RJ)
Number of channels for live/pc use: 128 (expandable to 512, to purchase in early 2015)
Number of channels for stand alone use: 12 (expandable to 512, to purchase in early 2015)
Programmability: with PC/Windows (MAC in option, to purchase in early 2015)
Indicators: 2 (red/dmx + green/stand alone)
Button: 1 (access to next scene in stand alone mode)
I/O ports: 2 contact inputs (optional) with RJ version
Stand Alone Memory: 1266 steps with 12 channels / 8 scenes
DMX driver chipset: SP485ECP-L MAX485CPA+ ADM485JNZ
Temperature: -10 °C + 45 °C
Dimensions: 75x20x17mm (DS) 63x26x28mm (RB) 55x26x28mm (RB)
Weight: 37g (DS) 22g (RB) 21g (RJ)
Warranty: 12 months, caution : opening the interface will avoid the warranty.
DMX output / 3 types of connector
SUSHI-DS : XLR female 3 pins Connector pin1 ground pin2 data- pin3 data+
SUSHI-RB : SCREW Connector Block pin1 ground pin3 data- pin2 data+
SUSHI-RJ : RJ45 8 pins Connector pin8 ground pin2 data- pin1 data+

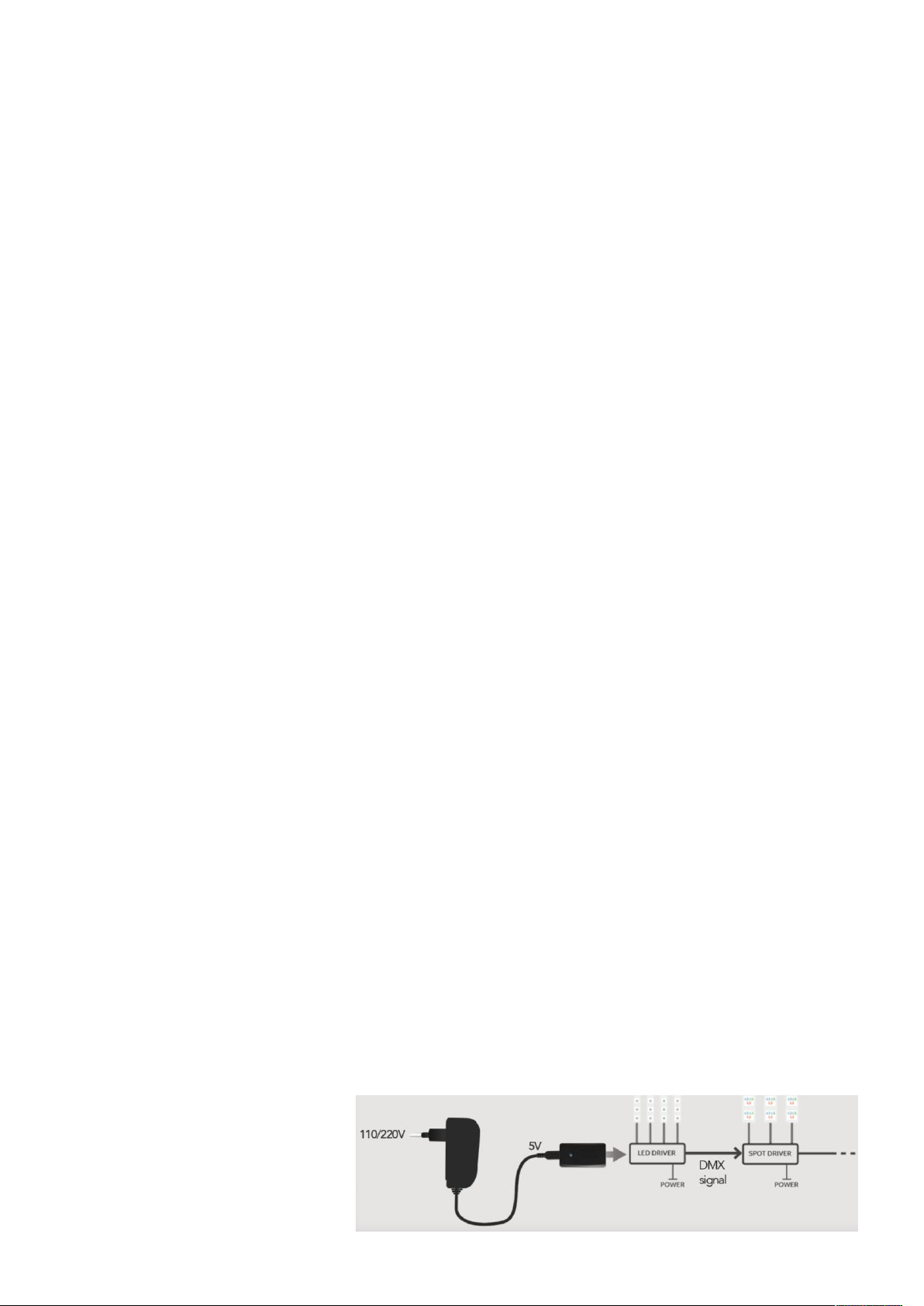

Stand alone use / power
For stand alone use, the SUSHI
can be powered by a standard 5V
USB power
This optional power supply is
available for a cost of USD 15.
(available with EU, UK or US plug)
