eDMX2 PRO
Interface
USER MANUAL
Page 2
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
ii
TABLE OF CONTENTS
1. Introduction ............................................................................................................................................................................... 1
Main Features ................................................................................................................................................................................. 1
2. Exterior View .............................................................................................................................................................................. 1
Front & REAR View .......................................................................................................................................................................... 1
Status LED Table .............................................................................................................................................................................. 2
3. Installing the FTDI driver ............................................................................................................................................................ 2
4. Default Configuration ................................................................................................................................................................. 4
USB DMX Modes ............................................................................................................................................................................. 5
5. Configuration Utility ................................................................................................................................................................... 5
Network Tab ................................................................................................................................................................................... 6
Port Tab ........................................................................................................................................................................................... 7
Recorder Tab ................................................................................................................................................................................... 8
DMX Display Function ..................................................................................................................................................................... 8
Advanced Options ........................................................................................................................................................................... 9
Art-Net Node Name ...................................................................................................................................................................... 10
Factory Reset ................................................................................................................................................................................ 10
6. Ports, Merging, Priority And DMX Input .................................................................................................................................. 11
Ports and merging ......................................................................................................................................................................... 11
Supported merging combinations ................................................................................................................................................ 11
sACN / E1.31 Priority ..................................................................................................................................................................... 11
sACN / E1.31 Priority – DMX Receive ............................................................................................................................................ 12
DMX512 In – Unicast / Broadcast / Multicast ............................................................................................................................... 12
7. Compatible Software ............................................................................................................................................................... 12
8. USB Communications Protocol ................................................................................................................................................ 13
Enhanced mode ............................................................................................................................................................................ 13
Compatibility mode....................................................................................................................................................................... 13
Manufacturer and Device Name extensions................................................................................................................................. 13
9. Technical Specifications ........................................................................................................................................................... 14
10. Warranty .............................................................................................................................................................................. 14
Page 3
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
iii
DMXking.com Hardware Limited Warranty .................................................................................................................................. 14
11. Declarations (FCC & CE) ....................................................................................................................................................... 14
Federal Communications Commission (FCC) Declaration of Conformity ..................................................................................... 14
EEC Declaration ............................................................................................................................................................................. 15
Page 4
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
1
1. INTRODUCTION
Thanks for purchasing a DMXking.com product. Our aim is to bring you high quality products with great features we know you’ll
appreciate. We ship only what’s required which is why there’s no CD or printed manual in the box, this is part of our
commitment to minimizing environmental impact which also translates into end user savings.
This user manual covers features up to v3.0 firmware. Some functionality may not be available with earlier firmware versions.
MAIN FEATURES
Supported operating systems: Any with Ethernet networking support. Windows, OS X, Linux, iOS, Android.
Fully compatible with software suitable for ENTTEC USB DMX Pro. Drivers for Windows, OS X, Linux.
ultraDMX2 PRO - 2x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support.
DMX512 Out or DMX512 In functionality selectable on each port.
Merge 2 incoming Art-Net/sACN streams per output channel with both HTP and LTP options.
Merge Art-Net/sACN + DMX input -> DMX output.
Merge DMX input + USB DMX source -> DMX output.
USB DMX enhanced mode for 2 Universe Out or 1 In 1 Out.
1500V Isolation between every port.
Art-Net broadcast, Art-Net II, III & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
E1.20 RDM over Art-Net support.
Universe Sync Art-Net, sACN and Madrix Post Sync.
User configuration of Art-Net Node short and long names.
Compact tough metal enclosure.
Available with 3 pin or 5 pin XLR sockets.
Optional Power over Ethernet compliant with 802.3af PoE or passive 48V PoE.
Ethercon connector.
Accessory port for external show triggering and future add on devices.
Fully compatible with *ALL* software and hardware that supports Art-Net, Art-Net II, III & 4, and sACN protocols.
Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
Configuration utility with basic Art-Net output/input test functionality.
Recording and playback to microSD card (not included). See eDMX PRO Record / Playback manual.
Standalone show playback without computer or network connection.
Firmware updates can be performed by end user.
2. EXTERIOR VIEW

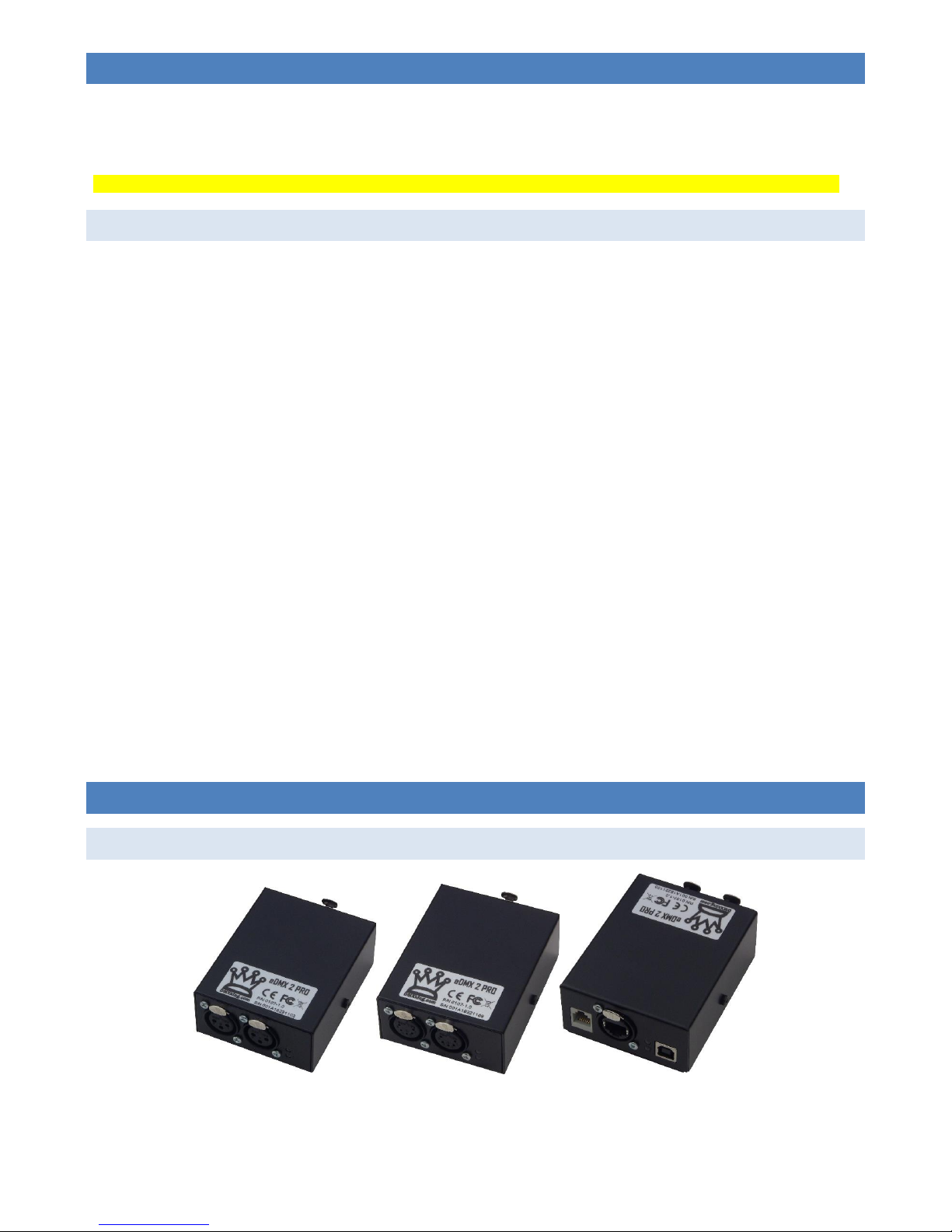

FRONT & REAR VIEW
Page 5
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
2
Ethercon connector for power/network using 802.3af PoE switch or power injector. Alternatively higher power 802.3at
switches/injectors or passive 48V PoE will also work. Two female 3pin or 5pin XLR connectors for DMX512-A input or output
function on each port. Port A on left, Port B on right. Port A indicator at top, Port B indicator at bottom. USB B socket for direct
5V power input and/or connection to host computer for USB DMX functionality. RJ12 socket for accessory connection. Upper
indicator Protocol/Activity, lower indicator network link/activity.
STATUS LED TABLE
LED
Indication
Data (upper)
Protocol activity. Red = RX, Green = TX, Orange = Boot loader mode
Network (lower)
Network activity. Green = Link, Flash = Traffic
A (upper)
DMX512 Port A. Green = TX, Red = RX
B (lower)
DMX512 Port B. Green = TX, Red = RX
3. INST ALLING T HE FTDI DRIVER
To use the USB DMX interface install the FTDI driver. Modern versions of Windows and OS X should do this automatically. Note
the FTDI driver isn’t required for pure Art-Net or sACN operations. eDMX2 PRO maximizes compatibility with existing software
using an FTDI ( www.ftdichip.com ) FT245RL device which provides USB 2.0 Full Speed interfacing. Drivers are available directly
from FTDI and in most cases the VCP (Virtual COM Port) driver should be used although both D2XX and VCP are installed by
default on Windows OS. The latest drivers are available from www.ftdichip.com/Drivers/VCP.htm
Please refer to the installation guides at www.ftdichip.com/Documents/InstallGuides.htm and note the process involved installs
2 devices, a USB serial device followed by USB virtual COM port. All required files are included in the driver installation file.
Page 6
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
3

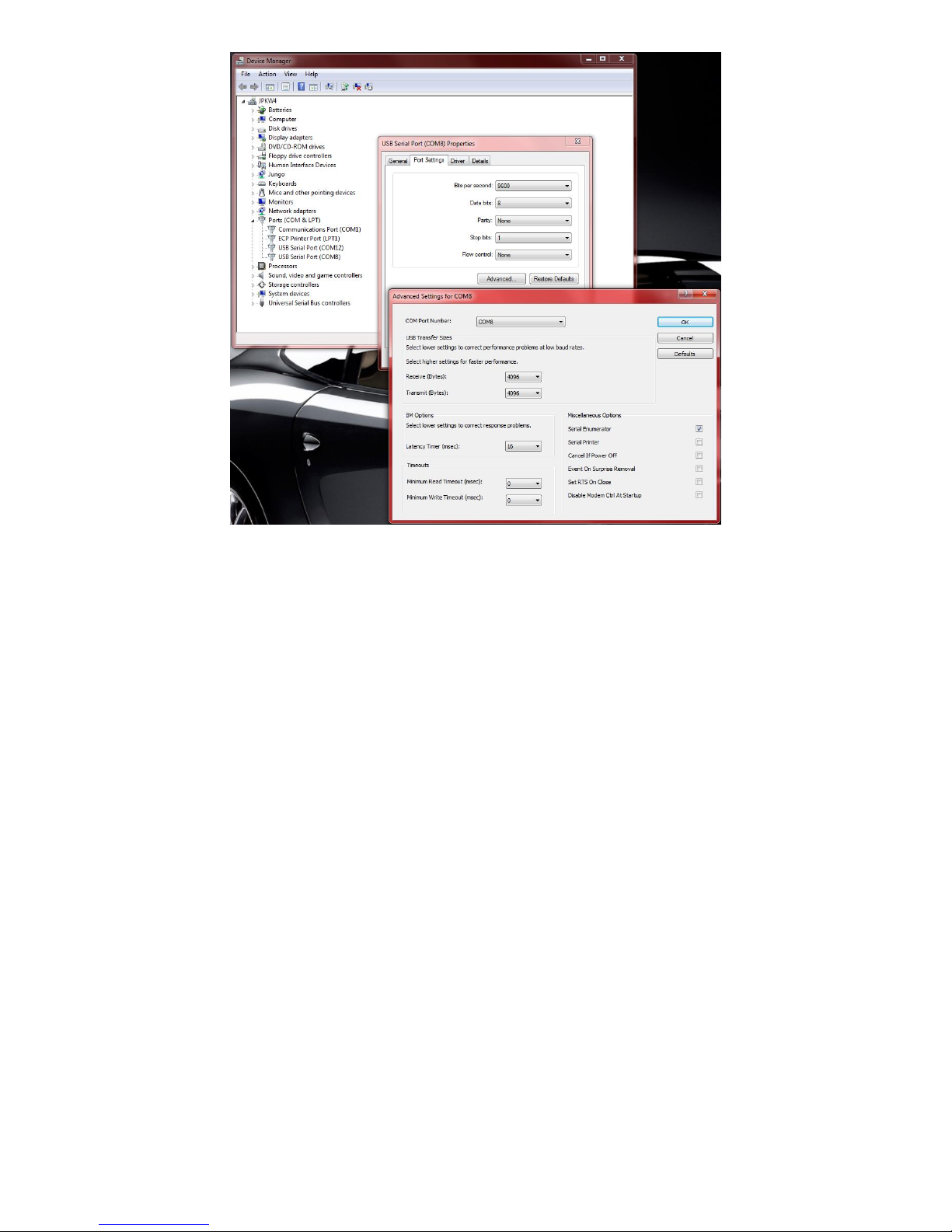

On occasion, you may wish to change the COM port number an eDMX2 PRO unit has been assigned by Windows. This can be
done through the Device Manager applet by right clicking on the USB Serial Port of interest (unplug/re-plug the unit and observe
if unsure which COM port) then select properties, Port Settings tab, Advanced button and finally choose the desired COM Port
Number.
Page 7
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
4
4. DEFAULT CONFIGURATION
All eDMX2 PRO units ship with default IP address settings and DHCP disabled. Please reconfigure for your requirements before
use.
Parameter
Default Setting
IP Address
192.168.0.112
Subnet Mask
255.255.255.0
Default Gateway
192.168.0.254
DMX512 and Art-Net configuration parameters are also configured with default values.
Parameter
Default Setting
Network Mode
Static IP address
*Operation Mode
DMX Out
*Fixed IP
0.0.0.0 [Only for DMX In – Unicast to 1 IP address only]
*DMX Universe
1, 2 [Net 00, Subnet 0, Universe 0, 1]
Note sACN Universe 1 = Art-Net 00:0:0
*Merge Mode/Timeout all sources
HTP, Timeout all sources unchecked
*DMX512 Update Rate
40 [DMX512 frames per second]. Universe Sync will override.
*RDM Packet Spacing
1/20s
*RDM Discovery Period (TX mode)
/ sACN Priority (RX mode)
0s [RDM Disabled]
*Broadcast Threshold
10 [Art-Net II/3/4 unicasting up to 10 nodes]. Set to 0 for Art-Net I
broadcast on DMX IN ports.
*Recall DMX Snapshot at startup
Recall unchecked
Recorder Tab
All options disabled/unchecked by default. TFTP Client IP 0.0.0.0
*These parameters are per port.
Page 8
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
5
USB DMX M ODES
In USB DMX mode the eDMX2 PRO operates either standard or enhanced functionality depending on your software. Note
compatible software is required for enhanced mode.
eDMX2 PRO operating modes:
1x OUT
(standard)
Compatibility mode. Universe 1
configured on Port A or Port B.
Device behaves just like ENTTEC USB Pro so works with large existing
software base. Provides 1 isolated DMX output.
2x OUT splitter
(standard)
Compatibility mode. Universe 1
configured on Port A & Port B.
Device behaves just like ENTTEC USB Pro so works with large existing
software base. Provides 2 isolated DMX outputs of the same
universe.
1x IN
(standard)
Compatibility mode. Universe 2
configured on Port B as DMX IN.
Device behaves just like ENTTEC USB Pro so works with large existing
software base. Provides 1 isolated DMX input.
2x OUT, 2 universes
(enhanced)
Enhanced mode. Universe 1
and 2 configured on Port A &
Port B respectively.
Equivalent to having 2x USB DMX units rolled into 1 enclosure and
USB connection. Requires compatible software.
1x OUT, 1x IN
(enhanced)
Enhanced mode. Universe 1
configured on Port A DMX OUT
and Universe 2 on Port B DMX
IN.
Equivalent to having 2x USB DMX units rolled into 1 enclosure and
USB connection with both DMX OUT and DMX IN unit. Requires
compatible software.
Switching between Standard and Enhanced modes is fully automatic and determined by your lighting control software. If
enhanced mode DMX output commands are sent to the ultraDMX2 PRO it enters enhanced mode and conversely when
standard DMX output commands are sent standard mode is triggered.
Note if Port A and Port B are not configured to the appropriate Universes the USB DMX functionality will not work. Only
Universe 1 and Universe 2 are used for USB DMX. Use the auto-configuration in ultraDMX Configuration Utility v1.9+ for simple
setup of USB DMX configurations (firmware 3.1 and above).
5. CON FI GURATION U TILITY
Because this unit is both USB DMX and Ethernet DMX there are 2 configuration utilities that can be used. The majority of
features are setup using eDMX Configuration which requires a network connection to the eDMX2 PRO device. Basic setup
relevant to USB DMX operation is available using the ultraDMX Configuration Utility v1.9 and above with firmware 3.1 and
above.
The eDMX Configuration utility provides a simple interface to all device parameters. Typically these are set once during initial
configuration and left untouched. If you are not confident in setting up network IP Address, Subnet Mask and Default Gateway
parameters please get in touch with DMXking.com support and we’ll walk you through the process. By default DHCP is disabled.
Special note: Once you’ve finished configuring your eDMX2 PRO close the application before starting your lighting control
application if it’s run from the same computer.
Page 9
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
6

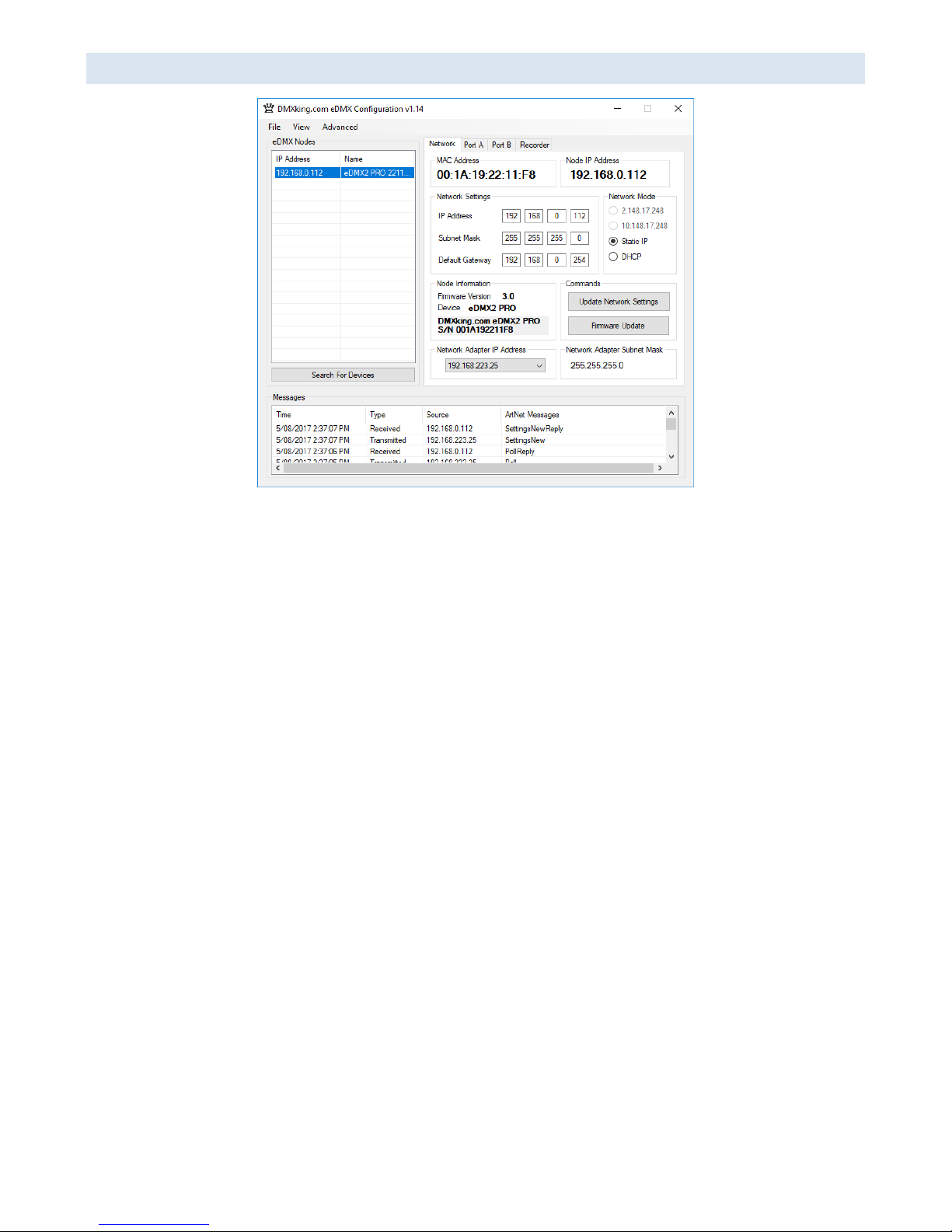

NETWORK TAB
Before starting the eDMX Configuration utility please ensure your computer has appropriate IPv4 network settings, for example
IP 192.168.0.100 Subnet 255.255.255.0 Gateway 192.168.0.254.
Upon startup eDMX devices on the same subnet are automatically detected and displayed by IP address. You can re-poll for new
devices or just check the communications is okay by clicking “Search For Devices”.
Click on the desired device’s IP address in the list and all Settings will be retrieved. Note that if no response is received the
settings will be greyed out. An activity box shows both transmitted and received messages to help with diagnosing
communication issues. If your network configuration has multiple adapters and or IP addresses you need to select the same
network range as the eDMX from the Network Adapter IP Address dropdown box and also ensure the subnet mask is
appropriate.
Make changes to the applicable settings on the Network tab then click “Update Network Settings”. If you select the Art-Net
2.x.y.z or 10.x.y.z addressing scheme please note the custom IP address will still be valid during initial boot stages (i.e. firmware
updates are always on the Network Settings address, not 2.x.y.z or 10.x.y.z) The eDMX unit will reboot after network any
settings changes.
Selecting “Firmware Update” will prompt for an appropriate firmware file and upload upon confirmation. A built in boot loader
permits updating of the eDMX firmware. Note only signed encrypted firmware files from DMXking.com can be successfully
loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0107500-VersionMajor.VersionMinor.enc
The Port A & B tabs provide access to the DMX512 port parameters.
Page 10
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
7

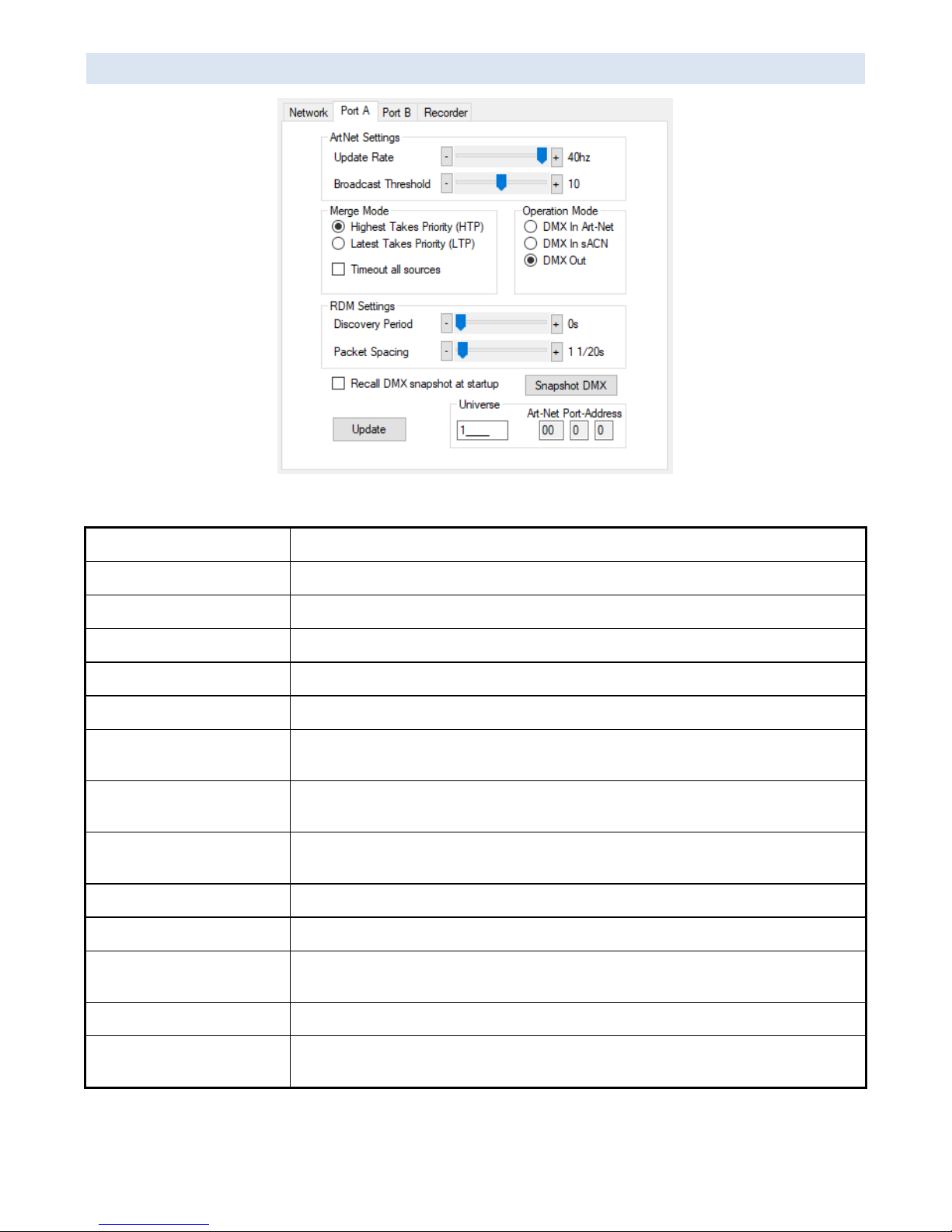

PORT TAB
Make changes to the applicable Port settings then click “Update”.
Parameter
Usage
MAC Address
Factory programmed Ethernet MAC address
IP Address
IPv4 network address
Subnet Mask
Subnet mask, typically 255.0.0.0, 255.255.0.0 or 255.255.255.0 for class A,B & C respectively
Default Gateway
Address of network gateway (router) for communications beyond local subnet
Network Mode
DHCP or Static IP
Operation Mode
DMX IN Art-Net, DMX IN sACN, DMX OUT (both Art-Net and sACN are enabled). Fixed IP is
0.0.0.0 by default which equates to OFF. Setting a Fixed IP forces DMX IN unicast to 1 IP only.
DMX Universe
sACN 1-63999 which is translated to an Art-Net Port-Address (Net:Sub:Uni). Setting DMX
Universe = 1 results in sACN Universe = 1 and Art-Net 00:0:0 (Universe 1 = Art-Net Universe 0)
Merge Mode
HTP (Highest Takes Precedence - dimmers), LTP (Last Takes Precedence – moving lights).
Timeout all sources: Last Art-Net or sACN stream source if lost will timeout DMX output.
Update Rate
DMX512 output frame rate/frequency. Universe Sync takes precedence.
RDM Packet Spacing
Number of 1/20sec intervals enforced minimum between RDM messages on DMX line
RDM Discovery Period (TX) /
sACN Priority (RX mode)
Number of seconds between internally initiated RDM Discovery attempt. Setting Discovery
Period = 0s will disable RDM which is the default. In receive mode – sACN Priority 0 – 200.
Broadcast Threshold
0 = Force Art-Net broadcast mode, > 0 Art-Net II/3/4 unicast.
Recall DMX snapshot at startup
Recall snapshot scene at power on and output until Art-Net or sACN source received.
Snapshot DMX button records current DMX output to snapshot memory.
Page 11
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
8
RECORDER TAB

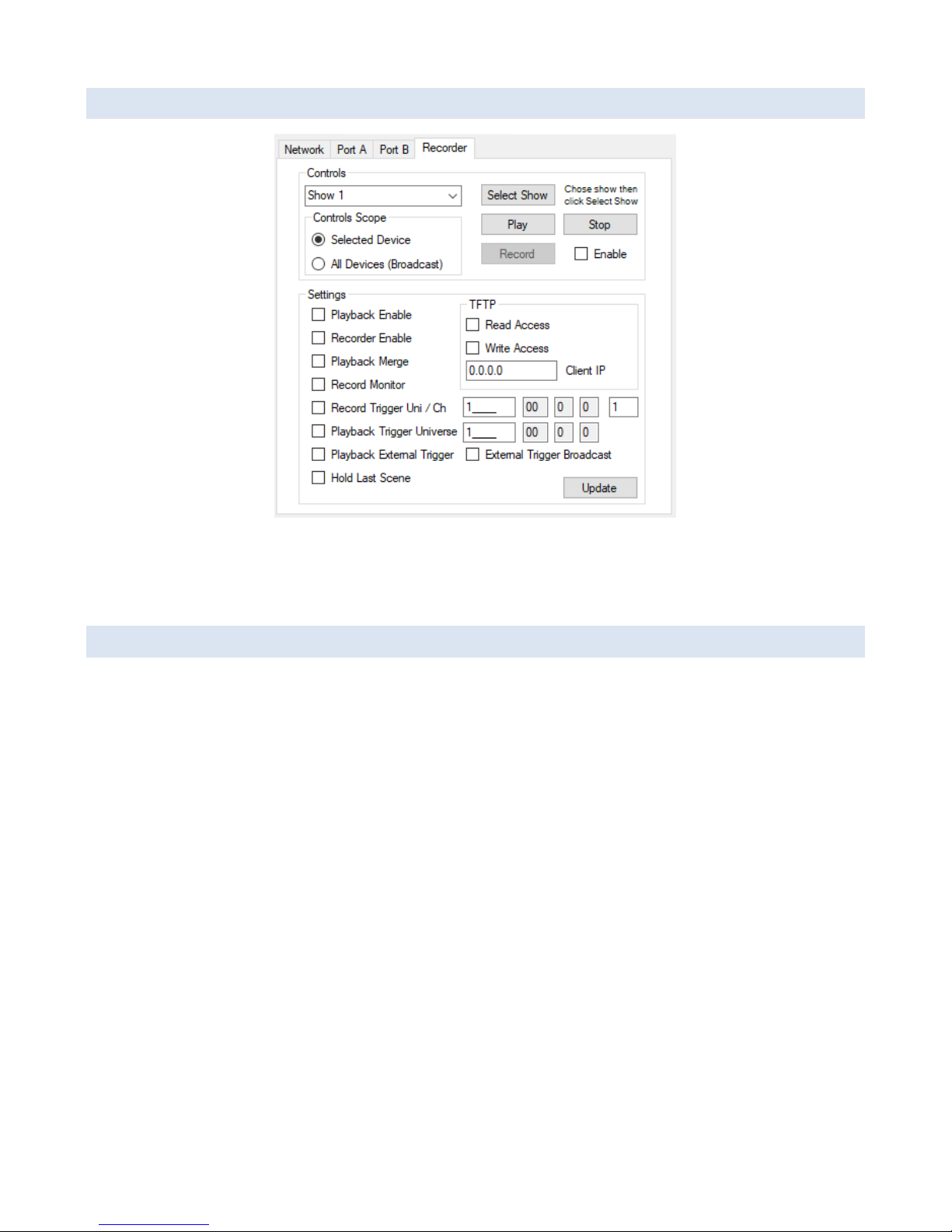

Please refer to the eDMX PRO Recorder manual for more information. This functionality is common to all eDMX PRO, LeDMX
PRO and ultraDMX2 PRO devices.
DMX DISPLAY FUNCTION

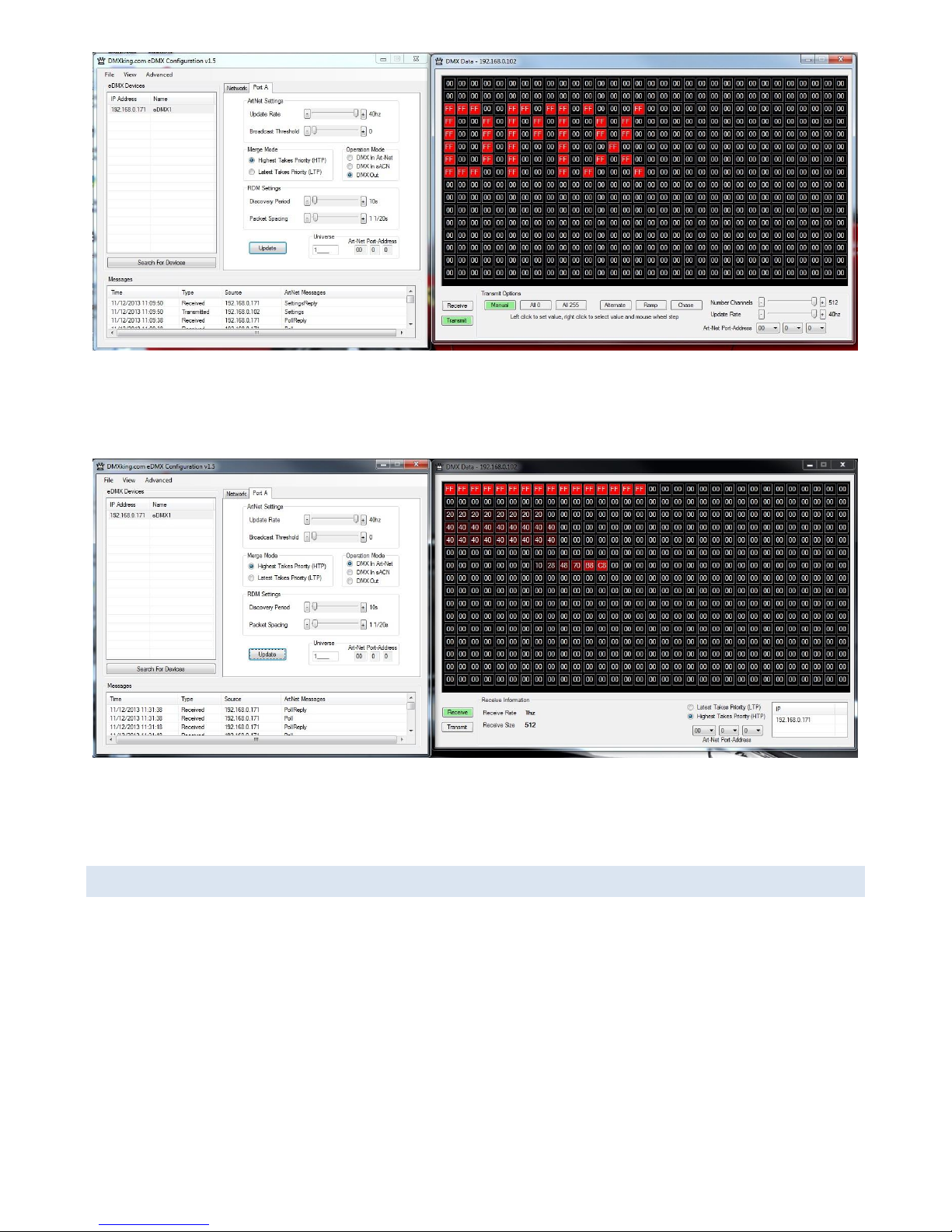

Select View | DMX Display for a simple DMX512 test utility. To generate an Art-Net output stream click Transmit then select one
of the 6 Transmit Options and change Art-Net Universe as applicable. When in Manual mode you can click on any of the
channels (represented by small boxes with hexadecimal channel level inside) to set ON level and double click to set zero. The
mouse scroll wheel adjusts a channel by a defined increment. Channel number increases left to right, top to bottom and the
roaming tool tip provides information about a specific channel.
Both the ON level and mouse wheel step can be set by right clicking anywhere within the black display area. Number of channels
transmitted and the refresh rate can be adjusted using the applicable sliders adjacent to transmit options.
Page 12
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
9
Changing to Receive mode will display the selected Art-Net universe number with merged streams if more than 1 is present.
Note Art-Net II unicast is not supported meaning only Art-Net broadcast streams are displayed.
The DMX Display utility works with any manufacturers Art-Net hardware and can be useful for diagnostics and simple testing of
DMX512 fixtures.
ADVANCED OPTIONS
IGMP Unsolicited Period can be configured where an IGMP Querier is not always active in a multicast (sACN) network. We highly
recommend ensuring your network infrastructure manages IGMP Requests appropriately however setting the IGMP Unsolicited
Period from 5 – 255 seconds permits multicast traffic to function correctly even when the IGMP Querier is off-line. Set to 0s to
disable (default). This is only available in firmware 3.0+ and can be accessed using the Advanced | IGMP Unsolicited Period
dialog.
Page 13
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
10
ART-NET NODE NAME

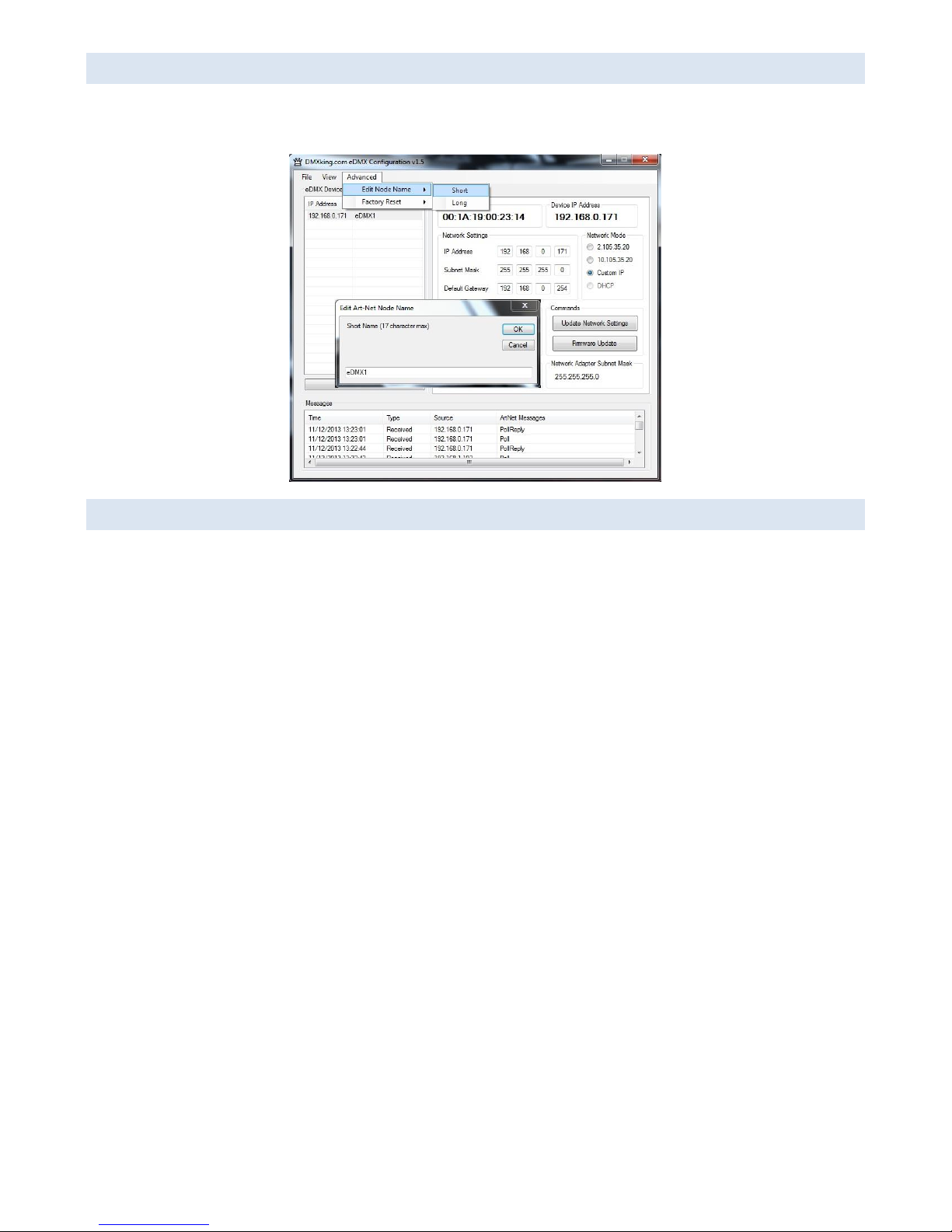

The Art-Net protocol supports device naming which can make larger installations more manageable. Both Short Name (17
characters) and Long Name (63 characters) for an eDMX Device can be modified using the Advanced | Edit Node Name dialog.
FACTORY RESET
This is a last resort option if for whatever reason incorrect or forgotten device network settings have rendered your device
unusable. A word of warning – this function will factory reset *ALL* eDMX devices on your network so it’s critical to separate off
the device requiring reset. We recommend directly connecting a computer and eDMX device using a crossover cable so there’s
no chance of additional eDMX devices accidentally being reset too.
Several warnings are presented before the command is sent. This function is not intended for use with eDMX/LeDMX PRO and
ultraDMX2 PRO devices and will not have any effect in firmware 3.0+.
Page 14
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
11
6. PORTS, MERGING, PRIORITY AND DMX INPUT
PORTS AND MERGING
Each DMX Port is fully independent which allows for configurations including setting multiple ports to the same universe. A
commonly used configuration for eDMX2 PRO is 2x isolated DMX512 outputs of the same universe, thus turning the eDMX2 PRO
into a USB DMX or 1 universe Art-Net/sACN node + 2 port isolated splitter in one.
DMXking products are capable of several advanced merging and stream selection functions usually only found on high end
equipment. Support for both HTP (Highest Takes Precedence) and LTP (Latest Takes Precedence) merging of 2 sources producing
a single DMX512 output thus permitting 2 controllers to co-exist for 1 lighting rig. To achieve DMX stream merging simply send 2
Art-Net or sACN streams with the same Universe ID and configure the applicable merge scheme HTP or LTP. If the number of
sources exceeds 2 only the first 2 will be processed and all others are dropped. Possible merging sources are:
Source
Notes
Art-Net I, II, 3 or 4
Priority 100 is assigned to permit Art-Net + sACN merge/priority functionality.
sACN / E1.31
Only sACN sources of the same Priority will be HTP or LTP merged.
DMX In Art-Net
Configure DMX In port universe to the same as DMX Out port universe. Priority is 100.
DMX In sACN
Configure DMX In port universe to the same as DMX Out port universe. Priority is defined by
the Discovery Period slider (values of 0-200 valid).
USB DMX
Source is Universe 1 Priority 100. Note if using 2 universe USB DMX mode 2nd is Universe 2.
SUPP ORTED MERGING CO MBINATIONS
Source 1
Source 2
Notes
Art-Net
Art-Net
Sources are timed out 3 seconds after last received frame.
sACN / E1.31
sACN / E1.31
Sources will end immediately upon sACN stream termination flag, otherwise 3 second
timeout after last received frame.
Art-Net
sACN / E1.31
Art-Net source timed out 3 seconds after last received frame, sACN stream termination flag
otherwise 3 second timeout after last received frame.
DMX In
Art-Net
Merge external DMX512 source (i.e. console) with incoming Art-Net stream.
DMX In
sACN / E1.31
Merge external DMX512 source (i.e. console) with incoming sACN stream.
USB DMX
Art-Net
Sources are timed out 3 seconds after last received frame.
USB DMX
sACN / E1.31
USB DMX source timed out 3 seconds after last received frame, sACN stream termination
flag otherwise 3 second timeout after last received frame.
USB DMX
DMX In
Merge external DMX512 source (i.e. console) with USB DMX source.
SACN / E1.31 PRIORIT Y
At any time if a higher priority sACN stream is received it will take over control a DMX Out channel regardless of other incoming
streams or merging. When an sACN stream is stopped gracefully via a stream terminate message the eDMX2 PRO port will
immediately revert to whatever other sources are present, otherwise the default stream timeout of 3 seconds applies. If you
want to HTP/LTP merge 2 sACN streams together they must be of the same priority.
Page 15
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
12
SACN / E1.31 PRIORITY – DMX RECEIVE
When a port is configured for DMX IN sACN operation the RDM Discovery Period parameter doubles up as sACN Priority since it
is otherwise unused. This permits DMX Inputs to generate sACN multicast or unicast streams with a specific priority.
DMX512 IN – UNICAST / BROADCAST / MUL TIC AST
When you feed a DMX512 signal into an eDMX2 PRO Port configured as DMX In Art-Net the following will determine Art-Net
unicast or broadcast:
1. If Broadcast Threshold = 0 the frame is always broadcast on the IP subnet.
2. If Broadcast Threshold > 0 and number of detected Art-Net II/3/4 devices "subscribed" to that universe is less than the
threshold the frame is unicast to each device.
3. If Broadcast Threshold > 0 and the number of detected Art-Net II/3/4 devices "subscribed" to that universe is greater
than the threshold the frame is broadcast on the subnet.
4. If Broadcast Threshold > 0 and zero Art-Net II/3/4 devices are "subscribed" to that universe the frame is broadcast on
the subnet.
5. If Fixed IP is not 0.0.0.0 the frame is only unicast to the specified IPv4 address.
As you can see there are multiple ways broadcast could occur. The implementation is done like this to ensure compatibility with
mixed Art-Net I/II/3/4 device networks but still permit unicast only when Art-Net II/3/4 devices are used exclusively.
For DMX IN sACN multicast frames will be generated when Fixed IP is 0.0.0.0 otherwise frames are unicast to the specified
destination.
7. COMPATIB LE SOFTWARE
Art-Net/sACN and DMX512 are the most commonly used lighting control protocols with roots in simple theatrical light dimming.
These days almost any lighting or stage effect equipment may be controlled using DMX512 (with explicit exclusion of anything
involving potentially dangerous operations such as pyrotechnics) including moving lights, LED screens, fog machines and laser
displays.
The DMXking.com eDMX2 PRO unit is a 2 universe USB/Art-Net/sACN device designed for use with computer based show
control software. It replaces an entire lighting console allowing the user to perform sophisticated shows with little more than a
laptop. There are many free and commercial software packages available and by selecting Art-Net or sACN as your DMX device
compatibility is guaranteed. For USB DMX operation in general select Enttec USB Pro.
Check the following page for a short list of compatible software:
http://dmxking.com/control-software
Page 16
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
13
8. USB COMMUNICATIONS PROTOCOL
The eDMX2 PRO uses ENTTEC’s DMX USB Pro Widget API Specification 1.44 (as used for ENTTEC DMX USB Pro). You can find this
document on Enttec’s website.
DMXking has added several extensions to cater for additional output universes and other product identification data.
ENHANCED MODE
Label = 100 Output Only Send DMX Packet Request Universe 1 on output(s) configured as Universe 1 (same format as label 6)
Label = 101 Output Only Send DMX Packet Request Universe 2 on output(s) configured as Universe 2 (same format as label 6)
When in Enhanced Mode Port B can be configured as DMX In Art-Net/sACN for simultaneous DMX Out and DMX In functionality.
If both Port A and Port B are configured as Universe 1 then Port B will merge with the USB DMX source.
COMPATIBILITY MODE
When Label 6 data is received the eDMX2 PRO reverts back to standard mode and outputs only 1 universe on output(s)
configured as Universe 1.
MANUFACTURER AND DEVICE NAME EXTENSIONS
All DMXking.com USB DMX units also support Device Manufacture and Device Name extensions as detailed here:
http://www.opendmx.net/index.php/USB_Protocol_Extensions
Page 17
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
14
9. TECHNICAL SPECIFICAT IONS
• Dimensions: 75x36x104mm (WxHxD)
• Weight: 0.29kg
• DMX512 connector: 3 or 5 pin XLR Female per port
• Internal DMX512-A line biasing termination as per ANSI E1.20 RDM requirements.
• 1500V isolation on each port.
• Power input: 802.3af Power over Ethernet. Maximum power budget 7W.
• Art-Net, Art-Net II, Art-Net III, Art-Net 4 and sACN/E1.31 support.
• ANSI E1.20 RDM compliant with RDM over Art-Net.
• Universe Sync Art-Net, sACN and Madrix Post Sync.
• Both HTP and LTP merging of 2 Art-Net/sACN streams per port
• sACN Priority
• Internal merging capability with DMX In and DMX Out ports on same Universe.
• IPv4 Addressing
• IGMPv2 for multicast network management
• DMX512 Frame Rate: Adjustable per port
10. WARRANTY
DMXKING.COM HARDWARE LIMITED WARRANTY
What is covered
This warranty covers any defects in materials or workmanship with the exceptions stated below.
How long coverage lasts
This warranty runs for one year from the date of shipment from an authorized DMXking.com distributor.
What is not covered
Failure due to operator error or incorrect application of product. Opening the unit voids the warranty.
What DMXking.com will do
DMXking.com will repair or replace, at its sole discretion, the defective hardware. Return shipping costs from our service facility
in New Zealand shall be free of charge.
How to obtain service
Contact DMXking.com directly by email [email protected]
11. DECLARATIONS (FCC & CE)
FEDERAL COMMUNICATIO NS COMMISSION (FCC) DECLARATION OF CO NFO RMITY
Responsible Party: JPK Systems Limited
PO Box 493
Page 18
DMXking.com • JPK Systems Limited • New Zealand
0107-700-1.1
15
Pukekohe 2340
New Zealand
declares that the product eDMX2 PRO complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
EEC DECLARATION
We
JPK Systems Limited
PO Box 493
Pukekohe 2340
New Zealand
declare under our sole responsibility that our product eDMX2 PRO conforms to the
requirements of Council Directives 89/336/EEC and 73/23/EEC and therefore complies with
the requirements of Council Directive 73/23/EEC, (The Low Voltage Directive) on the
harmonisation of the laws of Member States relating to electrical equipment designed
for use within certain voltage limits as amended by Article 13 of Council Directive
93/68/EEC
• EN 55103-1
• EN 55103-2
• EN 60065
Signed: Jason Kyle
Date: 24 February 2016
Position: Managing Director
Loading...
