Page 1

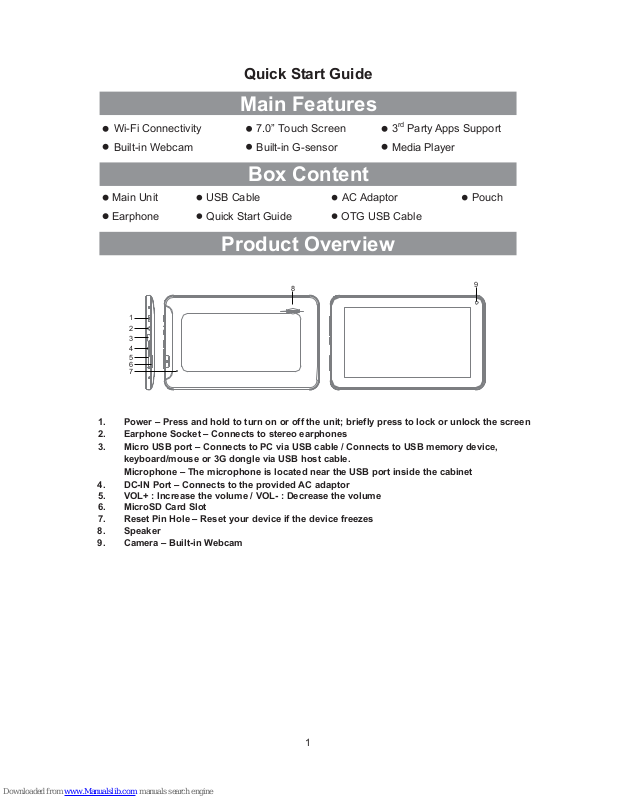

Quick Start Guide
1
Main Features
Wi-Fi Connectivity 7.0” Touch Screen 3rdParty Apps Support
Built-in Webcam Built-in G-sensor Media Player
Box Content
Main Unit USB Cable AC Adaptor Pouch
Earphone Quick Start Guide OTG USB Cable
Product Overview
8. Speaker
4. DC-IN Port – Connects to the provided AC adaptor
9. Camera – Built-in Webcam
5. VOL+ : Increase the volume / VOL- : Decrease the volume
3. Micro USB port – Connects to PC via USB cable / Connects to USB memory device,
k
Microphone – The microphone is located near the USB port inside the cabinet
eyboard/mouse or 3G dongle via USB host cable.
1. Power – Press and hold to turn on or off the unit; briefly press to lock or unlock the screen
6. MicroSD Card Slot
7. Reset Pin Hole – Reset your device if the device freezes
2. Earphone Socket – Connects to stereo earphones
1
2
3
4
5
6
7
8
9
Page 2
Quick Start Guide
2
Before operation
To turn on the device, press and hold the Power button on the unit and release it when
you see the boot-up screen. It may take one or two minutes to start up the system,
please be patient before you proceed.
To turn off the device, press and hold the
Power button to bring up the “Power Off” option,
then tap on “Power Off” and “OK”.
Power On / Off the Device
The screen display will be locked when the device is idle for a few seconds.
You need to unlock the screen by dragging the lock icon rightwards
before you continue to use the device.
Unlock the Screen Display
Charge the device when it indicates low battery. To charge the battery, connect the
device to any standard wall outlet via the DC-IN port using the power adaptor. It takes
about 5 hours to fully charge the battery. Your device can be charged via USB Port as
well. Use USB charger with rating of 5V 1A or above.
Charge the Battery
To install a memory card, find the card slot on the device and then insert the memory
card into the slot in the correct orientation.
Install Memory Card
You may need to transfer media files from a computer to the device.
(1) Connect the device to a computer with the supplied USB cable.
(2) Once the connection is done, an icon of mobile phone (internal memory) will
appear
on your computer.
(3) Copy files from the PC to the internal memory or the memory card.
Transfer Files from PC
If the above operation does not work, use a pin to penetrate into the “pinhole reset”
button.
Reset the Device
During playback of music or video, you can tap on the progress bar to change the
playback progress.
General Touch Actions
Page 3
Quick Start Guide
3
Basic Operation
Home Screen
Tap the Setting icon on the Home Screen to open the
system setting menu. Here you can setup the working
environment for the device, e.g. Language, Display,
Wi-Fi, Sound, Apps etc.
System Settings
In different browsers (e.g. File, Music etc.), you can slide your finger on the screen
up and down to scroll the file list.
In some browsers (File, Music, Video, Web etc.), you may hold
your finger on an item to display options.
Tap on button to get back to previous operation interface;
tap on button to go to the Home Screen; tap on button
to display the menu options; tap on button to check the
recently opened apps.
Google
Search
Return
Go to Home
screen
Recently
opened apps
Time
WiFi
Battery
Level
Shortcut to
Play Store
Go to apps
page
Page 4
Quick Start Guide
4
To add a Home Screen item (shortcut, widget etc.), you can tap the application icon
to display all applications and widgets, then hold your tap on an item to place it
on the home page.
Customizing Home Screen Items
Before launching the web browser, you first need to activate the Wi-Fi and configure a
Wi-Fi network.
(1) Tap tap the Apps Tab to display all apps.
(2) Tap the Setting icon on the apps screen.
(3) Slide the Wi-Fi toggle switch to “ON” to turn on Wi-Fi.
(4) The device will scan automatically for available Wi-Fi
networks and display them.
(5) Choose a network from the list and then tap “Connect”
to connect.
Make Wi-Fi Connection
To move a Home Screen item, hold your finger onto
it to highlight it, then drag it to the desired location,
and release it.
To remove a Home Screen item, hold your finger onto
it to highlight it, drag it to the recycle bin “X Remove”
and then release your finger.
To change the wallpaper, hold your tap on the Home
screen till a menu appears, then tap on “Wallpaper”
to set the desktop wallpaper.
Note: If current page of the Home Screen doesn't have enough room for a
shortcut or widget, you will be prompted that there is no more room.
Hold down
Hold down
The device has many useful pre-installed applications/widgets. You can tap the
Application Tab to display them.
Display all Applications and Widgets
Page 5
Quick Start Guide
5
Besides Wi-Fi connection, you can access internet by 3G dongle. Connect a 3G dongle
(not provided) to the device through the USB host cable and then the 3G network is
enabled with 3G network icon appearing at the bottom right of the screen. You can surf
on the Internet freely now.
Using 3G Dongle
To launch the Web browser, you can tap the Application Tab and then the Browser
icon in the Home screen.
Launching the Web browser
(1) Tap the Music icon in the application page to
launch the music player.
(2) Navigate through the music library.
(3) Select a file and tap it to enjoy the music.
Playing Music
(1) Tap the Video icon in the Home Screen to
launch the video player.
(2) Navigate through the video files if available.
(3) Tap on a video file to start playing it.
Playing Videos
(1) Tap the Gallery icon in the application page to launch the Photo Gallery.
(2) Browse photos listed in thumbnail.
(3) Tap a photo thumbnail to view the photo in full screen.
(4) To display the previous/next picture, slide your finger on the screen horizontally.
(5) To zoom in or out the picture, pinch your finger on the picture.
Viewing photos
Page 6
Quick Start Guide
6
You can check or manage your files with FileBrowser application.
(1) Tap the FileBrowser icon in the apps page to open this mode.
(2) In this mode, you can look through all your file resources.
(3) You can also manage your file resources by bringing up the menu.
Managing the Files
There are number of useful apps pre-installed in the device as it is produced at the
factory, and you can copy, download or purchase some 3rd apps from other resources
(e.g.
the Internet).
Managing apps and tasks
Download or purchase apps
With your device, you can visit an apps store or E-market website (e.g. SlideMe) that
offers you plenty of free or paid apps to download.
Install apps
(1) Open the Explorer application, then find the app you want to install.
(2) Tap the app to start installation. However, for the sake of security, the installation
may be blocked if the device is not sure of the source of the app. In this case, you
shall have to check the “Unknown sources” in the pop-up setting menu before you
go on with the installation.
(3) Once the installation finishes, you can find the icon of the app in the apps screen.
It is available for you now.
You can receive and send emails with this device if internet access is available.
Setup your Email Account
(1) Start up the email application by tapping the Email application icon.
(2) Input your email address and login password.
(3) Tap “Manual Setup” to set the email server information.
(4) Click “Next” to continue. Your tablet will check the server settings. When it prompts
you that “Your account is set up, and email is on its way”, your account is set up
successfully.
(5) Input your name and then
tap on “Done” to finish.
Receiving and Sending Emails
Page 7
Quick Start Guide
7
Uninstall 3rdparty apps
(1) Tap the Settings icon to display setting menus.
(2) Select “Apps”.
(3) Tab on the application that you want to uninstall.
(4) Tab on “Uninstall” to uninstall the application.
(5) You can simply tap and hold on an app icon to jump to the Home Screen,
then drag it to the dustbin icon to uninstall it.
Managing tasks
You can handle multiple tasks at the same time with this device. For example, you can
view photos while listening to music.
(1) To remove the apps used recently, you can tap button to display them, then
hold your tap on the app that you want to stop, and finally select “Remove from list”.
(2) You can also run the application Advanced Task Killer (if avaialble) to kill your tasks.
(3) You can open the Settings menu and select Apps to stop the tasks.
You cannot uninstall the pre-installed applications, but you can deactivate or
stop them; Only the 3rd party apps you installed can be uninstalled.
Make sure all apps you have copied or downloaded to your device are in the
.apk format.
Note:
Page 8
Quick Start Guide
8
View memory information for your device and memory card. You can also format the
memory card.
Storage
Formatting a memory card will permanently delete all data from the memory
location.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default applications occupy part of
the memory.
Unknown sources: Set the device to install applications downloaded from any source.
If you do not select this option, you can install only applications downloaded from Play
Store.
Security
Page 9
Quick Start Guide
9
Change the settings to control how time and date appears on your device.
Date and time
Automatic date and time: Set to receive time information from the network and
update the time and date automatically.
Set date: Set the current date manually.
Set time: Set the current time manually.
Automatic time zone: Set to receive time zone information from the network
when you move across time zones.
Select time zone: Select a time zone.
Use 24-hour format: Set to show the time in 24-hour format or 12-hour format.
Select date format: Select a date format.
Change the settings for languages and text input.
Language: Select a display language.
Keyboard & input methods: Select a text input method.
Language and input
Page 10
Quick Start Guide
10
Change the settings for managing settings and data.
Back up and reset
Back up my data: Set to back up your settings and application data to the
Google server.
Backup account: Set up or edit your Google backup account.
Automatic restore: Set to restore your settings and application data when
you must reinstall an application.
Factory data reset: Reset your settings to the factory defaults and delete all
your data.
View information about your device, such as model number and version.
About tablet
Page 11
Quick Start Guide
11
WARNING: Your tablet will be reset to factory default and all data will be deleted.
Use Vol+ / Vol- to move the highlight to "wipe data/factory reset".
Press "power" button to select.
Use Vol+ / Vol- to move the highlight to "Yes -- delete all user data".
Press "power" button to select.
Doing factory reset by Recovery Mode
While the tablet is powered off, press and hold "Power" and "Vol+" buttons
at the same time for 15 seconds
nce the recovery mode picture appears, press and hold "Power", then press
"Vol+" button once to enter recovery
Page 12
Quick Start Guide
12
Specifications
LCD
Screen Size
7
"
Screen Resolution
800*480TN
System Physical Standard Configuration:
snoitpircseDsliateDepyT
Speed
1.0GHz
TP
Touch Module
capacitive
Battery
Type
Lithium-ion polymer battery
Capacity
2600mAh/3.7V,
Battery life (hours)
5 (Music playback) / 4 (video playback) /
3 (web browsing)
RAM
Capacity
512M DDR3
System hardware configuration:
snoitpircseDsliateDepyT
CPU
Type
RK2926 Core Cortex-A9
GPU
Type
Mail-400
Speed
400MHz
ROM Flash
Capacity
4GB (1.5GB used for Apps storage
1.4GB used for system)
Camera
Front Facing
0.3MP
Rear Facing
NO
Speaker
Size
G
Earphone Audio output
HDMI Video output
-sensor
Built-in
Gravity acceleration sensor
NO
Power Adaptor
AC to DC adapter
Bundled Accessories:
snoitpircseDsliateDepyT
USB data cable
Micro USB to Type A (Male)
Connect to PC
USB OTG cable
Micro USB to Type A
(Female)
OTG to HOST
Operating System
System Software
Operating system version
Android 4.1.1
Language
Multi-language Supported
FLASH
Software Configuration:
snoitpircseDsliateDepyT
FLASH 11; Hardware decoding Supported
HTML5
Ebook
Audio
Video
Supported
Supported
Supported
Supported
Supported
Microphone Audio recording
Built-in microphone
Specifications and contents of this manual are subject to change without notice.
Page 13
Quick Start Guide
13
Rev. 130918
This symbol on the product or in the instructions means that your electrical and
electronic equipment should be disposed at the end of its life separately from your
household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you
purchased the product.
Loading...
