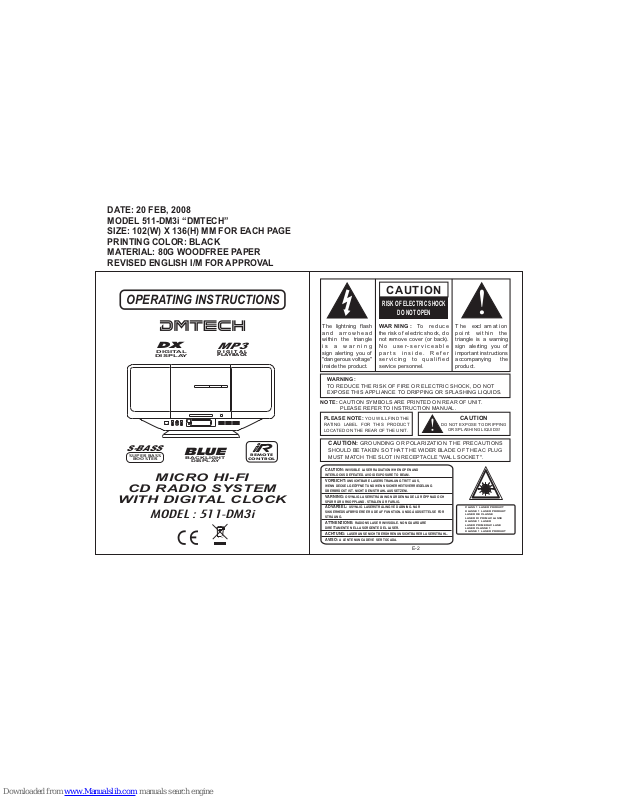

Page 1
WAR NI NG : To r ed uce
the risk of e lectric shock, do
not remove cover (or back).
N o u s er - se r vi c ea b le
p a r t s i n s i d e . R e f e r
ser vi ci ng to q ua li fi ed
service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The excl am at ion
poi nt wit hi n t he
triangle is a warning
sign alerting you of
important instructions
accompanying the
product.
The lightning flash
a nd a rr o w he ad
within the triangle
i s a w a r n i n g
sign alerting you of
"dangerous voltage"
inside the product.
CAUTI ON
DO NOT EXPOSE TO D RIPPING
OR SPL ASHING LIQ UIDS!
NOTE: CAUTION S YMBOLS A RE PRINTED ON REAR O F UNIT.
PLE ASE RE FER TO INSTRUCTIO N MANUAL.
WARNING :
TO RED UCE TH E RISK OF F IRE OR ELEC TRIC SHOCK, DO NOT
EXPOS E THIS A PPLIAN CE TO D RIPPING OR SPLASHING LIQUIDS.
E-2
CLASS 1 L ASER PROD UCT
KLASSE 1 L ASER PRO DUKT
LASER DE C LASSE
LASER DI P RIMA CLAS SE
KLASSE 1 L ASER
LASER PRIM ERA CLASE
LASER CLAS SE 1
KLASSE 1 L ASER PRO DUKT
CAUTIO N: INVISIBL E LASER RADIATION WH EN OPEN AND
INTERLOC KS DEFEATED . AVOID EXP OSURE TO BEAM.
VORSIC HT: UNSIC HTBARE LA SERSTRAHLU NG TRITT AUS,
WENN DE CKEL GEÖF FNET UND WENN SIC HERHEITSVE RRIEGELUNG
ÜBERBRÜC KT IST. NICH T DEM ST RAHL AUSS ETZENI.
VARNING: OSYNLIG LA SERSTRÁLNI NG NÄR D ENNA DEL Ä R ÖPPNAD OCH
SPÄRR Ä R URKOPPL AND. STRÁ LEN ÄR FAR LIG.
ADVARSEL: USYNLIG L ASERSTRÁLI NG VED Á BNING. NÁ R
SIKKERHE DSAFBRYDERE ER UDE AF FUNKT ION. UNDG Á UDS/ETT ELSE FOR
STRÁLING .
ATTNENZIO NE: RADIONS LASER I NVISIDILE. NON GUA RDARE
DIRETTAMEN TE NELLA S ORGENTE D EL LASER.
ACHTUN G: LASERLIN SE NICHT BERÜHREN UNSICHTBA RER LASER STRAHL.
AVISO: A LENTE NU NCA DEVE S ER TOCADA .
PLEAS E NOTE: YOU WILL FIND T HE
RATING LABEL FOR T HIS PRO DUCT
LOCATED ON THE REAR OF TH E UNIT.
CAUTI ON: GROUNDING OR POL ARIZATIO N. THE P RECAUT IONS
SHOUL D BE TAKEN S O THAT THE WI DER BLA DE OF THE AC PLU G
MUST MATCH THE SLO T IN REC EPTACLE "WALL SOC KET".
MICRO HI-FI
CD RADIO SYSTEM
WITH DIGITAL CLOCK
OPERATING INSTRUCTIONS
MODEL : 511-DM3i
S-BASS
SUPER BASS
BOOSTER
BLUE
BACKLIGHT
DISPLAY
REMOT E
CONTR OL
DX
DIGITAL
DISPLAY
D I GI T A L
PLAYBACK
MP3
DATE: 20 FEB, 2008
MODEL 511-DM3i “DMTECH”
SIZE: 102(W) X 136(H) MM FOR EACH PAGE
PRINTING COLOR: BLACK
MATERIAL: 80G WOODFREE PAPER
REVISED ENGLISH I/M FOR APPROVAL
Page 2
E-3
LOCATION OF CONTROLS
1. ON/ OF F KEY
2. TIME S ET KEY
3. SUPER- BASS ( DBBS) K EY
4. CLOCK A DJUST “ HOUR” K EY
5. CD “RE PEAT/ PRO GRAM” KEY
6. CLOCK A DJUST “MINU TE” KE Y
7. SKIP + 10/ FOL DER KE Y
8. REMOT E CO NTRO L SE NSOR
9. BLUE BACK LIT DIS PLAY
10. CD “PL AY/PAUSE ” KEY
11. CD "BACK " KEY
12. CD “STOP ” KEY
13. CD "NE XT" KEY
14. VOLUME DOWN ( -) KEY
15.
16. RADIO T UNING K NOB
17. CD DOOR OP EN KEY
18. SPEAKE RS ( LEFT & RIGH T)
19. CD DOOR (MO TORIZE D)
20. DESK S TAND
21. HEADPHO NE JACK
22. BAND S WITCH (AM/F M/STERE O)
23. FUNCTI ON S WITCH
[RA DIO/CD (MP 3)/ AUX ]
24. A UX IN S OCKETS (LEFT & RIGHT )
25. SUB WO OFER OUTPUT SOCKET
26. FM-ANT ENNA WI RE
27. A C-CORD & PLUG
VOLUM E UP ( +) KEY
E-4
POWER S UPPLY
- THIS SET WORKS ON NORMAL HO USEHOLD AC-P OWER.
- MAKE SURE THE S ET VOLTAGE OF TH E UNIT MATCHES YOUR LOCA L VOLTAGE.
- INSE RT THE PLUG OF THE AC-COR D INTO A WALL OUT LET WITH AC-P OWER.
- PRES S THE ON/ O FF KNOB TO SWITCH “ON ” THE UNIT.
IMPO RTANT : HOW TO TELL IF P OWER IS "O N" ?
WHEN TH E POWER IS “ON” THE ENTIRE DIG ITAL DISPLAY WILL B E LIT UP WI TH
A “BLUE” BACK-LIGH T. THIS I NDICATES THE HI-FI IS S WITCHED “O N”.
- SET T HE FUNCTIO N SWITCH TO "RADIO".
- SET T HE RADIO B AND SELECTO R SWITCH TO THE DESIRE D BAND.
- ROTATE TUN ING KNOB TO TUNE-IN THE DESIRED S TATION, AS DISPLAYED IN T HE LCD
DIGI TAL DISP LAY.
- ADJUST THE VOLUME TO THE DESI RED LEVEL. (UP/ DOWN )
- TO IM PROVE FM-R ADIO RECEP TION, FULLY EX TEND THE F M-ANTENNA WI RE AND
ADJUST IT'S POSIT ION.
- TO IM PROVE AM (MW ) RADIO RE CEPTION, R OTATE OR R E-POSITION THE MAIN U NIT.
OPERATIO N OF RADIO
THE BU ILT IN "SUPER BASS BOOS TER" CIRCU IT PROVIDES A P OWERFUL
ENHANC EMENT TO LOW FREQUENCY MUSIC, GIV ING A STRONGER BASS SOUN D
WHICH IS IDEAL FO R "ROCK" O R "JAZZ" M USIC.
- THIS SET HAS A BUILT-IN DIGITAL CLOCK, WHICH IS DISPLAYED WHE N THE UNIT IS IN
"CD" MODE OR W HEN THE UNI T IS SWITC HED "OFF" (WITH AC-POW ER SUPPLY
CONN ECTED).
- TO SE T THE CORREC T TIME, PRE SS AND HOLD T HE "TIME S ET SWITCH" A ND PRESS
THE " MINUTE" AND "HOUR" ADJUS T SWITCHES TO ADVANCE TO THE CORRECT TIM E.
SUPER B ASS (DBBS) FU NCT ION
CLOCK F UNCTION - HOW TO SET CORRECT TIME
1818 19
17
20
21
22
1615
14131211
109876
5
4
3
2
1
23
1
17
7
10
12
13
11
15
14
26
27
24
25
Page 3
E-6
E-5
- AT ANYTIME DURING PLAYBA CK, "PRESS A ND HOLD" TH E SEEK/SCA N SWITCHES :
OR TO FAST-REVERSE OR FAST-FORWARD T HE SPECIFI C TRACK, WH ICH IS
CURR ENTLY PLAYING.
- AT ANYTIME DURING PLAYBA CK, PRESS T HE "CD REP EAT SWITCH" AS FOLLOWS:
PRESS ONCE = TO REPEAT THE CURRENT TRACK
(REPEAT
SYMBOL
WILL "F LASH")
PRESS T WICE = TO R EPEAT ALL TRACKS (FULL CD)
(REPEAT
SYMBOL
WILL STAY "ON " CONTIN UOUSLY)
HOW TO PLAY MP3 DISCS
- INS ERT A MP3 CD DISC, C LOSE THE DOOR.
- SLI DE THE F UNCTION SWITCH TO CD (MP 3) POSI TION.
- THE DISK WI LL SPIN AND PERFOR M A FULL CHE CK OF THE DISC TO COUNT TH E TOTAL
NUM BER OF S ONGS. TH EN PLAYBA CK OF TH E FIRST S ONG (TR ACK) WI LL BEGIN AN D
THE DISPLAY WI LL INDIC ATE THE CU RRENT TR ACK NO: (001).
- IF Y OUR DIS C HAS "F OLDER" ( SEE BEL OW) THE D ISPLAY WI LL SHOW T HE FOLDE R
NUM BER (eg . F01, F 02, etc. .) EVERY 5 SECON DS.
- AT ANY TIM E DURIN G PLAYBACK , PRESS AN D RELE ASE OR TO SKIP
BAC KWARDS O R FORWARD S BY ONE TRACK.
- MP3 DISCS O FTEN HAVE SEVERA L “FOLDER ” (SUB- DIRECTO RIES) W HICH CON TAIN
GRO UPS OF S ONGS.
- IF Y OUR MP3 -CD HAS NO FOLDE RS, YOU CAN USE T HE BUTTO N TO
JUM P 10 SON GS AHEAD. THIS IS USEFUL I F YOU HAVE MANY SON GS ON YOU WANT TO
QUI CKLY JUMP TO A PA RTICULA R SONG.
- PRE SS & REL EASE SE VERAL TIM ES UNTI L YOU REAC H A SONG
NUM BER NEA R TO YOUR DESIRED SONG, AN D THEN PR ESS "BA CK" OR " NEXT"
REP EATEDLY TO ARR IVE AND TH E EXACT SONG YOU DESIRE .
- IF YOUR MP 3-CD HA S FOLDER S, YOU C AN SELEC T THE FO LDER TO P LAYBACK B Y
PRE SSING AND HOLDIN G THE BUT TON FOR AB OUT 2 SE CONDS.
- EAC H TIME YO U PRESS & HOLD T HE BUTTO N (FOR 2 SECONDS ),
THE PLAYER JU MPS TO THE FIRST S ONG IN T HE NEXT F OLDER. (THE DIS PLAY WILL
ALTERN ATE BETWE EN THE SO NG NUMB ER & THE FOLDER NUMBER E VERY 5 SE CONDS) .
(NO TE: THE "FOLDER " FUNCT ION ONLY WO RKS ON M P3-DIS CS WHICH HAVE FOL DERS.
IF Y OUR DIS C HAS NO FOLDERS , PRESS ING WILL PERFORM THE
"SK IP +10" FUNCTIO N).
SKIP + 10/ FOL DER
SKIP + 10/ FOL DER
SKIP + 1 0/ FOLD ER
SKIP + 10/ FOLD ER
SKIP + 10/ FOL DER
- THIS UNIT HAS A M OTORIZED (M OTOR OPERATED ) AUTOMATIC CD- DOOR.
- PLEAS E NEVER TRY TO OPEN OR CLOSE THE DOOR MANU ALLY (BY HAND)
- ALWAYS USE TH E CD OPEN / CLOSE KE Y
- WHEN OPENING, T HE DOOR WI LL SWING U PWARDS AND STO P AUTOMATICALLY
WHEN IT IS FULLY OP EN. NEVER A PPLY PRESSURE ON THE DOO R TO OPEN
THE D OOR FASTER O R BEYOND I TS LIMIT.
- IF TH ERE IS ANY O BSTRUCTION WHEN OPEN ING THE DO OR (IF SOM ETHING
IS BL OCKING THE DOOR AND P REVENTING IT FROM OP ENING) THE DOOR WILL
AUTOMATIC ALLY STOP AND REV ERSE DIREC TION (CLOS E) AFTER 4- 5 SECONDS
TO PR EVENT DAMA GE TO THE C D-DOOR AND MOTOR.
IMPORTANT
MOTORIZ ED AUTOMATIC CD- DOOR - OPERA TION AND PRECA UTIONS
INSERTION & REMOVAL OF DISCS
- ALWAYS ENSURE THE DISC IS NOT IN M OTION (NOT SPINNING) WHEN YOU P RESS
THE C D-DOOR "OP EN" KEY. ALWAYS PRESS C D "STOP" KE Y TO STOP THE DISC
SPIN NING FIRST.
- CARE FULLY PLACE A COM PACT DIS C ONTO THE CENTER SPI NDLE WITH T HE LABEL
SIDE (PRINTED SIDE OF DI SC) FACING O UTWARDS (TOWA RDS YOU).
- PRES S THE "OPEN " KEY TO AUTOM ATICALLY CL OSE THE CD -DOOR. THE CD-DISPLAY
WILL SHOW THE TOTAL N UMBER OF TR ACKS ON THE DISC AFTER A FE W SECONDS.
THE C D IS NOW R EADY TO BE P LAYED.
- TO RE MOVE A DISC, P RESS THE OP EN KEY. THE DOO R WILL OPEN UPWARDS
ALLOWI NG THE REMO VAL OF TH E CD INSID E.
- IMPO RTANT : ALWAYS HOLD A CD BY IT'S EDG ES. AVOID GETTI NG ANY FINGE R-PRINTS,
SMUD GES OR DIRT ONTO THE SU RFACE OF A DISC. IN CASE T HIS HAPPEN S, USE A
SPEC IAL CD-CLEA NING CLOTH OR CLEANI NG KIT TO RE MOVE THE DI RT OR
SMUD GES.
NORMAL CD OPERATION
- INSERT A CD A S DESCRIBE D.
- ONCE THE CD-DOO R IS CLOSE D (WITH A DISC INSIDE) T HE SET WILL IMMEDIATELY
READ THE DISC AND DISPLAY THE N UMBER OF S ONGS (TRAC KS) ON THE CD.
- PRES S THE PLAY/PAUSE KEY . THE DISK WILL START SPINNING AND THE FIRST
SONG (TRACK) W ILL START PLAYING. THE DISPLAY W ILL INDICATE TH E CURRENT
TRACK NUMBER. ( "1" IF IT IS THE FIRS T TRACK).
- TO PAUSE PLAY BACK AT ANYTIME DURING PL AYBACK, PRES S THE "PLAY/PAUS E"
KEY . PRESS PLAY/ PAUSE K EY TO RESUME OPERATION AT THE S AME
TRACK A ND POSITIO N.
- AT ANYTIME DURING PLAYBA CK, PRESS T HE "STOP" SWITCH TO STO P
OPER ATION O F THE SET. THIS WILL RESET T HE SET TO THE FIRST TRAC K (IF YOU
PRES S PLAY AFTER STO P, THE FIR ST TRACK WI LL ALWAYS START PL AYING).
HOWE VER, THE DI GITAL DISPLAY WIL L SHOW THE TO TAL NUMBE R OF TRACK S ON THE
DISC .
- AT ANYTIME DURING PLAYBA CK, "PRESS A ND RELEASE " THE SEEK/ SCAN SWITC HES :
OR TO SKIP BACKWA RDS OR FORWA RDS BY ONE T RACK, AS DES IRED.
SET THE FUNCTION SWITCH TO "C D".
Page 4
- THE CD PLAYER CAN BE PROGRAMM ED TO PLAY ANY SE QUENCE OF UPTO
99 TRA CKS (FOR CD/ MP3), AS DESIRED.
- ALWAYS PRESS T HE STOP KNOB BEFORE START ING THE PR OGRAMMING.
- PRES S THE PROGRA M KNOB, THE DISPLAY WIL L SHOW A SYMBOL
AND THE DISPLAY WILL SH OW “ ” , TO INDICATE THAT T HE SET IS NO W IN
"MEMO RY PROGRAMM ING MODE", AT ME MORY POSIT ION NO. 1.
- PRES S THE BACK/ NEXT KNOBS OR TO SELEC T THE TRACK (SONG) NUMB ER
YOU WI SH TO BE STO RED IN THE FIRST MEMO RY (PROGRAM) POSITION , AND PRESS
THE PR OGRAM KNOB TO CONFIRM YOUR SELEC TION.
- WHEN YOU PRESS PROGRAM KN OB THE DISP LAY WILL ADVANCE TO T HE NEXT ME MORY
POSI TION NUMBER (EG. “ ” FOR 2ND PO SITION).
- REPE AT THE PR EVIOUS 2 STEPS, EACH TIME SELEC TING ANY TRA CK NUMBER OF YOUR
CHOI CE TO BE STO RED IN THE SUCCESSIVE MEMORY (PR OGRAM) POSI TIONS.
- AFTER EACH TRACK NUMBER, RE MEMBER TO PR ESS THE PR OGRAM KNOB .
- AFTER A MA XIMUM OF 9 9 SONGS (OR LESS) HAVE BEEN SELEC TED AS DESCRI BED
ABOVE, PRESS THE PROGRAM KN OB.
- ALSO, T HE SYMBOL WI LL REMAIN " ON" TO INDI CATE THAT YOU
HAVE SAVED A PR OGRAM-MEMO RY (SEQUEN CE).
- PRES SING PLAY WILL NOW PLAY BACK THE "SAVED SE QUENCE" IN
THE PR OGRAM MEMO RY.
- PRES SING NEXT/ BLACK WIL L MOVE TO THE NEXT OR PR EVIOUS SONG
IN THE SAVED SEQUEN CE.
- TO CLEA R (CANCEL ) THE ENTI RE PROGRAM WHICH IS STORED IN THE MEMORY,
SIMP LY PRESS "STOP" , OR SWITCH "OFF" THE SE T.
PROGRAMMING THE CD-PLAYER
P
P0 1
P02
P
USING THE AUDIO LINE IN CONNECTION (AUX-IN)
- YOU CA N CONNECT T HE AUDIO OUT PUT OF AN EXT ERNAL DEVIC E SUCH AS A DVD
(OR MP3) PLAYER TO THIS UNIT, TO L ISTEN TO THE SOUND OF T HAT DEVICE
THROU GH THE HIG H QUALITY AMP LIFIER OF T HIS MUSIC SYSTEM.
- TO CO NNECT THE EX TERNAL DEVI CE (eg. DV D OR MP3 P LAYER) PLEASE USE A
STANDAR D RCA CABLE TO CONNECT T HE "AUDIO LINE-OUT" OF THE DEVI CE (LEFT
AND RI GHT CHANNEL S) TO THE "A UX-IN" RCA J ACKS (LEFT A ND RIGHT) ON THE REAR
PANEL OF THIS UNIT. (CA BLE IS NOT INCLUDED) .
- SWIT CH ON THE P OWER OF TH E MAIN UNI T AND THE EXTE RNAL DEVICE .
- SWIT CH THE FUNC TION SELEC TOR TO "AUX" .
- START PL AYBACK OF THE EXTE RNAL DEVICE (eg. DVD OR MP3 PLAYER ) AND ADJUST
THE V OLUME CONT ROL OF THE M AIN UNIT TO THE DESIRE D LEVEL.
- REME MBER TO SWI TCH OFF THE POWER OF T HE MUSIC S YSTEM (MAI N UNIT) WH EN
YOU ARE FINISHED USING THE EXTERNAL DEV ICE.
E-7
E-8
CONNECTING AN EXTERNAL POWERED SUBWOOFER
(NOT INCLUDED)
- THIS U NIT HAS A BUILT IN SUBWOOFER CONNECTIO N WHICH CA N BE CONNE CTED TO
ANY STAND ARD POWERE D SUBWOOFE R.
- BY CO NNECTING TO A P OWERED SUB WOOFER, THE LOW FREQU ENCY (BASS SOUND)
CAN BE STRONGLY E NHANCED TO P ROVICE A MUCH RICHER AND D EEPER SOUN D TO
YOUR MUSIC.
- TO US E THIS FACILI TY, SIMPLY C ONNECT ANY STAND ARD POWERE D SUBWOOFE R
(EAS ILY AVAILABLE F ROM MOST MU SIC EQUIPM ENT SHOPS) USING THE RCA JACK ON
THE R EAR PANEL OF T HE MAIN UN IT.
- SWIT CH ON THE P OWERED SUB WOOFER.
- PLAY ANY M USIC SOURC E (CD or R ADIO or AUX) A S USUAL.
- YOU W ILL IMMEDIATELY N OTICE THE D EEPER SOUN D, WHICH C AN BE FURT HER
ENHA NCED BY SWI TCHING ON THE "SUPER BASS" FUN CTION ON TH E MAIN UNI T.
- PLEA SE NOTE THAT TH E SPEAKERS SHOULD BE CONNECTED A S USUAL TO TH E MAIN
UNIT, WH EN USING A SUB WOOFER.
- PLEA SE NOTE THAT " PASSIVE " (NON-POW ERED) SUBW OOFERS WIL L NOT WORK W ITH
THIS UNIT.
SPECIFICATI ONS
POWER SUPPLY : .... .......... ........... .......... ...... AC 23 0V ~ , 50 Hz
POWER CONSUMPTIO N : ...... .......... .......... ... 25W
SPEAKE R : ...... .......... .......... .......... .......... ....... 3½ " x 2
FREQUE NCY : ..... .......... .......... .......... .......... .. AM 530 - 1600 k Hz
FM 88 - 108 MHz
BATTERY SHA LL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS S UNSHINE,
FIRE O R THE LIKE .
THE APPARATUS SHOULD NOT BE EXPOS ED TO DRIPPI NG OR SPLA SHING AND NO
OBJECTS FILLED WIT H LIQUIDS SHOULD BE PLACED ON THE APPARATUS.
THE MARKI NG AND RATI NG LABEL IS LOCATED AT REAR ENCLOSURE OF
THE APPARATUS.
THE MAI NS PLUG I S USED AS THE DISCONNE CT DEVICE AND IT SHAL L REMAIN
READILY OPERAB LE. TO BE COMPLETELY DISCONNECTED THE POWER INPUT,
THE MAI NS PLUG OF THE APPARATUS SHAL L BE DI SCONNECTED FROM
THE MAI NS COMPLE TELY. THE MAI NS PLUG SHOUL D NOT BE OBSTRUCTE D OR
SHOULD BE EASILY ACCESSE D DURING INTENDED USE.
UNDER THE INFLU ENCE OF ELEC TROSTATIC PHENOME NON,
THE PRODUC T MAY MALFU NCTION AND USER TO POWER RESET.
EXCESS IVE SOUND PRESSURE F ROM EARPHO NES AND HEA DPHONES CA N
CAUSE HEARING LO SS.
CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
Page 5
E-9
- INCLU DED 1 PC STAND FOR THE MAIN UNIT ( )
FIXING THE BASE TO THE UNIT:
WHEN THE
INDICATOR MARK
ON THE STAND
IS ALIGNED
WITH THE LOCK
SYMBOL , THE
BASE IS
PROPERLY
IS PROPERLY
INSTALLED.
SYSTEM SET UP PROCEDURE
A. AS A "SHELF SYST EM" (TABL E TOP USE)
1. PLA CE THE STAND UNDER
THE UNIT.
2. SLI DE THE STAND UPWARD
(SEE DIAGRAM BEL OW).
3. STOP WHEN THE I NDICATOR MARK ON THE STAND IS ALIGNED WITH
THE LOCK SYMBOL ON THE REAR CABINET.
(TO REL EASE THE STAND FROM THE UNIT , SLI DE THE STAND DOWNWARDS
(OPPOS ITE DIRECT ION) UNTIL IT BECOMES RELEASED.
CLICK
L
O
CKE
D
INDICATOR MARK
LOCK SYMBOL
E-10
This s ymbol on t he product or in the instructi ons means that your electrical
and el ectronic e quipment s hould be d isposed at the end o f its life separatel y
from y our househ old waste. There are separate c ollection systems fo r
recycl ing in the EU.
For mo re informa tion, plea se contact the local authority or your r etailer wh ere
you pu rchased th e product.
Loading...
