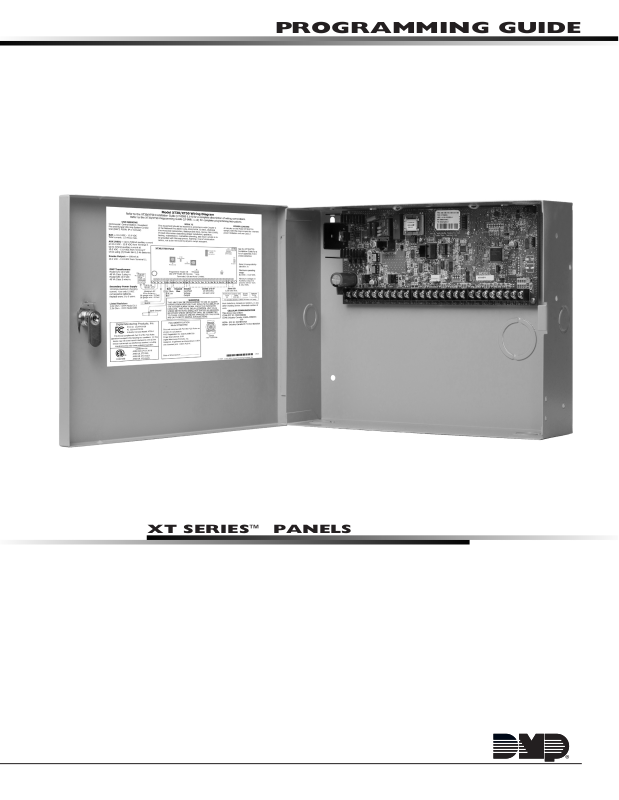

PROGRAMMING GUIDE
XT SERIES™ PANELS
MODEL XT30/XT50
PROGRAMMING GUIDE
When using the XT30/XT50 Series control panel for any listing organization’s approved methods, refer to this
manual and the XT30/XT50 Installation Guide (LT-0980). These documents outline the installation and programming
requirements of all applications for which the XT30/XT50 is approved.
FCC Notice
This equipment generates and uses radio frequency energy and, if not installed and used properly in strict
accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It
has been type tested and found to comply with the limits for a Class B computing device in accordance with the
specication in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such
interference in a residential installation. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the installer is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient the receiving antenna
• Relocate the computer with respect to the receiver
• Move the computer away from the receiver
• Plug the computer into a different outlet so that computer and receiver are on different branch circuits
If necessary, the installer should consult the dealer or an experienced radio/television technician for additional
suggestions. The installer may nd the following booklet, prepared by the Federal Communications Commission,
helpful:
“How to identify and Resolve Radio-TV Interference Problems.”
This booklet is available from the U.S. Government Printing Ofce, Washington D.C. 20402
Stock No. 004-000-00345-4
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Industry Canada
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
© 2018 Digital Monitoring Products, Inc.
Information furnished by DMP is believed to be accurate and reliable.
This information is subject to change without notice.
Digital Monitoring Products, Inc. XT Series Programming Guide
b
TABLE OF CONTENTS
Introduction .......................................................................................... 1
1.1 Before You Begin ................................................................................................ 1
1.2 Getting Started ................................................................................................... 1
1.3 Programmer Menu .............................................................................................. 2
1.4 Programmer Lockout Codes ................................................................................. 2
1.5 Reset Timeout .................................................................................................... 3
1.6 Keypads ............................................................................................................. 3
1.7 Special Keys ....................................................................................................... 4
1.8 Entering Characters Using the Number Pad ........................................................... 5
1.9 Entering Characters Using the Standard Keyboard ................................................. 5
1.10 Keypad Displays Current Programming ................................................................. 5
Initialization .......................................................................................... 6
2.1 Initialization........................................................................................................ 6
2.2 Clear All Codes ................................................................................................... 6
2.3 Clear All Schedules .............................................................................................. 6
2.4 Clear Events ....................................................................................................... 6
2.5 Clear Zone Programming ..................................................................................... 6
2.6 Clear Communication .......................................................................................... 6
2.7 Clear Wi-Fi ......................................................................................................... 6
2.8 Set to Factory Defaults ........................................................................................ 6
Communication ..................................................................................... 7
3.1 Communication ................................................................................................... 7
3.2 Account Number ................................................................................................. 7
3.3 Transmission Delay ............................................................................................. 7
3.4 Communication Type ........................................................................................... 7
3.5 Backup Dialer ..................................................................................................... 7
3.6 Backup Cellular ................................................................................................... 7
3.7 Test Time ........................................................................................................... 7
3.8 Test Days ........................................................................................................... 7
3.9 Check-in Minutes ................................................................................................ 8
3.10 Fail Time ............................................................................................................ 8
3.11 Send Communication Trouble ............................................................................... 8
3.12 First GPRS APN ................................................................................................... 8
3.13 Second GPRS APN ............................................................................................... 8
3.14 Receiver 1 Programming...................................................................................... 8
3.15 Alarm Reports ..................................................................................................... 8
3.16 Supervisory/Trouble Reports ................................................................................ 8
3.17 Opening/Closing and User Reports ....................................................................... 8
3.18 Test Report ......................................................................................................... 8
3.19 First Telephone Number ...................................................................................... 9
3.20 Second Telephone Number .................................................................................. 9
3.21 First IP Address .................................................................................................. 9
3.22 First IP Port ........................................................................................................ 9
3.23 Second IP Address .............................................................................................. 9
3.24 Second IP Port .................................................................................................... 9
3.25 Receiver 2 Programming...................................................................................... 9
3.26 Alarm Reports ..................................................................................................... 9
3.27 Supervisory/Trouble Reports ...............................................................................10
3.28 Opening/Closing and User Reports ......................................................................10
3.29 Test Report ........................................................................................................10
3.30 First Telephone Number .....................................................................................10
3.31 Second Telephone Number .................................................................................10
3.32 First IP Address .................................................................................................10
3.33 First IP Port .......................................................................................................10
3.34 Second IP Address .............................................................................................10
3.35 Second IP Port ...................................................................................................10
XT Series Programming Guide Digital Monitoring Products, Inc.
i
TABLE OF CONTENTS
Network Options ................................................................................. 11
4.1 Network Options ................................................................................................11
4.2 Wi-Fi Setup .......................................................................................................11
4.2.1 WPS..................................................................................................................11
4.2.2 List ...................................................................................................................11
4.2.3 Manual ..............................................................................................................11
4.2.4 Test ..................................................................................................................12
4.3 Wireless Security Type ........................................................................................12
4.4 Wireless Network Key .........................................................................................12
4.5 DHCP ................................................................................................................12
4.6 Local IP Address ................................................................................................12
4.7 Gateway Address ...............................................................................................12
4.8 Subnet Mask......................................................................................................12
4.9 DNS Server........................................................................................................12
4.10 Programming Port ..............................................................................................12
Messaging Setup ................................................................................. 13
5.1 Messaging Setup ................................................................................................13
5.2 Enable Messaging ..............................................................................................13
5.3 System Name ....................................................................................................13
5.4 Destination 1 .....................................................................................................13
5.5 Destination 1 User Number .................................................................................13
5.6 Destination 2 .....................................................................................................13
5.7 Destination 2 User Number .................................................................................13
5.8 Destination 3 .....................................................................................................13
5.9 Destination 3 User Number .................................................................................13
5.10 Email Communication Type .................................................................................14
5.11 O/C Email ..........................................................................................................14
5.12 O/C SMS ...........................................................................................................14
5.13 Monthly Limit .....................................................................................................14
5.14 SMTP Server ......................................................................................................14
5.15 SMTP Server Port ...............................................................................................14
5.16 SMTP Username ................................................................................................14
5.17 SMTP Password .................................................................................................14
5.18 From Email Address ...........................................................................................14
Device Setup ....................................................................................... 15
6.1 Device Setup .....................................................................................................15
6.2 Device Number ..................................................................................................15
6.3 Device Name .....................................................................................................15
6.4 Wireless ............................................................................................................15
6.5 Serial Number....................................................................................................15
6.6 Supervision Time ...............................................................................................15
Remote Options .................................................................................. 16
7.1 Remote Options .................................................................................................16
7.2 Remote Key .......................................................................................................16
7.3 Manufacturer Authorization .................................................................................16
7.4 Armed Rings ......................................................................................................16
7.5 Disarmed Rings .................................................................................................16
7.6 Alarm Receiver Authorization ..............................................................................16
7.7 Service Receiver Authorization ............................................................................16
7.8 Remote Disarm ..................................................................................................17
7.9 App Key ............................................................................................................17
System Reports ................................................................................... 17
8.1 System Reports .................................................................................................17
8.2 Opening/Closing Reports ....................................................................................17
8.3 Abort Reports ....................................................................................................17
8.4 Zone Restoral Reports ........................................................................................17
Digital Monitoring Products, Inc. XT Series Programming Guide
ii
TABLE OF CONTENTS
8.5 Bypass Reports ..................................................................................................17
8.6 Code Change Reports .........................................................................................18
8.7 Ambush ............................................................................................................18
8.8 Late To Open .....................................................................................................18
8.9 Early To Close ....................................................................................................18
System Options ................................................................................... 18
9.1 System Options .................................................................................................18
9.2 System ..............................................................................................................18
9.3 Closing Code .....................................................................................................18
9.4 Closing Check ....................................................................................................18
9.5 Entry Delay 1 .....................................................................................................18
9.6 Exit Delay ..........................................................................................................19
9.7 Cross Zone Time ................................................................................................19
9.8 Power Fail Delay ................................................................................................19
9.9 Swinger Bypass Trips .........................................................................................19
9.10 Reset Swinger Bypass ........................................................................................19
9.11 Telephone Access ...............................................................................................19
9.12 Zone Activity Hours ............................................................................................20
9.13 Arm Activity Days ...............................................................................................20
9.14 Time Zone Changes ...........................................................................................20
9.15 Time Display......................................................................................................21
9.16 House Code .......................................................................................................21
9.16.1 Detect Wireless Jamming ...................................................................................21
9.16.2 Wireless Audible Annunciation ............................................................................21
9.17 Built-In 1100 Wireless (XT50 only) ......................................................................21
9.18 Enable Keypad Panic Keys ..................................................................................21
9.19 Occupied Premises .............................................................................................21
9.20 Use False Alarm Question ...................................................................................22
9.21 Weather Zip Code ..............................................................................................22
Bell Options ......................................................................................... 23
10.1 Bell Options .......................................................................................................23
10.2 Bell Cutoff Time .................................................................................................23
10.3 Automatic Bell Test ............................................................................................23
10.4 Bell Output ........................................................................................................23
10.5 Bell Action .........................................................................................................23
10.5.1 Fire ...................................................................................................................23
10.5.2 Burglary ............................................................................................................23
10.5.3 Supervisory .......................................................................................................23
10.5.4 Panic .................................................................................................................23
10.5.5 Emergency ........................................................................................................23
10.5.6 Auxiliary 1 .........................................................................................................23
10.5.7 Auxiliary 2 .........................................................................................................23
Output Options .................................................................................... 24
11.1 Output Options ..................................................................................................24
11.2 Cutoff Outputs ...................................................................................................24
11.2.1 Output Cutoff Time ............................................................................................24
11.3 Communication Failure Output ............................................................................24
11.4 Fire Alarm Output ..............................................................................................24
11.5 Fire Trouble Output ............................................................................................24
11.6 Panic Alarm Output ............................................................................................24
11.7 Ambush Output .................................................................................................24
11.8 Entry Output .....................................................................................................24
11.9 Begin Exit Output ...............................................................................................25
11.10 End Exit Output .................................................................................................25
11.11 Ready Output ....................................................................................................25
11.12 Armed Output ....................................................................................................25
11.13 Disarmed Output ...............................................................................................25
XT Series Programming Guide Digital Monitoring Products, Inc.
iii
TABLE OF CONTENTS
11.14 Burglary Output .................................................................................................25
11.15 Late To Close Output ..........................................................................................25
11.16 Arm-Alarm Output ..............................................................................................25
11.18 Cool Saver Temperature .....................................................................................25
Output Information ............................................................................. 26
12.1 Output Information ............................................................................................26
12.2 Output Number .................................................................................................26
12.3 Output Name .....................................................................................................26
12.4 Serial Number....................................................................................................26
12.5 Supervision Time ...............................................................................................26
12.6 Trip with Panel Bell Option ..................................................................................26
Area Information ................................................................................. 27
13.1 Area Information ...............................................................................................27
13.2 Area Number .....................................................................................................27
13.3 Area Name ........................................................................................................27
13.4 Automatic Arming ..............................................................................................27
13.4.1 Bad Zones .........................................................................................................27
13.5 Automatic Disarming ..........................................................................................27
Zone Information ................................................................................ 28
14.1 Zone Information ...............................................................................................28
14.2 Zone Number ....................................................................................................28
14.3 Key Fob .............................................................................................................28
14.4 Zone Name........................................................................................................28
14.5 Zone Type .........................................................................................................28
14.6 Area Assignment ................................................................................................29
14.7 Arming Zone Assignment ....................................................................................29
14.7.1 Style .................................................................................................................29
14.8 Next Zone .........................................................................................................30
DMP Wireless ....................................................................................................30
14.9 Wireless ............................................................................................................30
14.9.1 Serial Number Entry ...........................................................................................30
14.9.2 Contact .............................................................................................................30
14.9.3 Supervision Time ...............................................................................................31
14.9.4 LED Operation ...................................................................................................31
14.9.5 Disarm/Disable ..................................................................................................31
14.9.6 Wireless PIR Pulse Count ....................................................................................31
14.9.7 Wireless PIR Sensitivity ......................................................................................31
14.9.8 Next Zone .........................................................................................................31
14.10 1100 Series Key Fobs .........................................................................................32
14.10.1 Key Fob User Number ........................................................................................32
14.10.2 Key Fob Serial Number .......................................................................................32
14.10.3 Key Fob Supervision Time ...................................................................................32
14.10.4 Number of Key Fob Buttons ................................................................................32
14.10.5 Key Fob Button Selection (Four Buttons) ..............................................................32
14.10.6 Key Fob Button Selection (Two Buttons) ..............................................................32
14.10.7 Button Action ....................................................................................................33
14.10.8 Button Press Time ..............................................................................................33
14.10.9 Arm/Disarm Area Selection .................................................................................33
14.10.10 Output Number .................................................................................................33
14.10.11 Output Action ....................................................................................................33
14.11 Alarm Action ......................................................................................................34
14.12 Disarmed Open ..................................................................................................34
14.12.1 Message To Transmit ..........................................................................................34
14.12.2 Output Number .................................................................................................35
14.12.3 Output Action ....................................................................................................35
14.13 Swinger Bypass .................................................................................................35
14.14 Prewarn Address ................................................................................................35
Digital Monitoring Products, Inc. XT Series Programming Guide
iv
TABLE OF CONTENTS
14.15 Entry Delay .......................................................................................................35
14.16 Cross Zone ........................................................................................................36
14.17 Priority ..............................................................................................................36
14.18 TrafcCount ......................................................................................................36
14.19 Zone Audit Days ................................................................................................36
14.20 Receiver Routing ................................................................................................36
14.21 Zone Number ....................................................................................................36
Stop ............................................................................................... 37
15.1 Stop ..................................................................................................................37
Set Lockout Code ................................................................................ 37
16.1 Set Lockout Code ...............................................................................................37
Appendix ............................................................................................. 38
17.1 Status List .........................................................................................................38
17.2 False Alarm Reduction ........................................................................................38
17.3 Diagnostics Function ..........................................................................................38
17.4 Using the 984 Command Function .......................................................................40
17.5 Using the Walk Test ...........................................................................................41
Walk Test ..........................................................................................................41
Trip Counter for Walk Test (STD) .........................................................................41
Test End Warning ...............................................................................................41
Failed Zones Display ...........................................................................................41
17.6 Keypad Speaker Operation..................................................................................42
17.7 Cross Zoning .....................................................................................................42
17.8 Zone Type Descriptions ......................................................................................42
17.9 Common Keypad Messages ................................................................................43
17.10 Z-WaveCerticationInformation .........................................................................43
Revisions to this Document ................................................................ 44
XT Series Programming Guide Digital Monitoring Products, Inc.
v
INTRODUCTION
Introduction
1.1 Before You Begin
Before programming the panel, we recommend you read through the contents of this manual. The
information in this document allows you to learn the programming options and operational capabilities
of the XT30/XT50 panel. After this Introduction, the remaining sections describe the functions of
each programming menu items along with their available options. The XT30/XT50 contains all of its
programming information in an on-board processor and does not require an external programmer.
In addition to this manual, you should also be familiar with the following XT30/XT50 Series documents:
• XT30/XT50 Installation Guide (LT-0980)
• XT30/XT50 User Guide (LT-0982)
• XT30/XT50 Programming Sheet (LT-0983)
Programming Sheets
Included with each XT30/XT50 Series panel is the panel programming sheet. This sheet lists the various
options available for programming the panel. Before starting, completely ll out the sheet with the
programming options you intend to enter into the panel. Having completed programming sheets
available while entering data helps to prevent errors and can shorten the length of time you spend
programming. Completed sheets also provide you with an accurate account of the panel’s program you
can keep on le for future system service or expansion. The remainder of the Introduction explains
starting and ending a programming session.
1.2 Getting Started
The panel must be properly grounded before connecting any devices or applying power to the panel.
Proper grounding protects against Electrostatic Discharge (ESD) that can damage system components.
Before programming the panel, make sure the panel is properly grounded and AC and battery power is
applied to the appropriate panel terminals. All wiring connections and grounding instructions are detailed
in the XT Series Installation Guide (LT-0980).
Program from any Keypad Address or Wireless Keypad
You can program the panel from any 32-character wireless keypad or hardwired keypad connected to
the panel’s keypad data bus.
Hardwired Keypad Connection
Connect the DMP Model 300 4-wire harness to the hardwired keypad. Observe wire colors when
connecting the red, yellow, green, and black wires to the keypad bus. Connect red to panel terminal
7, yellow to terminal 8, green to 9, and black to panel terminal 10 or connect a DMP Model 330
Programming Cable from the keypad to the PROG port on the control panel. You can perform all
programming tasks through a 32-character DMP keypad set to address one. Using a hard-wired
keypad, wireless keypads can be programmed into the panel manually or by using the Wireless Keypad
Association operation.
Wireless Keypad Association
Enable Wireless Keypad Association operation on both the keypad and panel.
Wireless LCD Keypad
1. Press and hold the back arrow key and CMD at the same time until SET BRIGHTNESS displays.
2. Enter the code 3577 (INST) and press CMD.
3. Select KPD RF to start the RF survey communication. The keypad displays its wireless serial
number and RF SURVEY.
Wireless Graphics Touchscreen Keypad
1. Press Options in the carousel menu.
2. Press the wrench icon to access the Installer Options menu.
3. Enter the code 3577 (INST) and press CMD.
4. Press KPD RF to start the RF survey communication. The keypad displays its wireless serial
number and RF SURVEY.
Enable in the XT30/XT50 Series panel
Reset the panel three times, allowing the keypad bus transmit light to begin ashing between each
reset. For 60 seconds the panel listens for wireless keypads that are in RF Survey mode and have
not been programmed or associated into another panel. When the keypad associates with the panel
the keypad logo LED turns from red to green. Wireless keypads are assigned to the rst open device
position in Device Setup automatically based upon the order in which they are detected.
XT Series Programming Guide Digital Monitoring Products, Inc.
1
INTRODUCTION
Accessing the Programmer Menu
1. Connect the keypad to the PROG header.
2. If using a Wireless LCD Keypad, make sure panel communication has been established and the user
menu appears on an associated keypad before continuing.
3. Install the reset jumper across the two RESET pins on the panel for two seconds.
4. Remove the reset jumper and place it over just one pin for future use.
5. Enter the code 6653 (PROG). The keypad displays PROGRAMMER.
1.3 Programmer Menu
You are now ready to start programming the XT30/XT50 panel. Press CMD to scroll through the
programmer menu items listed below.
Menu Item Section in This Manual Menu Item Section in This Manual
Initialization 2 Bell Options 10
Communication 3 Output Options 11
Network Options 4 Output Information 12
Messaging Setup 5 Area Information 13
Device Setup 6 Zone Information 14
Remote Options 7 Stop 15
System Reports 8 Set Lockout Code 16
System Options 9 Appendix 17
Select a programmer menu item by pressing any select key or area when the name of that menu item
displays on the keypad. The detailed instructions for each programming step are found in this manual.
1.4 Programmer Lockout Codes
Although the XT30/XT50 panels allow you to access the Programmer menu without a lockout code, it is
recommended you program one to restrict programming access to authorized individuals only. See Set
Lockout Code.
Installing a lockout code
1. After entering the Programmer menu, the keypad displays PROGRAMMER. Press CMD until SET
LOCKOUT CODE displays (after STOP).
2. Press any select key or area. At ENTER CODE: -, enter a 1 to 5-digit lockout code. Press CMD.
3. At ENTER AGAIN, enter the same lockout code again and press CMD. The display shows CODE
CHANGED. The new code number must now be entered before the Programmer menu can be
accessed. The lockout code should be written down and kept in a secure place with access limited
to authorized persons only.
Lost Lockout Code requires factory reset: If you lose or forget the lockout code, the panel must
be sent back to the factory to be reset. There is no eld option for gaining access to the panel
without a valid lockout code.
Digital Monitoring Products, Inc. XT Series Programming Guide
2
1.5 Reset Timeout
32-Character Display
The XT30/XT50 has a feature that requires you to enter the Programmer menu within 30 minutes of
resetting the panel. After 30 minutes, if you attempt to program by entering the 6653 (PROG) code, the
keypad displays RESET PANEL. You must reset the panel and enter the program code within the next 30
minutes.
If you are already in the Programmer menu and do not press any keys on the programming keypad for 30
minutes, the panel stops programming. All data entered up to that point is saved in the panel’s memory.
Using the STOP function disarms all areas: To exit the Programmer menu, you must use the Stop
function. STOP is the second to the last option in the Programmer menu. The Stop function disarms all
areas and clears the keypad’s Status List. The programming session is then terminated and the keypad
returns to the Status List or Main Screen.
1.6 Keypads
DMP offers many different keypads that provide panel programming capabilities. Each keypad and its
operations are shown and described in the following sections.
Note: Programming cannot be accessed using an Icon Series keypad. Use a keypad type shown below.
INTRODUCTION
32-Character Display
Backlit Logo
and Proximity
Antenna
Backlit Logo
and Proximity
Antenna
SMITH RESIDENCE
FRI 12: 51 PM
Data Entry Digit keys
Figure 1: Wireless Keypad
Icon Display
Shortcut and Digit keys
Figure 3: Icon Keypad
Select Keys
COMMAND Key
Back Arrow Key
Select Keys
COMMAND Key
Back Arrow Key
Power LED
Armed LED
Backlit Logo
and Proximity
Antenna
Dealer
Logo
Local Weather
Conditions
Figure 4: Graphic Touchscreen Keypad
ABC PRINTING
FRI 2:51 AM
1 2 3 4
5 6 7 8
9 0 CMD
COMMAND Key
Back Arrow Key
Data Entry Digit keys
Figure 2: Thinline/Aqualite Keypad
Interactive Shield
Proximity Card
MON 5:35 AM
Panic
Chime
Check-In
Reset
TODAY
WEDNESDAY
CURRENT
82
HI LO
98 77
HI
80
DISARMED
LO
74
Select Keys
Reader
Micro SD
Card Slot
Carousel
Menu
XT Series Programming Guide Digital Monitoring Products, Inc.
3
INTRODUCTION
1.7 Special Keys
The following special keys or areas are common to all DMP keypads.
CMD (Command) Key
Pressing CMD allows you to go forward through the programming menu and through each step of a
programming sec tion. As you go through the programming, the keypad display shows any current
programming already stored in the panel memory. If no change is required for an option, press CMD to
advance to the next step.
CMD is also used to enter information into the panel’s memory such as phone numbers or zone names.
Press CMD after entering information.
<— (Back Arrow) Key
Use the back arrow key to back up one step while programming. The back arrow key is also used when
an error is made while entering in formation. Press the back arrow key once to erase the last character
entered.
Select Keys or Areas
On LCD keypads, the top row of keys are called the select keys. On Graphic Touchscreen Keypads, the
keypad is sectioned into select areas. Each time you need to press a select key or area, the keypad
displays the function or options above one of the select keys or in the select area. Displaying choices
above individual select keys or in select areas allows them to be used for many different applications.
For example, you can enter AM or PM when programming the automatic test time or answer YES or NO
for a system option.
During programming, the select keys or areas also allow you to change infor mation currently in panel
memory by pressing the appropriate select key or area under or on the display. You then enter the new
information using the keypad data entry digit keys.
When there are more than four re sponse options avail able, press CMD to display the next one to four
options. Pressing the back arrow key allows you to review the previous four choices.
The select keys or areas are also used for choosing a section from the pro gramming menu. Press any
select key or touch the select area when the programming section name you want displays.
Note: For LCD Keypads, when instructed to press the rst select key, press the far left select key; the
second select key is the second from the left; third select key is second from the right; and the fourth
select key is the far right key. See Figures 6 and 7.
For Graphic Touchscreen Keypads, when instructed to press the rst select key, touch select area 1;
the second select key touch select area 2; third select key touch select area 3; and the fourth select
key touch select area 4.
Digital Monitoring Products, Inc. XT Series Programming Guide
4
1.8 Entering Characters Using the Number Pad
1. Choose a character from the table.
2. Identify the Number the character correlates with and
press it on the number pad.
3. Identify the Select Key or Area for that character and
press that select key or area on the keypad. To access
the lowercase letter, press that select key or area
again. See Figure 5.
4. When the desired character displays on the keypad,
return to Step 1 to enter another character or press
CMD if nished.
NUMBER
1.9 Entering Characters Using the Standard Keyboard
• Press ABC to access uppercase letters.
• Press abc to access lowercase letters.
• Press !@# to access symbols.
• Press 123 to access the number pad.
Note: Keep in mind that not all keypad prompts
accept letters and/or symbols. For example,
pressing P on the ENTER CODE prompt could display
a 6 on the keypad. See Figure 6.
123
q w e r t y u i
a s d f g h j k l
z
INTRODUCTION
SELECT KEY OR AREA
1 2 3 4
1 A B C ( [ {
2 D E F ) ] }
3 G H I ! ^ ~
4 J K L ? “ |
5 M N O / \ `
6 P Q R & $
7 S T U @ %
8 V W X , =
9 Y Z space, : _ ;
0 -, + ., ‘ *, < # >
Figure 5: Number Pad Characters
ABC
!@#
o p
x c v b n m CMD
1.10 Keypad Displays Current Programming
Each programming option displayed at the keypad shows the currently selected option in the panel
memory. These options are either shown as a number, a blank, or a NO or YES. To change a number or
blank to a new number, press any top row select key or touch any select area. The current option is
replaced with a dash. Press the number(s) on the keypad you want to enter as the new number for that
option. It is not necessary to enter numbers with leading zeros. The panel automatically right justies the
number when you press CMD.
To change a programming option that requires a NO or YES response, press the select key or touch the
select area for the response not selected. See Figure 8.
For example, if the current option is selected as YES and you want to change it to NO, on LCD Keypads,
press the third top row select key. On Graphic Touchscreen Keypads touch select area 3. The display
changes to NO. Press CMD to display the next option.
Thinline,
Aqualite,
Wireless
Keypads
Press the black colored top
row Select key/area.
YESBELL TST
THEN
Figure 6: Standard Keyboard
The keypad displays the new
selection. Press CMD to advance.
NOBELL TST
Graphic
Keypads
YESBELL TST
NOBELL TST
Figure 7: Changing the Current Programming Option
XT Series Programming Guide Digital Monitoring Products, Inc.
5
INITIALIZATION
Initialization
2.1 Initialization
2.2 Clear All Codes
2.3 Clear All Schedules
2.4 Clear Events
2.5 Clear Zone Programming
INITIALIZATION
CODES? NO YES
SURE? YES NO
SCHEDS? NO YES
SURE? YES NO
EVENTS? NO YES
SURE? YES NO
ZONES? NO YES
SURE? YES NO
This function allows you to set the panel’s programmed memory back to the factory
defaults. Select YES to clear the rst section of memory. The panel asks if you are
sure you want to clear that section’s memory. This is a safeguard against accidently
erasing part of the panel programming. No memory is cleared from the panel until
you answer YES to the SURE? YES NO option.
NO leaves existing codes intact.
YES clears the user code memory and assigns the user code number 99 to user 30 on
the XT30, and 99 on the XT50.
NO leaves existing schedules intact.
YES clears all schedules from the XT30 or XT50 programming.
NO leaves existing event memory intact.
YES clears all event memory currently held in the panel’s Display Events buffer.
NO leaves existing zone information intact.
YES sets all zones in the system to * UNUSED *
2.6 Clear Communication
2.7 Clear Wi-Fi
2.8 Set to Factory Defaults
COMM? NO YES
SURE? YES NO
WIFI? NO YES
SURE? YES NO
DEFAULTS? NO YES
SURE? YES NO
NO leaves existing communication, network, and e-mail programming intact.
YES clears communication, network and e-mail programming to factory defaults.
NO leaves existing Wi-Fi programming intact.
YES clears Wi-Fi programming to factory defaults.
NO leaves the remainder of the existing panel programming intact.
YES sets the panel’s programming back to factory default selections and clears all
Z-Wave, Favorites, Device Setup, System Options, and Remote Options programming
from the panel. Selecting YES does not clear the panel’s event memory, zone, user
code information, or schedules.
Digital Monitoring Products, Inc. XT Series Programming Guide
6
Communication
COMMUNICATION
3.1 Communication
3.2 Account Number
3.3 Transmission Delay
3.4 Communication Type
3.5 Backup Dialer
3.6 Backup Cellular
3.7 Test Time
3.8 Test Days
COMMUNICATION
The Communication section allows you to congure the communication settings for
the XT30/XT50 panel. After choosing the Communication Type, continue through the
list of options.
ACCOUNT NO:
Enter the account num ber sent to the receiver.
DD, NET, CELL - The range of account numbers for Digital Dialer, Network, and Cell
is 1 to 65535. For account numbers of four digits or less, you do not have to enter
leading zeros. The panel automatically right justies the account number.
CID - The account number range for this format is 1 - 9999.
XMIT DELAY: 30
Enter the number of seconds (15 to 45 seconds) the panel waits before sending
burglary alarm reports to the receiver. The bell and relay outputs are not delayed
during this period. Program Burglary Outputs for steady, and set Abort Reports to
YES if Opening and Closing reports are not being sent. Enter 0 (zero) to disable this
function. The default is 30.
If the area where the alarm occurred is disarmed during the Transmit Delay time,
only an Abort Report (S45) message is sent to the receiver. If the area where the
alarm occurred is disarmed after the alarm message is sent to the receiver but
before the Bell Cutoff time expires, even if the alarm was silenced, an Alarm
Cancelled (S49) message is sent. The Alarm Cancelled report cannot be disabled.
COMM TYPE: DD
This species the communication method the panel uses to contact the receiver.
Press any select key or area to display the following communication options:
DD - Digital Dialer communication to DMP SCS-1R.
DD CID NET CELL
WIFI NONE
BACKUP DIALER
NO YES
BACKUP CELL
Backup Cellular option is available if COMM TYPE is set for NET or DD/CID. The
NO YES
TEST TIME
00:00 AM PM
NET TEST DAYS: 1
Enter how often the panel test report is sent to the receiver for each
DIAL TST DAYS: 1
CELL TST DAYS: 1
CID - Contact ID dialer communication to non-DMP receivers. This format sends the
report codes of the Ademco Contact ID communication format.
NET - Network communication to DMP Model SCS-1R Receivers or SCS-VR Receivers.
CELL - Cellular communication to DMP Model SCS-1R or SCS-VR Receivers.
WIFI - Network communication to DMP Model SCS-1R or SCS-VR Receivers.
NONE - For local systems. Selecting this ends communication programming.
Note: The Backup Dialer, Backup Cellular, Check-in Minutes, and Failed Minutes
options revert to their default values when the communication type is changed. All
other communication programming items remain at their programmed values.
Backup Dialer option is available if COMM TYPE is set for NET. The Backup Dialer
tries to send the message after the main communication fails for 60 seconds on NET.
If the backup dialer fails then the message is discarded.
Backup Cellular tries to send the message after the main communication fails for
60 seconds on NET and 10 dial attempts with DD/CID. If the backup dialer fails then
the message is discarded.
Press COMMAND to enter the Test Time. Enter the time of day the panel sends the
test report to the SCS-1R Receiver. Use entries between 12:00 to 11:59 and then
choose AM or PM.
communication type programmed. Enter from 1 to 60 days. Enter zero to disable
the test report. Default is 1 (one) day. These options only display if a test time is
entered and that particular communication method is being used.
XT Series Programming Guide Digital Monitoring Products, Inc.
7
COMMUNICATION
3.9 Check-in Minutes
3.10 Fail Time
3.11 Send Communication Trouble
3.12 First GPRS APN
3.13 Second GPRS APN
3.14 Receiver 1 Programming
3.15 Alarm Reports
3.16 Supervisory/Trouble Reports
3.17 Opening/Closing and User Reports
3.18 Test Report
CHECKIN: -
FAIL TIME: -
COMM TRBL NO YES
FIRST GPRS APN
SECURECOM400
-
SECOND GPRS APN
SECURECOM400
-
RECEIVER 1 PROG
ALARM NO YES
SPV/TRBL NO YES
O/C USER NO YES
TEST RPT NO YES
Enter the number of minutes (3 to 240) between check-in reports for NET
Communication. Check-in reports are a method of supervising the panel for
communication with the receiver for Net communication. Enter 0 (zero) to disable
this feature. The default Check-in Time is 200 minutes.
Fail Time allows the receiver to miss a dened number of check-ins before logging
that the panel is missing. For example, if checkin is 20 and Fail TIME is 30, the
receiver only indicates a Panel Not Responding after 30 minutes. The Fail TIME must
be equal to or greater than the CHECKIN minutes: If the CHECKIN is 20 minutes, the
FAIL TIME must be 20 or more. The maximum FAIL TIME is 240 minutes. The default
fail TIME is 240 minutes.
Enable communication fail notication by selecting YES at COMM TRBL. Select NO to
disable. Default is YES.
When COMM TRBL is YES and the panel detects a failure of communication, the
panel sends an S72 (Comm Trouble) message through a backup communication
method with notication of the failure. If both primary and secondary methods of
communication fail, then two S72 messages will be sent via the third communication
method, if programmed.
When communication is restored, the panel sends an S73 (Comm Restored) message
through the primary communication.
Note: If the primary or secondary communication type is CELL, S72 and S73
messages include the cell signal strength as a -dBm value.
Enter the rst APN (Access Point Name). This allows an access point for cellular
communication and is used to connect to a DNS network. The APN may contain two
lines of 16 characters to equal 32 characters. Default is set to SECURECOM400.
Enter the second APN (Access Point Name). This works as a backup in case the rst
APN fails. The APN may contain two lines of 16 characters to equal 32 character
Default is set to SECURECOM400.
Allows you to set the options for the rst receiver the XT30/XT50 panel attempts
to contact when sending reports. The XT30/XT50 supports communication to two
receivers.
YES enables Abort, Alarm, Alarm Restoral, Alarm Bell Silenced, Ambush, Exit Error,
and System Recently Armed reports to be sent to this receiver. Default is YES.
YES enables Supervisory, Trouble, Trouble Restoral, Force Armed, Late to Close, and
Fault reports to be sent to this receiver. Default is YES.
YES enables Opening/Closing, Door Access, Schedule and Code Changes, Bypass, and
Sensor Reset reports by user to be sent to this receiver. Default is YES.
Enter YES to enable the Recall Test report to be sent to this receiver.
Digital Monitoring Products, Inc. XT Series Programming Guide
8
COMMUNICATION
3.19 First Telephone Number
3.20 Second Telephone Number
3.21 First IP Address
3.22 First IP Port
3.23 Second IP Address
3.24 Second IP Port
3.25 Receiver 2 Programming
3.26 Alarm Reports
FIRST PHONE NO.
-
-
SECOND PHONE NO.
-
-
FIRST IP ADDR
Enter the rst (primary) IP address where the panel sends network or cell messages.
000.000.000.000
FIRST IP PORT
2001
SECOND IP ADDR
Enter the second IP address where the panel sends network messages. The IP
000.000.000.000
SECOND IP PORT
Enter the second IP port number to be used in conjunction with the Second IP
2001
RECEIVER 2 PROG
ALARM NO YES
Enter the rst number the panel dials to send reports to this receiver. A phone
number may contain two lines of 16 characters to equal 32 characters. You can
program a three-second pause in the dial ing se quence by en tering P. Program a
dial tone detect by entering D. These characters are counted as part of the 32
characters.
Call Waiting: You can place the “* 7 0 P” (Star, Seven, Zero, Pause) in the telephone
number rst position to cancel Call Waiting. For example, program NET with second
line DD and phone number *70P555-1212, and you have NET with Call Waiting
cancelled on the second line.
Caution: A call waiting cancel programmed on a non-call waiting telephone line
would prevent communication to the central station.
The panel dials the second number after two successive attempts failed using the
rst number. If the panel cannot reach this receiver after two attempts using the
second number, it returns to the rst number and makes two additional attempts. A
total of ten dialing attempts are made using the rst and second phone num bers. If
a second phone number is not entered, the rst phone number is used for all dialing
attempts. Each number can be up two lines of 16 characters to equal 32 characters
in length, in cluding any P, D, or *70P char acters entered for pause, dial tone detect,
or call waiting cancel option.
The IP address must be unique and cannot be duplicated on the network. Enter all
12 digits and leave out the periods. For example, enter IP address 192.168.0.250 as
192168000250. The periods display automatically.
For NET: The rst and second IP addresses are alternately used for 8-second
intervals until successful communication or 1 minute elapses.
For Cell: The message is sent using First GPRS APN and the First IP Address. If
no acknowledgment is received, First GPRS APN and the Second IP address are
used, followed, if needed, by Second GPRS APN and rst and second IP addresses,
respectively.
Enter the rst IP port number to be used in conjunction with the First IP Address.
The IP port identies the port used to communicate messages to and from the
panel. The default IP Port setting is 2001.
Address must be unique and cannot be duplicated on the network. Enter all 12
digits and leave out the periods. For example, enter IP address 192.168.0.250 as
192168000250. The periods display automatically.
Address. The IP port identies the port used to communicate messages to and from
the panel. The default IP Port setting is 2001.
Allows you to set the options for the second receiver the XT30/XT50 panel attempts
to contact when sending reports. The XT30/XT50 supports communication to two
receivers. If you select YES for any of the Receiver 2 options, you must have at least
one phone number or IP address programmed in Receiver 2 programming. Receiver 2
defaults are set to NO.
YES enables Abort, Alarm, Alarm Restoral, Alarm Bell Silenced, Ambush, Exit Error,
and System Recently Armed reports to be sent to this receiver. Default is NO.
XT Series Programming Guide Digital Monitoring Products, Inc.
9
COMMUNICATION
3.27 Supervisory/Trouble Reports
3.28 Opening/Closing and User Reports
3.29 Test Report
3.30 First Telephone Number
3.31 Second Telephone Number
3.32 First IP Address
3.33 First IP Port
3.34 Second IP Address
3.35 Second IP Port
SPV/TRBL NO YES
YES enables Supervisory, Trouble, Trouble Restoral, Force Armed, Late to Close, and
Fault reports to be sent to this receiver. Default is NO.
O/C USER NO YES
YES enables Opening/Closing, Schedule and Code Changes, Bypass, and Sensor Reset
reports by user to be sent to this receiver. Default is NO.
TEST RPT NO YES
YES enables the Recall Test report to be sent to this receiver. Default is NO.
FIRST PHONE NO.
-
-
SECOND PHONE NO.
-
-
FIRST IP ADDR
000.000.000.000
FIRST IP PORT
2001
SECOND IP ADDR
000.000.000.000
SECOND IP PORT
Enter the second IP port number to be used in conjunction with the Second IP
2001
Enter the rst number the panel dials to send reports to this receiver. A phone
number may contain two lines of 16 characters to equal 32 characters. You can
program a three-second pause in the dial ing se quence by en tering P. Program a
dial tone detect by entering D. These characters are counted as part of the 32
characters.
Call Waiting: You can place the “* 7 0 P” (Star, Seven, Zero, Pause) in the telephone
number rst position to cancel Call Waiting. For example, program NET with second
line DD and phone number *70P555-1212, and you have NET with Call Waiting
cancelled on the second line.
Caution: A call waiting cancel programmed on a non-call waiting telephone line
would prevent communication to the central station.
The panel dials the second number after two successive attempts failed using the
rst number. If the panel cannot reach this receiver after two attempts using the
second number, it returns to the rst number and makes two additional attempts. A
total of ten dialing attempts are made using the rst and second phone num bers. If
a second phone number is not entered, the rst phone number is used for all dialing
attempts. Each number can be up two lines of 16 characters to equal 32 characters
in length, in cluding any P, D, or *70P char acters entered for pause, dial tone detect,
or call waiting cancel option.
Enter the rst (primary) IP address where the panel sends network or cell messages.
The IP address must be unique and cannot be duplicated on the network. Enter all
12 digits and leave out the periods. For example, enter IP address 192.168.0.250 as
192168000250. The periods display automatically.
For NET: The rst and second IP addresses are alternately used for 8 second
intervals until successful communication or 1 minute elapses.
For Cell: The message is sent using First GPRS APN and the First IP Address. If
no acknowledgment is received, First GPRS APN and the Second IP address are
used, followed, if needed, by Second GPRS APN and rst and second IP addresses,
respectively.
Enter the rst IP port number to be used in conjunction with the First IP Address.
The IP port identies the port used to communicate messages to and from the
panel. The default IP Port setting is 2001.
Enter the second IP address where the panel sends network messages. The IP
Address must be unique and cannot be duplicated on the network. Enter all 12
digits and leave out the periods. For example, enter IP address 192.168.0.250 as
192168000250. The periods display automatically.
Address. The IP port identies the port used to communicate messages to and from
the panel. The default IP Port setting is 2001.
Digital Monitoring Products, Inc. XT Series Programming Guide
10
NETWORK OPTIONS
Network Options
Network Options are provided to dene the network conguration for the panel. This information will be used during
communication of messages via network.
Note: WIFI must be selected as COMM TYPE in the COMMUNICATION menu for WI-FI SETUP to display. IP addresses
and port numbers may need to be assigned by the network administrator. When entering an IP, Gateway, or Subnet
Mask address be sure to enter all 12 digits and leave out the periods. For example, IP address 192.168.000.250 is
entered as 192168000250.
4.1 Network Options
4.2 Wi-Fi Setup
4.2.1 WPS
4.2.2 List
4.2.3 Manual
XT Series Programming Guide Digital Monitoring Products, Inc.
NETWORK OPTIONS
WPS LIST MANUAL
TEST
SEARCHING .
WPS LIST MANUAL
SEARCHING
SIGNAL
HOMENET123
W/L SECURITY:
WPA-PSK
W/L SECURITY:
WEP WPA NONE
W/L KEY:
*****************
W/L KEY:
-
WPS LIST MANUAL
WIFI SETUP
ENTER SSID
SSID:
SSID FOUND
▐▐▐▐▐▐▐
This option is for conguring the desired network settings. Press any select key or
area to select.
This option is for connecting to the desired Wi-Fi network. Press any select key or
area to select.
WPS LIST MANUAL displays. Press the rst select key or area to choose WPS to
automatically connect to a WPS enabled router. Press the second select key or area
to choose LIST and see the name and signal strength of any Wi-Fi routers in range.
Press the third or fourth select key or area to choose MANUAL and enter the name
of the Wi-Fi router you wish to connect to. Press CMD to display TEST. To select
TEST press the rst select key or area to verify connection of your system to the
Wi-Fi network. On Graphic Touchscreen Keypads running Version 110 or higher and
connected to panel running Version 172 or higher, a Wi-Fi status icon will display at
the top of the keypad when the system is connected to a network.
When WPS is selected, SEARCHING displays. Press the WPS button on the Wi-Fi
network router to which you are attempting to connect. SEARCHING displays for up
to two minutes or until connected to the WPS enabled router. Refer to the router’s
instruction manual for sending a security key to the XT30/XT50 Series panel.
If the panel fails to connect to the WPS enabled router, WPS FAILED RETRY? NO
YES displays. Press the fourth select key or area to RETRY or press the third select
key or area to display WPS LIST MANUAL.
When LIST is selected, SEARCHING displays until any Wi-Fi networks are found in
range. Once available Wi-Fi networks are found the keypad displays the name of
the SSID and signal strength of each network. Press CMD to scroll through the list of
available Wi-Fi networks. When the desired network is displayed, press any select
key or area to connect.
Note: If the panel is unable to detect the security type, W/L SECURITY with the
default security type WPA-PSK displays. If a different security type is required,
press CMD and WEP WPA NONE displays. Press the select key or area of the desired
security type to choose.
When connecting to the Wi-Fi network the panel also detects the security type in
use and W/L KEY: *************** displays.
Enter the W/L KEY and the panel performs a connection test and CONNECTING
displays. When successful, CONNECTED displays on the keypad. If the panel does not
connect to the Wi-Fi network, NOT CONNECTED displays. Press CMD to return to the
Wi-Fi SETUP main screen.
This option allows you to enter the desired network name using the keypad. When
MANUAL is selected, the current settings display. Press CMD to continue with no
change. SecureCom is the default.
Use the number keys on the keypad to enter a new or different SSID, there is no
need to press the select keys or areas. Once the SSID is entered, press CMD and
SEARCHING displays.
When an SSID is entered for the rst time or changed, the panel searches for the
SSID entered to ensure communication. The keypad displays SSID FOUND or SSID NOT
FOUND. When the SSID is found, the security type is also detected. Depending on
the security type, the SSID might take several seconds to process.
11
NETWORK OPTIONS
SSID:
SSID NOT FOUND
4.2.4 Test
4.3 Wireless Security Type
4.4 Wireless Network Key
4.5 DHCP
4.6 Local IP Address
4.7 Gateway Address
4.8 Subnet Mask
4.9 DNS Server
4.10 Programming Port
TEST
W/L SECURITY:
WPA-PSK
W/L SECURITY:
WEP WPA NONE
W/L KEY:
*****************
W/L KEY:
-
DHCP NO YES
LOCAL IP ADDR
192.168.000.250
GATEWAY ADDR
192.168.000.001
SUBNET MASK
255.255.255.000
DNS SERVER
192.168.000.001
PROGRAMMING PORT
2001
While searching, SEARCHING displays on the keypad. If the 763 is unable to connect
to the desired network and SSID NOT FOUND displays, press CMD to return to the
main menu and WPS LIST MANUAL displays. Press CMD again to display TEST.
Enter the Wireless Network Key for the network and press CMD to save the key.
Press the rst select key or area to select TEST and the 763 will attempt to verify
connection of your system to the desired Wi-Fi network.
When successful, W/L SECURITY displays. Select the security type based on the
network router programming. The default network security type is WPA-PSK. Press
any select key or area to display the other security options. The available options
are WEP, WPA, and NONE.
Press the rst select key or area to choose WEP, press the second select key or area
for WPA, press the third select key or area for NONE.
This option displays only if Comm Type is set to Wi-Fi and Security option is not
set to NONE. Enter the key provided from the network router’s programming. WEP
requires a network password of 10 characters (WEP64) or 26 characters (WEP128),
using a combination of the number 0-9 and the letters A-F See Entering Characters
Using the Number Pad.
WPA/WPA-PSK uses a custom key that allows 8 to 32 characters.
Note: Depending on the security type, the key might take several seconds to process.
If the panel uses a dynamic IP address select YES. When set to YES the panel
operates in DHCP and will not use the Local IP Address number.
Enter the local IP address for the panel. The Local IP Address must be unique
and cannot be duplicated on the network. The default local IP address is
192.168.000.250.
Enter the local gateway address. The Gateway IP Address is needed to exit the local
network. The default gateway address is 192.168.000.001.
Enter the local subnet mask assigned to the panel. The default subnet mask address
is 255.255.255.000.
Enter the IP address of the DNS (Domain Name System) used by the panel to resolve
domain names into IP addresses. The default address is 192.168.000.001.
Note: The DHCP programming in the panel must be set to NO.
Enter the programming port number. The programming port identies the port used
to communicate messages to and from the panel. The default Programming Port
setting is 2001.
Digital Monitoring Products, Inc. XT Series Programming Guide
12
MESSAGING SETUP
Messaging Setup
5.1 Messaging Setup
5.2 Enable Messaging
5.3 System Name
5.4 Destination 1
5.5 Destination 1 User Number
5.6 Destination 2
5.7 Destination 2 User Number
5.8 Destination 3
5.9 Destination 3 User Number
XT Series Programming Guide Digital Monitoring Products, Inc.
MESSAGING SETUP
This section allows you to enter the information needed to send and receive
messages directly to and from the panel via Email and MyAccess™ text messaging
using network or cellular communication. All of the name and password options
below allow up to 32 lowercase characters to be entered. The Destination addresses
allow up to 48 characters to be entered. System Name is displayed with initial caps.
The transmitted messages are:
• Zone Alarms by Zone Name
• Zone Troubles by Zone Name
• Zone Bypass by User
• Arming (Closings) by User
• Disarming (Openings) by User
• Late to Close
• Late to Open
• Early to Close
• AC Power Trouble and Restoral
• System Low Battery
• Ambush
• Abort, Cancel and Alarm Veried by User
• Check-in by user
ENABLE MESSAGING
Select YES to allow the panel to send messages to three programmed destinations.
NO YES
Default is NO.
SYSTEM NAME
Enter a unique name for the panel. The panel name will be used as the sender of
-
the message. The text entered will be displayed with initial caps. If this eld is left
blank, the panel account number will be sent.
DESTINATION 1
-
DESTINATION 1
If Destination 1 is a 10 digit cellular number, enter a user’s user number from this
USER NUMBER:
DESTINATION 2
Enter the second destination Email address or cell phone number.
-
DESTINATION 2
USER NUMBER:
If Destination 2 is a cellular number, enter the user’s User Number for
DESTINATION 3
Enter the third destination Email address or cell phone number.
-
DESTINATION 3
If Destination 3 is a cellular number, enter the user’s User Number for
USER NUMBER:
0
0
0
Enter the rst Email address or cell phone number where messages will be sent. The
message can be sent to any device (computer, cell phone, etc) as long as a valid
Email address or cell phone number is entered. When entering Email addresses,
press the 7 digit key followed by the fourth select key or area to add the @ symbol
and the 9 digit key followed by the fourth select key or area to add the _ symbol.
See the Entering Non-Alpha Characters section for additional symbols.
Note: Mail servers that require Transport Layer Security (TLS) encryption are not
supported by the XT30/XT50.
account. This option is used when sending commands such as arming or disarming
back to the panel using MyAccess™ text messaging from the same cell phone. The
user number must have the authority to perform the commands as if it occurred at
the keypad. MyAccess™ text command operation is available in XT30/XT50 Series
panels using version 102 or higher. Entering 0 (zero) disables this option.
Default is 0.
arming/disarming authorization.
arming/disarming authorization.
13
MESSAGING SETUP
5.10 Email Communication Type
5.11 O/C Email
5.12 O/C SMS
5.13 Monthly Limit
5.14 SMTP Server
5.15 SMTP Server Port
5.16 SMTP Username
5.17 SMTP Password
5.18 From Email Address
EMAIL COMM TYPE
Choosing NET sends Email messages over the network. Choosing CELL sends Email
NET CELL
O/C EMAIL NO YES
Select YES to allow the panel to send Opening and Closing reports via Email. Default
O/C SMS NO YES
Select YES to allow the panel to send Opening and Closing messages to a cell phone
MONTHLY LIMIT: 0
SMTP SERVER
-
SMTP PORT: 25
The SMTP server port number is the port that the panel uses to initiate a TCP
SMTP USERNAME
-
Most SMTP servers require a username to send Email. This will be sent to the SMTP
SMTP PASSWORD
Most SMTP servers require a password to send Email. This will be sent to the SMTP
-
FROM EMAIL
Enter the Email address on le with the Email service. This will show up in the Email
-
messages via cellular communication. Default is NET. This option appears only if
any destination above is an e-mail address and the panel is a network panel (has an
Ethernet connector). If the panel is not a network panel the Email must be sent
by CELL.
is NO. This option appears only if any destination above is an Email address.
via SMS protocol. Default is NO. This option appears only if any destination above is
a cell phone number.
This option displays if any programmed destination is a cell phone number or an
Email address. This number limits the monthly incoming and outgoing SMS messages
allowed to be sent or received by the panel.
A panel event that causes messages to be sent to destination cell phone numbers
or destination Email addresses is counted towards the panel’s monthly limit. For
example, if an alarm message is sent to a cell phone number and an Email address,
a total of 2 messages are counted towards the monthly limit for the panel. SMS
messages sent from a cell phone to the panel, including status requests and
MyAccess™ text messaging commands, also count toward the monthly limit. The
limit is reset at midnight on the 14th of every month. Range is from 0 to 999.
When 0 is entered, there is no limit on the number of messages able to be sent or
received by the panel. Default is 0.
Note: The SecureCom Wireless text plan selected for the panel should match or
exceed the programmed Monthly Limit.
The remaining options will only appear if Email messaging has been selected to be
sent via network. The options allow the Email server to be selected by the installing
dealer. Typically this will be the Email service provided by the installing dealer. This
allows opportunity for additional services to be provided to the end user.
Enter the SMTP (Simple Mail Transfer Protocol) Server name. The SMTP Email server
is responsible for sending the Email to its destination. An example SMTP Email
server name is: mail.somedomain.com. The domain should be the Email server that
will provide Email support for your alarm customers.
connection with the Email server. The default port is 25.
server in conjunction with the SMTP Password to provide Email authentication to
the server.
server in conjunction with the SMTP Username to provide Email authentication to
the server.
messages as the sender’s address.
Digital Monitoring Products, Inc. XT Series Programming Guide
14
Device Setup
DEVICE SETUP
6.1 Device Setup
6.2 Device Number
6.3 Device Name
6.4 Wireless
6.5 Serial Number
6.6 Supervision Time
DEVICE SETUP
DEVICE NO:-
* UNUSED *
WIRELESS? NO YES
SERIAL#: XXXXXXXX
SUPRVSN TIME: 240
SELECT MINUTES:
0 60 240
This section allows you to dene the XT30/XT50 panel keypad conguration.
Enter the device number of the keypad you are programming. The valid range is 1-8.
Note: After you program each option for the rst keypad, repeat these
programming steps for each additional keypad.
This section allows you to dene a 16 character alphanumeric name for the device
number. If no name is entered, *UNUSED* is displayed.
To remove a keypad from the system, delete the device name by pressing any select
key or area, then press the COMMAND key. The device name is now displayed
as * UNUSED *.
Select YES to use a wireless keypad. Select NO to use a wired keypad. Default is NO.
You can install and address up to four wireless keypads.
Enter the eight-digit serial number found on the wireless keypad.
Press any top row key to select the supervision time required for the device. Press
COMMAND to accept the default time. Default is 240 minutes.
Press the select key or area under the required number of minutes. The device must
check in at least once during this time or a missing condition is indicated for that
device. Zero (0) indicates an unsupervised wireless keypad.
Note: When the panel is reset, panel is powered down and powered up, or
programming is complete, the supervision timer restarts for all wireless keypads.
XT Series Programming Guide Digital Monitoring Products, Inc.
15
REMOTE OPTIONS
Remote Options
7.1 Remote Options
7.2 Remote Key
7.3 Manufacturer Authorization
7.4 Armed Rings
7.5 Disarmed Rings
7.6 Alarm Receiver Authorization
7.7 Service Receiver Authorization
REMOTE OPTIONS
This section allows you to enter the information needed for Remote Command/
Remote Programming operation. A description of the Remote Options follows:
RMT KEY:
This option allows you to enter a code of up to eight digits for use in verifying
the authority of an alarm or service receiver to perform a remote command/
programming session. The receiver must give the correct key to the panel before
being allowed access. All panels are shipped from the factory with the Remote Key
preset as blank.
To enter a new Remote Key, press any select key or area and enter any combination
of up to 8 digits. The numbers you enter appear as asterisks. Press COMMAND.
MFG AUTH NO YES
Enter YES to allow DMP service technicians to access the panel when required during
system service or troubleshooting. This authorization automatically expires within
one hour.
DMP remote service is provided on a read only basis: DMP technicians can look at
the system programming and make suggestions only.
ARMED RINGS: 8
Enter the number of rings the panel counts within a two-minute period before
answering the phone line when all areas of the system are armed. Any number from
1 to 15 can be entered. If zero is entered, the panel does not answer the phone
when all areas of the system are armed. Default is 8.
Answering machine bypass procedure: Entering a number greater than zero into
either Armed Rings or Disarmed Rings, allows a central station operator to connect
remotely with the panel.
How it works: The operator calls the panel, rings the phone once, and then hangs
up. The panel stores this attempt to communicate. The operator then calls back
within 30 seconds causing the panel to seize the phone line and allow remote
programming.
This feature does not interfere with the normal operation of the Armed Rings/
Disarmed Rings function.
DISARM RINGS: 8
Enter the number of rings the panel counts before answering the phone line while
any areas of the system are disarmed. Any number from 1 to 15 can be entered.
If zero (0) is entered, the panel does not answer the phone when any area of the
system is disarmed. Default is 8.
ALR RCVR NO YES
Enter YES to enable remote commands and programming to be accepted from the
alarm SCS-1R Receiver. The Remote Key option can also be required.
When YES is selected, the panel requests the alarm receiver key during its rst
alarm communication with the rst SCS-1R receiver. The panel retains this alarm
receiver key in memory and allows remote commands to be accepted from the
alarm receiver. If an alarm occurs during a remote connect, the alarm report is
immediately sent to this receiver only.
When NO is selected, remote commands and programming are not accepted from
the alarm SCS-1R receiver.
SVC RCVR NO YES
YES enables remote commands and programming to be accepted from a secondary
service receiver other than the alarm SCS-1R Receiver. The Remote Key option can
also be required.
With YES selected, the panel requests the service receiver key the rst time it is
contacted by the service receiver. The panel retains this service receiver key in
memory and accepts remote commands from the service receiver.
Digital Monitoring Products, Inc. XT Series Programming Guide
16
If an alarm occurs during a remote connect, the panel disconnects from the service
receiver and calls the alarm receiver. Alarm reports are only sent to the alarm
receiver. It is important that the alarm receiver key and the service receiver key
programmed at the central station are NOT the same so the panel can determine
the difference between receivers.
When NO is selected, remote commands and programming are not accepted from a
7.8 Remote Disarm
7.9 App Key
DISARM NO YES
APP KEY:
secondary service receiver.
Enter YES to enable the panel to be disarmed remotely. Selecting NO disables
remote disarming.
Enter the 8-digit App Key obtained in your Dealer Settings tab at
vk.securecomwireless.com.
This option is a security feature of the Virtual Keypad iPhone/Android App used only
when your Dealer Settings at vk.securecomwireless.com have “EASYconnect” set as
the Communication Type.
This communication option is only available for XT panels with onboard network
and is used to eliminate the need for a static IP address programmed in Network
Options.
To enter a new App Key, press any select key or area and enter any combination of
8 digits.
Press COMMAND. The default for this option is blank.
REMOTE OPTIONS
SYSTEM REPORTS
System Reports
8.1 System Reports
8.2 Opening/Closing Reports
8.3 Abort Reports
8.4 Zone Restoral Reports
8.5 Bypass Reports
XT Series Programming Guide Digital Monitoring Products, Inc.
SYSTEM REPORTS
O/C RPTS NO YES
ABORT NO YES
RESTORAL YES
NO YES DISARM
BYPASS NO YES
This function allows you to select the reports the XT30/XT50 sends to the receiver.
NO - No Opening/Closing Reports are sent.
YES - Sends Opening/Closing Reports for each programmed area.
YES allows the panel to send an Alarm Abort Report to the receiver any time an area
is disarmed during Transmit Delay before an alarm report is sent and the Bell Cutoff
Time has not expired. See the Bell Cutoff section. The area must be disarmed and
no alarmed zones can still be armed.
YES also allows a Bell Silenced Report to be sent if the alarm bell is silenced with
a valid user code during an alarm, if the communication type is not CID. Default is
NO.
Note: Alarm Cancel or Verify Reports are sent if the alarm is canceled or veried
after being sent to the alarm receiver, if the Bell Cutoff timer has not expired. The
Abort Reports option does not affect Cancel or Verify reports.
The panel will not send Abort reports for Fire zones, Fire Verify, or Supervisory-type
zones.
This option allows you to specify whether the panel sends zone restoral reports and
also when they will be sent.
NO - Restoral reports are not sent by the panel.
YES - The panel always sends zone restoral reports at the time the zone restores
from an alarm or trouble condition.
DISARM - The panel sends zone restoral reports when a zone that has restored from
an alarm or trouble is disarmed. Twenty-four hour zones send restorals immediately.
YES allows the panel to send all zone bypass, reset, and force arm reports to the
receiver. The bypass report includes the zone number, zone name, and the user
number of the individual bypassing the zone.
17
SYSTEM REPORTS
8.6 Code Change Reports
8.7 Ambush
8.8 Late To Open
8.9 Early To Close
CODE CHG NO YES
AMBUSH NO YES
LATE TO OPEN
MINUTES: 0
EARLY TO CLOSE
MINUTES: 0
YES allows the panel to send all code additions, changes, and deletions to the
receiver. The code change report includes the user number added or deleted and
the user number of the individual making the change.
YES allows an ambush report to be sent any time user code number one is entered
at a keypad. Selecting NO disables the ambush report and allows user code number
one to operate the same as all other codes.
Enter 1-240 as the number of minutes to elapse that the system may remain armed
after the opening time of a schedule without sending a Late To Open message. If
the system continues to be armed after the Late to Open minutes expire, a Late To
Open message is sent to the central station. Default is 0, which disables the Late To
Open option.
Enter 1-240 as the number of minutes that the system can be armed prior to the
scheduled closing time. If the system is armed prior to the Early to Close minutes,
an Early To Close message is sent to the central station. Default is 0, which disables
the Early to Close option.
SYSTEM OPTIONS
System Options
9.1 System Options
9.2 System
9.3 Closing Code
9.4 Closing Check
9.5 Entry Delay 1
Digital Monitoring Products, Inc. XT Series Programming Guide
18
SYSTEM OPTIONS
SYSTEM: HOME/AWAY
AREA A/P H/A
CLS CODE NO YES
CLS CHK NO YES
ENTRY DLY 1: 30
ENTRY DLY 2: 60
This section allows you to select system wide parameters used in the operation of
the XT30/XT50 system. A description of each System Option follows:
This congures the panel as either a six Area system, an All/Perimeter system
(Perimeter/Interior), or a Home/Away system (Perimeter, Interior, and Bedrooms).
Zones must be assigned to Bedrooms for the area to be active.
When using wireless zones for an Area or All/Perimeter system, the keypad trouble
buzzer resounds every four hours when wireless zone trouble or wireless low battery
is displayed.
When YES is selected, a code number is required for system arming. If NO is
selected, a code number is not required for system arming. Default is NO.
Select YES to enable the panel to verify that all areas have been armed after a
schedule expires. If the Closing Check nds any areas disarmed past the scheduled
time, all keypads emit a steady beep and display CLOSING TIME!. The user must
extend the schedule or arm the system within 10 minutes or a Late to Close
message will be sent to the central station. Default is NO.
Enter the entry delay time for all exit type zones programmed to use Entry Delay 1.
When an armed Exit type zone is faulted, the keypad prewarn tone begins sounding.
ENTER CODE: - and the name of the zone causing the Entry Delay displays on
all keypads.
When the rst digit of a code is entered, the prewarn tone stops at the keypad.
If, within ve seconds, a valid user code is not entered or an invalid user code is
entered, the prewarn tone begins sounding again. Fifteen seconds must elapse
before entering a digit silences the prewarn tone again.
The area must be disarmed before the entry delay expires or an alarm will be
detected. All Burglary type zones in all areas are delayed along with the Exit zone.
Entry delay times can be from 30 to 250 seconds. Repeat the above for Entry Delay
2 if it is being used. Default is 30 seconds for Entry Delay 1.
Note: Specic Exit Error operation is based on the Entry Delay used (1 or 2) with an
EX type zone. See Exit Delay.
SYSTEM OPTIONS
9.6 Exit Delay
9.7 Cross Zone Time
9.8 Power Fail Delay
9.9 Swinger Bypass Trips
9.10 Reset Swinger Bypass
9.11 Telephone Access
EXIT DELAY: 60
Enter the Exit Delay time for all Exit type zones. When the exit delay time starts,
all activity on exit and burglary zones is ig nored until the exit delay expires. The
keypad displays the Exit Delay time countdown and annunciates the Exit Delay tone
at 8 second intervals until the last 10 seconds when annunciation is at 3 second
intervals. The exit de lay can be from 45 to 250 sec onds. Default is 60 seconds.
During Exit Delay, if an exit zone trips, then restores, and trips again, the Exit Delay
timer restarts. This restart can occur only once.
Exit Error Operation: At arming, when an entry/exit zone (EX) is faulted at the end
of the exit delay then one of two sequences occur:
For Entry Delay 1 EX type zones:
• the bell sounds for the length of time set in Bell Cutoff programming
• the Entry Delay operation starts, requiring code entry to disarm
• if not disarmed, a zone alarm and an Exit Error are sent to the receiver.
For Entry Delay 2 EX type zones:
• the zone is force armed and a zone force arm message is sent to the receiver
• an Exit Error is sent to the receiver
• the bell sounds for the length of time set in Bell Cutoff programming
CRS ZONE TM: 0
Enter the time allowed between zone faults. When a zone programmed for cross
zoning faults, the panel begins counting down the Cross-Zone Time entered here. If
the same zone or another cross-zoned zone faults within this time, an alarm report
is sent to the receiver.
If the Cross-Zone Time expires without the second zone fault, only a zone fault
report from the rst zone is sent to the receiver. The Cross-Zone Time can be from
4 to 250 seconds in one second increments. Enter 0 (zero) to disable the Cross-Zone
Time feature. See the Appendix.
PWR FAIL HRS: 1
This option tracks the duration of an AC power failure. The delay time can be from 1
to 9 hours. When the AC power is off for the length of the programmed delay time,
an AC power failure report is sent to the receiver. For example, if the power failure
delay is set for two hours, then the AC power failure report will be sent between
2-3 hours. Entering a 0 (zero) sends the AC power failure report within 15 seconds.
SWGRBYPS TRIPS: 2
Enter the number of times (1-6) a zone can go into an alarm or trouble condition
within one hour be fore being auto matically bypassed. Bypassed zones are auto-
matically reset when the area they are assigned to is disarmed. All 24-hour zones
are reset when any area of the system is dis armed. A programming Stop operation
restores a bypassed zone. Entering 0 (zero) disables this function. Default is 2.
How it works
The panel hour timer starts at 59 minutes past the hour. If the hour timer expires
before the trip counter is exceeded, the trip counter returns to 0 (zero). If the trip
counter is exceeded before the hour expires, the zone is auto matically bypassed by
the panel. A Bypass Re port is sent to the receiver if Bypass Re ports is YES.
RST SBYP NO YES
When YES is selected, an auto matically bypassed zone is reset if it remains in
a normal condition for one complete hour after being bypassed. A report of the
automatic reset is sent to the receiver if Bypass Reports has been se lected as YES.
Default is NO.
PHONE ACC NO YES
YES allows the use of standard DTMF telephones to arm and disarm and check the
armed status of the XT30/XT50 panel. Refer to the XT30 or XT50 User Guide for
complete information.
XT Series Programming Guide Digital Monitoring Products, Inc.
19
SYSTEM OPTIONS
9.12 Zone Activity Hours
9.13 Arm Activity Days
9.14 Time Zone Changes
ZN ACTY HRS: 0
This option provides supervision of a person living alone for non-activity. Enter the
number of hours, 0 to 9, allowed to elapse without a disarmed zone being tripped
before a message is sent to the receiver. Default is 0 (zero).
When the system is disarmed, the timer begins to countdown the number of hours
programmed. Each time activity occurs, the timer restarts the countdown.
Before the countdown time expires, the keypad sounds a tone and PRESS ANY KEY
displays to allow the user to restart the activity timer. The duration of the tone is
the number of seconds programmed for Entry Delay 2.
Select the SUPV/TRBL receiver option in communication programming to send S93
ALARM: User Activity Not Detected, S94 Alert: Activity Check Enabled, and S95 Alert:
Activity Check Disabled messages.
When an open/close schedule is programmed, the timer only counts down during
the scheduled open period. Also, when a schedule is programmed, if the timer is
counting down and the scheduled open time occurs, the timer resets and begins the
countdown again.
ARM ACTY DAYS: 0
This allows selection of the number of days a countdown timer is set for area
arming and disarming activity. The range for the countdown timer is 00 to 99.
When the timer counts down to zero because of no arming or disarming activity, the
panel sends a “No Arming/Disarming” message to the receiver at 10:00 AM. Each
time an area is armed or disarmed, the timer is restarted. When the countdown
timer expires because of no arming or disarming activity, and a message is sent, the
timer does not restart until a panel reset occurs or an area is armed or disarmed.
The SUPV/TRBL receiver option must be selected in communication programming
for the message to be sent.
TIME CHG NO YES
This option allows the panel to request automatic time changes from the DMP
SCS-1R Receiver. For the receiver to send time changes, it must be programmed
to send time changes and must be receiving time change updates from the host
automation computer at least every 24 hours. Default is YES.
When time zone is programmed YES, enter the number (0-23) that indicates the
HRS FROM GMT: 6
Greenwich Time zone (GMT) where the panel is located. The default is 6. See table
below for GMT values.
GMT
Digital Monitoring Products, Inc. XT Series Programming Guide
20
City/Time Zone
0
London, Monrovia, Lisbon, Dublin, Casablanca, Edinburgh
1
Cape Verde Island, Azores
2
Mid-Atlantic, Fernando de Noronha
3
Buenos Aires, Georgetown, Brasilia, Rio de Janeiro
4
Atlantic Time (Canada), Caracas, La Paz, Santiago
5
Eastern Time (US, Canada) Bogota, Lima, Arequipa
6
Central Time (US, Canada), Mexico City, Saskatchewan
7
Mountain Time (US, Canada), Edmonton
8
PacicTime(US,Canada),Tijuana
9
Alaska
10
Hawaii
11
Midway Island, Samoa
12
Fiji,MarshallIsland,Wellington,Auckland,Kwajalein,Kamchatka
13 New Cadelonia
14 Guam, Sydney
15 Tokyo, Seoul
16 Hong Kong, Singapore
17 Bangkok, Hanoi
18 Dhaka, Almaty
19 Islamabad, Karachi
20 Abu Dhabi, Kazan
21 Moscow, Bagdad
22 Eastern Europe
23 Rome, Paris, Berlin
SYSTEM OPTIONS
9.15 Time Display
9.16 House Code
9.16.1 Detect Wireless Jamming
9.16.2 Wireless Audible Annunciation
9.17 Built-In 1100 Wireless (XT50 only)
9.18 Enable Keypad Panic Keys
9.19 Occupied Premises
TIME DSP NO YES
HOUSE CODE: 0
DET JAMNG NO YES
WLS AUDIBLE: DAY
ANY DAY MIN
BUILT IN 1100
WIRELESS NO YES
KPD PANCS NO YES
OCCUPIED PREMISE
NO YES
YES allows the keypad to display the time and day in the Status List. When NO is
selected, time and day of the week are not displayed.
When using a DMP wireless system, enter a house code between 1 and 50 for the
wireless system to use. The DMP wireless receiver automatically programs the house
code into the wireless transmitters when the unique transmitter serial number is
programmed into the panel. See Wireless programming in Zone Information. Default
is 0 (zero) indicating the DMP wireless system is not being used.
The house code identies the panel, receiver, and transmitters to each other. When
operating, the receiver listens for transmissions that have the programmed house
code and transmitter serial number.
Note: The exibility of DMP two-way wireless operation allows an existing house
code to be changed in the panel at any time. The transmitter may take up to two
minutes to learn the new house code and continue operation.
Note: When any wireless zone programming is changed in the panel, wireless
receiver zone programming is updated by the panel. At that point, all wireless zones
display as normal for up to 1 minute, regardless of the actual state of the zone.
This option displays when the House Code entered is for a DMP 1100D Series
Wireless system. When enabled and the receiver detects jamming, a trouble or
alarm message is sent to the receiver and displays in the Status List. Select YES to
enable jamming messages to display in the Status List. Select NO to disable jamming
messages. Default is NO.
This option displays when the House Code entered is for a DMP 1100D Series
Wireless system (1-50). Press any top row key to select the keypad buzzer
annunciation method for wireless low battery and missing messages.
Select ANY to enable annunciation anytime.
Select DAY to enable annunciation except during sleeping hours (9 PM to 9 AM).
Select MIN (minimum) to annunciate only Fire and Fire Verify zones during daytime
hours (9 AM to 9 PM). Default is DAY.
Select YES if using the built-in wireless receiver on the XT50. If selected, zones
80-99 are available to be programmed as wireless zones in addition to any keypad
zone number. Select NO to use an external 1100 series wireless receiver. If NO is
selected, address 8 is usable with zones 81-84 for hardwire or wireless operation,
but zones 80 and 85-99 are not available. Default is YES.
This option allows the two-button panic key operation selected at a keypad to send
the Panic, Emergency, or Fire message to the central station receiver. Select YES to
enable the two-button panic operation. To disable the two-button panic operation,
select NO. Default is YES.
Select YES to allow the panel to automatically disarm the interior area(s) when
arming all areas and a perimeter zone is not tripped during the exit delay.
XT Series Programming Guide Digital Monitoring Products, Inc.
21
SYSTEM OPTIONS
This False Alarm Reduction feature will keep a user from arming the entire system
when they do not exit and remain in the premise. Select NO to not automatically
disarm interior area(s). Default is YES.
9.20 Use False Alarm Question
9.21 Weather Zip Code
USE FALSE ALARM
QUESTION? NO YES
ENTER WEATHER
ZIP CODE: 0
Select YES to display IS THIS A FALSE ALARM? NO YES at the keypad in place of
CANCEL VERIFY when a burglar alarm occurs. Default is YES.
This option allows local U.S.A. weather updates to display on the keypad. Enter the
zip code of the user at this option. When no number is entered weather conditions
are not displayed. Default is 0 (zero).
If using a 7800 Series keypad, the current weather conditions and the next day’s
forecast display as graphics on the Main Screen. All other DMP keypads display the
weather information in the Status List.
Digital Monitoring Products, Inc. XT Series Programming Guide
22
Bell Options
BELL OPTIONS
10.1 Bell Options
10.2 Bell Cutoff Time
10.3 Automatic Bell Test
10.4 Bell Output
10.5 Bell Action
10.5.1 Fire
10.5.2 Burglary
10.5.3 Supervisory
10.5.4 Panic
10.5.5 Emergency
10.5.6 Auxiliary 1
10.5.7 Auxiliary 2
BELL OPTIONS
This section allows you to program the panel bell output functions. If using the
Model 1135 or 1135DB Wireless Siren for local annunciation, the Trip with Panel Bell
option should be selected in the Output Information programming for the siren.
BELL CUTOFF: 5
Enter the maximum time from 1 to 15 minutes the Bell Output remains on. If the
Bell Output is manually silenced or the system is disarmed, the cutoff time is reset.
Enter zero to provide continuous bell output. Default is 5.
Note: To support the Cancel/Verify operation on an All/Perimeter or Home/Sleep/
Away system, set the Bell Cutoff Time to greater than 0.
BELL TEST NO YES
When YES is selected, the Bell Output is turned on for two seconds when all areas
in the system are armed. The Bell Test only occurs when the areas are armed from
a keypad. Arming performed from an Arming zone or remotely from Remote Link™
does not activate the Bell Test. In addition, the Closing Wait feature is activated if
Opening/Closing Reports is YES. See OPENING/CLOSING AND USER REPORTS.
Closing Wait operation
Closing Wait provides a delay time before a monitored system arms until the panel
receives an acknowledgment of the closing report from the central station receiver.
During the delay, the keypad displays ONE MOMENT . . . Once the closing is
acknowledged, the keypad buzzes for one second and then displays the ALL SYSTEM
ON message. If the primary communication fails, but the backup communication is
successful, then the message BACKUP ALR ONLY appears. If both primary and backup
communication fail, the message LOCAL ALARM ONLY will appear.
BELL OUTPUT: 0
Enter the output/Favorite number to follow the panel Bell terminal 5 operation for
all action and off conditions. Enter 0 (zero) to disable.
Note: When BELL ACTION below is set to T for Temporal Code 3, this Bell Output
action will be Pulse for wired outputs 1-4, wireless outputs 31-34 and 41-44.
BELL ACTION . . .
This denes the type of Bell Action from zone alarms that occurs on the panel’s bell
terminal number 5. Trouble conditions do not activate Bell Action. There are seven
zone types you can program individually for Bell Output. To provide a steady Bell
Output, enter S. For a pulsed output, enter P. For a Temporal Code 3 output, enter
T and for no Bell Output, enter N.
FIRE TYPE: T
Denes Bell Action for Fire Type Zones. The default is set at T.
BURGLARY TYPE: S
Denes Bell Action for Burglary Type Zones. The default is set at S.
SUPRVSRY TYPE: N
Denes Bell Action for Supervisory Type Zones. The default is set at N.
PANIC TYPE: N
Denes Bell Action for Panic Type Zones. The default is set at N.
EMERGNCY TYPE: N
Denes Bell Action for Emergency Type Zones. The default is set at N.
AUXLRY 1 TYPE: N
Denes Bell Action for Auxiliary 1 Type Zones. The default is set at N.
AUXLRY 2 TYPE: N
Denes Bell Action for Auxiliary 2 Type Zones. The default is set at N.
XT Series Programming Guide Digital Monitoring Products, Inc.
23
OUTPUT OPTIONS
Output Options
11.1 Output Options
11.2 Cutoff Outputs
11.2.1 Output Cutoff Time
11.3 Communication Failure Output
11.4 Fire Alarm Output
11.5 Fire Trouble Output
11.6 Panic Alarm Output
11.7 Ambush Output
11.8 Entry Output
OUTPUT OPTIONS
This section allows you to program panel output options. Switched Ground (open
collector) outputs are available using the 4-wire output harness on the XT30/XT50
board. Wireless outputs are available when using the built-in 1100 Series Receiver
of the XT50 or an 1100D Series Wireless Receiver. Refer to the XT Series Installation
Guide (LT-0980) for complete information.
Select from the following output numbers:
• 1 to 4
• 31 to 34
• 41 to 44
• F1 to F20 (To Activate Z-Wave Favorites)
CO OUTS: - - - -
This option allows you to dene the operation of the four on-board annunciator
outputs. For each programming option, enter the number of the output you wish
to activate or 0 (zero) for no output. Any or all of the available outputs can be
programmed here to turn off after the time specied in Output Cutoff Time. See the
Output Cutoff Time section for additional information. To disable this option, press
any Select key to clear the display of output numbers and then press COMMAND.
Note: Whenever an output is assigned in Output Options, that output cannot be
turned on from the User Menu.
CUTOFF TIME: 0
If a Cutoff Output is assigned, you can enter a Cutoff Time for the output to remain
on up to 15 minutes. If the output is turned off manually, the cut off time is reset.
The Cutoff Time can be 1 - 15 minutes. Enter 0 (zero) to provide continuous output.
Note: The output is cutoff within 60 seconds of the programmed cutoff time.
The Cutoff Timer is shared by all outputs. If a second output trips, the timer is not
reset. Both outputs turn off when the original time expires.
COM FAIL OUT: 0
This output/Favorite turns on when the panel fails to communicate with the
receiver after three successive dial attempts. Enter 0 (zero) to disable this output.
Note: To turn off the Communication Failure Output, disarm the panel or turn the
output off using the User Menu Outputs On/Off function.
FIRE ALR OUT: 0
This output/Favorite turns on any time a re type zone is placed in alarm. The
output turns off using the Sensor Reset option when no additional re type zones
are in alarm. Enter 0 (zero) to disable this output.
FIRE TRB OUT: 0
This output/Favorite turns on any time a re type zone is placed in trouble or when
a supervisory type zone is placed in alarm or trouble. The output turns off when all
re and supervisory type zones restore to normal. Enter 0 (zero) to disable.
PANC ALM OUT: 0
This output/Favorite turns on any time a Panic Zone (PN) is placed in alarm. The
output turns off using the Sensor Reset option once all Panic Zones are restored.
Enter 0 (zero) to disable this output.
If a wireless output is programmed, the panel sends the Panic Test Cadence or the
Panic Alarm Cadence to the output when a Panic Test is performed or a Panic Zone
is placed in alarm.
AMBUSH OUT: 0
This output/Favorite turns on any time an Ambush code is entered at a keypad. The
output turns off using the Sensor Reset option. Enter 0 (zero) to disable this output.
ENTRY OUT: 0
This output/Favorite turns on at the start of the entry delay time. The output turns
off when the area disarms or the entry delay time expires. Enter 0 (zero) to disable.
Digital Monitoring Products, Inc. XT Series Programming Guide
24
OUTPUT OPTIONS
11.9 Begin Exit Output
11.10 End Exit Output
11.11 Ready Output
11.12 Armed Output
11.13 Disarmed Output
11.14 Burglary Output
11.15 Late To Close Output
11.16 Arm-Alarm Output
11.17 Heat Saver Temperature
11.18 Cool Saver Temperature
BEGIN EXIT: 0
END EXIT: 0
READY OUT: 0
ARMED HOME: 0
ARMED SLEEP: 0
ARMED AWAY: 0
ARMED ALL: 0
ARMED PERIM: 0
ARMED OUT: 0
DISARMED OUT: 0
BURGLARY OUT: 0
LATE CLS OUT: 0
ARM-ALARM OUT: 0
HEAT SAVER
TEMPERATURE: 0
COOL SAVER
TEMPERATURE: 0
This output/Favorite turns on any time an exit delay time starts. The output turns
off when the system arms or when the arming has been stopped. Enter 0 (zero) to
disable.
This output/Favorite turns on any time an exit delay time ends. The output turns off
when the system disarms. Enter 0 (zero) to disable.
This output/Favorite turns on whenever all disarmed zones are in a normal state.
The output turns off when any disarmed zone is in a bad state. Enter 0 (zero) to
disable.
The entered output turns on any time the system is armed. The keypad display is
dependent on the system’s arming type.
For Home/Away systems, only the HOME and AWAY screens display. If a Bedroom area is
programmed into the panel, the SLEEP screen also displays. For All/Perimeter systems,
the ALL and PERIM screens display. For Area systems, the OUT screen displays. All options
are defaulted to 0 (zero). The output turns off when the system completely disarms.
Enter 0 (zero) to disable this output.
This output/Favorite turns on when all areas of the panel are disarmed. The output
turns off when an area is armed.
This output/Favorite turns on any time a burglary zone goes into alarm. The output
turns off when the area in which the alarm occurred disarms and no other burglary
zones are in alarm. Enter 0 (zero) to disable this output.
Enter the output/Favorite to turn on at the expiration of a closing schedule when all
areas are not armed. The output activates simultaneously with the CLOSING TIME!
keypad display. The output is turned off when all areas are armed, the closing is
extended, or the schedule is changed.
Enter the output/Favorite to turn on steady when any area of the system is armed.
If an alarm occurs causing the keypads to turn Red, this output pulses and continues
to pulse for approximately three (3) minutes after the panel is disarmed. Enter 0
(zero) to disable. Wireless Outputs:
• The Arm-Alarm Output is compatible with the Model 1117 Wireless LED
Annunciator and the Model 1116 Wireless Relay Output connected to a Model 572
Indicator LED.
• When the Model 1117 is battery operated, the LED is off when the system is
armed to conserve battery life. If an alarm occurs, the output ashes quickly.
• Using the Model 1116 connected to a Model 572, the LED is on when the system is
armed. If an alarm occurs, the output pulses.
• To operate the Arm-Alarm output within one second, program a fast response
number from 41 to 44. Fast response operation reduces overall wireless output
battery life.
• To operate the Arm-Alarm output within 15 seconds, program a slow response
number from 31 to 34. Slow response operation increases overall wireless output
battery life.
Enter the desired temperature setting for all Z-Wave thermostats when the system
is armed ALL or AWAY. When the system is disarmed the thermostats return to their
previous settings. The range is 55-95 degrees. Enter 0 (zero) to disable.
Enter the desired temperature setting for all Z-Wave thermostats when the system
is armed ALL or AWAY. When the system is disarmed the thermostats return to their
previous settings. The range is 55-95 degrees. Enter 0 (zero) to disable.
XT Series Programming Guide Digital Monitoring Products, Inc.
25
OUTPUT INFORMATION
Output Information
12.1 Output Information
12.2 Output Number
12.3 Output Name
12.4 Serial Number
12.5 Supervision Time
12.6 Trip with Panel Bell Option
OUTPUT INFO
OUTPUT NO: -
OUTPUT NAME X
-
* UNUSED *
SERIAL#: -
ALREADY USED: ZXX
SUPRVSN TIME: 240
0 3 60 240
TRIP WITH PANEL
BELL NO YES
This section allows you to program and name wireless outputs into the panel
when using an 1100D/1100DH/1100DI Wireless Receiver or the built-in receiver of
the XT50. Wireless outputs are also available on the XT50 when using an onboard
receiver.
Enter an output number. Select from the following output numbers:
• 1 to 4
• 31 to 34 — Slow response time* wireless outputs (activate within 15 seconds)
• 41 to 44 — Fast response time* wireless outputs (activate within 1 second)
Note: Addresses 31 to 34 and 41 to 44 are available for wireless outputs, keypad
bus zones, wireless zones or wireless key fob zones and can only be assigned to one
device.
* The response time of a wireless output is the time it takes for a wireless output to
activate once the panel event occurs. You determine whether a wireless output is a
slow or fast response based on the output number assigned. A slow response output
number extends battery life, but response time may be up to 15 seconds. A fast
response output number responds within 1 second, but reduces battery life. Refer
to the specic wireless output installation guide to determine battery life.
This section allows you to dene a 16 character alphanumeric name for any output
numbers.
Hardwired outputs (Output Numbers 1-4) default to the number of the output. Press
a top row Select key to enter a name.
Wireless outputs (Output Numbers 31-34 and 41-44) are initially named *UNUSED*
and are not part of the system until they are assigned a name. Press any select key
or area to enter a name.
To mark a wireless output unused, de lete the old name by pressing any select key
or area, then press the COMMAND key. The pro grammer auto matically pro grams the
name as * UNUSED *.
Enter the eight-digit serial number found on the wireless device.
This message displays when the serial number is already programmed for another
output or zone. The programmed output or zone number displays.
Press any select key or area to select the supervision time required for the wireless
output. Press COMMAND to accept the default time. Default is 240 minutes.
Select the required number of minutes. The transmitter must check in at least
once during this time or a missing condition is indicated for that zone. 1100 Series
transmitters automatically check in based on the supervision time selected for
the wireless zone, no additional programming is needed. Zero (0) indicates an
unsupervised transmitter.
The 3 minute supervision time is only available if using an 1135 Wireless Siren.
Note: When the panel is reset, a receiver is installed or powered down and powered
up, or programming is complete, the supervision timer restarts for all wireless
outputs.
This option displays when the wireless device is an 1135 wireless siren. Select YES
to have the 1135 wireless siren follow the panel’s bell output cadence for the zone
type and bell cutoff time. Default is YES.
Digital Monitoring Products, Inc. XT Series Programming Guide
26
AREA INFORMATION
Area Information
13.1 Area Information
13.2 Area Number
13.3 Area Name
13.4 Automatic Arming
13.4.1 Bad Zones
13.5 Automatic Disarming
AREA INFORMATION
This section allows you to assign functions to individual areas for XT30 and XT50
panels. All non-24-hour zones must be assigned to an active area. See the section on
Zone Information.
Activate an area by assigning it a name. A name is given to each active area in place
of a number to assist the user during arming and disarming.
AREA NO: -
Enter the number of the area to program. In an area system, select from areas
INT PERIM
INT BDRM PERIM
* UNUSED *
AUTO ARM NO YES
BAD ZONES: BYP
BYP FORC REF
AUTO DIS NO YES
1 to 6. In an All/Perimeter system, select INTerior or PERIMeter. In a Home/Away
system, select INTerior, BDRM, or PERIMeter.
In an area system, enter up to 16 characters for the area name. Only those areas
given names can have zones assigned to them. All others are marked *UNUSED*.
Refer to the Entering Alpha Characters section.
To add an area name to the system, press any select key or area and then enter up
to 16 characters for the new name. Press COMMAND to continue.
To mark an active area as unused, delete the old name by pressing any select key
or area then press the COMMAND key. The panel automatically sets the name as
*UNUSED*. If you have already Initialized the panel, all areas will be marked as
*UNUSED*. See Initialization section.
Select YES to allow this area to arm automatically according to the opening and
closing schedule.
If Closing Check is selected as YES, the automatic arming does not take place until
the expiration of a 10-minute Closing Check delay. If the area has been disarmed
outside a schedule, the Closing Check delay occurs one hour after the area is
disarmed.
At arming, faulted zones are handled according to the option selected in Bad
Zones. If a Closing report is sent, the user number is indicated as SCH on the SCS-1R
Receiver. Select NO to disable automatic arming for this area. Default is NO.
Note: For ANSI/SIA CP-01 installations, Automatic Arming cannot be used for arming.
At the time of automatic arming, some zones in the area may not be in a normal
condition. This option allows you to program the panel’s response to these bad
zones. This option is not displayed if AUTO ARM is NO.
BYP - All bad zones are bypassed. A report of the bypass is sent to the receiver if
Bypass Reports has been selected as YES. See the Bypass Reports section. The report
indicates SCH as the user number.
FORC - All bad zones are force armed. Zones force armed in a bad condition are
capable of restoring into the system and reporting alarms if tripped. A report of
the force arm is sent if Bypass Reports is YES. See the Bypass Reports section. The
report indicates the user number as SCH.
REF - The automatic arming is refused and no arming takes place. A No Closing
report is sent to the receiver regardless of the Closing Check selection. See the
XT30 and XT50 Programming Sheets.
Note: For listed installations, set Bad Zones to REF.
NO disables automatic disarming by schedule for this area. Select YES to allow this
area to automatically disarm according to a schedule. If an Opening report is sent to
the receiver, the user number is indicated as SCH.
Note: For ANSI/SIA CP-01 installations, Automatic Disarming cannot be used.
XT Series Programming Guide Digital Monitoring Products, Inc.
27
ZONE INFORMATION
Zone Information
14.1 Zone Information
14.2 Zone Number
14.3 Key Fob
14.4 Zone Name
14.5 Zone Type
ZONE INFORMATION
This allows you to dene the operation of each protection zone used in the system.
ZONE NO: -
Enter the number of the zone you intend to program. Press COMMAND to enter a
zone name. Refer to the Enter Alpha Characters section.
Keypad Address Zone Numbers
1 11-14
2 21-24
3 31-34
4 41-44
5 51-54
6 61-64
7 71-74
8 81-84
Note: Use output numbers 31-34 (slow response) or 41-44 (fast
response) with 1100 Series Wireless output modules. Use zone
numbers 31-34 or 41-44 for DMP Series Key Fobs.
The XT50 (with the built-in 1100 Wireless Receiver) has 20 on-board wireless zones
numbered 80-99. The XT50 can be programmed to use zones 11-14, 21-24, 3134, etc. as wireless zones. Any keypad bus zone can be programmed as wireless
while the next consecutive zone number can be hardwired from a keypad or zone
expander.
Note: When using multi-zone wireless devices 1101, 1106, or 1114, do not use
consecutive zones 80-81.
KEYFOB NO YES
Select YES to program an 1100 Series Key Fob for zones 31-34 or 41-44. When YES is
selected, programming continues at the 1100 Series Key Fobs Section. Default is NO.
* UNUSED *
Press any select key or area and enter up to 16 characters for the zone name. A
name must be given to each zone in the system. This name can be displayed at the
keypads when the zone is bad or viewed in Display Events. The zone name is also
sent to the receiver as part of a zone event report.
A zone that is not part of the system must be marked *UNUSED*. To mark a zone
unused, de lete the old name by pressing any select key or area, then press the
COMMAND key. The pro grammer auto matically pro grams the name as * UNUSED *. If
you selected ZONES? NO YES to clear the panel’s memory during Initialization, the
zones will already be marked * UNUSED *. See the Initialization section.
ZONE TYPE: -
The Zone Type denes the panel’s response to the zone being opened or shorted.
Refer to the Appendix for zone type defaults and descriptions.
When you assign a Zone Type to a zone, responses are made automatically for
the zone. There are 11 Zone Types to choose from including Blank. The func tional
details of each response are described in Zone Type Defaults in the Appendix.
To select a new Zone Type, press any select key or area. The display lists the four
Zone Types shown below. When the Zone Type you want to select displays, press the
select key or area below the name.
Blank, Night, Day, or Exit. Press COMMAND to display additional zone types.
-- NT DY EX
FI PN EM SV
A1 A2 FV AR
Fire, Panic, Emergency, or Supervisory. Press COMMAND to display additional zone
types.
Auxiliary 1, Auxiliary 2, Fire Verify, or Arming. Press the Back Arrow key to display
the previous zone types.
Digital Monitoring Products, Inc. XT Series Programming Guide
28
If you select Blank, Night, Day, Exit, Auxiliary 1, or Auxiliary 2 as the Zone Type,
the zone must be assigned to an area. If you select Fire, Panic, Emergency, or
Supervisory as the Zone Type, these are 24-hour zones that are always armed and no
area assignment is needed. Press COMMAND to continue.
Caution: When a sensor reset is performed at the keypad, power will drop to
devices connected to zone 10 causing the panel to sense an open condition on all
zone types other than Fire (FI), Fire Verify (FV), and Supervisory (SV). Whenever
non-Fire and non-Supervisory zone types are used on zone 10, make the appropriate
adjustments to the zone Armed Action to prevent false alarms from occurring.
Refer to the Appendix for zone type specications and descriptions.
Note: For listed installations using wireless zones, do not use the FV zone type.
14.6 Area Assignment
14.7 Arming Zone Assignment
14.7.1 Style
AREA NO: -
AREA: PERIMETER
INT BEDRM PERIM
AREA:
ARM AREA: PERIM
PERIM ALL
HOME SLEEP AWAY
STYLE: TOGGLE
TGL ARM DIS STEP
For Area systems, enter the area number from 1 to 6 where this zone is being
assigned.
For All/Perimeter systems, choose INTERIOR or PERIMETER.
For Home/Away systems, choose INTERIOR, PERIMETER, or BEDROOMS
• INT (Interior) - Assigns the zone to area 2, Interior.
• BDRM (Bedroom)- Assigns the zone to area 3, Bedrooms. This option is only
displayed in Home/Away systems.
• PERIM (Perimeter) - Assigns the zone to area 1, Perimeter.
For Area systems, this option species the areas to be armed by the Arming Type
zone. Press the appropriate number keys on the keypad to assign areas 1 to 6. When
disarmed, all programmed areas are disarmed.
For All/Perimeter systems, choose PERIM or ALL. For Home/Away systems, choose
HOME, SLEEP, or AWAY.
Perimeter/All - Specify whether the arming zone arms just the Perimeter (PERIM) or
the Perimeter and Interior areas (ALL) for All/Perimeter systems. When disarming,
all areas are disarmed.
HOME/SLEEP/AWAY - Specify whether the arming zone arms the Perimeter (HOME),
the Perimeter and Interior (SLEEP), or all three areas (AWAY). When disarming, all
areas are disarmed.
Arming zone operation
If a bad (faulted) Priority zone is in the area being armed by an Arming zone,
the arming is stopped. If there are no Priority zones, or they are all in a normal
condition, the following applies:
When a non-Priority zone is bad when an area is armed with a keyswitch on an
Arming zone, the arming is delayed for ve seconds. If, during the ve-second
delay, the keyswitch is turned to disarm, the arming stops. If the keyswitch is held
in the arming position for the full ve seconds, the bad zone is force armed and the
area is armed.
The ability to stop the arming does not apply if a wireless arming device is being
used. Refer to the Appendix.
Note: Arming from a zone, voice module, touch tone telephone, or Remote Link is
not affected by this operation.
This option species the style for the arming/disarming operation. The default for
STYLE: is TGL (toggle). Pressing any select key or area displays the STYLE options.
To view more style options press the command key. The following is a description of
the action for each option condition.
TGL (Toggle) - When the zone changes from normal to shorted, the programmed
areas toggle between the armed or disarmed condition. When restored to normal,
no action occurs. When the zone is opened from a normal (disarmed) state, a
trouble is reported. When opened from a shorted (armed) state, an alarm is
reported and the zone is disabled until you disarm the area(s) from either a keypad
or Remote Link™ computer.
ZONE INFORMATION
XT Series Programming Guide Digital Monitoring Products, Inc.
29
ZONE INFORMATION
ARM - When the zone is shorted, the programmed areas are armed. When restored
to normal, no action occurs. When the zone is opened from a normal (disarmed)
state, a trouble is reported. When opened from a shorted (armed) state, an alarm is
reported.
DIS (Disarm) - When programmed as an Area system, a short will disarm the
programmed areas. When programmed as a ALL/PERIM or HOME/AWAY system, a
short will disarm ALL areas. When restored to normal, no action occurs. When the
zone is opened from a normal (disarmed) state, a trouble is reported.
STEP - When programmed as an area system, a short will arm the areas and beep
the keypads once. When programmed as ALL/PERIM or HOME/AWAY, on the rst
short HOME will arm and beep the keypad once. On the second short, SLEEP will arm
and beep the keypads twice. On the third short, AWAY will arm and beep the keypad
three times. A normal condition will cause no action. An open condition will disarm
the programmed areas and beep the keypads for one second.
Note: This arming style is designed for wireless arming pendants. When using a
arming/disarming keyswitch, locate the keyswitch within the protected area.
MNT
14.8 Next Zone
NEXT ZN? NO YES
MNT (Maintain) - When the zone is shorted, the programmed areas are armed.
When restored to normal, the programmed areas are disarmed and any alarm bells
are silenced. When the zone is opened from a normal (disarmed) state, a trouble
is reported. If opened from a shorted (armed) state, an alarm is reported and the
zone is disabled until you disarm the area(s) from either a keypad or Remote Link™
computer.
When YES is selected, the programming for the zone terminates and the display
returns to ZONE NO: - allowing you to enter a new zone number. Select NO to
program wireless devices or to make changes to the Alarm Action for a zone. The
Alarm Action is dened after 1100 Series Wireless Key Fob programming.
DMP Wireless
For 1100 series wireless operation, set the House Code from 1 to 50. See House Code programming in
System Options.
For an 1100 Series Key Fob see the 1100 Series Wireless Key Fob programming section.
Note: All wireless programming is stored in the XT30 or XT50 panel. The Wireless Receiver obtains
the necessary programming information from the panel each time the receiver powers up, when the
programmer STOP routine is selected or the panel is reset. The receiver memory refresh takes up to 45
seconds to complete depending on the number of wireless zones programmed and the Red LED remains on
during this time. Normal receiver operation is inhibited during the memory refresh period.
14.9 Wireless
14.9.1 Serial Number Entry
14.9.2 Contact
Digital Monitoring Products, Inc. XT Series Programming Guide
30
WIRELESS NO YES
SERIAL #: -
ALREADY USED Zxx
CONTACT: INTERNAL
INT EXT
Select YES to program this zone as a DMP wireless zone. You must program the
wireless House Code prior to adding wireless zones to the system. See House code
programming in System Options. Default is NO.
Note: For wireless zones 80-99 on the XT50, this option does not display. If a DMP
wireless House Code is not programmed, then NO HOUSE CODE displays.
Enter the eight digit serial number, including leading zeros, found on the
wireless device.
Displays when the serial number is already programmed for another zone. The
programmed zone number displays.
This option displays if the serial number entered is for an 1101, 1102, 1103 or 1106
Universal Transmitter or 1114 Wireless Four-Zone Expander. Press any top row key to
select the contact.
Note: The 1102 Universal Transmitter only provides an external contact.
This option displays when programming an 1101, 1102, 1103 OR 1106 Transmitter.
Select INT to use the internal reed switch contacts. Select EXT to connect an
external device to the transmitter’s terminal block. Default is INTERNAL.
By allowing both of the Model 1101 or 1103 transmitter contacts (INT and EXT) to be
used at the same time, two zones may be programmed from one transmitter. When
using both contacts, you must use consecutive zone numbers.
For example, program transmitter serial number 01345678 as Zone 11 with an INT
contact type and Zone 12 with an EXT contact type. The same serial number is used
for both zones.
CONTACT: 1
1 2 3 4
ALREADY USED Zxx
NORM OPEN NO YES
14.9.3 Supervision Time
14.9.4 LED Operation
14.9.5 Disarm/Disable
14.9.6 Wireless PIR Pulse Count
14.9.7 Wireless PIR Sensitivity
14.9.8 Next Zone
SUPRVSN TIME: XX
0 3 60 240
LED OPER NO YES
DISARM DISABLE
YES
WIRELESS PIR
PULSE COUNT: 4
WIRELESS PIR
SENSITIVITY: LOW
NEXT ZN NO YES
This option displays when programming an 1114 zone expander which provides four
input contacts. Press any top row key to select the contact. Default is Contact 1.
Select the contact number to program. The same transmitter serial number is used
for all four contacts. When using the contacts, use consecutive zone numbers.
For example, use serial number 08345678 to program Contact 1 for Zone 21,
Contact 2 for Zone 22, Contact 3 for zone 23, and Contact 4 for zone 24.
A tamper on the 1114 is transmitted as the zone number assigned to Contact 1.
This message displays when the Contact is already programmed for another zone.
The programmed zone number displays.
The Normally Open option only displays when EXT is selected as the Contact type.
For external devices connected to the 1101, 1102, 1103, or 1106 terminal block,
select NO to use normally closed (N/C) contacts. Select YES to use normally open
(N/O) contacts. Default is NO.
Press any top row key to select the supervision time required for the wireless zone.
Press COMMAND to accept the default time. Default is 240 minutes.
Select the required number of minutes. The transmitter must check in at least
once during this time or a missing condition is indicated for that zone. 1100 Series
transmitters automatically checkin based on the supervision time selected for the
wireless zone, no additional programming is needed. If two zones share the same
transmitter, the last programmed supervision time is stored as the supervision time
for both zones. Zero (0) indicates an unsupervised transmitter.
The 3 minute supervision time is only available for zone types of Fire (FI), Fire
Verify (FV), and Supervisory (SV).
Note: When the panel is reset or a receiver is installed or powered down and
powered up, the supervision timer restarts for all wireless zones.
This only displays when programming a panic or pendant transmitter. Select YES to
turn a panic or pendant LED on during normal operation. Select NO to turn the LED
off during normal operation. The LED always operates on all transmitters when the
transmitter case is open and the tamper is faulted. Default is YES.
Select YES to disable the Zone Tripped message from 1101/1102/1106 Universal
Transmitters (Version 108 or higher software), 1103 Universal Transmitters (Version
107 or higher), or 1126/1127 PIRs during the disarmed period. When disarmed, the
transmitter or PIR only sends Supervision, Tamper, and Low Battery messages to
extend transmitter battery life. For transmitters, a Zone Tripped message is sent
if the zone remains tripped for 20 seconds. Select NO to always send Zone Tripped
messages in addition to Supervision, Tamper, and Low Battery. Default is YES.
This option displays for 1126 and 1127 Wireless PIRs. Select the number of infrared
pulse counts (2 or 4) the PIR will use before sending a short message. The rst
infrared pulse starts a timer and count. If no additional infrared pulses occur in 25
seconds, the timer and count are reset. Default is 4.
This option displays for 1126 and 1127 Wireless PIRs. Select the sensitivity setting
for the PIR. Selecting LOW sets the PIR to operate at 75% sensitivity for installations
in harsh environments. Selecting HIGH sets the PIR to maximum sensitivity. Default
is LOW.
Select YES to return to the ZONE NO: - option to program a new zone. Select NO to
display the Alarm Action option.
ZONE INFORMATION
XT Series Programming Guide Digital Monitoring Products, Inc.
31
ZONE INFORMATION
14.10 1100 Series Key Fobs
For an 1100 Series Key Fob set the House Code from 1 to 50. See House Code programming in System
Options. Only zones 31-34 or 41-44 can be programmed as 1100 Series Key Fob zones. Refer to the 1100
Series Key Fob Programming Sheet (LT-0706) supplied with the 1100D Series Wireless Receiver and the
1100 Series Key Fob Install Guide (LT-0703) as needed.
To operate arming and disarming properly, the Key Fob should be assigned to a User Number with
appropriate area assignments, however, the User Number does not have to exist at the time the Key Fob is
programmed. The User Number can be added at the User Menu later by the User.
The following programming continues from when Key Fob YES is selected.
14.10.1 Key Fob User Number
14.10.2 Key Fob Serial Number
14.10.3 Key Fob Supervision Time
14.10.4 Number of Key Fob Buttons
14.10.5 Key Fob Button Selection (Four Buttons)
14.10.6 Key Fob Button Selection (Two Buttons)
KF USER NO:
NOT IN USE
SERIAL #: -
ALREADY USED Zxx
SUPRVSN TIME: 0
BUTTONS: 4
TOP BTM LFT RGT
TOP BTM
Enter the User Number used to identify the key fob user and their arming and
disarming authority. Default is blank.
— User number 1 to 30 on XT30 panels
— User number 1 to 99 on XT50 panels
Displays when the User Number entered does not exist in User Code programming.
The key fob can be added, but the user must eventually be added to cause the key
fob to operate.
Enter the eight-digit serial number found on the wireless device.
Displays when the serial number is already programmed. The programmed zone
number displays.
Press any top row key to select the supervision time required for the key fob zone.
Press COMMAND to accept the default time. Default is 0.
Press the select key or area under the required number of minutes. The key fob
must check in at least once during this time or a missing condition is indicated for
that zone. 1100 Series key fobs automatically checkin based on the supervision
time selected for the wireless zone, no additional programming is needed. Zero (0)
indicates an unsupervised transmitter.
Note: When the panel is reset or a receiver is installed or powered down and
powered up, the supervision timer restarts for all wireless zones.
Enter the number of buttons (1, 2, or 4) on the key fob being programmed. Default
is four buttons.
Note: If the key fob is a one-button model, programming continues at the Button
Action section. Default button assignment for one-button key fobs is a Panic Alarm
(PN) with no output assigned.
This option only displays if the key fob being programmed is a four-button model.
Press the select key or area under the key fob button to program. The following list
identies the default button assignments:
TOP Arming with areas 1, 2, and 3 assigned
BTM Disarming with areas 1, 2, and 3 assigned
LFT Panic Alarm (PN) with no output assigned
RGT Arming with Area 1 assigned
This option only displays if the key fob being programmed is a two-button model.
Press the select key or area under the key fob button to program. The following list
identies the default button assignments:
TOP Arming with areas 1, 2, and 3 assigned
BTM Disarming with areas 1, 2, and 3 assigned
Digital Monitoring Products, Inc. XT Series Programming Guide
32
ZONE INFORMATION
14.10.7 Button Action
14.10.8 Button Press Time
14.10.9 Arm/Disarm Area Selection
14.10.10 Output Number
14.10.11 Output Action
ACTION: XXXXXXX
ARM DIS TGL STA
0 60 240
PN PN2 EM EM2
OUT RST UN
PRESS TIME: XXXXX
SHORT LONG
AREA: 1 2 3 4 5 6
ARM AREAS: PERIM
OUTPUT NO: 0
ACTION:
STD PLS MOM TGL
This option species the Button Action for an individual key fob button. The default
action for the button selected is displayed. Press any select key or area to display
the Button Action options. To view more options press the COMMAND key.
ARM (Arm) - Arms selected areas and force arms bad zones.
DIS (Disarm) - Disarms selected areas.
TGL (Toggle Arm) - Toggles arm/disarm for selected areas and force arms bad zones
when arming.
STA (Status) - Causes the key fob LED to indicate the arm/disarm status of the
system.
PN (Panic) - Triggers a Panic zone type alarm with no restoral.
PN2 (Panic 2) - Triggers a Panic zone type alarm with no restoral when pressed
simultaneously with any other Panic 2 button. No action occurs when pressed alone.
EM (Emerg) - Triggers an Emergency zone type alarm with no restoral.
EM2 (Emerg 2) - Triggers an Emergency zone type alarm with no restoral when
pressed simultaneously with any other Emergency 2 button. No action occurs when
pressed alone.
OUT (Output) - Causes an output to turn on steady, pulse, momentary, toggle or off.
RST (Sensor Reset) - Causes the panel to perform a standard Sensor Reset.
UN (Unused) - The button is not used and performs no action.
This option species the amount of time (SHORT or LONG) the user must press the
button before the key fob sends a message to the wireless receiver. The default
press time displays. Press any select key or area to set the Button Press Time for
Arm, Disarm, Toggle, Status, Output, and Sensor Reset.
Note: The Button Press Time is not programmable on Panic (PN or PN2), Emergency
(EM or EM2) or Unused (UN) zones. For those zones the button press time is always
two (2) seconds.
SHORT - Press the button for one-half (1/2) second to send the message to the
wireless receiver.
LONG - Press the button for two (2) seconds to send the message to the wireless
receiver.
For Area systems, enter the areas 1 to 6, to be armed/disarmed by the Key Fob
button being programmed.
This species the area to be armed by the Key Fob button being programmed.
For All/Perimeter systems, choose PERIM or ALL.
For Home/Sleep/Away or Home/Away systems, choose HOME, SLEEP, or AWAY.
After selecting the areas, for one-button key fobs the Zone No.: option displays. For
two-button or four-button key fobs, the Key Fob Button Selection option displays to
program additional buttons.
You can specify a relay output/Favorite to operate when OUT (Output), PN (Panic),
PN2 (Panic 2), EM (Emergency), or EM2 (Emergency 2) is selected for a key fob
Button Action and the button is pressed. Valid range is 1 to 4, 31-34, 41-44, and F1F20. For an output turned on by a PN, PN2, EM, or EM2 button action, the output
turns off when any area is disarmed.
To enter an output number, press any select key or area followed by the output
number. Press the COMMAND key.
This option allows you to dene the output action (STD, PLS, MOM, TGL, OFF) for
the selected output number. The default is Steady.
STD (Steady) - The output is turned on and remains on.
PLS (Pulse) - The output alternates one second on and one second off.
MOM (Momentary) - The output is turned on only once for one second.
XT Series Programming Guide Digital Monitoring Products, Inc.
33
ZONE INFORMATION
TGL (Toggle) - The output alternates between the on state and off state. Each
button press toggles the output state.
OFF
Note: All wireless programming is stored in the XT30 or XT50 panel. When using the XT30, the 1100D,
1100DI, or 1100DH Wireless Receiver obtains the necessary programming information from the panel each
time the receiver powers up, when the programmer STOP routine is selected or the panel is reset. The
receiver memory refresh takes up to 45 seconds to complete depending on the number of wireless zones
programmed and the Red LED remains on during this time. Normal receiver operation is inhibited during
the memory refresh period.
14.11 Alarm Action
14.12 Disarmed Open
14.12.1 Message To Transmit
ALARM ACTION . . .
DISARMED OPEN
MSG: TROUBLE
A T L -
OFF (Off) - The output is turned off. If programmed, the output was turned on by
some other means such as another button press, a zone action, or a schedule.
Note: When the output is assigned to PN/PN2 or EM/EM2 button action and is
turned on, the output turns off when any area is disarmed.
When the output action is steady, pulse or toggle and the output is turned on, the
output remains on until:
— the output cutoff time expires
— the output is reset from the keypad menu
— toggled off
The Alarm Action section allows you to change or conrm the default alarm
characteristics of a zone type.
If you selected the non-24-hour zone type Blank, Night, Day, Exit, Auxiliary 1, or
Auxiliary 2, the Alarm Action programing begins with Disarmed Open.
If you selected the 24-hour zone type Fire, Panic, Emergency, or Supervisory, the
Alarm Action programming begins with Armed Open.
The Fire Verify zone type functions the same as Fire Type, with the following
exceptions: When a Fire Verify zone is placed into shorted condition, the panel
performs a Sensor Reset and does not send a report. If any Fire Verify or Fire zone
initiates an alarm within 120 seconds after the reset, an alarm is indicated. If an
alarm is initiated after 120 seconds, the cycle is repeated. If no other Fire Verify or
Fire zone is alarmed within 120 seconds, a zone fault report is sent to the receiver.
Denes the action taken by the panel when the zone is opened while the area is
disarmed. There are three actions to dene:
• Message to Transmit
• Output/Favorite Number
• Output Action
You must also make these selections for the Disarmed Short, Armed Open, and
Armed Short zone conditions. Press the COMMAND key to continue.
You can send two report types to the receiver: Alarm and Trouble. These are
represented by the characters A and T. Press any select key or area to display the
zone report options.
ALARM - Selecting A allows an alarm report to be sent to the receiver and the bell
output to activate according to zone type. See the Bell Action section. The zone
name appears in the panel’s alarmed zones status lists.
TROUBLE - Selecting T allows a trouble report to be sent to the receiver and the
zone name to appear in the panel’s alarmed zones status lists.
LOCAL - When you select L, an alarm report is NOT sent to the receiver. The bell
output still activates according to zone type and the zone name appears in the
panel’s alarmed zones status lists.
– (dash) - When you select – , reports are NOT sent to the receiver. The bell output
does not activate and there is no display in the panel’s alarmed zones status list.
Only the programmed Output Number activates.
Digital Monitoring Products, Inc. XT Series Programming Guide
34
ZONE INFORMATION
14.12.2 Output Number
14.12.3 Output Action
14.13 Swinger Bypass
14.14 Prewarn Address
14.15 Entry Delay
OUTPUT NO: 0
ACTION:
STD PLS MOM FOLW
SWGR BYP NO YES
PREWARN:12345678
ENTRY DELAY: 1
You can specify any of the outputs/Favorites on the XT30/XT50 to be activated by
a zone condition. The output/Favorite can be activated regardless of the report to
transmit or whether or not the zone is programmed as local. An output activated by
a non-24-hour armed zone is turned off when the zone’s area is disarmed by a user.
To enter an Output Number, press any select key or area followed by the output
number 1 to 4, 31-34, 41-44, or F1-F20. Press the COMMAND key.
Entering an Output Number displays this option that allows you to assign an output
action to the relay. A description of the available output actions is given below:
STEADY - The output is turned on and remains on until the area is disarmed, an
output cutoff time expires, or the output is reset from the keypad User Menu.
PULSE - The output alternates one second on and one second off until the area is
disarmed, an output cutoff time expires, or the output is reset from the keypad
User Menu.
MOMENTARY - The output is turned on only once for one second.
FOLLOW - The output is turned on and remains on while the zone is in an off
normal, or bad condition. When the zone restores, the output is turned off.
After you have selected the Message To Transmit, the display prompts you for the
same three selections for Disarmed Short, Armed Open, and Armed Short conditions.
If the zone is a 24-hour type, only the Armed Open and Armed Short conditions
are displayed. When you have programmed all of the zone conditions, the Swinger
Bypass selection is then dis played.
Selecting YES allows the zone to be swinger bypassed by the panel according to the
programming in Swinger Bypass Trips and Reset Swinger Bypass. The Bypassed zone
displays in the keypad Status List. Selecting NO disables swinger bypassing for this
zone.
How it works
If within one hour, a zone trips the total number of times as specied in Swinger
Bypass Trips, the panel bypasses it until the following conditions occur; the area
in which the zone is assigned is disarmed, the zone is manually reset through the
Bypass Zones keypad User Menu function, the zone remains normal for one hour and
the Reset Swinger Bypass is YES.
If the zone trips fewer than the specied times within one hour of the rst trip, the
bypass trip counter returns to 0 (zero) and the process must be repeated.
A report of the swinger bypass is sent to the receiver if Bypass Reports is YES.
Option is only shown for an Exit zone.
At the start of the entry delay, all keypad addresses dis play ENTER CODE: - . If you
want the prewarn to sound at all addresses, leave the default as shown.
To delete an address, press the matching number on the keypad. To disable
prewarning at all keypads, press a top row key to clear the addresses shown. Press
the COM MAND key when the address selection is com plete.
Note: On XT30 and XT50 systems, the prewarn tone stops at the keypad when the
rst digit of a user code is entered. If, within ve seconds, a valid user code is not
entered or an invalid user code is entered, the prewarn tone begins sounding again.
Fifteen seconds must elapse before entering a digit silences the prewarn tone again.
Option is only shown for an Exit zone. Select the entry delay timer for this zone.
Entry delay timers 1 and 2 are programmed in Entry Delay in System Options.
XT Series Programming Guide Digital Monitoring Products, Inc.
35
ZONE INFORMATION
14.16 Cross Zone
14.17 Priority
14.18 TrafcCount
14.19 Zone Audit Days
14.20 Receiver Routing
14.21 Zone Number
CRS ZONE NO YES
PRIORITY NO YES
TRAFFIC COUNT NO YES
ZONE AUDIT DAYS:
00
RECEIVER ROUTING
NORMAL
NORM 1 2 BOTH
ZONE NO: -
Select YES to enable cross-zoning for this zone. Cross-zoning requires this zone to
trip twice, or this zone and another cross-zoned zone to trip, within a programmed
time before an alarm report is sent to the receiver.
Note: To operate correctly, all cross-zone zones need to be programmed as the
same zone type.
When a cross-zoned zone trips, the Output action assigned to the zone activates.
See the Bell Action section. The cross-zone time specied in System Options begins
to count down. See the Cross-Zone Time section. If another cross-zoned zone in the
system faults, or if the rst zone restores and faults again before the cross-zone
time expires, the bell turns on and the panel sends an alarm report.
If no other cross-zoned zone in the system trips before the cross-zone time expires,
the panel sends only a fault report from the rst zone to the receiver.
Note: If CRS ZONE is YES, a valid CRS ZN TIME must be programmed for this feature
to be enabled.
Cross-zoning is not compatible with Fire Verify zone types: You cannot enable crosszoning for Fire Verify zones.
Selecting YES allows you to provide additional protection for a zone by requiring it
to be in a normal condition before its assigned area can be armed. A priority zone
cannot be bypassed.
A Priority zone not in a normal condition cannot be armed. If a user attempts to arm
the area, the keypad displays the bad zone name followed by PRIORITY ZONE and
the arming is stopped.
This option is only displayed for NT and EX type zones. Select YES to provide
reporting to the receiver of the number of zone trips while in a disarmed state. The
number of trips will be included with the area closing message and reported to the
central station automation system. Trafc Count data for the 10 lowest numbered
zones with Trafc Count set to YES is also sent to the Virtual Keypad TM App if
enabled at vk.securecomwireless.com. Default is NO.
Enter the number of days (0 to 99) allowed to elapse without the zone being tripped
before a fault message is sent. The message is sent to the receiver(s) programmed
to receive Supervisory/Trouble Reports at 10:00 am following the expiration of
the timer. Each time the zone is tripped, the Zone Audit Days timer restarts and
begins to countdown the number of days programmed. After the countdown expires,
a fault message is sent and the Zone Audit Days timer restarts and begins to
countdown the number of days programmed. Available for all zone types except re
and re verify. Enter 0 (zero) to disable this function. Default is 0 (zero).
This option displays if Zone Type is set for Auxiliary 1 or Auxiliary 2.
Press any top row key to select the Receiver Routing for the selected zone.
Select NORM to send Alarm and Supv/Trbl messages from this zone to receiver 1 or
receiver 2 as programmed within the receiver.
Select 1 to send Alarm and Supv/Trbl messages from this zone to receiver 1 only,
regardless of the programming for that receiver.
Select 2 to send Alarm and Supv/Trbl messages from this zone to receiver 2 only,
regardless of the programming for that receiver.
Select BOTH to send Alarm and Supv/Trbl messages from this zone to both receivers,
regardless of the programming for either receiver.
Enter the zone number you want to program next. Return to the beginning of this
section and follow the descriptions of each programming option. If all zones are
programmed, press the ARROW key at the ZONE NO: – display to continue.
Digital Monitoring Products, Inc. XT Series Programming Guide
36
Stop
STOP
15.1 Stop
STOP
At the STOP option, pressing any select key or area allows you to exit the
Programmer function of the panel. When selected, the panel performs an internal
reset and exits the programmer.
The STOP routine causes the following conditions to occur:
• All 1100 Series DMP Wireless transmitters are reset to NORMAL
• The panel Status List is cleared
During the reset, all keypad displays are momentarily blank for two seconds. After
the reset, the programming function terminates and the keypads return to the
status list display.
The STOP option does not disarm the system. Any new areas or zones that were
added during programming are not armed until the system is disarmed and armed
again.
Set Lockout Code
16.1 Set Lockout Code
SET LOCKOUT CODE
Pressing COMMAND at the Stop option displays SET LOCKOUT CODE. This feature
allows you to program a special code that will then be required to gain access to
the panel’s internal Programmer through the keypad.
Changing the Lockout Code
You can change this code at any time to any combination of numbers from 1 to 5
digits long (1 to 65535). Do not use leading zeros for the lockout code.
1. Press any select key or area. The display changes to ENTER CODE: - .
2. Enter a 1- to 5-digit code (do not enter a number higher than 65535). Press
COMMAND.
3. Enter the new Lockout Code again. Press COMMAND. The keypad display changes
to CODE CHANGED.
Once you have changed the code, it is important that you write it down and store
it in a safe place. Lost lockout codes require the panel to be sent back into DMP for
repair. You may cancel a Lockout Code by entering 00000 at the Set Lockout Code
command option.
Lockout Code restriction:
Do not set a Lockout Code higher than 65535.
SET LOCKOUT CODE
XT Series Programming Guide Digital Monitoring Products, Inc.
37
APPENDIX
This section of the XT30/XT50 Programming Guide provides additional zone and system information.
17.1 Status List
The Status List is the current status of the system or records of recent system events that display on
alphanumeric keypads. For example, in Home/Away systems you may see the display SYSTEM READY.
If an event were to occur on the system, such as an AC failure, the keypad would also display the AC
POWER -TRBL message. This is a system event that is placed into the Status List to alert the user to a
problem with the system.
Some Status List items remain in the display until manually cleared and some are cleared automatically
when the condition returns to normal. Below is a list of status and event displays the keypad can show in
the Status List:
Description Must be manually cleared?
Fire and Supervisory zone alarms Yes - by Sensor Reset
Fire and Supervisory zone troubles No - clears when zone restores
Burglary zone alarms No - clears at disarming.
All other zone alarms No - clears when zone restores
Zone monitor displays No - clears after approximately 8 minutes
Day zone alerts No - clears after approximately 8 minutes
System monitor troubles No - clears when condition restores
(AC and battery trouble)
Armed status display No
(System On)
Disarmed status displays No
(System Ready, System Not Ready)
Remote keypad messages No
(Sent to the keypad by your ofce or central station)
Each item in the list is displayed for four seconds. When there are multiple items in the list, you can use
the COMMAND or Back Arrow keys to scroll forward or back through the items.
Appendix
17.2 False Alarm Reduction
System Recently Armed report
The System Recently Armed report (S78) is sent when a burglary zone goes into alarm within two minutes
of the system being armed.
17.3 Diagnostics Function
The XT Series panels contains a Diagnostics function that allows you to test the integrity of the cellular
communication, cellular signal, and Email communication. The Diagnostics function also displays the
panel settings. To use Diagnostics, reset the panel, enter the Diagnostics code 2313 (DIAG), and press
COMMAND.
Cellular Status
This option tests the individual components of cellular communication. Entry into the Cellular Status
(CELL STATUS) menu will cause each component of the panel’s cellular communication to be tested. The
test will proceed until the rst component failure or until all components have been tested with positive
results. The test screen will display after each component and will be displayed for two seconds or until
the CMD key has been pressed.
Cellular Signal Strength (CELL SIGNAL)
This option provides a way to test the cellular signal strength of the nearest tower
-XX dBm
SIGNAL: ▐▐▐▐▐▐▐
Cell Roaming Indicator (263C only)
The Cellular Signal Strength option in the panel’s Diagnostic menu contains a roaming
ROAM -XX dBm
SIGNAL: ▐▐▐▐▐▐▐
the signal strength. To perform the cellular activation process from a keypad, the 263C MUST be in
contact with a Verizon owned tower. If the cellular communicator is in contact with a tower owned by
another network, ROAM and the signal strength displays, but activation cannot be completed. This feature
can be used as a diagnostic tool to troubleshoot activation issues.
for the SIM card provider. Press any select key or area to display cell signal strength.
The X’s represent the numerical value of the cell signal strength in -dBm. The ▐’s
represent the signal strength 0-7.
indicator. When the 263C Cellular Communicator is roaming or not in contact with a
Verizon owned tower, ROAM will be displayed on the top line of the keypad along with
Digital Monitoring Products, Inc. XT Series Programming Guide
38
APPENDIX
Activate Cell (263C Only)
Note: (Version 122 or higher rmware) If the 263C Cellular Communicator has not been previously
activated, Automatic Cellular Activation is performed when the panel powers up or is reset. ACTIVATE
CELL is only necessary when Automatic Cellular Activation is not successful and communication was not
established.
To begin the cellular activation for a 263C CDMA Cellular Communicator, verify that the 263C MEID has
been added for the panel using Remote Link or by calling Customer Service (1-800-641-4282). At the
keypad, press any select key or area when ACTIVATE CELL is displayed on the keypad. When the
SURE NO YES? conrmation menu appears press the select key or area beneath YES to complete the
cellular activation.
Successful Display Failure Display
CELL ACTIVATED NOT ACTIVATED
Wi-Fi Signal Strength (Wi-Fi SIGNAL)
SIGNAL
▐▐▐▐▐▐▐
HOMENET123
This option tests the signal strength of the selected SSID. Press any select key or
area to display Wi-Fi signal strength. The▐’s represent the signal strength 0-7.
Wi-Fi Signal Strength
Number of Bars Indication
7
Good Signal (Excellent for consistent operation)6
5
4
Average Signal (Expect consistent operation)3
2
1 Weak Signal (Will not operate reliably. Relocate Wi-Fi
equipment or add a Wi-Fi extender for better reception.)
0 No Signal
Email Status
The Email Status menu tests each component of the panel’s e-mail communication. The test proceeds
until the rst component failure or until all components have been tested with positive results. The test
screen displays after each component for two seconds or until the CMD key has been pressed.
Panel Settings
Pressing a select key displays the MAC Address, Serial Number, Frequency Offset, Panel Model, and
Firmware Version.
MAC Address
Short for Media Access Control address. This hardware address uniquely identies each network node. Not
to be confused with an IP address, which is assignable. The MAC address is the panel on-board network
hardware address. Press any select key or area to display the panel MAC address.
Serial Number
This number is the network communicator serial number. Reference this number for communicator dateof-manufacture, hardware version, etc. Press any select key or area to display the Serial Number.
Panel Number
This menu option displays the model number of the panel. The display will show XT30 or XT50 followed by
1-3 letters to indicate the communication type: C=Cellular, D=Dialer, N=Network.
Firmware Version
This menu option displays the Firmware Version number of the panel and date it was released.
Z-Wave Test Option
TEST ZWAVE
DEVICE LIST:
HALLWAY LIGHT
HALLWAY LIGHT
99/99 SUCCESSFUL
This feature allows the installer to test panel communication with Z-Wave devices.
A successful test indicates a response from a device. Press any select key or area to
view the Z-Wave Device List.
• Press COMMAND to advance through each Z-Wave device and press any select
key or area to begin the test on the device displayed.
• The name of the device displays above the device number. The current number
of successful communications followed by the total number of attempts
displays to the right of the device number. The test stops after 99 attempts.
Press COMMAND to view the nal number of successful communications.
XT Series Programming Guide Digital Monitoring Products, Inc.
39
APPENDIX
Exiting the Diagnostics program
Press the COMMAND key until STOP displays. Press any select key or area. The keypad returns to the Status
List display.
17.4 Using the 984 Command Function
This feature allows you to connect to a service receiver, primarily used to bring a new account on-line as
it allows you to upload panel programming completed in Remote Link™. There are four options to allow
manual seizure: Number, Pickup, Network, and Cell.
Note: When not in the Programming Menu, the function 984 + COMMAND can be entered at the keypad,
and a remote options menu appears. This menu contains the following options:
NBR
After completing panel programming in Remote Link, set a trap to seize the panel when it calls. Traps are
set by selecting Panel > Trap. Refer to the Remote Link User Guide, LT-0565, or Remote Link’s Help File for
complete information about setting traps.
Then, from the panel, enter 984 and the COMMAND key, while the panel is in the Status List. The keypad
display changes to NBR PICKUP NET CELL. Select NBR. Enter the phone number for the service receiver
connected to the Remote Link computer. Press each number key slowly and deliberately. The panel dials
each number as it is pressed. If you make a mistake, press the Back Arrow key. The panel will stop dialing
and return to the Status List.
You can enter up to 15 characters for the phone number. To enter a # (pound sign) press the fourth (far
right) select key or area, and to enter an * (asterisk) press the third select key or area. Program a pause
by entering the letter P. Program a dial tone detect by entering the letter D. Cancel call waiting by
entering *70P as the rst characters. These characters are counted as part of the allowable 15 characters.
Press COMMAND after you enter the phone number.
After the phone number is entered the panel calls the receiver connected to Remote Link to download the
new programming. Remote Link then traps the panel and uploads the programming into the panel.
Note: The panel makes ten attempts to reach the receiver. If while attempting to contact the receiver,
the panel needs to send an alarm report, the dialing attempts are stopped and the panel can use the
phone line to send its report.
PICKUP
After completing panel programming in Remote Link, connect to the panel by selecting Panel > Connect.
Refer to the Remote Link User Guide, LT-0565, or Remote Link’s Help File for complete information about
connecting to panels.
When the telephone line at the panel rings, enter 984 and the COMMAND key, while the panel is in the
Status List. The keypad display changes to NBR PICKUP NET CELL. Select PICKUP to allow the panel to
seize the line. The panel immediately seizes the phone line and sends a carrier tone to the receiver.
After the panel has seized the line, send the le from Remote Link by selecting Panel > Send. Remote Link
then uploads the new programming into the panel.
NET
The panel allows you to perform a test on each component of the panel’s network communication paths.
While the Status List displays, enter 984 and press the COMMAND key. The keypad display changes to
NBR PICKUP NET CELL. Press the select key or area under NET to allow the panel to perform a
Communication Status Test.
Upon entry of a Network path when prompted, the test runs and the results display on the keypad in the
order they were tested: LINK, DHCP, GATEWAY, DEST, NET COMM.
Note: If NET is not a communication option on the panel, NO NETWORK displays on the keypad and you
are returned to the Status List.
CELL
The panel allows you to perform a test on each component of the panel’s cellular communication paths.
While the Status List displays, enter 984 and press the COMMAND key. The keypad display changes to NBR
PICKUP NET CELL. Press the select key or area under CELL to allow the panel to perform a Communication
Status Test. The keypad displays CELL IS BUSY if the modem is being tested from another keypad.
Upon entry of a Cellular path when prompted, the test runs and the results display on the keypad in the
order they were tested: MODEM, TOWER, SIM, APN, CELL COMM. See the Diagnostic Functions section for a
description of the Cellular Status results.
Note: If CELL is not a communication option on the panel, NO CELL displays on the keypad and you are
returned to the Status List
Digital Monitoring Products, Inc. XT Series Programming Guide
40
17.5 Using the Walk Test
The XT30/XT50 panel provides a walk test feature that allows a single technician to test all the protection
devices connected to zones on the system. Conduct the Walk Test within 30 minutes of resetting the
panel. The Walk Test automatically ends if no zones are tripped for 20 minutes. TEST IN PROGRESS
displays at all keypads. When ve minutes remain, TEST END WARNING displays. If any areas are armed
the Walk Test does not start and SYSTEM ARMED displays.
Walk Test
Trip Counter for Walk Test (STD)
Test End Warning
Failed Zones Display
WALK TEST
STD WLS PIR
WALK TEST
TRIPS: XXX END
WIRELESS TEST
CHKIN: XX/ZZ END
TEST END WARNING
SOUTH LOBBY
ZONE: 10 -FAIL
To conduct the Walk Test, reset the control panel by momentarily placing a jumper
on RESET then wait one minute. From the keypad, enter the code 8144. The keypad
displays WALK TEST. If the system is monitored and the communication type is
DD or NET, the system sends a System Test Begin report to the central station. All
programmed zones are included in the test.STD (Standard Walk Test) - Select STD to
Walk test zones. All programmed zones are included in the test.
WLS (Wireless Check-in Test) - Select WLS to automatically test 1100 Series wireless
transmitter communications. Includes all wireless devices except key fobs and
transmitters programmed for a supervision time of 0 (zero).
Note: For the XT30, Wireless Check-in Test operation only displays when connected
to 1100D Wireless Receiver Version 105 or higher.
PIR (Wireless PIR Walk Test) - The PIR Walk Test allows the installer to verify the
1126 operation. When enabled, the 1126 or 1127 LED ashes each time motion is
detected for up to 30 minutes. This is a local test only and no messages are sent to
the Central Station.
Displays the number of zone trips during the Walk Test.
• Each time a selected zone trips, the keypad buzzes and the bell rings for two
seconds.
• Each time a FI, FV, or SV zone trips, a Sensor Reset occurs.
END - Press the select key or area directly below END to stop the Walk Test. When
the Walk Test ends or a 20 minute time-out expires, a nal Sensor Reset occurs. The
System Test End message is sent to the receiver along with Verify and Fail messages
for each zone under test. Faulted zones then display on the keypad.
Trip Counter For DMP Wireless Check-in Test (WLS)
Displays the number of wireless zones that automatically communicate a supervisory
check-in message.
• The number of zones that check in. (XX in the example).
• The total number of wireless zones programmed for supervision that should
check in. (ZZ in the example).
END - Select END to stop the Wireless Check-in Test. When the test ends or
a 20-minute time-out expires, normal wireless zone processing returns. If all
transmitters check-in, both numbers will match within three (3) minutes. If a
transmitter has multiple zones (1101, 1114, etc.), all zones will be included in the
counts. Failed wireless zones will then display on the keypad.
When no zones have been tripped and ve minutes remain on the 20 minute Walk
Test timer, the keypad displays TEST END WARNING and the keypad tones. If no
additional test zone trips occur, the test ends and a nal Sensor Reset automatically
occurs. The System Test End message is sent to the receiver along with Verify and
Fail messages for each zone under WALK test. Faulted zones then display on the
keypad.
Each zone that did not trip at least once during the Walk Test displays on the keypad
that initiated the test. Any Fire (FI) Panic (PN) or Supervisory (SV) 24-hour zone
that is faulted at the end of the Walk Test displays a trouble condition for that zone
regardless of the message programmed for the open or short condition of the zone
and a zone trouble is sent to the receiver. Press the COMMAND key to display the
next failed zone
.
APPENDIX
XT Series Programming Guide Digital Monitoring Products, Inc.
41
APPENDIX
For the Wireless Check-in Test, failed wireless zones display only on the keypad.
Zone Verify/Fail reports are not sent to the central station receiver for the wireless
checkin test.
17.6 Keypad Speaker Operation
When using LCD Keypads, the panel provides distinct speaker tones from the keypad for Fire, Burglary,
Zone Monitor, and Prewarn events. The list below details the conditions under which the speaker is turned
on and off for each event.
Fire On - Fire zone alarm and Bell Output are ON.
Off - Alarm Silence or briey when a key is pressed.
Burglary On - Burglary zone alarm and Bell Output and is ON.
Off - Alarm Silence or briey when a key is pressed.
Zone Monitor On - One time only when a monitored zone is tripped.
Off - After one tone.
Prewarn On - During Entry Delay.
Off - When Entry Delay expires, when a Valid Code is entered,
or briey when a key is pressed.
17.7 Cross Zoning
Caution must be taken when cross zoning devices to ensure that the Cross Zone Time is long enough to
allow an intruder to trip both devices before it expires. A Cross Zone Time that is too short may allow an
intruder to trip the devices and allow only a zone fault report be sent to the central station.
When a Cross Zoned zone trips, a FAULT report is sent to the SCS-1R Receiver. When two Cross Zoned
zones trip within the Cross Zone Time, both zones send ALARM signals to the receiver. For example,
if zones 1 and 2 are Cross Zoned zones, and only zone 1 trips, a FAULT report is sent to the receiver
for zone 1. If zone 1 trips and zone 2 trips within the Cross Zone Time, an ALARM report is sent to the
receiver for zone 1 and zone 2.
Note: To operate correctly, all cross-zone zones need to be programmed as the same zone type.
17.8 Zone Type Descriptions
This section describes applications for the default zone types in Zone Information programming.
NT (Night Zone) - Controlled instant zone used for perimeter doors and windows and interior devices such
as PIRs and glassbreak detectors.
DY (Day zone) - Used for emergency doors or re doors to sound the keypad buzzer and display the zone
name when the zone is faulted. Day zones also will send alarm reports to the receiver during the system’s
armed periods.
EX (Exit zone) - Initiates the entry delay timer when its assigned area is fully armed. Also, can initiate an
exit delay timer to allow a user to exit an area after the arming process has started.
PN (Panic zone) - Used for connecting to mechanical devices that allow a user to signal an emergency
alarm. Panic zones can provide either a silent or audible alarm with or without reporting to a central
station receiver.
EM (Emergency zone) - These are used for reporting medical or other non-panic emergencies to the
central station.
SV (Supervisory zone) - Used to provide 24-hour zone supervision. Typical applications are high water, and
low and high temperature gauges.
FI (Fire zone) - Used for any type of powered or mechanical re detection device. Typical applications are
for smoke detectors, sprinkler ow switches, manual pull stations, and beam detectors.
FV (Fire Verify zone) - Used primarily for smoke detector circuits to verify the existence of an actual re
condition. When a Fire Verify zone initiates an alarm, the panel performs a Fire Reset. If any Fire zone
initiates an alarm within 120 seconds after the reset, an alarm is indicated. If an alarm is initiated after
120 seconds, the cycle is repeated.
A1 and A2 (Auxiliary 1 and Auxiliary 2) - These zones are similar to a Night zone and are typically used to
protect restricted areas within a protected premises. Auxiliary 2 zones do not appear in the Status List.
AR (Arming zone) - This zone allows you to connect a keyswitch to a zone and use it to arm and disarm
the system.
Digital Monitoring Products, Inc. XT Series Programming Guide
42
17.9 Common Keypad Messages
Message Meaning Possible Solutions
APPENDIX
INVALID CODE
CLOSING TIME
KEYPAD NAME - NOPWR Keypad is not getting proper power.
AC TROUBLE The system AC is low or missing. Check that the AC connections are good.
BATTERY TROUBLE
SYSTEM TROUBLE or
SERVICE REQUIRED
SYSTEM BUSY
TRANSMIT FAIL
ENTER CODE (When
entering Programming)
The user code you have entered is not
recognized by the system.
The schedule has expired but the system
has not been armed.
The System battery is either low or
missing.
There is a problem with one or more
components in the system.
The system is performing another task
with a higher priority.
The panel has attempted to communicate
with the central station 10 times and has
not succeeded.
A lockout code has been programmed for
the panel.
Check the user code and try again.
Users still on the premise should arm the system or
extend the schedule to a later time.
Check that AC/DC transformer is plugged in
correctly.
Check that the battery connections are good and
the battery is still good.
MakesuretheRESETjumperisremovedfrom
the panel. Make sure there is not a short or open
condition on the green data wire to the keypad. You
may also need to check that all of the keypads and
expansion modules on the bus are good.
Wait a few moments for the system to complete
thetask.MakesuretheRESETjumperisnotonthe
panel. If the message displays for a long period of
time, the processor could be locked up.
Verify your communication type, account number,
and phone number. Make sure the telephone line is
connected and working properly.
Enter the lockout code.
WIRELESS TROUBLE
The panel is unable to communicate with
the wireless receiver.
The wireless receiver is missing.
Verify the receiver is properly connected to the
panel. Verify the correct House Code is programmed
in System Options.
17.10 Z-WaveCerticationInformation
The 738Zplus is a security enabled Z-Wave product and is designed to be used as a primary controller.
The 738Zplus can support Z-Wave products from different vendors and product categories. It is recommended to use
devices listed on the buy.dmp.com site for best performance.
Z-Wave Terminology:
• Inclusion: the process of adding a device to the Z-Wave network. The new device is ‘included’ into the
Z-Wave network.
• Exclusion: the process of removing a device from the Z-Wave network. The new device is ‘excluded’ from the
Z-Wave network.
• Replication: the process of copying network information to another device (typically a Z-Wave controller) in
the Z-Wave network.
XT Series Programming Guide Digital Monitoring Products, Inc.
43
REVISIONS
Revisions to this Document
This section explains the changes made to this document during this revision. It lists the date and identies the
change(s) made, the related section number and section heading, and a summary of the change.
Ver. Section Number and Heading Quick Explanation of Changes
1.13 3.4 Communication Type Added Wi-Fi reference
Network Options Added Wi-Fi Setup
1.12 13.3 Area Name Added Initialization section reference
Listings and Approvals Remove UL
1.11 Entire Document Removed Z-Wave Setup
1.6 Keypads Added 7800 reference
1.7 Special Keys Added 7800 reference
1.8 Entering Alpha Characters Added 7800 reference
1.10 Keypad Displays Current Programming Added 7800 reference
3.4 Communication Type Added SCS-VR reference
10.21 Weather Zip Code Added 7800 reference
18.3 Diagnostics Function Added Roaming Indicator reference
Added Z-Wave Diagnostics function
Digital Monitoring Products, Inc. XT Series Programming Guide
44
Certications
California State Marshall (CSFM)
Intertek (ETL) Listed
• ANSI/SIA CP-01 False Alarm Reduction
• ANSI/UL 1023 Household Burglar
• ANSI/UL 985 Household Fire Warning
• ANSI/UL 1610 Central Station Burglar
• ANSI/UL 1635 Digital Burglar
FCC Part 68 Registration ID: CCKAL00BXT50
18045
800-641-4282
INTRUSION • FIRE • ACCESS • NETWORKS
www.dmp.com 2500 North Partnership Boulevard
Designed, Engineered and
Manufactured in Springfield, Missouri
Springeld, Missouri 65803-8877
LT-0981 1.13 © 2018 Digital Monitoring Products, Inc.
