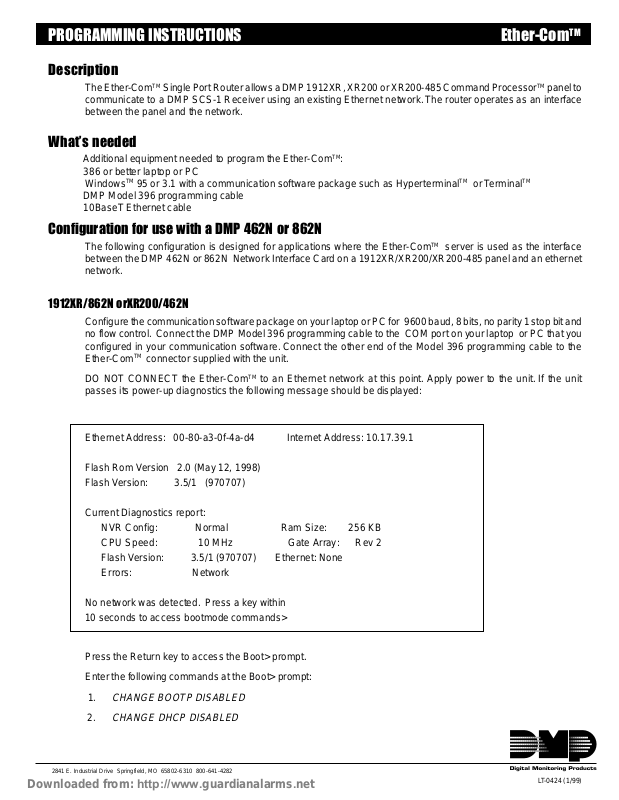

PROGRAMMING INSTRUCTIONS Ether-Com
Description
The Ether-ComTM Single Port Router allows a DMP 1912XR, XR200 or XR200-485 Command ProcessorTM panel to
communicate to a DMP SCS-1 Receiver using an existing Ethernet network. The router operates as an interface
between the panel and the network.
Whats needed
Additional equipment needed to program the Ether-ComTM:
386 or better laptop or PC
WindowsTM 95 or 3.1 with a communication software package such as HyperterminalTM or Terminal
DMP Model 396 programming cable
10BaseT Ethernet cable
Configuration for use with a DMP 462N or 862N
The following configuration is designed for applications where the Ether-ComTM server is used as the interface
between the DMP 462N or 862N Network Interface Card on a 1912XR/XR200/XR200-485 panel and an ethernet
network.
1912XR/862N orXR200/462N
Configure the communication software package on your laptop or PC for 9600 baud, 8 bits, no parity 1 stop bit and
no flow control. Connect the DMP Model 396 programming cab le to the COM port on your laptop or PC that you
configured in your communication software. Connect the other end of the Model 396 programming cable to the
Ether-Com
TM
connector supplied with the unit.
TM
TM
DO NOT CONNECT the Ether-ComTM to an Ethernet network at this point. Apply power to the unit. If the unit
passes its power-up diagnostics the f ollo wing message should be display ed:
Ethernet Address: 00-80-a3-0f-4a-d4 Internet Address: 10.17.39.1
Flash Rom Version 2.0 (May 12, 1998)
Flash Version: 3.5/1 (970707)
Current Diagnostics report:
NVR Config: Normal Ram Size: 256 KB
CPU Speed: 10 MHz Gate Array: Rev 2
Flash Version: 3.5/1 (970707) Ethernet: None
Errors: Network
No network was detected. Press a k ey within
10 seconds to access bootmode commands>
Press the Return key to access the Boot> prompt.
Enter the following commands at the Boot> prompt:
1.
CHANGE BOOTP DISABLED
2.
CHANGE DHCP DISABLED
2841 E. Industrial Drive Springfield, MO 65802-6310 800-641-4282
Downloaded from: http://www.guardianalarms.net
L T-0424 (1/99)
3.
CHANGE RARP DISABLED
Connect the ETHER-COM to an Ethernet network after entering the command in line number 3. It should be connected
to the actual network at the location where the ETHER-COM will be permanently installed.
4.
INIT 451
The ETHER-COM initialization will begin 5 seconds after pressing the Return key. If the ETHER-COM has been
properly attached to a network and no other self-diagnostic errors are encountered, the ETHER-COM will restart.
The following messages should then be display ed:
DMP, Inc. ETHER-COM Initialization.....
Ethernet Address: 00-80-a3-0f-4a-d4 Internet Address: (Undefined)
Flash Rom Version 2.0 (May 12, 1998)
Flash Version: 3.5/1 (970707)
Current Diagnostics report:
NVR Config: Normal Ram Size: 256 KB
CPU Speed: 10 MHz Gate Array: Rev 2
Flash Version: 3.5/1 (970707) Ethernet: UTP
Errors: None
Skipping DHCP.
Skipping BOOTP.
Skipping RARP.
Checking 2 sections from flash:
From address 0x20004 to 0x20018, 281414 Bytes) -> not copied.
From address 0x64b5e to 0x210000, 7712 Bytes) -> copied.
Load Complete - Boot in Progress
Press the Return key to display the username> prompt. Enter your name , follow ed by the Return key to display the
Local1> prompt.
Before any configuration changes can be made, y ou m ust become the privileged user . To do this, type SET PRIV
followed by the Return ke y . The displa y will then change to passw ord> . Type
SYSTEM
, then press the Return key .
This changes the ETHER-COM to the Local>> prompt.
Enter the following commands at the Local>> prompt:
1.
CHANGE IPADDRESS xxx.xxx.xxx.xxx
(where xxx... is the IP address for the unit. Note: This address
must be unique to the network).
2.
CHANGE GATEWAY xxx.xxx.xxx.xxx
(where xxx... is the IP address for the Gateway or router attached to
this LAN segment).
3.
CHANGE SUBNET MASK xxx.xxx.xxx.xxx (where xxx... is the subnet mask provided by the network
administrator)
4.
CHANGE SPEED xxx
Ether-Com Programming
2
(where xxx is the baud rate configured on the 462N (300 to 9600 baud)).
