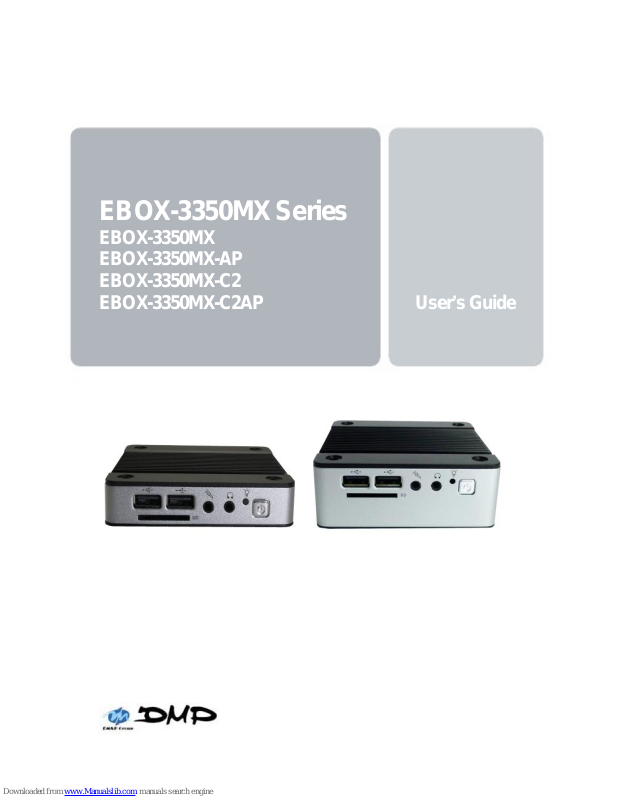

DMP Electronics EBOX-3350MX, EBOX-3350MX-AP, EBOX-3350MX-C2, EBOX-3350MX-C2AP User Manual

EBOX-3350MX Series

EBOX-3350MX
EBOX-3350MX-AP
EBOX-3350MX -C2
EBOX-3350MX-C2AP User’s Guide

Copyright

The information in this manual is subject to change without notice for continuous
improvement in the product. All rights are reserved. The manufacturer assumes no
responsibility for any inaccuracies that may contain in this document, and makes no
commitment to update or to keep current information contain in this manual.

No part of this manual may be reproduced, copied, translated or transmitted, in whole or
in part, in any form or by any means without the prior written permission of the DMP
Electronics Inc.

Copyright 2014 DMP Electronics Inc.

Special Notice to Users

DMP Electronics Inc. provides no warranty with regard to this manual, the software, or
other information contained herein and hereby expressly disclaims any implied
warranties of merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall DMP Electronics be
liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or
other information contained herein or the use thereof.

DMP Electronics reserves the right to make any modification to this manual or the
information contained herein at any time without notice. The software described herein
is governed by the terms of a separated user license agreement or label sticker.

This product contains software owned by DM&P and licensed by third parties. Use of
such software is subject to the terms and conditions of license agreements enclosed
with this product. Software specifications are subject to change without notice and may
not necessarily be identical to current retail versions.

Updates and additions to software may require an additional charge. Subscription to
online service providers may require a fee and credit card information. Financial
services may require prior arrangements with participating financial institution.

Trademarks Acknowledgment

The EBOX-3350MX Series is the registered trademarks of DMP Electronics Inc.
Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation
and American Megatrends Inc. in the United States and/or other countries respectively.

Other brand names, product names or trade names appearing in this document are the
properties and registered trademarks of their respective owners. All names mentioned
herewith are served for identification purpose only.

Owner’s Record

The product serial number is located at the rear panel of your EBOX Series. Refer to the
model type and serial number when you contact your nearest dealer or DMP office for
service.

Safety Information

WARNING

 Do not expose EBOX to rain or moisture, in order to prevent shock and fire hazard.
 Never install EBOX in wet locations.
 Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified

personnel servicing.

 Never touch un-insulated terminals or wire unless your power adaptor and display monitor are

disconnected.

 Locate EBOX as close as possible to the socket outline for easy access and to avoid force

caused by entangling of your arms with surrounding cables from the EBOX.

 When using EBOX, avoid using or installing the modem to the serial port during a storm or a

lightning.

 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
 USB connectors are supplied with Limited Power Sources.

DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS

(ENCASING) OF THIS PRODUCT. PLEASE CONTACT YOUR

NEAREST DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

Regulatory

FCC Class A Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference in which case the user will be required to correct the
interference at his own expense. Testing was done with shielded cables. Therefore, in order to comply
with the FCC regulations, you must use shielded cables with your installation.

WARNING

This product complies with EN55022 class A. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus as set out in the interference - causing equipment standard entitled “Digital Apparatus”,
ICES-003 of the Department of Communications.

Manufacturer’s Declaration of Conformity

This equipment has been tested and found to comply with the requirements of European Community
Council Directives 89/336/EEC and 73/23/EEC relating to electromagnetic compatibility and product
safety respectively.

Attention

This product has been designed and certified to comply with certain regulatory requirements pertaining
to Information Technology Equipment. This product has not been designed for use as a medical
device. Without limitation of the foregoing, this product is not intended and has not been certified for
use in a hospital or clinical environment to diagnose, treat, or monitor patients under medical
supervision, and is not intended and has not been certified to make physical or electrical contact with
patients, nor to transfer energy to or from patients and/or to detect such energy transfer to or from
patients.

Purchase Agreement

Purpose:

In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the
agreement for the protection for both parties, DMP and Users in pursuant of trading.

Product Description:

With this product, herewith also known as EBOX-3350MX Series, which is a simplified & an
economical design of an embedded device for Special Purpose Personal Computing. The basic
specification of this product is comprised of the x86 technology, design, and with onboard 512 MB
DDR2 System memory, VGA display, USB, COM ports and LAN Interfaces.

Distribution Convention:

1. This Product includes a gift box, an inner case, a PC, a Power adaptor (Optional). Upon
receiving this product, kindly please refer to the User’ Manual to check for the contents and
appearance of this product; contact immediately your nearest dealer or DMP office for any
defective or missing parts. The supplier will not be responsible for any reported discrepancy
there after the expiration period of 3-days from the received date.

2. In consideration of transportation and the cost of storage, the supplier provides to the
distributors a warranty of 12-months. This warranty covers the failure caused by hardware
breakdown (excluding hard drives), but does not cover the act of misuse and mishandling.

3. The supplier will not accept unknown post, therefore if you wish to repair or to return your
goods – kindly please contact your nearest dealer to make your declaration, and at the same
time, apply for an RMA number (RMA stands for Return Merchandise Authorization – please
ask for RMA form and fill-up for authorization).

4. The freight for return goods for repair will follow the International customary practice and
convention: Both parties is to pay for freight of one shipment each. The shipper is required to
prepay the freight from the place of origin (This means that the returnee (user) covers the
freight for return goods, while the Supplier covers the freight for goods after the repair).

5. Obsolete warranty is referred to as: (1) Expiration of warranty or (2) Damage due to misuse
within warranty. The Supplier will be taken into consideration of the circumstances, to provide
repair service with charges expense for obsolete warranty. This expense includes the cost of
material and the cost of labor.

Note: If there is other particular issue, not listed in the above conditions, both parties agreed to follow
the General Law of Commerce with fair and reasonable discussion in handling and resolving the
argument.

Contents

Chapter 1

02 Unpacking your EBOX Mini PC

Chapter 2

05 EBOX-3350MX Series Overview
06 System Specifications
07 Peripherals Connecting

Chapter 3

11 BIOS Reconfiguring
12 Install the driver

Chapter 4

21 Technical Specifications

Chapter 5

23 Onboard Connectors Summary

25 Pin Assignments

Chapter 6

28 Taking Care Your EBOX VESA PC
30 Troubleshooting

Chapter 7

33 Terms and Condition
33 Warranty
33 Service and Support
33 Return Merchandise Authorization (RMA) Policy
33 Shipping Policy

1

Chapter1

2

Unpacking Your EBOX Mini PC

Congratulation! You have just acquired EBOX-3350MX Series, please check the
following items:

Packing List:

Item No.

Description

Q’ty

1

EBOX-3350MX Series VESA PC

x1

2

75 x 75mm to 100 x100mm VESA mounting rack (Optional)

x1

Note: The accessories are subject to change without immediate notice.

Check Before Use

1. EBOX-3350MX Series Unit

2. VESA rack ( Optional )

3

Preface

EBOX-3350MX Series: VESA PC

The EBOX-3350MX Series is a revolutionary device which is especially designed for limited physical
space and temperature concerns. No matter you are in a jammed office, a crowded place, or public
transportation, it can be easily integrated with a VESA LCD to bring you EBOX-3350MX Series
access at any time.

It can attach to any VESA mounting fixture; allowing it to be securely mounted onto desks, walls, or
buildings, and thereby optimizes your work area. It can also attach directly to any size LCD for a
mobile system for the use at trade shows, presentations, promotions, etc. Unlike traditional portable
laptop design, the EBOX-3350MX Series can be used with a large size LCD. Furthermore, with
FANLESS design, EBOX-3350MX Series is ideal to be used in the environment where temperature
demand is critical.

So, if you are looking for a device that is able to provide you with more mobility & space, but at the
same time uses less power consumption, then EBOX-3350MX Series will be surely meet your need.

The VESA® FDMI™ Standard defines mounting interfaces, hole patterns and associated
cable/power supply locations for LCD monitors, plasma displays and other flat panel devices. EBOX­3350MX Series is designed to fit this standard to make monitor attachment quickly and easily.

4

Chapter2

5

EBOX-3350MX series Overview

Front Panel

A: Reset Button

For system reset or turn on
(Available in 3350MX/3350MX-C2)

B: Power LED

The power LED lights up when
the system is turned on.

C: Audio Line Out

Audio output to speaker

D: Audio Mic In

For Microphone Input

E: USB v2.0 ports

For connection to devices with USB
Interface such as CD/DVD-ROM,
USB HDD, etc.)

F: SD Slot

For the storage SD card, the system
is bootable from SD card

Back Panel

G: USB V2.0 port
H: VGA port D-Sub 15-pin
I: RJ-45 LAN Jack
J: Power Jack

K: RS-232 port

* Available in EBOX-3350MX
C2/C2AP

A B C

D E F

G

H

I

J

K

K

6

System Specification

CPU

Vortex86MX (933 MHz)
(System on Chip)

Main Memory

512MB DDR2 (16-bit DRAM bus)

BIOS

AMI BIOS

VGA

Resolution up to 1600 x 1200 High Colors

Peripheral

1. USB V2.0 x 3 (2 at front, 1 at rear)

2. SD card slot x 1

3. Audio (Mic In, Line Out)

4. RS-232 port x 2
(Available in EBOX-3500MX -C2/C2AP)

Dimension & Weight

EBOX-3500MX/AP
95 x 95 x 20 mm / 277g

EBOX-3500MX-C2/C2AP
95 x 95 x 35 mm / 350g

Operating System

Windows XP Home/ Pro.
Windows XP Embedded
Windows Embedded CE

Supported Linux Distribution list:

1. Debian 4.0

2. Debian 5.0

3. Ubuntu 8.04

4. Ubuntu 8.10

5. Ubuntu 9.04

6. Ubuntu 10.04

7. Edubuntu 9.04 (Ubuntu 8.10 base)

8. Easy Peasy 8.10

9. Puppy 4.2.1

10. Puppy 4.1.2

11. WattsOS2 Warp30 (Ubuntu 8.10 base)

※ Red letters: Standard IDE compatible option
enable could help for install directly

※ Ubuntu 8.10 / WattOS, Remember to enable
the Media Port Instruction option for VGA
compatible. Resource (Kernel/Drivers Package):

7

Peripherals

Connecting the Power Adaptor

A: DC Power Jack

To use EBOX-3350MX Series immediately,
please attach the supplied adapter for the power
source. See the left diagram for visual
connection.

Connect the DC power jack of the power
adaptor to the DC Input of EBOX-3350MX
Series.

Note: With the Auto Power On supported
models (Optional), the system then will be
turned on automatically.

Connecting the Monitor

B: VGA Connection

Make your LCD display connection with the
VGA cable to the 15-pin D-Sub VGA port.

A

B

8

Peripherals

Connecting the USB

EBOX-3350MX series provides 3 external USB ports ( 2 at the front, 1 at the rear ).

C: SD Slot

For booting device by SD Card.

D: Microphone/Earphone

The EBox-3350MX Series supports
Microphone Input and Speaker Output

E: Reset Button

For system reset or turn on
Note: Models with Auto Power On feature has

Reset Button Eliminated.

F: USB Ports

The USB ports are available for connection to
USB devices such as CD-ROM / Pen Drive.

C

D

E F F

9

Peripherals

Connecting the LAN

G: RJ-45 LAN

There is an available RJ-45 LAN jack for
Ethernet connection.
(see left diagram for RJ-45 Jack).

Connecting Serial port

G

H: Serial Ports (Available in EBOX-3350MX-C2/C2AP)

The serial port is usually connected to a serial device like

modem or terminal devices.

H

H

10

Chapter3

11

BIOS Reconfiguring

1. AMI BIOS is used in the EBOX-3350MX Series. To reconfigure the EBOX-3350MX Series,
depress or hit the <Del> key to enter your BIOS setup main menu.

2. Select from the menu, the desired setup to change.

3. Press <Esc> to go back to main menu.

4. Press <F9> to load factory default setting

5. Move to “Exit” TAB and select “Save Settings and Exit”, press “Y” to save the changes that you

just made. EBOX-3350MX Series will restart accordingly to your new setup.

(AMI BIOS Setup menu)

12

Debian / Ubuntu Linux Installation Guide

In the MX platform, with the newer IDE and Ethernet controller, both of the two controllers just start
supporting from kernel 2.6.28.3. Please refer to the guide to help you complete the installation.

How to install Linux on Vortex86MX platform?

Preparation:

1. The Linux installation DISC (Ubuntu8.04, 9.04, 10.04, Debian4.0, 5.0)

2. A completely formatted storage (SD card or USB device)

3. Intel/AMD platform Personal Computer

4. Confirm the BIOS setting,
A. IDE Configuration\ IDE mode >> Native mode
B. USB Configuration\ USB 2.0 Controller Mode >> Fullspeed

Note: The completely formatted storage is helpful to avoid some unexpected error in the procedure.
After you plug all the devices and ready to install, please follow the steps as below:

Step1:

Please follow the standard procedure to install the Linux OS base on the Intel or AMD
platform first, and make sure your Linux can boot up normally, after install completed.

Step2:

A. Copy the .deb file (kernel package) that DMP provided in your USB pen drive or other
removable storage.

B. Press Ctrl + Alt + F1 keys to enter text mode.

The system would ask you to enter your user name and password.
C. Plug on the USB pen drive and try to mount it as mnt.

#sudo su
#mount /dev/sda1 /mnt
#cd /mnt
Confirm the actual codename to mount.

13

D. To unpack the kernel package and update.

# dpkg -i xxx.deb
# update-initramfs –k 2.6.30-vortex86mx -c
# update-grub

E. When these three procedures completed, type reboot to reboot system.

# reboot

Step3:

Moving the storage installed Linux, back to VortexMX platform.

Step4:

Turn on the power to boot.

19

For Ubuntu

When it starts booting, press the Esc key when it boot. Confirm the Grub list first.
There should have an option 2.6.30-vortex86mx, and then to boot.

For Debian

Please press the Esc key to confirm Grub list and press E key to confirm and modify the storage’s
codename.

Note: The Grub list parameters you can modify in the file /boot/grub/menu.lst.

Primary / Master = hda1
Primary / Slaver = hdb1
Secondary / Master = hdc1
Secondary / Slaver = hdd1

20

Chapter4

21

Technical Specification

Model Type

3350MX

3350MX-AP

3350MX-C2

3350MX-C2AP

Processor

Vortex86MX (933MHz)

BIOS

AMI BIOS

Memory

Onboard 512MB DDR2

VGA

Integrated Graphics Chip/ D-Sub 15-pin

Ethernet

10/100 Mbps LAN x 1 (RJ-45 connector, Built-in PXE diskless boot)

USB 2.0

External: 3 ports (Front x 2, Rear x 1)

Audio

Mic in and Line out

SD slot

1x

RS-232

N/A

N/A

2x

2x

Auto Power On

N/A

Yes

N/A

Yes

Power

DC +5V @ 2A

Dimensions

95 x 95 x 20 mm

95 x 95 x 35 mm

Unit Net Weight

277g

350g

Operation Temp.

5 ~ 40℃

Certifications

CE, FCC, VCCI

Note:

1. SD Slot x 1 (Bootable but hot-swappable not support)

2. Power Supply 10W Micro USB EU and US Type offer to sell as extra spare parts

EBOX-3350MX Series Models Listing:

EBOX-3350MX: Standard Version
EBOX-3350MX-AP: Standard Version with Auto Power On Support
EBOX-3300MX-C2: Standard Version with RS-232 port x 2
EBOX-3300MX-C2AP: Standard Version with RS-232 port x 2 & Auto Power On Support

Note:

“AP” indicated Auto Power On supported feature by which system will be turned on
automatically whenever power is supplied.

22

Chapter5

23

Onboard Connectors Summary

Summary Table for CPU Board

Nbr

Description

Type of Connections

Pin nbrs.

J3

VGA

D-Sub Connector

15-pin

J4

DC +5V Input

Mini USB Jack

1-pin

J5

Line out

Audio Jack

2-pin

J6

Mic in

Audio Jack

2-pin

J7

USB (Front)

USB Connector

8-pin

J8

USB (Front)

USB Connector

8-pin

J9

USB (Back)

USB Connector

8-pin

J12

Ethernet LAN

RJ-45

8-pin

J13 (Note)

COM1 Port

Box Header 5 x 2 2.0mm

10-pin

J14 (Note)

COM2 Port

Box Header 5 x 2 2.0mm

10-pin

Note: J13 & J14 only available in EBOX-3350MX-C2/ C2AP

 Front Connectors Outline

*Models with Auto Power On feature

do NOT have front Reset Button

A B C

D

E

F

A: Reset Button
B: Power LED
C: Line out
D: Mic in
E: USB V2.0
F: SD Slot

EBOX-3350MX/ AP FRONT LOOK
EBOX-3350MX-C2/ C2AP FRONT LOOK

24

 Rear Connectors Outline

EBOX-3350MX/ AP REAR LOOK

EBOX-3350MX-C2/ C2AP REAR LOOK

*Only Available in EBOX-3350MX-C2/ 3350MX-C2AP

G: USB V2.0
H: VGA
I : RJ-45 LAN
J : DC Power Jack

G

H

I

J

K

K

K: RS-232 Port

25

Pin Assignments

J3: VGA – 15-pin D-Sub Connector

Pin #

Signal Name

Pin #

Signal Name

Pin #

Signal Name

1

MR

6

GND

11

NC 2 MG

7

GND

12

VCC

3

MB

8

GND

13

HYSYNC

4

NC

9

NC

14

VSYNC

5

GND

10

GND

15

VCC

J4: Mini USB DC Power Input

J7, J8: USB : For connection to external USB device – 4-pin USB Type 1 Connector (H)

Pin #

Signal

Name

1

VCC

2

USB2-

3

USB2+

4

GND

5

NC

6

NC

J9: USB (90o) – For connection to external USB device – 4-pin USB Type 1 Connector (H)

Pin #

Signal Name

1

+5V Input

2

USB In -

3

USB In +

4

None

Pin #

Signal Name

1

VCC

2

USB0-

3

USB0+

4

GND

5

GGND

6

GGND

26

Pin Assignments

J12: LAN: RJ-45 Connector

Pin #

Signal Name

Pin #

Signal Name

1

FTXD+

2

FTXD-

3

FRXIN+

4

NC

5

NC

6

FRXIN-

7

NC

8

NC

J13, J14: COM - 9-pin D-Sub Connector

Pin #

Signal

Name

Pin #

Signal

Name

1

DCD

2

RXD

3

TXD

4

DTR

5

GND

6

DSR

7

RTS

8

CTS 9 RI

- -

- -

LEDS: POWER ON / OFF

LED Color

State

Green

Power On

27

Chapter6

28

Taking Care of your EBOX

This section gives you some guidelines on using EBOX-3350MX Series – Safe using, Storing and
Handling.

Storing

Do not place EBOX-3350MX Series in a location that is subject to:

 Heating sources, such as stove, oven, heater, radiator or air duct
 Direct contact from sunlight
 Rain or moisture area
 Excessive dust accumulation area
 High humidity place
 Constant or occasional mechanical movement, vibration or shock
 Strong magnets or magnetic fields or magnetically unshielded speakers

 Out of the operating temperature range from 5oC to 50oC

Do not place other electronic device or electrical equipment near EBOX-3350MX

Series. The electromagnetic field of the EBOX-3350MX Series may cause
interference subjecting to malfunction.

Provide adequate air ventilation (circulation) to prevent internal buildup of heat. Do

not place EBOX-3350MX Series near the wall, behind the curtains or draperies, in
between two books that block its ventilation slots. Leave a space of at least 8 inches
(20cm) behind the sides and back panel of the EBOX-3350MX Series.

Change of environmental temperature: Problems may occur when there is a

sudden change of environmental temperature, or if the EBOX-3350MX Series is
brought directly from a cold location to a warm one, moisture may condense inside
EBOX-3350MX Series. Turn off the device, and contact your nearest dealer.

Check the surrounding appliance(s) before using EBOX-3350MX Series. Since the

EBOX-3350MX Series uses high-frequency radio signal and may interface with
radio or TV reception causing interference or poor signal display. When this
happens, relocate the EBOX-3350MX Series by a suitable distance away from the
set.

Do not drop the EBOX-3350MX Series from the working table nor place heavy

objects on top of it.

29

Using Cables for Connection

To avoid the problem, use only the specified interface cables in your accessory bag. The supplier

will not be responsible for the connection arising from the other unspecified peripheral equipment.

Do not use cut or damaged cables for connection.

Cleaning Your VESA PC

Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent

solution.

Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as

these may damage the finish of EBOX.

When a solid object falls or a liquid spills onto the EBOX, turn off the EBOX immediately and

unplug the LAN and power cables. Contact a qualified person or your dealer to check the EBOX
before you use it again.

Always disconnect the power cord from the power source before cleaning the EBOX.

30

Troubleshooting

This section describes the techniques of resolving some basic problems that you encounter when
using EBOX-3350MX Series. For more troubleshooting guidelines, please contact your nearest dealer
for technical support.

Troubleshooting Your VESA PC

A. VESA PC does not start

Make sure the EBOX-3350MX Series is properly secured and plugged into a power source

before it is turned on. Make sure the power indicator shows the power is on. See section 2 for
more information about “EBOX-3350MX Series Overview”.

When the EBOX-3350MX Series is plugged into a power strip or the UPS (Uninterruptible Power

Supply), make sure the power strip or UPS is turned on and working normally.

Check if your VGA or LCD monitor is properly plugged into a power source and turned on. Make

sure the brightness and contrast controls are adjusted correctly. See the manual that came with
your display (monitor) for details.

Check if your power control button does not function, by removing the AC adaptor. Wait for one

minute, and then reattach all power connection before pressing the power button.

Condensation may cause the EBOX-3350MX Series to malfunction for a while. If this happens,

do not use the EBOX-3350MX Series for at least one hour.

When you have checked all the above guidelines and the EBOX-3350MX Series does not work.

Remove the power adaptor from the EBOX-3350MX Series, unplug the power cord, and plug it
in again. Then turn on the power.

B. BIOS Error Message –

BIOS error message appears when my VESA PC starts

If the BIOS error message appears, press any key to resume or, hit <DEL> to enter BIOS setup main
menu, follow these steps:

1. Press <DEL>, and the BIOS Setup main menu appears, check if HDD is detected. If it is not
detected, use Direction keys <↑↓> to choose “AUTO” and then go back to the main menu by
pressing <ESC>. Move your cursor down with Direction keys <↓>, and choose “Save

Settings and Exit”, a message dialog appears as seen below, hit <Enter>.

“Save current settings and exit (Y/N)? Y”

31

2. Go to “Exit” menu using the Direction keys <↑↓> and choose the option “Load Optimal
Defaults”, then press <Enter>. A message dialog appears as seen below, hit “Y” key and
presses <Enter> to save and recover to the factory setting.

“Load Optimal Defaults (Y/N)? Y”

(BIOS Setup menu “Exit”)

C. “Operating System Not Found” –

A message indicating that “Operating system not found” appear when

my VESA PC starts (Windows won’t start)

Enter your BIOS setup main menu by pressing <DEL> key, be sure that the C: drive is enable.
If Windows still does not start, follow these steps to initialize the BIOS:

1. Turn off the EBOX-3350MX Series.

2. Remove any peripheral devices connected to the EBOX-3350MX Series.

3. Restart the EBOX-3350MX Series.

4. Press <DEL> to enter BIOS Setup main menu window.

5. Follow the steps as written in item B. BIOS error message.

If you have just connected EBOX-3350MX Series to a CD/DVD or USB Drivers, remove these

peripherals.. And restart to confirm that the Windows operating system starts properly. If EBOX­3350MX Series continues to display the message ”Operating system not found,” and Windows
does not start, please contact your nearest dealer for servicing.

32

Chapter7

33

Terms and Conditions

Warranty

The warranty terms for EBOX-3350MX Series are twelve (12) months from the shipped month.
During the warranty period, DMP Electronics Will repair replace the product covered under this limited
warranty.

Service and Support

DMP Electronics Inc. provides the technical support for hardware problems with your system
throughout the warranty period. The technical support service is limited to configuration and operation
of EBOX-3350MX Series sold by DMP Electronics Inc. The technical support service does not offer
software tutoring or training.

Return Merchandise Authorization（RMA）policy

If the DMP staff or dealer determines that a part is defective. Purchaser must call our technical support
service to obtain an RMA number before attempting to return any part. Please refer to your nearest
dealer for

To obtain an RMA number, Purchaser must follow procedures as below：

1. Complete the DMP Electronics Inc. standard RMA Form and fax back to the RMA Department.

2. The RMA Number must be used within 7 DAYS

3. The RMA Number must be shown clearly on your shipping label.

4. DMP Electronics Inc. must receive all Returns before a replacement will be sent.

5. The repair cost depends on the parts, the damage reasons, and whether under warranty

period…etc. The Seller will charge the Purchaser in a reasonable price.

6. A copy of the invoice for the RMA product(s) will also be shipped to Purchaser.

7. The freight of return to DMP Electronics Inc. is charged to the Purchaser's account and

accompanied by an RMA number. Any Returns with freight collect will be refused and returned to
you. After Repairing, the cost of freight will be paid by Seller.

8. DMP Electronics Inc. must receive all returned goods within the warranty period.

Shipping Policy

The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty.
DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned
system or parts if you fail to insure the shipment.

All products must be shipped back to DMP Electronics Inc. in original or equivalent packaging. DMP
Electronics Inc. will ship the repaired or replacement product(s) to the Purchaser by freight prepaid.
Purchaser assumes the risk of loss. DMP Electronics Inc. shall not be responsible for failure of the
delivery service to make on-time delivery.
