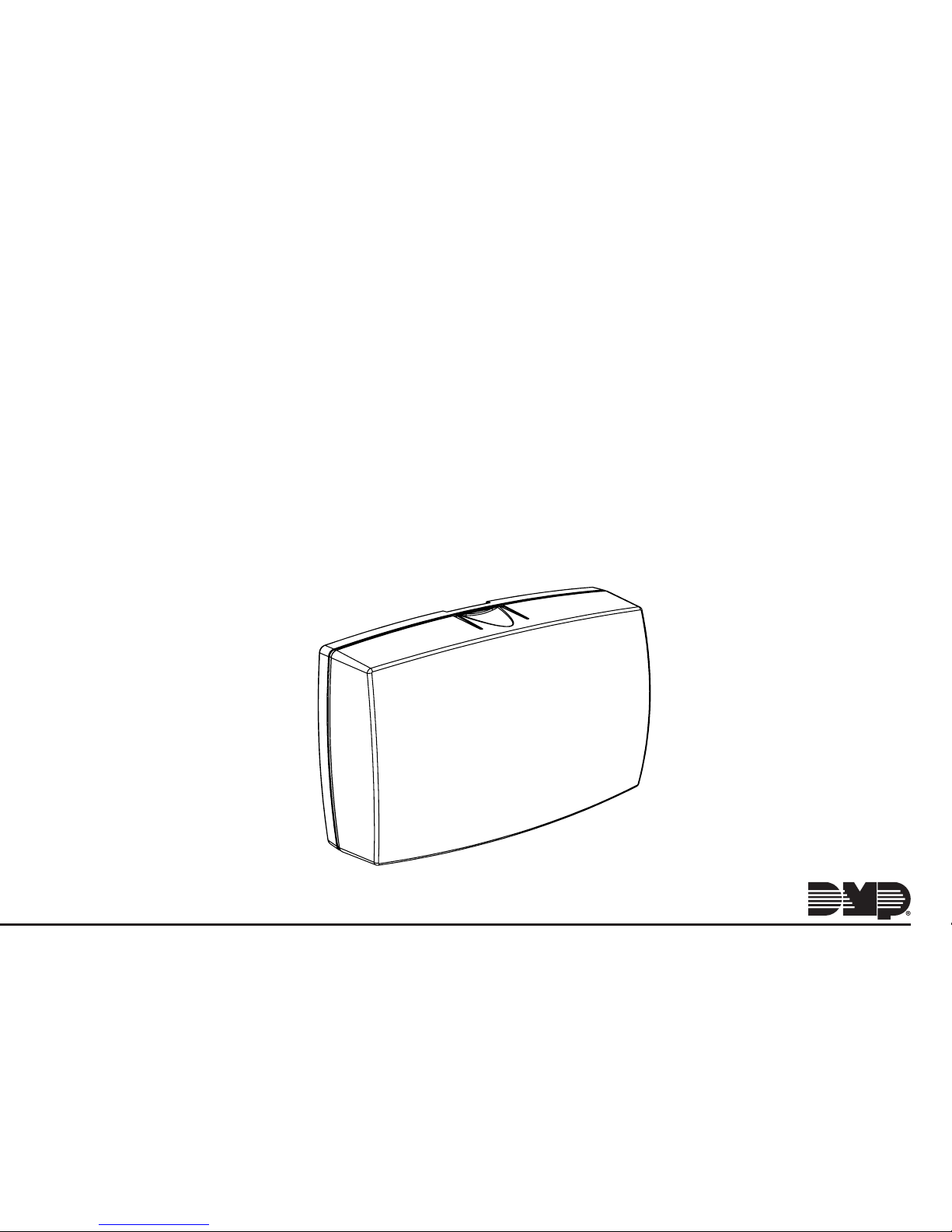

INSTALLATION AND PROGRAMMING GUIDE
734 Weigand
Interface Module
Page 2
Page 3
About the 734 ............................................. 1
Power Supply ......................................................... 1
Zone Terminals ...................................................... 1
Annunciators .......................................................... 1
Indicator LEDs ....................................................... 1
Form C Relay ......................................................... 2
Programming Connection ................................ 2
Keypad In and Out Connections ................... 2
PCB Features ...............................................3
Install the 734 .............................................4
Mount the 734 ...................................................... 4
Wire the Electronic Lock .................................. 5
Isolation Relay ...................................................... 6
Install the 333 Suppressor ............................... 7
Wire the Zone Terminals ................................... 8
Connect a Card Reader ....................................10

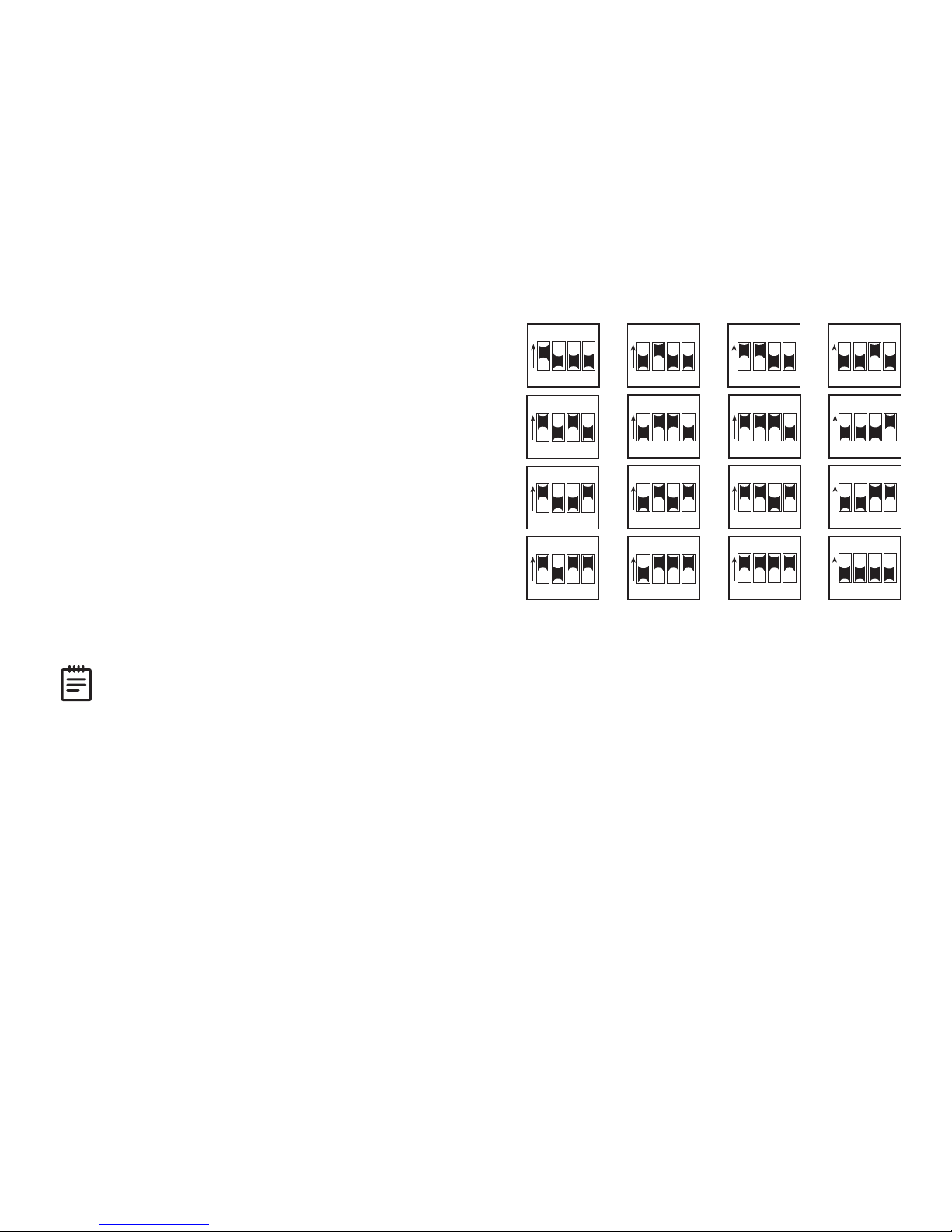

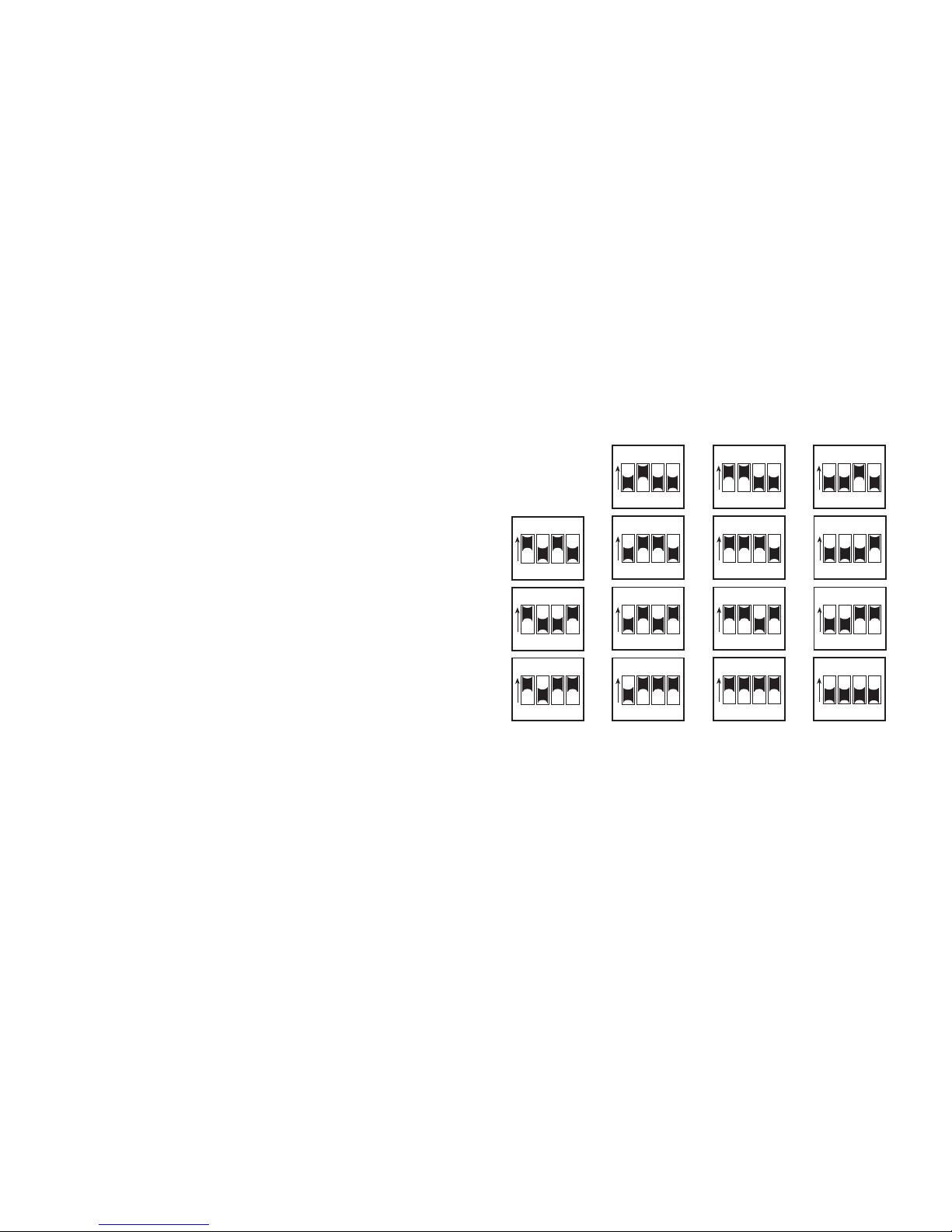

Set the 734’s Address ....................................... 12
TABLE OF CONTENTS
Program the 734 ....................................... 15
Program Start Display ......................................15
Initialization Option ........................................... 15
Initialize Confirm Option .................................16
Activate Zone 2 Bypass ...................................16
Zone 2 Bypass Time .......................................... 17
Relock on Zone 2 Change ............................... 17
Activate Zone 3 Request to Exit ..................18
Zone 3 REX Strike Time ................................... 19
Activate On-board Speaker ...........................19
Custom Card Definitions ........................ 20
Card Options .......................................................20
Wiegand Code Length ..................................... 21
Site Code Position and Length .....................21
User Code Position and Length .................... 21
Site Code ..............................................................22
Enter Site Code ..................................................23
Number of User Code Digits ......................... 23
No Communication with Panel ....................24
Remove Keypad .................................................25
Page 4
Keypad Bus Wiring Specifications ........ 26
Public Card Formats ................................27
Compliance Listing Specifications ........28
UL Commercial Fire ..........................................28
UL Access Control ............................................. 28
ULC Commercial Burglary (XR150/XR550
Series Panels) ......................................................28
Certifications ............................................ 29
Underwriters Laboratory (UL Listed) ........ 29
Product Specifications ........................... 30
Readers and Credentials ......................... 31
Page 5
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 1
ANNUNCIATORS
An on-board programmable piezo provides local
annunciation at the 734. You can also connect a
variety of switched ground annunciators to the
734 for remote annunciation.
INDICATOR LEDS
The 734 provides three indicator LEDs. The red
LED turns on for the same duration as the door
strike relay. The yellow LED turns on for one
second to indicate receipt of a valid Wiegand
input. The green LED indicates that data is being
sent to the panel.
The 734 Wiegand Interface Module allows you to use the powerful built-in access control capability of
DMP Panels. DMP panels provide access control, arming, and disarming using proximity, mag-stripe,
biometric or other Wiegand-output authentication devices.
Connect a 734 to a DMP panel’s keypad bus or AX-Bus™ to use the powerful built-in access control
capability of DMP panels. The 734 includes the following features:
POWER SUPPLY
The 734 operates at 12/24VDC from the power
supply supporting a door’s magnetic lock or
door-strike. It also provides a 10 Amp Form C
relay contact for lock control.
ZONE TERMINALS
Zones 1, 2, and 3 on the 734 can be programmed
for a variety of burglary or access control
applications. Zone 4 is a class B, style A circuit
that may be programmed as a fire zone.
ABOUT THE 734
Page 6
2 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
FORM C RELAY
The 734’s Form C relay draws up to 35mA of
current. Refer to the NC/C/NO (Dry Contact
Relay) and the Isolation Relay sections in this
document for more information.
PROGRAMMING CONNECTION
The 734 also provides a keypad programming
connection that allows you to use a standard
DMP LCD keypad for initial setup. Programming
can be completed using a keypad connected to
the 734 or from XR150/XR550 or
XR150INT/XR550INT Series panels.
KEYPAD IN AND OUT
CONNECTIONS
The keypad in (KYPD IN) connection receives
and transmits data to the panel keypad bus or
AX-Bus™.
The keypad out (KYPD OUT) connection receives
and transmits data out to other keypad(s) or
module(s). Install a dual connector four-position
harness to allow daisy chain connection to other
devices, up to the maximum number of devices
supported. XR150 Series panels support up to
8devices. XR550 Series panels support up to
16devices. When using the AX-Busses with
XR550 devices, you can have 32 doors,
expandable to 96.
When the 734 is powered from 24VDC, do
not connect devices to KYPD OUT header.
Page 7
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 3
PCB FEATURES
RED
PROG
J2
RED
J5
J4
KYPD OUT
S1
J3
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NC
C
NO
GRN
YEL
RED
+ –
ON
Piezo
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
KYPD IN
RED
DOOR RELAY
TERMINAL
WEIGAND
INPUTS
STATUS
INDICATOR
OUTPUTS
ZONES
TO PANEL
KEYPAD BUS
OR AX-BUS
TO OTHER
KEYPAD BUS
OR AX-BUS
PIEZO
INDICATOR
LEDS
KEYPAD
PROGRAMMING
HEADER
ADDRESS DIP
SWITCHES

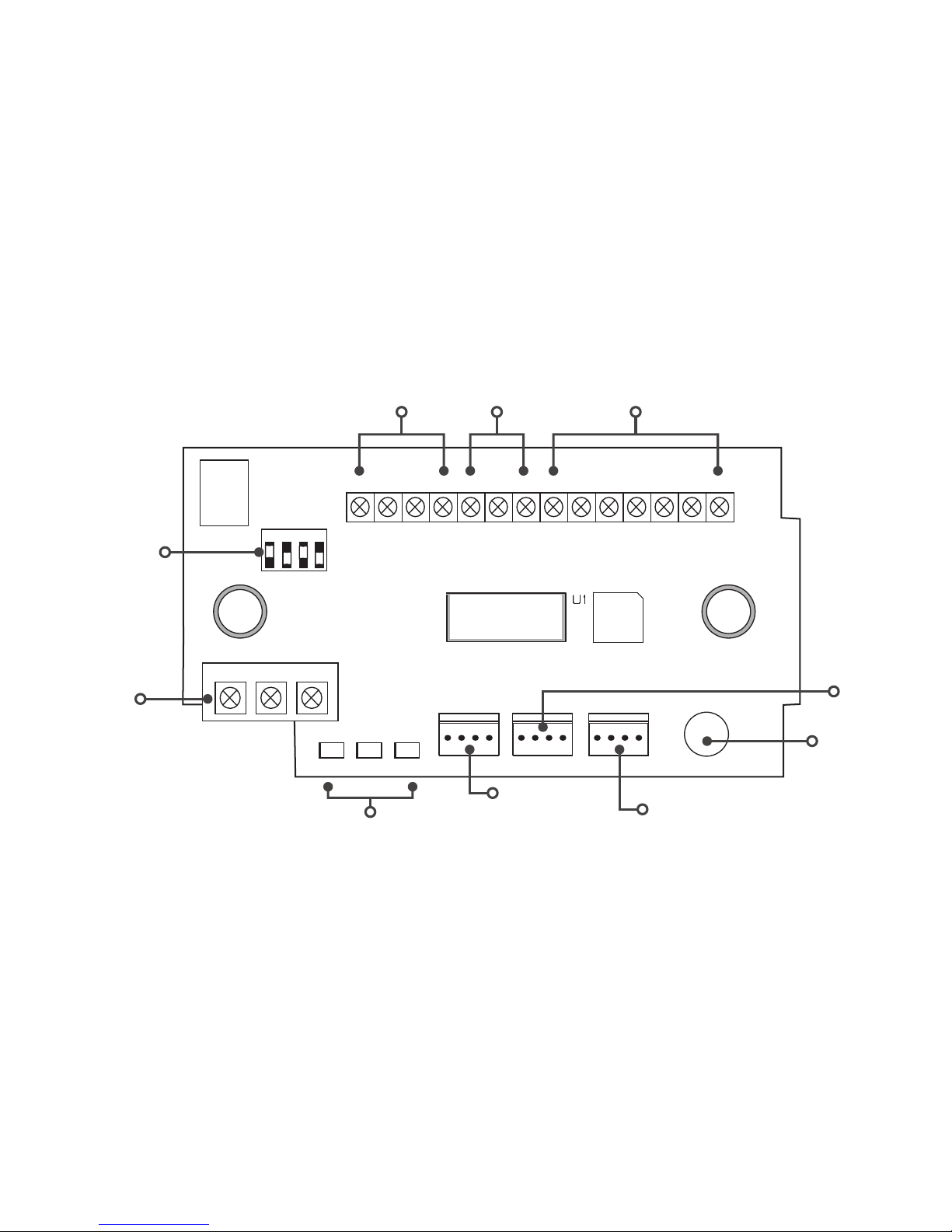

Figure 1: PCB Features
Page 8
4 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
INSTALL THE 734
The 734 comes in a high-impact plastic housing that you can mount directly to a wall, backboard,
or other flat surface.
For easy installation, the back and ends of the 734 housing have wire entrances. The back also
contains multiple mounting holes that allow you to mount the 734 on a single-gang switch box.
DMP recommends mounting the 734 near the protected door. See Figure2 for mounting hole
locations on the housing base.
1
MOUNT THE 734
Mounting Hole

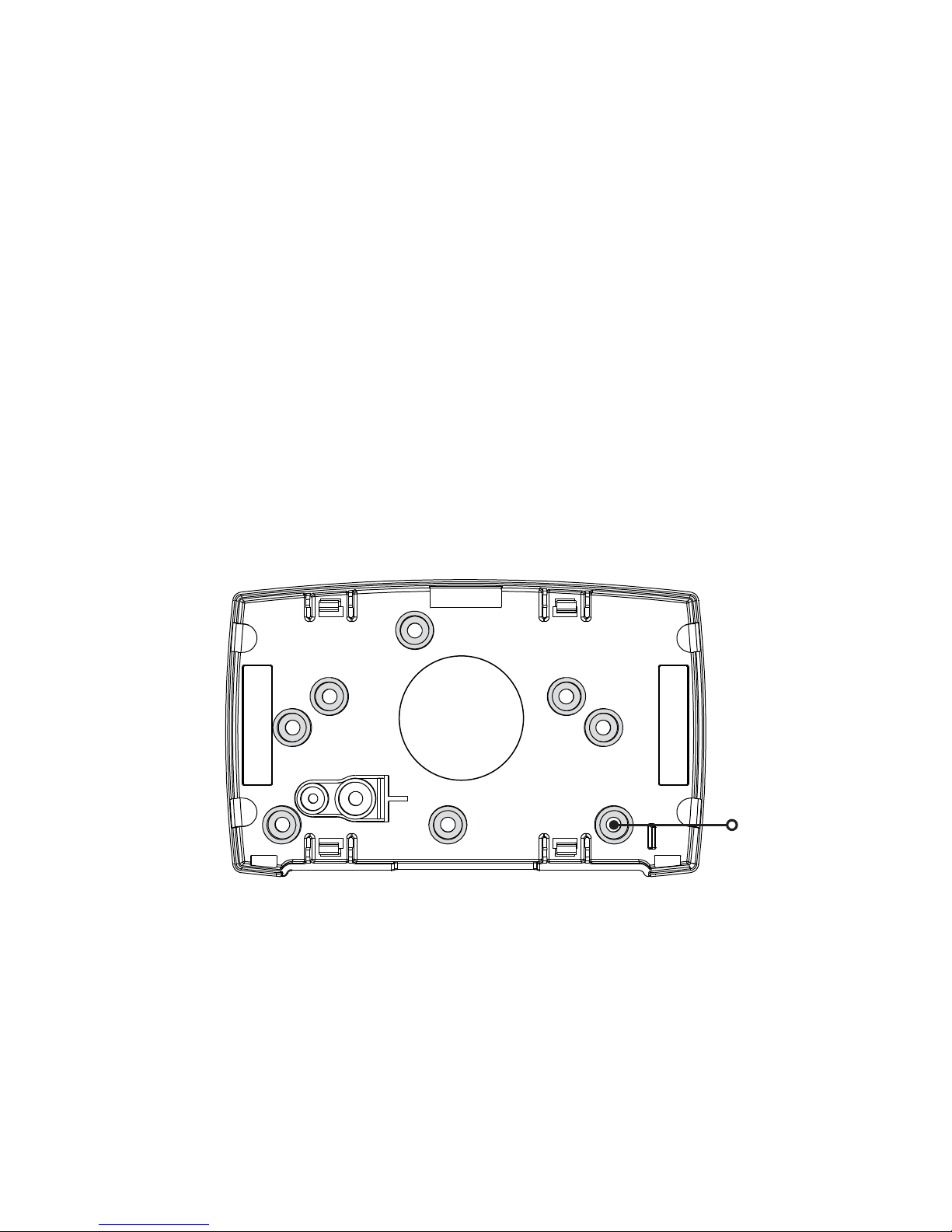

Figure 2: Mounting Hole Locations
Page 9
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 5
The 734 provides a Form C (SPDT) relay for controlling locks and other electronically-controlled
barriers. The three relay terminals marked NO C NC allow you to connect the device wiring to
the relay for module control.
Use an additional power supply to power magnetic locks and door strikes. See Figures 3 and 4
for typical magnetic lock and door strike wiring.
The Form C relay draws up to 35mA of current and contacts are rated for 10 Amps (resistive)
at 12/24VDC. When connecting multiple locks to the Form C relay, the total current for all locks
cannot exceed 10 Amps. If the total current for all locks exceeds 10 Amps, problems may arise
and an isolation relay may be needed. See the Isolation Relay section for information.
2
WIRE THE ELECTRONIC LOCK
PROG
J2
RED RED
KYPD IN
J4
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NCCNO
GRNYELRED
Model 333
Supressor
Normally Closed
–
+
Magnetic Door Lock
12/24 VDC
Power Supply

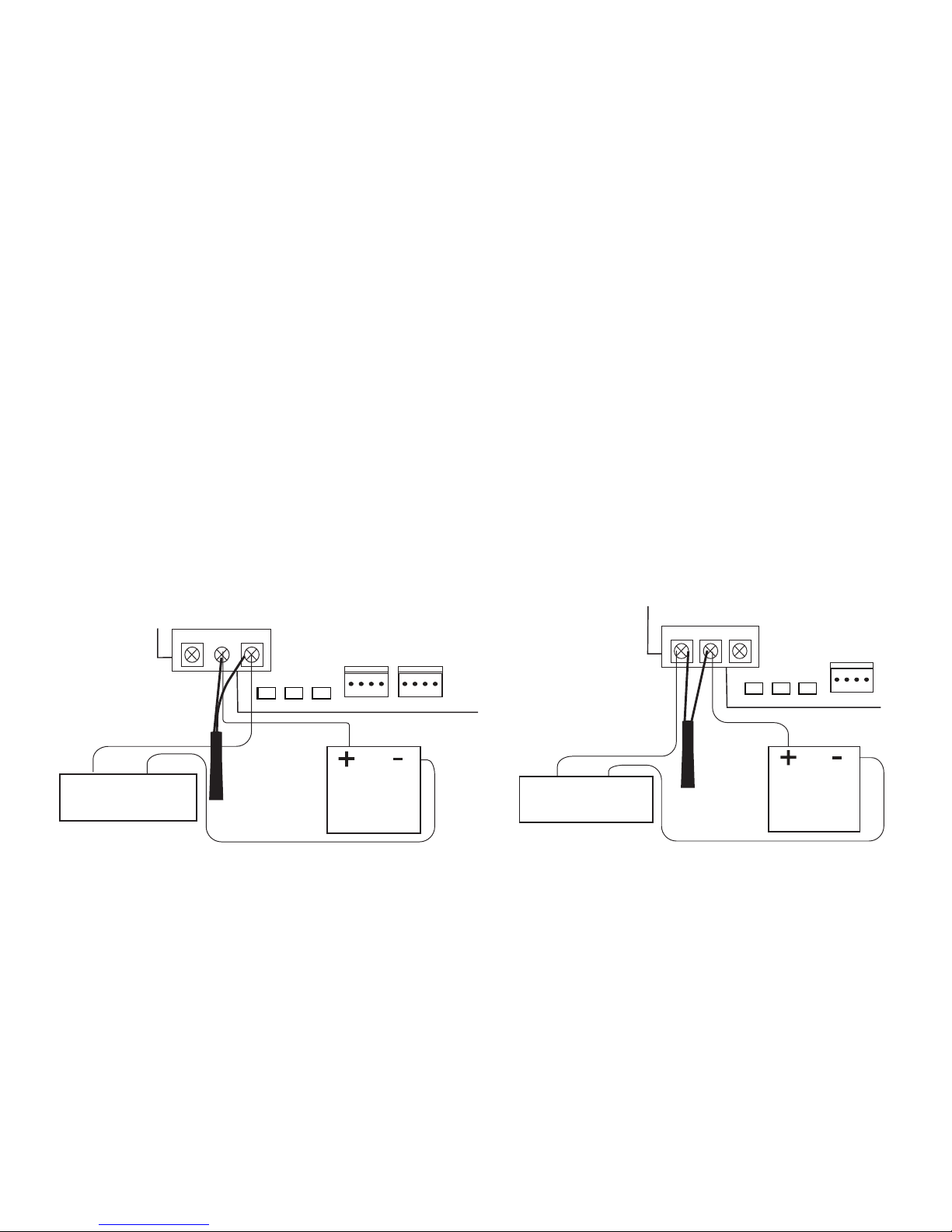

Figure 3: Typical
Magnetic Lock Wiring
PROG
J2
RED
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NCCNO
GRNYELRED
Model 333
Supressor
Normally Open
–+
DC Door Strike
12/24 VDC
Power Supply
Figure 4: Typical Door
Strike Wiring
Page 10
6 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
The Form C relay can control a device that draws less than 10 Amps of current. If a device draws
more than 10 Amp of current, or the sum of all devices controlled by the Form C relay exceeds
10 Amps, an isolation relay must be used. Refer to Figures 5 and 6 for isolation relay wiring.
3
ISOLATION RELAY
RED
PROG
J2
RED
J5
RED
KYPD INJ4KYPD OUT
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NCCNO
GRNYELRED
+ –
Piezo
Model 333
Supressor
Normally Open
–+
Magnetic Lock
–+
Isolation Relay
To Panel
Keypad Bus
12/24 VDC
Power
Supply
NCCNO

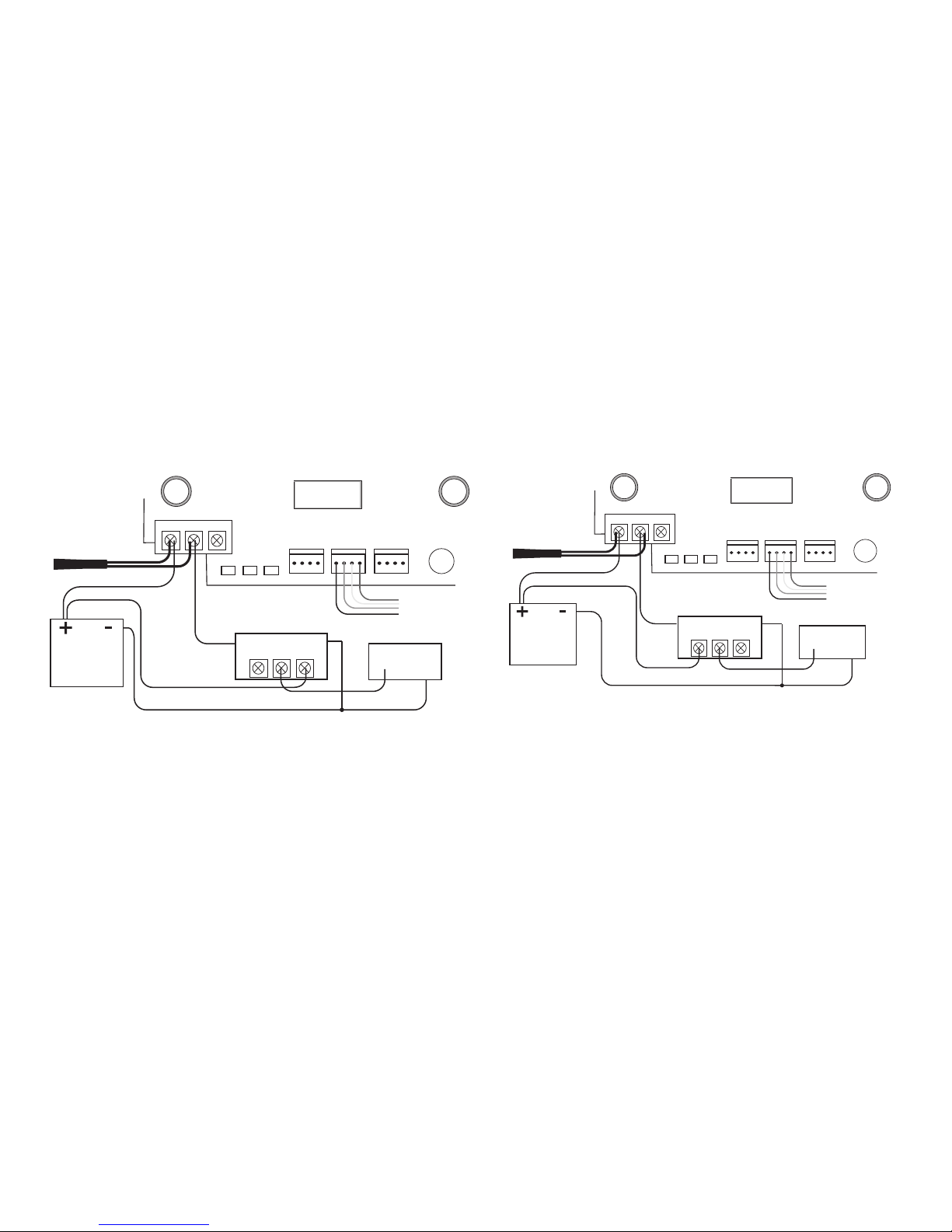

Figure 5: Magnetic Lock with
an Isolation Relay
RED
PROG
J2
RED
J5
RED
KYPD INJ4KYPD OUT
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NCCNO
GRNYELRED
+ –
Piezo
Model 333
Supressor
Normally Open
–+
DC Door Strike
–+
Isolation Relay
To Panel
Keypad Bus
12/24 VDC
Power
Supply
NCCNO
Figure 6: Door Strike with
an Isolation Relay
(optional)
Page 11
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 7
Use the included 333 suppressor with the
734 to suppress any surges caused by
energizing a magnetic lock or door strike.
Install the 333 across the 734 C (common)
and NO (normally open) or NC (normally
closed) terminals.
If the device being controlled by the relay is
connected to the NO and C terminals, install
the suppressor on the NO and C terminals.
Conversely, if the device is connected to
the NC and C terminals, install the 333
Suppressor on NC and C terminals.
The suppressor wire is non-polarized. Install
the suppressor as shown in Figure 7.
4
INSTALL THE 333 SUPPRESSOR
RED
PROG
J2
734 Interface Module
RED
J5
RED
KYPD INJ4KYPD OUT
J1
DATA
XMT LED
WIEGAND
READ LED
RELAY
ON
NCCNO
GRNYELRED
+ –
Piezo

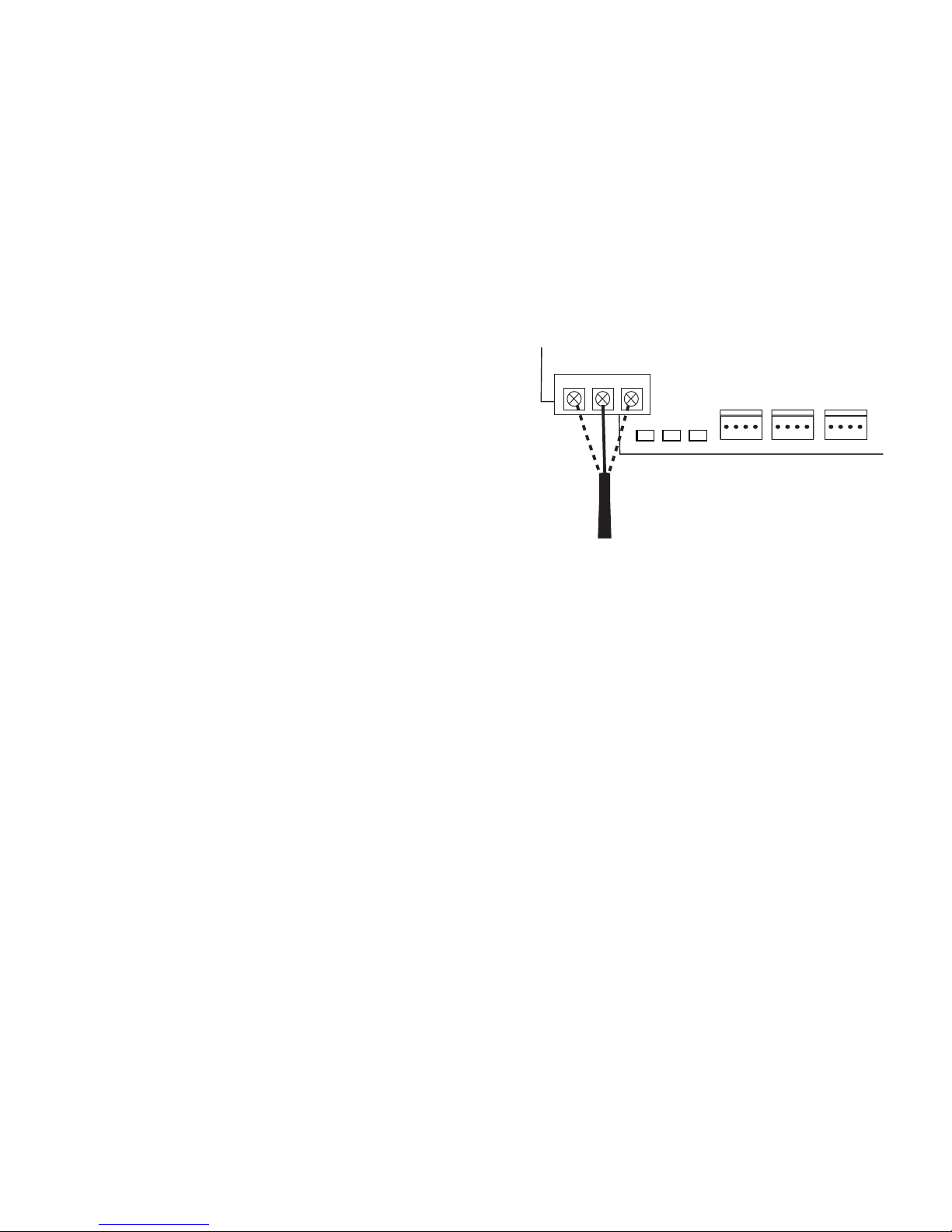

Figure 7: 333 Suppressor
Installation on the 734
Page 12
8 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
Terminals 8 through 12 connect grounded zones 1 through 3. These zones have a grounded side
and cannot be used for fire-initiating devices. Zones 2 and 3 can also be used for access control
with zone 2 providing a bypass feature and zone 3 providing request to exit functionality.
Terminals 13 and 14 connect to zone 4. Zone 4 provides a non-powered Class B ungrounded
zone suitable for connection to fire devices such as heat detectors or pull stations.
Note: You must provide a mechanical means of resetting four-wire smoke detectors or
other latching devices on zone 4. The panel does not drop power to the keypad bus or
AX-Bus when a Sensor Reset is performed.
Use the supplied 311 1K Ohm end-of-line (EOL) resistors on each zone. Refer to the panel
programming guide for programming instructions. See the table below and Figure 8 for more
information on wiring the zone terminals.
5
WIRE THE ZONE TERMINALS
ZONE # RECOMMENDED DEVICE RESIDENTIAL FIRE DEVICES?
1 Any burglary device No
2 Door Contact No
3 REX (PIR or Button) No
4 Any device Yes
Table 1: 734 Zone Uses
Page 13
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 9
Zone 1
Zone 2
Zone 3
Zone 4
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
1K EOL
1K EOL
1K EOL
1K EOL

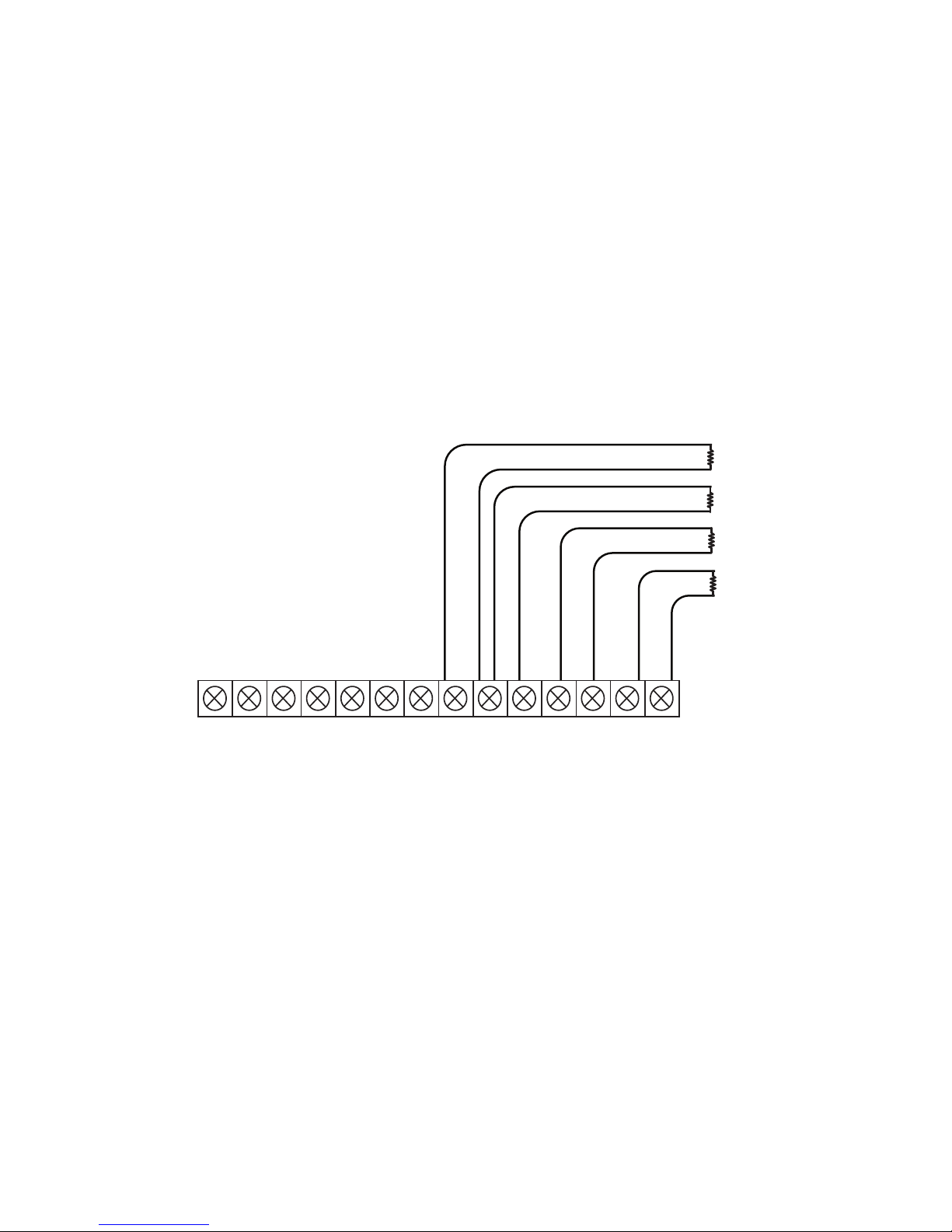

Figure 8: 734 Zone Terminal
Wiring
Page 14
10 734 Installation and Programming Guide | Digital Monitoring Products, Inc.

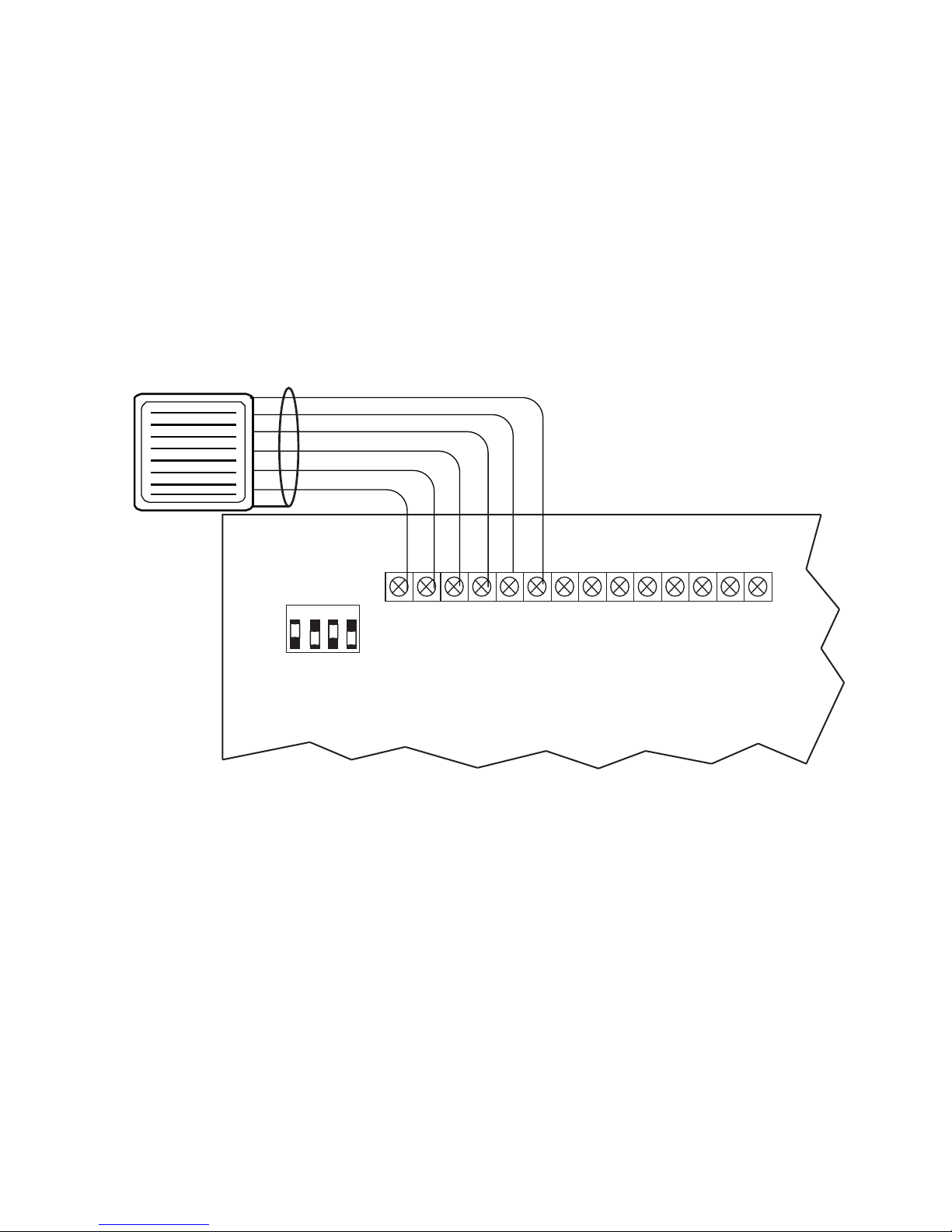

The 734 provides direct 12/24VDC, 200mA output to the reader on the RED terminal
connection. Figure 9 shows a reader with wire colors RED, WHT, GRN, and BLK connecting to
terminals 1, 2, 3, and 4.
The green wire carries Data Zero (D0), and the white wire carries Data One (D1). The red wire
connects 12/24VDC, 200mA maximum power and the black wire is ground.
The wire colors may be dierent depending on the reader being installed. Refer to the literature
provided with the reader for wire coding, wire distance, cable type (such as shielded), and other
specifications.
Card Reader LED Operation
To provide visual indication of a valid card read, the card reader can be wired to illuminate the
green LED for the duration of the door strike.
Connect the orange or brown wire to LC terminal 5 to have the green LED stay on for the
duration of the relay activation.
Card Reader Annunciation
Connect the yellow wire to RA terminal 6 to have the remote annunciator turn on anytime the
panel instructs the 734 on-board piezo to turn on.
6
CONNECT A CARD READER
(optional)
Page 15
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 11
Figure 9: Card Reader Wiring
1
2
3
4 5 6 7
8
10
11 12 13 14
9
LC ASRED WHT GRN BLK Z1 Z2 Z3 Z4+ Z4–RA GND GND
J3
ON
Card Reader
Red (12/24VDC)
White (Data 1)
Black (GND)
Green (Data 0)
Shield
Orange/Brown
Yellow
Page 16
12 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
To set the 734 address, move the DIP switches on the PCB to the appropriate positions. See the
following sections, Figures 10 and 11, and Table 2 to determine how to set keypad bus or AX-Bus
addresses.
7
SET THE 734’S ADDRESS
Keypad Bus Addresses Explained
Each keypad bus address can
accommodate one door output and four
expansion zones.
A 734 with an address of 2 on the
keypad bus would represent door 2
and zones21-24. A 734 with a keypad
address of 14 would represent door 14 and
zones141-144.
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
Figure 10: Keypad Bus
Addresses
Page 17
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 13
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
Figure 11: AX-Bus
Addresses
AX-Bus Addresses Explained
XR550 panels are capable of access control
expansion using any of the five AX/LX-Bus
headers (AX/LX500, 600, 700, 800, and 900).
An AX-Bus address can accommodate one door
output and one expansion zone. Because the
734 has a built-in four-zone expander, three extra
zones will be mapped to the 734 automatically.
A 734 with an address of 1 on AX500 would
represent door 501 and zones 501-504. A 734
with an address of 2 on AX500 would represent
door 505 and zones 505-508. A 734 with an
address of 1 on AX700 would represent door 701
and zones 701-704.
Note: Hardwired zone expanders and
addressable points and modules do not
communicate on an AX-Bus. AX-Bus
doors do not have programmable device
or communication types and do not have
assignable display areas.
Page 18
14 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
734 Address Table
To set the 734 address, move the DIP switches to the appropriate positions. See Figures 10 and 11 for
how to place the DIP switches for keypad bus and AX-Bus addresses.
Table 2: Device Addresses and 734 Zone
Numbers
DEVICE/
DOOR
ZONES
DEVICE/
DOOR
ZONES
DEVICE/
DOOR
ZONES
DEVICE/
DOOR
ZONES
DEVICE/
DOOR
ZONES
DEVICE/
DOOR
ZONES
1 11-14 501 501-504 601 601-604 701 701-704 801 801-804 901 901-904
2 21-24 505 505-508 605 605-608 705 705-708 805 805-808 905 905-908
3 31-34 509 509-512 609 609-612 709 709-712 809 809-812 909 909-912
4 41-44 513 513-516 613 613-616 713 713-716 813 813-816 913 913-916
5 51-54 517 517-520 617 617-620 717 717-720 817 817-820 917 917-920
6 61-64 521 521-524 621 621-624 721 721-724 821 821-824 921 921-924
7 7 1 -74 525 525-528 625 625-628 725 725-728 825 825-828 925 925-928
8 81-84 529 529-532 629 629-632 729 729-732 829 829-832 929 929-932
9 91-94 533 533-536 633 633-636 733 733-736 833 833-836 933 933-936
10 101-104 537 537-540 637 637-640 737 737-740 837 837-840 937 937-940
11 111-114 541 541-544 641 641-644 741 741 -744 841 841-844 941 941-944
12 121-124 545 545-548 645 645-648 74 5 745-748 845 845-848 945 945-948
13 131-134 549 549-552 649 649-652 749 749-752 849 849-852 949 949-952
14 141-144 553 553-556 653 653-656 753 753-756 853 853-856 953 953-956
15 151-154 557 557-560 657 657-660 757 757-760 857 857-860 957 957-960
16 161-164 561 561-564 661 661-664 761 761-764 861 861-864 961 961-964
Page 19
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 15
PROGRAM THE 734
When you program a 734, you can use a keypad connected to the 734 programming header and set
to address 1. For 12V applications, connect the keypad to the module using a Model 330 4-wire
harness. For 24V applications, connect the keypad to the module using a Model 330-24 4-wire
programming harness with in-line resistor.
Do not connect a keypad using a standard Model 330 harness if using a 24V power supply!
Damage to the keypad could occur.
You can also program the 734 from an XR150/XR550 Series panel. If you choose to program the
734 from the panel, all future programming should be performed through the panel. The panel’s
programming overrides any programming performed from a keypad connected to the 734.
While the 734 is in programming mode, it will not be able to communicate with the panel.
PROGRAM START DISPLAY
When you connect the keypad to the 734 module, the version number
and release date display. Press CMD to enter the Programming Menu.
INITIALIZATION OPTION
These options can set the 734 module programming memory back to
factory defaults. Press any select key or area to enter the initialization
menu.
734 PROGRAMMING
VER VVV MM/DD/YY
INITIALIZE ALL?
NO YES
Page 20
16 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
INITIALIZE CONFIRM OPTION
After selecting YES to clear the Access Options, the 734 displays
SURE? YES NO for confirmation to clear the memory. This is a
safeguard against accidentally erasing the programming. No memory
is cleared from the programming until you answer YES to the SURE?
option. Selecting NO leaves communication options unchanged.
ACTIVATE ZONE 2 BYPASS
Select YES to activate the zone 2 bypass operation. Selecting NO
allows standard zone operation on zone 2. The default is NO.
If the door being released by the 734 module is protected (contact
installed), a programmable bypass entry/exit timer can be provided
by connecting its contact wiring to the 734 module zone 2. When
the on-board Form C relay activates and the user opens the door
connected to zone 2, the zone is delayed for the number of seconds
programmed in ZONE 2 BYPASS TIME allowing the user to enter/exit
during an armed period.
If zone 2 does not restore (door closed) within the programmed time,
the piezo sounds every other second during the last ten seconds.
If zone 2 restores prior to the end of the programmed time, the
piezo silences. If the zone does not restore before the programmed
time, the 734 ends the bypass and indicates the open or short zone
condition to the panel.
ARE YOU SURE?
YES NO
ACTIVATE ZONE 2
BYPASS? NO YES
Page 21
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 17
ZONE 2 BYPASS TIME
Enter the number of seconds to elapse before the bypass timer
expires. The range is 20-250 seconds. Press any select key or area to
enter the number of seconds. The default is 40seconds. Figure12
shows how the bypass option works.
RELOCK ON ZONE 2 CHANGE
Selecting YES turns the relay o when zone 2 changes state.
Selecting NO leaves the relay on when zone 2 changes state.
Turning o the relay at Door Closed allows a long strike time to be
automatically ended and relocks the door. The default is NO.
ZONE 2 BYPASS
TIME: 40
5 Second
Strike
40-Second Zone 2 Bypass
entry/exit timer.
10 seconds before
the bypass time expires,
the device beeps if
the door is still open.
End of
timer.
40
Seconds
A zone open/short is
indicated if the door
remains open.

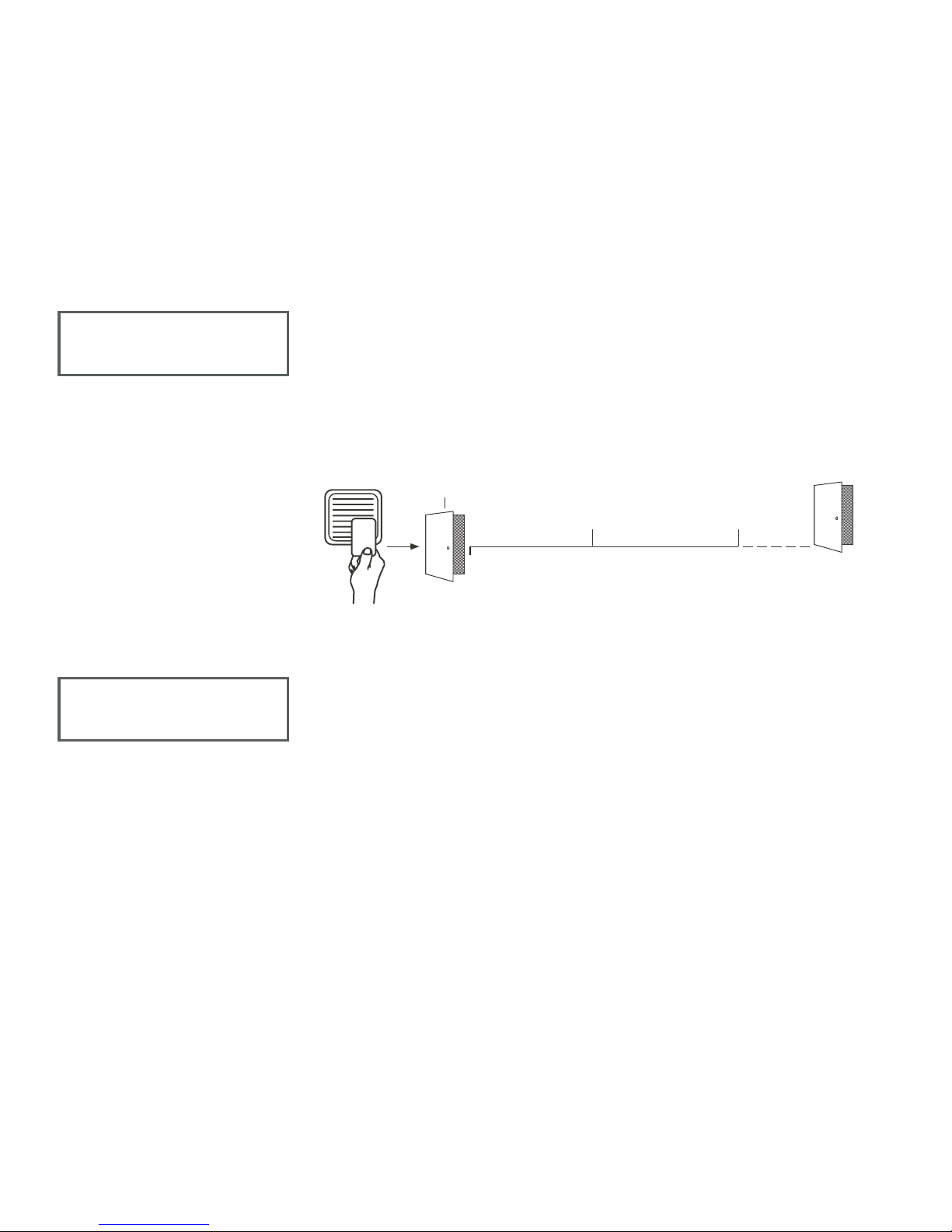

Figure 12: Zone 2 Bypass Timeline using default time
RELOCK ON ZONE 2
CHANGE? NO YES
Page 22
18 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
ACTIVATE ZONE 3 REQUEST TO EXIT
Selecting YES activates the zone 3 Request to Exit (REX) option.
Selecting NO allows standard zone operation on zone 3. Default
setting is NO.
Connect a motion sensing device or a mechanical switch to zone 3 to
provide REX capability to the system.
When zone 3 shorts, the on-board Form C relay activates for the
programmed number of seconds. See Zone 3 REX Strike Time.
During this time, the user can open the protected door to start the
programmed zone 2 bypass entry/exit timer. After the programmed
number of seconds, the relay restores the door to its locked state.
The 734 module provides a bypass-only option for REX on zone 3.
When zone 3 OPENS from a NORMAL state, only a bypass occurs: the
on-board relay does not activate. This bypass-only option uses two
methods of REX.
The first REX device provides the programmed bypass entry/exit
timer. The second REX unlocks the door.
ACTIVATE ZONE 3
REX? NO YES
Page 23
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 19
ZONE 3 REX STRIKE TIME
Enter the number of REX seconds to elapse. Range is from 5 to 250
seconds. Press any select key or area to enter the number of seconds.
The default is 5 seconds.
ACTIVATE ON-BOARD SPEAKER
Select YES to enable the onboard piezo for local annunciation, such
as alarm and trouble annunciations. Select NO to turn the speaker
o for all operations. This does not aect remote annunciator open
collector (RA) operation. The default is NO.
ZN 3 REX STRIKE
TIME: 5
ACTIVATE ONBOARD
SPEAKER? NO YES
Page 24
20 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
CUSTOM CARD DEFINITIONS
CARD OPTIONS
Notice: If you see CARD FORMATS, refer to LT-0737.
Access cards contain a site code, user code, and start/stop/parity bits.
See Figure13. The starting position location and code length must be
determined and programmed into the 734NModule. Select DMP to
indicate the reader sends a 26-45 bit data string. Press the first select
key or area under DMP to select it. Default is DMP.
Select CUSTOM if using a non-DMP card.
Select ANY to allow all card reads to activate the door strike relay.
The door strike relay is activated for the length of time programmed
in ZN 3 REX TIME. No user code information is sent to the panel.
Note: When set to DMP, the 734N converts 17 bits of the 26 to
45-bit data string into a 5-digit number.
CARD OPTIONS:
DMP
CARD OPTIONS:
DMP CUSTOM ANY
In this example, the Wiegand
Code Length = 26 bits.
01110101101101010001100111
First Bit
Received
Position = 0
Site Code
Position = 1
Length = 8
User Code
Position = 9
Length = 16
Last Bit
Received
Position = 25
Figure 13: Wiegand Data Stream Bit Location
Page 25
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 21
WIEGAND CODE LENGTH
When using a custom credential, enter the total number of bits to be
received in Wiegand code including parity bits. Press any select key
or area to enter a number between 1-255 to equal the number of bits.
Default is 26 bits.
SITE CODE POSITION AND LENGTH
Enter the site code start position and length in the data string. Press
select area 2 to clear the site code start position and enter a number
between 0-255. Press CMD to save. Default is 1.
Press select area 4 to clear the site code length and enter a number
between 1-16. Press CMD to save. Default is 8.
USER CODE POSITION AND LENGTH
Define the user code start bit position and length. Press select area 2
to clear the user code position and enter a number between 0-255.
Press CMD to save. Default is 9.
Press select area 4 to clear the user code length and enter a number
between 16-40. Press CMD to save. The default is the DMP value of 16.
WEIGAND CODE
LENGTH: 26
SITE CODE
POS: 1 LEN: 8
USER CODE
POS: 9 LEN: 16
Page 26
22 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
REQUIRE SITE CODE
Press the select key or area under YES to use a site code and press
CMD to view the site code entry display. Press NO to advance to
NOOF USER CODE DIGITS. Default is NO.
In addition to user code verification, door access is only granted when
any one site code programmed at the SITE CODE ENTRY option
matches the site code received in the Wiegand string.
SITE CODE
You can program up to eight three-digit site codes. The site code
range is 0-999. Any previously programmed site codes display.
Dashes represent blank site codes and indicate where digits display
on the keypad. The default for site code 1 is 127 for DMP.
Press the first select key or area to display the > character next to
site code1. Press the first select key or area again to move vertically
between site codes. Press the second select key or area to move
horizontally between site codes. When you have selected the site
code you want to change, press CMD.
REQUIRE SITE
CODE: NO YES
127 --- --- ---
--- --- --- ---
Page 27
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 23
ENTER SITE CODE
Press the first select key or area to enter a site code number. Enter
your three-digit site code and press CMD to advance.
Note: A card with a site code greater than three digits cannot
be used. Use only cards with three-digit site codes.
Press the fourth select key or area to delete the site code number
displayed and return to the site code display. Repeat these steps to
change, delete, or add other site codes.
NUMBER OF USER CODE DIGITS
The 734 module recognizes user codes from 4-12digits long. Press
any select key or area to enter a user code digit length. This number
must match the user code number length being programmed in the
panel. Default is 5.
All bits are read and converted into a decimal number string. The
number string is left padded with ‘0’ if needed for long user code
lengths. When selecting ‘4’ the right digit is dropped and the next
four sent.
Example: # decoded 1234567
10 digits 0001234567
5 digits 34567
4 digits 3456
ENTER SITE CODE
127 ___ ___ DEL
NO OF USER CODE
DIGITS: 5
Page 28
24 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
NO COMMUNICATION WITH PANEL
Define the relay action when communication with the panel has not
occurred for 5seconds. Default is OFF. Press any select key or area to
change the default relay action:
Press the first select key or area to choose OFF (Relay Always O) —
The relay does not turn on when any Wiegand string is received. OFF
does not aect any REX operation. If communication is lost during a
door strike, the relay remains on for the door strike duration but turns
o at the end of the door strike timer.
Press the second select key or area to choose SITE (Accept Site
Code) — Door access is granted when the Wiegand site code string
received matches any site code programmed at SITE CODE DISPLAY.
Refer to REQUIRE SITE CODE for more information.
Press the third select key or area to choose ANY (Any Wiegand Read)
— Access is granted when any Wiegand string is received.
Press the fourth select key or area to choose ON (Relay Always On) —
The relay is always on.
Press CMD to display the next action.
Press the first select key or area to choose LAST (Keep Last State)
— The relay remains in the same state and does not change when
communication is lost.
NO COMM WITH PNL
OFF SITE ANY ON
NO COMM WITH PNL
LAST
Page 29
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 25
REMOVE KEYPAD
The REMOVE KEYPAD option continually displays with no time
out while the keypad remains connected to the 734N module after
programming is finished. After five seconds, the 734N module
piezo continually sounds if the keypad remains connected and
programming is finished. Remove the keypad harness to disconnect
the keypad from the 734N module and silence the alarm.
REMOVE KEYPAD
Page 30
26 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
Refer to the following Keypad bus/AX-Bus/LX-Bus wiring specifications.
▸ DMP recommends using 18 or 22-gauge unshielded wire for all keypad and AX-Bus/LX-Bus
circuits. Do not use twisted pair or shielded wire for AX-Bus/LX-Bus and keypad bus data
circuits. All 22-gauge wire must be connected to a power-limited circuit and jacket wrapped.
▸ On keypad bus circuits, to maintain auxiliary power integrity when using 22-gauge wire do
not exceed 500 feet. When using 18-gauge wire do not exceed 1,000 feet. To increase the
wire length or to add devices, install an additional power supply that is listed for Fire
Protective Signaling, power limited, and regulated (12/24VDC nominal) with battery backup.
Note: Each panel allows a specific number of supervised keypads. Add additional
keypads in the unsupervised mode.
▸ Maximum distance for any one bus circuit (length of wire) is 2,500 feet regardless of the
wire gauge. This distance can be in the form of one long wire run or multiple branches with
all wiring totaling no more than 2,500 feet. As wire distance from the panel increases, DC
voltage on the wire decreases. Maximum number of AX-Bus/LX-Bus devices per 2,500 feet
circuit is 40devices.
▸ Maximum voltage drop between the panel (or auxiliary power supply) and any device is
2.0VDC. If the voltage at any device is less than the required level, add an auxiliary power
supply at the end of the circuit. When voltage is too low, the devices cannot operate
properly.
For additional information refer to the panel's Installation Guide, the 710 Installation Sheet (LT-0310),
and/or the LX-Bus/Keypad Bus Wiring Application Note (LT-2031).
KEYPAD BUS WIRING SPECIFICATIONS
Page 31
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 27
PUBLIC CARD FORMATS
CARD
FORMAT
WIEGAND
CODE
LENGTH
SITE
CODE
POSITION
SITE
CODE
LENGTH
USER
CODE
POSITION
USER
CODE
LENGTH
USER
CODE
DIGITS
H10301 26 BIT 26 1 8 9 16 5
H10302 37 BIT
W/FAC
37 1 16 17 19 6
H10304 37 BIT
W/O FAC
37 0 0 1 35 12
FARPOINTE
39 BIT
39 1 17 18 20 7
CORPORATE
1000 35 BIT
35 2 12 14 20 6
CORPORATE
1000 48 BIT
48 2 22 24 23 7
Page 32
28 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
COMPLIANCE LISTING SPECIFICATIONS
UL COMMERCIAL FIRE
The 734 Interface Module must be used in conjunction with at least one DMP 630F keypad.
Any Auxiliary Power Supplies must be regulated, power limited, and listed for Fire Protective
Signaling Service.
UL ACCESS CONTROL
The access relay must be configured as fail-safe or fail-secure as determined by the local Authority
Having Jurisdiction (AHJ). This system is not intended to be used in place of listed panic hardware.
The power supply must be a listed commercial burglary/household fire, power limited, Class 2 with a
compatible voltage range for the product. The 734 requires a 12 or 24VDC power source.
ULC COMMERCIAL BURGLARY (XR150/XR550 SERIES PANELS)
When using the zones of the 734 in a listed application, place the module in a listed enclosure and
connect a DMP Model 307 Clip-on Tamper Switch to the enclosure programmed as a 24-Hour zone.
The 734 Access Control features have not been investigated by ULC.
The 734 zones can be used in a Low Risk application. For Medium or High Risk applications, refer to
the Dual Zone Protection diagram in the XR150/XR550 Canadian installation guide.
Page 33
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 29
CERTIFICATIONS
FCC Part 15
California State Fire Marshal (CSFM)
New York City (FDNY COA #6167)
UNDERWRITERS LABORATORY (UL LISTED)
ANSI/UL 294 Access Control System Units
ANSI/UL 365 Police Connected Burglar
ANSI/UL 609 Local Burglar Alarm Units And Systems
ANSI/UL 1076 Proprietary Burglar Alarm Units And Systems
ANSI/UL 1023 Household Burglar-Alarm System Units
ANSI/UL 1610 Central Station Burglar-Alarm Units
ANSI/UL 864 Fire Protective Signaling
ANSI/UL 985 Household Fire-warning
ULC S304 Central And Monitoring Station Burglar Alarm
ULC/ORD-C1076 Proprietary Burglar
ULC Subject-C1023 Household Burglar
ULC S545 Household Fire
Page 34
30 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
PRODUCT SPECIFICATIONS
Primary Power 8.5VDC to 28.5VDC
Current Draw
Standby 240mA (Includes 200mA for proximity reader)
Alarm 260mA (Includes 200mA for proximity reader)
Form C Relay 35mA at 12/24VDC
Zones 5VDC, 2mA max
Dimensions 4.5W x 2.75H x 1.75Din
11.43W x 7H x 4.45Dcm
Weight 5.6oz .16kg
Page 35
Digital Monitoring Products, Inc. | 734 Installation and Programming Guide 31
READERS AND CREDENTIALS
125 KHZ PROXIMITY READERS
P-300 CASCADE PROXIMITY
READER
P-500 ALPS PROXIMITY READER
P-640 PATAGONIA PROXIMITY
READER WITH KEYPAD
MP-5365 MINIPROX™ PROXIMITY
READER
MX-5375 MAXIPROX® PROXIMITY
READER
PP-6005B PROXPOINT® PLUS
PROXIMITY READER
PP-5355 PROXPRO PROXIMITY
READER WITH KEYPAD
PR-5455 PROXPRO® II PROXIMITY
READER
TL-5395 THINLINE II® PROXIMITY
READER
125 KHZ PROXIMITY CREDENTIALS
PSC-1 STANDARD LIGHT
PROXIMITY CARD
PSK-3 PROXIMITY KEY
RING TAG
PSM-2P ISO IMAGEABLE
PROXIMITY CARD
1306 PROX PATCH™
1326 PROXCARD II®
CARD
1346 PROXKEY III®
ACCESS DEVICE
1351 PROXPASS®
1386 ISOPROX II® CARD
Page 36
32 734 Installation and Programming Guide | Digital Monitoring Products, Inc.
13.56 MHZ SMARTCARD READERS
DELTA3 FARPOINTE SMARTCARD
READER
DELTA5 FARPOINTE SMARTCARD
READER
DELTA5.3 FARPOINTE SMARTCARD
READER
DELTA6.4 FARPOINTE SMARTCARD
READER
13.56 MHZ SMARTCARD CREDENTIALS
DC1-1 FARPOINTE CLAMSHELL
SMARTCARD
DM1-3 FARPOINTE IMAGEABLE
SMARTCARD
DE2 FARPOINTE MIFARE®
DESFIRE® EV1
SMARTCARD
DK1-3 FARPOINTE KEY FOB
SMARTCARD
*Delta Proximity Readers and Credentials not evaluated by UL.
Page 37
Page 38
Page 39
Page 40
LT-0737C 18514 1.07 © 2018 Digital Monitoring Products, Inc.
Loading...
