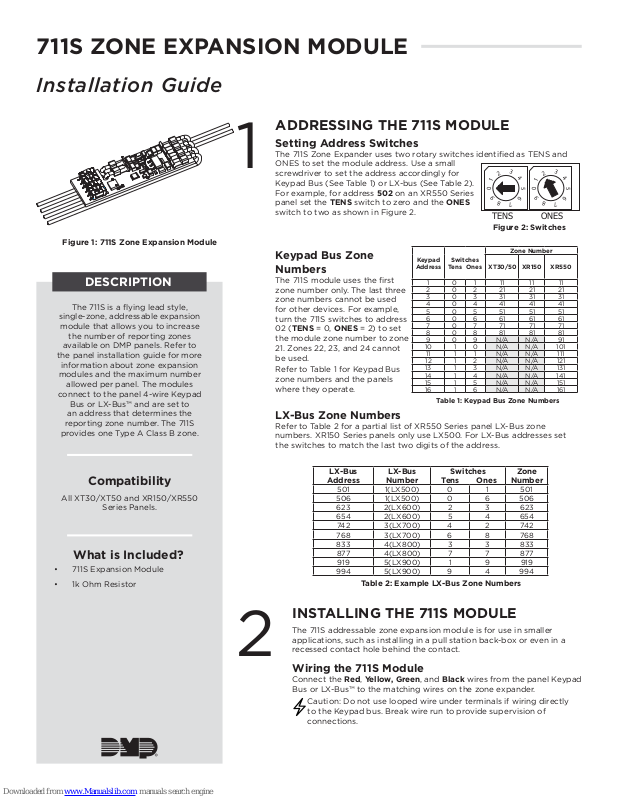

DMP Electronics 711S Installation Manual

711S ZONE EXPANSION MODULE

0

1

2

3

4

5

6

7

8

9

0

1

2

3

4

5

6

7

8

9

Installation Guide

ADDRESSING THE 711S MODULE

Setting Address Switches

The 711S Zone Expander uses two rotary switches identified as TENS and

1

Figure 1: 711S Zone Expansion Module

DESCRIPTION

The 711S is a flying lead style,

single-zone, addressable expansion

module that allows you to increase

the number of reporting zones

available on DMP panels. Refer to

the panel installation guide for more

information about zone expansion

modules and the maximum number

allowed per panel. The modules

connect to the panel 4-wire Keypad

Bus or LX-Bus™ and are set to

an address that determines the

reporting zone number. The 711S

provides one Type A Class B zone.

ONES to set the module address. Use a small
screwdriver to set the address accordingly for
Keypad Bus (See Table 1) or LX-bus (See Table 2).
For example, for address 502 on an XR550 Series
panel set the TENS switch to zero and the ONES
switch to two as shown in Figure 2.

Keypad Bus Zone
Numbers

The 711S module uses the first
zone number only. The last three
zone numbers cannot be used
for other devices. For example,
turn the 711S switches to address
02 (TENS = 0, ONES = 2) to set
the module zone number to zone

21. Zones 22, 23, and 24 cannot
be used.

Refer to Table 1 for Keypad Bus
zone numbers and the panels
where they operate.

LX-Bus Zone Numbers

Refer to Table 2 for a partial list of XR550 Series panel LX-Bus zone
numbers. XR150 Series panels only use LX500. For LX-Bus addresses set
the switches to match the last two digits of the address.

TENS ONES

Figure 2: Switches

Keypad

Address

Switches

Tens Ones

1 0 1 11 11 11
2 0 2 21 21 21
3 0 3 31 31 31
4 0 4 41 41 41
5 0 5 51 51 51
6 0 6 61 61 61
7 0 7 71 71 71
8 0 8 81 81 81
9 0 9 N/A N /A 91

10 1 0 N /A N /A 101

11 1 1 N /A N/A 111

12 1 2 N /A N/A 121
13 1 3 N/A N /A 131
14 1 4 N /A N/A 141
15 1 5 N/A N /A 151
16 1 6 N /A N/A 161

Table 1: Keypad Bus Zone Numbers

Zone Number

XT30/50 XR150 XR550

Compatibility

All XT30/XT50 and XR150/XR550

Series Panels.

What is Included?

• 711S Expansion Module

• 1k Ohm Resistor

2

LX-Bus

Address

501 1(LX500) 0 1 501
506 1(LX500) 0 6 506
623 2(LX600) 2 3 623
654 2(LX600) 5 4 654

742 3(LX700) 4 2 742
768 3(LX700) 6 8 768
833 4(LX800) 3 3 833
877 4(LX800) 7 7 877

919 5(LX900) 1 9 919
994 5(LX900) 9 4 994

LX-Bus

Number

Table 2: Example LX-Bus Zone Numbers

Switches

Tens Ones

Number

Zone

INSTALLING THE 711S MODULE

The 711S addressable zone expansion module is for use in smaller
applications, such as installing in a pull station back-box or even in a
recessed contact hole behind the contact.

Wiring the 711S Module

Connect the Red, Yellow, Green, and Black wires from the panel Keypad
Bus or LX-Bus™ to the matching wires on the zone expander.

Caution: Do not use looped wire under terminals if wiring directly
to the Keypad bus. Break wire run to provide supervision of
connections.

Red - Auxiliary Power

Yellow - Data

Green - Data

Black - Common

To next module

1K Ohm EOL

All wiring is Power Limited
and Supervised. See

Wiring the 711S
Module.

Keypad Bus or LX-Bus
wiring from panel

White - Positive
Brown - Negative

Protection Zone Supervised 5V, Class B, Style A
The maximum impedance is 100 Ohms
Ground fault detected at less than 1200 Ohms
Normal operating range is 650-1200 Ohms

3

Wiring Specifications for Keypad and LX-Bus

1. DMP recommends using 18 or 22-gauge unshielded wire for all keypad and LX-Bus
circuits. Do Not use twisted pair or shielded wire for LX-Bus and Keypad Bus data
circuits. To maintain auxiliary power integrity when using 22-gauge wire do not
exceed 500 feet. When using 18-gauge wire do not exceed 1,000 feet. Install an
additional power supply to increase the wire length or add devices.

2. Maximum distance for any one circuit (length of wire) is 2,500 feet regardless of
the wire gauge. This distance can be in the form of one long wire run or multiple
branches with all wiring totaling no more than 2,500 feet. As wire distance from
the panel increases, DC voltage on the wire decreases.

3. Maximum number of devices per 2,500 feet circuit is 40.

4. Maximum voltage drop between the panel (or auxiliary power supply) and any
device is 2.0VDC. If the voltage at any device is less than the required level, add
an auxiliary power supply at the end of the circuit. When voltage is too low, the
devices cannot operate properly.

Refer to the panel installation guide and LX-Bus/Keypad Bus Wiring Application
Note (LT-2031).

Figure 3: 711S Module Wiring

ZONE PROGRAMMING

You can program the 711S zone with any panel Burglary or Fire zone type or as an Arming zone type when used with
keyswitches.

Zone Expander Data LED

The 711S LED flashes each time the module responds to a poll from the panel. If there is a problem with the panel, panel
programming, or the Green data wire between the panel and the zone expander module, the LED stops flashing.

Compliance Listing Specifications

UL

To comply with ANSI/UL 365 Police-Connected Burglary System or ANSI/UL 609 Local Burglary Alarm Systems, the

4

711S ZONE EXPANSION MODULE

Specifications

Operating Voltage 8.8 to 15.0 VDC
Operating Current

Standby 4.2 mA

Alarm 4.7 mA

Zone Voltage 5 VDC, max 2 mA

EOL Value 1k Ohm

Dimensions 1.25” W x 2.75” H

Compatibility

All DMP panels with zone expansion capability

module must be mounted in a listed enclosure with a tamper installed.
The keypad and LX-Bus are rated Class B, Style 3.5.

ULC Commercial Burglary (XR150/XR550 Series panels)

Place the 711S and other zone expander modules in a listed enclosure and connect a DMP Model 307 Clip-on Tamper
Switch to the enclosure programmed as a 24-Hour zone.
The 711S zone can only be used in Low Risk applications. Medium or High Risk applications must use panel zone inputs.

Designed, engineered, and

manufactured in Springfield, MO

using U.S. and global components.

LT-1875 19063 1.01

Certifications

Commercial Burglar and Fire Accessory Zone Expander

Signaling Device

ANSI/UL 365

ANSI/UL 609 Local Burglar Alarm Units & Systems

ANSI/UL 864 Fire Protective Signaling Systems

ANSI/UL 985 Household Fire Warning System Units

ANSI/UL 1023 Household Burglar Alarm System Units

ANSI/UL 1076 Proprietary Burglar Alarm Units & Systems

ANSI/UL 1610 Central Station Burglar Alarm Units

ANSI/UL 1635 Digital Alarm Communication System Units

ULC Subject-C1023 Household Burglar

ULC/ORD-C1076 Proprietary Burglar

ULC S304 Central Station Burglar

ULC S545 Household Fire

INTRUSION • FIRE • ACCESS • NETWORKS

Police Station Connect Burglar Alarm Systems

2500 North Partnership Boulevard

Springfield, Missouri 65803-8877

888-436-7832| DMP.com
