DESCRIPTION

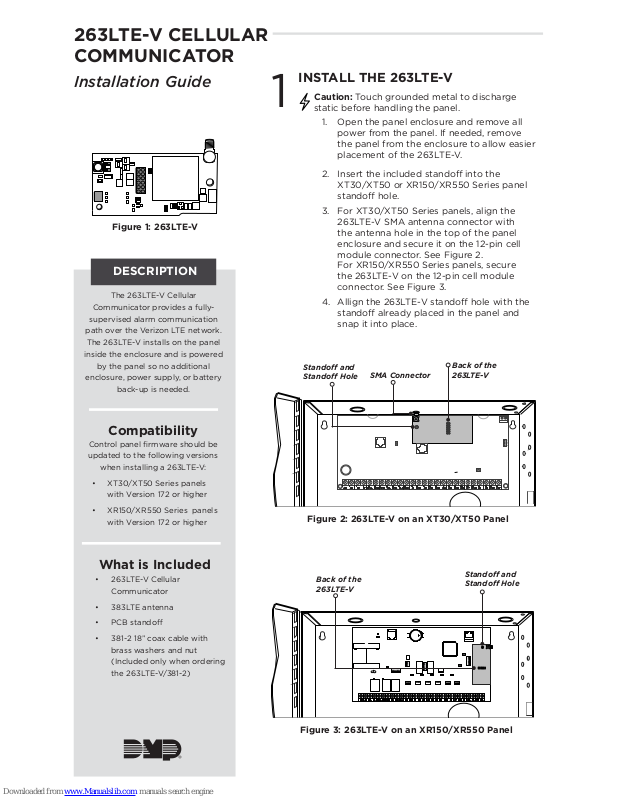

Figure 1: 263LTE-V

INSTALL THE 263LTE-V

Caution: Touch grounded metal to discharge

static before handling the panel.

1. Open the panel enclosure and remove all power from the panel. If needed, remove the panel from the enclosure to allow easier placement of the 263LTE-V.

2. Insert the included stando into the XT30/XT50 or XR150/XR550 Series panel stando hole.

3. For XT30/XT50 Series panels, align the 263LTE-V SMA antenna connector with the antenna hole in the top of the panel enclosure and secure it on the 12-pin cell module connector. See Figure 2. For XR150/XR550 Series panels, secure the 263LTE-V on the 12-pin cell module connector. See Figure 3.

4. Allign the 263LTE-V stando hole with the stando already placed in the panel and snap it into place.

The 263LTE-V Cellular

Communicator provides a fully-

supervised alarm communication

path over the Verizon LTE network.

The 263LTE-V installs on the panel

inside the enclosure and is powered

by the panel so no additional

enclosure, power supply, or battery

back-up is needed.

Compatibility

Control panel ﬁrmware should be updated to the following versions

when installing a 263LTE-V:

• XT30/XT50 Series panels with Version 172 or higher

• XR150/XR550 Series panels with Version 172 or higher

What is Included

• 263LTE-V Cellular Communicator

• 383LTE antenna

• PCB stando

• 381-2 18” coax cable with brass washers and nut (Included only when ordering the 263LTE-V/381-2)

1 2 3 4

Figure 2: 263LTE-V on an XT30/XT50 Panel

Back of the 263LTE-V

Stando and Stando Hole

SMA Connector

Figure 3: 263LTE-V on an XR150/XR550 Panel

Stando and Stando Hole

Back of the 263LTE-V

263LTE-V CELLULAR COMMUNICATOR

Installation Guide

Page 2

2 263LTE -V INSTALLATION GUIDE | DIGITAL MONITORING PRODUCTS

1. Navigate to the Dealer Admin site (DMPDealerAdmin.com).

2. Click Customers in the right-side menu and select a customer.

3. Click Add System.

4. Enter a System Name.

5. Select XTLplus from the System Type drop-down menu.

6. Select either Cellular or EASYconnect + Cell Backup in the Connection Type ﬁeld.

7. Enter the SIM number found on the 263LTE-V label and click Get Status.

8. Enter the Account Number.

9. Select a Rate Plan for the 263LTE-V.

10. Click Activate Cellular Device.

Dealer Admin Activation

CONNECT THE ANTENNA

Be sure to only use the included 383LTE antenna when installing the 263LTE-V.

XT30/XT50 Series Panel

Connect the included LTE antenna to the 263LTE-V SMA connector. See Figure 4.

XR150/XR550 Series Panel

1. If you're installing a 263LTE-V/381-2, attach one end of the included coax cable to the 263LTE-V SMA connector.

2. Position one washer onto the other end of the coax cable and push the threaded end through the antenna knockout hole.

3. Position the second washer onto the threaded end that extends through the antenna knockout hole and secure the nut.

4. Attach the included LTE antenna to the coax cable SMA connector. See Figure 5.

Note: As an alternative, the coax cable can be connected directly to the 263LTE-V SMA connector when the coax cable enters the enclosure via conduit.

ACTIVATE THE 263LTE-V

Cellular service is required before you can use the 263LTE-V for signal transmission. The 263LTE-V comes ready for activation with SecureComTM Wireless, LLC. Use Remote LinkTM, the Dealer AdminTM site (DMPDealerAdmin.com), the Tech APPTM, or call DMP Customer Service (1-866-266-2826) to activate the 263LTE-V.

CONNECT THE ANTENNA

LTE Antenna

Figure 4: XT30/XT50 Series Panel

1 2 3 4

Figure 5: XR150/XR550 Series Panel

SMA Connector

LTE Antenna

Coax Cable

SMA Connector

263LTE-V SMA Connector

Coax Cable

Antenna

Knockout Hole

Page 3

263LTE-V INSTALLATION GUIDE | DIGITAL MONITORING PRODUCTS 3

TEST THE 263LTE-V

1. Navigate to the Tech APP.

2. Tap Find a Customer then search for a customer.

3. Tap Add a System.

4. Enter a System Name.

5. Scan or enter the Serial #.

6. Select XTLplus from the System Type drop-down menu.

7. Select either Cellular or EASYconnect + Cell Backup in the Connection Type ﬁeld.

8. Enter the Account Number.

9. Enter the SIM Number found on the 263LTE-V label then tap Get SIM Status.

10. Select a Rate Plan for the 263LTE-V.

11. Tap Activate Cellular Device.

Tech APP Activation

The panel provides a diagnostic function to test the communication integrity and cellular signal strength of the 263LTE-V to the nearest tower for the cellular carrier. To use the diagnostic function, reset the panel, enter 2313 (DIAG), and press CMD.

Communication Status

This option tests the individual components of cellular or wireless network communication.

1. Select CELL STATUS from the Diagnostic menu. Possible test results are shown

in Table 1.

2. Select YES to continue through the remaining component tests or select NO to

stop testing and return to CELL STATUS.

Conﬁrmed Faulty

MODEM OPERATING NO MODEM FOUND

IDENTIFIED NO SIM CARD

TOWER DETECTED NO TOWER

REGISTERED NOT REGISTERED

CONNECT SUCCESS

CONNECT ERROR

NOT ACTIVATED

CELL PATH GOOD NO ACK RECEIVED

Remote Link Activation

1. Navigate to Remote Link and select a panel.

2. Select Program in the top menu and select Communications from the drop-down menu.

3. Select Cellular Network as the Communication Type and click Activate.

4. Select SIM as the SIM Type.

5. Enter the SIM number found on the 263LTE-V label and click Activate.

6. Select a Rate Plan for the 263LTE-V and click Activate.

Table 1: Cell Status Test Results

Page 4

Designed, engineered, and

manufactured in Springﬁeld, Missouri

using U.S. and global components.

INTRUSION • FIRE • ACCESS • NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

888.436.7832 | DMP.com

LT-1592 1.01 18312

Speciﬁcations

Primary Power 12VDC from panel Current Draw

Standby 14mA Alarm 14mA (46mA peak transmitting)

Accessories

381-2 18” Coax Cable 381-12 12’ Coax Extension 381-25 25’ Coax Extension 383LTE Dual Band Antenna (included) 386 Antenna Mounting Bracket

Compatibility

XT30/XT50 Series Version 172 or higher XR150/XR550 Series Version 172 or higher

Certiﬁcations

FCC Part 15: RI7ME910C1NV

Industry Canada: 5131A-ME910C1NV

Underwriters Laboratory (UL) Listed

• ANSI/UL 294 Access Control System Units

• ANSI/UL 636 Holdup Alarm Units and System Accessory

• ANSI/UL 1023 Household Burglar

• ANSI/UL 1076 Proprietary Burglar

• ANSI/UL 1610 Central Station Burglar

• ANSI/UL 1635 Digital Burglar

• ANSI/UL 985 Household Fire Warning

• ANSI/UL 864 Fire Protective Signaling 9th Edition.

• ANSI/UL 365 Police Sta. Connected Burg Alarm

Units & Systems

• ANSI/UL 609 Local Burg Alarm Units & Systems

FCC INFORMATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.874 in.) from all persons. It must not be located or operated in conjunction with any other antenna or transmitter.

Changes or modiﬁcations made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver i connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Information

This device complies with Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage, et

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

This system has been evaluated for RF Exposure per RSS-102 and is in compliance with the limits speciﬁed by Health Canada Safety Code 6. The system must be installed at a minimum separation distance from the antenna to a general bystander of 7.87 inches (20 cm) to maintain compliance with the General Population limits.

L’exposition aux radiofréquences de ce système a été évaluée selon la norme RSS-102 et est jugée conforme aux limites établies par le Code de sécurité 6 de Santé Canada. Le système doit être installé à une distance minimale de 7.87 pouces (20 cm) séparant l’antenne d’une personne présente en conformité avec les limites permises d’exposition du grand

public.
