DMP Electronics 1164, 1164NS Installation And Programming Manual

1164/1164NS

Wireless Smoke Detector

INSTALLATION AND PROGRAMMING GUIDE

TABLE OF CONTENTS

About the 1164 ............................... 1

Indicator LEDs ....................................................... 1

Optional Tamper ................................................... 1

Power Supply ........................................................ 1

Cadence Synchronization ................................ 1

1164 Features .................................2

Program the 1164 ...........................3

Programmer Menu .............................................. 3

Zone Information ................................................ 3

Zone Number........................................................ 3

Zone Name ............................................................ 3

Zone Type .............................................................. 3

Next Zone ..............................................................4

Wireless Zone ....................................................... 4

Serial Number ....................................................... 4

Supervision Time ................................................. 4

Next Zone ..............................................................4

Bell Options ........................................................... 5

Fire Bell Action .................................................... 5

Select A Location ..........................6

Install the 1164 ...............................7

Mount the Base .................................................... 7

Enable the Tamper Switch (Optional) ........ 8

Install the Battery................................................ 9

Replace the cover ............................................. 10

Test the 1164 .................................. 11

Clean the 1164 ...............................12

Mounting Guidelines ................... 14

General Guidelines .............................................. 14

Authority Having Jurisdiction ........................ 15

Locations to Avoid ............................................. 16

Commercial .......................................................... 17

Multi-Family ........................................................... 17

Additional Information ............... 18

Supervision Message ......................................... 18

Test/Silence Button ............................................ 18

Smoke Testing ...................................................... 19

Inspection Testing and Maintenance ........... 19

NFPA 72 Guidelines........................................... 20

Compliance Specifications ........24

Accessories ...................................25

Backboxes .............................................................25

Proximity Readers .............................................25

Proximity Credentials .......................................25

Certifications ................................ 26

FCC Information ..........................27

Industry Canada Information ..... 28

ABOUT THE 1164

1164/1164NS Wireless Smoke Detectors are 3.0V battery powered, wireless, low-profile,
photo-electric smoke detectors used with 1100 Series DMP Wireless Receivers. The
1164 synchronizes its Temporal 3-alarm cadence with other 1164s installed on the same
fire system. The 1164NS has the same functionality as the 1164, except the 1164NS does
not have a built-in sounder. The 1164NS is intended for use in installations with existing
notification devices.

INDICATOR LEDS

The 1164/1164NS provides two indicator
LEDs. Depending on how the LED is
operating, the red LED indicates there
is either smoke detected, a test alarm in
progress, low battery, or maintenance is
needed.

OPTIONAL TAMPER

The 1164/1164NS features a tamper switch
to send a trouble message to the panel
if the detector is removed from the
mounting base.

POWER SUPPLY

The 1164/1164NS is powered by one 3.0V
lithium battery. (Panasonic Model CR123A
or DMP Model CR123-FIRE). Typical
battery life expectancy for the 1164/1164NS
is at least one year.

CADENCE SYNCHRONIZATION

The Model 1164 only provides a cadence
synchronization with other 1164s on the
system. This option can be enabled in
device programming.

1164/1164NS Installation and Programming Guide 1

1164 FEATURES

Cover

Red LED

Green LED

Test Button

Figure 1: 1164 Features

1164/1164NS Series Installation and Programming Guide 2

Cover Latch

Base

PROGRAM THE 1164

When programming an 1164/1164NS smoke detector, refer to the appropriate panel
programming guide, as needed.

PROGRAMMER MENU

PROGRAMMER

ZONE INFORMATION

ZONE NO:

ZONE NAME:

Enter 6653 (PROG) at the keypad to enter the PROGRAMMER
menu.

ZONE INFORMATION

Press CMD until ZONE INFORMATION displays. Press a select
key or area to enter the menu.

ZONE NUMBER

Enter the ZONE NO:.

ZONE NAME

Enter the ZONE NAME.

ZONE TYPE
FI EM PN

ZONE TYPE

Select FI (fire) as the ZONE TYPE.

1164/1164NS Installation and Programming Guide 3

NEXT ZONE? NO YES

WIRELESS ZONE? YES

SERIAL NO:

SUPVSN TIME: 3

NEXT ZN? NO

1164/1164NS Series Installation and Programming Guide 4

NEXT ZONE

At the NEXT ZONE? prompt, select NO.

WIRELESS ZONE

At the WIRELESS ZONE? prompt, select YES.

Note: If you are programming the smoke detector onto

a zone that can be either hardwired or wireless, then
this prompt appears. If the zone you are programming is
wireless-only, then the prompt does not appear.

SERIAL NUMBER

Enter the eight-digit SERIAL NO found on the device and press
CMD.

SUPERVISION TIME

Enter 3 as the SUPVSN TIME, and then press CMD.

NEXT ZONE

At the NEXT ZONE?, prompt, select NO.

BELL OPTIONS

BELL OPTIONS

Press CMD until BELL OPTIONS displays, and then press a
select key or area.

FIRE BELL ACTION...
FIRE TYPE: T

FIRE BELL ACTION

At FIRE BELL ACTION FIRE TYPE:, select T (temporal) as the
action type.

Note: Program this option to enable cadence
synchronization with other 1164s on the system.

1164/1164NS Installation and Programming Guide 5

SELECT A LOCATION

Use the LED survey operation to select a proper location for the smoke detector. The LED
survey operation allows one person to confirm communication with the wireless receiver
or panel while the cover is removed. Because the smoke detector’s transmitter LED is not
visible, use a separate 1100 Series transmitter for the LED survey operation, such as the
1106 Universal Transmitter.

1. Hold the 1106 in the exact desired location.

2. Press the tamper switch on the 1106 to send data to the panel and determine if
communication is confirmed or faulty.

Confirmed: If communication is confirmed, for each press or release of the
tamper switch the LED blinks immediately on and immediately o.

Faulty: If communication is faulty, the LED remains on for up to eight
seconds or flashes multiple times in a quick succession. Relocate the wireless
receiver until the LED confirms clear communication.

1164/1164NS Series Installation and Programming Guide 6

INSTALL THE 1164

MOUNT THE BASE

1

After selecting a location, mount the smoke detector on a flat wall or ceiling. The
ensure optimum performance, mount the smoke detector away from large metal
objects. See Mounting Guidelines for more information.

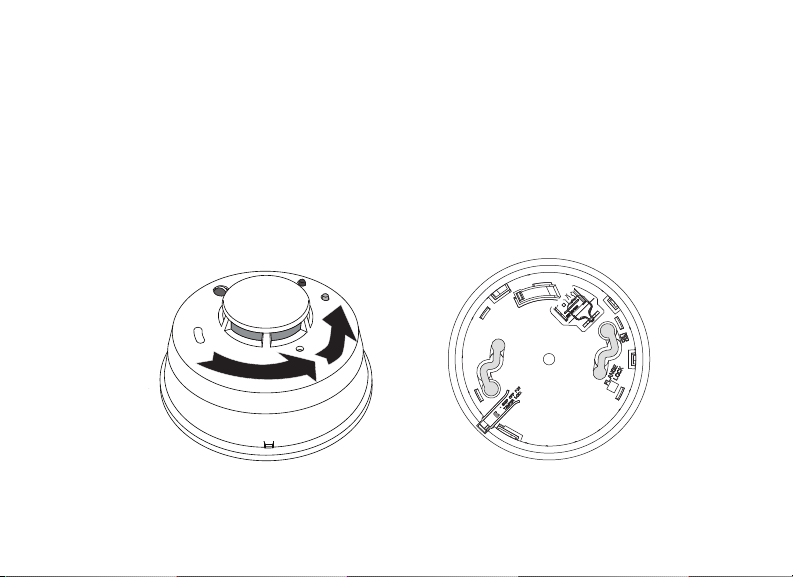

1. Grasp the detector and twist counterclockwise to remove the detector from

the mounting base. See Figure 2.

2. Use the supplied screws and anchors to mount the base to the surface.

Figure 2: Remove

Detector from Base

Figure 3: Mounting

Hole Locations

1164/1164NS Installation and Programming Guide 7

ENABLE THE TAMPER SWITCH (OPTIONAL)

2

The 1164 features a tamper switch to send a trouble message to the panel if the
detector is removed from the mounting base. To enable the tamper switch, follow the
directions below:

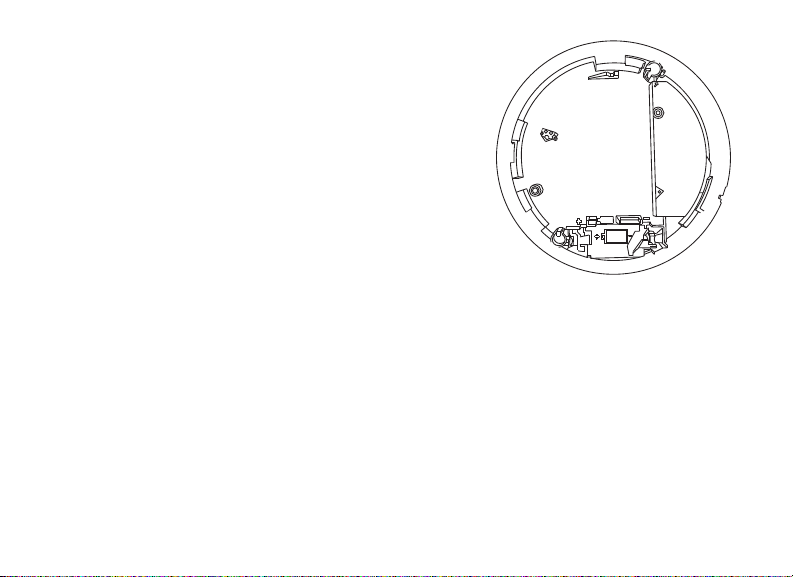

1. Identify the small plastic tab that’s located on the mounting base.

See Figure 4.

2. Cut the tab o of the base. The tamper switch will take eect after the

detector is installed.

Note: After the tamper switch is enabled, a small screwdriver must be
used to depress the cover latch before the detector can be removed from
the base.

Locking Tab

Cover Latch

Figure 4: Mounting Base and Tamper Switch

1164/1164NS Series Installation and Programming Guide 8

INSTALL THE BATTERY

3

Observe polarity when installing the battery. Only
install new 3.0 V lithium batteries (Panasonic Model
CR123A or DMP Model CR123-FIRE). The typical
battery life expectancy is a least one year. Follow
the directions below to install the battery in the
1164:

1. Firmly grasp the battery pull-tab on the

smoke detector’s battery compartment and
remove it. See Figure 5.

2. Place the included battery into the battery

compartment in the detector. The green
and red LEDs located on the 1164 cover will
simultaneously flash four times, and then the green LED will flash every ten
seconds indicating the detector is in standby.

Battery
Compartment

Figure 5: Battery Location

REPLACE THE COVER

4

After installing the battery, replace the cover back on the base. Follow the directions
below:

1. Place the detector on the base, aligning the raised tab on the detector’s lip

and the cover latch on the base’s lip.

2. Rotate the detector until it clicks into place.

3. Remove the orange plastic dust cover from the detector once installation (and

any surrounding construction) is complete.

1164/1164NS Installation and Programming Guide 9

TEST THE 1164

Use a tool with a diameter of .018 inches or less to press the test button. If the smoke
detector is operating in it’s proper sensitivity limits and not in low battery condition, then
the green LED turns o and the red LED stays on continuously while the test button
is being pushed. Verify the control panel alarm and all auxiliary functions to perform a
complete test of the system. See Figure 6 and Table 1.

LED OPERATION

Green LED

Red LED

0.18 inch tool to
press the test button

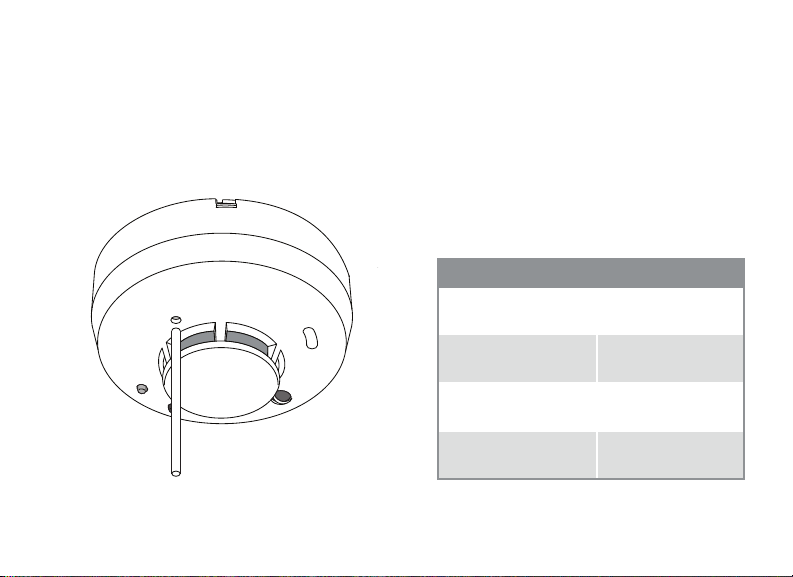

Figure 6: Test Button Location

1164/1164NS Series Installation and Programming Guide 10

Green LED blinks
every 10 seconds

Red LED is steady

Red LED blinks
every 45 seconds

Red LED blinks
every 5 seconds

Table 1: LED Operation

Standby

Smoke Detected
or Test Alarm

Low Battery

Maintenance
Needed

TEST/SILENCE BUTTON

The Test/Silence button performs the following functions:

Testing: Pressing the Test/Silence button tests the functionality of the circuitry, proper
sensitivity limits, and battery condition. If pressed and held for 2.5 seconds or longer,
the sounder will be enabled (1164 only). When released, the sounder will silence (1164
only) and the detector returns to the state prior to the test button being pressed.
Additionally, when the Test/Silence button is pressed, the red LED turns on and remains
steady until the button is released.

Silence Alarm: (1164 only) When pressed during an alarm the sounder is disabled for
five minutes.

Silence Trouble Chirp: (1164 only) Press to silence a trouble chirp for 12 hours. If the
test button is pressed during the silence period, the detector will not respond. If an
alarm condition occurs during the silence period, the sounder will enable as per alarm
requirements. The trouble chirp resumes after 12 hours if the trouble condition is not
corrected.

SMOKE TESTING

Smoke detectors should be smoke tested in-place annually.

1. Hold a smoldering punk or cotton wick close to the smoke entry openings.

2. Direct the smoke into the detector for 20 seconds, or until the smoke detector
goes into alarm.

Caution: Remember to extinguish the smoke source after testing. The detector’s
red LED should stay on and the control panel should recognize an alarm. Use the
system reset switch to reset the detector.

1164/1164NS Installation and Programming Guide 11

CLEAN THE 1164

Smoke detectors must be maintained to meet NFPA 72 requirements. Smoke detectors
should be cleaned at least once per year.

Note: Before performing maintenance on the detector, notify the proper authorities that
the smoke detector will be temporarily out of service.

1. Remove the detector cover from the mounting base. See Figure 2.

2. Remove the battery from the detector. See Figure 5.

3. Use a vacuum or canned air to clean the detector.

4. Grasp the detector cap, gently twist to the left, and then lift up. See Figure .

5. Press in the sides of the sensing chamber where indicated by the alignment
arrows. Pull the sensing chamber straight up out of the detector. See Figure 8.

6. Use a vacuum or canned air to clean the sensing chamber.

7. Line up the arrows on the sensing chamber and the latches on the smoke
detector base, and then snap the sensing chamber back into place.

8. Replace the detector cap by lining up the new cap with the detector.

9. Insert the cap into the smoke detector and twist it gently to the left until it
snaps into place.

10. Reinsert the battery, and then reattach the detector to the mounting base.

1164/1164NS Series Installation and Programming Guide 12

Figure 7: Remove Detector Cap

Figure 8: Detector Cover and

Sensing Chamber

1164/1164NS Installation and Programming Guide 13

MOUNTING GUIDELINES

GENERAL GUIDELINES

In addition to NFPA 72, use the following location guidelines to optimize performance and
reduce false alarms. Refer to Figure 9.

• Place ceiling-mounted smoke detectors in the center of a room/hallway at least 4
inches from walls and partitions. If a ceiling is sloped, peaked, or gabled, place the
detector 3 feet from the highest-point. If mounting to suspended ceiling tile, the
tile must be secured with an appropriate fastener across ceiling panel supports.

• Place wall-mounted smoke detectors at least 4 inches below the ceiling.

• Mount smoke detectors on a firm, permanent surface.

• Place in environmentally-controlled areas with a temperature range between
40° and 100° F (4.4° and 37.8° C) and the humidity is between 0 and 90% non­condensing.

1164/1164NS Series Installation and Programming Guide 14

AUTHORITY HAVING JURISDICTION

A proper location is critical to ensuring proper operation. Equipment should be installed in
accordance with the National Fire Protection Association’s (NFPA) Standard 72, Chapters,
2 and 8. You may need to reference other chapters of NFPA 72 or NFPA 101.

Smoke detector regulations vary from state to state, so contact the Authority Having
Jurisdiction (AHJ). Where public safety is primary, the AHJ may be a federal, state, local,
or other regional department or individual (such as a fire chief, fire marshal, chief of a fire
prevention bureau, labor or health department, building ocial, electrical inspector, or
others having statutory authority.

For insurance purposes, an AHJ may be an insurance inspection department, rating
bureau, or other insurance company representative. Sometimes, a property owner or
their designated agent assumes the role of the AHJ. At government installations, the
commanding ocer or department ocial may be the AHJ.

1164/1164NS Installation and Programming Guide 15

LOCATIONS TO AVOID

Smoke detectors should not be installed in or near the following locations:

• In/near areas where combustion particles are common (kitchens, garages,
furnaces, hot water heaters, or gas space heaters).

• On ceilings in rooms next to kitchens if there is no transom between the room and
the kitchen.

• In damp or humid areas, such as bathrooms with showers.

• In extremely cold or hot areas.

• In dusty, dirty, or insect-infested areas.

• Near air conditioners, heating registers, or any other ventilation source that may
interfere with smoke entering the detector.

• Near fresh air inlets/returns or excessively drafty areas (heating/air conditioning
vents, fans, etc.).

• In dead-air spaces at the top of peaked ceilings or corners where walls and ceiling
meet.

• Near fluorescent light fixtures (smoke detectors should be at least 10 feet away).

1164/1164NS Series Installation and Programming Guide 16

Stair­well

Oce

Oce

Hall

Hall

Lobby

Oce

Oce

Stairwell

Men’s

Conference

Room

Hall

Closet

Women’s

Oce

OceOce

In commercial buildings,

place smoke detectors in

stairwells and every room on

each level.

COMMERCIAL

Stairwell

Third Floor

Second Floor

First Floor

Kitchen

Bathroom

ApartmentApartment

Stairwell

Apartment Apartment Apartment

Living
Room

Dining

Bedroom

Hall

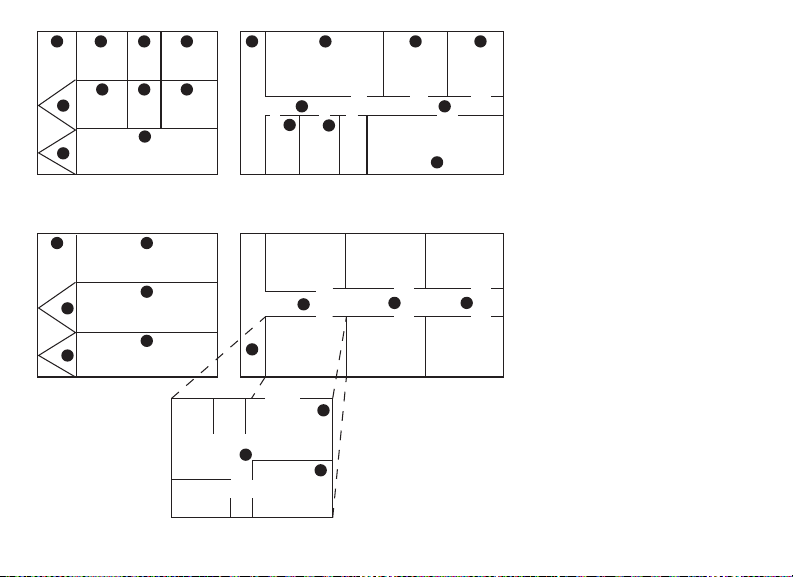

Figure 9: Smoke Detector Placement Locations

Apartment

MULTI-FAMILY

In multifamily buildings,

place smoke detectors in

hallways and stairwells on

each level.

Inside each apartment,

place smoke detectors in

the living area, hallway, and

each bedroom.

1164/1164NS Installation and Programming Guide 17

ADDITIONAL INFORMATION

SUPERVISION MESSAGE

When a wireless receiver is installed, a receiver is restarted, the panel is reset, or if
programming is complete, then the supervision time is reset. If the receiver has been
powered down for more than one hour, then the 1164/1164NS may take up to an additional
hour to send a supervision message. A missing message may display on the keypad until
the supervision message is sent.

INSPECTION TESTING AND MAINTENANCE

The smoke detector is designed for easy field service and maintenance. When installed and
used properly, they require minimal maintenance. The smoke detector should be functionally
tested per NFPA 72 for system type smoke detectors. See Smoke Testing. When a smoke
detector requires maintenance, the red LED blinks every 5 seconds.

Caution: Smoke alarms cannot provide warnings for fires resulting from explosions,
smoking in bed or other furniture, ignition of flammable liquids, vapors and gases, children
playing with matches or lighters.

1164/1164NS Series Installation and Programming Guide 18

NFPA 72 GUIDELINES

Total (Complete) Coverage

If required, total coverage shall include all rooms, halls, storage areas, basements, attics,
lofts, spaces above suspended ceilings, and other subdivisions and accessible spaces; and
the inside of all closets, elevator shafts, enclosed stairways, dumbwaiter shafts, and chutes.
Inaccessible areas shall not be required to be protected by detectors. (For exceptions,
refer to NFPA 72.)

Partial Coverage

If required, partial detection systems shall be provided in all common areas and work
spaces, such as corridors, lobbies, storage rooms, equipment rooms, and other tenantless
spaces in those environments suitable for proper detector operation in accordance with
this code.

Selective Coverage

Where codes, standards, laws, or authorities having jurisdiction require the protection of
selected areas only, the specified areas shall be protected in accordance with this code.

Supplementary (Non required) Coverage

Where installed, detection that is not required by an applicable law, code, or standard,
whether total (complete), partial, or selective coverage, shall conform to the requirements
of this code. (For exceptions, refer to NFPA 72 Spacing Requirements.) Where non
required detection devices are installed for a specific hazard, additional non required
detection devices shall not be required to be installed throughout an entire room or
building.

1164/1164NS Installation and Programming Guide 19

Heat-Sensing Fire Detectors

Heat-sensing fire detectors shall be installed in all areas where required by the NFPA
codes and standards or by the authority having jurisdiction.

Detection in New Apartment Buildings

Approved, single-station smoke alarms shall be installed in accordance with 7-6.2.10 of
NFPA 101 outside every sleeping area in the immediate vicinity of the bedrooms and on
all levels of the dwelling unit including basements. (For exceptions, refer to this section of
NFPA 72.)

Detection in Existing Apartment Buildings

Approved, single-station smoke alarms shall be installed in accordance with 7-6.2.10 of
NFPA 101 outside every sleeping area in the immediate vicinity of the bedrooms and on
all levels of the dwelling unit including basements. (For exceptions, refer to this section of
NFPA 72.)

1164/1164NS Series Installation and Programming Guide 20

WARNING! LIMITATION OF SMOKE DETECTORS

Wireless smoke alarms are very reliable, but may not work under all conditions. No fire
alarm provides total protection of life or property. Smoke alarms are not a substitute for
life insurance.

Smoke alarms require a source of power to work. This smoke alarm will not operate and
the alarm will not sound if the battery is dead or not installed properly.

Smoke alarms may not be heard. A sound sleeper or someone who has taken drugs or
alcohol may not awaken if the alarm is installed outside a bedroom. Closed or partially
closed doors and distance can block sound. This alarm is not designed for the hearing
impaired.

Smoke alarms may not always activate and provide warning early enough. Smoke alarms
only activate when enough smoke reaches the alarm. If a fire starts in a chimney, wall, roof,
on the other side of closed doors, or on a dierent level of the property, enough smoke
may not reach the alarm for it to alarm.

Smoke alarms are a significant help in reducing loss, injury, and even death. However, no
matter how good a detection device is, nothing works perfectly under every circumstance
and we must warn you that you cannot expect a smoke alarm to ensure that you will never
suer any damage or injury.

1164/1164NS Installation and Programming Guide 21

FIRE PREVENTION AND ESCAPE

The purpose of an early warning smoke alarm is to detect the presence of fire in its early
stages and sound an alarm, giving the occupants time to exit the premises safely.

AVOID FIRE HAZARDS

• Do not smoke in bed.

• Do not leave children home alone.

• Never clean with flammable liquids such as gasoline.

• Properly store materials.

• Use general good housekeeping techniques to keep your home neat and tidy. A
cluttered basement, attic, or other storage areas are an open invitation to fire.

• Use combustible materials and electrical appliances carefully and only for their
intended uses.

• Do not overload electrical outlets.

• Do not store explosive and/or fast burning materials in your home.

• Even after proper precautions have been taken, fires can start. Be prepared.

1164/1164NS Series Installation and Programming Guide 22

COMPLIANCE SPECIFICATIONS

SPECIFICATIONS

Battery Life Expectancy At least 1 year

Battery Type 3.0 V lithium Panasonic CR123A or DMP CR123-F

Low Battery Threshold 2.65 V

Low Battery Beep Rate 1 every 30 seconds ± 2 seconds

Sounder Pattern (1164 only) 85 dBa at 10 feet Temporal

Sensitivity 2.0%

Frequency Range 905-924 MHz

Detector Dimensions 5.6”x 2.4” (14.3 cm x .046 cm)

Base Dimensions 5.4” x 0.46” (13.7 cm x .46 cm)

Color White

PATENTS

U.S. Patent No. 7,239,236

1164/1164NS Installation and Programming Guide 23

COMPATIBILITY

1100D Series Wireless Receiver (Version 203 or higher)

1100X Series Wireless Receiver (Version 203 or higher)

XTLC/XTLN Series Panel (Version 123 or higher)

XT30/XT50 Series Panel (Version 123 or higher)

XR150/XR550 Series Panel (Version 108 or higher)

CERTIFICATIONS

FCC Part 15 Registration ID CCKPC0104

IC Registration ID 5251A-PC0104

New York City (FDNY COA #6167)

ANSI/UL 268 Smoke-Automatic Fire Detectors

1164/1164NS Series Installation and Programming Guide 24

FCC INFORMATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may

Changes or modifications made by the user and not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

cause undesired operation.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

1164/1164NS Installation and Programming Guide 25

INDUSTRY CANADA INFORMATION

This device complies with Industry Canada Licence-exempt RSS standard(s). Operation is
subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause
undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage, et

2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.

Information furnished is believed to be accurate and reliable.

This information is subject to change without notice.

1164/1164NS Series Installation and Programming Guide 26

LT-1195 18245 1.02 © 2018 Digital Monitoring Products, Inc.
