Wide Dynamic Range / Day & Night
COLOR DOME TYPE CAMERA
MANUAL
Pixim Seawolf /
WDR
DWC
-
540PV
2
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform
to all local codes
3
1.Features
---------------------------------
4
2. cable connection and OSD control --------------------------------- 5
3.Setup menu operation
---------------------------------
13
4. Troubleshooting
---------------------------------
14
5. Dimension --------------------------------- 15
7. Specification
---------------------------------
16
■■■■ Contents
4
Our WDR camera is a superb wide dynamic range camera which achieves 120dB
max(102dB typical) of dynamic range of the image by implementing PIXIM's Seawolf
digital imaging system.
With Seawolf digital imaging system,
- Delivers high-resolution, crystal clear images that accurately capture every aspect of
any scene
- Offers the highest resolution of 690TVL(horizontal)
- Ultra-wide dynamic range imaging accurately captures all of the critical details in a
scene including highlights, shadows and everything in between without compromising
image quality or color accuracy.
- Enhanced low-light performance makes Seawolf the natural choices for both indoor
and outdoor cameras for all lighting conditions.
With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light
Main features are;
• 1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)
• High Resolution (up to 690 HTVL Effective)
• Best WDR (Wide Dynamic Range) Function
• 0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)
• 6 Privacy Zone, 4 Motion Detection zone (Built-in OSD (On Screen Display) Menu
• Vari-Focal Auto iris zoom lens ( 2.8~12 mm ) and Day & Night with ICR
• Vandal-Proof (Poly-carbonate Bubble), IP66
• Automatic White Balance (ATW)
1. Features
5

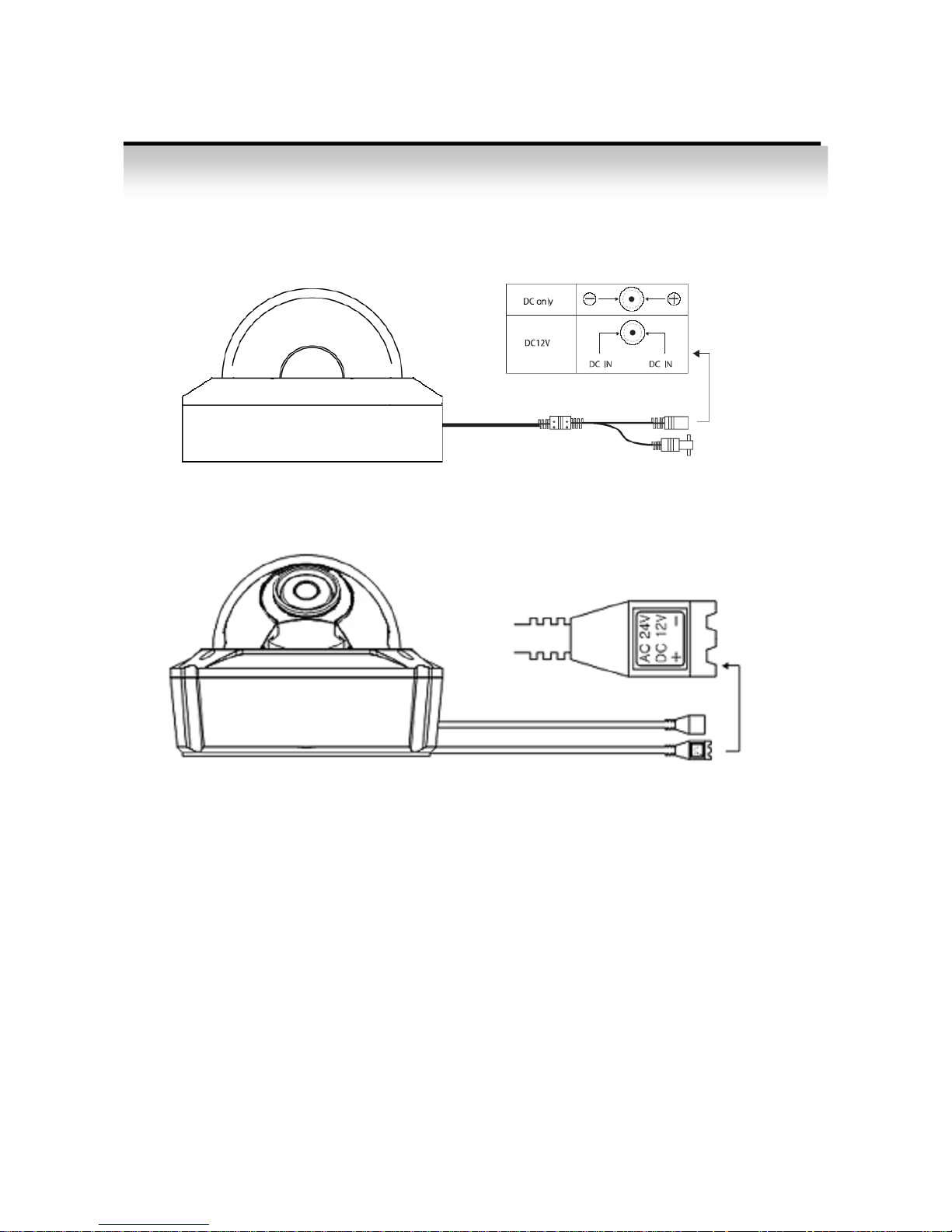

1) Cable Connection
( DC12V Type )
(Dual Type DC12/AC24V)
2) OSD Control
②②②② SETUP button : Used for the menu display. This button can be used to confirm
settings after changing the value of the selected function or current conditions.
③③③③ UP & DOWN buttons : Used for selecting items by moving the cursor up or down on
the menu screen.
④④④④ LEFT & RIGHT buttons : Used when changing item values, by moving the cursor to
the left or right on the menu screen
2. Cable Connection and OSD Control
6
1)
1)1)
1) In
InIn
In the menu
the menuthe menu
the menu
Use ▲, ▼ buttons to move menu, ◀, ▶ buttons to change the settings and press
button
shortly to select or enter.
button stands for MENU or ENTER button.
2222)))) Entering menu
Entering menuEntering menu
Entering menu
Press
button longer than 2 sec on the back of camera.
3333)))) MAIN
MAINMAIN
MAIN

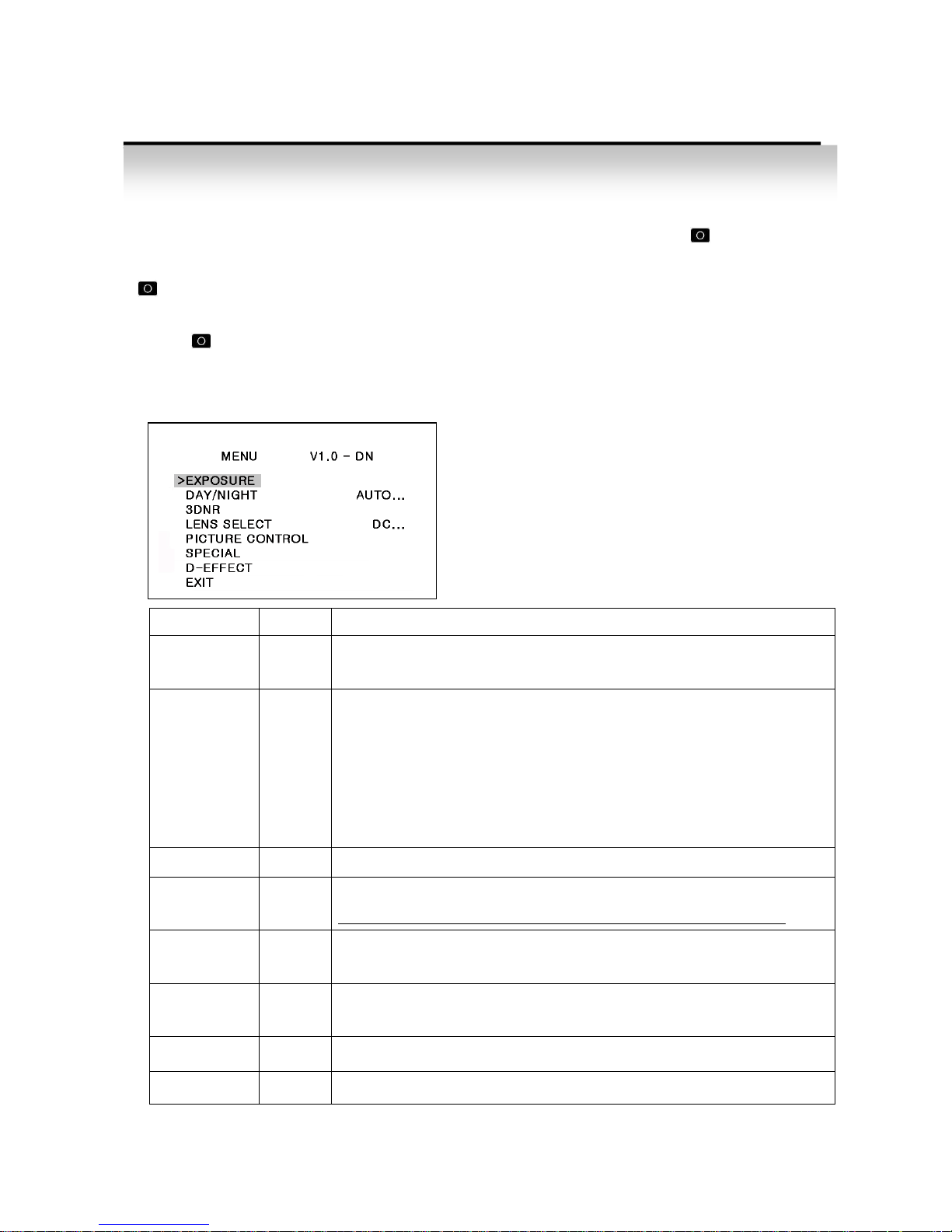

Follow below chart for submenu setting.
3333.... Setup Menu Operation
MENU Default
Descriptions
EXPOSURE
Sets COLOR ROLL COMP., AE PREFERENCE (ACG), WDR CONTROL
and SENSE-UP.
DAY/NIGHT AUTO
Sets OFF, AUTO or NIGHT
OFF
OFFOFF
OFF – Day/Night is disabled and camera works as a normal color camera.
AUTO
AUTOAUTO
AUTO – Camera switches DAY from/to NIGHT automatically.
N->D THRES, N<->D DELAY, BURST ON B/W can be set.
See DAY&NIGHT AUTO SETUP for detail.
NIGHT
NIGHTNIGHT
NIGHT – Forced to remove IR cut filter and switch to B/W.
3D NR Sets DEPTH of 3D NR.
LENS
SELELT
DC
Selects the lens type, DC or MANUAL.
In sub
In subIn sub
In sub----menu, Accurate Focus can be set by function of FOCUS ADJ…
menu, Accurate Focus can be set by function of FOCUS ADJ…menu, Accurate Focus can be set by function of FOCUS ADJ…
menu, Accurate Focus can be set by function of FOCUS ADJ…
CONTROL
Sets WHITE BALANCE, COLOR SELECT, SHARPNESS, SATURATION,
GAMMA.
SPECIAL

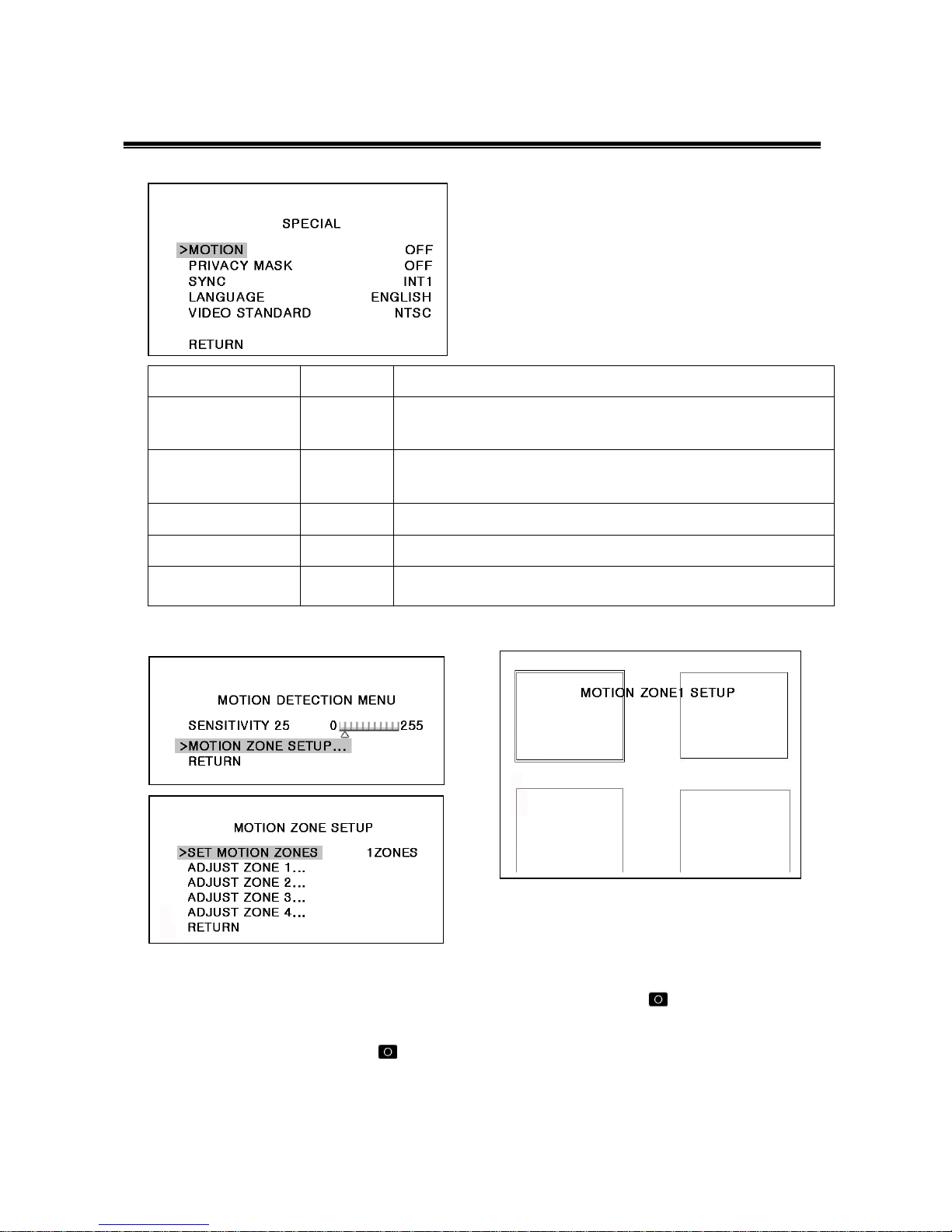

Sets MOTION, PRIVACY MASK, SYNC, LANGUAGE, VIDEO STANDARD,
RS485 CONTROL.
D-EFFECT Sets FREEZE, FLIP or D-PTZ.
EXIT Choose EXIT, SAVE AND EXIT or FACTORY SET.
7
4)
4) 4)
4) EXPOSURE
EXPOSURE EXPOSURE
EXPOSURE

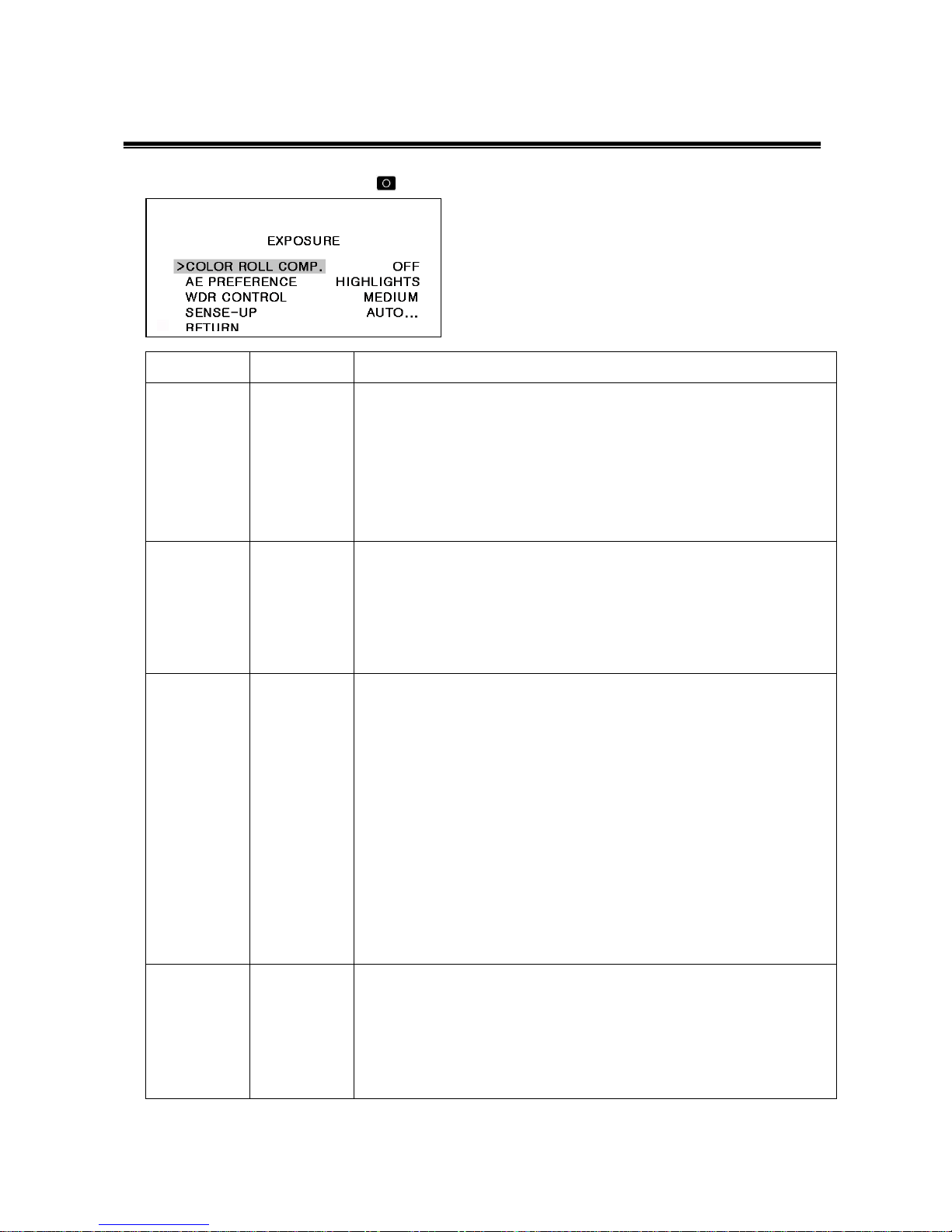

To enter EXPOSURE menu, press
button at MAIN>EXPOSURE.
EXPOSURE Descriptions
<WDR MID> Medium level of the dynamic range control for each PRESETs.
WDR HIGH Increases the dynamic range control. Some highlight area may washed out.
CUSTOM... Provides more flexible compensation other than WDR MID, WDR LOW, WDR HIGH
BLC...
Compensates the brightness of main object against the bright back light.
A zone out of CTR SPOT, UPPER1/3, MIDDLE1/3, LOWER1/3 can be set.
Dynamic range control is inoperative if EXPOSURE is set to BLC.
EXPOSURE
Default Descriptions
COLOR
ROLL
COMP.
OFF
In NTSC system, the entire color tone on the monitor may continuously
move reddish and greenish.
COLOR ROLL COMP.
COLOR ROLL COMP.COLOR ROLL COMP.
COLOR ROLL COMP. - Reduces the color rolling under the fluorescent
lighting.(NTSC system only), OOOOFF
FFFF
FF – Does not compensate the color rolling.
MODE
MODEMODE
MODE----MMMM - Compensates the color rolling when a manual lens is used.
MODE
MODEMODE
MODE----AAAA - Compensates the color rolling when an auto iris lens is used.
AE
PREFRENCE
(AGC)
HIGHLIGHTS
Sets HIGHLIGHTS or SHADOWS (Between 0 dB and 50 dB)
HIGHLIGHTS
HIGHLIGHTSHIGHLIGHTS
HIGHLIGHTS - Provides the best detail in the brighter areas.
The darker parts of the scene may under-expose.
SHADOWS
SHADOWSSHADOWS
SHADOWS - Provides the best detail in the darker areas.
It will reduce the dynamic range and the brighter parts may overexpose.
WDR
CONTROL
MEDIUM
LOW
LOWLOW
LOW - Produces an image that has better contrast but less dynamic
range and is suitable for indoor or low-contrast outdoor scenes.
NORMAL
NORMALNORMAL
NORMAL - Produces an image that has average contrast and is suitable
for indoor or low-contrast outdoor scenes.
MEDIUM
MEDIUMMEDIUM
MEDIUM - Produces an image that has better dynamic range and is
suitable for a lobby or high-contrast outdoor scenes.
HIGH
HIGHHIGH
HIGH - Produces an image that has best dynamic range but less
contrast and is suitable for high-contrast outdoor scenes.
CUSTOM
CUSTOMCUSTOM
CUSTOM - Provides more flexible compensation by ZONE, RANGE and
BIAS. When COLOR ROLLCOMP. is set to MODE-A, WDR CONTROL will be
fixed as LOW.
SENSE-UP AUTO
If SENSE-UP is set to AUTO, the maximum sense-up rate can be limited to
2X-30FPS, 4X15FPS, 8X-18FPS, 16X-4FPS, 32X-2FPS or 64X-2FPS in
SENSE-UP SETUP.
The
TheThe
The integration frames vary automatically
integration frames vary automaticallyintegration frames vary automatically
integration frames vary automatically within the max. rate according to the
within the max. rate according to the within the max. rate according to the
within the max. rate according to the
light level when light become
light level when light becomelight level when light become
light level when light becomes low and DSS is operating
s low and DSS is operatings low and DSS is operating
s low and DSS is operating.
8
5555)))) DAY/NIGHT
DAY/NIGHTDAY/NIGHT
DAY/NIGHT
To enter EXPOSURE menu, press
button at MAIN>DAY/NIGHT>AUTO...
IMPORTANT!!!
IMPORTANT!!! IMPORTANT!!!
IMPORTANT!!!
DAY
DAYDAY
DAY---->NIGHT and NIGHT
>NIGHT and NIGHT>NIGHT and NIGHT
>NIGHT and NIGHT---->DAY operations must be examined and
>DAY operations must be examined and >DAY operations must be examined and
>DAY operations must be examined and verified at the final step
verified at the final step verified at the final step
verified at the final step
of the installation.
of the installation. of the installation.
of the installation.
Block the lens for a few seconds for NIGHT mode and release and let it return to DAY mode.
DAY/NIGHT Default
Descriptions
N-->D
THRES.
3
NNNN--
----
-->D
>D >D
>D THRES
THRESTHRES
THRES is a threshold level to switch from NIGHT to DAY.
Due to the nature of WDR the image level of the scene is controlled down
and camera would not switch to DAY even though the ambient is bright
enough. Increase the value if it stays in B/W and is required to switch to
DAY. Too high value may make ICR repeating between NIGHT<-->DAY.
In that case, reduce the value a little and try all of the above mentioned.
N<-->D
DELAY
3
N<
N<N<
N<--
----
-->D
>D >D
>D DELAY
DELAYDELAY
DELAY is time in second while camera maintains its status before
D<-->N switches.
DELAY can avoid the unwanted/frivolous switching by a short term lights
such like the light from the passing car.
BURST
ON
B/W
OFF
BURS
BURSBURS
BURST ON B/W
T ON B/W T ON B/W
T ON B/W determines whether a color burst signal keeps output or
eliminated when camera switches to B/W.
If set to ON, B/W video signal contains color burst signal and is more
compatible with the color equipment but shows the same resolution as color
video.
If set OFF, the color burst signal is removed from B/W video and shows better
resolution.
Rarely the compatibility problem may occur with the color equipment.
IMPORTANT!!!
IMPORTANT!!!IMPORTANT!!!
IMPORTANT!!!
9
6)
6)6)
6)
3D NR
3D NR3D NR
3D NR
To enter EXPOSURE menu, press
button at MAIN>3D NR
7)
7)7)
7) LENS SELECT
LENS SELECTLENS SELECT
LENS SELECT
To enter EXPOSURE menu, press
button at MAIN>LENS SELECT>DC... or MANUAL...
8)
8)8)
8) PICTURE CONTROL
PICTURE CONTROLPICTURE CONTROL
PICTURE CONTROL
To enter EXPOSURE menu, press
button at
MAIN>PICTURE CONTROL.
3D NR Default Descriptions
DEPTH 47
Determines the depth of Three Dimensional Noise Reduction.
High value reduces the noise strongly but the comet effect may occur
for the fast moving object and vice versa.
DC/
MANUAL
Default Descriptions
AI LEVEL 24
Lower value opens the lens iris and increases the brightness and vice
versa. Too high value reduces the amount of incoming
Too high value reduces the amount of incoming Too high value reduces the amount of incoming
Too high value reduces the amount of incoming light and may result
light and may result light and may result
light and may result
in a problem which camera does not return to DAY form NIGHT.
in a problem which camera does not return to DAY form NIGHT.in a problem which camera does not return to DAY form NIGHT.
in a problem which camera does not return to DAY form NIGHT.
FOCUS
ADJ...
-
FOCUS ADJUST helps the Accurate focus adjustment regardless of DAY
FOCUS ADJUST helps the Accurate focus adjustment regardless of DAYFOCUS ADJUST helps the Accurate focus adjustment regardless of DAY
FOCUS ADJUST helps the Accurate focus adjustment regardless of DAY
or NIGHT.
or NIGHT.or NIGHT.
or NIGHT. Sometimes the focus looks fine tuned at day time but out of
focus at night time. This function can eliminate the wrong adjustment of
focus in any case.
10
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL
ATW NORMALATW NORMAL
ATW NORMAL – Compensates automatically in range of 2800K-7500K.
ATW
ATW ATW
ATW DESAT
DESATDESAT
DESAT – Compensates automatically in range of 2000K-11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW
ATW ATW
ATW Xtnd
XtndXtnd
Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL
MANUALMANUAL
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1 Provides three color tones.
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different from the
iris level control. It can be set to MID-LOW, MIDDLE, MID-HIGH, HIGH
and LOW.
If it is set too high, the dynamic range is decreased.
Increase or decrease the sharpness of the picture.
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL
ATW NORMALATW NORMAL
ATW NORMAL – Compensates automatically in range of 2800K-7500K.
ATW
ATW ATW
ATW DESAT
DESATDESAT
DESAT – Compensates automatically in range of 2000K-11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW
ATW ATW
ATW Xtnd
XtndXtnd
Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL
MANUALMANUAL
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1 Provides three color tones.
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different from the
iris level control. It can be set to MID-LOW, MIDDLE, MID-HIGH, HIGH
and LOW.
If it is set too high, the dynamic range is decreased.
Increase or decrease the sharpness of the picture.
CONTROL
Factory
Default
Descriptions
WHITE
BALANCE
ATW
NORMAL
Sets ATW Normal, ATW Desat, ATW Xtnd or MANUAL.
ATW NORMAL
ATW NORMALATW NORMAL
ATW NORMAL – Compensates automatically in range of 2800K-7500K.
ATW
ATW ATW
ATW DESAT
DESATDESAT
DESAT – Compensates automatically in range of 2000K-11000K.
In the range of 2000-2800K and 7500-11000K, white balance is
gradually compensated.
ATW
ATW ATW
ATW Xtnd
XtndXtnd
Xtnd – Compensates automatically in range of 2000K-11000K.
MANUAL
MANUALMANUAL
MANUAL – White balance can be adjusted by either KELVIN or R/B
COLOR
SELECT
COLOR1 Provides three color tones.
VIVID
ON: VIVID will be operated.
OFF
BRIGHTNESS
BRIGHTNESS level is a kind of video output gain and is different from the
iris level control. It can be set to MID-LOW, MIDDLE, MID-HIGH, HIGH
and LOW.
If it is set too high, the dynamic range is decreased.
SHARPNESS
2
Increase or decrease the sharpness of the picture.
Too much sharpness can make image harsh and show more noise
as well as line flicker at the edge of object in the picture.
SATURATION
1 High value makes color rich and vice versa.
GAMMA 45
Lower value improves the gain of the dark area but the image has less
contrast..
Higher value reduces the gain of the dark area and makes the image more
dark and contrastive. The image will loose the linearity for too high value.
11
9)
9)9)
9) SPECIAL
SPECIALSPECIAL
SPECIAL
①①①① MOTION
MOTIONMOTION
MOTION
Up to 4 motion areas and the sensitivity can be set. The sensitivity is applied for all zones equally.
In adjusting each zone, the zone border line changes color when pressing
button. Green enables
enlarging, red enables reducing and white enables moving the zone by ▼, ▲, ▲, ▼buttons.
To exit MOTION ZONE SETUP, press
button for 2 seconds.
SPECIAL Default Descriptions
MOTION OFF
If it is set to ON and motion is detected, MOTION message will
appear on the monitor. See ‘7.9.1 MOTION ’ for settings.
PRIVACY MASK OFF
If set to ON, it is available up to 6 privacy masks.
See ‘7.9.2 PRIVACY menu’ for settings.
SYNC INT1 Sync is fixed to INT1.
LANGUAGE ENGLISH English is available only.
VIDEO STANDARD NTSC Able to switch NTSC or PAL.
12
②②②② PRIVACY AREA
PRIVACY AREAPRIVACY AREA
PRIVACY AREA
Up to 6privacy area can be programmed in size, position and mask color.
Use joystick to change size, position and mask color.
Right after pressing button at ,ON..>, the
1st zone appears on top-left corner in orange.
The orange colored zone can be relocated in its
location with ▼, ▲, ▲, ▼ buttons.
Right after one more pressing button, the
1st zone changes to blue.
Blue colored zone can be resized with . ▼, ▲,
▲, ▼ buttons
13
Press
button longer than 2 sec. to return to previous menu.
10) D
10) D10) D
10) D----EFFECT
EFFECTEFFECT
EFFECT
11)
11)11)
11) EXIT
EXITEXIT
EXIT
D-EFFECT Default Descriptions
FREEZE OFF Image freezes and shows the still image at the moment when set to ON..
FLIP OFF
OFF(Normal display), H-FLIP(left & right flipped), V-FLIP(upside down
flipped), H/V-FLIP(left & right flipped and upside down flipped.)
Direction of joystick control should be flipped if V-flip is flipped to H/V-flip.
D-PTZ Able to set digital zoom up to x12 and digital PAN/TILT if zoom ratio >1.
MENU-2 Descriptions
EXIT Exits menu with discarding any changes.
SAVE AND EXIT Exits menu after saving the parameters.
FACTORY SET
Restores and saves all parameters of factory settings.
Camera resets and restarts automatically.
D-PTZ Default Descriptions
ZOOM 1 Digital zoom can set up to x12. x1 stands for ZOOM OFF.
PAN 0 Digital PAN can be set if ZOOM is set to >1.
TILT 0 Digital TILT can be set if ZOOM is set to >1.
An example of mask when resizing by . ▼, ▲,
▲, ▼ buttons
An example of mask when relocating.
14
If there are problems in operation, please refer to the items below. If the problem persists,
please contact the agent you purchased this product from.
Problems Troubleshooting
Nothing appears on the screen.
• Please check the power connection.
• Please check the video signal line connection.
• Please check and make sure that the auto lens switch is
set to DC (VIDEO) when using a VIDEO(DC) lens.
The video image is not clear.
• Please check if the lens is clean.
Please clean the lens with a clean cloth or brush.
• Please adjust the contrast feature of the monitor.
• Please readjust the back focus of the camera.
The screen is dark.
• Please adjust the contrast feature of the monitor.
• If you have an intermediate device, set the 75 / Hi-z
properly, and check the terminals.
• Please check if an auto iris lens is being used and adjust
the brightness level.
There is a problem with the
camera operation.
• Please check if an appropriate power source to the
camera complies with the manufacturer's
standard requirement, or if the voltage keeps changing.
The MOTION DETECTION function
is not working.
• Please check if 'MOTION DETECTION' mode is turned
on.
• Please check if the MD LEVEL is too low.
• Please check the setting of the MD AREA.
Colors are not quite right.
• Please check the 'WHITE BAL' setting
The screen is flickering.
• Please check if the camera is facing directly into sunlight
or fluorescent light.
• Please check if an auto iris lens is being used.
• Please check the connection of the lens connector cable.
COLOR mode is not working.
• Please check if the AGC menu is set to the OFF
position.
SENS-UP function is not
working.
• Please check if the AGC menu is set to the OFF
position.
• Please check if the SHUTTER menu is set to
MANUAL mode.
4444.
. .
. Troubleshooting
15
Dome
Vandal Dome 1
Vandal Dome 2 & IR Dome Camera
5. Dimensions
16
Model name NTSC PAL
Image Device 1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)
Effective Pixels 768(H) x 540(V)
TV system NTSC, 525lines / 2:1interlace PAL, 625lines / 2:1interlace
Scan frequency. 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H)
Synchronization Internal/Line lock (Default: Internal)
H. Resolution 690TV Lines
Sensitivity
0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up) at Color & B/W
S/N Ratio 52dB with AGC OFF at 50IRE
White Balance 2000~11000ºK Automatic tracking
Exposure (AGC) AE (On/Off)
WDR Mode (Low/Middle/High/Custom(User adjustment))
Auto Iris Control DC drive iris control. Level control is fixed internally.
SENSE-UP 2X, 4X, 8X, 16X, 32X, 64X ESS
Motion Detection On/Off(4 Programmable Zone)
D-PTZ Up to X12 digital zoom
FLIP OFF / H-FLIP / V-FLIP / H/V-FLIP
Privacy Zone On/Off (6 Programmable Zone)
Auto Iris Control DC Drive Iris Control
Flicker reduction Yes (NTSC Japanese version only)
OSD Yes (Setup menu only)
Video Output VBS 1Vpp +/-10%, 75ohm
Lens 2.8-12mm DC auto iris lens
Type
TypeType
Type Dome
DomeDome
Dome Vandal Dome1
Vandal Dome1Vandal Dome1
Vandal Dome1 Vandal Dome2
Vandal Dome2Vandal Dome2
Vandal Dome2 IR Vandal Dome
IR Vandal DomeIR Vandal Dome
IR Vandal Dome
Installion Type
Indoor Outdoor Outdoor Outdoor
LED
x x x 30LEDs(750nm)
Visibility Range
x x x 30m
Weight 450g 1.1Kg 1.1Kg 1.2Kg
Operating condition Max. 2.5W Max. 2.5W Max. 2.5W 5W(LED On)
Dimension(mm)
φ100x103.6(H) φ100x103(H) φ100x107(H) φ100x107(H)
Power consumption -10ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC
Power Supply DC12V(10.2V~14.5 V), Dual Voltage(Option) : AC24V / DC12V
6. Specifications
17
19
20
Loading...
