DISTRIBUTED BY
COLOR DOME CAMERA
USER MANUAL
650 TVL

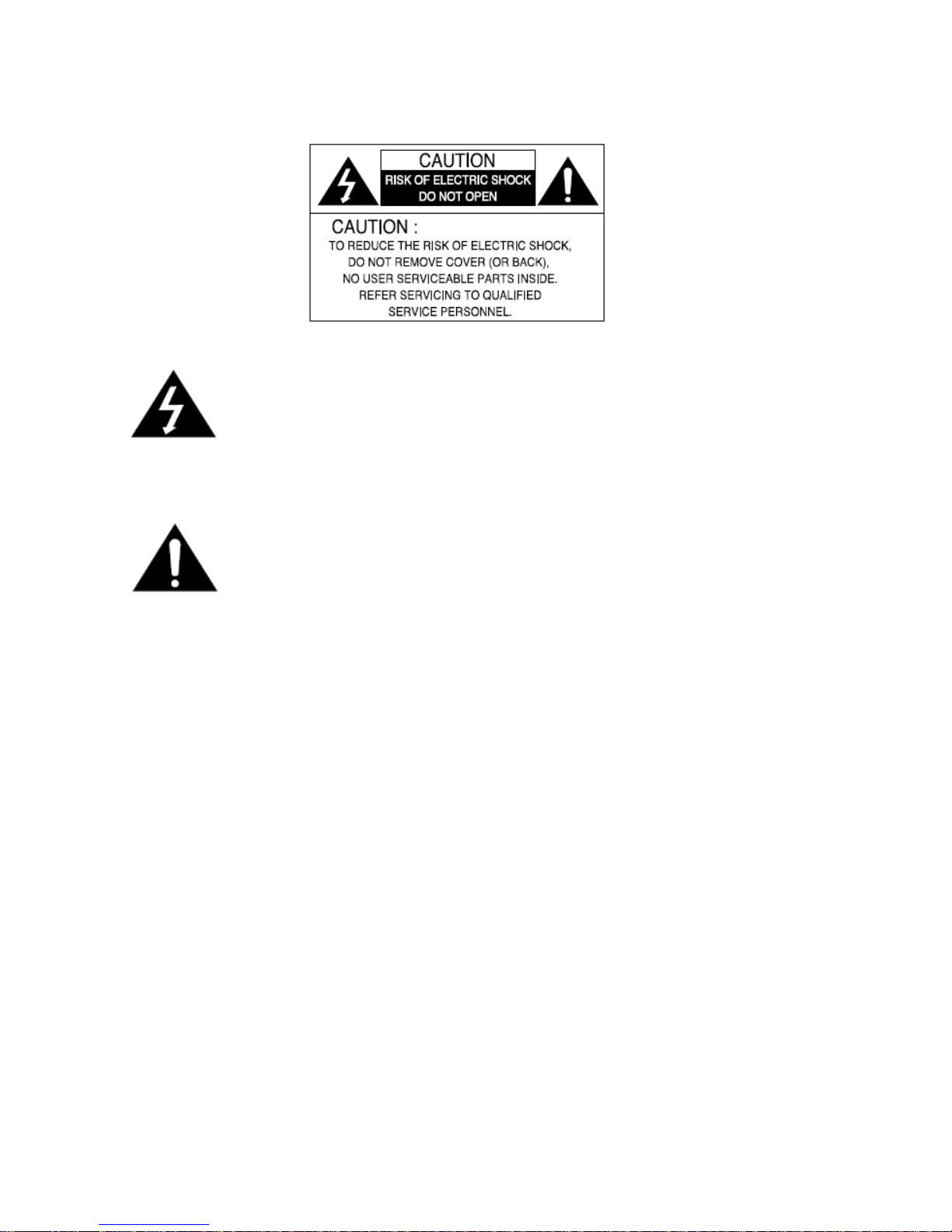

The lightning flash with an arrowhead symbol, within an
equilateral
triangle is intended to alert the user to the presence of
uninsulated dangerous voltage within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

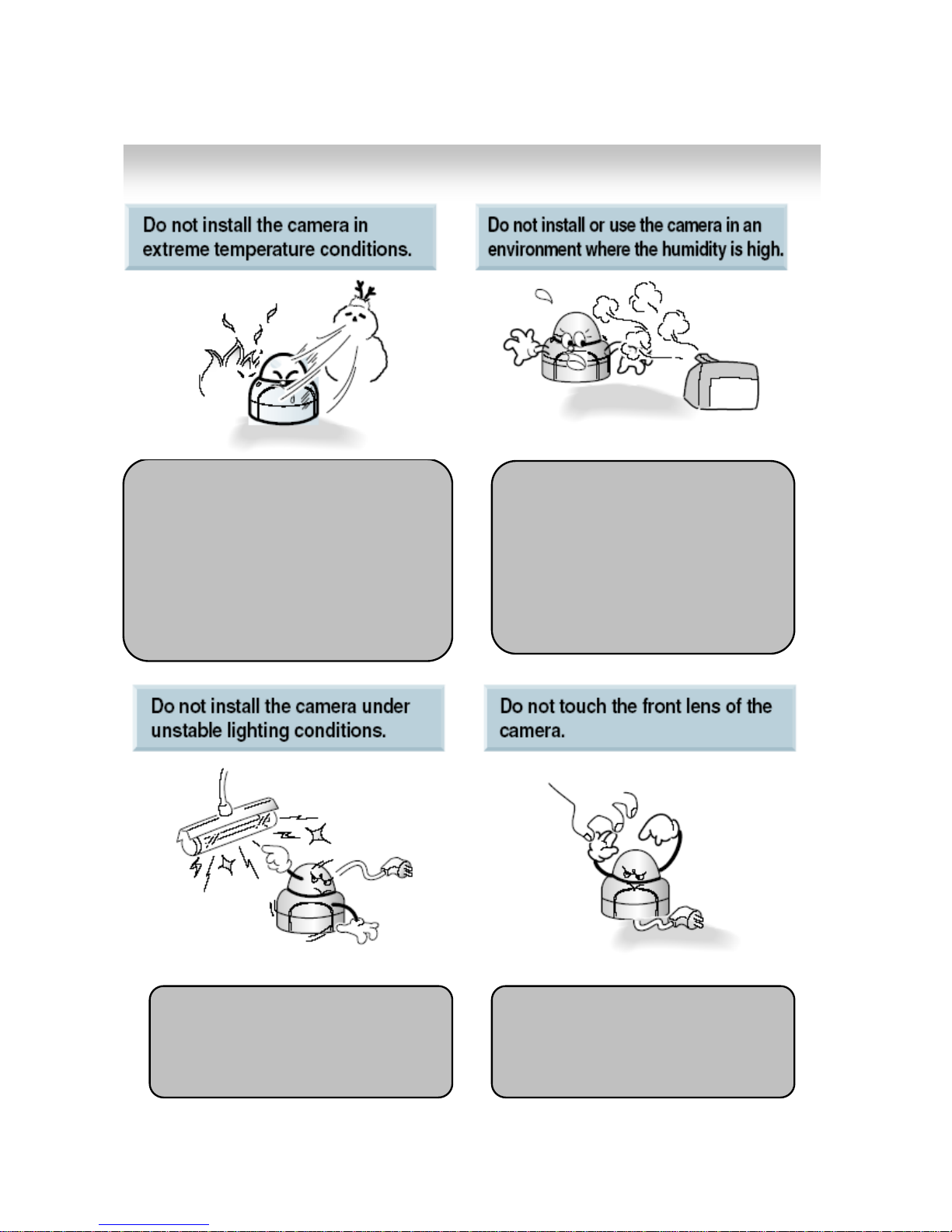

Only use the camera under
conditions where temperatures are
between -10°C and +50°C. Be
especially careful to provide
ventilation when operating under high
temperatures.
It can cause the image quality to
be poor.
Severe lighting change or flicker
can cause the camera to work
improperly.
It is one of the most important
parts of the camera. Be careful not
to be stained by fingerprint.
■ Precautions
☺Horizontal Resolution 650 TVLines
Clear image quality has been achieved by employing a SONY CCD with
410,000
(effective) pixels, which provides a horizontal resolution of 620 TV lines.
☺Electronic IRIS
The electronic IRIS function enables continuous automatic control of the
shutter between 1/60~1/120,000 seconds.
☺3Axis built-in Vandal Resistant Dome Housing
☺2D-DNR
The high performance New DSP chip dramatically reduces the gain noise in
digital image processing, producing clear, sharp images in low lighting
environment. It provides the further optimized DNR performance
1. Color Dome Camera 1 set
2. Screws 3 pcs
3. Wrench 1 pcs
4. Manual 1 pcs
⊙ Features
⊙ Components
POWE
VIDE
O

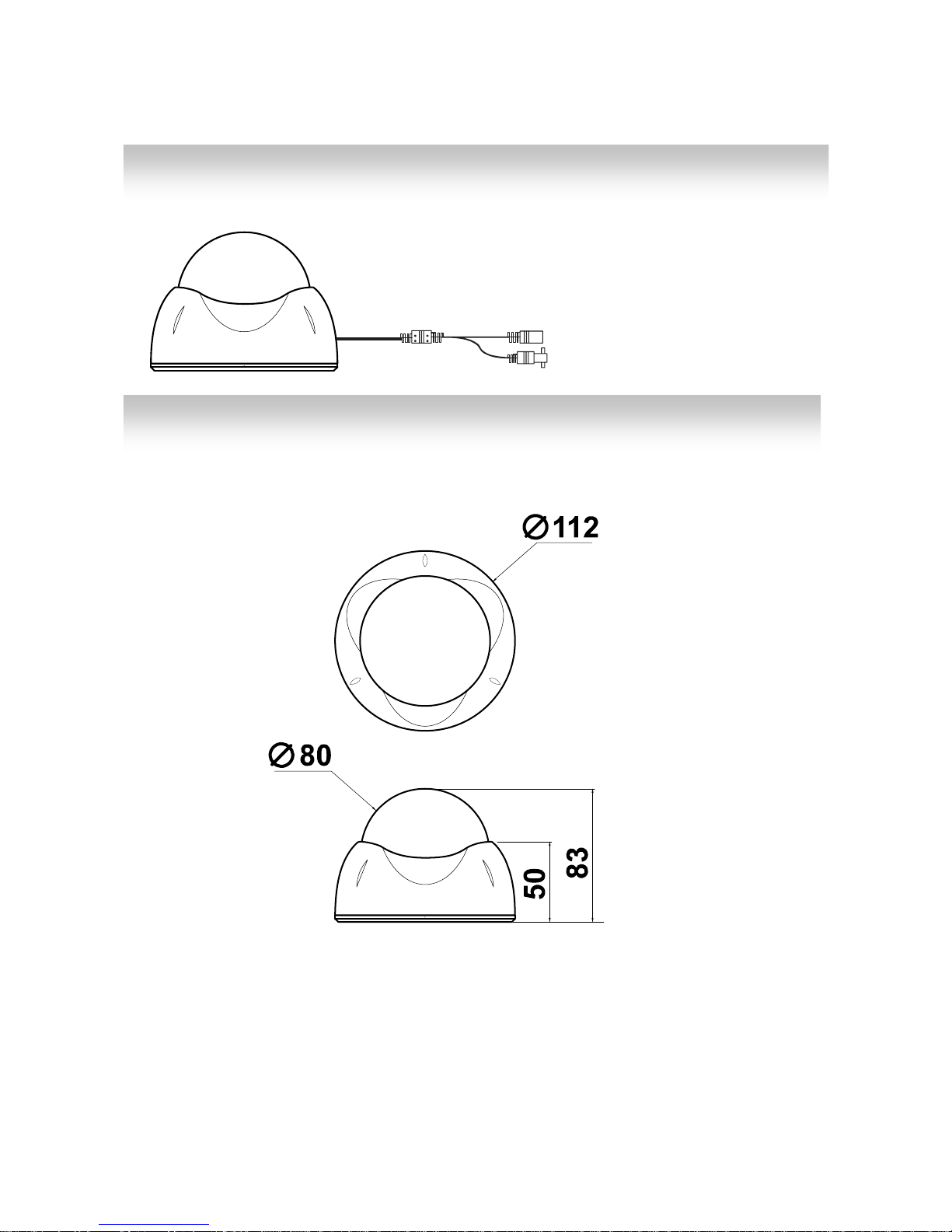

⊙ Dimension
⊙ Cable Connection
* How to install
① Fix the camera body on a ceiling or wall via 3 holes.
② You must make 2 screws loosen to adjust angle of the camera.
③ Set camera lens up toward object and Rejoin 2 screws.
⊙ Assemble
This part is camera
There are 2 screws to
adjust angle of
camera.
This part is dome cover to
protect camera
There are 3 holes to fix
camera on a ceiling or wall
SIGNAL SYSTEM NTSC PAL
TOTAL / EFFECTIVE PIXEL 410K / 380K Pixels 470K / 440K Pixels
IMAGE SENSOR 1/3” SONY interline transfer CCD
HORIZONTAL RESOLUTION 650 TV Line
MINIMUM ILLUMINATION 0.1 Lux /F 1.2
LENS
3.6 mm Manual Lens ●
4-9mm Auto Iris Lens
2.9-10mm Auto Iris Lens
9-22mm Auto Iris Lens
BLC Auto
WHITE BALANCE Auto
GAIN CONTROL Auto
LUMINANCE S/N RATIO More than 50dB (AGC Off)
SYNC. SYSTEM Internal
SHARPNESS Auto
VIDEO OUTPUT Composite output 75ohm terminated 1.0 Vpp, Y/C separate output
SHUTTER SPEED Auto/Manual(1/60~1/120,000) Auto/Manual(1/50~1/100,000)
OPERATING TEMPERATURE - 10 to ℃ 50℃ / 30~90% RH
SUPPLIED VOLTAGE DC 12V, 50/60 Hz
POWER CONSUMPTION MAX. 300mA
DIMENSIONS
φ112 x 83(H)
WEIGHT About 600g
⊙Specifications
