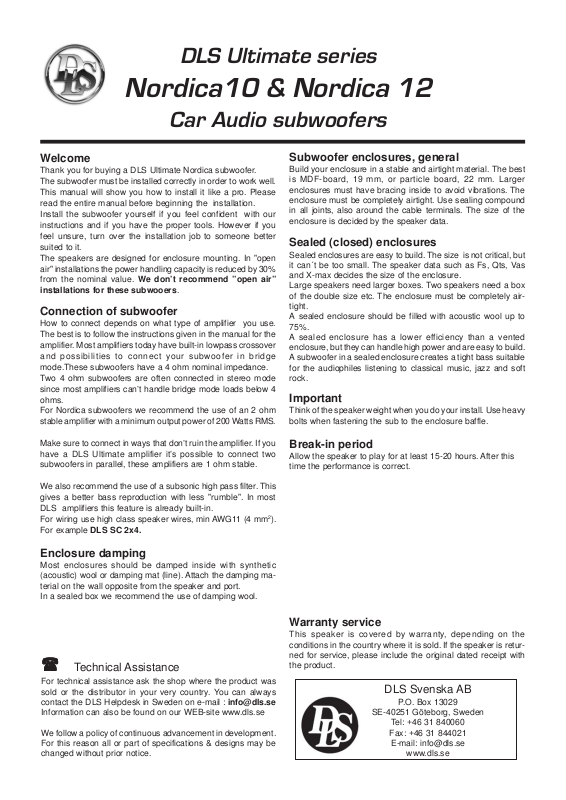

DLS Ultimate series

Nordica10 & Nordica 12

Car Audio subwoofers

Welcome

Thank you for buying a DLS Ultimate Nordica subwoofer.
The subwoofer must be installed correctly in order to work well.
This manual will show you how to install it like a pro. Please
read the entire manual before beginning the installation.
Install the subwoofer yourself if you feel confident with our
instructions and if you have the proper tools. However if you
feel unsure, turn over the installation job to someone better
suited to it.
The speakers are designed for enclosure mounting. In "open
air" installations the power handling capacity is reduced by 30%
from the nominal value. We don’t recommend ”open air”

installations for these subwooers.

Connection of subwoofer

How to connect depends on what type of amplifier you use.
The best is to follow the instructions given in the manual for the
amplifier. Most amplifiers today have built-in lowpass crossover
and possibilities to connect your subwoofer in bridge
mode.These subwoofers have a 4 ohm nominal impedance.
Two 4 ohm subwoofers are often connected in stereo mode
since most amplifiers can’t handle bridge mode loads below 4
ohms.
For Nordica subwoofers we recommend the use of an 2 ohm
stable amplifier with a minimum output power of 200 Watts RMS.

Subwoofer enclosures, general

Build your enclosure in a stable and airtight material. The best
is MDF-board, 19 mm, or particle board, 22 mm. Larger
enclosures must have bracing inside to avoid vibrations. The
enclosure must be completely airtight. Use sealing compound
in all joints, also around the cable terminals. The size of the
enclosure is decided by the speaker data.

Sealed (closed) enclosures

Sealed enclosures are easy to build. The size is not critical, but
it can´t be too small. The speaker data such as Fs, Qts, Vas
and X-max decides the size of the enclosure.
Large speakers need larger boxes. Two speakers need a box
of the double size etc. The enclosure must be completely air­tight.
A sealed enclosure should be filled with acoustic wool up to
75%.
A sealed enclosure has a lower efficiency than a vented
enclosure, but they can handle high power and are easy to build.
A subwoofer in a sealed enclosure creates a tight bass suitable
for the audiophiles listening to classical music, jazz and soft
rock.

Important

Think of the speaker weight when you do your install. Use heavy
bolts when fastening the sub to the enclosure baffle.

Make sure to connect in ways that don’t ruin the amplifier. If you
have a DLS Ultimate amplifier it’s possible to connect two
subwoofers in parallel, these amplifiers are 1 ohm stable.

We also recommend the use of a subsonic high pass filter. This
gives a better bass reproduction with less "rumble". In most
DLS amplifiers this feature is already built-in.
For wiring use high class speaker wires, min AWG11 (4 mm
For example DLS SC 2x4.

2

Enclosure damping

Most enclosures should be damped inside with synthetic
(acoustic) wool or damping mat (line). Attach the damping ma­terial on the wall opposite from the speaker and port.
In a sealed box we recommend the use of damping wool.





Technical Assistance



For technical assistance ask the shop where the product was
sold or the distributor in your very country. You can always
contact the DLS Helpdesk in Sweden on e-mail : [e-mail]
Information can also be found on our WEB-site www.dls.se

We follow a policy of continuous advancement in development.
For this reason all or part of specifications & designs may be
changed without prior notice.

Break-in period

Allow the speaker to play for at least 15-20 hours. After this
time the performance is correct.

).

Warranty service

This speaker is covered by warranty, depending on the
conditions in the country where it is sold. If the speaker is retur­ned for service, please include the original dated receipt with
the product.

DLS Svenska AB

P.O. Box 13029

SE-40251 Göteborg, Sweden

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

www.dls.se

Technical specifications for DLS Ultimate Nordica 10

Art.no 10-25910
Size 25 cm (10")
Impedance 4 ohm
Rec. power (RMS) 200 W min, 500 W max
Freq. range 25 Hz - 2 kHz
Voice coil, diameter 50 mm (2”)
Voice coil length 31 mm (1,22”)
X-max +-11,5 mm (0,45”)
Cms 0,16 mm /N
SD 314 cm
Cone material Aluminium
Magnet, diameter 144 mm (5,67”)
Installation depth 140 mm (5,51”)
Mounting hole 236 mm (9,29”)
Outer diameter 265 mm ( 10,43”)
Weigth 6,7 kg (14,77 lbs)

2

Re, DC-resistance 3,2 ohm
BL product 12
Sensitivity (SPL 1W/1m) 87,0 dB
Resonant freq. (Fs) 33,7 Hz
Vas (litre) 22,4
Vas (ft3) 0,79
Qms 9,2
Qes 0,65
Qts 0,61

Technical specifications for DLS Ultimate Nordica 12

Nordica 10

Art.no 10-25912

Nordica 12

Size 30 cm (12")
Impedance 4 ohm
Rec. power (RMS) 200 W min, 500 W max
Freq. range 20 Hz - 2 kHz
Voice coil, diameter 50 mm (2”)
Voice coil length 31 mm (1,22”)
X-max +-11,5 mm (0,45”)
Cms 0,203 mm/N
SD 513 cm
Cone material Aluminium
Magnet, diameter 144mm (5,67”)
Installation depth 148 mm (5,82”)
Mounting hole 282 mm (11,1”)
Outer diameter 315 mm ( 12,4”)
Weigth 7,2 kg (15,87 lbs)

2

Re, DC-resistance 3,3 ohm
BL product 14,4
Sensitivity (SPL 1W/1m) 89,7 dB
Resonant freq. (Fs) 25,4 Hz
Vas (litre) 75,8
Vas (ft3) 2,67
Qms 10,3
Qes 0,49
Qts 0,47

About the recommended enclosures

The performance of these recommended enclosures will vary from
vehicle to vehicle. It is more difficult to get a tight and well defined
bass in a SEDAN vehicle because of the tightness between trunk and
interior. In most cases the recommended enclusures on next page is
the best choice. The sealed box is to be preferred.

- The given enclosure volume is the inner volume.

- Volumes occupied by speaker have already been added to the given
enclosure volumes so don’t add any more volume.

Important notice!

Nordica 10 & Nordica 12 have a design with ”open
voice coil” for improved cooling of the voice coil. This
construction also give the best sound performance.
To prevent dirt from entering the voice coil gap, follow
these instructions:

- Keep the speaker in the plastic bag until it is time for
installing the speaker in the box.

- Clean the speaker box inside from dust and dirt
before mounting the speaker, use a vaccum cleaner.

Enclosure placing in vehicles

In small vehicles like VW Golf, Peugeot 206, 306 and similar the bass
box should be installed with speakers directed backwards. Alternatively
directed upwards. This way of mounting is valid for all types of vehicles
where the trunk is incorporated with the inner compartment.

In sedan vehicles with the passenger compartment separated from
the trunk, the enclosure should be installed with speakers directed
towards the rear seat. Some cars have an opening in the middle of the
rear seat for loading skis etc. You can install the enclosure behind this
opening and direct speaker through this opening.

In large vehicles like station wagons the best sound is achieved with
the enclosure installed behind the rear seat with speakers directed
backwards. Alternatively you can install the enclosure on one side of
the luggage compartment.

Calculate your own enclosure

Box volumes:

When calculating the inner volume of an enclosure you just multiply the
width (W) x height (H) x depth (D).
Use measures in dm and you will get the answer in litres.

A trapezoid box is calculated as this:

Vol=width (W) x height (H) x upper depth (UD) + lower depth (LD)

2

W

UD

Be sure to measure the

H

inside dimensions.

LD
