FLATBOX M-Series

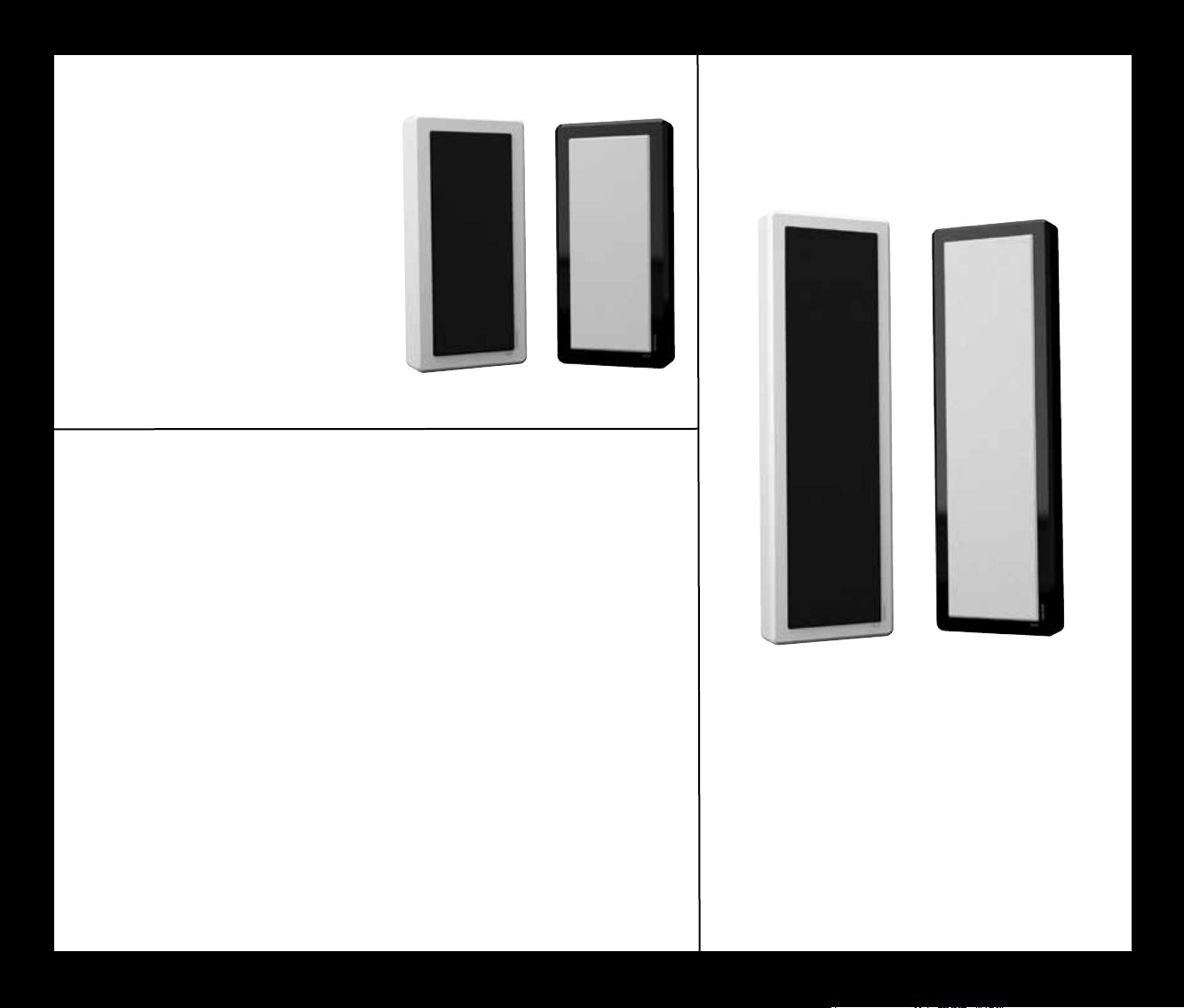

FLATBOX M-One

M-One is for the connoisseur who wants a near

perfect sound quality without imposing on a ca-

refully designed home. Their minimalistic, con-

temporary design is subtle while their sound ta-

kes full advantage of all our breakthrough design

technology.

M as in Music

The Flatbox M-Series is love at first sight. Never before have you seen anything like them mounted on a

wall. And if there is such a thing as a tension to sound, it is when you turn the volume right up on the M-

Two. The presence is almost overwhelming. Put on Supertramp’s “School”, and singer Roger Hodgson

will be standing right there.

New sound design technology

A high-end loudspeaker is made up of a hundred perfect details like cast driver baskets and air coil low

loss inductors, but it’s the Waveguide and Time Alignment design technologies developed exclusively

for the M-series that is magic behind the sound. The waveguide allows for better coupling between the

tweeter diaphragm and surrounding air to reduce baffle edge diffraction. And since the tweeter is inte-

grated into the grille design, there are no other edge reflections.

Perfect sound needs perfect timing

Basically, Time Alignment Technology means mounting the tweeter and the mid/woofer drivers perfectly

on the depth axis to let all sound reach you ear at exactly the same millisecond. In theory this might

seem easy but making it happen is altogether more difficult. But it was worth the entire 3247 hours de-

signer Mats Andersen put into developing the M Series.

So you can listen happily ever after…

FLATBOX® is a registered Trade Mark within the European Union

FLATBOX M-Two

With DLS it’s simple – the bigger the speaker, the bigger the sound,

whilst still keeping the character and tonality. Simply, M-Two is our

flagship. No compromises. No shortcuts. The M-Two design will

demand your attention; the sound will never let it go.

SWEDEN

DLS

NEW

FLATBOX D-One

FLATBOX D-One

D-one, the ultimate speaker for those looking to combine a high-fidelity sound with a design that stands out from the crowd, all

in the same unit.The nicely flat design makes you really want it to be visible in your home environment.

You can easily adapt it to the rest of the interior with the help of the eight different colored grilles supplied. The grille colors are

shown below. D-One comes in two colors, white or black high gloss piano finish.

Grille colors

DLS

SWEDEN

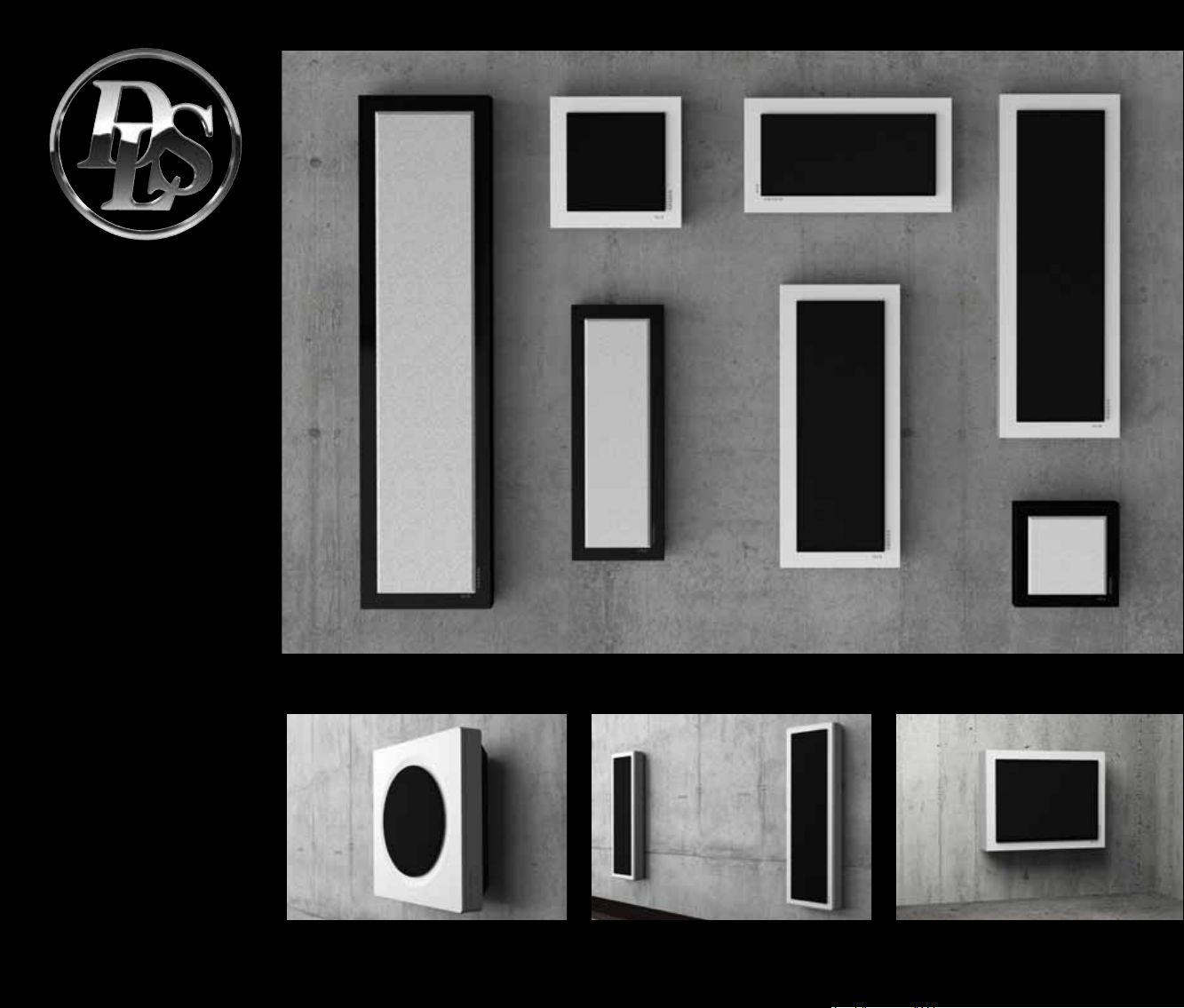

FLATBOX slim series

FLATBOX series

SLIM MINI

Flatbox Slim series is a smaller alternative to

Flatbox Mini & Large. They can be used in

many different ways, as front speakers, rear

speakers or as a centre in a surround system.

The perfect alternative if you want smaller

speakers with a big sound.

SLIM LARGE

FLATBOX MIDI

Flatbox Midi, a little bit bigger than the Mini,

still with the flat design, is the perfect alterna-

tive to In-wall speakers. This amazing speaker

has an optimized shape for performance with

a wide frequency response.

FLATBOX MINI

Flatbox Mini, with the flat design, is the perfect alternative to In-wall speakers. The design

allows you to place them anywhere you want. You can also use them as extra speakers in

a multi room system; the flat design makes them fit everywhere.

FLATBOX LARGE

Flatbox Large can be used in many different

ways, as front speakers, rear speakers or

even as a centre in a surround system. The

perfect alternative if you want small speakers

with a superb sound; the flat design makes

them fit everywhere.

BLUETOOTH 2.1

FLATBOX XL

Flatbox XL can be used in many different

ways, as front speakers, rear speakers or

even as a centre in a surround system. The

perfect alternatives if you want speakers with

a extremely good sound; the flat design ma-

kes them fit everywhere.

FLATBOX XXL

Flatbox XXL can be used in many different

ways, as front speakers, rear speakers or

even as a centre in a surround system. The

perfect alternatives if you want speakers with

a extremely good sound; the flat design ma-

kes them fit everywhere.

The XXL is the latest member of the Flatbox

family with a superb sound thanks to the ad-

vanced 2.5-way technology.

SWEDEN

NEW

DLS

NEW

ACTIVE SUBWOOFERS

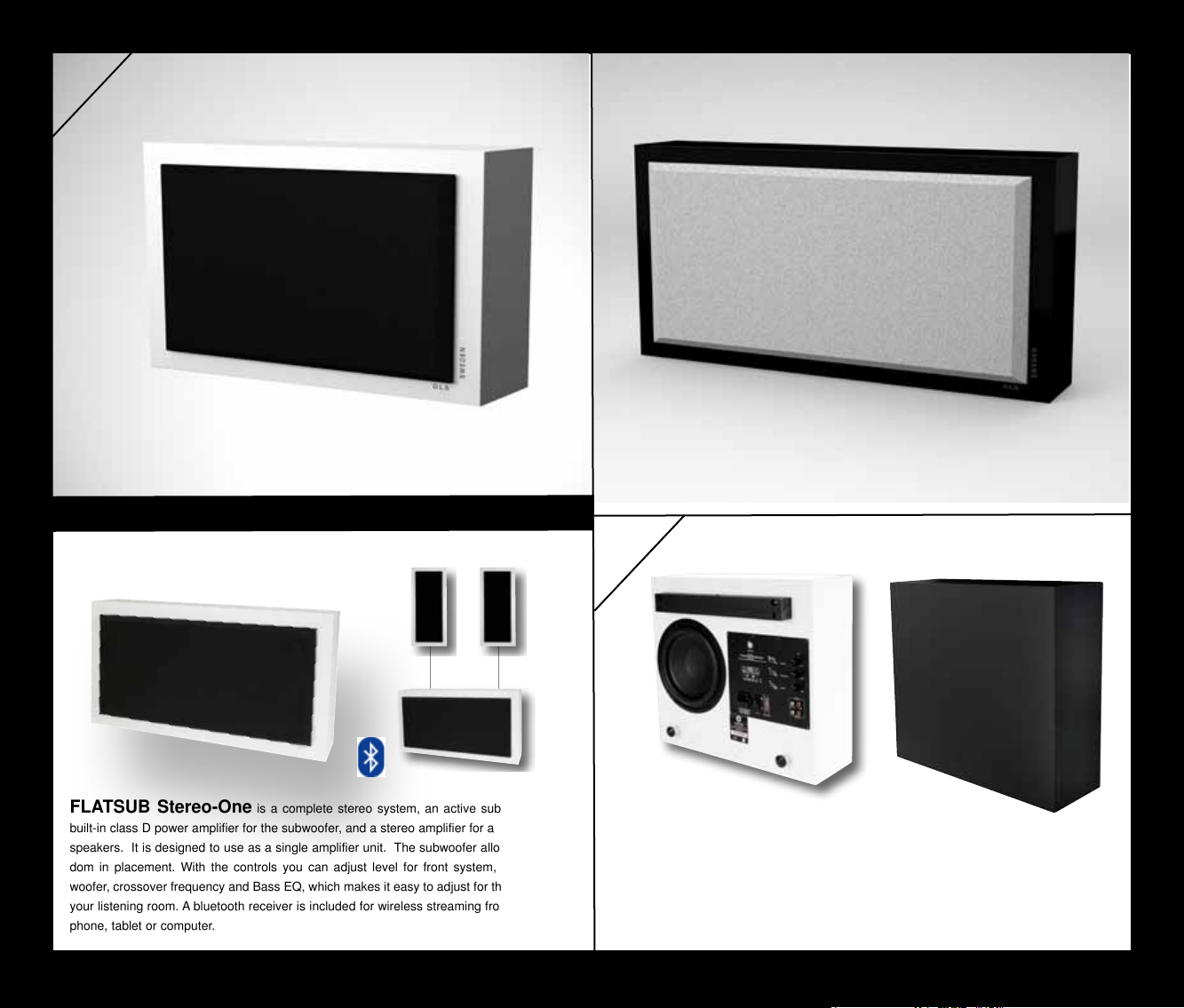

FLATSUB 8.2 is the perfect choice if you want to hang your sub on the wall, or hide it

away under a chair or a sofa. The small dimensions make it easy to hide this active subwoo-

fer wherever you want. The Flatsub 8.2 matches DLS speakers superbly.

Both white and black speaker fronts are included.

FLATSUB Stereo-One

built-in class D power amplifier for the subwoofer, and a stereo amplifier for a pair of Flatbox

speakers.

dom in placement. With the controls you can adjust level for front system, level for sub-

woofer, crossover frequency and Bass EQ, which makes it easy to adjust for the acoustics in

your listening room. A bluetooth receiver is included for wireless streaming from your smart-

phone, tablet or computer.

It is designed to use as a single amplifier unit. The subwoofer allows great free-

is a complete stereo system, an active subwoofer with a

FLATSUB 8 LARGE is the perfect alternative if you want more and deeper bass

sound from a wall hanged subwoofer. The small dimensions make it easy to hide this active

subwoofer wherever you want. The Flatsub 8 Large matches DLS speakers superbly. Both

white and black speaker fronts are included.

NEW

FLATSUB MIDI is a new member of the flatbox family. Hang your sub on the wall, or

hide it away under a chair or a sofa. The small dimensions make it easy to hide this active

subwoofer wherever you want. The Flatsub MIDI matches all Flatbox speakers superbly.

When hanged, both the speaker and the amplifier is directed towards the wall.

SWEDEN

DLS

INSTALLATIONS

NEW

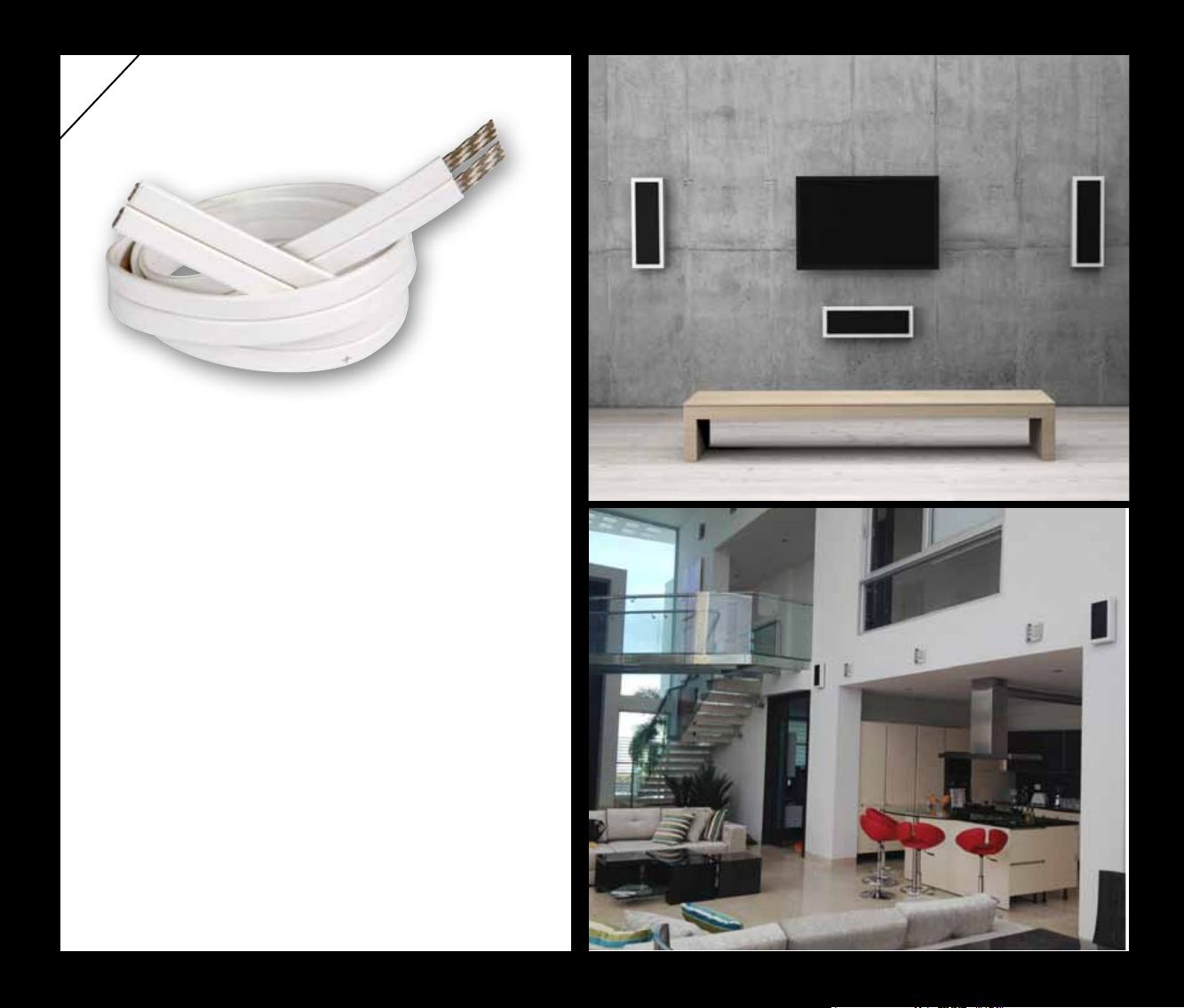

DLS Flatbox cable 1.6

A super flat stereo cable, only 1.8 mm thick and 11 mm wide. Ideal for wall mounting
or under a carpet.
Can be taped on the wall with our double-sided adhesive tape.
The cable is made of compressed thin plated OFC braid making the cable super flat
and highly flexible. The thin plated copper contributes to a better sound quality by
minimizing the skin-effect and making less current jumps between the wire surfaces. A
perfect cable for Flatbox installations.
Cable area 2 x 1,6 mm2 / AWG15

Advantages

- Unobtrusive wiring on wall and under carpet

- No special installation tools required

- Easy to strip

- Flexible design for easy routing in corners and around doorframes

- Easy connection. No connectors are required

- Paintable insulation

- Can be taped to the wall with our double-sided adhesive tape

- Tin plated conductors provides excellent corrosion resistance

- Made in Sweden

Adhesive tape

This double-sided adhesive tape is ideal for mounting the cable on the most surfaces
like plastic, metal, wallpaper etc. A 10 meter roll is included with each 100 meter spea­ker cable roll, if you need more, the tape rolls can be ordered separately.

SWEDEN

DLS

SPECIFICATIONS

FLATBOX

MODEL FLATBOX SLIM MINI FLATBOX SLIM LARGE

TYPE WALL MOUNT SPEAKER WALL MOUNT SPEAKER

DESCRIPTION 1-WAY SEALED BOX 2-WAY BASS REFLEX

IMPEDANCE (ohm) 8 8

DIMENSIONS HXWXD (mm/inch) 180/7.1 X 180/7.1 X 80/3.15 470/18.5 X 170/6.7 X 80/3.15

WEIGHT (kg/lbs) PER SPEAKER 1,3 / 2,7 2.83 / 6.24

EXTRAS (included) WHITE AND BLACK FRONT WHITE AND BLACK FRONT

MODEL FLATBOX MINI FLATBOX MIDI FLATBOX LARGE FLATBOX XL FLATBOX XXL

TYPE WALL MOUNT SPEAKER WALL MOUNT SPEAKER WALL MOUNT SPEAKER WALL MOUNT SPEAKER WALL MOUNT SPEAKER

DESCRIPTION 2-WAY BASS REFLEX 2-WAY BASS REFLEX 2-WAY BASS REFLEX 2-WAY BASS REFLEX 2.5-WAY BASS REFLEX

IMPEDANCE (ohm) 8 8 4 4 4

DIMENSIONS HXWXD (mm/inch) 240/9.5 X 240/9.5 X 92/3.6 380/14.9 X 210/8.3 X 92/3.6 520/20.5 X 220/9.7 X 92/3.6 630/24.8 X 220/9.7 X 92/3.6 940/37 X 240/9,5 X 92/3,6

WEIGHT (kg/lbs) PER SPEAKER 2.2 / 4.8 4 / 8.15 4.6 / 10 5.9 / 13 11,1 / 24,5

EXTRAS (included) WHITE AND BLACK FRONT WHITE AND BLACK FRONT WHITE AND BLACK FRONT WHITE AND BLACK FRONT WHITE AND BLACK FRONT

MODEL FLATBOX M-One FLATBOX M-Two FLATBOX D-ONE

TYPE WALL MOUNT SPEAKER WALL MOUNT SPEAKER WALL MOUNT SPEAKER

DESCRIPTION 2-WAY BASS REFLEX 2.5-WAY BASS REFLEX 2-WAY BASS REFLEX

IMPEDANCE (ohm) 4 4 4

WOOFER / MIDRANGE 6,5” KEVLAR CONE 6,5” AL CONE / 6,5” KEVLAR CONE 5”

TWEETER 30 MM WAVEGUIDE 30 MM WAVEGUIDE 30 MM

DIMENSIONS HXWXD (mm/inch) 600/23,6 X 280/11 X 111/4,37 1050/41,3 X 320/12,6 X 111/4,37 360/14.2 X 360/14.2 X 115/4.53

WEIGHT (kg/lbs) PER SPEAKER 8,5 / 18,7 16,9 / 37,25 5,5 / 12,1

EXTRAS (included) WHITE AND BLACK FRONT WHITE AND BLACK FRONT FRONTS IN EIGHT DIFFERENT COLORS

RED, GREEN, PURPLE, BLUE, BLACK, WHITE, YELLOW, SMILEY

CABINET COLORS:

BLACK PIANO

WHITE SILK

SUBWOOFERS

MODEL FLATSUB 8.2 FLATSUB 8 LARGE FLATSUB MIDI FLATSUB STEREO-ONE

TYPE ACTIVE SUBWOOFER ACTIVE SUBWOOFER ACTIVE SUBWOOFER ACTIVE SUB WITH BUILT-IN STEREO AMPLIFIER

DESCRIPTION SEALED BOX, WALL MOUNTED VENTED BOX, WALL MOUNTED VENTED BOX, WALL MOUNTED BLUETOOTH 2.1, SEALED BOX, WALL MOUNTED

AMPLIFIER (W) 250, CLASS D 150, CLASS AB 150, CLASS D 80, CLASS D + 2 X 35 CLASS D STEREO AMP

FREQ. RANGE (HZ-6dB) 25-200 30-150 25 - 200 30-250 / 30 - 25K

WOOFER 8" 8” 8” 7” + PASSIVE RADIATOR 7”

DIMENSIONS HXWXD (mm/inch) 300/11,8 X 465/18,3 X 171/6,73 340/13.4 X 670/26,3 X 155/6.1 445/17,5 X 400/15,8 X 172/6,8 300/11,8 X 550/21,7 X 165/6,5

WEIGHT (kg/lbs) 6,5 / 14,3 16.1 / 35.5 9,8 / 21,6 8,5 / 18,7

AC POWER REQUIRMENTS 120 V / 60 HZ OR 240 V / 50 HZ 120 V / 60 HZ OR 240 V / 50 HZ 120 V / 60 HZ OR 240 V / 50 HZ 120 V / 60 HZ OR 240 V / 50 HZ

EXTRAS (included) WALL BRACKET WALL BRACKET WALL BRACKET WALL BRACKET

WHITE AND BLACK FRONT WHITE AND BLACK FRONT NO FRONT CLOTH NEEDED WHITE AND BLACK FRONT

REMARKS CAN BE MOUNTED HORISONTALLY OR VERTICALLY WIRELESS BLUETOOTH RECEIVER INCLUDED
