Dls CAD11 User Manual
How to install and
operate the
DLS CAD11
digital mono
amplifier
Welcome!
This owners manual is written in easy english and
uses a lot of drawings to simply the installation and
use of the above amplifier.
Contents
Specifications................................ 1
Features…………………………….. 2
Installation…………………….……. 2
Trouble-shooting…………………… 2
T ools and materials needed………. 3
Amplifier installation kit………….... 3
Routing Wires…………………….... 3
Wiring
Power and Outputs……………..…. 4
Inputs and controls………………... 5
Input level control.......................... 5
Crossovers…………...................... 5
Phase control.....………………...… 5
Bass boost control......................... 6
Speaker wiring:
Single amplifier system………….…. 6
Testing.......................................... 6
Bridging two amplifiers................... 7
Professional tips…………………….. 8
Specifications
DLS CLASSIC CAD11
Y our DLS amplifier must be installed correctly in order to work well. This manual will show you how to
install the amplifier like a pro. Please read the entire
manual before beginning the installation.
Install the amplifier yourself if you feel confident with
our instructions and if you have the proper tools.
However if you feel unsure, turn over the installation
job to someone better suited to it.
Warranty Service
This amplifier is covered by warranty , depending on
the conditions in the country where it is sold. If the
amplifier is returned for service, please include the
original dated receipt with the product.
For technical assistance ask the shop where the
product was sold or the distributor in your very country.
You can always phone the DLS Helpdesk in Sweden
+ 46 31 84 00 60 or send an e-mail to info@dls.se.
Information can also be found on our WEB-site
www.dls.se
T echnical Assistance
Number of channels 1
Power output in 4 ohm (0,4% THD) 1 x 400 W
Max output in 2 ohm (0,7% THD) 1 x 750 W
Max output in 1 ohm (1% THD) 1 x 1050 W
All above output power ratings at 13,8 Volt
Signal to noise ratio, A-weighted >100 dB
Damping factor >100
Frequency response 15 Hz - 160 Hz
Input impedance, low level 10 kohm
Input impedance, high level 100 ohm
Input sensitivity 0,15 - 5V
Phase control 0-180 degrees variable yes
Remote bass level control yes
Bass boost adjustable gain @45 Hz 0 - +18 dB
Filter subsonic, 24 dB slope 15 - 50 Hz
Filter lowpass 24 dB slope 15 - 150 Hz
Bridge mode (master/slave selector) Yes
Max size for power cables 21 m m2 (4AWG)
Max size for speaker cables 10 m m2 (7AWG)
Power consumption, idle 1,5 A
Maximum current draw 120 A
Built-in fan cooling yes
Fuse 4 x 30A
Dimensions (mm) 67x392x250
Dimensions (inch) 2,63x15,42x9,84
Weight 6 kg (13,8 lb)
DLS Svenska AB
P.O. Box 13029
S-40251 Göteborg, Sweden
Tel: +46 31 840060
Fax: +46 31 844021
E-mail: info@dls.se
www.dls.se
Approval of electromagnetic compatability according
to the EEC Directive 95/54/EC
E 13 Approval No: 022495
We follow a policy of continuous advancement in
development. For this reason all or part of specifications
& designs may be changed without prior notice.
CAD11 include
RCA input and output
High level input with auto start
Continuous variable low pass crossover
Continuous variable subsonic crossover
Bass boost feature
Remote bass level control
Phase control cont. variable 0-180 degrees
Bridge mode master / slave selector
Electronic protection circuitry against
short-circuit, DC offset and thermal overload.
Installation
Before you begin installation
Before you begin you need to read the manual, to have
some tools, cables and other material available. There
is one such list of material on the following page.
Amplifier location
Important
Allow air circulation around the amplifier .
The DLS Classic series of amplifiers have a
compact design that allows great flexibility in
mounting. You can mount it under a seat or in the
trunk.
When you select a location, do remember that the
amplifier generates a lot of heat.
Choose a location where air can circulate freely
around the amplifier. Do not cover the amplifier with
carpets or hide behind trim panels.
Do not mount the amplifier in an inverted or upside
down position.
CAD11
Troubleshooting
If problems occur during the installation, or later,
this guide might help you to find out whats´s wrong.
The amplifier is dead:
1. Check power lead, ground and connections at
the amplifier using a multi meter.
2. Check the battery terminal connections.
3. Check the power lead fuse or circuit breaker. If
fuse damage continues, inspect the power lead
for short circuits.
4. Check the amplifier protection fuses. Are these
broken change to new ones with the same value.
If short circuiting continues, contact your local
DLS dealer. A fault may exist in the amplifier.
5. T o start the amplifier requires a remote voltage
of 9-15 volt. Check the voltage with a multi meter.
Amplifier protection fuse blows at low
volume:
One or more speaker cables are shorted. Make an
insulation test with a multi meter. The cables must
not have a connection to earth.
The amplifier turns off after 10-30 minutes:
The amplifier is overheating due to inadequate ventilation. Check mounting position is free from
obstruction.
Do this:
1. Move the amplifier to a place with better ventil-
ation.
2. Install one or two fans to cool down the heat sink.
3. Overheating can also be caused by an
impedance load below the level permitted.
No output from the speakers:
Check all locations and placements carefully before
making any cuts, drilling any holes or making any
connections.
This is the best direction to
mount the amplifier to get
the best cooling.
Disconnect Battery
Before starting the installation, always disconnect
the negative terminal of
the battery .
2
Check the following:
1. Speaker cable connections to both amplifier and
subwoofers.
2. Signal lead plugs and cables.
DLS logo on amplifier cooling flange
The DLS logo on top of the amplifier is attached
with two hex. screws. The logo can be removed
and twisted 90 or 180 degrees, and then screwed
back in wanted position. The logo can be mounted
in four different ways to match your installation.
CAD11

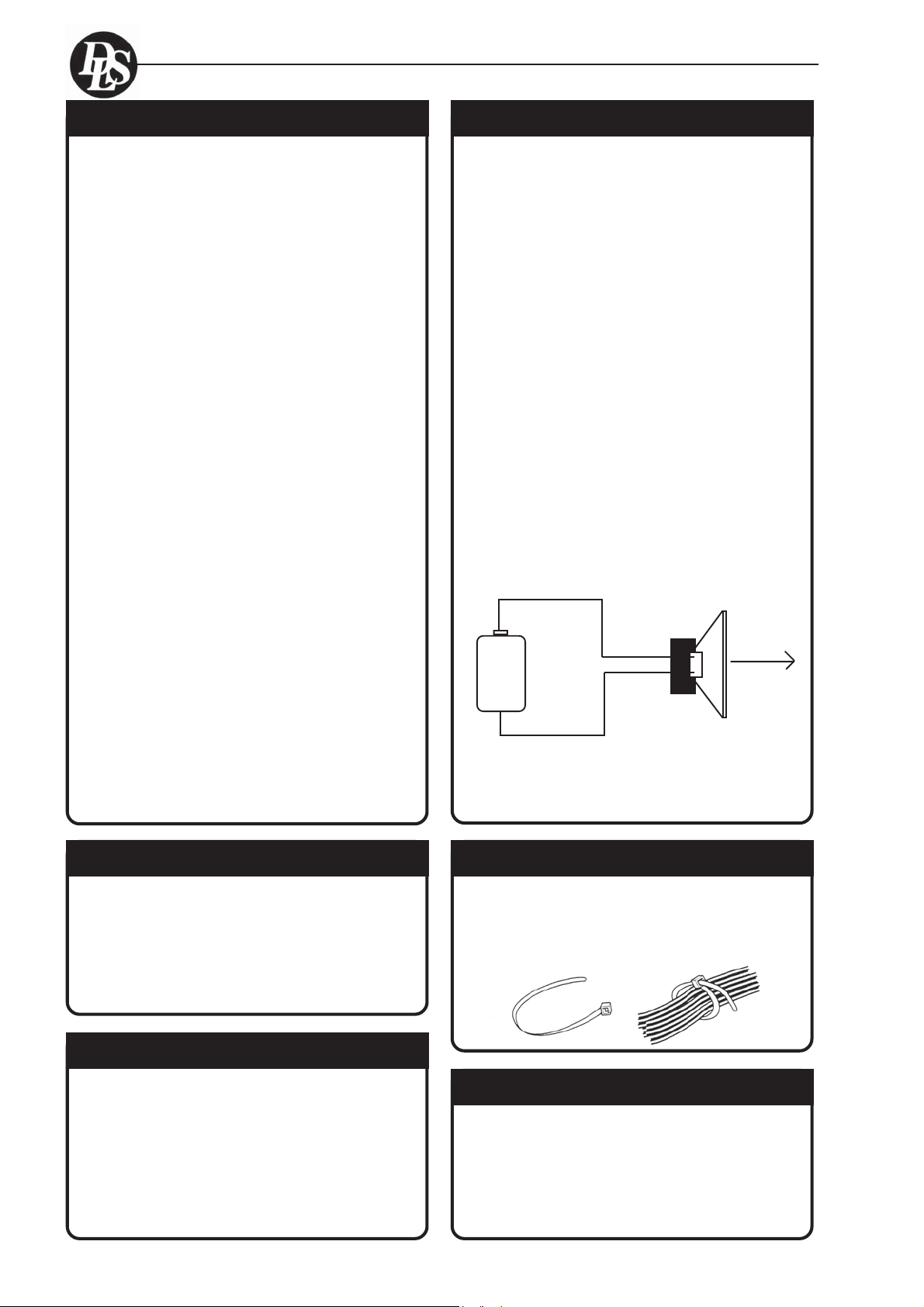

Tools and material needed
Tools:
Flat and Phillips screwdrivers
Wire cutter
Wire stripper
Electric drill with drills
Crimping tool
Digital multimeter or test lamp
Wire brush, scraper or a piece
of an abrasive sheet to remove
paint for a good ground connection
Grease to protect the ground
connection from corrosion
Material:
Speaker wire: minimum
12 A WG = 4 mm2 for subwoofers
Sheet metal screws for mounting the
amplifier to the amplifier board and the
amplifier board to the car + some extra
for fuse holder, amplifier ground etc.
Electrical insulation tape
Routing wires
Stereo
head unit
½ inch thick plywood or particle board for
the amplifier to be mounted upon.
Amplifier installation kit:
If available,buy an amplifier installation kit. It
contains normally all you need. This is what you
have to buy if you buy the items separately
20- 25 feet = 6- 7.5 meter power cable,
preferably A WG 4 = 21 mm2 or heavier
1 pc of fuseholder to install close to the
car battery + fuse 100 Ampere.
20 feet of AWG 15 = 1,5 mm2 wire for
remote turn on / off cable from radio.
RCA-cable for input from radio.
- 20 feet or 5 meter for trunk installations
-12 feet or 2 – 3 meter for under seat
installations
One min. 8 gauge ring crimp terminal
for the amplifier ground connection.
Wire ties
High current draw
The CAD1 1 is a mono amplifier with high power output.
The current draw is also high so you must make sure
that your vehicles power system (battery and alternator)
can provide all the power you need. If you have a bad
battery or alternator in can result in a poor sound or
even worse, a broken battery or alternator.
Insulating grommet or insulating tube
Professional Tip:
If amplifier installation kits are available with different size of power cable, chose the most heavy
power cable to improve sound quality and to allow
more amplifiers to be installed now or later.
If possible buy AWG 4 = PL 21 mm2 (or heavier)
cable for best performance.
3
