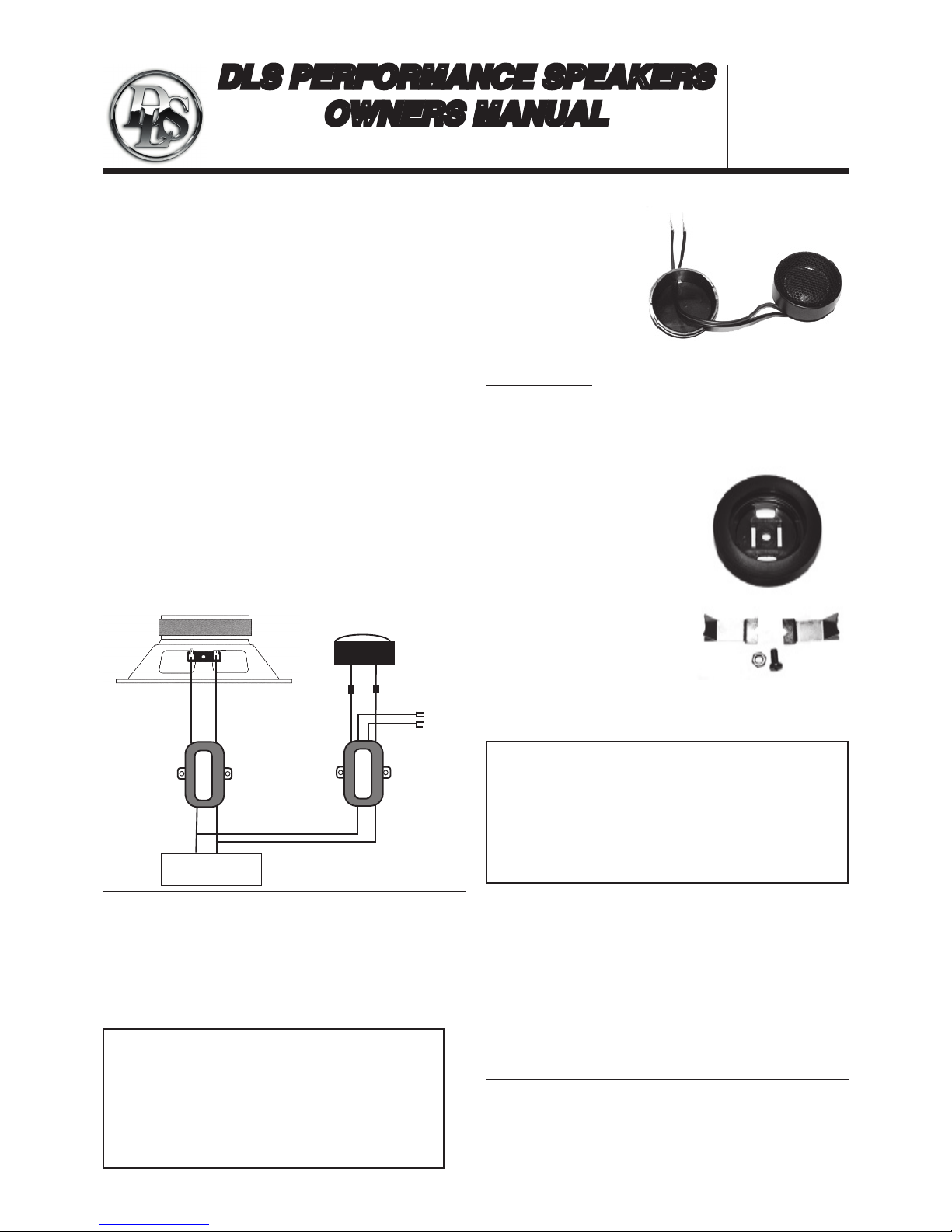

DLS PERFORMANCE SPEAKERS
OWNERS MANUAL
WELCOME
Thank you for buying a DLS Performance speaker.
These speakers are mainly design for installation in factory premade mounting holes.
Install the speakers yourself if you feel confident with our instructions and if you have the proper tools. However if you feel unsure,
turn over the installation job to someone better suited to it.
You can use this speaker to a normal Car stereo high power head
unit, but avoid connecting this speaker kit to an external amplifier.
INSTALLATION
Mount the speakers in the door or in the dashboard of your
car. Normally they will fit in the facory pre-made mounting holes. If you want an improved sound reinforce with a baffle of
MDF-board or similar. An installation high up on the door side
is to be prefered.
In many vehicles there are factory made places for tweeters
that you can use for installation. If this is impossible, try to Install the tweeter close to the bass/mid driver. The tweeter can
also be installed on the dash-board, or recessed in the door
with the accessories in the tweeter box.
It is important to fasten the speakers properly in order to avoid
bad sound or rattling.
The tweeters are equipped with an integrated filter in the
tweeter cabling.
Technical Assistance
For technical assistance ask the shop where the product was
sold or the distributor in your own country.You can always phone
the DLS Helpdesk in Sweden + 46 31 840060 or send an e-mail
to [email protected]
Information can also be found on our WEB-site www.dls.se
WARRANTY SERVICE
This speaker is covered by warranty, depending on the conditions
in the country where it is sold. If the speaker is returned for service, please include the original dated receipt with the product.
TWEETER INSTALLATION T16
T16 can be mounted on the
dashboard with the angled
cup (1), or recessed in a
doorside.
SURFACE MOUNTING:
Angled mounting: Put the cable through the hole in the rear
end of the angled cup. The tweeter is attached to the cup by
pressing them together. Attach the cup to the surface with the
double adhesive tape.
RECESSED
MOUNTING:
You need a hole with a diameter
of 43 mm/ 1,7”. Put the two metal
wings through the two tracks in
the center of the cup, just as the
picture shows, and attach them
with the M4 screw and nut through
the center hole. The cup is attached to the door side when the
metal wings is pressed to the back
side of the door.
Put the tweeter element into the
cup with the cable going out through the bottom hole. Then attach the element by putting it into
the cup.
3
4
FACTS ABOUT DLS T16 TWEETER
DLS Svenska AB
P.O. Box 13029
SE-40251 Göteborg, Sweden
Tel: +46 31 840060
Fax: +46 31 844021
E-mail: [email protected]
www.dls.se
TECHNICAL DATA
B5.2 B6.2
Impedance, ohm 4 4
Nomial power 60 W 60 W
Max power 120 W 120 W
Cone material Wool paper Wool paper
Woofer size 5,25” (13 cm) 6,5”(16,5 cm)
Magnet size 70 mm/2,76” 82 mm/3,22”
Sensitivity 91 dB 92 dB
Inst depth 45 mm/1,77” 60 mm/2,36”
Mounting hole 115 mm /4,53” 145 mm / 5,7”
Size 16 mm / 0,63”
Nom. power (RMS) 50 Watts, 80 Watts max
Freq. range 2 kHz-20 kHz
Sensitivity 91 dB
Magnet diameter 20 mm / 0,8” neodymium magnet
Mounting depth 20 mm / 0,8” (recessed mounting)
Mounting hole 43 mm / 1,7” (recessed mounting)
Cone material Mylar
Cable filter
High pass
(red)
Red + Black -
Yellow
Red
Cable filter
Low pass
(blue)
Black - Blue +
Car stereo or
amplifier
Filter installation B5.2 and B6.2
Tweeter
level select:
For High level
connect yellow
and red wire.
Disconnect for
Low level
Tweeter
Black - Blue +
Low pass
High pass
B5.2
B6.2
