DLoG ITC 7 User Manual
DLoG ITC 7
User’s Manual
1.00
This manual contains a detailed description of the product and we have made every
effort to make it as accurate as possible. However, this is not a guarantee of the features
or the functionality of the product.
We reserve the right to modify the contents of this document at any time and without
prior notice.
Because we at DLoG are constantly striving to improve this product, we cannot
guarantee that previous or subsequent releases of the product will correspond in every
respect with the product description given in this manual.
DLoG GmbH assumes no liability for technical inaccuracies, typographic errors or faults
in this documentation. DLoG GmbH also assumes no liability for damages caused
directly or indirectly by the delivery, performance or usage of this material.
The software and hardware designations used in this documentation are in most cases
also registered trademarks and are thus subject to law.
Windows® is a registered trademark of Microsoft Corporation in the United States (US)
and other countries.
This documentation is protected by copyright. Duplication, in whole or in part, is not
permitted without prior written approval of DLoG GmbH!
Title of documentation: User’s Manual DLoG ITC 7
Documentation completed on: 13th of May 2009
Version: V1.00
Product number: 885212E
© Copyright 2009
DLoG GmbH
Industriestraße 15
Technical customer support
If you experience technical difficulties,
please consult your distributor or contact
D-82110 Germering
Germany
All rights reserved
the technical services department at
DLoG’s headquarters:
(+49) 89 / 41 11 91 0
www.dlog.com
Table of contents
1. About this manual..................................................................................1
1.1. For qualified personnel................................................................................................1
1.2. Keep this manual.........................................................................................................1
1.3. Design method ............................................................................................................2
1.3.1. Risk of injury or death.............................................................................................2
1.3.2. Danger of property damage ...................................................................................3
1.3.3. Hints .......................................................................................................................3
1.3.4. Additional design elements ....................................................................................3
2. Basic safety guidelines..........................................................................5
2.1. Area of application ......................................................................................................5
2.2. Initial operation of the device ......................................................................................6
2.3. Power supply, External peripheral devices.................................................................7
2.4. Repairs only through DLoG.........................................................................................8
2.5. Exchanging and extending modules ...........................................................................9
2.6. CE Marking................................................................................................................10
3. Device description................................................................................11
3.1. General......................................................................................................................11
3.2. Intended usage..........................................................................................................11
3.3. Device type plate.......................................................................................................12
3.4. Abbreviations used for devices and accessories......................................................13
3.5. Technical specifications ............................................................................................13
3.5.1. Mechanical ...........................................................................................................13
3.5.2. Motherboard .........................................................................................................14
3.5.3. LCD/CRT interface ...............................................................................................15
3.5.4. Touch screen (optional)........................................................................................15
3.5.5. Network interface..................................................................................................16
3.5.6. Environmental conditions .....................................................................................16
3.5.7. Test marks............................................................................................................16
3.5.8. AC power pack .....................................................................................................17
3.5.9. Maximum power available for peripheral devices................................................17
3.5.10. Power supply fuses .........................................................................................17
3.6. Dimensions DLoG ITC 7........................................................................................... 18
3.7. VESA drill holes ........................................................................................................20
4. Unpacking the device ..........................................................................21
4.1. Scope of delivery ......................................................................................................21
4.2. Packaging .................................................................................................................21
4.3. Returning your device...............................................................................................21
5. Initial operation.....................................................................................22
5.1. Cooling through the supply of fresh air.....................................................................22
5.1.1. Temperature behavior on the back of the device ................................................22
5.2. Connections in the service lid...................................................................................23
5.3. Connections under the cable cover ..........................................................................25
5.3.1. DC power supply connections .............................................................................26
5.4. Connecting external devices.....................................................................................27
5.4.1. Powering down the DLoG ITC 7 ..........................................................................27
5.4.2. Powering up the DLoG ITC 7...............................................................................27
5.5. Removing the protective film ....................................................................................28
5.6. Powering up the DLoG ITC 7....................................................................................28
5.6.1. Avoid contact with touch screen during booting ..................................................28
5.7. Protecting the TFT display from the memory effect..................................................29
6. Accessories..........................................................................................30
6.1. Keyboard...................................................................................................................30
6.2. Mouse .......................................................................................................................30
6.2.1. Touch operation and mouse ................................................................................30
6.3. External DVD-ROM drive.......................................................................................... 31
6.4. USB Stick..................................................................................................................32
6.5. Scanners...................................................................................................................32
7. Mounting ...............................................................................................33
7.1. Options for mounting the device ...............................................................................33
7.2. Stationary use only....................................................................................................33
7.3. Follow and retain the installation instructions ...........................................................34
7.4. Power supply.............................................................................................................34
7.4.1. Installing connecting cables .................................................................................34
7.5. Cable cover (splash guard).......................................................................................35
7.5.1. Preparations .........................................................................................................36
7.5.2. Cable layout and assembly ..................................................................................37
7.6. Mounting the service lid ............................................................................................42
8. Operation...............................................................................................43
8.1. Touch screen.............................................................................................................43
8.1.1. Dirty touch screen surface....................................................................................43

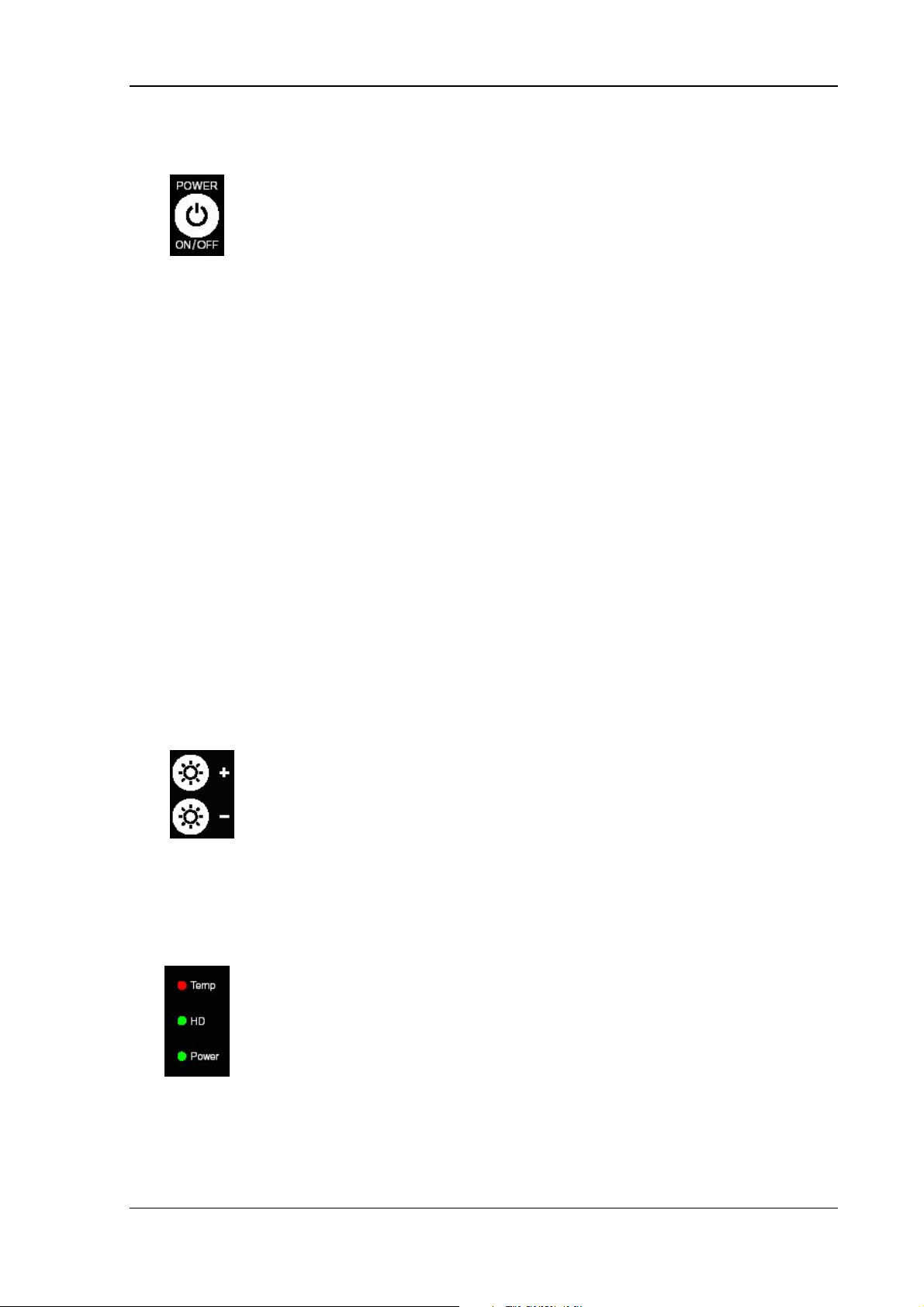

8.2. Operation controls.....................................................................................................44
8.2.1. Keys on the front of the device.............................................................................44
8.2.2. Power key.............................................................................................................45
8.2.3. Manual brightness control, backlighting ...............................................................45
8.2.4. LEDs.....................................................................................................................45
9. Operating system.................................................................................47
9.1. Pre-installed on the hard drive/CompactFlash..........................................................47
9.2. Installing on the hard drive/CompactFlash................................................................48
9.2.1. Operating systems supplied on CD-ROM ............................................................48
9.2.2. Operating system images.....................................................................................49
9.3. Special features of the operating systems................................................................49
9.3.1. MS-DOS ...............................................................................................................49
9.3.2. MS Windows XP Embedded ................................................................................49
10. Software applications.......................................................................50
10.1. Displaying the DLoG ITC 7 configuration..................................................................50
10.2. Fine tuning the operating system parameters...........................................................50
10.3. Environment controller settings.................................................................................51
11. Touch screen....................................................................................53
11.1. Operation ..................................................................................................................53
11.2. Mouse compatibility ..................................................................................................53
11.3. Explanation of functions and resources....................................................................54
11.4. Driver installation and calibration..............................................................................55
11.4.1. MS-DOS ..........................................................................................................55
11.4.2. Touch Serial for MS Windows XP ...................................................................57
11.4.3. Touch PS/2 for MS Windows XP ....................................................................59
11.5. Right clicking.............................................................................................................60
11.6. Resistance ................................................................................................................61
12. Serial ports........................................................................................62
12.1. Resources.................................................................................................................62
12.2. COM1 options...........................................................................................................62
12.3. Drivers....................................................................................................................... 63
12.4. Serial port printers.....................................................................................................63
12.5. Serial port barcode scanners....................................................................................63
12.6. Tips & tricks ..............................................................................................................64
13. Internal devices ................................................................................65
13.1. Chipset......................................................................................................................65

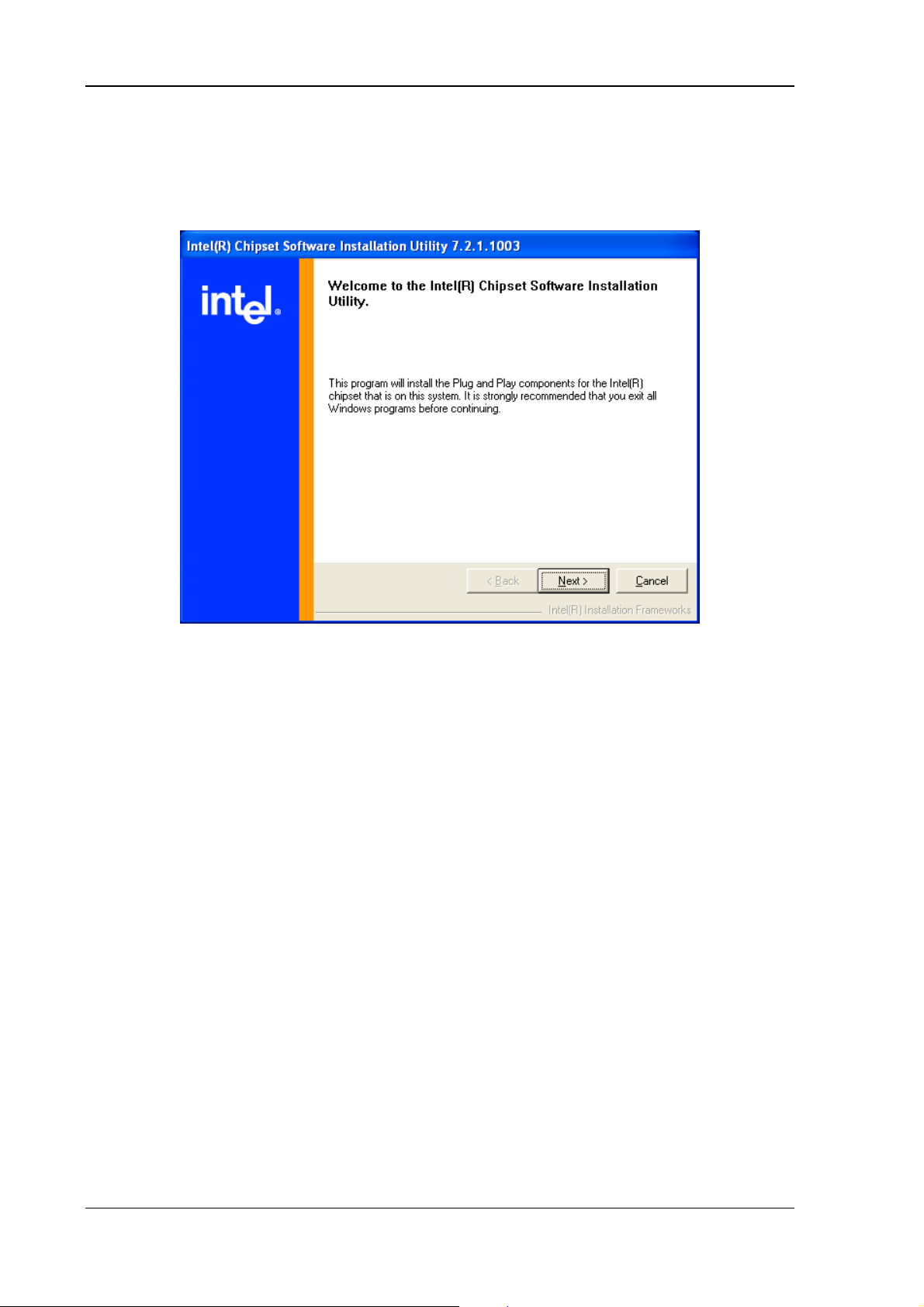

13.1.1. Installing chipset drivers under MS-DOS ........................................................65
13.1.2. Installing chipset drivers under MS Windows XP............................................ 65
13.2. VGA adapter .............................................................................................................67
13.2.1. VGA driver installation under MS-DOS...........................................................67

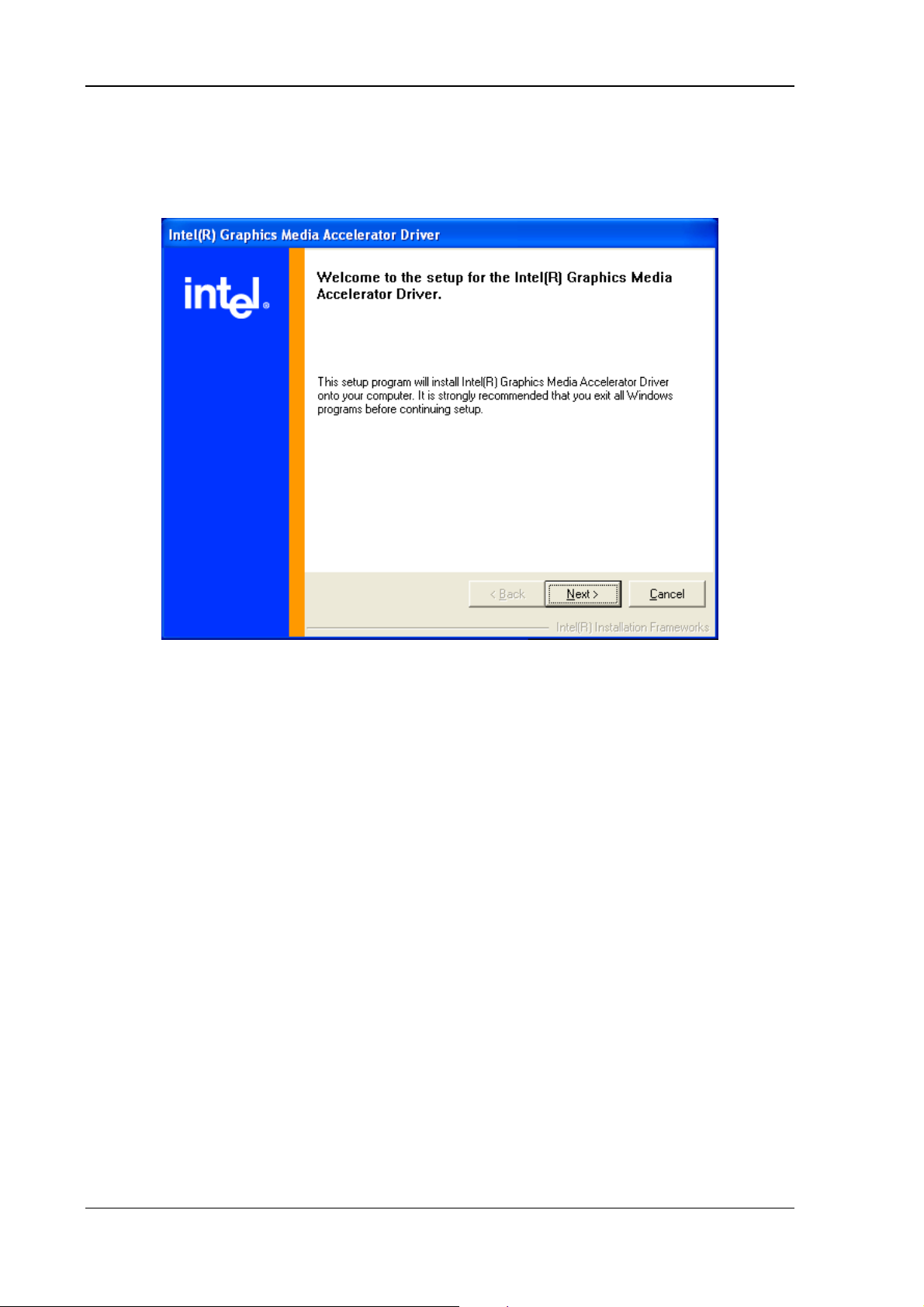

13.2.2. VGA driver installation under MS Windows XP ..............................................67
13.3. Network adapter (10/100) .........................................................................................69
13.3.1. Problems with data transmission via LAN/Ethernet ........................................69
13.3.2. Network driver installation under MS-DOS .....................................................70

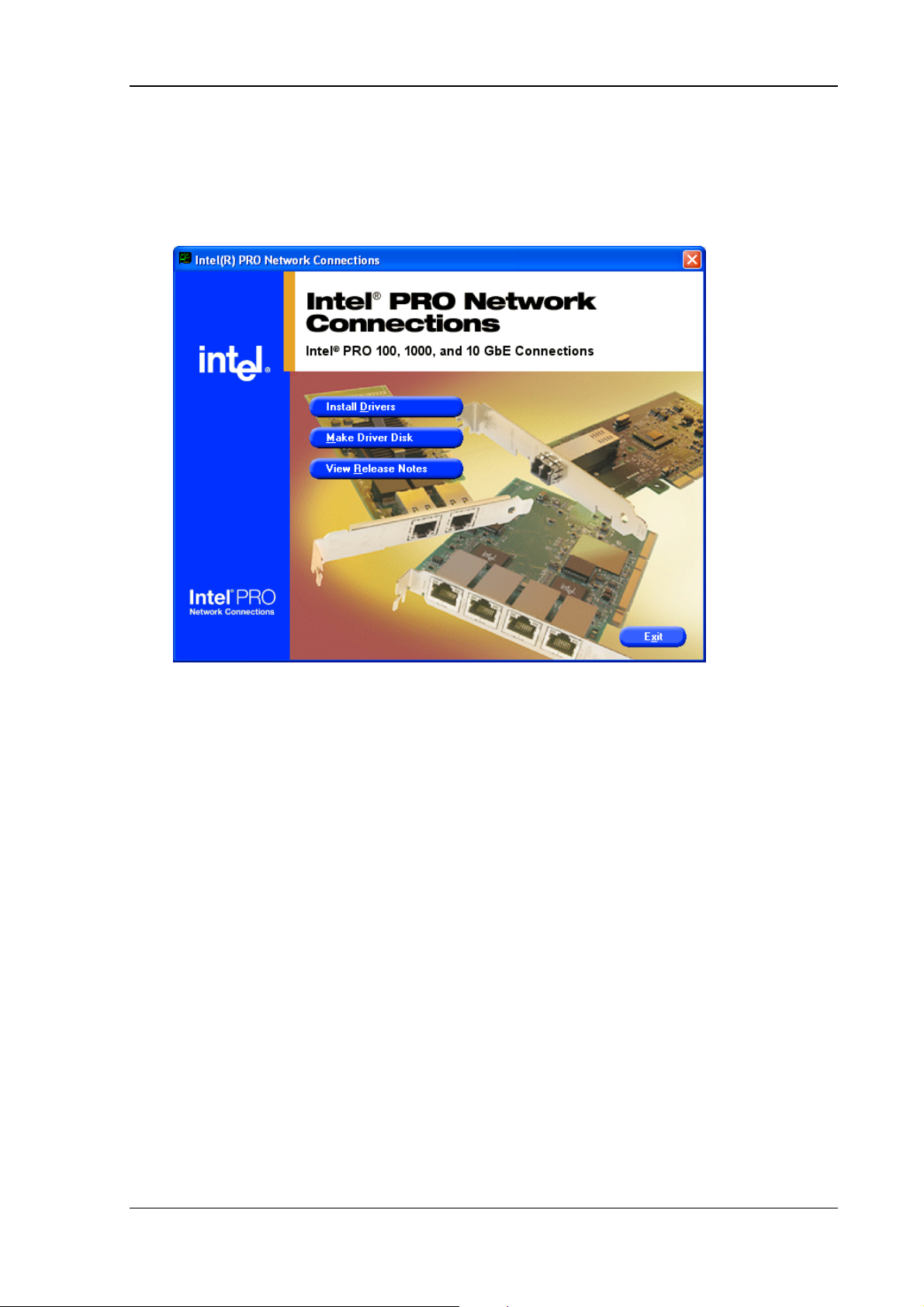

13.3.3. Network driver installation under MS Windows XP.........................................70
13.4. Onboard sound adapter............................................................................................72
13.4.1. Installation of the onboard sound adapter drivers (Windows XP)...................72
14. Common mistakes in usage ............................................................73
14.1. Power supply.............................................................................................................73
14.2. Powering up/down.....................................................................................................73
14.3. Cable cover ...............................................................................................................73
14.4. Mounting....................................................................................................................73
14.5. Using the touch screen .............................................................................................74
14.6. Use/storage in extreme temperatures.......................................................................74
15. Troubleshooting................................................................................75
15.1. COM1 / COM2 data transmission .............................................................................75
15.2. Data transmission via LAN / Ethernet .......................................................................77
16. Maintenance......................................................................................78
16.1. Cleaning the housing ................................................................................................78
16.2. Touch screen cleaning..............................................................................................78
17. Disposal.............................................................................................78
18. Return packing slip...........................................................................79
Index..............................................................................................................80
List of figures
Figure 2.1: CE Marking.....................................................................................................10

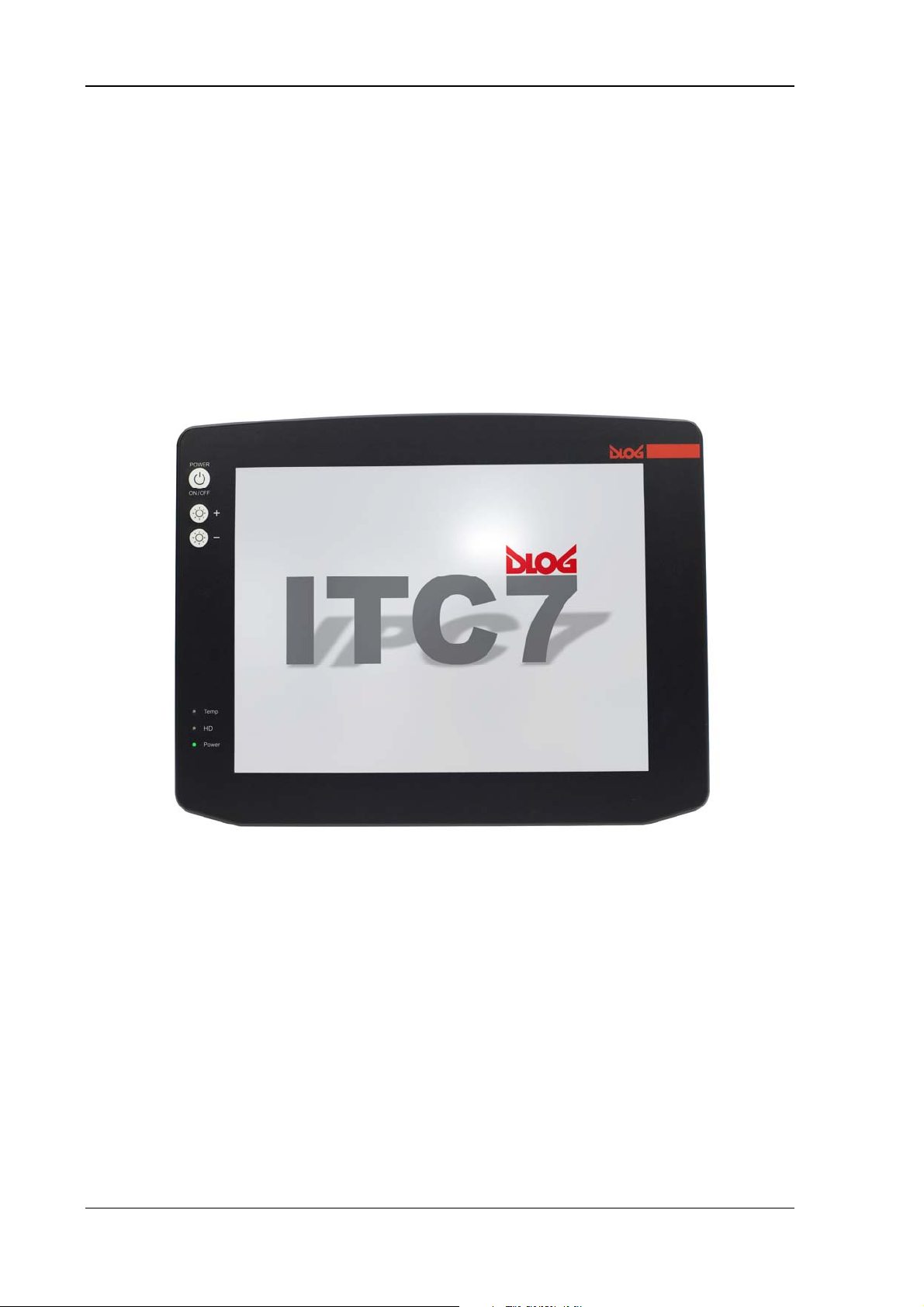

Figure 3.1: DLoG ITC 7 ....................................................................................................11
Figure 3.2: Device type plate (example)........................................................................... 12

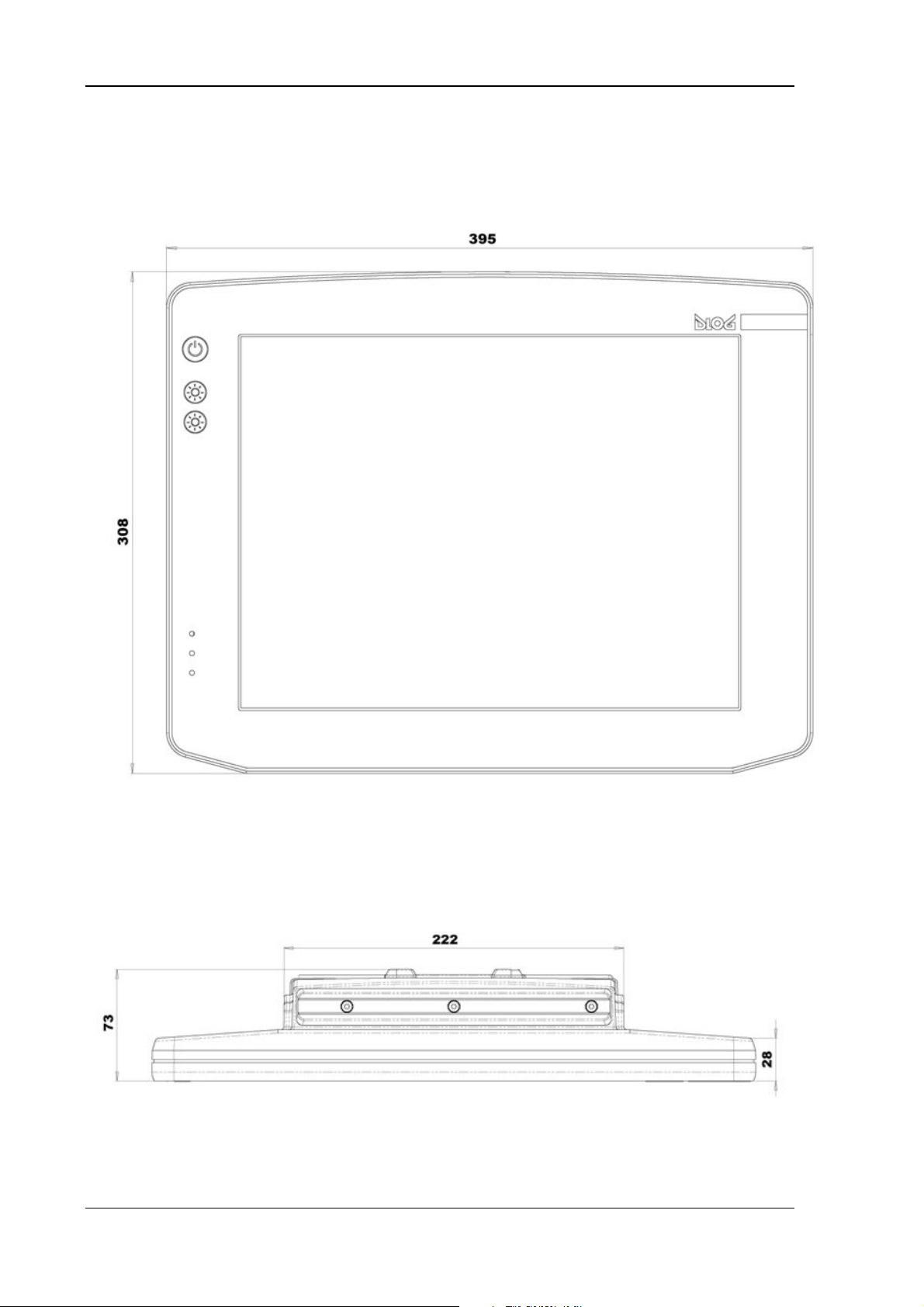

Figure 3.3: Dimensions DLoG ITC 7 front view................................................................18
Figure 3.4: Dimensions DLoG ITC 7 top view ..................................................................18

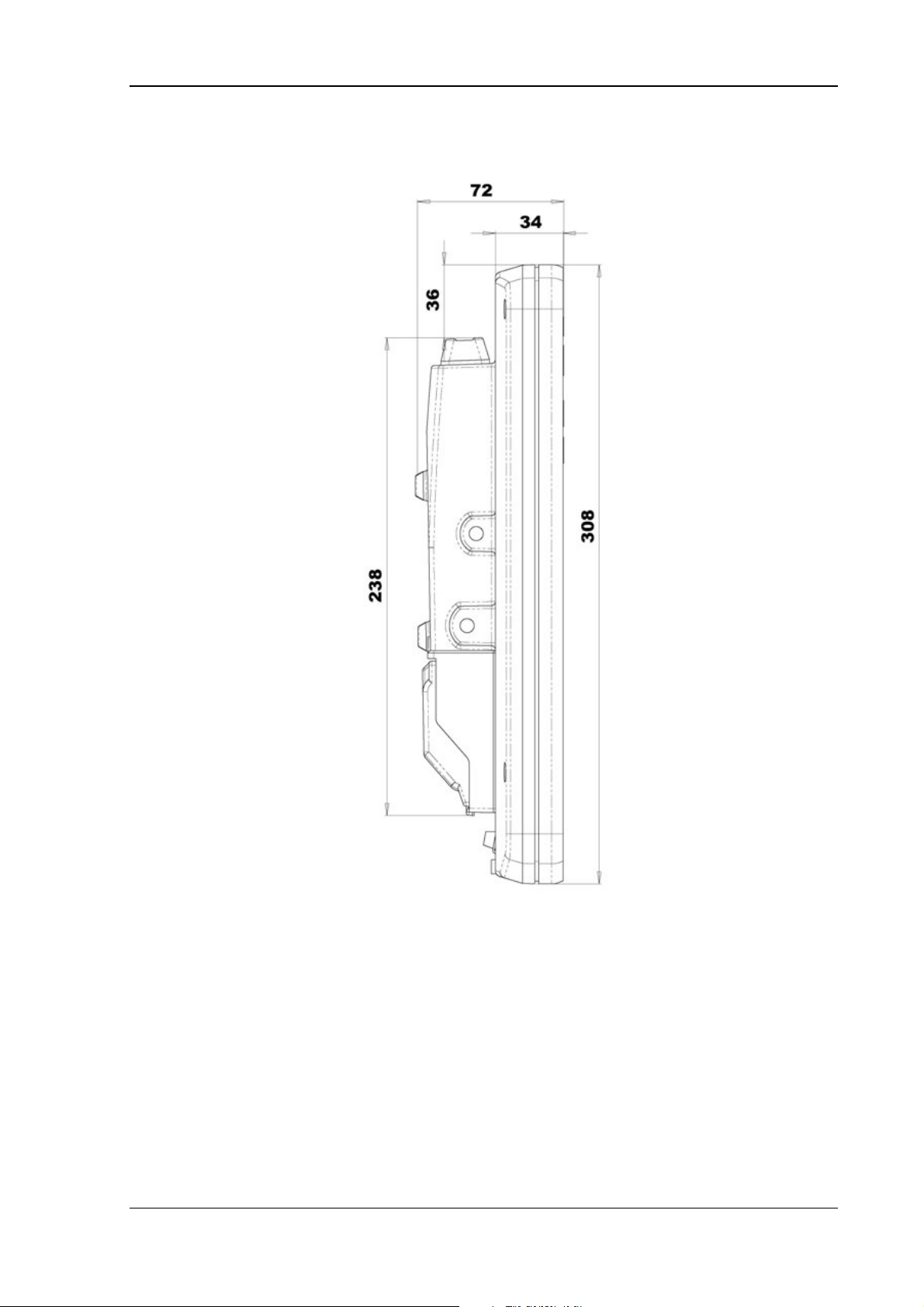

Figure 3.5: Dimensions DLoG ITC 7 side view ................................................................19
Figure 3.6: VESA drill holes DLoG ITC 7 ......................................................................... 20
Figure 5.1: Service lid closed ...........................................................................................23
Figure 5.2: Service lid open.............................................................................................. 23
Figure 5.3: Closed cable cover......................................................................................... 25
Figure 5.4: External connections under the cable cover ..................................................25
Figure 5.5: Outside view of DC connection plug ..............................................................26
Figure 5.6: Power supply connection with external power supply....................................26
Figure 7.1: DLoG ITC 7 with cable cover mounted ..........................................................35
Figure 7.2: Sealing sleeves ..............................................................................................36
Figure 7.3: Cable cover seals...........................................................................................37
Figure 7.4: Separate the sealing sleeves .........................................................................37
Figure 7.5: Sleeve around a cable ...................................................................................38
Figure 7.6: Strain relief clamps.........................................................................................38
Figure 7.7: Wrong cable layout.........................................................................................39
Figure 7.8: Correct cable layout ....................................................................................... 39
Figure 7.9: Cable with the strain relief clamp ...................................................................40
Figure 7.10: Cable cover with three hooks.......................................................................40
Figure 7.11: Cable cover mounted ...................................................................................41
Figure 8.1: DLoG ITC 7 front panel ..................................................................................44
Figure 11.1: "Files Needed" touch installation dialog .......................................................58
Figure 11.2: "Setup Message" touch installation dialog ................................................... 59
Figure 13.1: Welcome screen for chipset driver installation.............................................66
Figure 13.2: Welcome screen for the VGA driver installation...........................................68
Figure 13.3: RJ45 network port ........................................................................................69
Figure 13.4: Network driver installation license agreement..............................................70
Figure 13.5: Start screen for network driver installation ...................................................71
Figure 13.6: Welcome screen for the onboard sound adapter drivers .............................72
About this manual
1. About this manual
This manual has been designed to make using the DLoG ITC 7 as simple as possible
and provide expert assistance if problems should occur. It contains important information
on using the device safely, properly and efficiently.
Adhering to the manual helps by avoiding dangers, reducing repair costs and breakdown
times and increasing the reliability and lifespan of the DLoG ITC 7.
DLoG GmbH will not assume responsibility for any damage caused by the improper use
of the DLoG ITC 7 and/or in disregard of the instructions in this manual.
WARNING
Before transporting, assembling, and starting the DLoG ITC 7,
please read this manual carefully and follow all the safety notices
listed.
Follow all basic safety guidelines and the safety notices in the
individual chapters.
Within this manual, DLoG GmbH strives to provide all the information required for using
your DLoG ITC 7. However, because this is a versatile product that can be used in many
different scenarios, we cannot guarantee that the information contained in this manual
will cover every single aspect. Should you require further information or if you have
questions or issues needing clarification, please contact your nearest DLoG agent or
representative.
1.1. For qualified personnel
This manual was written for qualified personnel. The information is intended exclusively
to complement the expertise of qualified personnel , not to replace it.
1.2. Keep this manual
Please keep this manual in a safe place. It should always be at hand near the described
device.
DLoG ITC 7 User’s Manual 1
About this manual
1.3. Design method
1.3.1. Risk of injury or death
This symbol indicates hazards that pose a risk to life and limb (such as contacting the
power supply):
The following levels apply, denoted by the keywords DANGER, WARNING, and
CAUTION:
DANGER
There is an immediate risk of death / serious injury.
WARNING
There is a possible risk of death / serious injury.
CAUTION
Mild injury is possible.
2 User’s Manual DLoG ITC 7
About this manual
1.3.2. Danger of property damage
These tips warn you of possible property damage:
Caution:
Property
damage
This symbol warns you of any dangers or hazards that could
potentially cause damage to the terminal or system (such as
malfunctions, data loss, equipment damage, etc.).
1.3.3. Hints
This symbol indicates hints that help you to understand how to use
the product or the manual.
1.3.4. Additional design elements Lists are indicated with bullet points, for example:
• Cable cover
• Power pack
Instructions are numbered, for example:
1. Connect the DLoG ITC 7.
2. Press <POWER> key.
Parameter descriptions (e.g., of a dialog)
Ignition off This parameter is used to set,…
Delay time This indicates the delay time.
Switch-off time The switch-off time should be at least…
Key display
Key names are shown in angle brackets: <F1>, <Ctrl>, <Insert>, <Home>, etc.
DLoG ITC 7 User’s Manual 3
About this manual
Menu options, commands, dialog fields
Examples: In the Edit menu you will find the command Paste | Values.
Click OK to finish.
Entries
Any text that needs to be entered is shown in Courier font, for example:
1. Enter the text abcdefg.
Other methods for emphasis
Any other emphasized text elements are highlighted in bold or underlined
References to other chapters in the manual are printed in italics.
.
4 User’s Manual DLoG ITC 7
Basic safety guidelines
2. Basic safety guidelines
The DLoG ITC 7 was designed and built according to modern technology and accepted
safety regulations. However, the operation of the DLoG ITC 7 can endanger personnel or
third parties and cause damage to the device and other material assets when for
example the device is
• operated by untrained or uninformed personnel.
• not operated correctly.
• operated and maintained incorrectly.
WARNING
Improper use of the unit can lead endanger the user.
Failure to comply with the safety guidelines can lead to damage to
the equipment or even to dangerous injury to personnel.
The operator commitments in regards to safety (accident
prevention regulations, work protection) are to be followed.
2.1. Area of application
The device is not designed for use in life-support systems or critical safety systems
where system malfunction can lead to the direct or indirect endangerment of human
life. The operator shall take full responsibility for using the device in these situations.
DLoG ITC 7 User’s Manual 5
Basic safety guidelines
2.2. Initial operation of the device
Choice of location
The ambient conditions at the point of installation must comply with the device’s
protection class.
Installation/initial operation
The device is not supplied with a disconnector (switch) that can be accessed
externally. The power supply connector is therefore used as a disconnector. Therefore
it needs to be easily accessible. If it is necessary to establish a fixed connection, an
easily accessible disconnecting device (e.g. a switch such as a circuit breaker) should
be installed close to the device. Ensure that the power cable is laid so that it is
mechanically protected.
The power supply cables must be laid in accordance with the applicable local
installation regulations.
Risk of injury during transit or installation
The unit could fall during transit or installation and cause injury. Always ensure that
there are two persons available when installing or removing the device.
Supply of fresh air
The DLoG ITC 7 is based on a passive cooling concept. During passive cooling, the
waste heat generated inside the device is emitted from the surface of the housing.
For this system to function properly, sufficient fresh air circulation is required. Never
install the system in a closed environment where the cooling air is unable to dissipate
accumulated heat to the outside.
If the DLoG ITC 7 is not able to draw in fresh cooling air, this may cause overheating
and severe damage to the unit.
The maximum allowed ambient temperature for the system needs to be taken into
account for the concrete application area.
6 User’s Manual DLoG ITC 7
Basic safety guidelines
2.3. Power supply, External peripheral devices
Low voltage networks
DLoG ITC 7 devices with AC power pack should only be connected to TN and TT
networks. IT networks are not permitted as dangerous electric shocks cannot be ruled
out here.
Operation in an emergency
In case of emergency (such as damage to the power cable , or housing, or ingress of
liquid or other foreign bodies), the device must be disconnected immediately from the
power supply. Contact technical support staff at once.
Danger of electrocution when cleaning/servicing the device
In order to avoid electrocution always disconnect the DLoG ITC 7 from the power
supply before cleaning or servicing the device.
Wiring
Do not use the DLoG ITC 7 when a cable or plug is damaged. Have the damaged
parts replaced immediately!
Do not connect or disconnect any cables during storms
Data cables must never be connected or disconnected during an electrical storm.
External peripheral devices
The use of additional wiring and other peripheral devices, which are not recommended
or sold by the manufacturer can result in fire, electrocution or personal injury.
If a power supply is used, only use the power supply recommended by the
manufacturer.
Before connecting or disconnecting peripheral devices (exception: USB devices), the
DLoG ITC 7 must be disconnected from the power supply! Otherwise, this could
seriously damage both the DLoG ITC 7 nd the connected devices!
Make sure that external peripheral devices with their own power supply are switched
on at the same time
If this is not possible, please ensure that the DLoG ITC 7 is adequately protected from
power leakage caused by an external device.
DLoG ITC 7 User’s Manual 7
or after you start the DLoG ITC 7.
Basic safety guidelines
2.4. Repairs only through DLoG
As a rule, never carry out repairs on the device yourself. Always contact DLoG’s
technical support and send in your unit for repair if necessary.
On the back of the DLoG ITC 7 you will find the device’s type plate which has
important information about the device which you must quote for technical service. It
provides important information about the configuration and manufacture of the device
in abbreviated form.
Always provide technicians with the full model name and serial number.
8 User’s Manual DLoG ITC 7
Basic safety guidelines
2.5. Exchanging and extending modules
Replacement and extension by qualified personnel
Only personnel trained by DLoG or skilled personnel qualified in the electronic or
electrical engineering areas are authorized to carry out module extensions or module
replacements on the DLoG ITC 7.
No battery changes
Some functional groups of the DLoG ITC 7 motherboard are powered by a lithium ion
battery which is fixed to the motherboard.
This battery should not be replaced under any circumstances, as this requires
soldering! Should a battery replacement be necessary, the device must be sent to
DLoG. Changing the battery yourself will instantly void all present and future
guarantee and liability claims.
WARNING
Using an unsuitable battery type or incorrectly installing it may
cause the battery to explode.
Extending modules
When extending or replacing modules, only use components approved by DLoG for
use in the DLoG ITC 7. Each time before installing a component, please contact DLoG
to ensure that the desired module can be replaced or installed.
When extending modules, proceed with utmost caution.
Any damage caused while installing or replacing modules will instantly void all present
and future guarantee and liability claims.
Damage to the computer system
To avoid damage to the motherboard and/or other computer components, only install
modules in the designated slots.
Never physically touch the motherboard or any electrical components in a non-ESDprotected area, as this may cause damage to the motherboard.
Before physically touching motherboards or electrical components, make sure that you
are working within an ESD-protected area.
DLoG ITC 7 User’s Manual 9
Basic safety guidelines
Avoid system overloads
To avoid system overloads, check the sum load of all components installed.
Make sure that the input current for each consumer falls within the appropriate
boundaries (see: the technical data for each corresponding consumer).
2.6. CE Marking
Warning! This is a class A device. This equipment may cause interference in a residential
installation. In this case the user is encouraged to perform appropriate measures to
correct the interference.
Figure 2.1: CE Marking
Use care in airplanes or in clinical/medical areas
Some devices in hospitals and airplanes are not protected from radio frequency
energy. Consequently, do not use the DLoG ITC 7 in airplanes or hospitals without
prior authorization. Here use of the DLoG ITC 7 is only permitted if authorization is
obtained.
Caution with pacemakers
Do not use the DLoG ITC 7 near pacemakers. The DLoG ITC 7 can affect the function
of medically implanted devices such as pacemakers and create interference. Do not
place the DLoG ITC 7 near such devices.
Keep a minimum distance of 20 cm between such a device and the DLoG ITC 7 in
order to reduce the risk of interference.
If you have reason to assume that interference has occurred, then turn the DLoG ITC
7 off and consult a heart expert.
10 User’s Manual DLoG ITC 7
Device description
3. Device description
3.1. General
Thank you for choosing the DLoG ITC 7.
The DLoG ITC 7 is an industrial PC guaranteeing the lowest possible Total Cost of
Ownership – for the most reliable possible use in production, for visualization, and in any
other applications where it is important to ensure long-term, reliable operation in harsh
conditions. With its 15" touch screen, the DLoG ITC 7 is the ideal product for efficient,
simple work.
Figure 3.1: DLoG ITC 7
3.2. Intended usage
The DLoG ITC 7 is an industrial PC for stationary use in industrial areas, for example in
production (for usage classes, see section
extraordinary usage is not permitted. For resulting damage the user/operator of the
DLoG ITC 7 is solely responsible. This also applies to any changes you make to the
device. Compliance with the contents of the safety guidelines is particularly important for
the proper use of this device.
DLoG ITC 7 User’s Manual 11
7.2 Stationary use only). A different or
Device description
3.3. Device type plate
The device type plate on the DLoG ITC 7 contains the device description and type
identification:
DLoG ITC 7/015 Describes the device DLoG ITC 7.
XGA Display resolution
e.g. 12 V
with 3 A
e.g. 1 GHz Clock rate of the CPU
S/N .... 12 digit serial number composed of:
Example of a device type plate:
Input voltage of the power supply with nominal current
DLoG specific device code (37 stands for the
DLoG ITC 7 model range)
Indication of week and year of manufacture
Six digits for internal DLoG identification
Figure 3.2: Device type plate (example)
12 User’s Manual DLoG ITC 7
Device description
3.4. Abbreviations used for devices and accessories
Please note that to save space on the DLoG ITC 7 and supplied accessories, the
following abbreviations have been used:
Abbreviation Explanation
+ DC+
- DC-
3.5. Technical specifications
3.5.1. Mechanical
Housing Rugged aluminum-cast housing with integrated heat sink
Protection class IP 54
ESD safe
Weight: 6,2 kg
Dimensions: read section
Display panel 15" Color TFT
XGA
1024 x 768
250 cd/m
DLoG specific resistive Touch-Screen
Manual brightness adjustment
Top Service lid
Bottom Cable cover
2
3.6 Dimensions DLoG ITC 7
DLoG ITC 7 User’s Manual 13
Device description
3.5.2. Motherboard
CPU Intel® Celeron® M, 1 GHz, ULV, 0 KByte cache, FSB 400 MHz
Chipset Intel® 82910 GML Northbridge and Grafikchip
®
82801 FBM ( ICH6-M) Southbridge
Intel
Cache 64 kB Level 1 Cache, 0 kB Level 2 Cache
RAM 512 up to 1024 MBytes in one SO-DIMM-Slot
DDR2-Technology
BIOS AMIBIOS8® -1 MByte Flash BIOS with ACPI, PnP
Programmable in the system,
BIOS POST Selftest
Real-time clock Real-time clock with a power reserve of up to 10 yearse
IDE Interface Supports one IDE device from PIO-Mode 3/4 to UDMA/33.
Connection via a 44-pin connector (2 mm grid).
Connectable devices:
- 2.5" hard drives
- CompactFlash type I/II
Note for Hard Drives and CompactFlash Cards:
Only use models approved and released by DLoG to ensure the
device functionality. Otherwise data loss could increase.
Enquire which capacities are currently available.
Floppy disk drive Supports an external 3.5” USB floppy disk drive
Protected to ESD level 4 (according to EN 61000-4-2)
External
(accessible)
1st serial port:
115200 Baud max (16550A compatible, 16 bytes FIFO),
Serial ports
supports RS-232 on an external 9-pin D-Sub connection
ESD level 4 protected (acc. to EN 61000-4-2)
2nd serial port:
115200 Baud max (16550A compatible, 16 bytes FIFO),
supports RS-232 on an external 9-pin D-Sub connection
ESD level 4 protected (acc. to EN 61000-4-2)
14 User’s Manual DLoG ITC 7
Device description
Keyboard/Mouse
connection
Keyboard/mouse: 6-pin mini DIN connector, combination
connector
Y cable for PS/2 keyboard and mouse required
Internally-protected power supply for keyboard and mouse
ESD level 4 protected (acc. to EN 61000-4-2)
USB-connection 2 stacked USB connections (USB 2.0 High Speed) with 0.5 A per
port protected by fuse
ESD level 4 protected (acc. to EN 61000-4-2)
1 USB connector (USB 2.0 High Speed) with 0.5 A per port
protected by fuse
ESD level 4 protected (acc. to EN 61000-4-2)
Under the service lid
Software
compatibility
MS-DOS 6.x
MS Windows XP Professional
MS Windows XP Embedded
3.5.3. LCD/CRT interface
VGA controller Integrated Intel® Graphics Media Accelerator 900 with up to
224 MByte Dynamic Video Memory Technology (DVMT 3.0)
Shared memory architecture
3.5.4. Touch screen (optional)
Analog touch
controller resistive
12bit touch controller for 4-/5-/8-wire resistive touch screens with
RS232 and PS/2 interface.
Drivers available for MS-DOS 6.2x, MS Windows XP
Professional, MS Windows XP Embedded
Analog touch
connection
Internal plug-in connector
Interface is ESD level 4 protected (acc. to EN 61000-4-2)
DLoG ITC 7 User’s Manual 15
Device description
3.5.5. Network interface
Network controller Intel® ICH6M with PHY Intel® 82562 controller: 10/100 MB/s
Drivers available for MS-DOS 6.2x, MS Windows XP
Professional, MS Windows XP Embedded
Network connection RJ45 plug-in connector
Integrated transmitter
Two integrated status LEDs
3.5.6. Environmental conditions
Operating temperature Specifications in accordance with EN 60068-2-1/2
0 °C to +50 °C
Storage temperature Specifications in accordance with EN 60068-2-1/2
0 °C to +50 °C
Relative humidity 10% to 90% @ 40 °C, non-condensating
Mechanical vibration
and shock-resistance
Class 5M1 according to DIN-EN 60721-3-5: 1997,
5 hrs with 3.6 g effective noise and 36 vibrations with 30 g
peaks.
Or MIL-STD 810F: 2000 (Department of Defense), 3 hrs with
1 g effective noise and 600 vibrations with 20 g peaks in
operation
3.5.7. Test marks
CE EN 55022 Class A
EN 55024, EN 61000-3-2, EN61000-3-3, EN 61000-6-2
IEC 60950-1, EN 60950-1, UL 60950-1
IP protection IP 54
16 User’s Manual DLoG ITC 7
Device description
3.5.8. AC power pack
The DLoG ITC 7 has an external AC power supply with the following technical data:
• 100 - 240 VAC
• 1,5 A
• 50 up to 60 Hz
• Maximum output 66 W
WARNING
DLoG ITC 7 devices with AC power pack should only be
connected to TN and TT networks. IT networks are not permitted
as dangerous electric shocks cannot be ruled out here.
The DLoG ITC 7 may only be operated with the AC power supply
Caution:
Property
damage
provided by DLoG!
Operating the DLoG ITC 7 without the AC power supply provided
can irreparably damage the DLoG ITC 7.
3.5.9. Maximum power available for peripheral devices
The following maximum power may be drawn from the external interfaces of the
DLoG ITC 7:
• USB: 2.5 W per interface
• COM1 and PS/2: a total of 5 W
• In all, the total power drawn may not exceed 10 W.
3.5.10. Power supply fuses
The DLoG ITC 7 is equipped with a reversible fuse which resets itself after a short circuit
once the electrical current is no longer flowing through it. It can thus be used more than
once.
DLoG ITC 7 User’s Manual 17
Loading...
