Important Information
AboutTransDockDirect
Please take a moment to read this manual before using your TransDock Direct.
It contains important information about operating your new product.
Disposal of your old product:
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused. Please inform yourself about
the local separate collection system for electrical and electronic products.
Please take the package to your local recycling center.
WARNINGS
• Do not expose the product to rain or water.
• Limit exposure to sunlight to prevent heat build-up.
• Do not disassemble or repair.
• Keep away from high voltage devices.
4 | DLO TRANSDOCK DIRECT USERMANUAL
Product Overview
TransDock Direct is an in-car iPod solution that connects your iPod directly
to your car stereo via the car’s auxiliary input with the included Aux-In Cable,
while it charges and cradles your iPod. TransDock Direct also includes a
detachable external 12V Power Socket that allows you to simultaneously
charge other accessories, such as a GPS, gaming device, or mobile phone
while enjoying your iPod. For cars not equipped with an aux-in port, the
TransDock Direct will also work with cassette adapters (sold separately).

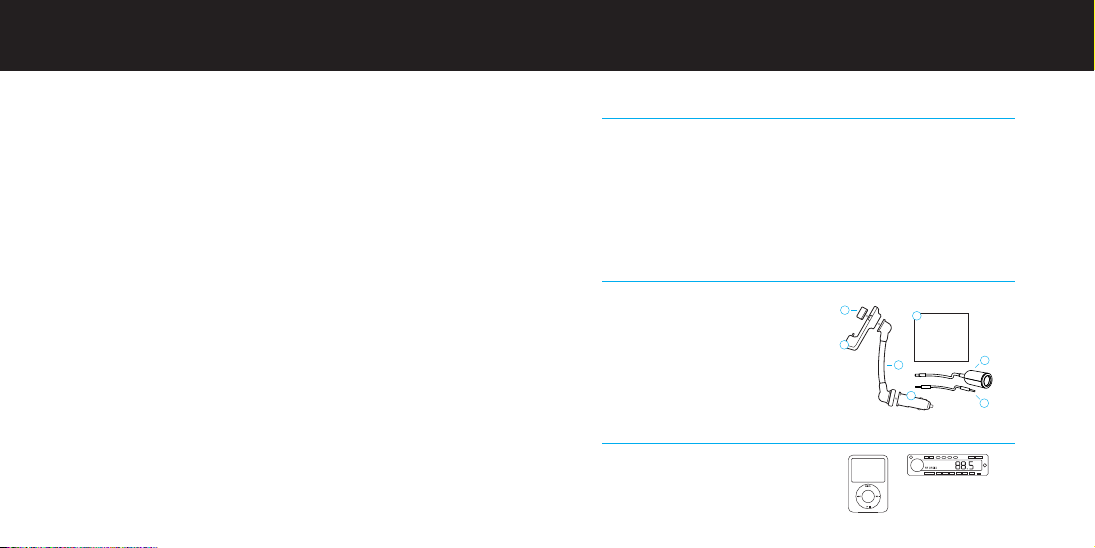

What’s in the Box
1. TransDock Direct Cradle
2. Car Power Adapter
3. Flex Arm
4. Detachable 12V Power Socket
5. Aux-In Cable
6. iPod touch Support Bracket
7. User Manual
What You Will Need
iPod
Car stereo with aux-in capabilities
12V auto power outlet
| 5
Getting Started
InsertiPod
3
ClickPlay
5
FlexArm Aux-InCable
AUX-IN

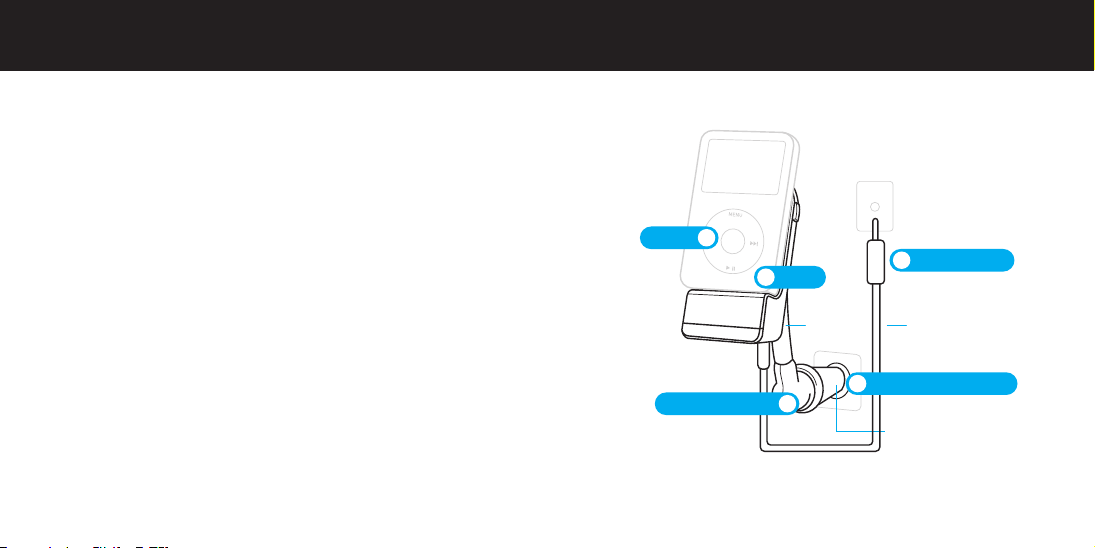

Assemble your TransDock
1
PlugTransDockinto poweroutlet
2
Car Power Adapter
ConnectAux-In Cable
4
This section will help with the initial installation of your TransDock Direct.
1. Assemble your TransDock Direct by attaching the Flex Arm to both the
Car Power Adapter and the TransDock Direct Cradle.
2. Insert your TransDock Direct into your car’s power outlet. TransDock Direct Cradle shows power status at a glance – one light when connected,
two when charging and three when fully charged. TransDock Direct will
indicate that it is receiving power with a single light.
3. Gently slide your iPod onto your TransDock Direct. Your iPod will now
begin charging if your car is on. TransDock Direct will indicate that it is
charging your iPod with two illuminated lights on the front of the cradle.
When the third light is illuminated, your iPod is fully charged.
4. Insert the included stereo mini cable into the Aux-In Jack on the bottom of
the TransDock Direct Cradle and connect to your car stereo’s auxiliary
input. The car’s aux-in port may be located on the dashboard, alongside
the stereo, under the dash or even in the glove compartment. Consult
your car’s owner’s manual for details.
5. Click Play on your iPod to enjoy your music over your car stereo.
NOTE: Your iPod will automatically pause playback when your
TransDock Direct is powered off.
6 | DLO TRANSDOCK DIRECT USER MANUAL
| 7
UsingTransDockDirect
Detailed Instructions
1. Turn on your car stereo and set it to AUX mode.
NOTE: Labeling may vary by vehicle. Consult your car’s owner’s manual
for details.
2. Assemble your TransDock Direct by attaching the Flex Arm to both the Car
Power Adapter and the TransDock Direct Cradle.
NOTE: For cars that do not need the additional length of the Flex Arm, you
may attach the TransDock Direct Cradle directly to the Car Power Adapter.
3. Insert your TransDock Direct into your auto power outlet. TransDock Direct
will indicate that it is receiving power with a single illuminated light on the
front of the cradle.
4. Gently slide your iPod onto your TransDock Direct. Your iPod will now begin
charging if your car is on. The TransDock Direct display shows power status
at a glance – one light when connected, two when iPod is charging, and three
when iPod is fully charged.
NOTE: To ensure the best fit for your particular iPod, press the button on
the upper right side of the TransDock Direct Cradle to extend or contract the
circular adapter in the center of the TransDock Direct Cradle. Release the
button to lock the adapter’s position. For iPod touch users, you may attach
the included iPod touch Support Bracket, which allows you to position your
iPod touch horizontally in the TransDock Direct Cradle. Insert the iPod touch
8 | DLO TRANSDOCK DIRECT USER MANUAL
Support Bracket into the center adapter and position it on either side of the
TransDock Direct Cradle.
5. Insert the included stereo mini cable into the Aux-In Jack on the bottom of
the TransDock Direct Cradle and connect to your car stereo’s auxiliary input.
The car’s aux-in port may be located on the dashboard, alongside the stereo,
under the dash or even in the glove compartment. Consult your car’s
owner’s manual for details.
6. Click Play on your iPod to enjoy your music over your car stereo.
7. To control the overall volume of your music while using your TransDock Direct, use the stereo’s volume control, not the iPod volume. The volume control function on your iPod is disabled while docked.
NOTE: To power another device, connect the detachable 12V Power Socket to
the 5.5mm port on the top of the Car Power Adapter. You may now simultaneously power another device while enjoying your iPod. See Using Your Detach-
able 12V Power Socket on page 10 for more information.
IMPORTANT: Do not insert anything other than an appropriate plug that fits the
socket, or allow any liquid to get into the socket. Doing so may cause electrical
failure, electric shock, or a short circuit. The total combined current for the 12V
socket should not exceed 10 amps. This accessory outlet should be used for accessories only; do not use a lighter element in this outlet.
| 9
Tech Specs
Using Your Detachable 12V Power Socket

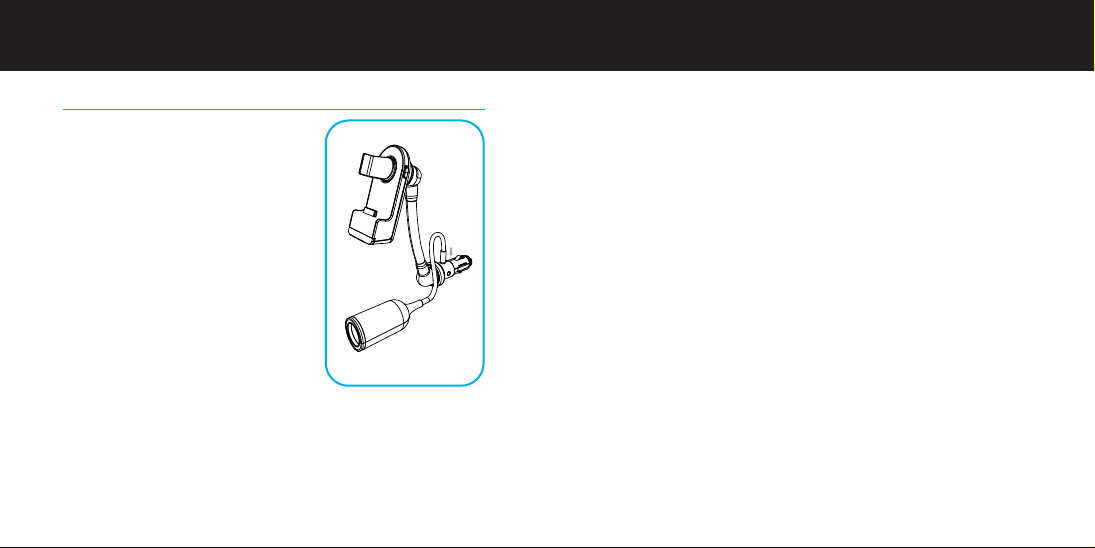

The detachable 12V Power Socket allows you
to power other accessories while enjoying your
TransDock Direct. To install, locate the 5.5mm
port on the top of the Car Power Adapter and
insert the 5.5mm jack of the Power Socket.
This will activate the 12V Power Socket.
IMPORTANT: Do not insert anything other
than an appropriate plug that fits the socket,
or allow any liquid to get into the socket. Doing
so may cause electrical failure, electric shock,
or a short circuit. The total combined current
for the 12V DC socket should not exceed 10
amps. This accessory outlet should be used for
accessories only; do not use a lighter element
in this outlet.
10 | DLO TRANSDOCK DIRECT USER MANUAL
COMPATIBILITY
All iPods with Dock Connector
CONNECTIONS
30-Pin iPod Dock Connector
Auxiliary Input: 3.5mm stereo mini jack
Power Output: 5.5mm 12V DC jack
POWER
Input Voltage: 12 – 16 V DC
Input Current: <300mA @ DC12V ~16
Detachable Power Socket: 12V DC car adapter
CABLE
3.5mm to 3.5mm Aux Cable
TEMPERATURE
Storage Temperature: -10° to 120° F (-23° to 49 ° C)
Operating Temperature: -4° to 113° F (-20° to 45° C )
| 11
Service + Support
Warranty
For more information and Frequently Asked Questions, please visit our website
at www.dlo.com and click Support.
12 | DLO TRANSDOCK DIRECT USER MANUAL
Digital Lifestyle OutfittersLimited Manufacturer’s Warranty
What This WarrantyCovers. DLO (Digital Lifestyle Outfitters) warrantsthis product against defects in materi-
als and workmanship. This limited warranty applies only to products manufactured by or for DLO.
What This WarrantyDoes Not Cover. This warranty does not apply to damage caused by: (a) accident, abuse,
misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions, or products not
manufactured by or for DLO; and (b) aftermarketservices (including upgrades and expansions).
How Long This Warranty Lasts. This warranty lasts for a period of ninety (90) days from the date of original
retail purchase.
What DLO WillDo. If a defect exists,DLO will exchange the product, at its option, witha product that is new or
has been manufactured from new or serviceable used parts and that is at least functionally equivalent to the
original product. DLO will warranta replacement product against defects in materials and workmanship for a
period of ninety (90) days from the date of replacement.
How To Get Service. In order to be eligible for this warrant y, you MUST register your purchase at
www.dlo.com/register within thirty (30) days of purchasing this product. If you believe that this product is defective in materials or workmanship, please e-mail customerservice@dlo.com with a brief description of the
problem, for further instructions.
No Change To Warranty. No DLO reseller, agent or employee is authorized to make any modification, extension, or addition to this warranty.
How State Law Applies. This warranty gives you specific legal rights, and you also may have other rights that
vary from state to state, or country.
Restrictions On Implied Warranties. All implied warranties, including, without limitation, warranties of merchantability and fitness fora particular purpose, are limited in duration to the durationof this warranty. Some
states do not allow limitations on how longan implied warranty lasts, so the above limitation may not apply to
you.
Restrictions On Damages. DLO is not responsible for direct,special, incidental or consequential damages resulting from any breachof warranty or condition or under any other legal theory (including,without limitation,
lost profits;downtime; goodwill; damage to or replacement of equipment and property;failure to maintain the
confidentiality of data stored on the product; and any costs of recovering, reprogramming or reproducing any
program or data stored in or used with products manufactured by or for DLO). Some states and countries do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
W1000-050803-B
| 13
14 | DLO TRANSDOCK DIRECT USERMANUAL
| 15
