2D-Link WNA-1330 User Manual
Table of Contents
Product Overview ...................................................4
Package Contents ..............................................................4
System Requirements .......................................................4
Introduction .......................................................................5
Features .............................................................................6
Hardware Overview ...........................................................7
LEDs ...........................................................................7
Installation ...........................................................8
Getting Started ..................................................................8
Remove Existing Installations ..................................... 8
Disable Other Wireless Adapters .................................9
Wireless Installation Considerations ................................11
Adapter Installation..........................................................12
Windows Vista™ Installation ..................................... 16
Push Button Configuration (PBC) .............................19
Configuration ...................................................... 22
D-Link Configuration Utility ............................................. 22
Wireless Networks .................................................... 23
My Wireless Networks ..............................................24
Support .....................................................................25
About ........................................................................26
Windows Vista .......................................................... 27
Wireless Networks .................................................... 27
Wi-Fi Protected Setup ............................................... 28
Personal Identification Number (PIN) .......................29
My Wireless Networks ..............................................31
Add Profile.. .............................................................. 32
Modify Profile ...........................................................33
Support .....................................................................34
Windows® XP Configuration Utility ..................................35
Disabling The Windows® XP Utility ........................... 36
Wireless Security ................................................. 38
What is WEP? ..................................................................38
What is WPA? ..................................................................39
Configure WEP ................................................................ 40
Using the D-Link Utility ............................................. 40
Using the Windows® XP Utility .................................42
Configure WPA/WPA2 Passphrase .................................. 44
Using the D-Link Utility ............................................. 44
Using the Windows® XP Utility .................................46
Configure WPA/WPA2 .....................................................48
Using the D-Link Utility ............................................. 48
Configure 802.1x .............................................................49
Using the D-Link Utility ............................................. 49
Connect to a Wireless Network ................................. 50
Troubleshooting ................................................... 51
Table of Contents
Page 3
3D-Link WNA-1330 User Manual
Table of Contents
Wireless Basics ................................................... 55
Networking Basics ................................................ 60
Check your IP address ..................................................... 60
Statically Assign an IP address ........................................ 61
Technical Specifications ......................................... 62
Contacting Technical Support ................................... 64
Warranty ........................................................... 65
Registration........................................................ 70
Page 4
4D-Link WNA-1330 User Manual
Section 1 - Product Overview
• D-Link WNA-1330 Notebook Adapter
• Manual and Warranty on CD
• D-Link Wireless Utility on CD
System Requirements
• A laptop computer with an available 32-bit cardbus slot
• Windows® 2000 (Service Pack 4) or XP (Service Pack 2)
• 300MHz processor and at least 64MB of RAM
• An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless
adapter (for Ad-Hoc mode.)
Product Overview
Hardware Overview
Package Contents
Page 5
5D-Link WNA-1330 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless G WNA-1330 Notebook Adapter is a wireless laptop adapter featuring the very latest in advanced wireless silicon
chip technology including enhanced security to shield and protect your wireless communication from intruders. The WNA-1330
wireless laptop adapter also works with 802.11b standard wireless devices and when used with other D-Link Wireless G products
delivers throughput speeds capable of handling heavy data payloads.
The WNA-1330 wireless laptop adapter features WPA and 802.1x for wireless user authentication, providing you a much higher level
of security for your data and communications.
The D-Link WNA-1330 also includes a configuration utility to discover available wireless networks and create and save detailed
connectivity profiles for those networks most often accessed.
The WNA-1330 is a powerful 32-bit Notebook Adapter that installs quickly and easily into laptop PCs and when used
with other D-Link Wireless G products automatically connects to the network. Like all D-Link wireless adapters, the
WNA-1330 can be used in Ad-Hoc mode to connect directly with other cards for peer-to-peer file sharing or in Infrastructure mode
to connect with a wireless access point or router for access to the Internet in your office or home network.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely affect wireless signal range.
Page 6
6D-Link WNA-1330 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - Faster data transfers mean increased productivity. With the WNA-1330 in your laptop
PC, you will have the flexibility of wireless networking speeds that save you time and money.
• Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards,
the WNA-1330 can connect with existing 802.11b or 802.11g compliant routers, access points and cards. That
means you can still communicate with colleagues and friends while you have the ability to link to even more wireless
networks.
• Better Security with 802.1x and WPA - With the WNA-1330 in your laptop PC you can securely connect to a wireless
network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much
higher level of security for your data and communication than has previously been available.
• 32-bit Cardbus Performance/Plug & Play Connectivity - The WNA-1330 is a powerful 32-bit Notebook Adapter that
installs quickly and easily into laptop PCs, and when used with other D-Link Wireless G products will automatically
connect to the network out of the box.
• User-friendly configuration and diagnostic utilities.
Features
Page 7
7D-Link WNA-1330 User Manual
Section 1 - Product Overview

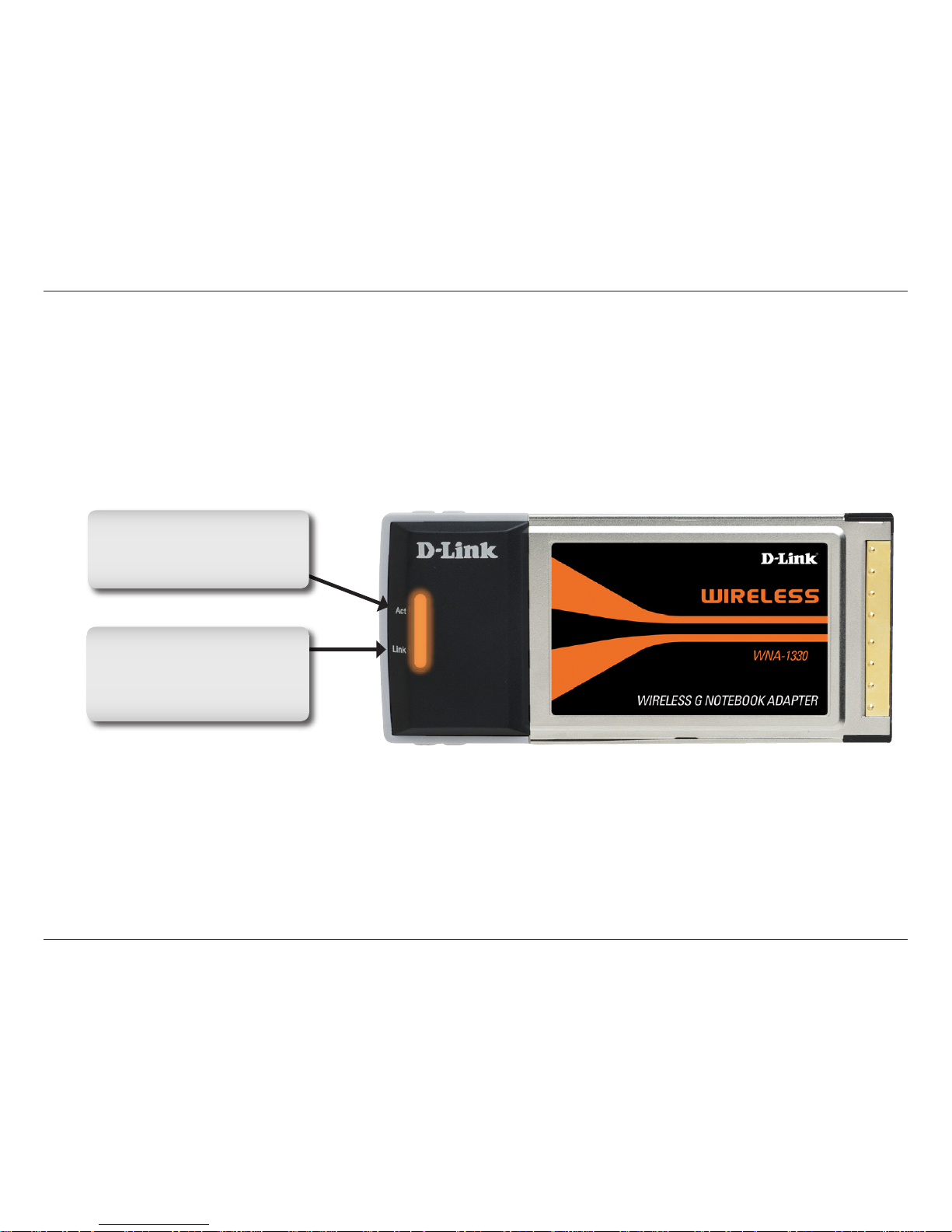

Activity
A blinking light indicates
data is being transmitted.
Link
A steady light indicates a
connection to a wireless
network.

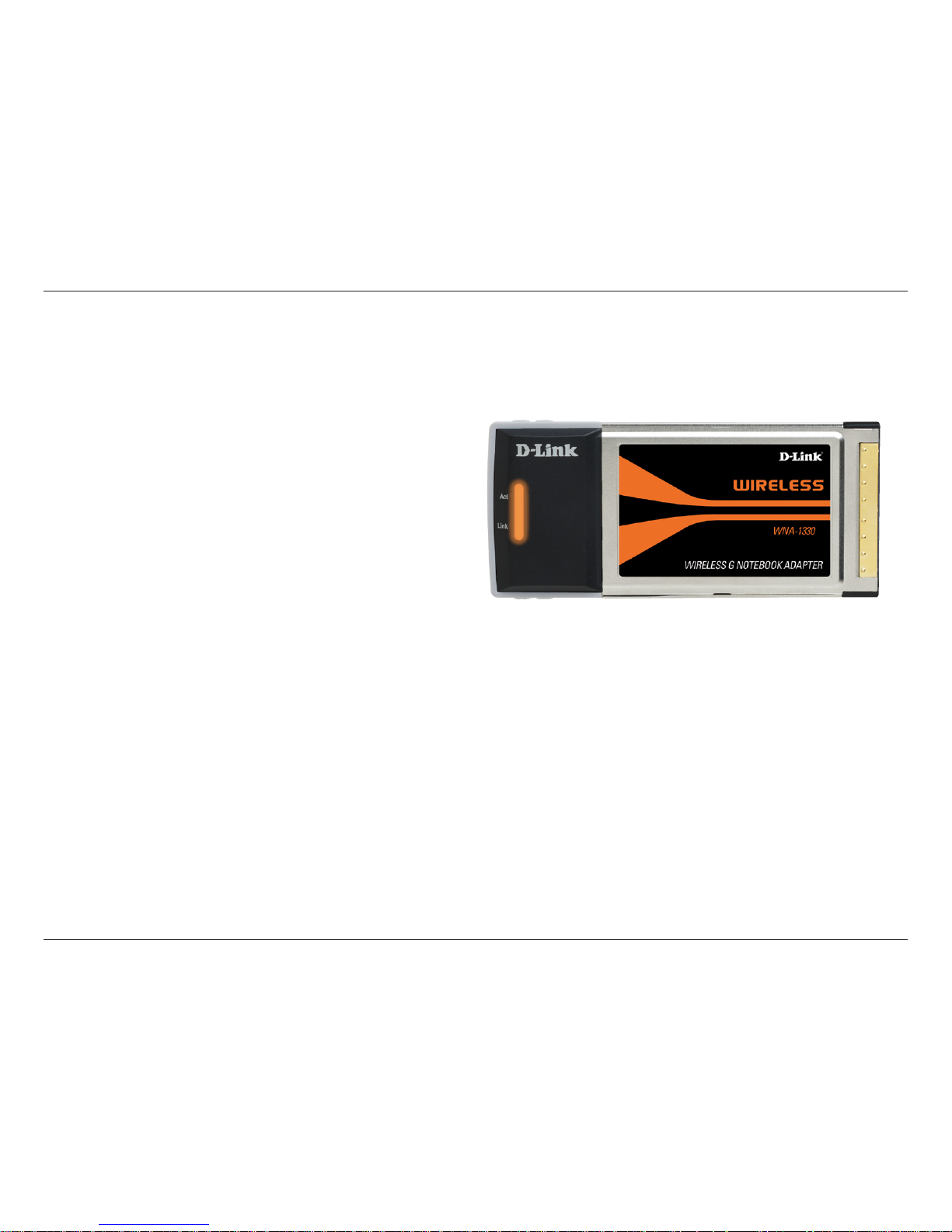

Hardware Overview
LEDs
Page 8
8D-Link WNA-1330 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager
before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software
is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is uninstalled before
installing the new software. Some utilities may cause a conflict with the new software. If you plan to use multiple adapters at different
times, make sure the utilities are not set to load when your computer boots up. Windows® XP users may use the built-in wireless
utility for all adapters.
To remove any old software:
Windows® XP users: Click Start > Control Panel > Add or Remove Programs.
Windows® 2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.
Page 9
9D-Link WNA-1330 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conflicts or confusion with the D-Link wireless adapter,
it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).

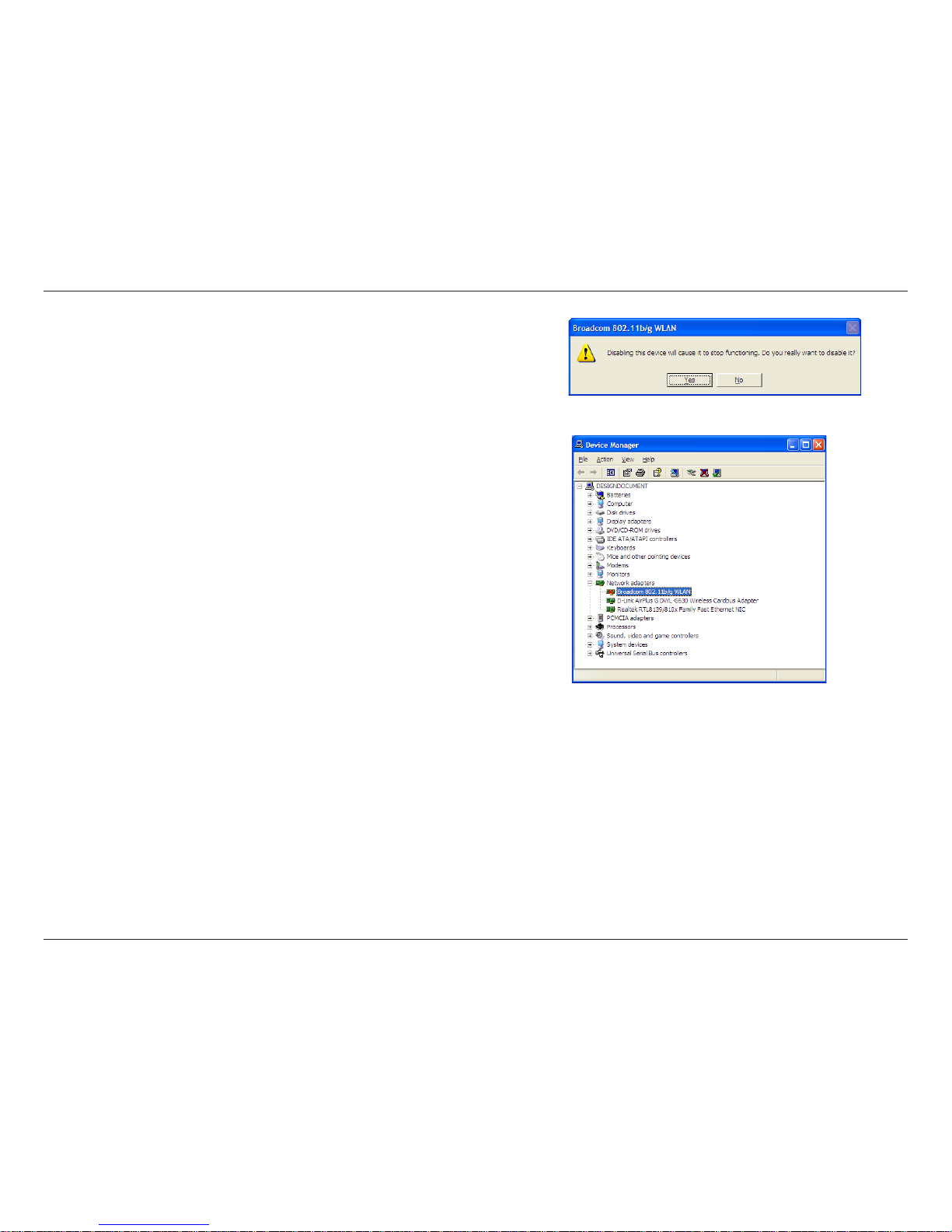

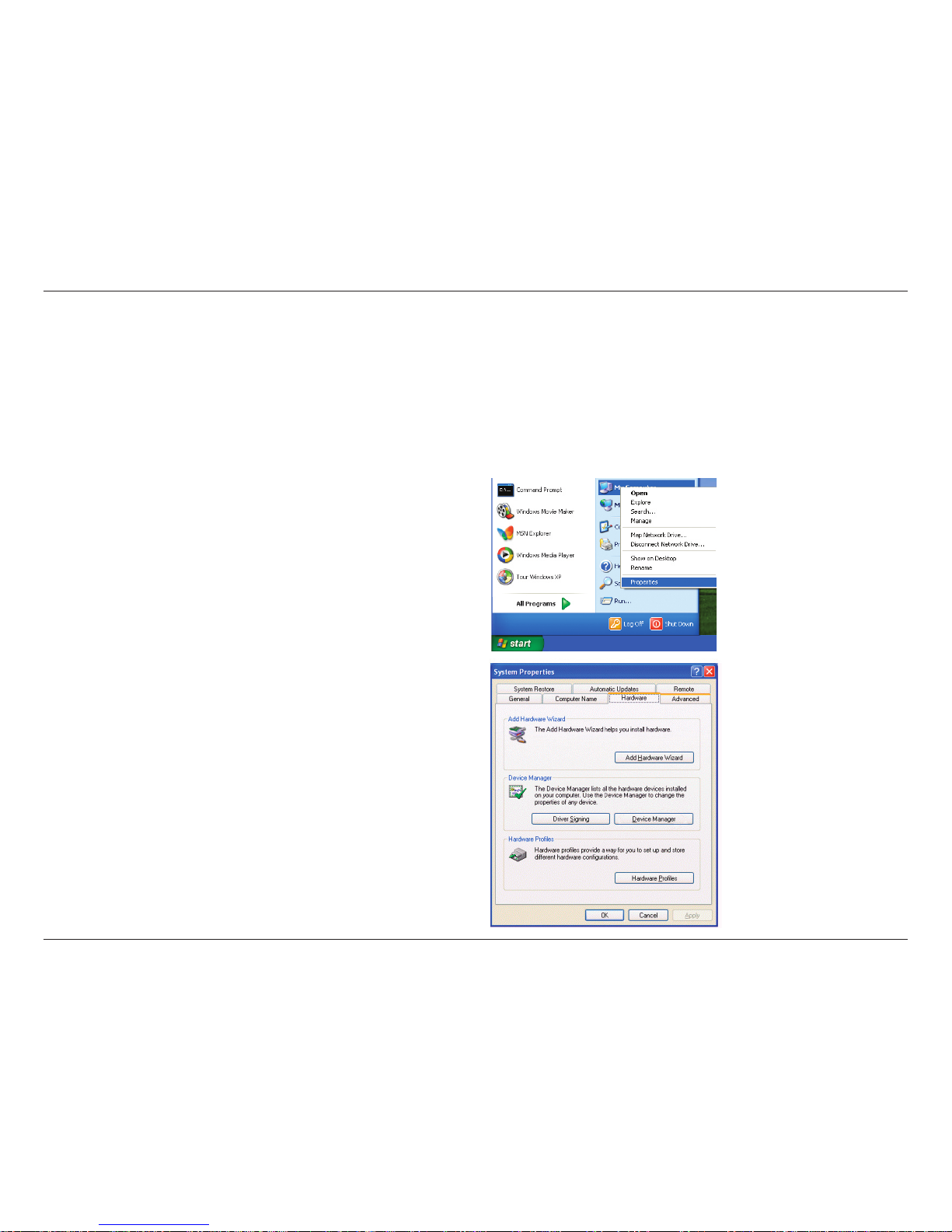

From the desktop, right-click on the My Computer icon and select Properties.

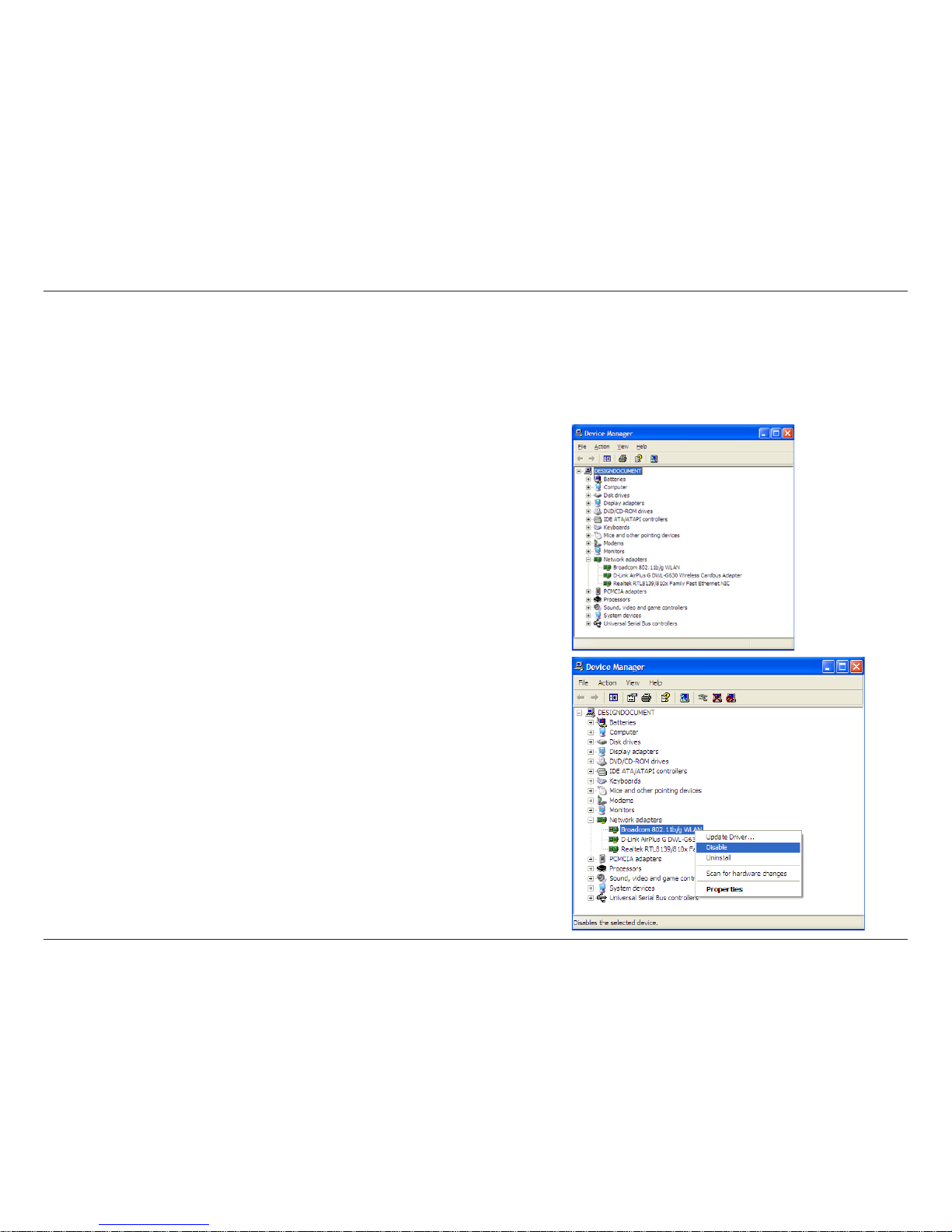

Click the Hardware tab and then click Device Manager. Scroll down the list and
click the + sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.
Page 10
10D-Link WNA-1330 User Manual
Section 2 - Installation
Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use
the adapter, simply right-click it and select Enable.
Page 11
11D-Link WNA-1330 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that
the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in
use.
Page 12
12D-Link WNA-1330 User Manual
Section 2 - Installation
Warning: Do NOT install the WNA-1330 Notebook Adapter into your computer before installing the driver software from the
D-Link CD.
Turn on the computer and Insert the D-Link WNA-1330 Driver CD in the CD-ROM drive. The step-by-step instructions that follow
are shown in Windows XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\Drivers\setup.
exe” (where D: represents the drive letter of your CD-ROM drive).

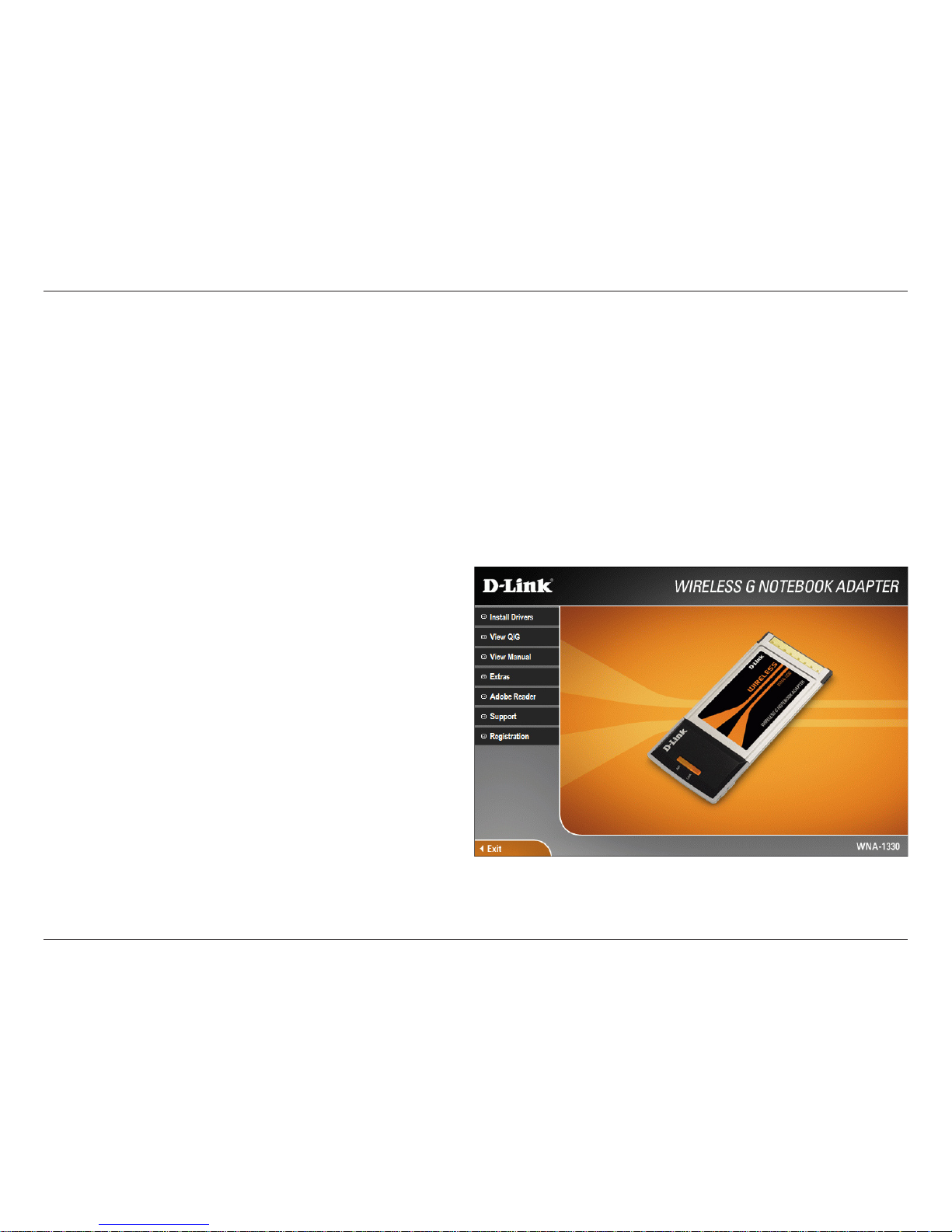

When the autorun screen appears, click Install Drivers.
Adapter Installation
Page 13
13D-Link WNA-1330 User Manual
Section 2 - Installation

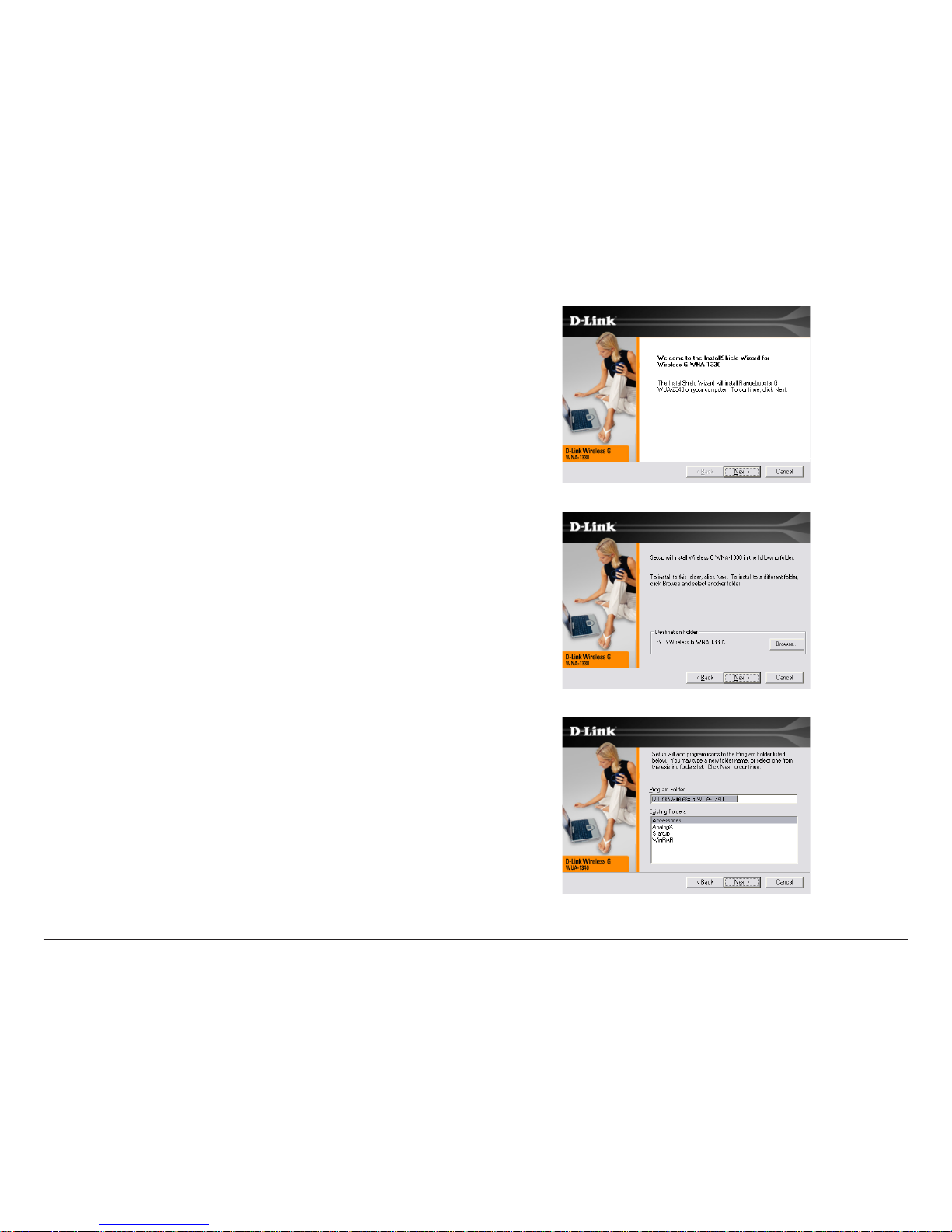

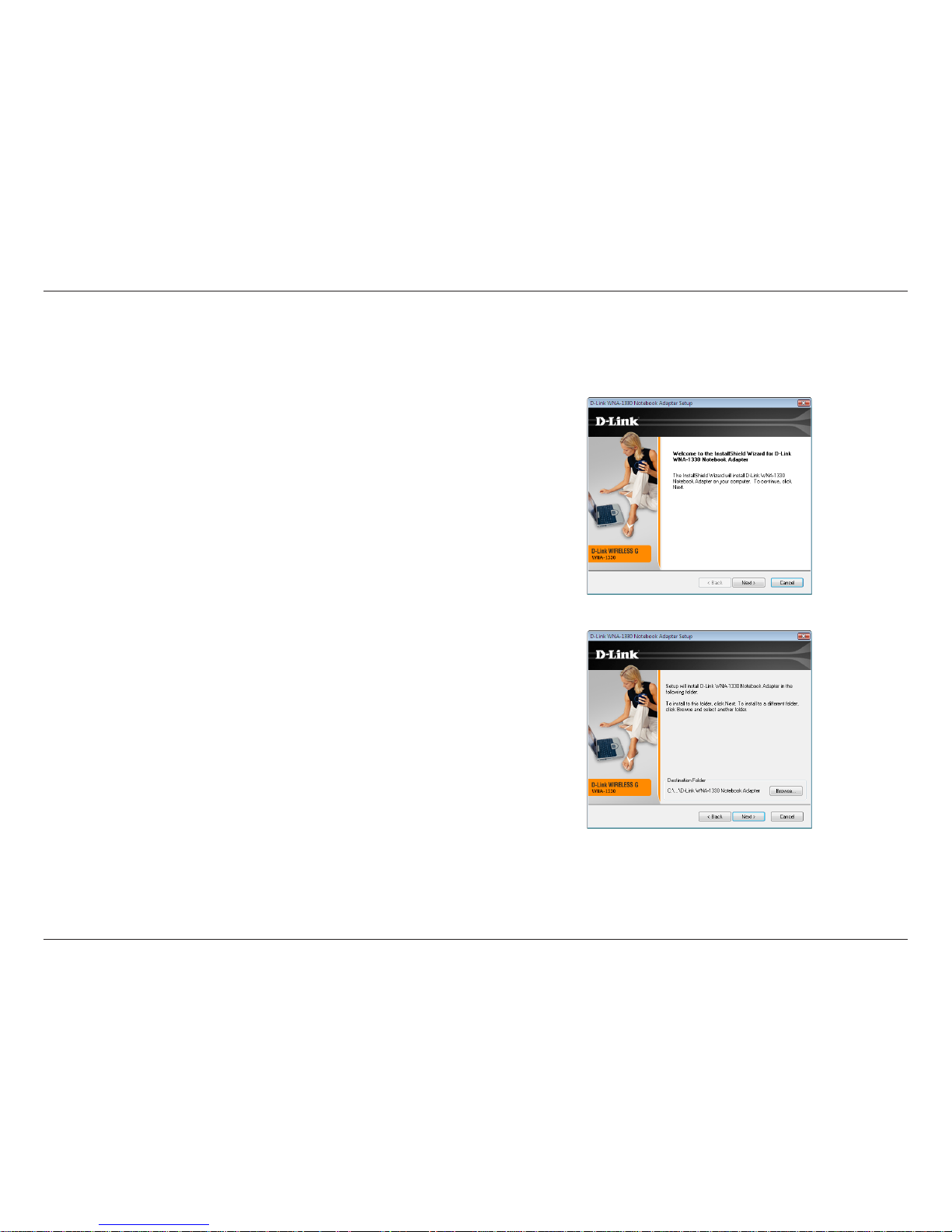

The InstallShield Wizard window will appear.
Click Next to continue.

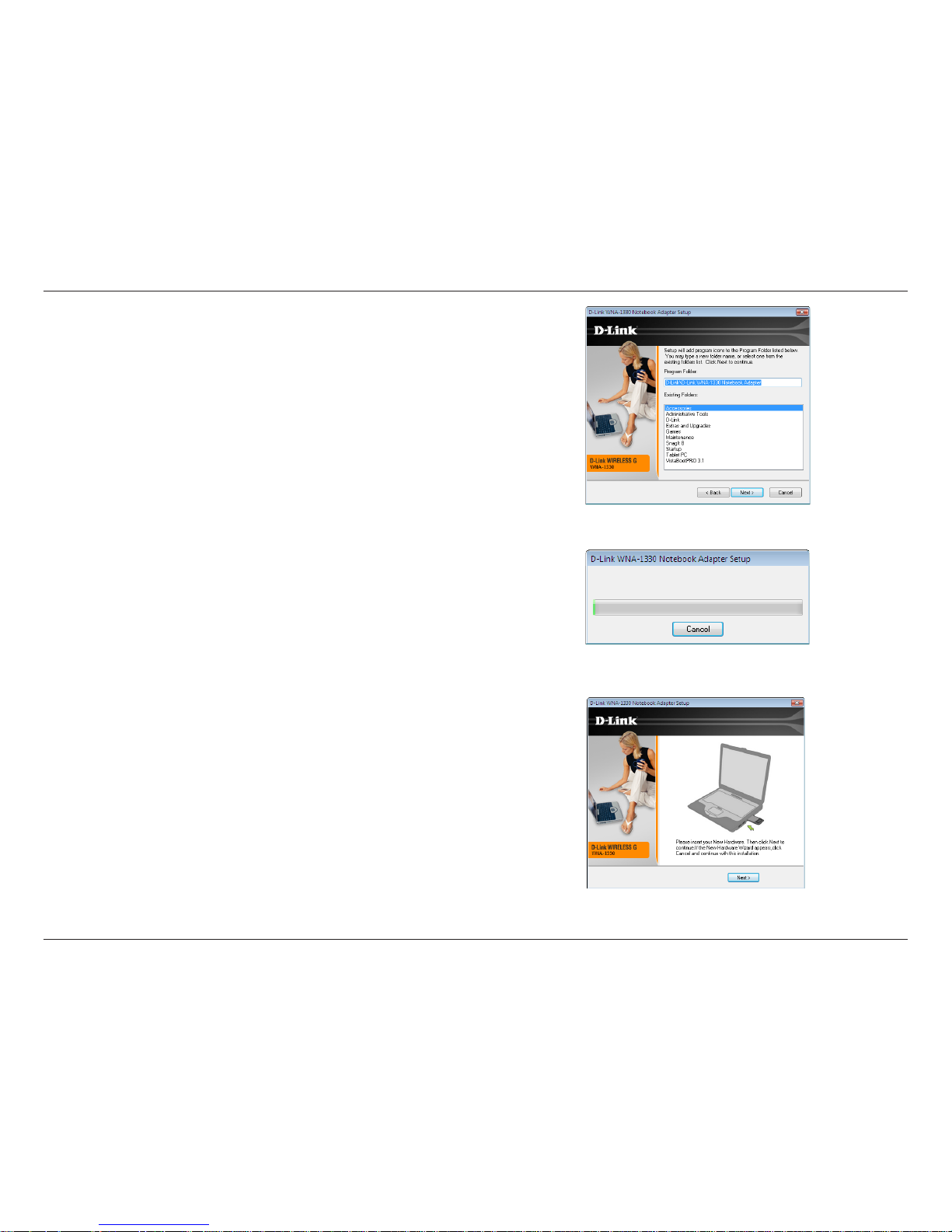

By default setup will install to the default location: C:\Program Files\
Wireless G WNA-1330, where C: represents the drive letter of your hard
drive. To install to a different location click Browse and specify the
location. Click Next.
Select the Program Files folder location. Click Next to continue.
Page 14
14D-Link WNA-1330 User Manual
Section 2 - Installation
The D-Link configuration wizard will now appear.

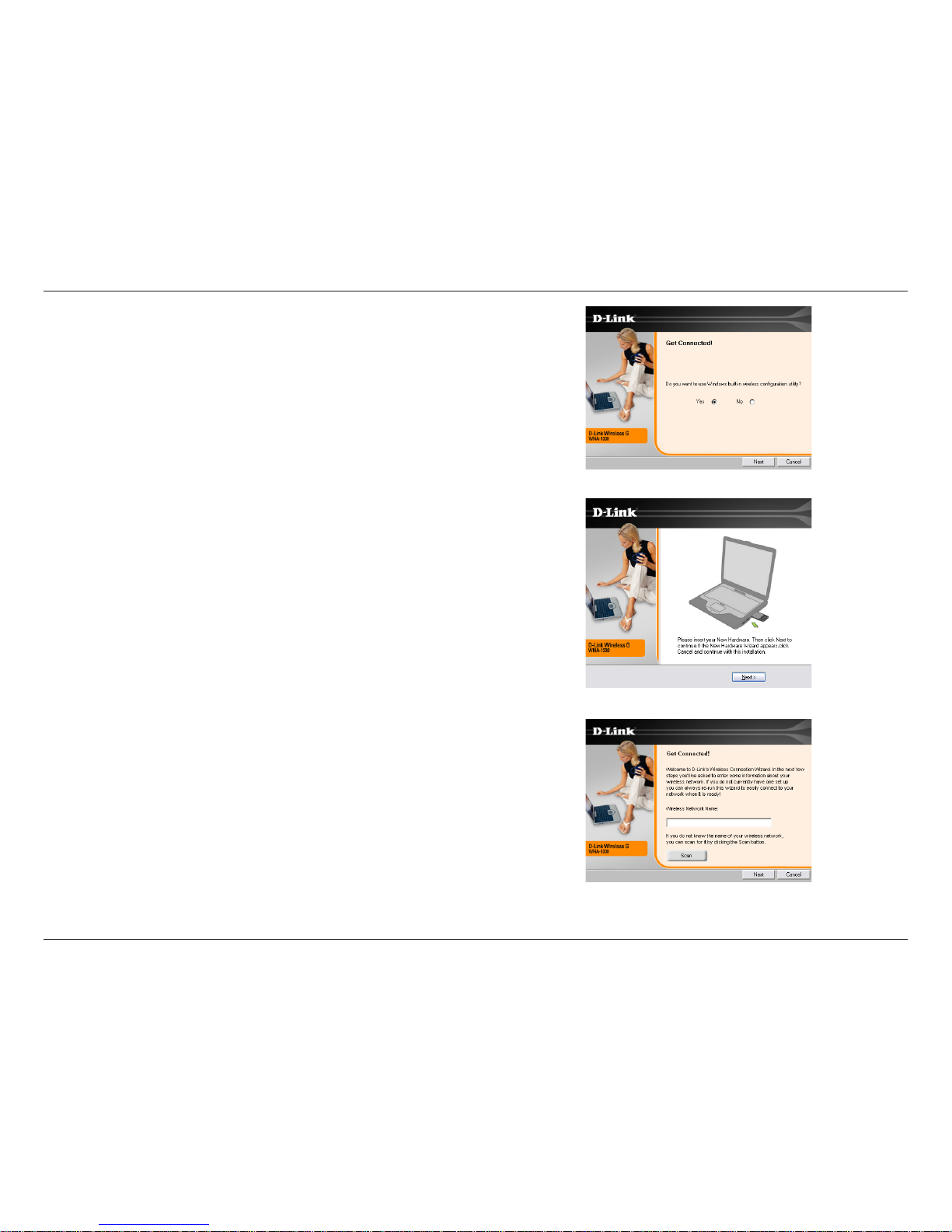

If you are using Windows® XP (SP2), you will have the option to use
either the D-Link utility or the built-in Windows® Wireless utility.
Click Next to continue.
Insert the adapter into an available Cardbus slot on your computer.
If the Found New Hardware Wizard appears, click Cancel.
Click Next to continue.

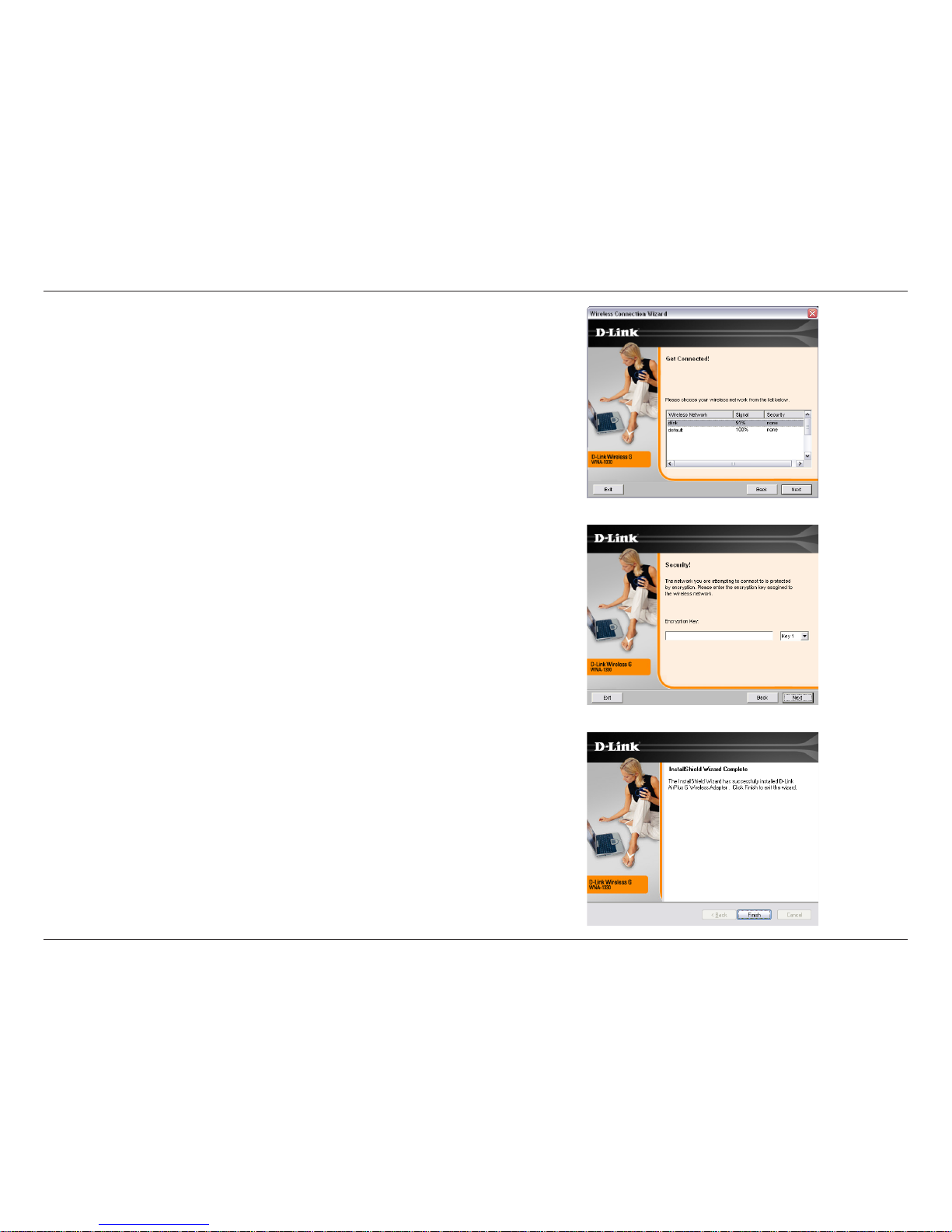

Enter the network name (SSID) manually. If you enter the SSID incorrectly, you
will automatically be brought to the site survey page.
Click Next to continue or click Scan to display the site survey page.
Page 15
15D-Link WNA-1330 User Manual
Section 2 - Installation

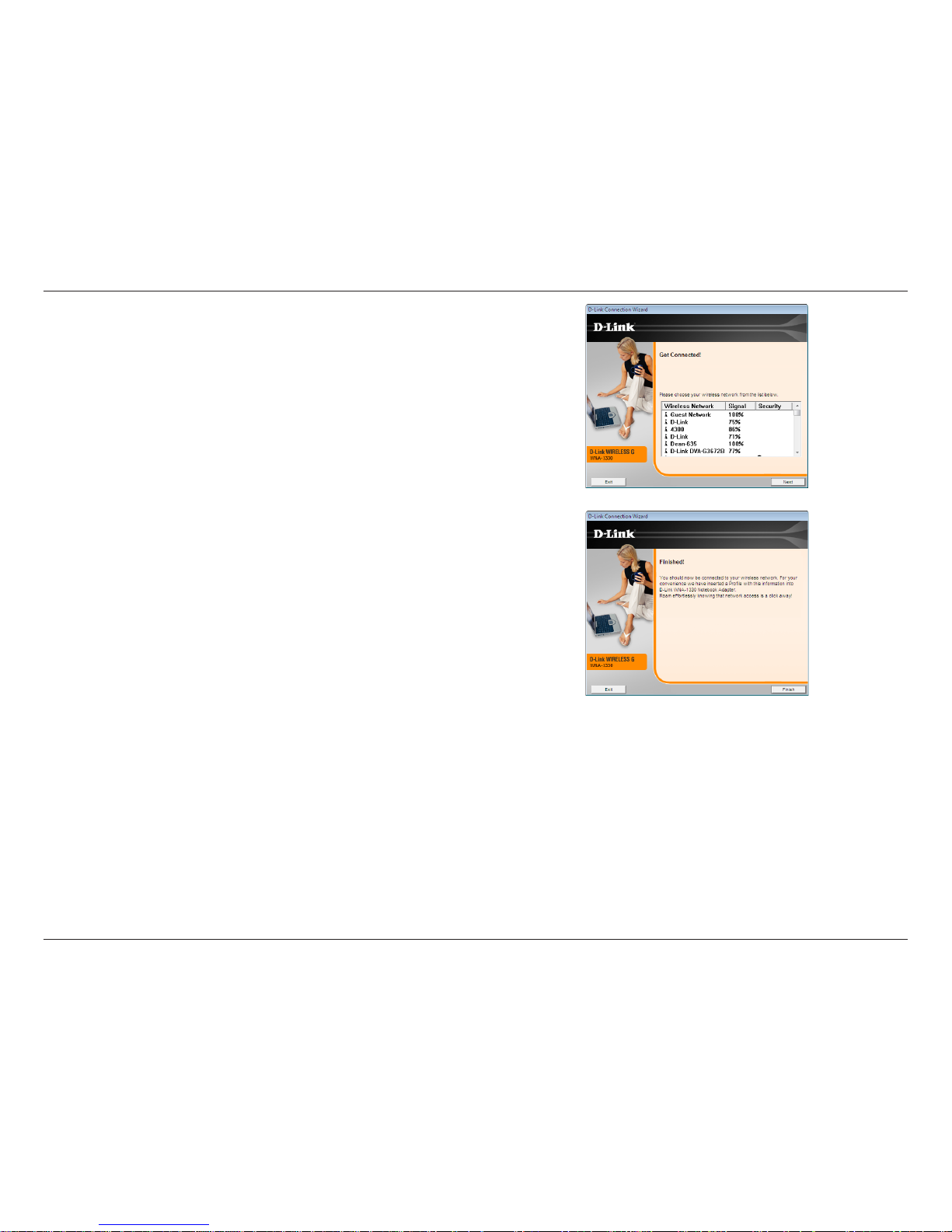

Click the Scan button to display a list of wireless networks (site survey). Click
on the network name (SSID) and click Connect.

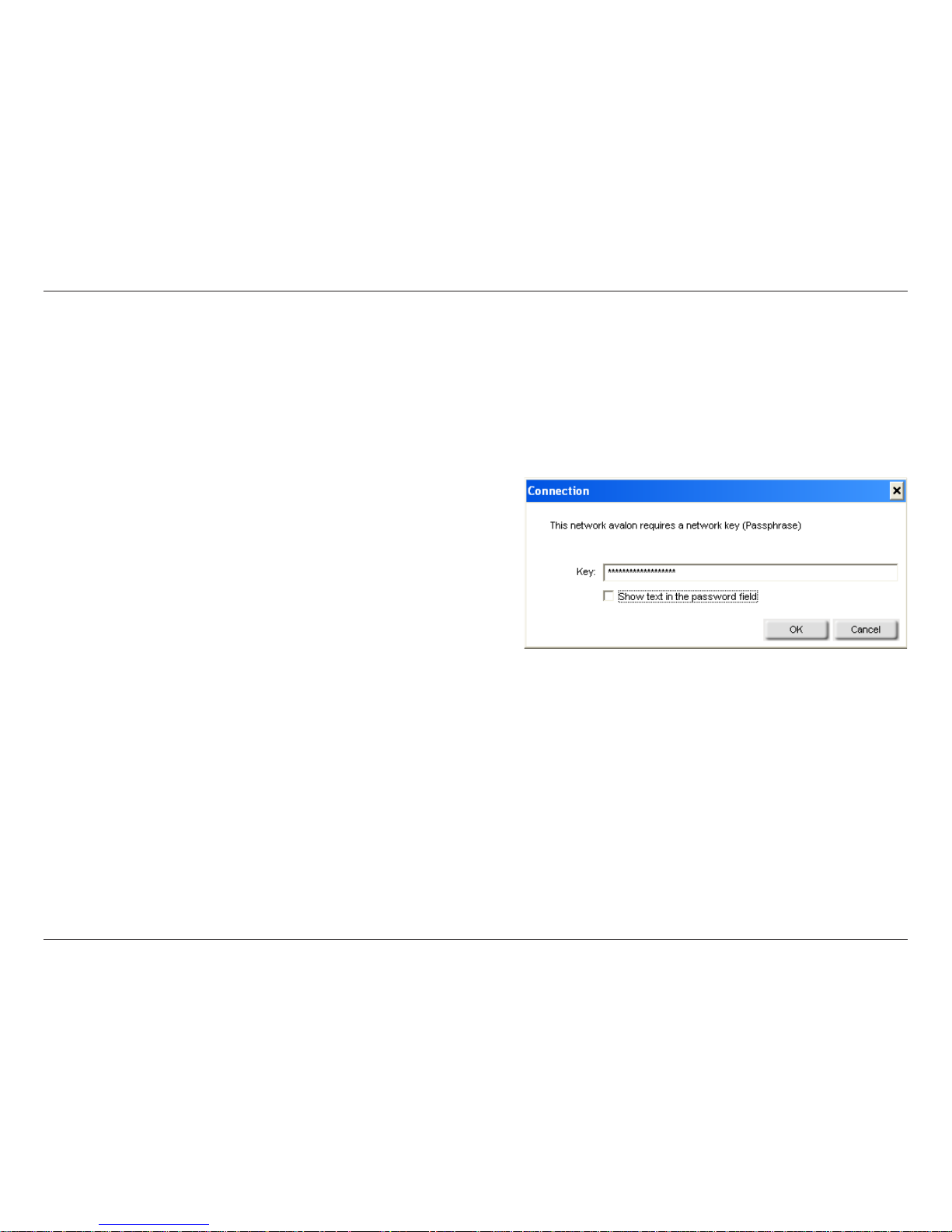

If the wireless network you are trying to connect to is encrypted, enter the WEP
key or WPA-PSK passphrase. Click Next to continue.
Click Finish to continue. If you are prompted to reboot your computer, select
Yes, I want to restart my computer now.
Page 16
16D-Link WNA-1330 User Manual
Section 2 - Installation
After double-clicking on the driver icon the InstallShield Wizard window will appear.
Once the setup wizard opens, click Next to continue.
Windows Vista™ Installation
By default, setup will install to the destination folder: C:\Program Files\D-Link\
WNA-1330, where C: represents the drive letter of your hard drive. To install
to a different location, click Browse and specify the location, otherwise click
Next to continue.
Under Program Folder you may use setup’s default name, type a new folder
name, or select one from the existing folders list. Click Next to continue.
Page 17
17D-Link WNA-1330 User Manual
Section 2 - Installation

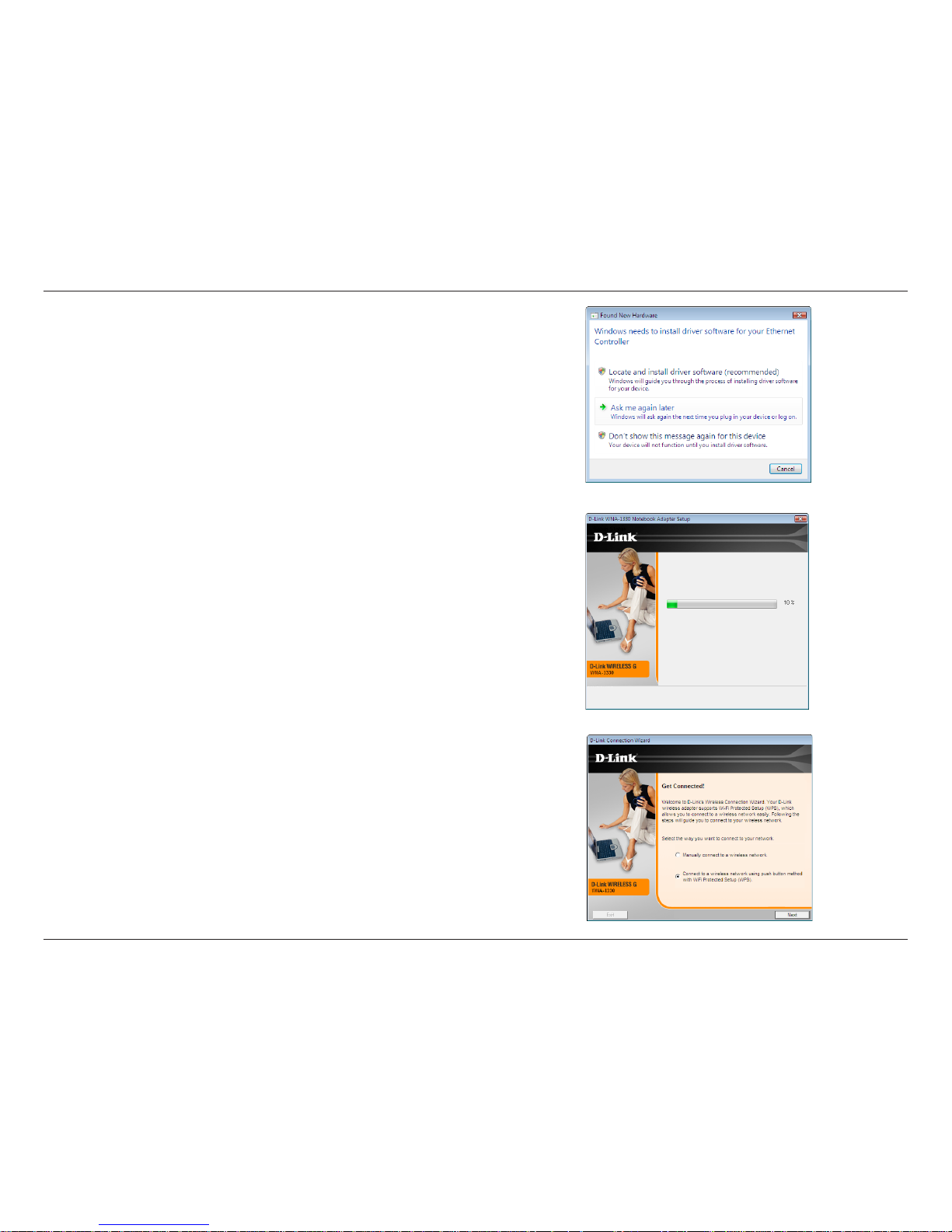

WNA-1330 will start configuration. This may take a few minutes.
Once configuration is complete, insert the WNA-1330 into the PCMCIA slot.
Click Next to continue.
Once inserted, the Found New Hardware window may pop up. Click Cancel to
continue setup.
Page 18
18D-Link WNA-1330 User Manual
Section 2 - Installation
WNA-1330 will start configuration. This may take a few minutes.
If you want to manually connect to a wireless network, refer to page 20. The
following instructions will connect you to a wireless network using Wi-Fi
Protected Setup (WPS).
Select Connect to a wireless network using push button method with Wi-Fi
Protected Setup (WPS), and click Next to continue.

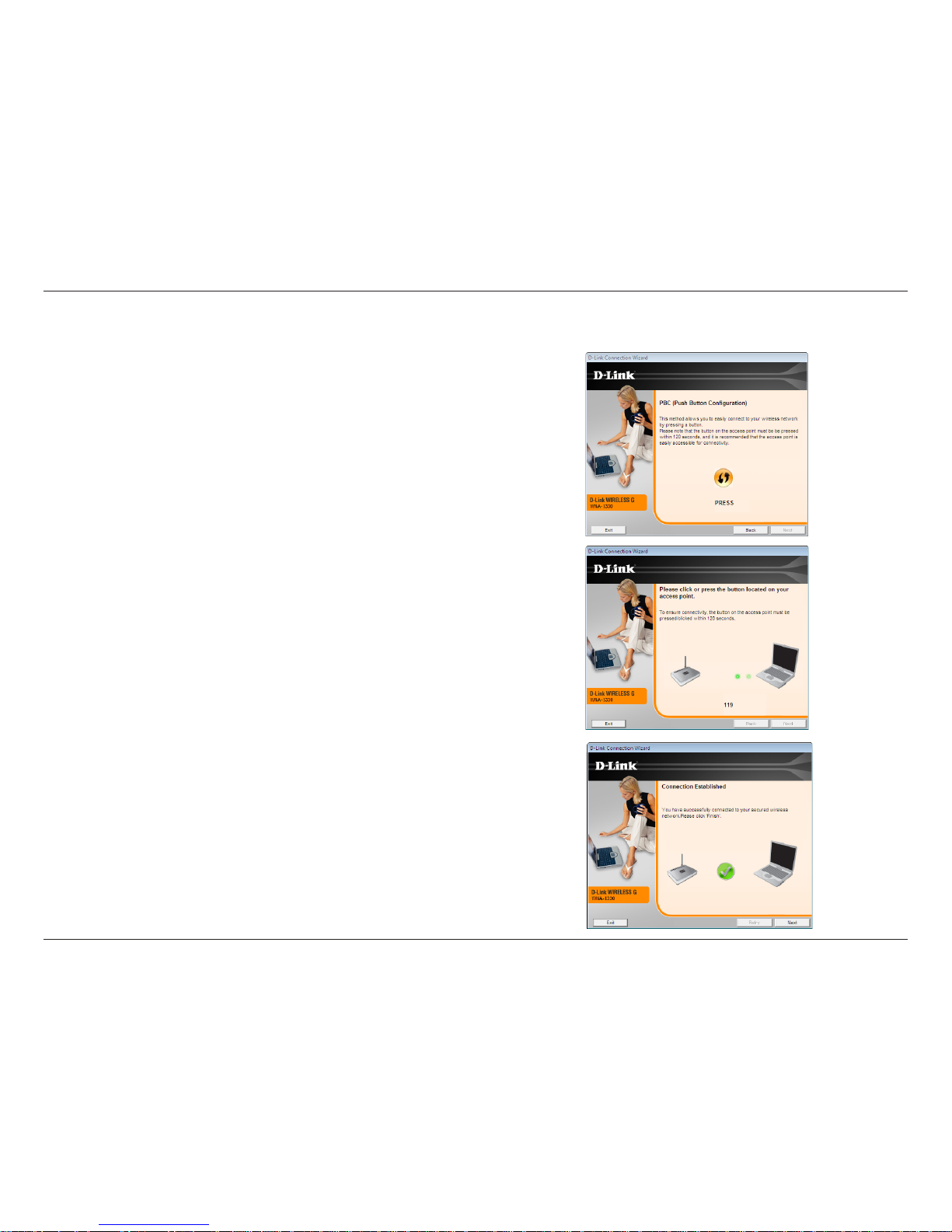

To connect to your network using the WPS push button configuration method,
click on the virtual button above PRESS.
Page 19
19D-Link WNA-1330 User Manual
Section 3 - Configuration
Press the WPS button on your access point or wireless router within 2 minutes
to establish a connection.
Click Next to continue.
When this screen appears, you are successfully connected to your wireless
network. Click Finish to complete your setup. If you are prompted to reboot
your computer, select Yes, I want to restart my computer now.
Push Button Configuration (PBC)
Page 20
20D-Link WNA-1330 User Manual
Section 3 - Configuration
To manually connect to a wireless network, select Manually connect to a
wireless network, then click Next to continue.
Either enter the wireless network name (SSID) manually and click Next, or click
Scan to display the site survey page. If you enter the SSID incorrectly, you will
be automatically brought to the site survey page.
Clicking the Scan button will display a list of wireless networks (site survey).
Select the network name (SSID) and click Next.
Page 21
21D-Link WNA-1330 User Manual
Section 3 - Configuration
When this screen appears, you are successfully connected to your wireless
network. Click Finish to complete your setup. If you are prompted to reboot
your computer, select Yes, I want to restart my computer now.
Page 22
22D-Link WNA-1330 User Manual
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link wireless adapter using the D-Link Utility as well as the Windows® XP
Zero Configuration Utility.
D-Link Configuration Utility
The D-Link WNA-1330 uses the Configuration Utility as the management software. The utility provides the user an
easy interface to change any settings related to the wireless adapter. After you have completed the installation of the
WNA-1330 and whenever you start the computer, the Configuration Utility starts automatically and the system tray icon is loaded in
the toolbar. Clicking on the utility icon will start the Configuration Utility.
If you are using Windows® XP, please skip to page 35.
Page 23
23D-Link WNA-1330 User Manual
Section 3 - Configuration
Wireless Networks
The SSID (Service Set Identifier) is the name of the
wireless network.
Displays the MAC address of the wireless device.
Dis play s the Link Q ual ity o f the w ire l ess
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the Connect
button. If the network is secure, a pop-up window
will appear. Enter the security information to connect
(refer to the Wireless Security section for more
information).
Selec t a wi reles s netw ork prof ile from th e
drop-down menu and click Activate to connect. Allow
up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:

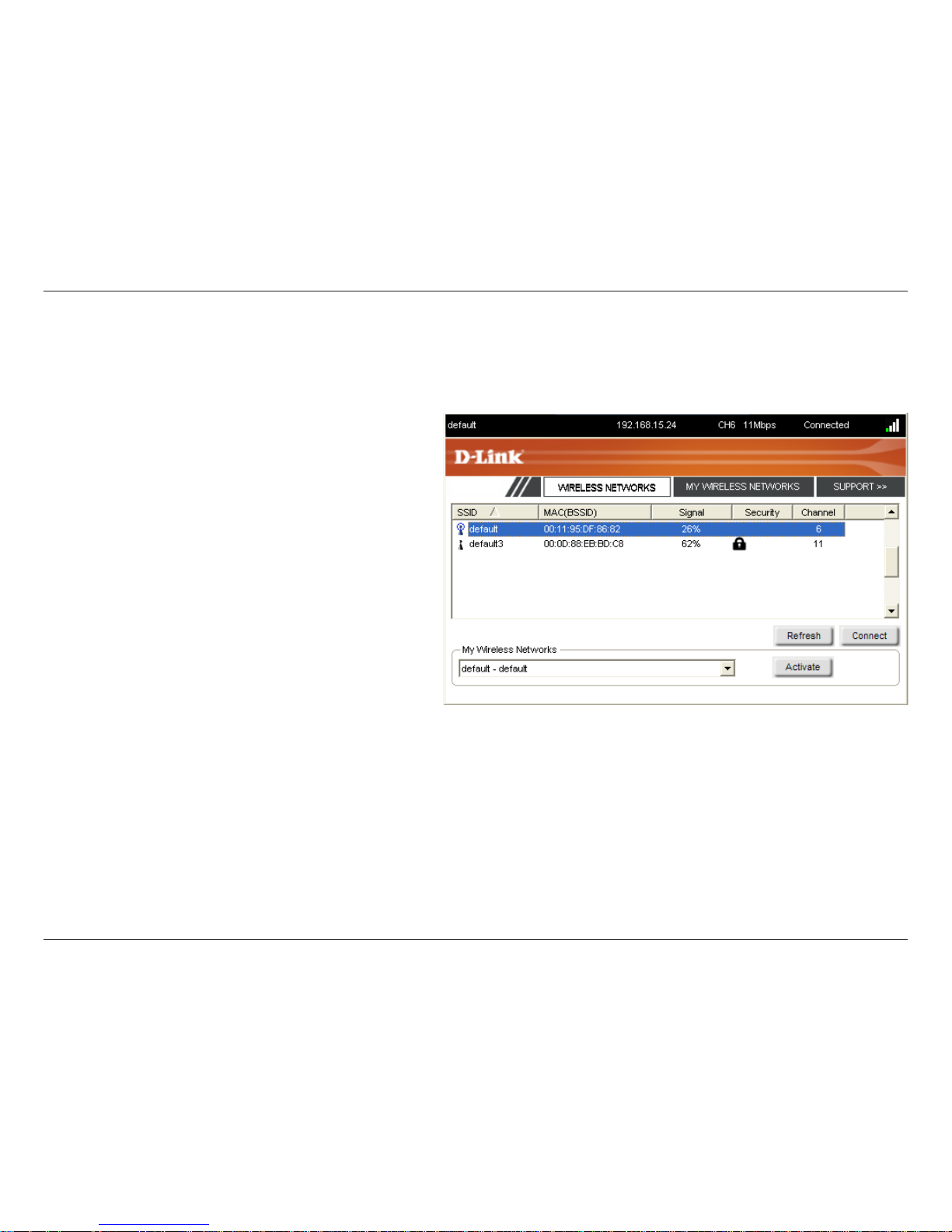

The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect to a network,
simply highlight the wireless network (SSID) and click Connect.
Page 24
24D-Link WNA-1330 User Manual
Section 3 - Configuration
My Wireless Networks

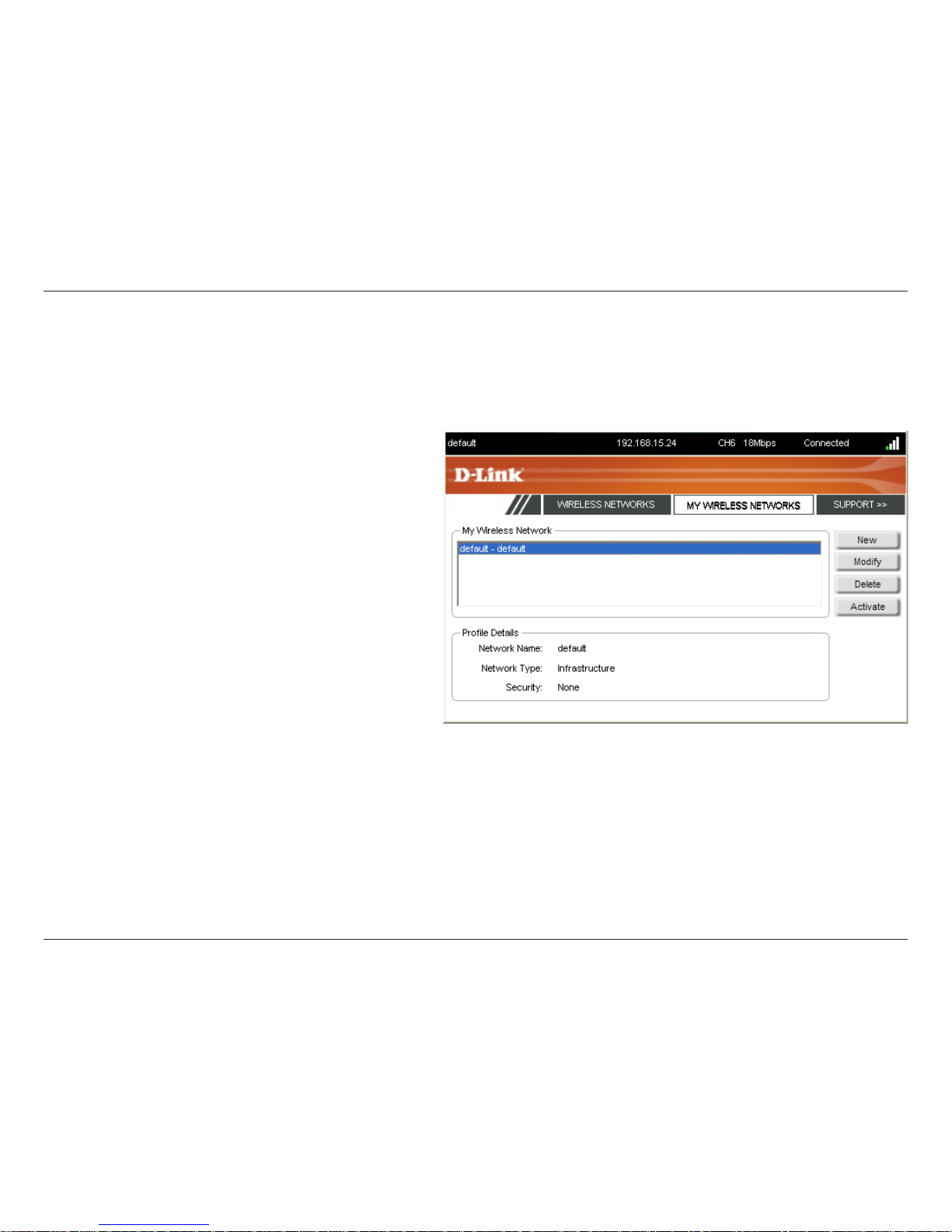

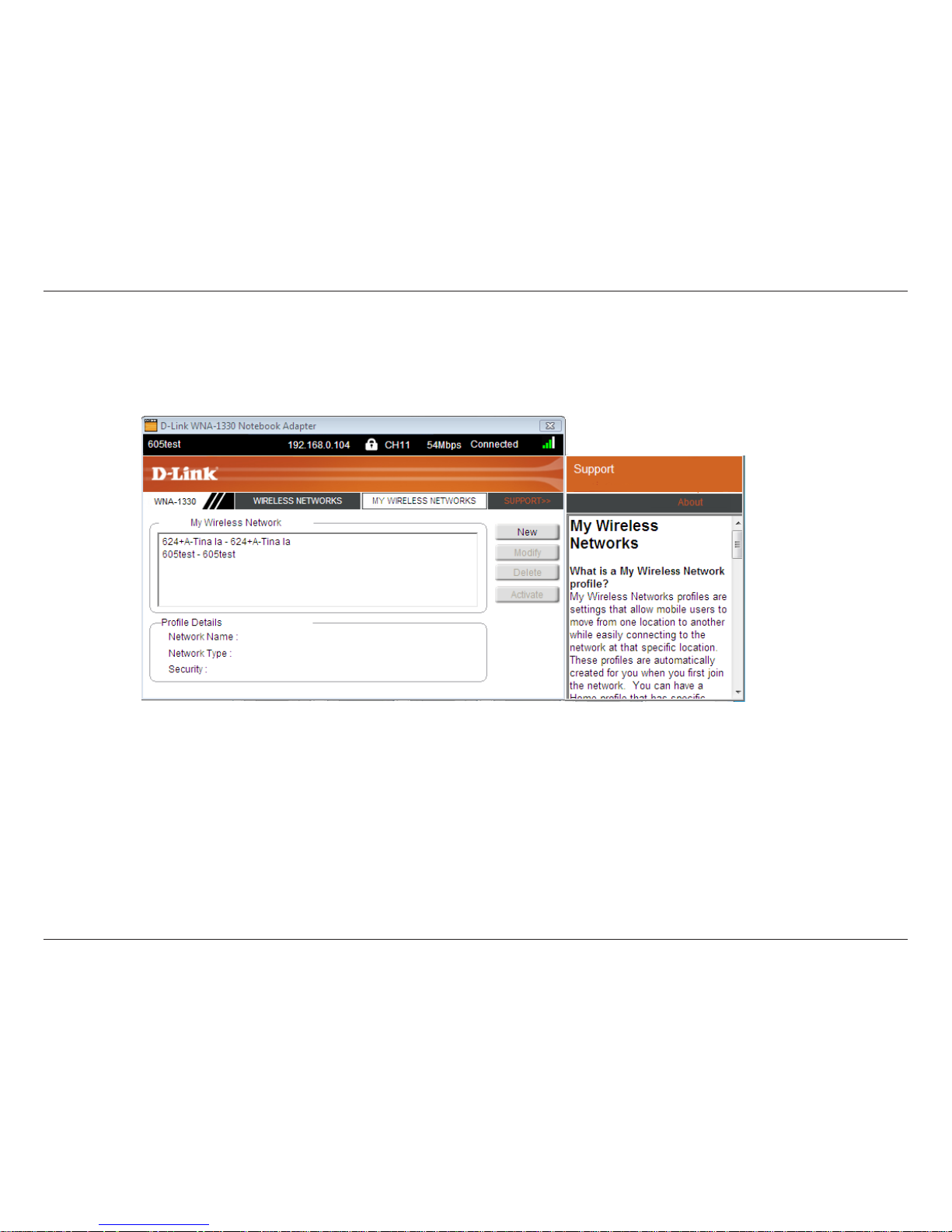

The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a
network using the Wireless Networks page, a profile will automatically be created.
New Button:
Modify:
Click New to create a new wireless network profile
(refer to page 18).
Click Modify to edit a current profile (refer to page
19).
Click Delete to remove a profile.
Click Activate to use a profile. Allow up to 30 seconds
to connect to the wireless network.
The Profile Details section will display information
about the wireless network such as the network name
(SSID), network type (Infrastructure or Ad-Hoc), and
if the network is secured.
Delete:
Active:
Profile Details:
Page 25
25D-Link WNA-1330 User Manual
Section 3 - Configuration
Support

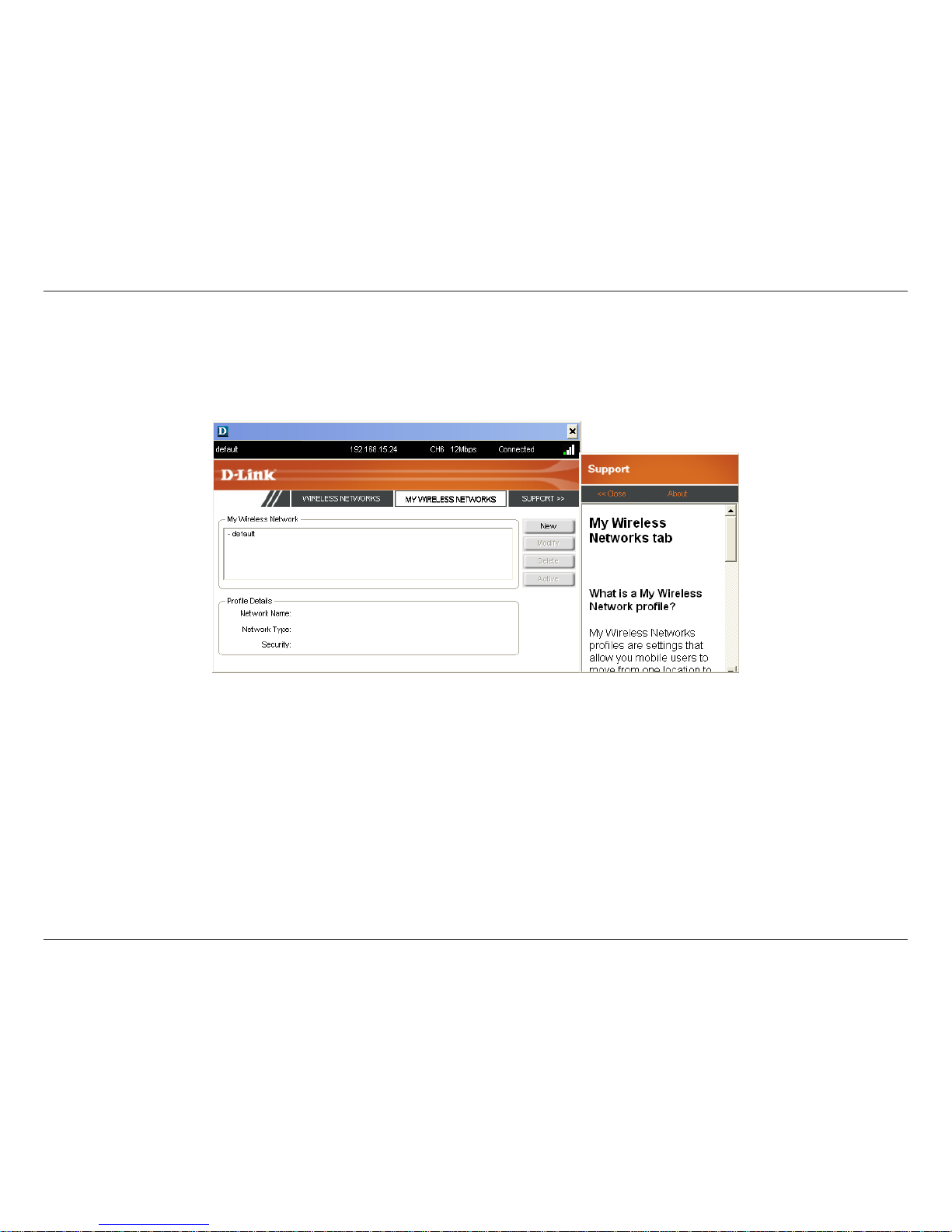

If you need help, click the Support button. A pane will appear to the right of the utility which will display information about the
utility.
Page 26
26D-Link WNA-1330 User Manual
Section 3 - Configuration

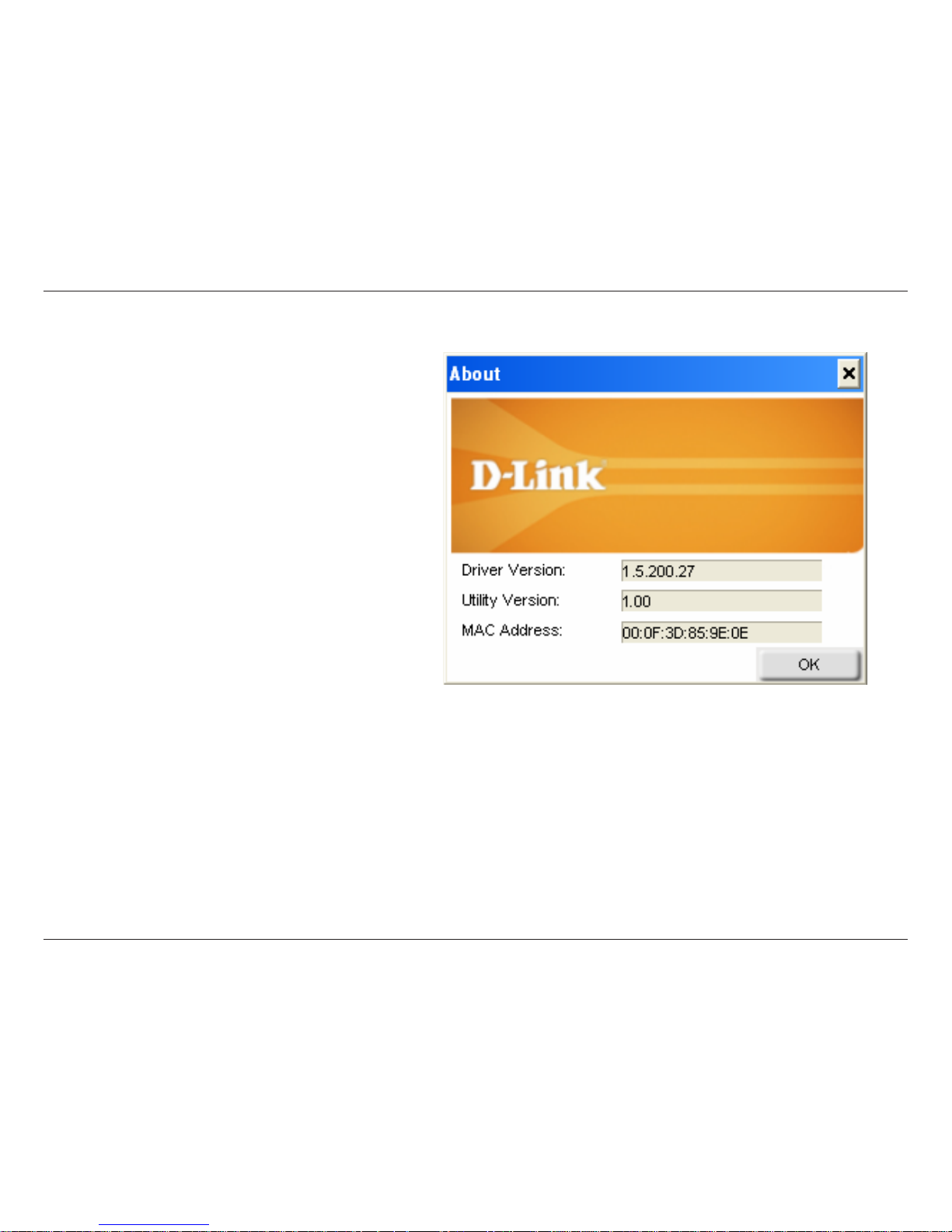

The About screen gives you information about the Firmware
and Utility Versions of the WNA-1330.
About
Page 27
27D-Link WNA-1330 User Manual
Section 3 - Configuration
Windows Vista

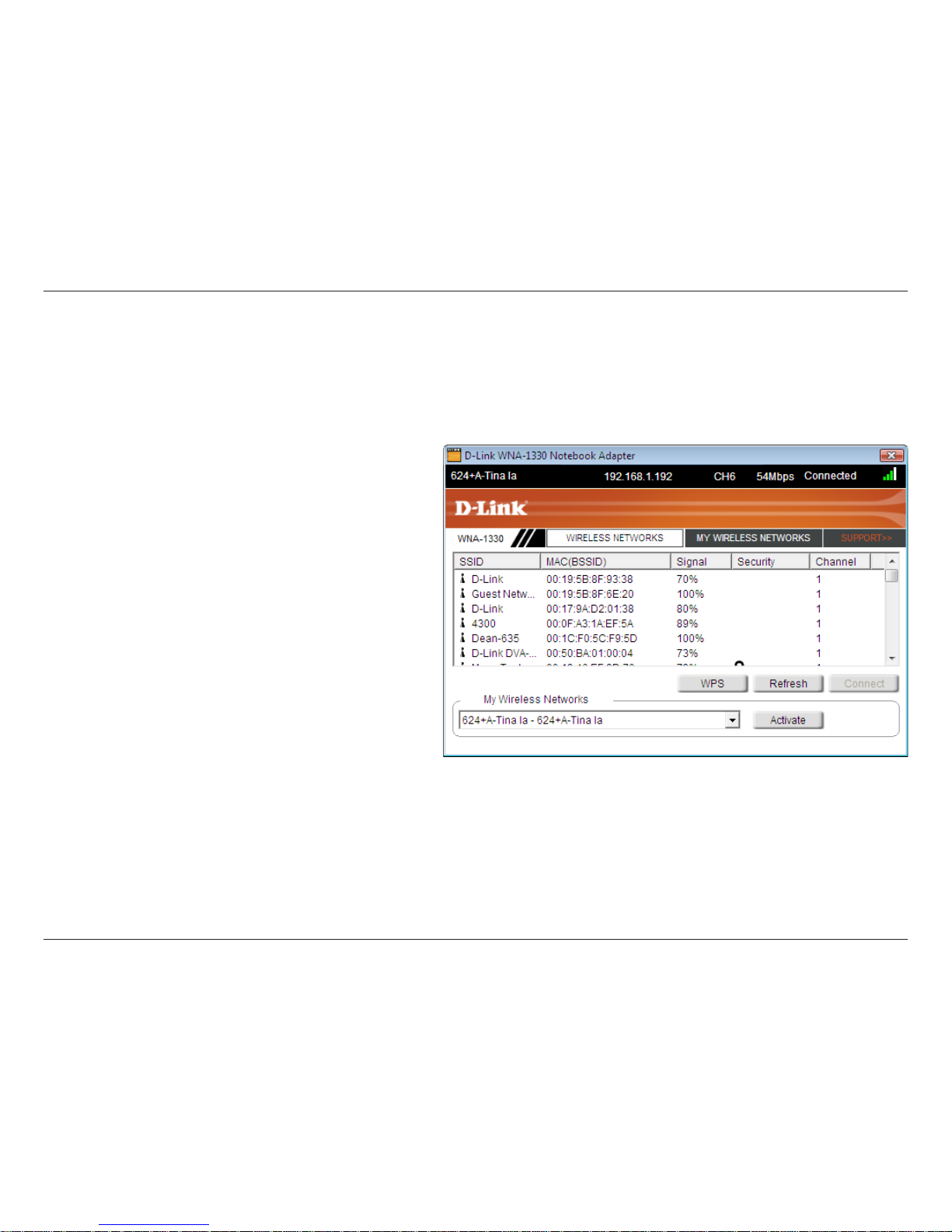

The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area.
To connect to a network, simply select to highlight the wireless network (SSID) and click Connect.
Wireless Networks
SSID:
MAC (BSSID):
EThe SSID (Service Set Identifier) is the
name of the wireless network.
Displays the MAC address of the wireless device.
Displays the link quality of the wireless connection.
If there is a “lock” icon, this means that the
wireless connection is secure. You must know
the encryption key/security settings to connect.
Displays the channel of the wireless network.
Button: Opens up a new window for WPS
setup. See page 16 for more details.
Rescans for available wireless
networks in your area.
Select a wireless network from the network
display and click Connect. If the network is
secure, a pop-up window will appear. Enter the
security information to connect (refer to the
Wireless Security section for more information).
Select a wireless network profile from the dropdown menu and click Activate to connect.
Allow up to 30 seconds for connection.
Signal:
Security:
Channel:
WPS Button:
Refresh Button:
Connect Button:
Activate Button:
Page 28
28D-Link WNA-1330 User Manual
Section 3 - Configuration
Wi-Fi Protected Setup (WPS)
The Wi-Fi Protected Setup (WPS) System is designed for easy setup of security-enabled Wi-Fi networks. It is
recommended that you have the access point or wireless router nearby during setup.
For more information on WPS, visit the Wi-Fi Alliance website at www.wi-fi.org.

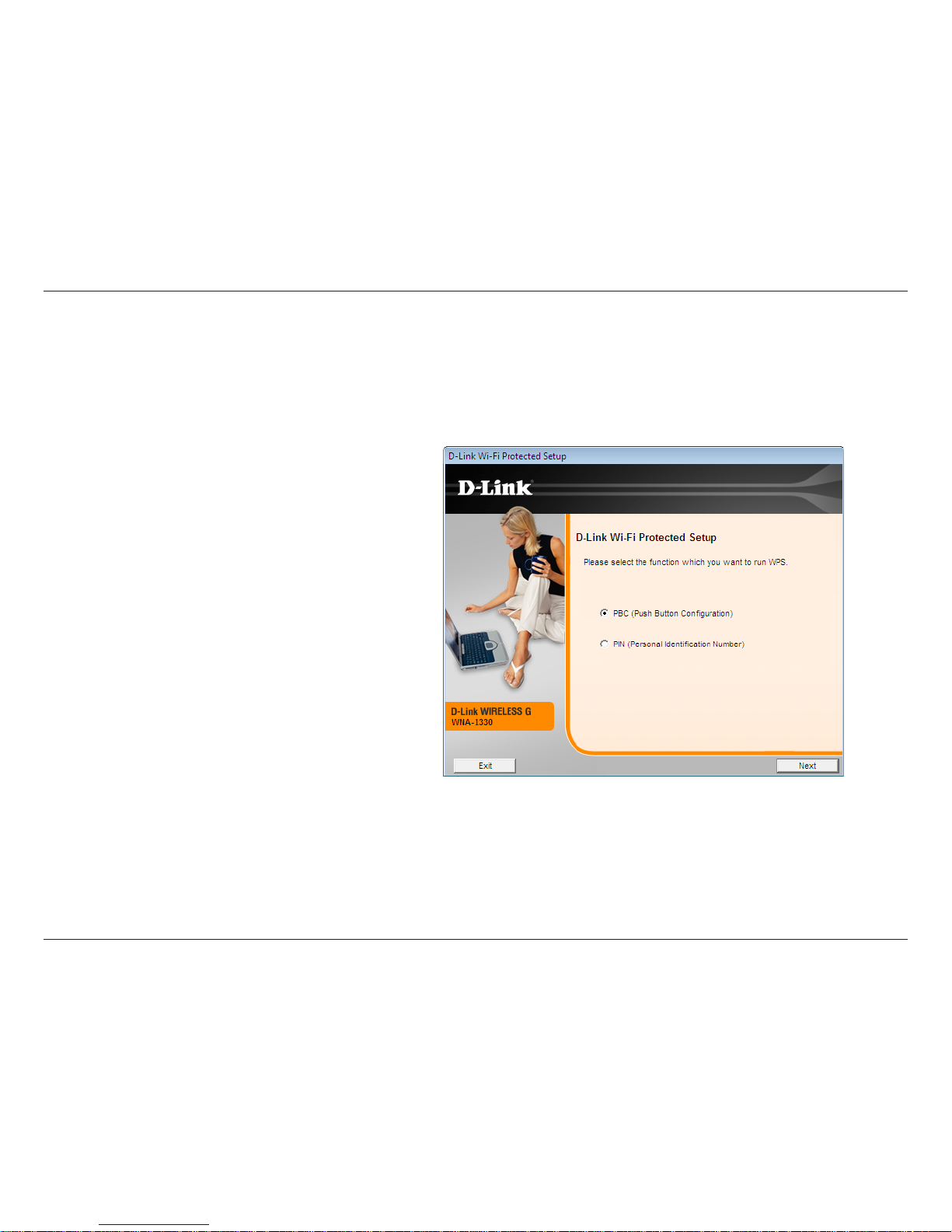

PBC (Push Button Configuration) is a virtual button
in the utility that connects you to other WPS-enabled
devices. A connection can be established by clicking
on the virtual button, then pushing the physical button
located on the access point or wireless router within
120 seconds. For more information, refer to page 18.
PIN (Personal Identification Number) is a unique
number generated randomly by the wireless adapter’
s utility. Entering this number into the utility of
the WPS-enabled wireless router or access point
connects you to the intended wireless network.
Refer to the next page for more information.
Page 29
29D-Link WNA-1330 User Manual
Section 3 - Configuration
Personal Identification Number (PIN)

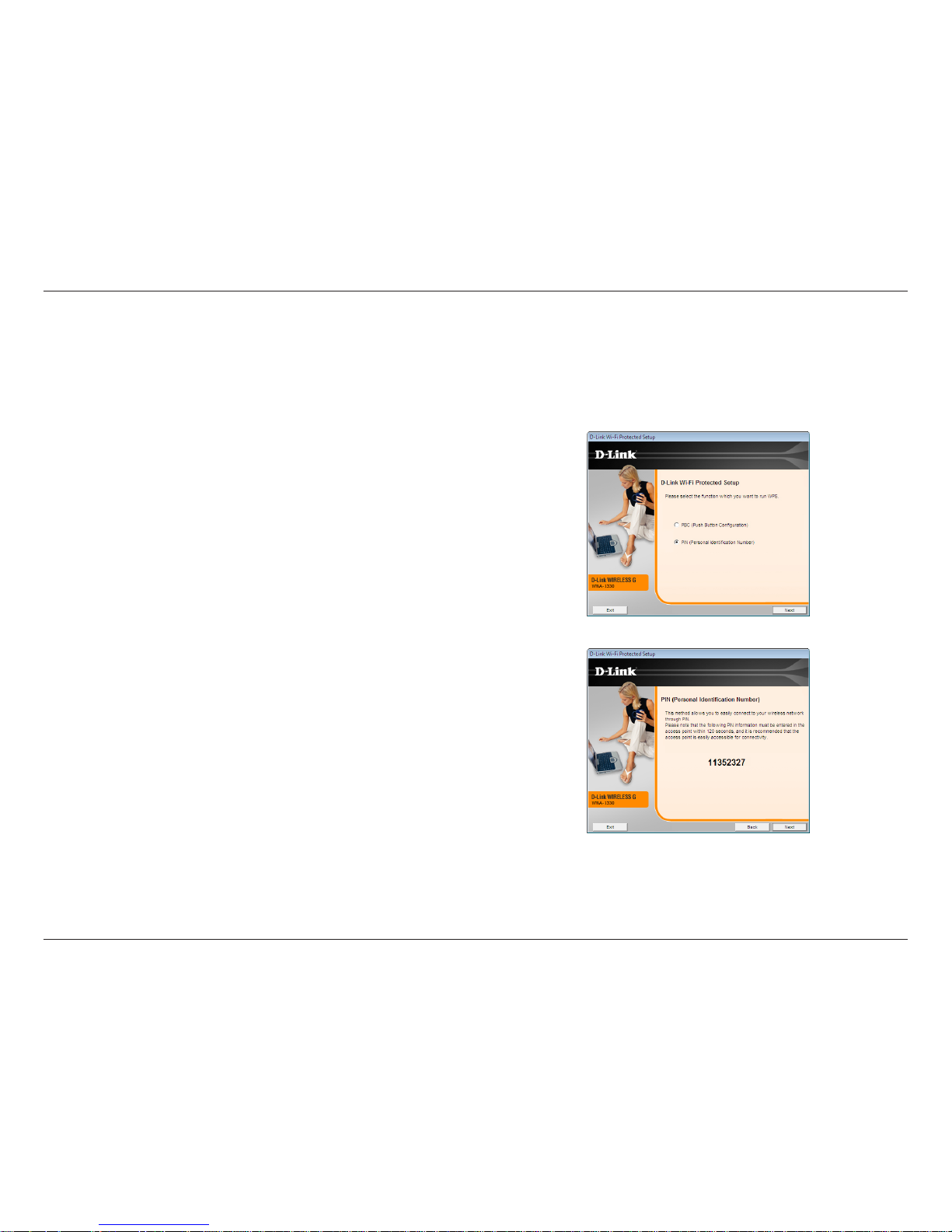

If you want to establish a connection in PBC mode, please refer to page 18. To connect in PIN mode, select PIN (Personal Identification
Number) and click Next.
For more information on WPS, visit the Wi-Fi Alliance website at www.wi-fi.org.
Make sure that your access point or wireless router is close by. Write down the
number on the screen. Enter this number into your access point or wireless
router. Please refer to the manufacturer’s manual for instructions.
Once you click Next, you will have 2 minutes to enter this number into your
access point or wireless router.
The adapter will try to establish connectivity to your access point or wireless
router
Page 30
30D-Link WNA-1330 User Manual
Section 3 - Configuration

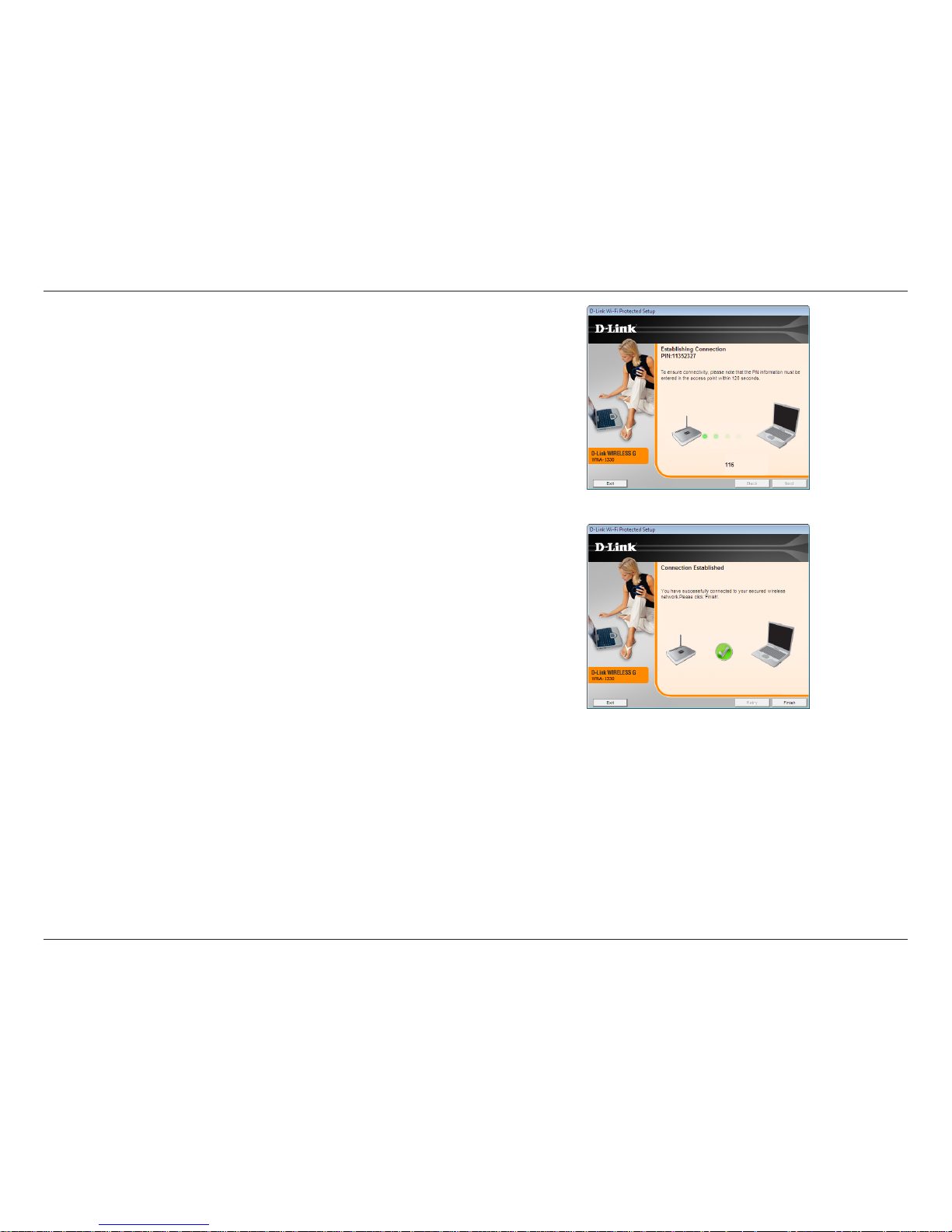

When this screen appears, you have successfully established connectivity. Click
Finish to complete your setup.
Page 31
31D-Link WNA-1330 User Manual
Section 3 - Configuration

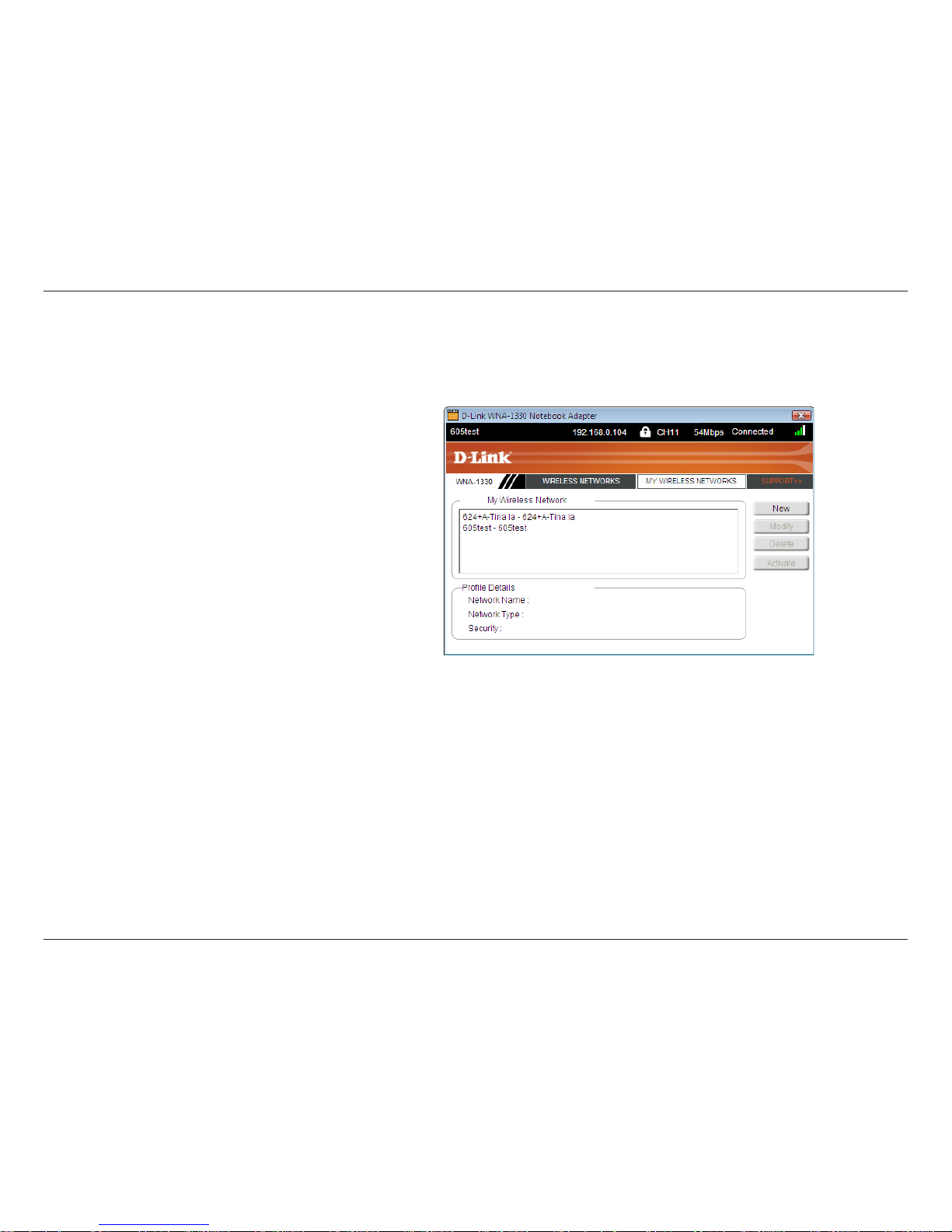

My Wireless Networks
The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a
wireless network using the Wireless Networks page, a profile will automatically be created.
Click New to create a new wireless network
profile, refer to page 31 for more information.
Click Modify to edit a current profile, refer to page
33 for more information.
Click Delete to remove a profile.
Click Activate to use a profile. Allow up to 30
seconds to connect to the wireless network.
The Profile Details section will display information
about the wireless network such as the network
name (SSID), and if the network is secured.
Modify Button:
New Button:
Profile Details:
Delete Button:
Activate Button:
Page 32
32D-Link WNA-1330 User Manual
Section 3 - Configuration

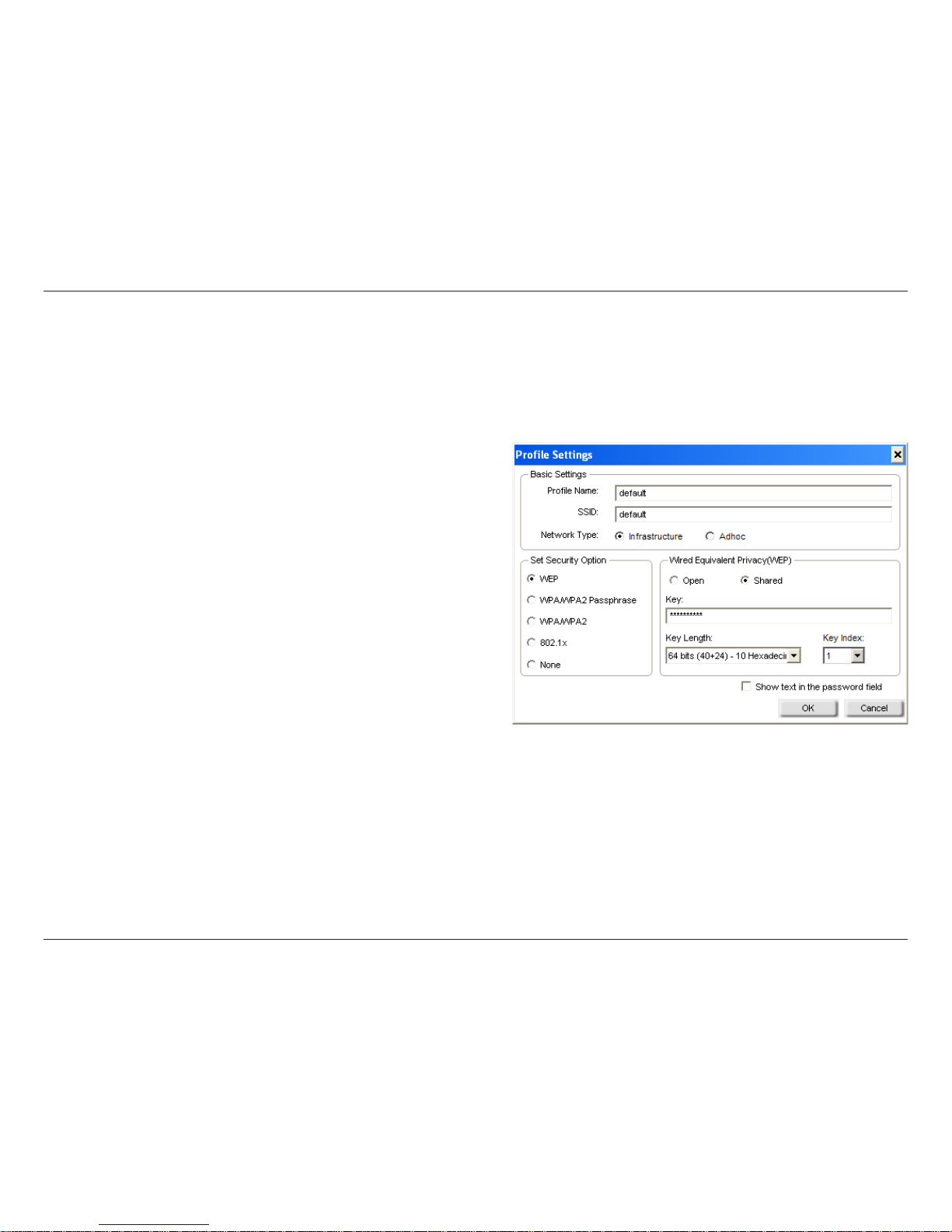

Add Profile

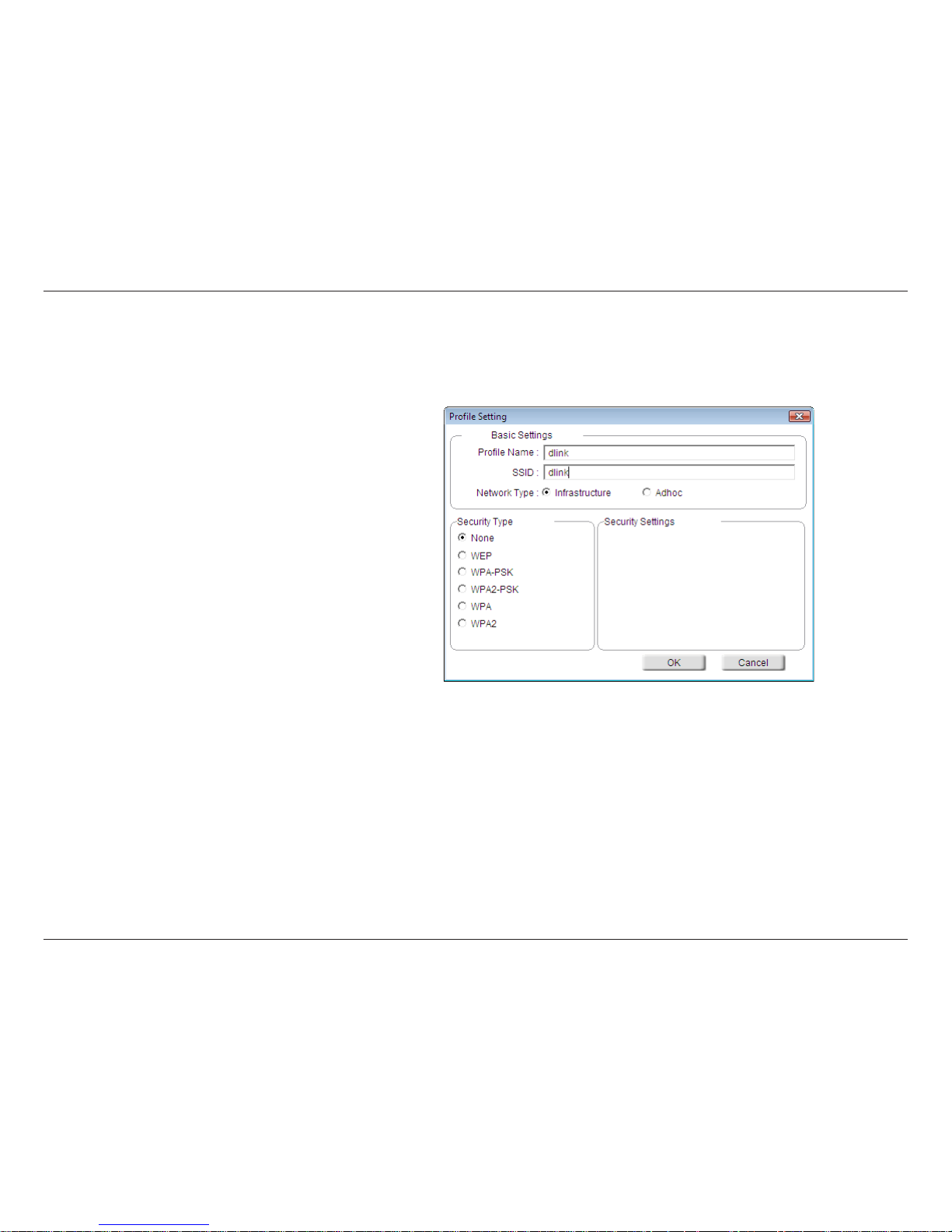

You may add a new network by clicking the New button from the My Wireless Networks page.
Enter a name for your profile (e.g. Home, Office, Coffee
Shop).
Enter the SSID of the wireless network.
Select the network type. If you are connecting to a
wireless router or access point, select Infrastructure.

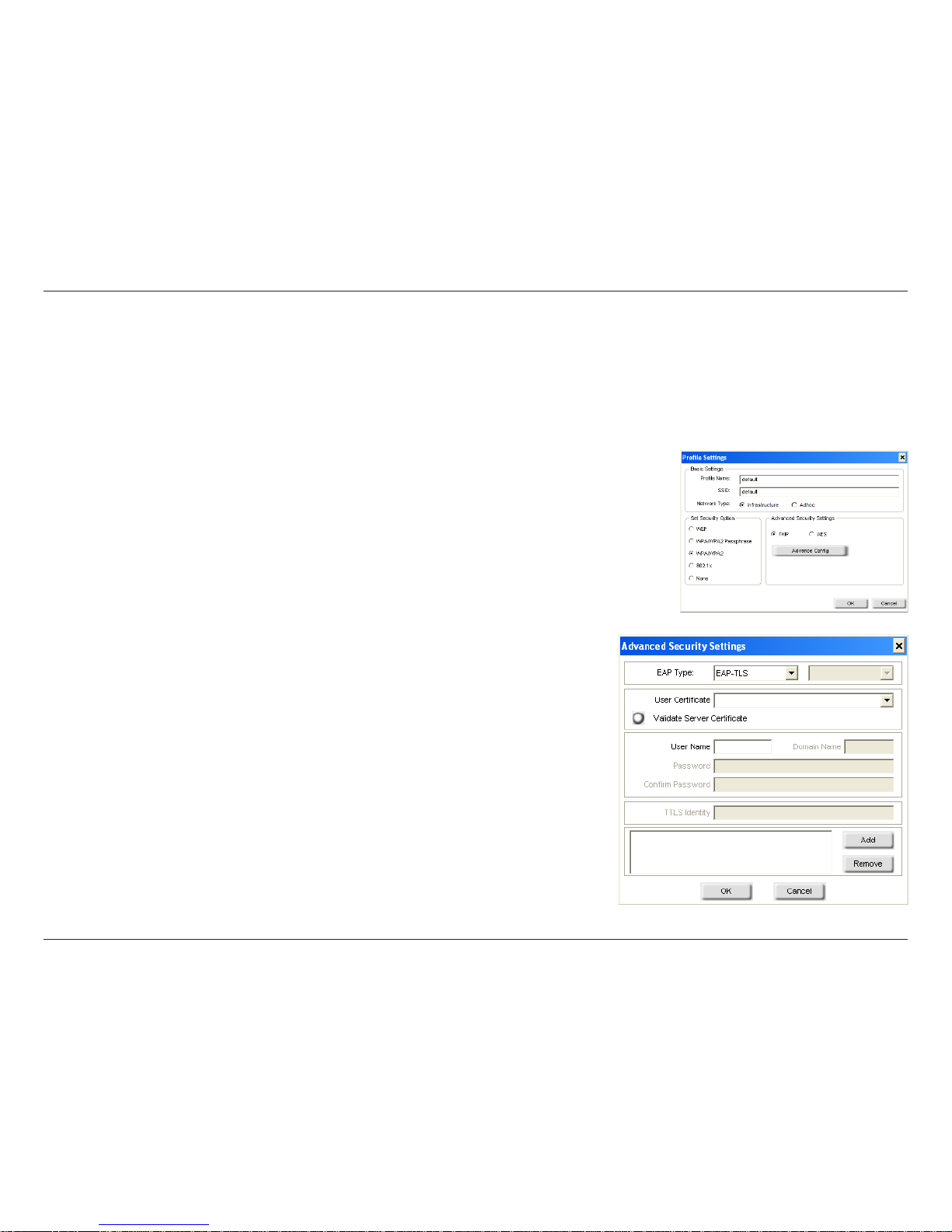

Select the type of security used. Please refer to the
Wireless Security section for more information.
Click OK to save your settings.
SSID:
Profile Name:
OK Button:
Network Type:
Set Security:
Page 33
33D-Link WNA-1330 User Manual
Section 3 - Configuration
Modify Profile

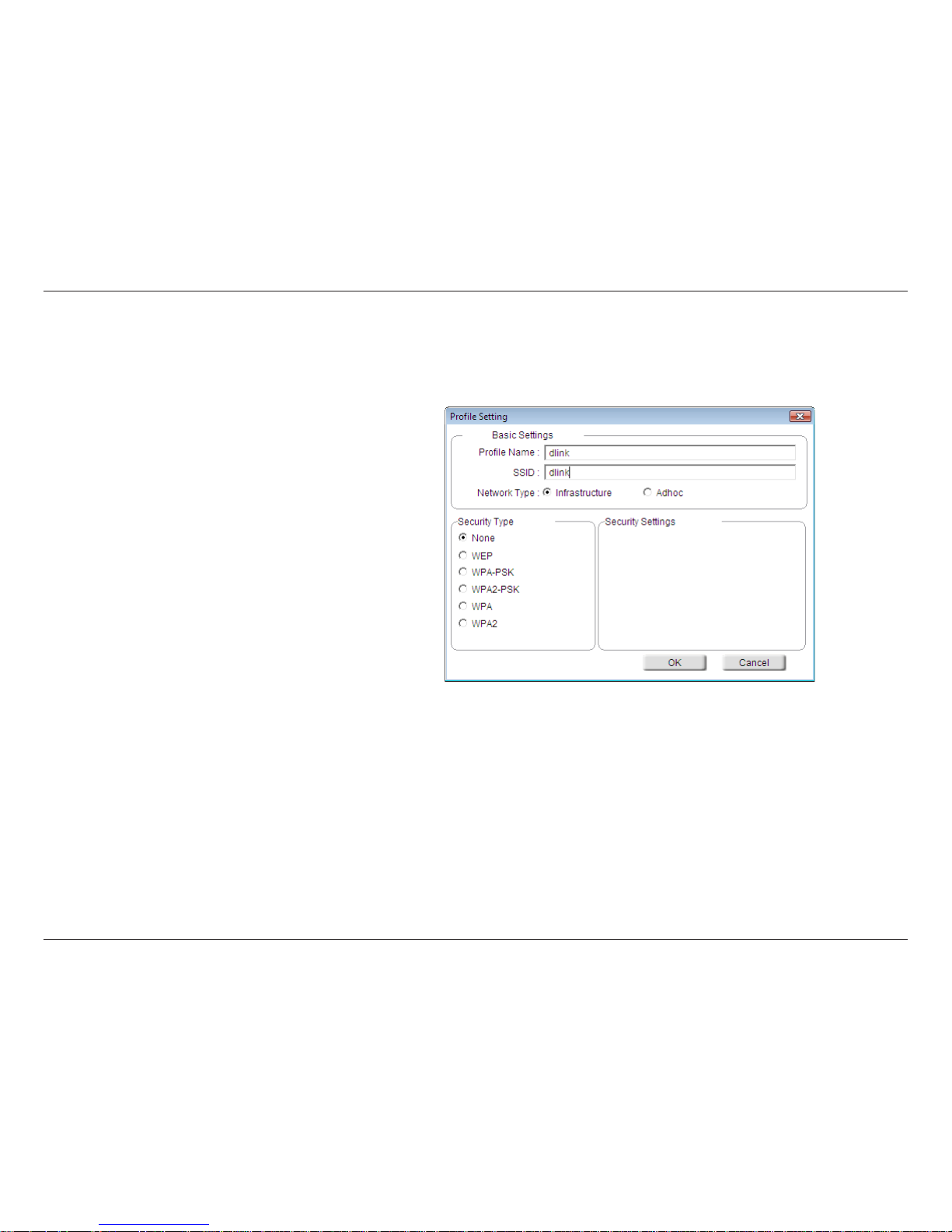

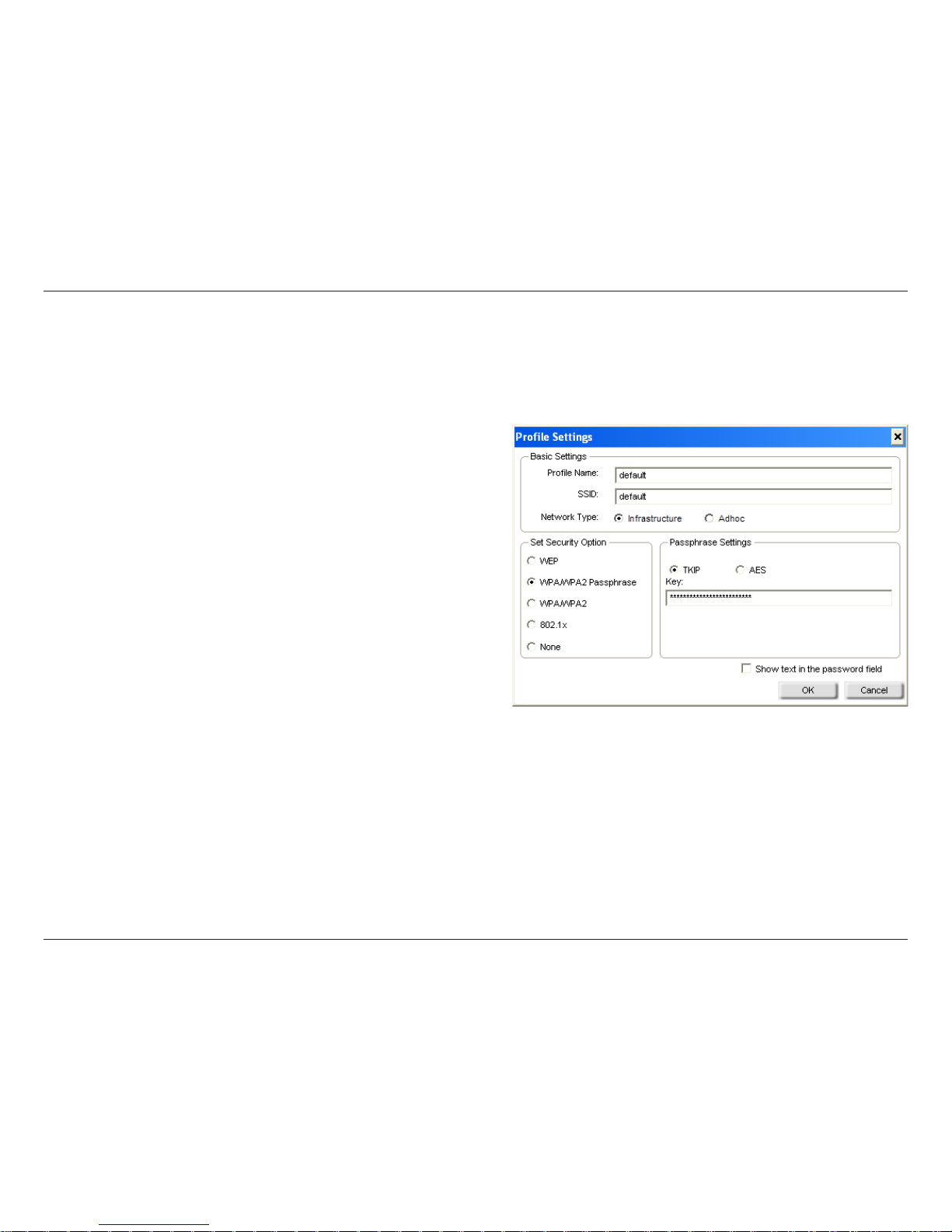

You may edit an existing profile by clicking the Modify button from the My Wireless Networks page.
Enter a name for your profile (e.g.
Home, Office, Coffee Shop).
Enter the SSID of the wireless network.
Select the network type. If you are connecting to a
wireless router or access point, select Infrastructure.
Select the type of security used. Please refer to the
Wireless Security section for more information.
Click OK to save your settings.
SSID:
Profile Name:
OK Button:
Network Type:
Set Security:
Page 34
34D-Link WNA-1330 User Manual
Section 3 - Configuration
Support
If you need help, click the Support button. A panel will normally appear to the right of the utility, which will display information about
the utility.
Page 35
35D-Link WNA-1330 User Manual
Section 3 - Configuration

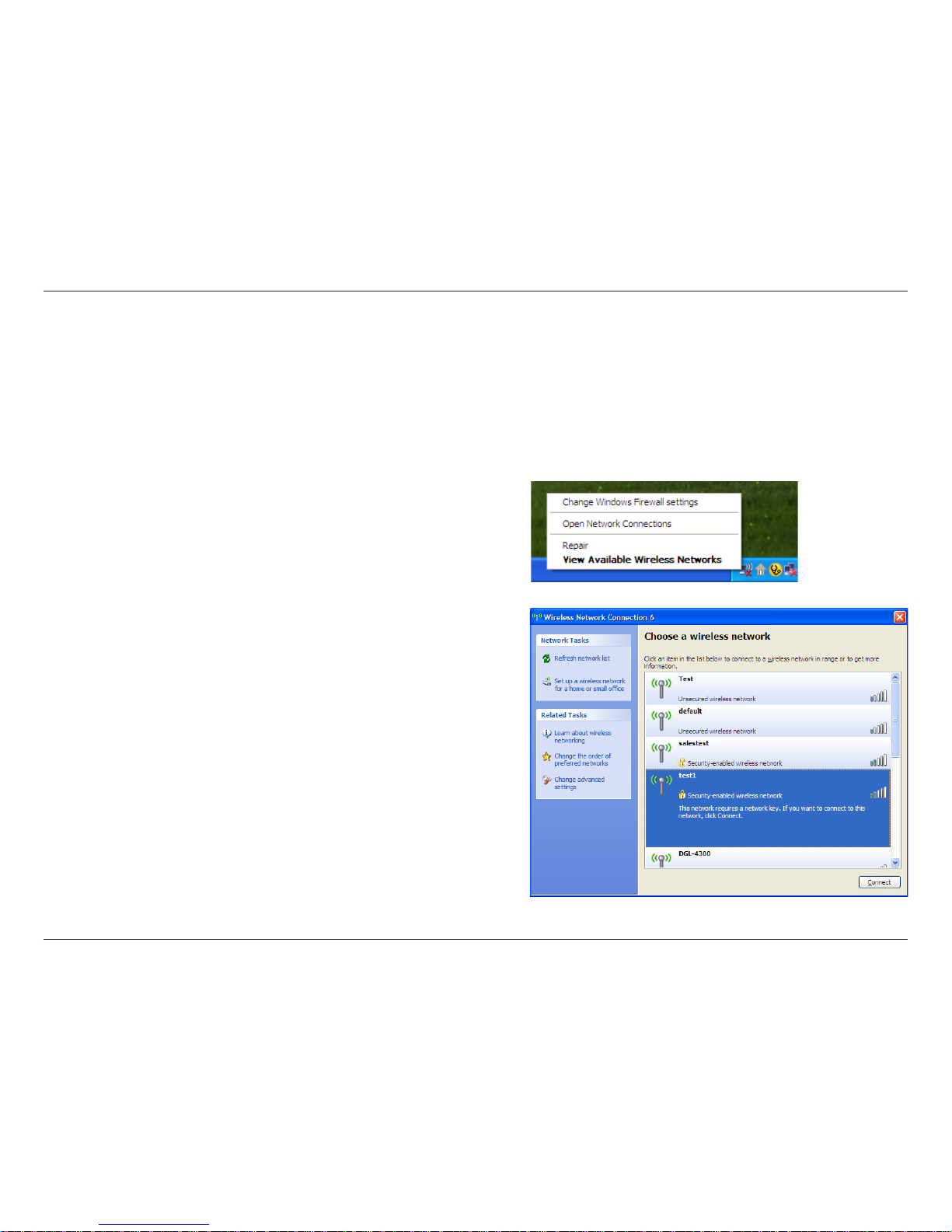

Windows® XP Configuration Utility
Windows® XP users may use the built-in wireless utility. The following instructions are for Service Pack 2 users.
If you are using Windows® 2000, you must use the D-Link utility. Please refer to page 15.

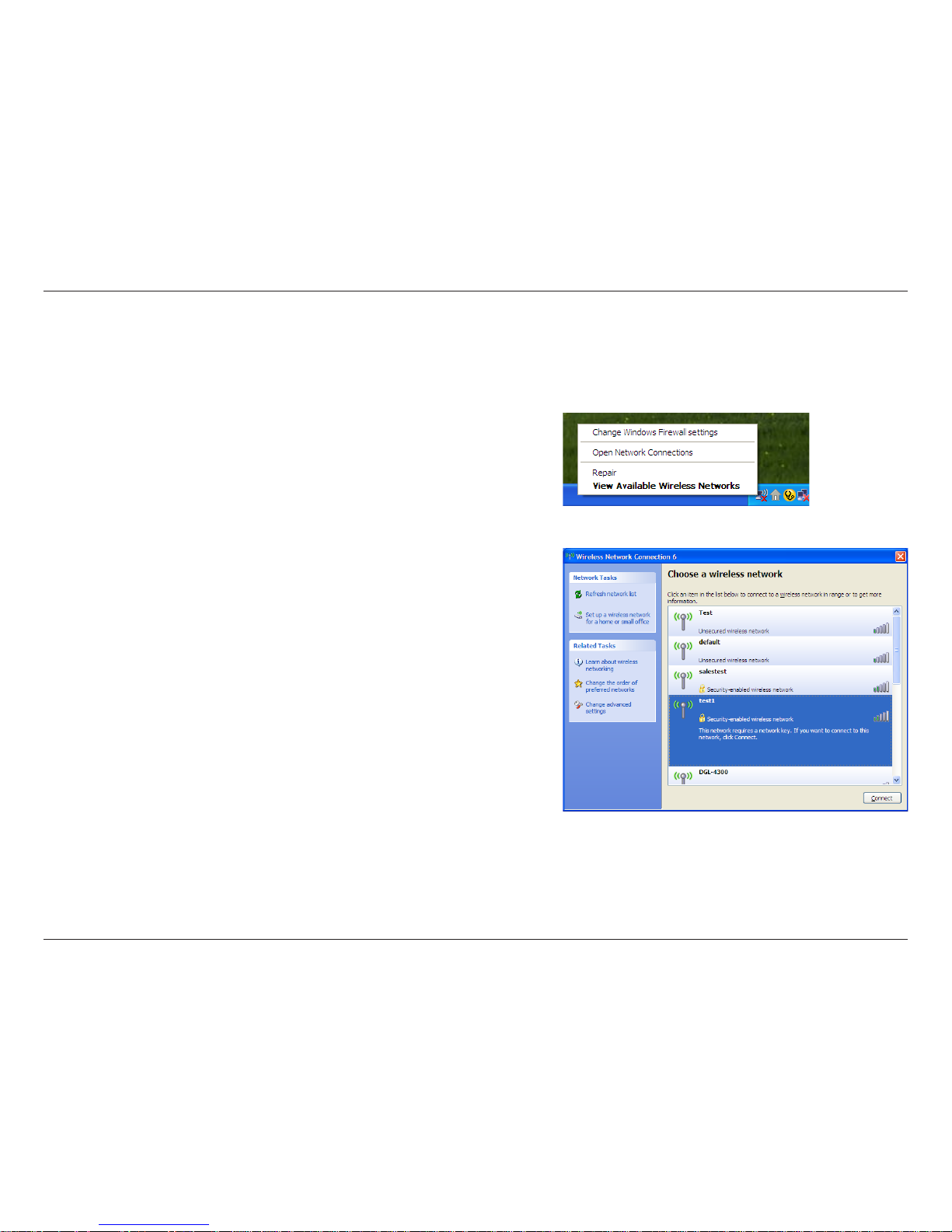

Right-click on the wireless computer icon in your system tray

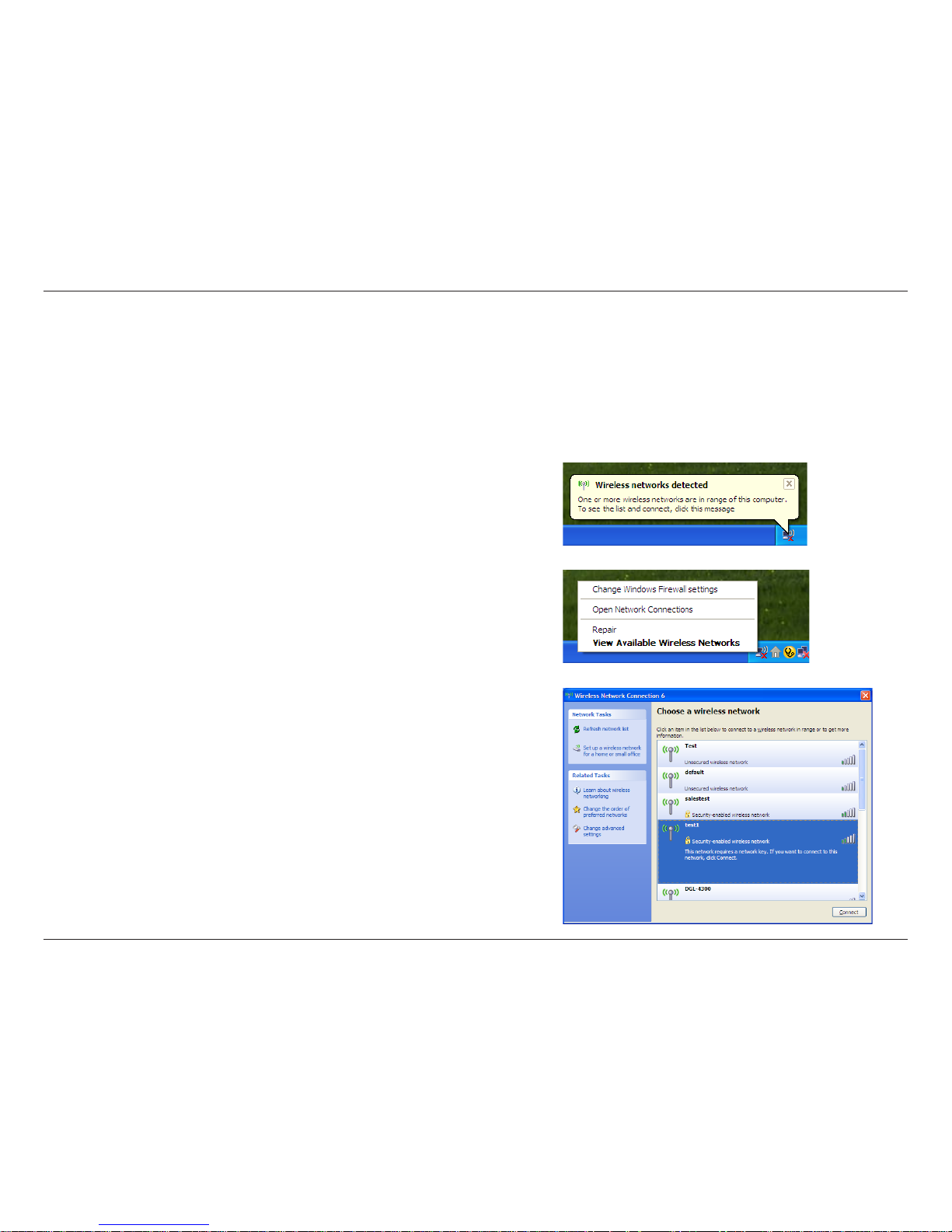

(lower-right corner next to the time). Select View Available Wireless
Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
The utility will display any available wireless networks in your area. Click
on a network and click the Connect button.
Refer to the Wireless Security section for information on connecting
to a secure network.
If you want to use the D-Link utility instead of the Windows® XP wireless
utility, refer to the next page.
Page 36
36D-Link WNA-1330 User Manual
Section 3 - Configuration
Disabling The Windows® XP Utility
If you want to use the D-Link wireless utility you must disable the Windows® XP wireless utility.
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select View Available Wireless
Networks.
In the Choose a Wireless Network window click Change Advanced
Settings on the left side below Related Tasks.
Page 37
37D-Link WNA-1330 User Manual
Section 3 - Configuration

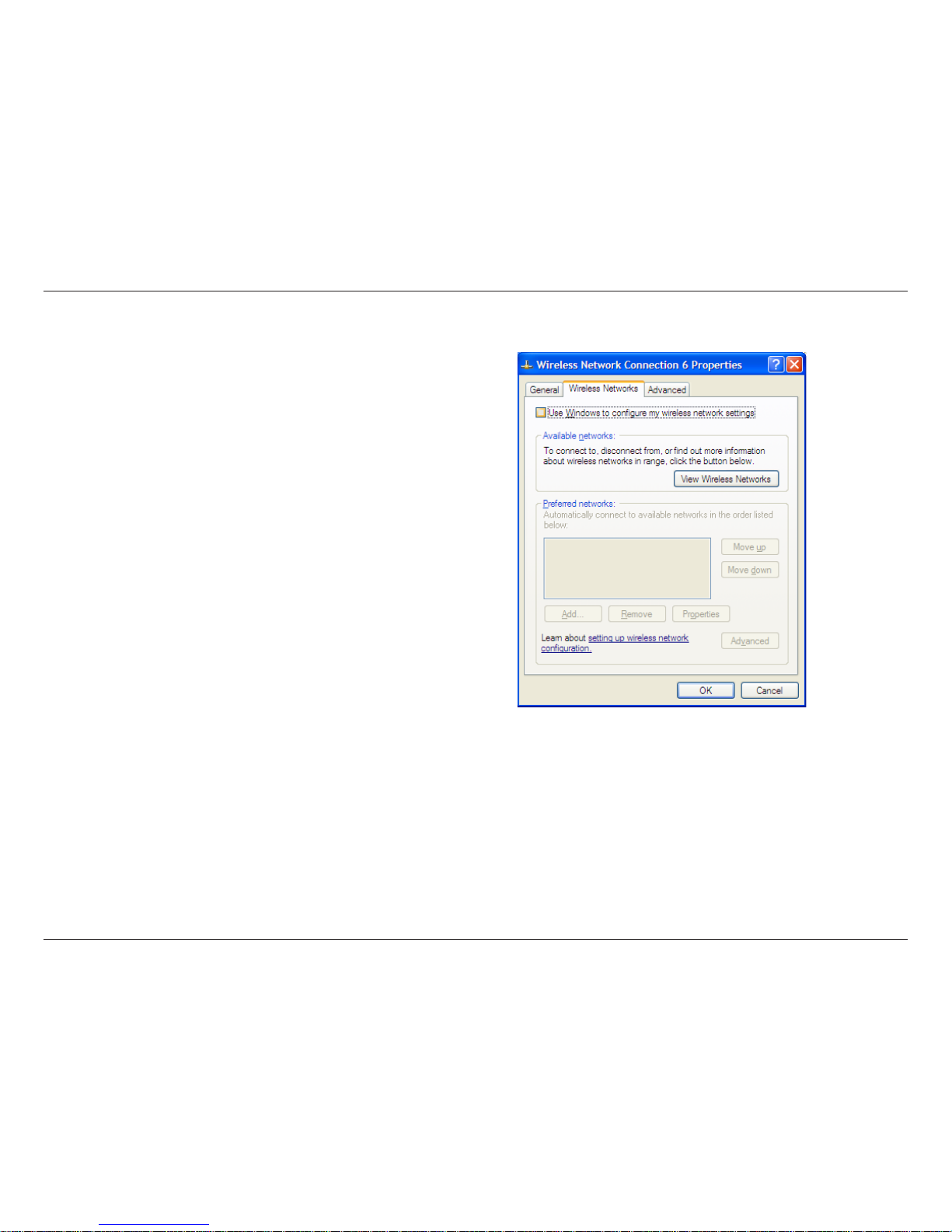

In the Wireless Network Connection Properties window, uncheck Use
Windows® to configure my wireless network settings and then
click OK.
Page 38
38D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The
WNA-1330 offers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy) • 802.1x (RADIUS)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP
provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device
to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you
must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key
than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American
Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string
that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can
change keys easily.
Page 39
39D-Link WNA-1330 User Manual
Section 4 - Wireless Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a
hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with.
WPA2 is based on 802.11i and uses Advanced Encryption Standard instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specific MAC address, which is relatively
simple to be sniffed out and stolen. EAP is built on a more secure public-key encryption system to ensure that only
authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key
entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure
public key encryption system to ensure that only authorized network users can access the network.
Page 40
40D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure WEP
Using the D-Link Utility
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. If you are joining
an existing network, you will need to know the WEP key being used.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your
system tray (lower-right corner of screen). From the list of available
wireless networks, select the network you want to connect to and click
Connect. If the network is using WEP, the screen (as shown to the left)
will appear.

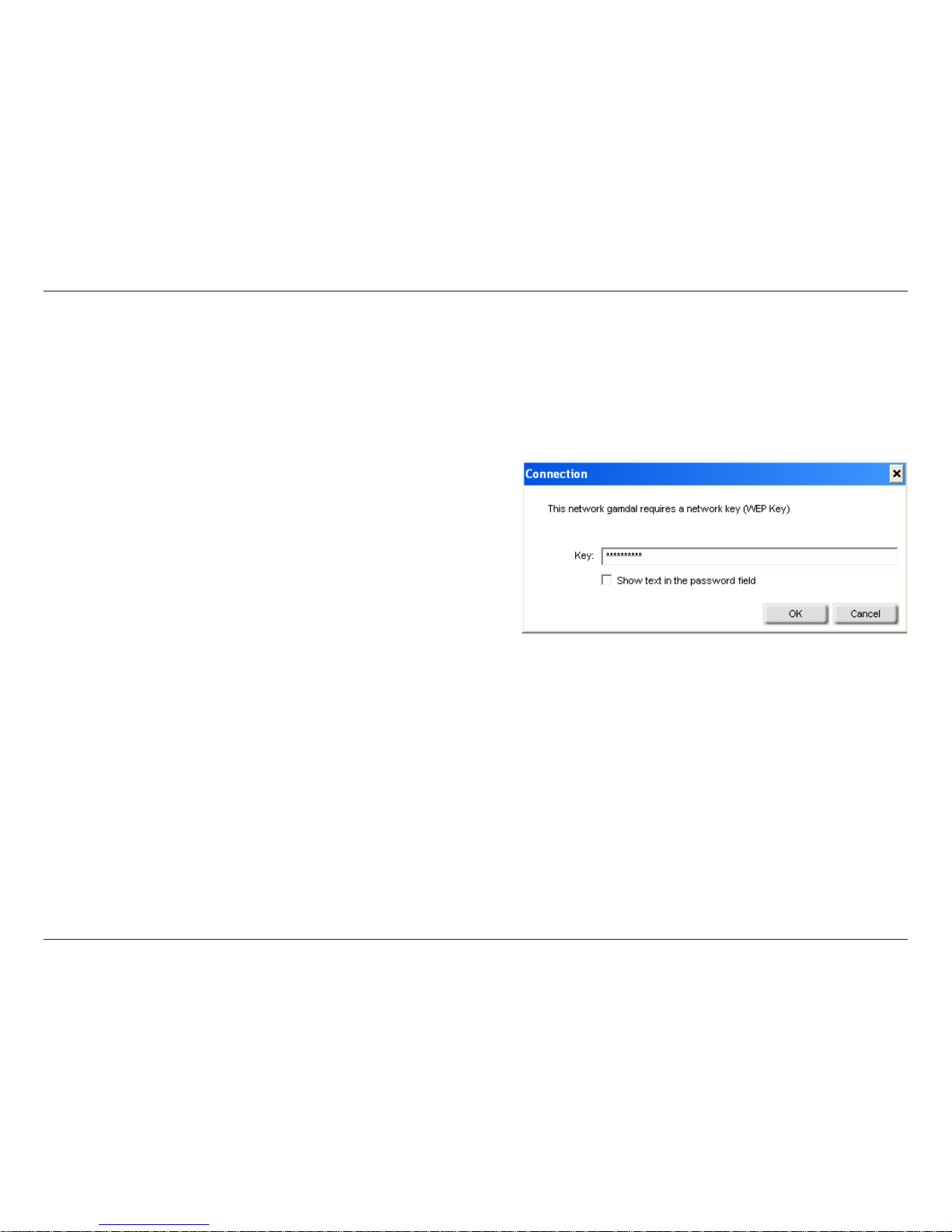

2. Enter the WEP key exactly as it is on your wireless router or access
point.
3. Click the Show text in the password field box to see the WEP key. Unchecking it will hide the key.
4. Click OK to connect to the network. Allow up to 30 seconds to connect.
If you would like to create a new network and enter the WEP settings, refer to the next page.
Page 41
41D-Link WNA-1330 User Manual
Section 4 - Wireless Security
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. make sure you
enter the WEP key exactly the same on all wireless devices. It is strongly recommended to set the authentication to Shared Key.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your system tray (lower-right corner of screen). Click on New
to create a new profile or highlight an existing profile and click Modify.
2. Select WEP under Set Security Option.
3. Select Shared and th en select the Key Leng th from th e
drop-down menu.
4. Enter the WEP key exactly as it is on your wireless router or access
point.
5. Click OK to connect to the network. Allow up to 30 seconds to
connect.
Page 42
42D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure WEP
Using the Windows® XP Utility
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. If you are joining
an existing network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking
on th e wire less c omput er ico n in yo ur sys tem tr ay
(lower-right corner of screen). Select View Available Wireless
Networks.
Page 43
43D-Link WNA-1330 User Manual
Section 4 - Wireless Security

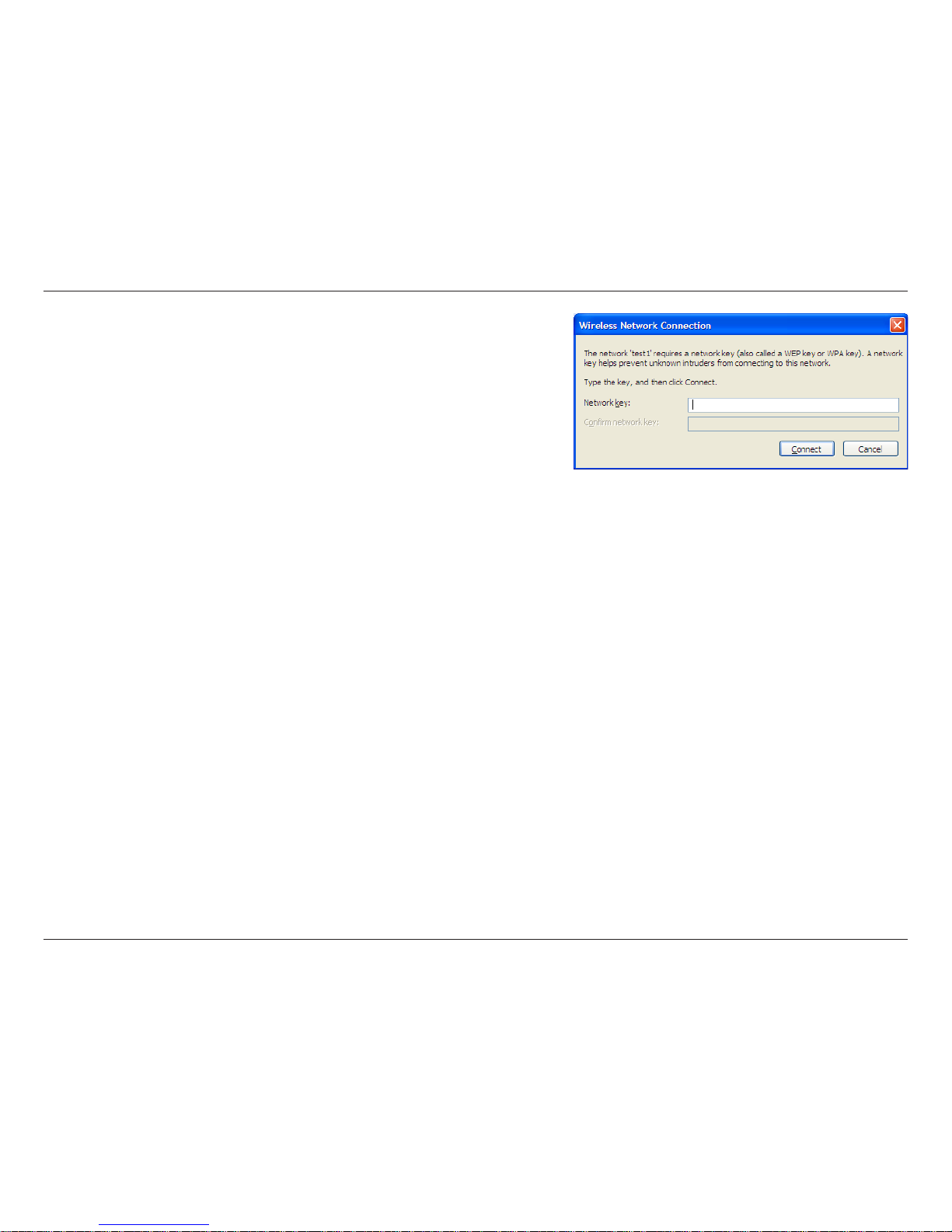

3. The Wireless Network Connection box will appear. Enter the WEP key and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the WEP settings are correct. The WEP key must be
exactly the same as on the wireless router or access point.
Page 44
44D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure WPA/WPA2 Passphrase
Using the D-Link Utility
It is recommended to enable WPA-PSK on your wireless router or access point before configuring your wireless adapter. If you are
joining an existing network, you will need to know the WPA-PSK passphrase being used.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your
system tray (lower-right corner of screen).
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect. If the network is using WPA-PSK, the screen (as
shown to the left) will appear.
3. Enter the WPA-PSK passphrase exactly as it is on your wireless router
or access point. Click the Show text in the password field box to see
the passphrase. Unchecking it will hide it.
4. Click OK to connect to the network. Allow up to 30 seconds to connect.
If you would like to create a new network and enter the WEP settings, refer to the next page.
Page 45
45D-Link WNA-1330 User Manual
Section 4 - Wireless Security
It is recommended to enable WPA-PSK on your wireless router or access point before configuring your wireless adapter. Make sure
you enter the passphrase exactly the same on all wireless devices.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your system tray (lower-right corner of screen). Click on New
to create a new profile or highlight an existing profile and click Modify.
2. Select WPA/WPA2 Passphrase under Set Security Option.
3. Select TKIP or AES.
4. Enter the passphrase exactly as it is on your wireless router or
access point.
5. Click OK to connect to the network. Allow up to 30 seconds to
connect.
Page 46
46D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure WPA/WPA2 Passphrase
Using the Windows® XP Utility
It is recommended to enable WPA-PSK on your wireless router or access point before configuring your wireless adapter. If you are
joining an existing network, you will need to know the WPA-PSK key being used.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking
on th e wire less c omput er ico n in yo ur sys tem tr ay
(lower-right corner of screen). Select View Available Wireless
Networks.
Page 47
47D-Link WNA-1330 User Manual
Section 4 - Wireless Security
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the WPA-PSK settings are correct. The WPA-PSK
passphrase must be exactly the same as on the wireless router or access
point.
Page 48
48D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure WPA/WPA2
Using the D-Link Utility
WPA and WPA2 are for advanced users who are familiar with using a RADIUS server and setting up certificates.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your system tray (lower-right
corner of screen). Click on New to create a new profile or highlight an existing profile and click
Modify.
2. Select WPA/WPA2 under Set Security Option and then select TKIP or AES.
3. Click on Advanced Config to continue.
4. Next to EAP Type, select EAP-TLS, EAP-TTLS, or PEAP. Extensible Authentication
Protocols allow devices on the network to request authentication from the RADIUS
server in the network. All the devices on the network must use the same EAP type
when using a RADIUS server for authentication. Some RADIUS servers require that
the Validate Server field be selected. Check this field if your RADIUS server requires
validation.
5. Select an User Certificate from the drop-down menu.
6. Enter the login information required to authenticate.
7. Click Add to enter the IP address(es) of your RADIUS servers.
8. Click OK to save your settings.
Page 49
49D-Link WNA-1330 User Manual
Section 4 - Wireless Security
Configure 802.1x
Using the D-Link Utility
802.1x is for advanced users who are familiar with using a RADIUS server and setting up certificates.
1. Open the Wireless Utility by double-clicking on the D-Link icon in your system tray (lower-right
corner of screen). Click on New to create a new profile or highlight an existing profile and click
Modify.
2. Select 802.1x under Set Security Option.
3. Click on Advanced Config to continue.
4. Next to EAP Type, select EAP-TLS, LEAP, EAP-TTLS, or PEAP. Extensible Authentication
Protocols allow devices on the network to request authentication from the RADIUS
server in the network. All the devices on the network must use the same EAP type
when using a RADIUS server for authentication. Some RADIUS servers require that
the Validate Server field be selected. Check this field if your RADIUS server requires
validation.
5. Select an User Certificate from the drop-down menu.
6. Enter the login information required to authenticate.
7. Click Add to enter the IP address(es) of your RADIUS servers.
8. Click OK to save your settings.
Page 50
50D-Link WNA-1330 User Manual
Section 4 - Wireless Security

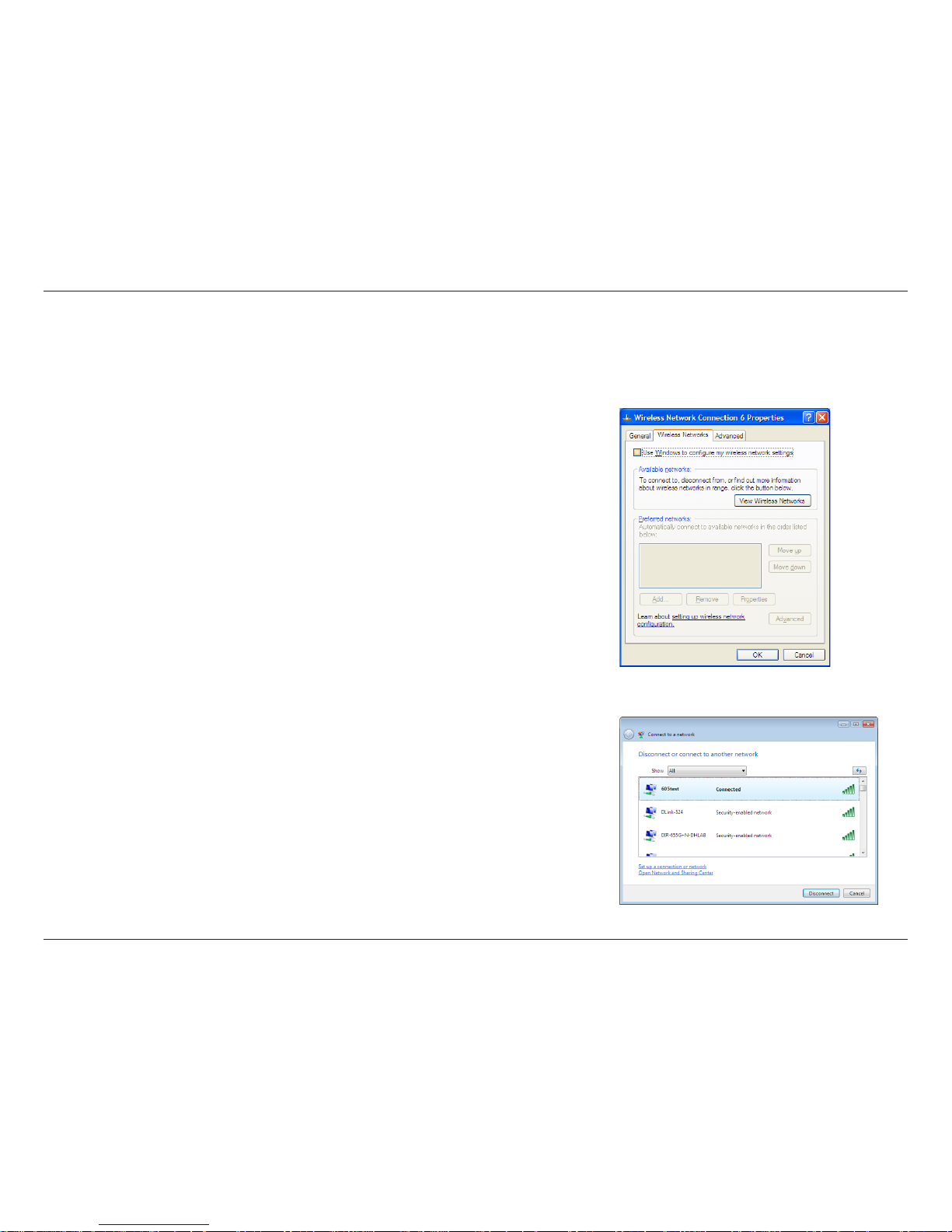

Connect to a Wireless Network
Using Windows Vista™
Windows® Vista™ users may use the built-in wireless utility. If you are using another
company’s utility or Windows® 2000, please refer to the user manual of your
wireless adapter for help with connecting to a wireless network. Most utilities will
have a “site survey” option similar to the Windows® Vista™ utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the bubble to access
the utility.
or
Right-click on the wireless computer icon located in your system tray (lower-right
corner next to the time). Select Connect to a network.
The utility will display all available wireless networks in your area. Click on a network
(displayed using the SSID) and click the Connect button.
If you get a good signal, but cannot access the Internet, check your TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual for
more information.
Page 51
51D-Link WNA-1330 User Manual
Section 5 - Troubleshooting

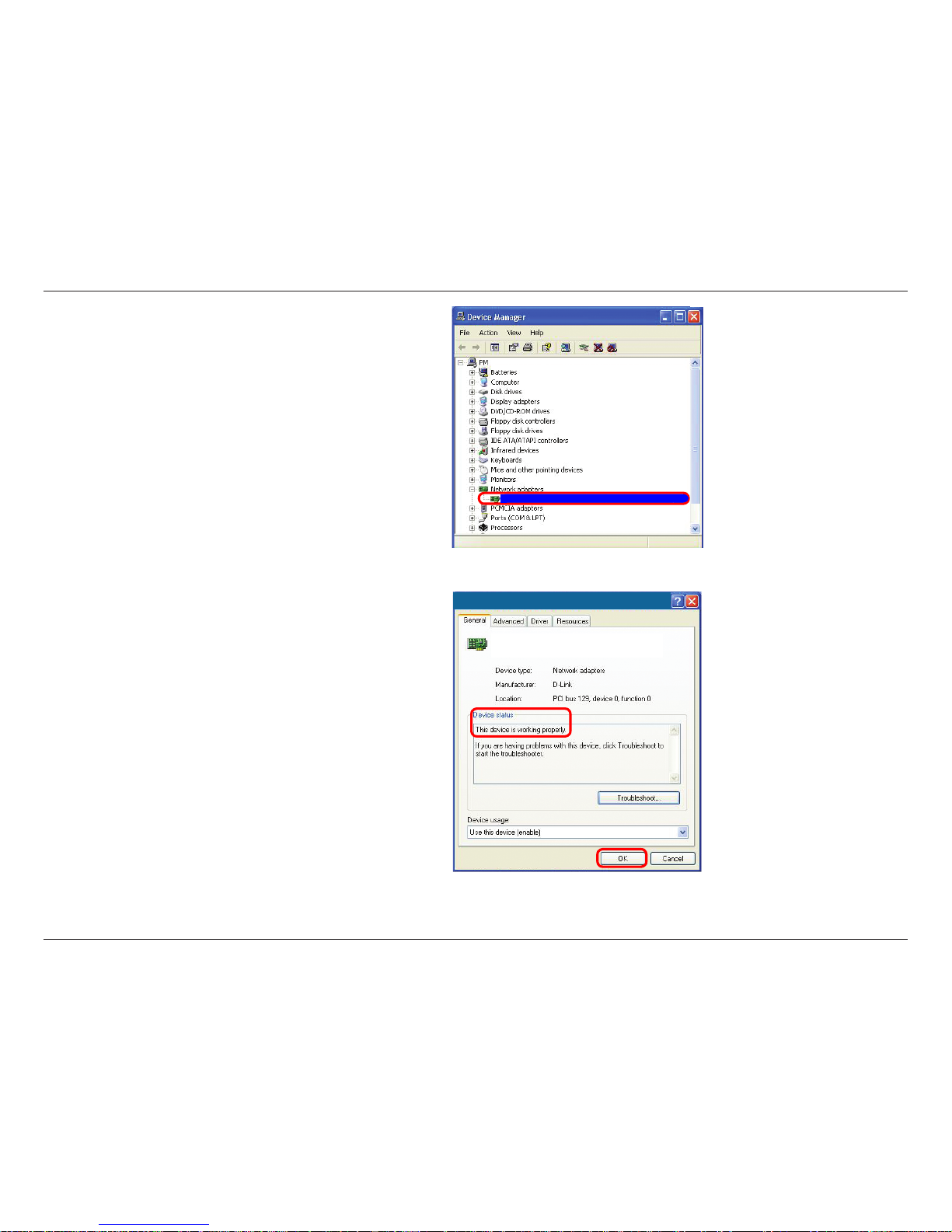

1. How do I know if my adapter is installed properly?
Select the Hardware Tab.
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the WNA-1330. Read the following
descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating
system, the screenshots on your computer will look similar to the following examples.)
Go to Start > My Computer > Properties.
Page 52
52D-Link WNA-1330 User Manual
Section 5 - Troubleshooting
Click the + sign next to Network Adapters.
Right-click on D-Link WNA-1330 Wireless Notebook
Adapter.
Select Properties to check that the drivers are installed
properly.
Look under Device Status to check that the device is
working properly. Click OK to continue.
D-Link WNA-1330 Notebook Adapter
D-Link AirPlus XtremeG WNA-1330
D-Link WNA-1330
Wireless Notebook Adapter
Page 53
53D-Link WNA-1330 User Manual
Section 5 - Troubleshooting
Make sure that the WNA-1330 Wireless Adapter is properly seated in the computer’s Cardbus slot.
If Windows does not detect the hardware upon insertion of the adapter, make sure to completely remove drivers that were previously
loaded.
2. The computer does not recognize the WNA-1330 Wireless Adapter.
• Check that the LED indicators for the broadband modem are indicating normal activity. If not, there may be a problem
with the broadband connection.
• Check that the LED indicators on the wireless router are functioning properly. If not, check that the AC power and
Ethernet cables are firmly connected.
• Check that the IP Address, subnet mask, gateway, and DNS settings are correctly entered for the network
• In Infrastructure mode, make sure the same Service Set Identifier (SSID) is specified on the settings for the wireless
clients and access points. The SSID factory default setting for D-Link products is default. (Double-click on the WLAN
icon in the taskbar. The Link Info screen will display the SSID setting.)
• In Ad-Hoc mode, both wireless clients will need to have the same SSID. Please note that it might be necessary to
set up one client to establish a BSS (Basic Service Set) and wait briefly before setting up other clients. This prevents
several clients from trying to establish a BSS at the same time, which can result in multiple singular BSSs being
established, rather than a single BSS with multiple clients associated to it.
Check that the Network Connection for the wireless client is configured properly. Select AP (Infrastructure) when connecting to an
access point and select Ad-Hoc mode when connecting without an access point. Double-click on the WLAN icon in the taskbar >
3. The computer with the WNA-1330 installed is unable to connect to the wireless network and/or the Internet.
Page 54
54D-Link WNA-1330 User Manual
Section 5 - Troubleshooting
click on Configuration to change the settings for the wireless adapter.
If Security is enabled, make sure that the correct encryption keys are entered on both the WNA-1330 and the access point. Doubleclick on the WLAN icon in the taskbar > click Encryption. Check to see that the key selected is set to the same key as other devices
on the network.
Page 55
55D-Link WNA-1330 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity
within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family
of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom
that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased
mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use
servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this
link.
Wireless Basics
Page 56
56D-Link WNA-1330 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or office network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers
the performance you need at a price you can afford. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able
to connect your computer. There are two different types of wireless networks Wireless Local Area Network (WLAN), and Wireless
Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a
small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen
in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve
places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other
outdoor venues.
Page 57
57D-Link WNA-1330 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet
away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much
power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices
that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business,
D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Office and Home Office
•Stay on top of everything at home as you would at office
• Remotely access your office network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate office space
Page 58
58D-Link WNA-1330 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or office. People like the freedom of mobility and it’s becoming so
popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public places
is usually called “hotspots”.
Using a D-Link Notebook Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like:
Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the first time it could be quite a task not knowing where to start. That’s
why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the
router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story
home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would significantly reduce any interference that the appliances might cause since they operate on same frequency.
Page 59
59D-Link WNA-1330 User Manual
Appendix A - Wireless Basics
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the
WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters
on each computer, such as two or more WNA-1330 wireless network Notebook adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless
router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode
to communicate.
Wireless Modes
Page 60
60D-Link WNA-1330 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server
(i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

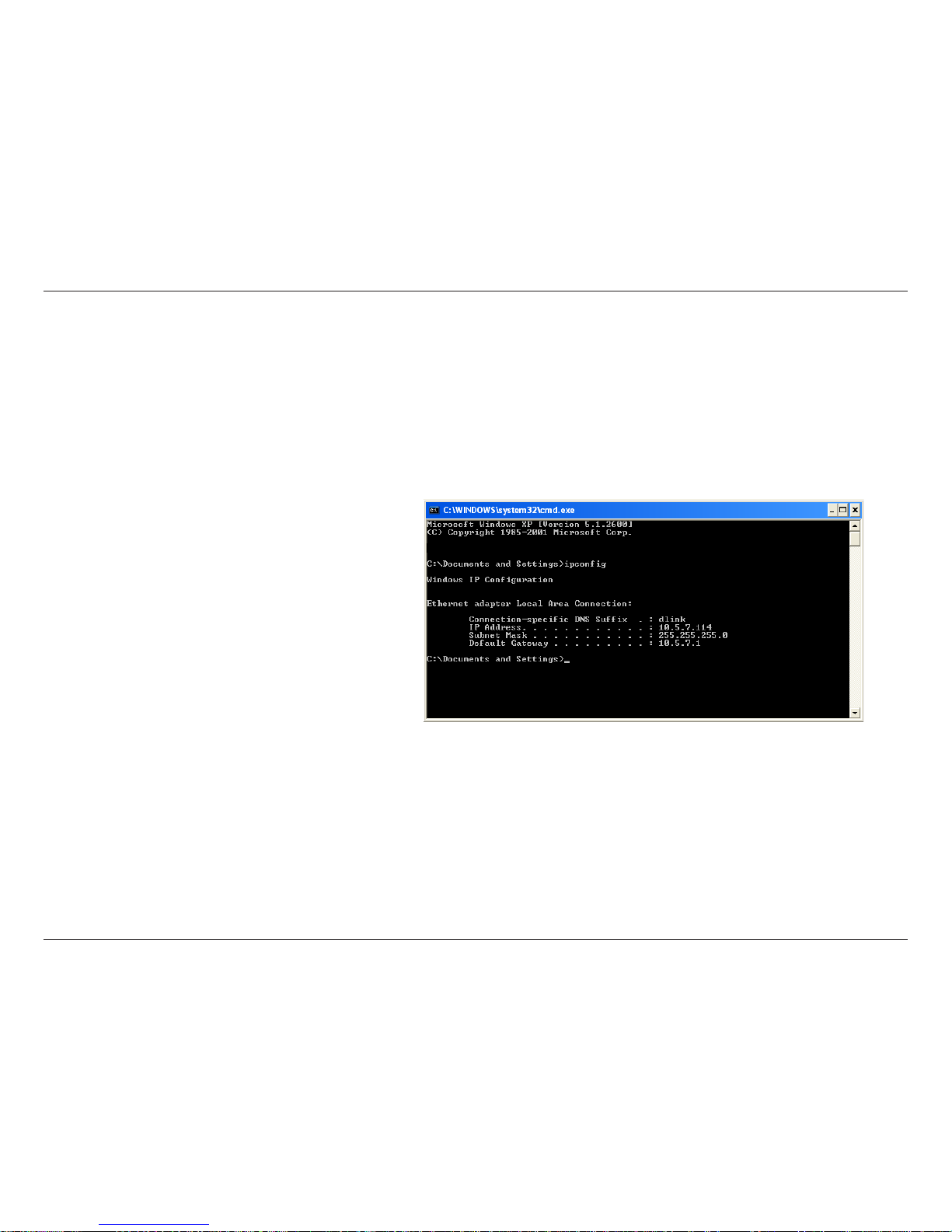

Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router. Some
firewall software programs may block a DHCP request
on newly installed adapters.
If you are connecting to a wireless network at a hotspot
(e.g. hotel, coffee shop, airport), please contact an employee or administrator to verify their wireless network settings.
Page 61
61D-Link WNA-1330 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

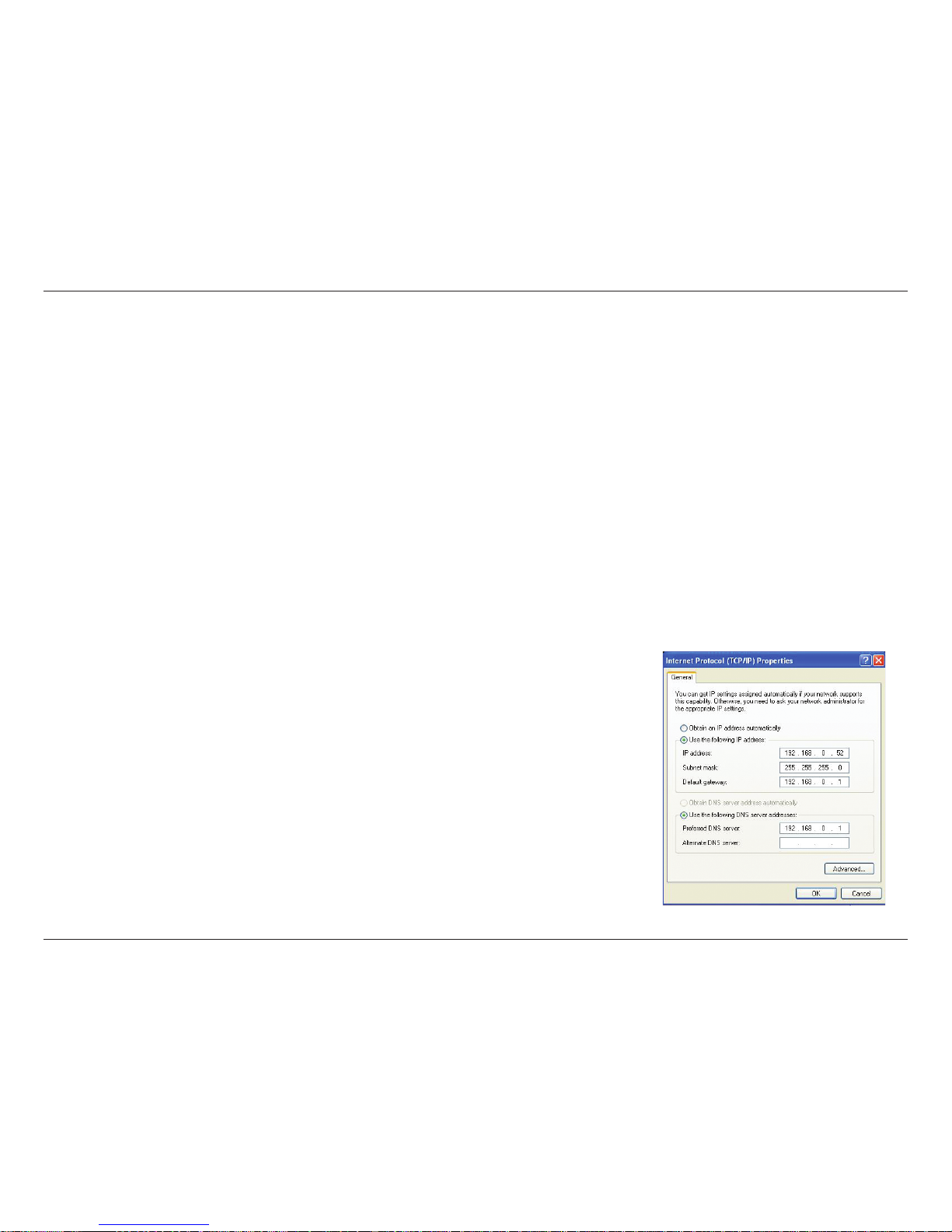

Step 1
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on
your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not in
use on the network. Set Default Gateway the same as the LAN IP address of your router
(192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary
DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
Page 62
62D-Link WNA-1330 User Manual
Appendix C - Technical Specifications
Technical Specifications
Standards
• IEEE 802.11b
• IEEE 802.11g
Bus Type
32-bit Cardbus
Wireless Signal Rates*
• 54Mbps • 48Mbps
• 36Mbps • 24Mbps
• 18Mbps • 12Mbps
• 11Mbps • 9Mbps
• 6Mbps • 5.5Mbps
• 2Mbps • 1Mbps
Security
• WPA - Wi-Fi Protected Access (TKIP, MIC,
IV Expansion, Shared Key Authentication)
• 802.1x
• 64/128-bit WEP
Media Access Control
CSMA/CA with ACK
Frequency Range
2.4GHz to 2.462GHz
Wireless Signal Range*
• Indoors: Up to 328 feet (100 meters)
• Outdoors: Up to 1,312 feet (400 meters)
Power Consumption
• PowerSave mode = 28mA
• Standby mode = 4.66mA
• Transmit mode = 248mA
Modulation Technology
• Orthogonal Frequency
Division Multiplexing (OFDM)
• Complementary Code Keying (CCK)
Receiver Sensitivity
• 54Mbps OFDM, 10% PER,-68dBm)
• 48Mbps OFDM, 10% PER,-68dBm)
• 36Mbps OFDM, 10% PER,-75dBm)
• 24Mbps OFDM, 10% PER,-79dBm)
• 18Mbps OFDM, 10% PER,-82dBm)
• 12Mbps OFDM, 10% PER,-84dBm)
• 11Mbps CCK, 8% PER,-82dBm)
• 9Mbps OFDM, 10% PER,-87dBm)
• 6Mbps OFDM, 10% PER,-88dBm)
• 5.5Mbps CCK, 8% PER,-85dBm)
• 2Mbps QPSK, 8% PER,-86dBm)
• 1Mbps BPSK, 8% PER,-89dBm)
Transmitter Output Power
15dBm ± 2dB
Internal Antenna Type
Dual Antenna Diversity Switching
Page 63
63D-Link WNA-1330 User Manual
Appendix C - Technical Specifications
Operating Temperature
32°F to 131°F ( 0°C to 55°C)
Humidity
95% maximum (non-condensing)
Dimensions
• L = 4.64 (114.3mm)
• W = 2.13 (54mm)
• H = 0.34 inches (8.7mm)
Weight
0.12 lb (55g)
Warranty
1 Year
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
affect wireless signal range.
Page 64
64D-Link WNA-1330 User Manual
Appendix D - Contacting Technical Support
Contacting Technical Support
D-Link provides free technical support for customers within the United States and within Canada for the duration of the warranty
period on this product. U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. WNA-1330)
• Hardware Revision (located on the label on the adapter (e.g. rev A1))
• Serial Number (s/n number located on the label on the adapter).
You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to
technical issues.
For customers within the United States:
Phone Support:
(877) 453-5465
24 hours a day, seven days a week.
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 361-5265
Monday to Friday 7:30am to 9:00pm EST
Page 65
65D-Link WNA-1330 User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship and
materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except as otherwise
stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option,
to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual purchase price paid. Any
repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical
make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably
determines is substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or replacement hardware will be warranted
for the remainder of the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material
defect is incapable of correction, or if D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the
original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware or part thereof that
is replaced by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon replacement or refund.
Page 66
66D-Link WNA-1330 User Manual
Appendix E - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specifications for the
Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90) days (“Software
Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its documentation. D-Link
further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The
customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the
non-conforming Software (or defective media) with software that substantially conforms to D-Link’s functional specifications for the Software or to refund
the portion of the actual purchase price paid that is attributable to the Software. Except as otherwise agreed by DLink in writing, the replacement Software
is provided only to the original licensee, and is subject to the terms and conditions of the license granted by D-Link for the Software. Replacement Software
will be warranted for the remainder of the original Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is
incapable of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the
original licensee for the non-conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first
returned to D-Link. The license granted respecting any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any refurbished
product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or the liquidators expressly
disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any warranty whatsoever including,
without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the product
is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance
in sufficient detail to allow DLink to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase
invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the customer
in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a Return Material
Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://rma.dlink.com/.
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package to
ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package. Do not
include any manuals or accessories in the shipping package. DLink will only replace the defective portion of the product and will not
ship back any accessories.
Page 67
67D-Link WNA-1330 User Manual
Appendix E - Warranty
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped to DLink Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that are lost
in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier selected
by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise we will ship the
product to you freight collect. Expedited shipping is available upon request and provided shipping charges are prepaid by the customer.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for
which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link’s reasonable handling
and return shipping charges for any product that is not packaged and shipped in accordance with the foregoing requirements, or that is
determined by D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number has
been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs; Operational
adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act of God, failures due to
power surge, and cosmetic damage; Any hardware, software, firmware or other products or services provided by anyone other than D-Link; and Products
that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers, or the liquidators expressly disclaim
their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link Service
Office. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
Page 68
68D-Link WNA-1330 User Manual
Appendix E - Warranty
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH
OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This Limited Warranty provides
specific legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any derivative
such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States
Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright 2005 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate
measures.
Page 69
69D-Link WNA-1330 User Manual
Appendix E - Warranty
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11
This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office.
Page 70
70D-Link WNA-1330 User Manual
Appendix F - Registration
Version 1.1
05/12/2008
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Registration
Loading...
