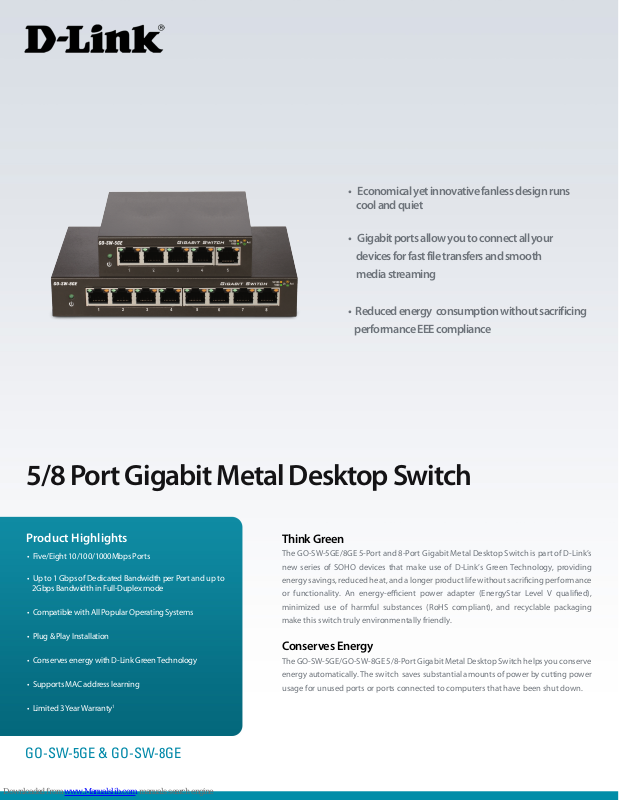

Page 1
• Economical yet innovative fanless design runs
cool and quiet
• Gigabit ports allow you to connect all your
devices for fast file transfers and smooth
media streaming
• Reduced energy consumption without sacrificing
performance EEE compliance
5/8 Port Gigabit Metal Desktop Switch
Product Highlights
• Five/Eight 10/100/1000Mbps Ports
• Up to 1 Gbps of Dedicated Bandwidth per Port and up to
2Gbps Bandwidth in Full-Duplex mode
• Compatible with All Popular Operating Systems
• Plug & Play Installation
• Conserves energy with D-Link Green Technology
• Supports MAC address learning
• Limited 3 Year Warranty
1
GO-SW-5GE & GO-SW-8GE
Think Green
The GO-SW-5GE/8GE 5-Port and 8-Port Gigabit Metal Desktop Switch is part of D-Link’s
new series of SOHO devices that make use of D-Link’s Green Technology, providing
energy savings, reduced heat, and a longer product life without sacricing performance
or functionality. An energy-ecient power adapter (EnergyStar Level V qualied),
minimized use of harmful substances (RoHS compliant), and recyclable packaging
make this switch truly environmentally friendly.
Conserves Energy
The GO-SW-5GE/GO-SW-8GE 5/8-Port Gigabit Metal Desktop Switch helps you conserve
energy automatically. The switch saves substantial amounts of power by cutting power
usage for unused ports or ports connected to computers that have been shut down.
Page 2
GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch
Features
• Built-in D-Link Green Technology
• Inexpensive Gigabit solution for Home/SOHO
• Five/Eight 10/100/1000 Mbps Gigabit ports
• 10/16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,216 Byte Jumbo Frames
• RoHS compliant
• Plug-and-play installation
Environmentally Friendly
The GO-SW-5GE/GO-SW-8GE 5/8-port Gigabit Metal Desktop Switch was
designed with the environment in mind, and is compliant with Energy Star Level
V, as well as with the stringent CEC and MEPS regulations that require the use of
energy ecient power adapters. The switch is also built to follow RoHS standards
to minimize use of hazardous materials, and uses recyclable packaging that helps
reduce waste, complying with the WEEE directive.
Gigabit Connection for Home and SOHO
The GO-SW-5GE/GO-SW-8GE oers an economical way for SOHO and small to
medium businesses (SMB) to benet from the increased bandwidth of Gigabit
Ethernet. It provides ve/eight Gigabit ports for easy expansion of your network
and a quick way to upgrade your network to Gigabit connectivity.
Package Contents
•
5/8 port Gigabit Metal Desktop Switch
(GO-SW-5GE/GO-SW-8GE)
•
Power Adapter
•
Quick Install Guide
Minimum System Requirements
•
Devices Supporting 802.3 Ethernet, 802.u Faster Ethernet,
or 802.3ab Gigabit Ethernet
• Cat5 or better Ethernet Cable
• Network Interface Card for each computer
Page 3
GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch
Technical Specications
GO-SW-5GE GO-SW-8GE
Switching Fabric • 10Gbps • 16Gbps
Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair
copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
Data Transfer Rates • Ethernet:
- 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
- 100 Mbps (half duplex), 200 Mbps (full duplex)
Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps
• Fast Ethernet: 148,800 pps
Network Cables • 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
Media Interface Exchange • Auto MDI/MDIX adjustment for all ports
LED Indicators • Per port: Link/Activity/Speed • Per device: Power
Switching Method • Store-and-forward
MAC Address Table • 2K entries • 8K entries
RAM Buffer • 128KB per device
Jumbo Frames • 9,000 Bytes
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Gigabit Ethernet:
-2000 Mbps (full duplex)
• Gigabit Ethernet: 1,488,000 pps
• 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
QoS • 4 Queues, strict mode
General Specications
DC Input • External 5 V/1 A Level “V” Power Adapter
Power Consumption • Power On (Standby):
DC input: 0.5 watts
AC input: 1.0 watts
• Maximum:
DC input: 2.01 watts
AC input: 3.10 watts
Heat Dissipation • Power On (Standby) AC input: 3.41 BTU/h
• Maximum DC input: 6.854 BTU/h
MTBF • 1,688,338 hours • 2,053,751 hours
Operating Temperature • 32 to 130 ˚F (30 to 50 ˚C)
• Power On (Standby):
DC input: 0.55 watts
AC input: 1.0 watts
• Maximum:
DC input: 2.8 watts
AC input: 4.5 watts
• Power On (Standby) AC input: 3.41 BTU/h
• Maximum DC input: 9.548 BTU/h
Page 4
GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch
Storage Temperature • -14 to 158 ˚F (10 to 70 ˚C)
Operating Humidity • 10% to 90% RH non-condensing
Storage Humidity • 5% to 90% RH non-condensing
Dimensions • 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) • 6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)
Weight • 10.08 ounces (286 grams) • 15.52 ounces (440 grams)
Certifications • FCC Class B
• ICES-003 Class B
• CE Class B
• VCCI Class B
• cUL
• CB
• C-Tick Class B
Warranty
Warranty • Three Year Warranty
1
Order Information
Part Number Description
GO-SW-5GE 5-Port Gigabit Metal Desktop Switch
GO-SW-8GE 8-Port Gigabit Metal Desktop Switch
1
3 Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specications, size and shape are subject to change without notice, and actual product appearance may dier from
that depicted herein.
