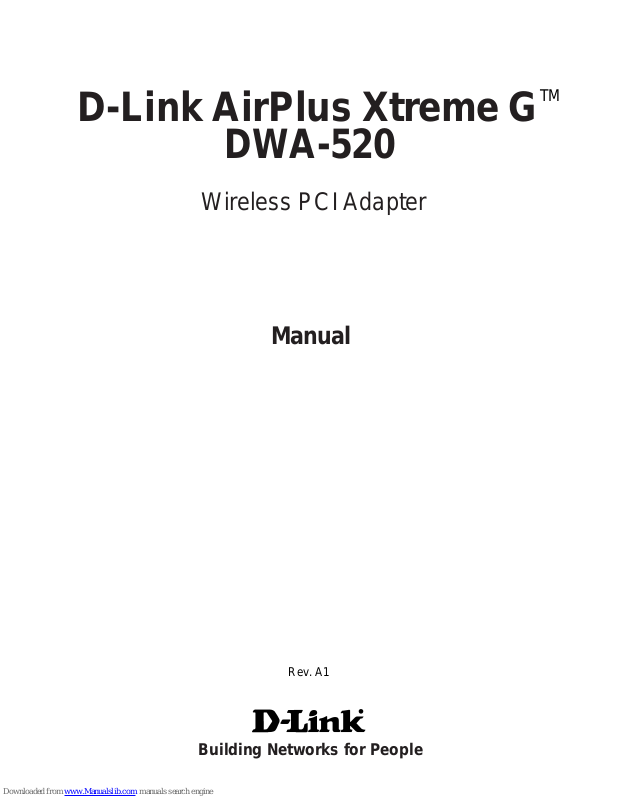

D-Link DWA-520 User Manual

Manual

D-Link AirPlus Xtreme G

DWA-520

Building Networks for People

TM

Wireless PCI Adapter

Rev. A1

2

Content s

Package Contents ................................................................................3

Introduction............................................................................................4

Wireless Basics....................................................................................6

Getting S tarted ......................................................................................9

Using the Configuration Utility..............................................................12

Networking Basics ..............................................................................26

Troubleshooting...................................................................................39

T echnical S pecifications ......................................................................44

Contacting T echnical Support ..............................................................46

Warranty and Registration ...................................................................47

3

Package Contents

System Requirements:

Windows XP/2000/Me/98SE

!

A computer or laptop with an available 32-bit PCI slot

!

At least 32 MB of memory and a 300 MHz processor

!

An 802.11g or 802.11b Access Point (for Infrastructure mode), or

another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to-
Peer networking mode).

!

Contents of Package:

D-Link AirPlus Xtreme G DWA-520

Wireless PCI Adapter
Manual and Drivers on CD
Quick Installation Guide

If any of the above items are missing, please contact your reseller.

!

!

!

TM

4

Introduction

The DWA-520 has the newest, strongest, and most advanced security features available
today. When used with other 802.11 WPA/WPA2 (Wi-Fi Protected Access) and 802.1x
compatible products in a network with a RADIUS server, the security features include:

WPA/WPA2: Wi-Fi Protected Access which authorizes and identifies users based on a

secret key that changes automatically at regular intervals. WPA/WPA2 uses
TKIP to change the temporal key every 10,000 packets (a packet is a kind of

message transmitted over a network.) This ensures much greater security
than the standard WEP security. (By contrast, the older WEP encryption req-
uired the keys to be changed manually.)

802.1x: Authentication which is a first line of defense against intrusion. In the
authentication process, the Authentication Server* verifies the identity of the
client attempting to connect to the network. Unfamiliar clients would be denied
access.

For home users that will not incorporate a RADIUS server in their network, the security
for the DWA-520, used in conjunction with other WPA/WPA2-compatible 802.11 prod-

ucts still be much stronger than ever before. Utilizing the Pre Shared Key mode of
WPA/WAP2 the DWA-520 will obtain a new security key every time it connects to
the 802.11 network. You only need to input your encryption information once in the
configurationmenu. No longer will you have to manually input a new WEP key freque­ntly to ensure security. With the DWA-520, you will automatically receive a new key
every time you connect, vastly increasing the safety of your communication.

* Not all servers can provide Authentication.

The D-Link AirPlus Xtreme G DWA-520 Wireless PCI Adapter is an 802.11g high­performance, wireless adapter that supports high-speed wireless networking at home,
at work or in public places.

Unlike most network cards, the DWA-520 provides data transfers at up to 54 Mbps.
The 802.1 1g standard is backwards compatible with 802.11b products.

TM

5

Features & Benefits

!

Fully compliant with the 802.11b st andard and interoperable with all
existing 802.1 1b-compliant and 802.1 1g compliant devices

!

Operates in the 2.4GHz frequency range

!

Maximum reliability, throughput and connectivity with automatic data rate
switching

!

High Performance 32-bit PCI - The high capacity PCI interface utilized by the

DWA-520 ensures optimal performance in transmitting a wireless signal within
the desktop computer. By utilizing a standard PCI 2.2 interface, the DWA-520
ensures a wide range of compatibility with motherboards used by PC manufac­turers

!

Quick and Easy Installation- The DWA-520 installs quickly and easily into a
standard PCI 2.2 slot in a desktop computer. By following the simple steps
outlined in the Quick Installation Guide, you can connect to an available wire-
less network in a matter of seconds

Stronger Security than ever before with WPA/WPA2 - Wi-Fi Protected

Access authorizes and identifies users based on a secret key that changes
automatically at regular intervals, for example:

!

!

TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS
server , changes the temporal key every 10,000 packets, ensuring greater
security

Pre-Shared Key mode means that the home user, without a RADIUS
server , will obtain a new security key every time he or she connect s to
the network, vastly improving the safety of communications on the net­work

!

Extra Protection - 802.1x Authentication in conjunction with the RADIUS
server verifies the identity of wireless clients wishing to gain access to the
WLAN

!

Provides a measure of security for the information transmitted over a
wireless network with high data encryption at 64-, 128-, and 152-bit WEP

!

Supports Infrastructure networks via an access point and Peer-to-Peer
communication in Ad-Hoc mode

!

!

User-friendly configuration and diagnostic utilities

Five times faster - achieve data transfer speeds up to 54 Mbps; up to 5x

faster than conventional 802.1 1b networks, when used with other 802.1 1g
devices

!

!

Provides a simple and inexpensive way to connect your desktop com­puter to a wireless network at home, at the office, or in public places

6

Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public access
wireless networks. D-Link wireless products will allow you access to the data you want,
when and where you want it. Y ou will be able to enjoy the freedom that wireless networking
brings.

A Wireless Local Area Network (WLAN) is a computer network that transmits and receives
data with radio signals instead of wires. WLANs are used increasingly in both home and
office environments, and public areas such as airports, coffee shops and universities.
Innovative ways to utilize WLAN technology are helping people to work and communicate
more efficiently. Increased mobility and the absence of cabling and other fixed
infrastructure have proven to be beneficial for many users.

Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as

Ethernet adapter cards.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-time
information can significantly improve worker efficiency .

Low Implementation Costs – WLANs are easy to set up, manage, change and

relocate. Networks that frequently change can benefit from WLANs ease of implementation.
WLANs can operate in locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be fast

and easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technology allows the network to go where wires cannot go - even outside the home or
office.

Scalability – WLANs can be configured in a variety of ways to meet the needs of

specific applications and installations. Configurations are easily changed and range
from peer-to-peer networks suitable for a small number of users to larger infrastructure
networks to accommodate hundreds or thousands of users, depending on the number of
wireless devices deployed.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventional Ethernet network devices.

7

Wireless Basics (continued)

Standards-Based Technology

The DWA-520 Wireless PCI Adapter utilizes the new 802.11g standard.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the

data rate up to 54 Mbps within the 2.4GHz band, utilizing OFDM technology.
This means that in most environments, within the specified range of this device, you will

be able to transfer large files quickly or even watch a movie in MPEG format over your
network without noticeable delays. This technology works by transmitting high-speed
digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing)
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals
that are then transmitted simultaneously at different frequencies to the receiver . OFDM
reduces the amount of crosstalk (interference) in signal transmissions. The D-Link DWL­G520 will automatically sense the best possible connection speed to ensure the greatest
speed and range possible.

802.1 1g offers the most advanced network security features available today , including:

WPA/WPA2,802.1x,TKIP,AES and Pre-Shared Key mode. These security feature
are explained in more detail in the Introduction and the Features section of this manual.

The DWA-520 is backwards compatible with 802.11b devices. This means that if you
have an existing 802.11b network, the devices in that network will be compatible with

802.1 1g devices at speeds up to 1 1Mbp s in the 2.4GHz range.

The DWA-520 is compatible with 802.11g and 802.11b wireless products, which include:

D-Link Air DWL-650,D-Link AirPlus DWL-650+,
D-Link AirPlus Xtreme G DWL-G650

2.4GHz Wireless Cardbus Adapter used with laptop computers

D-Link Air DWL-520, D-Link AirPlus DWL-520+

2.4GHz Wireless PCI cards used with desktop computers

D-Link AirPlus DWL-900AP+, D-Link AirPlus Xtreme G DWL-2000AP

2.4GHz Wireless Access Points

D-Link AirPlus DI-614+, DI-714P+

2.4GHz Wireless Routers

!

!

!

!

TM

TM

8

Installation Considerations

The D-Link AirPlus Xtreme G DWA-520 lets you access your network using a
wireless connection from virtually anywhere within its operating range. Keep in mind,
however , that the number, thickness and location of walls, ceilings, or other object s that
the wireless signals must pass through, may limit the range. T ypical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or

business. The key to maximizing wireless range is to follow these basic guidelines:

Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.

4

Keep the number of walls and ceilings between the DWA-520 and other network
devices to a minimum - each wall or ceiling can reduce your DWA-520’s
range from 3-90 feet (1-30 meters.) Position your devices so that the number of
walls or ceilings is minimized.

1

Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.

2

Building materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or
open doorways and not other materials.

3

Wireless Basics (continued)

TM

9

LEDs

LED stands for
Light-Emitting
Diode.

Getting Started

With its default settings, the DWA-520, when activated, will connect

with other D-Link AirPlus Xtreme G products, right out of the box.

Power: Solid green light indicates connection to the network
Network: Blinking green light indicates activity on the network

There are basically two modes of networking:

Infrastructure – using an Access Point or Router, such as
the DI-624

Ad-Hoc – directly connecting to another computer , for peer-to­peer communication, using wireless network adapters on
each computer, such as two or more DWA-520 wireless
network adapters

On the following pages we will show you an example of an Infrastructure Network
and an Ad-Hoc Network.

An Infrastructure network contains an Access Point or Router . The Infrastructure
Network example shown on the following page contains the following D-Link network
devices (your existing network may be comprised of other devices):

!

!

TM

A wireless Router - D-Link AirPlus Xtreme G DI-624
A desktop computer with a wireless adapter -

D-Link AirPlus Xtreme G DWA-520, D-Link Air DWL-520,

or D-Link AirPlus DWL-520+
(D-Link Air devices have speeds up to 11Mbps)

A Cable modem - D-Link DCM-201

!

!

!

TM

TM

10

Please remember that D-Link AirPlus Xtreme G wireless devices are pre-

configured to connect together , right out of the box, with their default settings.

Getting Started (continued)

For a typical wireless setup at home (as shown above), please do the following:

Setting up a Wireless Infrastructure Network

4

2

1

3

6

5

7

You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office).

Consult with your Cable or DSL provider for proper installation of the modem.

Connect the Cable or DSL modem to your broadband router (see the Quick
Installation Guide included with your router.)

Install the D-Link DWA-520 Wireless PCI Adapter into an
available PCI slot on your desktop computer. (See the Quick Installation Guide

included with the DWA-520.)

Install the D-Link AirPlus Xtreme G DWL-G650 Wireless PC Card Adapter
into a laptop computer .
(See the Quick Installation Guide included with the DWL-G650.)

If you wish, you may connect a computer that is equipped with an Ethernet
network adapter (such as a DFE-530TX+) to the router also.

A RADIUS Server is optional. Connect a RADIUS Server to your network to use
all the features of WPA/WPA2. (Without a RADIUS Server you can still use the
WPA/WPA2 Pre-Shared Key mode.) RADIUS Authentication can also be provided
by another service provider over the Internet and remote to your network site.

TM

TM

TM

11

Getting Started (continued)

Setting up a Wireless Ad Hoc Network

Install the DWA-520 into the desktop computer.

(See the Quick Installation Guide included with the product for
installation instructions.)

Install the DWL-G650 Wireless PC Card Adapter into a laptop computer .
(See the Quick Installation Guide included with the product.)

Set the wireless configuration for the adapters to Ad-Hoc mode, set the
adapters to the same channel, and assign an IP Address to each
computer on the Ad-Hoc network. (See Box below).

IP Address

Desktop

When assigning IP Addresses to the computers on the network, please remember
that the IP Address for each computer must be in the same IP Address range
as all the computers in the network, and the subnet mask must be exactly the
same for all the computers in the network.

For example: If the first computer is assigned an IP Address of 192.168.0.2 with a
Subnet Mask of 255.255.255.0, then the second computer can be assigned an IP
Address of 192.168.0.3 with a Subnet Mask of 255.255.255.0, etc.

IMPORT ANT : If computers or other devices are assigned the same IP Address,
one or more of the devices may not be visible on the network.

D-Link AirPlus Xtreme G

DWL-G650

TM

D-Link AirPlus Xtreme G

TM

12

Select the Wireless Networks tab.

Uncheck the box in the properties window
that enables windows configuration.

D-Link DWA-520 uses the Configuration Utility as the
management software. The utility provides the user an easy interface to change any
settings related to the wireless adapter. Af ter you have completed the installation of the
DWA-520 (refer to the Quick Installation Guide that came with your purchase) whenever
you start the computer , the Configuration Utility start s automatically and the system
tray icon is loaded in the toolbar (see illustration below*.) Clicking on the utility icon will
start the Configuration Utility. Another way to start the Configuration Utility is to

click on Start>Programs>D-Link AirPlus Xtreme G>D-Link AirPlus Xtreme G Utility .

Using the Configuration Utility

If you are using Windows XP, you can use either the Zero Configuration Utility or the
D-Link Configuration Utility .

If the icon does not display in the taskbar , then click on
this icon on your desktop to open.

T o use the D-Link Configuration Utility with XP, right-click
on the Wireless network icon in the taskbar in the lower

right-hand corner of your computer screen.

In the window that appears, select View
Available Wireless Networks and click
the Advanced button. The screen at right
will appear .

After you have done this, you can then use the D-Link
Configuration Utility with XP by clicking on the D-Link
Configuration Utility icon.

*Configuration Utility icon
in the system tray

TM

13

Link Info

Using the Configuration Utility (continued)

After clicking on the Configuration Utility icon, the Link Info screen will display the
settings for the DWA-520:

SSID:

The Service Set Identifier is the name
assigned to the wireless network.

The factory SSID setting is default.

Tx Rate:

Tx Rate settings are automatically determined for an optimal speed up to a maximum
of 54Mbps.

Status:

Displays the MAC Address of the
Access Point or Router to which the

DWA-520 is associated

Channel:

The channel selection is automatically determined by the DWA-520.

Signal Strength:

Packet Count:

Displays the statistics of the data packets that are transmitted and received.

Frequency:

802.11g indicates that the DWL­G520 is communicating in the

2.4GHz band.

Encryption:

Y ou can see if WEP (Wired Equivalent Privacy) is Enabled or Disabled here.

Wireless Mode:

Either Infrastructure or Ad-Hoc will be displayed here. (Please see the Getting
Started section in this manual for an explanation of these two modes.)

Rescan Button:

Rescans for the strongest signal in your environment and associates with that Access
Point or Router .

Displays the Link Quality for the DWA-520 wireless connection to the Access Point.
The Signal Strength represent s the wireless signal between the Access Point and the
DWA-520. The percentage coincides with the graphical bar.

D-Link AirPlus Xtreme G Utility

D-Link AirPlus Xtreme G Utility

14

Using the Configuration Utility (continued)

Wireless Mode:

Authentication:

Data Encryption:

Click on the pull-down menu; select from the following options:

Choose one of the following modes:

Select Enabled or Disabled.

Open Authentication – the DWA-520 is visible to all devices on the network
Shared Authentication – allows communication only with other devices with

identical WEP settings
WPA/WPA2 – Wi-Fi Protected Access which authorizes and identifies users

based on a secret key that changes automatically at a regular interval.(A RADIUS
Server is required for this mode.)

WPA/WPA2-PSK - WPA /WPA2 Pre-Shared Key mode ensures that the DWL
G520 will obtain a new security key every time it connects to the 802.11 network.
(A RADIUS Server is not required for this mode.)

SSID:

Service Set Identifier is a name that identifies a wireless network. Access Points and
wireless devices attempting to connect to a specific WLAN (Wireless Local Area Network)
must use the same SSID. The default setting is default.

Infrastructure - connecting to the WLAN using an Access Point. (This is the default
setting).

Ad-Hoc – wireless mode used when connecting directly to a computer equipped
with a wireless adapter in a peer-to-peer environment.

After you have configured
the network through the
Site Survey section of
the D-Link AirPlus Utility,
you can make minor
adjustments and check
on settings in this

Configuration screen.

Configuration

For a complete
explanation of the
configuration of a
network, please refer
to the Site Survey
section in this
chapter.

D-Link AirPlus Xtreme G Utility

15

Using the Configuration Utility (continued)

*Not all servers can provide Authentication

When you click IP Settings in the
Configuration window, this pop-up
screen will appear . Configure the IP
Settings in this window .

IP Settings

Click Apply to save changes.

Keys 1-4:

Select the default key

Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for

representing English letters as numbers from 0-127

Key Length:

Select the key length and either ASCII or hexadecimal format.

IEEE 802.1x:

Authentication which is a first line of defense against intrusion. In the Authentication
process the Authentication Server* verifies the identity of the client attempting to con­nect to the network. Unfamiliar clients are denied access.

16

Ad-Hoc Channel:

All devices in the Ad-Hoc net­work must be set to the same
channel.

Click Apply if you have made any changes.

Data Packet Parameter:

Set the Fragmentation Threshold and the RTS Threshold. Please see below .

Profile IP Settings:

You can Enable or Disable the IP Settings portion of your profile here. If you select
Disable you will need to configure the IP address information each time you connect to

a network. If you select Enable you will maintain the same IP address information each
time you connect to a network.

Select Enable or Disable.

Launch Utility on Startup:

Power Mode:

Disable -This default setting consumes the most power .
Enable - This setting consumes the least power .

Fragmentation Threshold:

This value should remain at its default setting of 2432. If you experience a high packet
error rate, you may slightly increase your Fragmentation Threshold within the value
range of 256 to 2432. Setting the Fragmentation Threshold too low may result in poor
performance.

This value should remain at its default setting of 2432. If inconsistent data flow is a
problem, only a minor modification should be made.

RTS Threshold:

Using the Configuration Utility (continued)

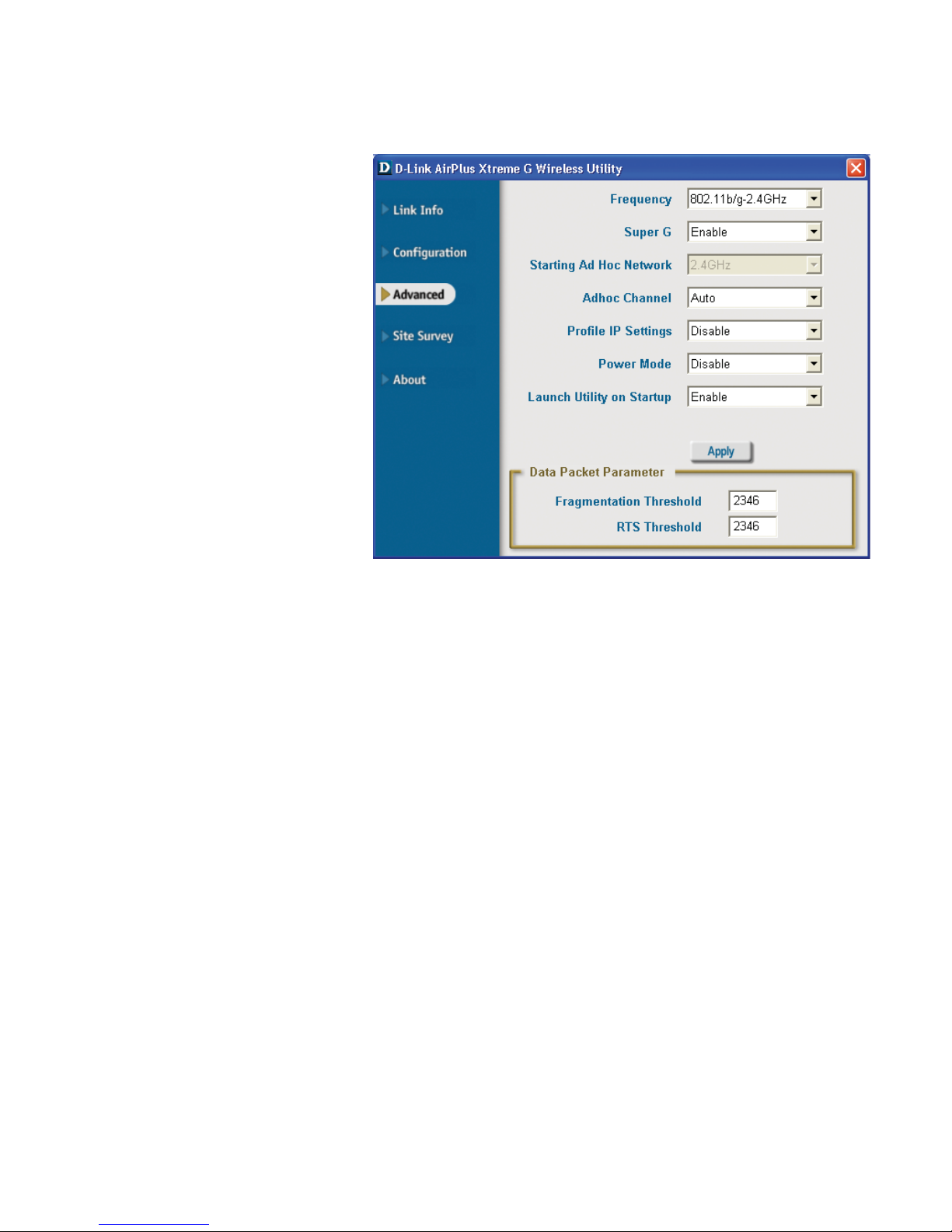

Advanced

Starting Ad-Hoc Network:

This setting is always 2.4GHz.

Super G:

Enable or Disable the Super G
function (108Mbps). In order to
communicate, all devices must
share the same setting for this
feature.

Frequency:

Select 802.1 1b/g - 2.4GHz or

802.11b.

17

Refresh:

Click on Refresh to get the
most updated list of available
networks.

Available Network:

The top section of the window displays the Available Networks. Scroll up and down the
list and highlight the network to which you wish to connect. Click on the Connect but­ton.

Profile:

In the lower half of the screen, you can manage the profiles that you have created for the
wireless network at home, at the office and in public places. Scroll up and down and
highlight the profile that you wish to configure. You can Add or Remove a profile, or
configure the Properties of the profile in order to connect with an available network.

Connect:

Highlight a network profile; click Connect to connect to that network.

Rescan:

Click Rescan to rescan and connect to the strongest signal.

Configure:

Highlight an existing network
and click Configure; the
configuration window on the
next page will appear .

Advanced:

Highlight a network; click
Advanced and the screen on
the next page will appear .

Add:

Click Add and the screen on the next page will appear .

Remove:

Highlight a network profile; click Remove to remove a network from the profile list.

Properties:

Highlight a network profile; click Properties and the screen on the next page will appear.

Using the Configuration Utility (continued)

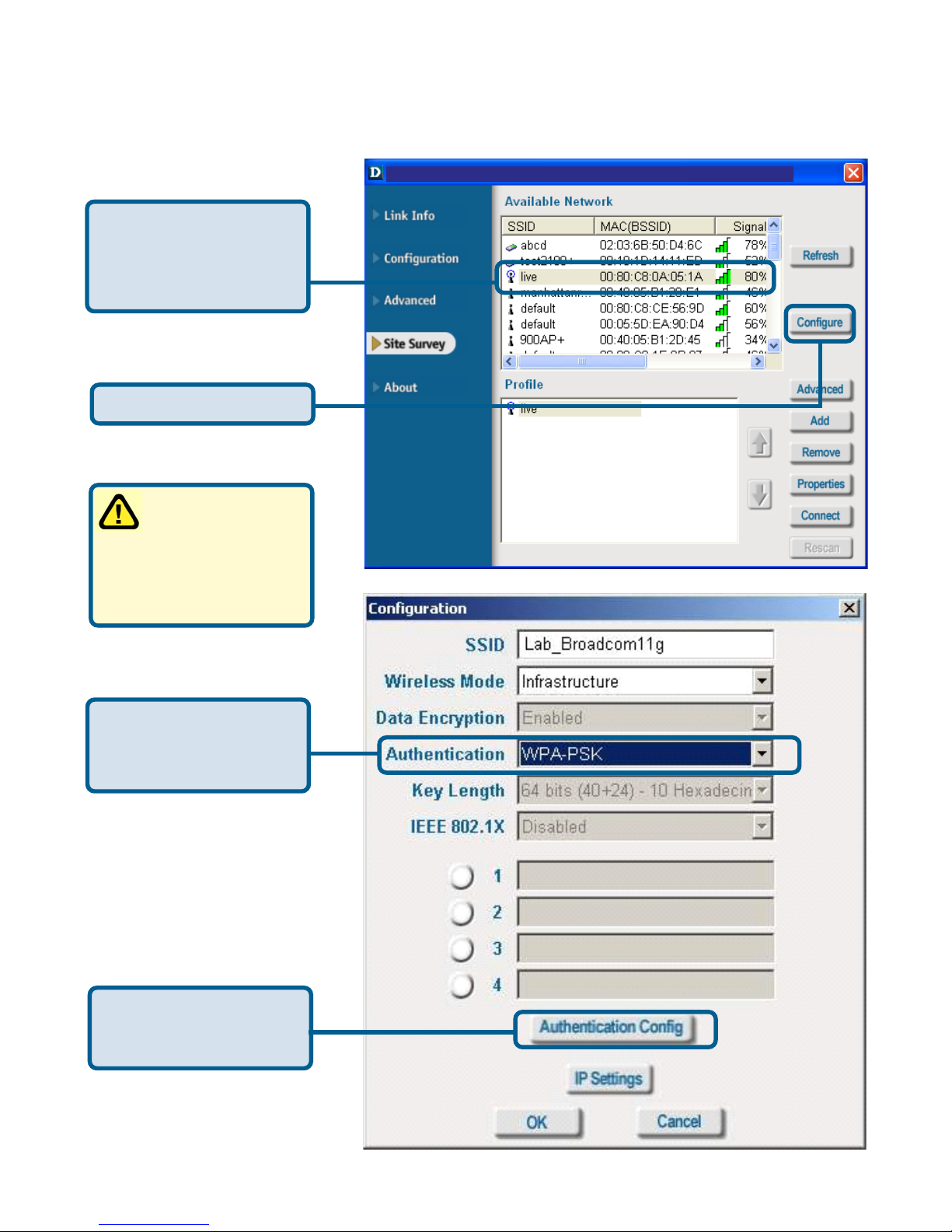

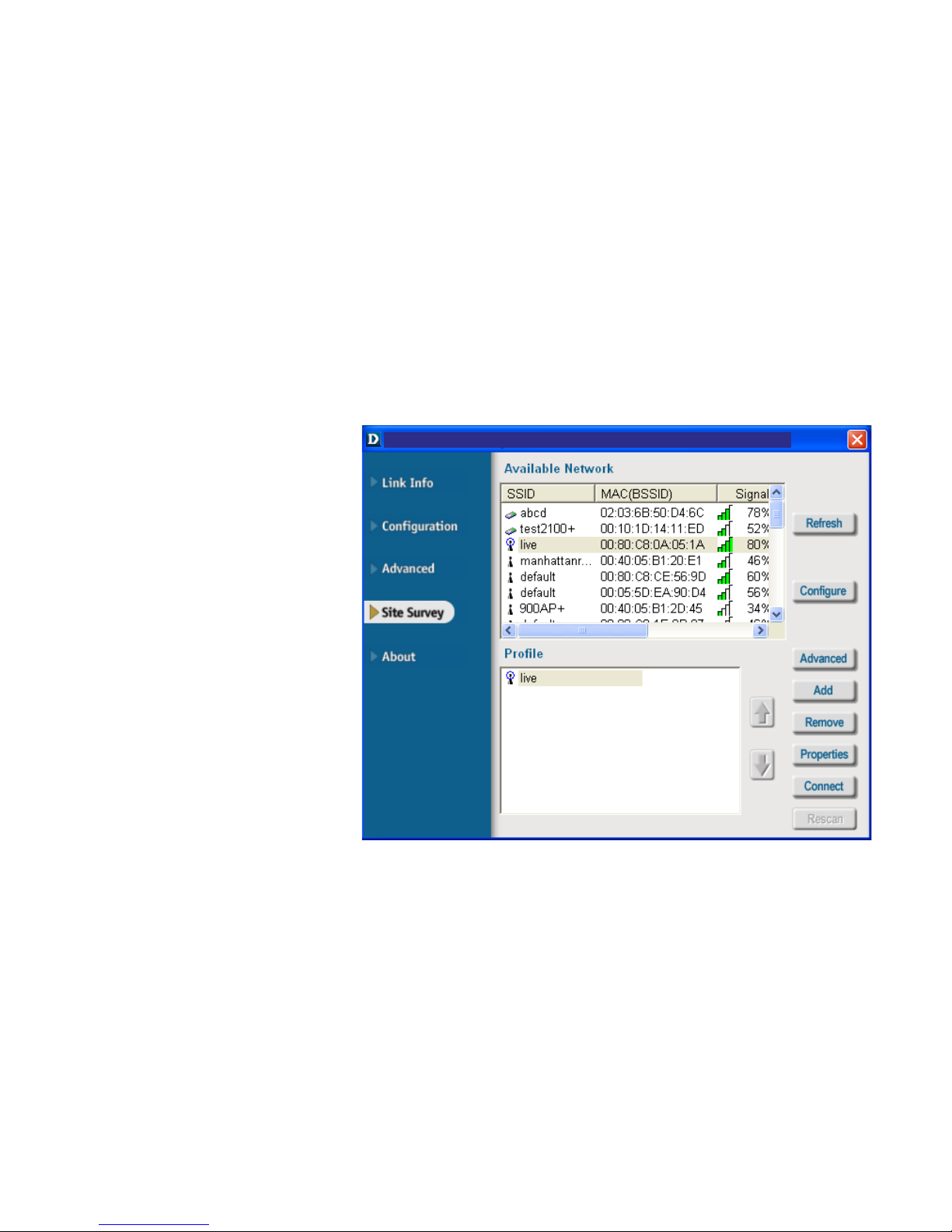

Site Survey

D-Link AirPlus Xtreme G Utility

18

Using the Configuration Utility (continued)

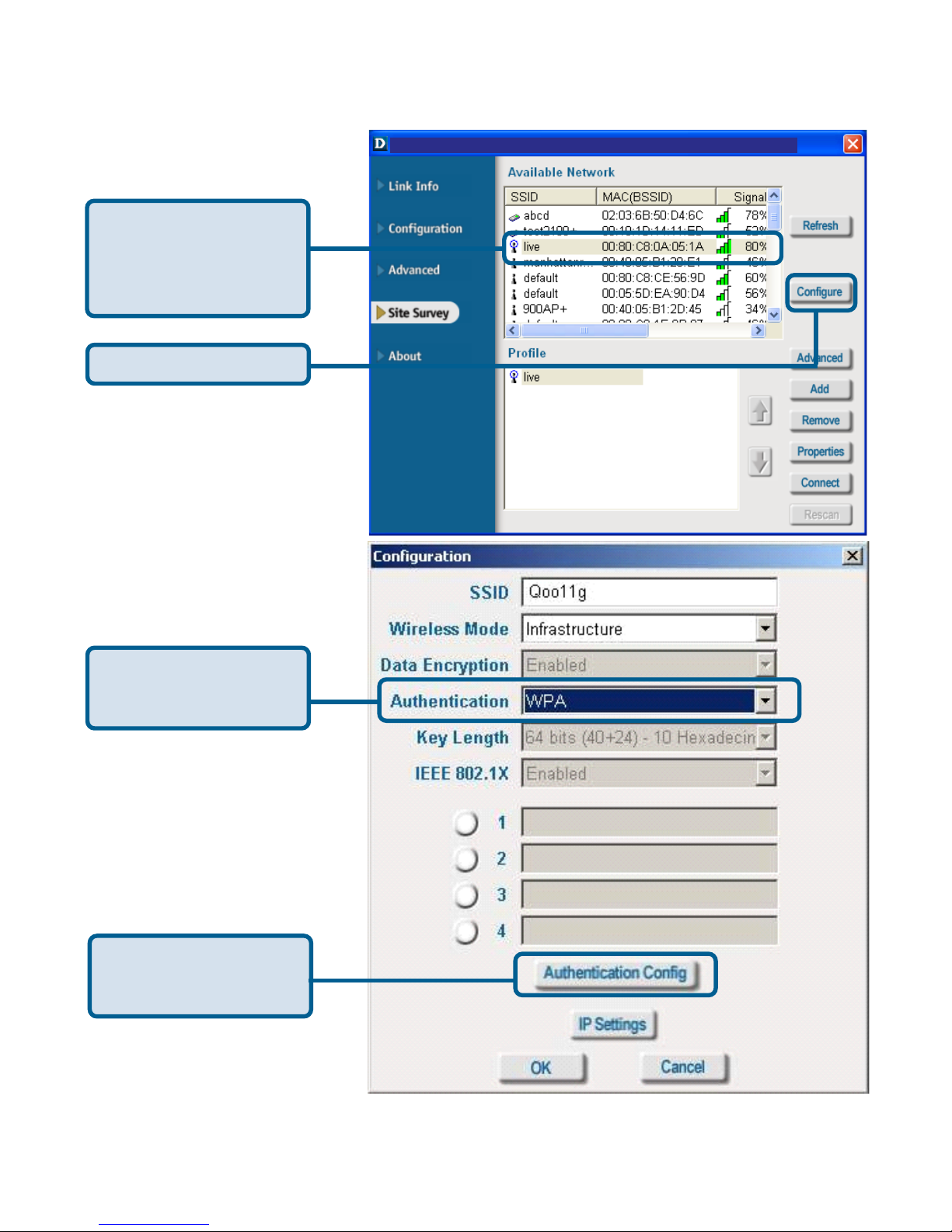

Site Survey > Add

If you clicked on Add, you can
configure, in this window , all the
properties of a profile that you
wish to add to the network.

In this window you can select
the type of network connection.

Click OK to save the
changes.

If you clicked on Configuration
or Properties you can config­ure, in this window , all the prop­erties of a profile that already
exists in the network.

Click OK to save the
changes.

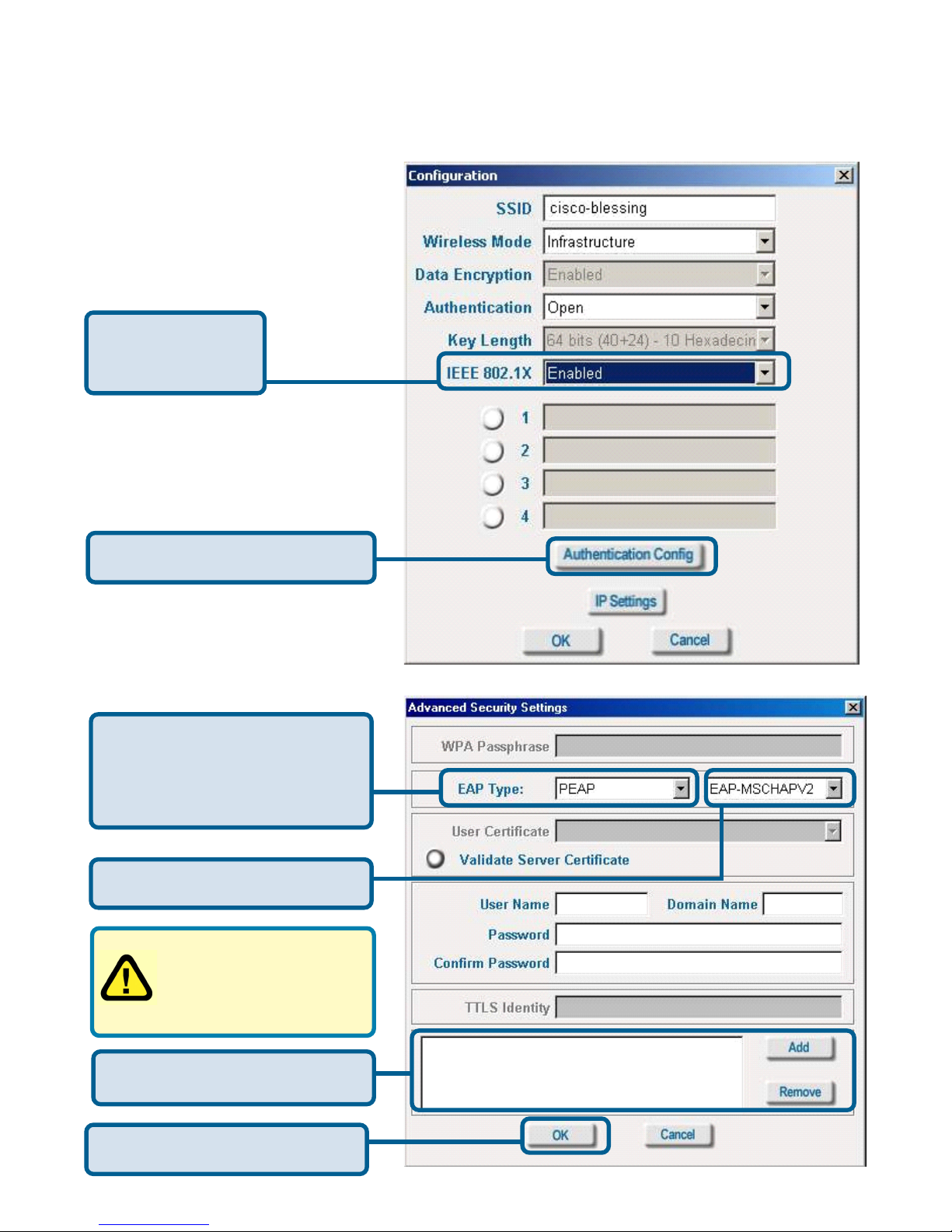

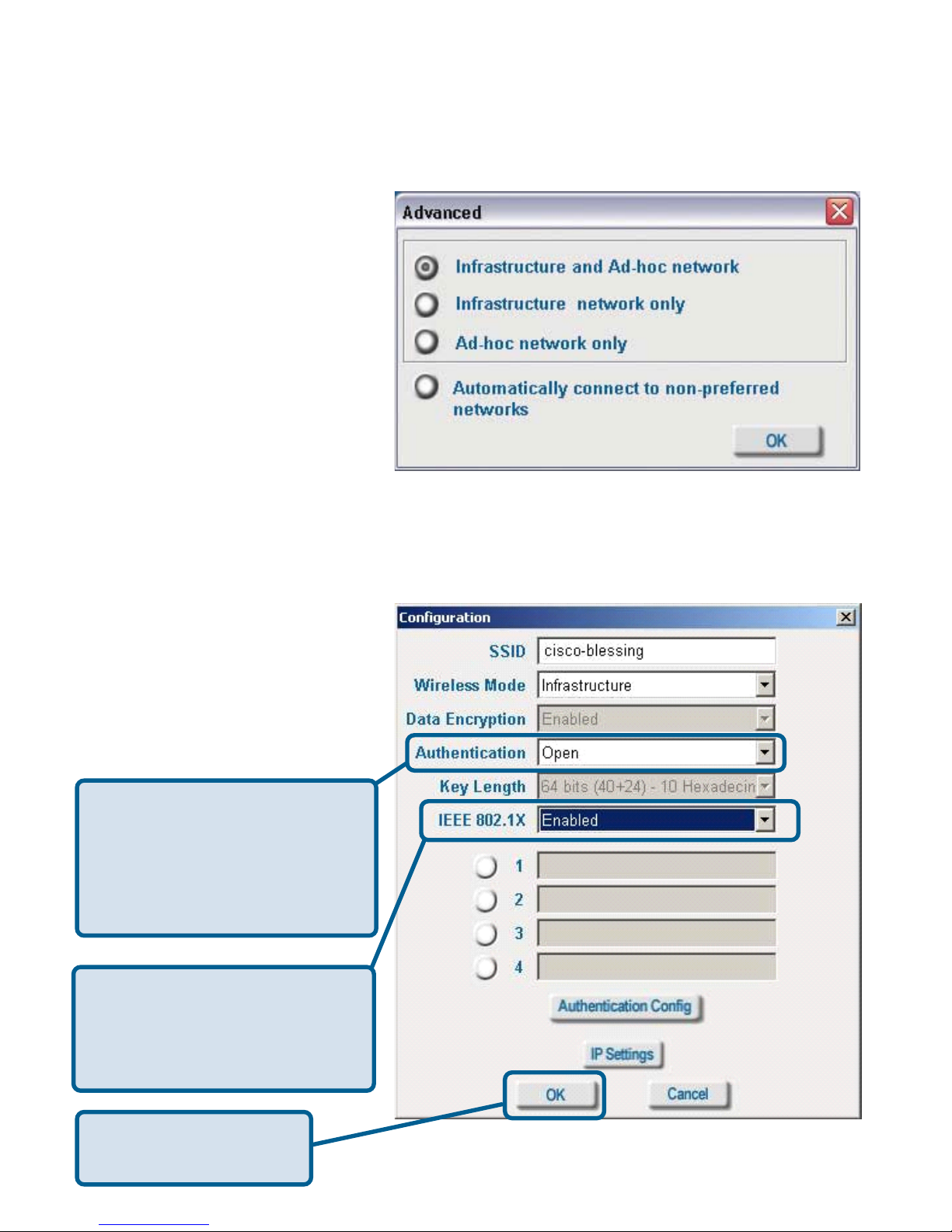

Advanced

Configuration, Add or Properties

If you choose to use the IEEE

802.1x feature, please see the

detailed instructions on the fol­lowing pages.

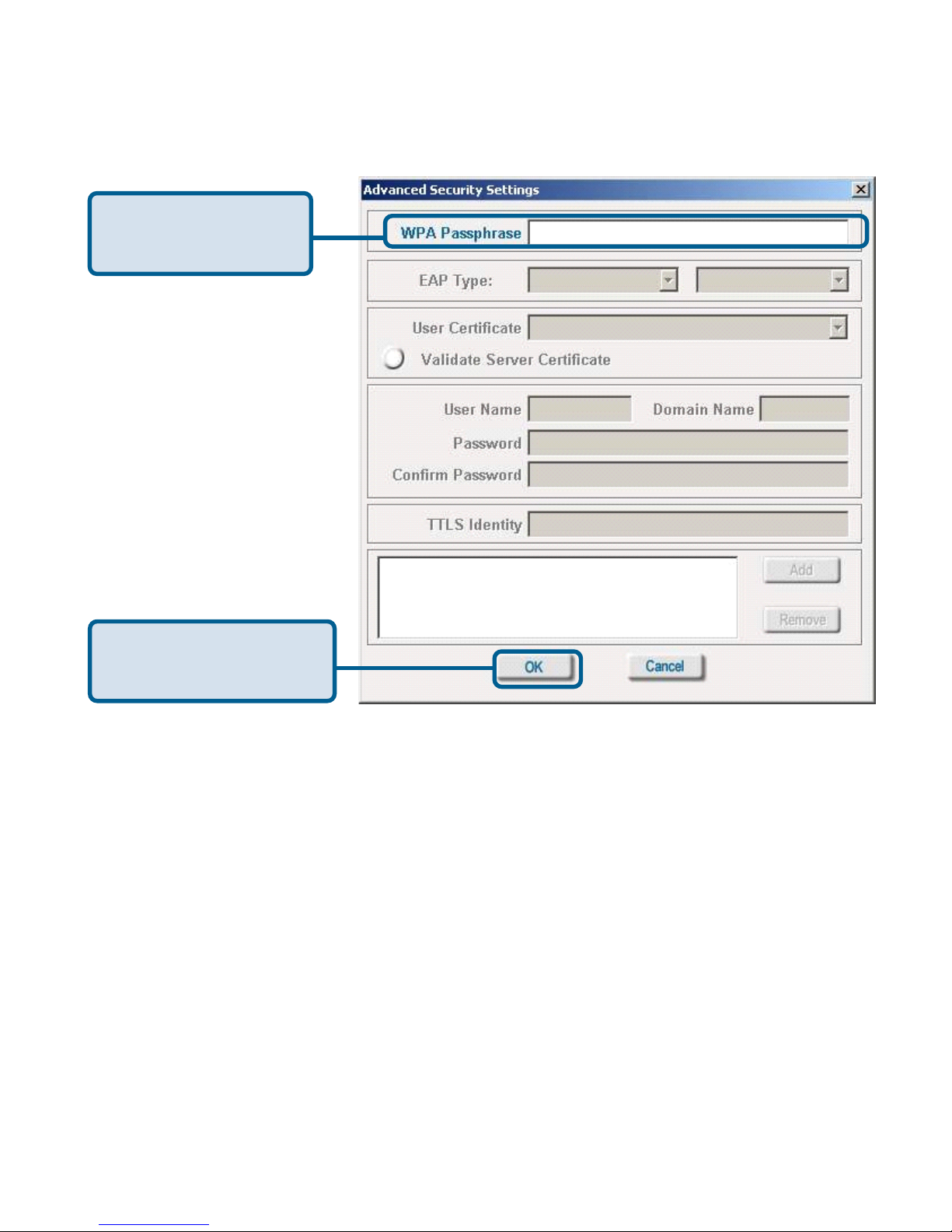

If you select WPA/WPA2 in the
Authentication field, please
see detailed instructions for
configuring WPA /WPA2 on the
following pages.

19

Using the Configuration Utility (continued)

Site Survey > Configuration > 802.1x

To use 802.1x and to configure its settings, please do the following:

IEEE 802.1x -

Select Enabled.

Click Authentication Config.

Select the EAP Type you
want to use. Configure the
information needed for

authenticating.

Click OK

Trusted CA List.

Inner Authentication Protocol.

For an explanation of

the terms shown in this
window please see the

following pages.

Advanced Security Settings

20

Using the Configuration Utility (continued)

802.1x > Advanced Security Settings > EAP Types

EAP Type

Inner Authentication

Protocol

Information needed

for Authenticating

EAP-TLS

EAP­MSCHAPv2

Certificate
User Name

User Name
Password
Domain Name

LEAP

User Name
Password

PAP

TTLS Identity
User Name
Password

CHAP

TTLS Identity
User Name
Password

MSCHAP

TTLS Identity
User Name
Password
Domain Name

EAP-TTLS

MSCHAPv2

TTLS Identity
User Name
Password
Domain Name

21

Using the Configuration Utility (continued)

802.1x > Advanced Security Settings > EAP Types (continued)

802.1x > Advanced Security Settings > Definitions of Terms
Validate Server Certificate:

Check Validate Server Certificate to verify the identity of the authentication server
based on its certificate when using EAP-TTLS, PEAP, and EAP-TLS. (This is
checked by default.)
Certain protocols, such as EAP-TTLS, PEAP, and EAP-TLS, allow you to verify the
identity of the authentication server as the server verifies your identity . This is called
mutual authentication.
Y ou can select trusted authentication server certificates using the Add button at the

T rusted CA List (at the bottom of the Advanced Security Settings p age).

EAP Type

Inner Authentication

Protocol

Information needed

for Authenticating

EAP­Generic T oken card

EAP-MD5

User Name
Password

EAP-MSCHAPv2

EAP-MD5

TTLS Identity
User Name
Password

TTLS Identity
User Name
Password

TTLS Identity
User Name
Password
Domain Name

User Name
Password

EAP-TTLS

PEAP

EAP­Generic T oken card

EAP-MSCHAPv2

User Name
Password
Domain Name

22

Using the Configuration Utility (continued)

Domain Name:

Each server has a domain name that uniquely identifies it. That domain name is normally
contained in the Subject CN field of the server certificate. A server domain name ends
with the name of a larger administrative domain, to which the server belongs.

TTLS Identity:

Tunneled Transport Layer Security satisfies a requirement for strong encryption and
mutual authentication on Wireless networks. EAP-TTLS has a unique feature that other
protocols do not offer . Because it set s up an encrypted tunnel for your credentials, it is
also able to pass your login name through that tunnel. That means that not only are your
credentials secure from eavesdropping, but your identity is protected as well. Thus, with
EAP-TTLS you have two identities: an inner one, and an outer one. The inner identity is
your actual user name. Your outer identity can be completely anonymous. Set your
outer identity in the TTLS Identity field.

Trusted CA List:

The Trusted CA List allows you to configure which authentication servers you trust for
the purpose of logging you in to the network.
Click Add at the Trusted CA List at the bottom of the Advanced Security Settings page.

Select the T rusted CA that you want to add and click OK.

802.1x > Advanced Security Settings > Definitions of Terms (continued)

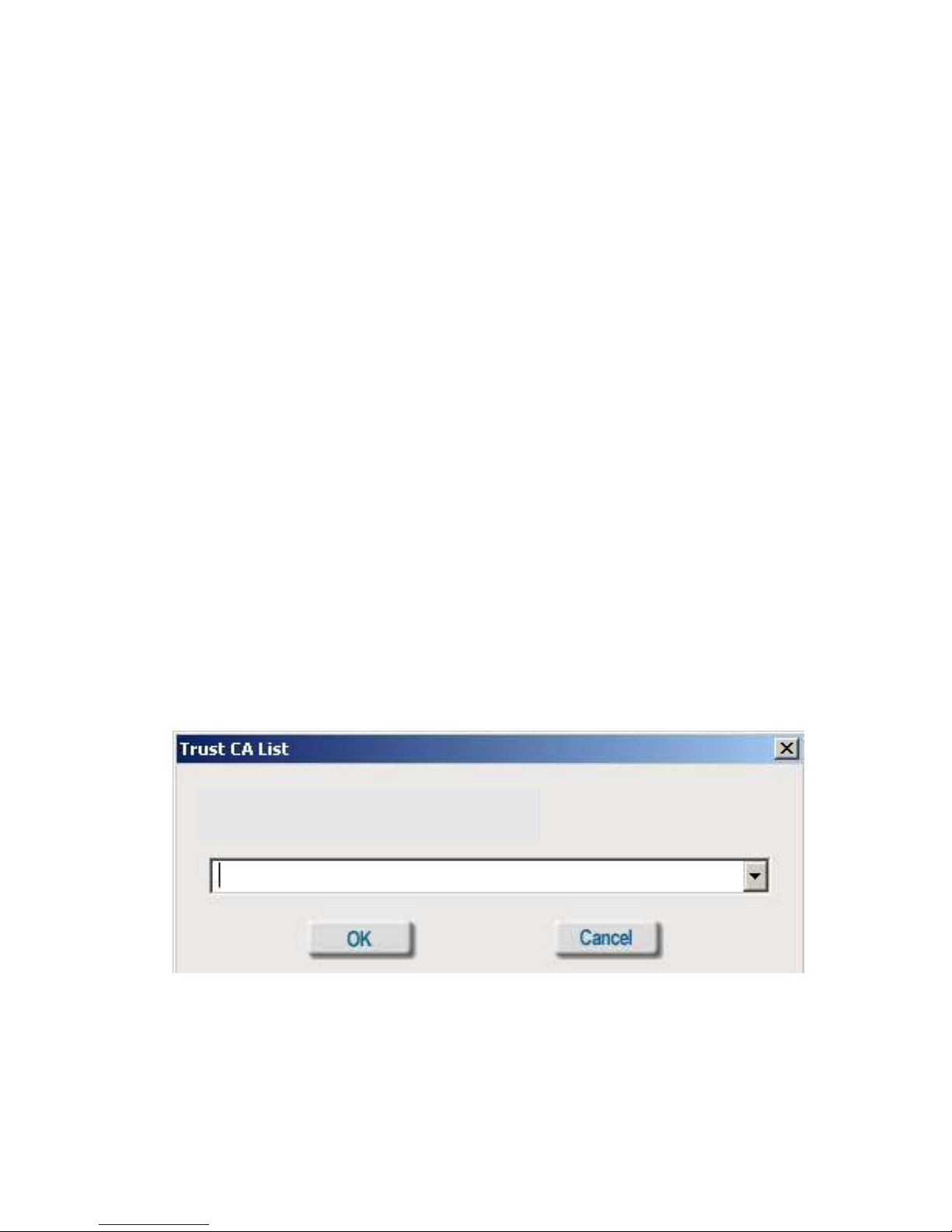

Select the T rust CA:

23

Using the Configuration Utility (continued)

Authentication > WPA/WPA2

Click Configure.

Select the available
network to which you

want to connect.

Select WPA/WPA2 in
the Authentication field.

Click Authentication

Config

After you click Authentication Config, the Advanced Security Settings screen will ap-
pear . Complete the Advanced Security Settings configuration. Please see pages 19-22 of
this manual to find out more about the Advanced Security Settings.

D-Link AirPlus Xtreme G Utility

24

Using the Configuration Utility (continued)

Authentication > WPA/WPA2-PSK

WPA/WPA2-PSK does

require a RADIUS
Server in the network.

Select WPA/WPA2-

PSK in the Authentica-
tion field.

Click Authentication
Config

Click Configure.

Select the available
network to which you

want to connect.

D-Link AirPlus Xtreme G Utility

25

Using the Configuration Utility (continued)

Authentication > WPA/WPA2-PSK (continued)

Enter the WPA/WPA2
Passphrase.

Click OK.
The configuration is done.

Advanced Security Settings

26

Using the Network Setup Wizard in Windows XP

In this section you will learn how to establish a network at home or work, using

Microsoft Windows XP.

Note: Please refer to websites such as

http://www.homenethelp.com

and http://www.microsoft.com/windows2000 for information about networking

computers using Windows 2000, ME or 98SE.

Go to Start>Control Panel>Network Connections
Select Set up a home or small office network

Networking Basics

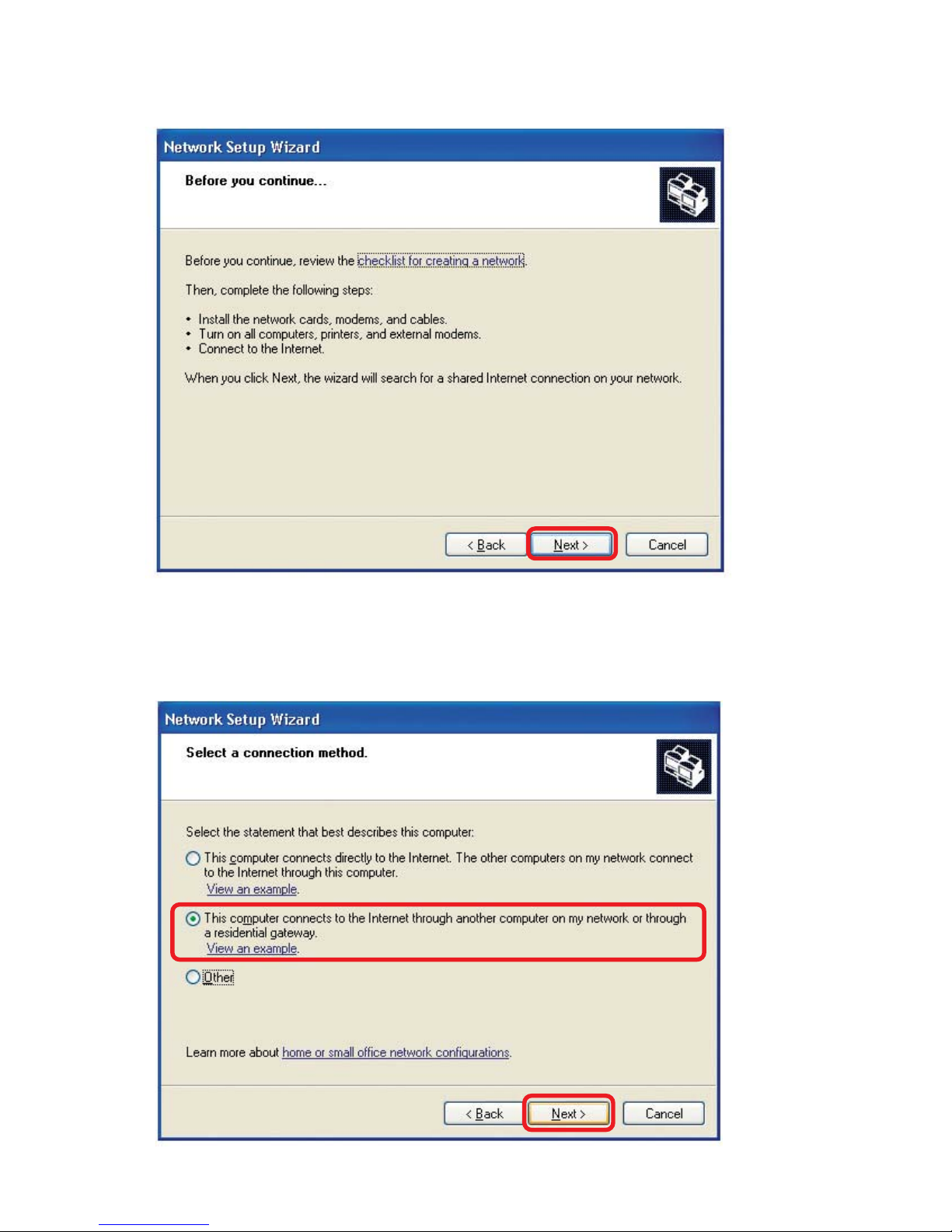

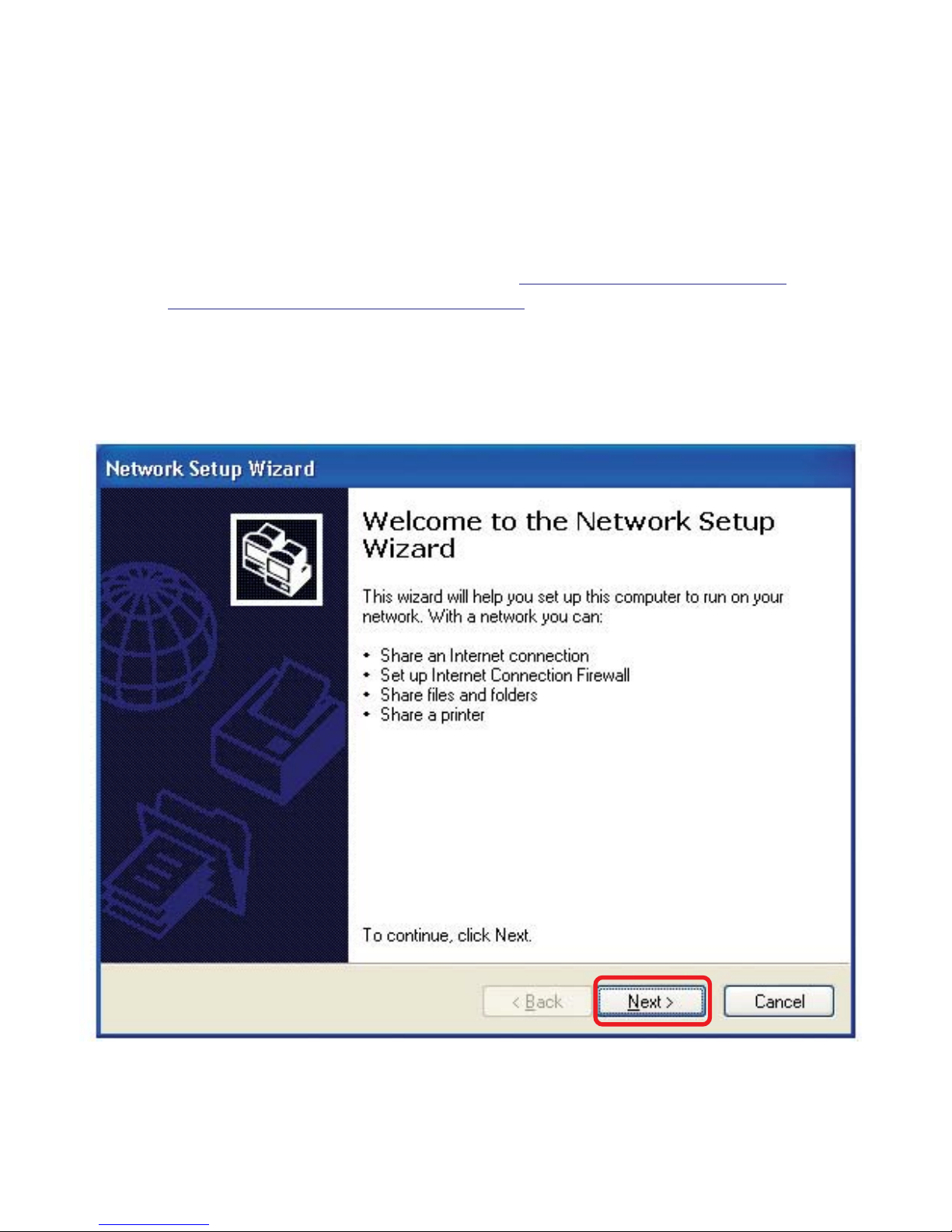

When this screen appears, click Next.

27

Please follow all the instructions in this window:

Networking Basics (continued)

Click Next
In the following window , select the best description of your computer. If your

computer connects to the Internet through a gateway/router , select the second option
as shown.

Click Next

28

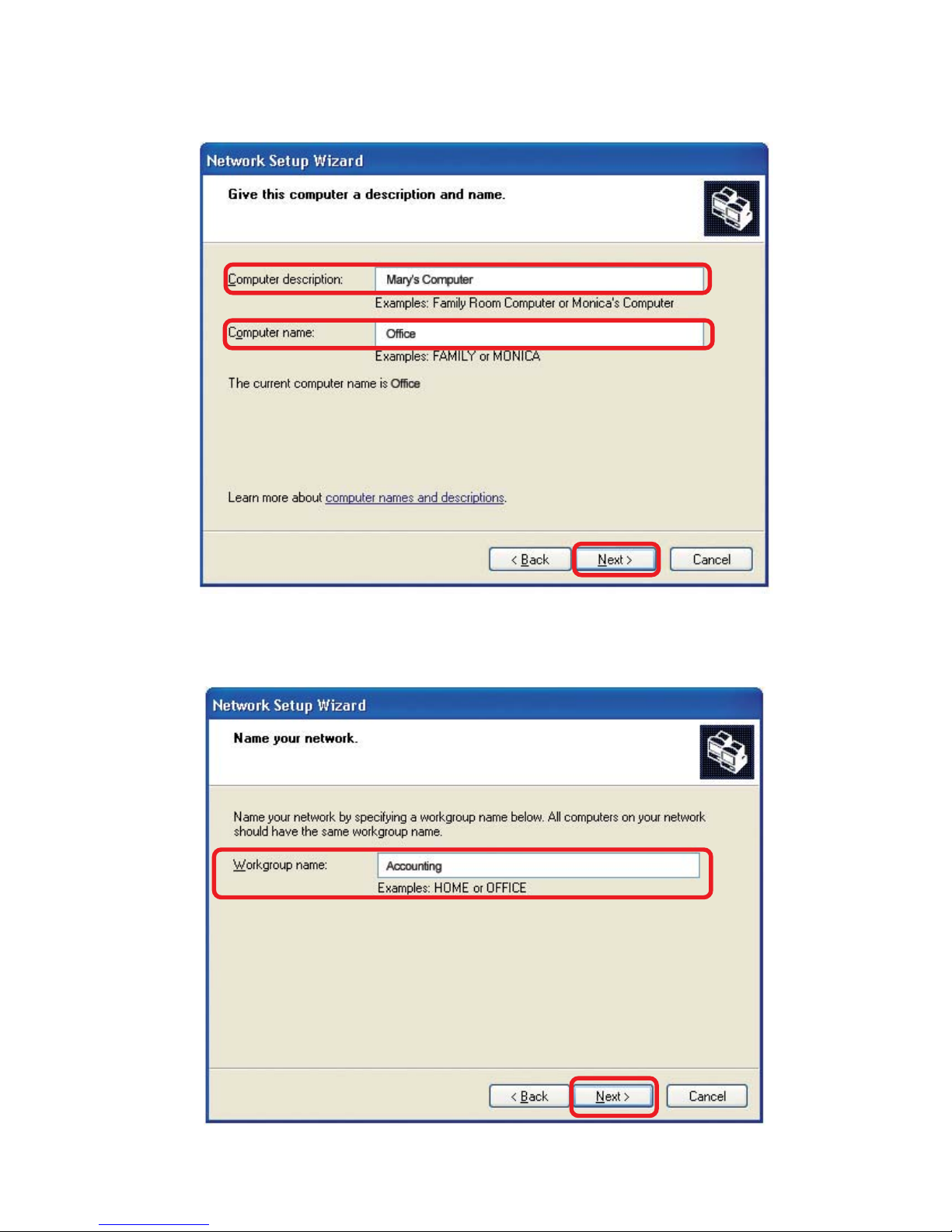

Enter a Computer description and a Computer name (optional.)

Networking Basics (continued)

Click Next
Enter a Workgroup name. All computers on your network should have the same

Workgroup name.

Click Next

29

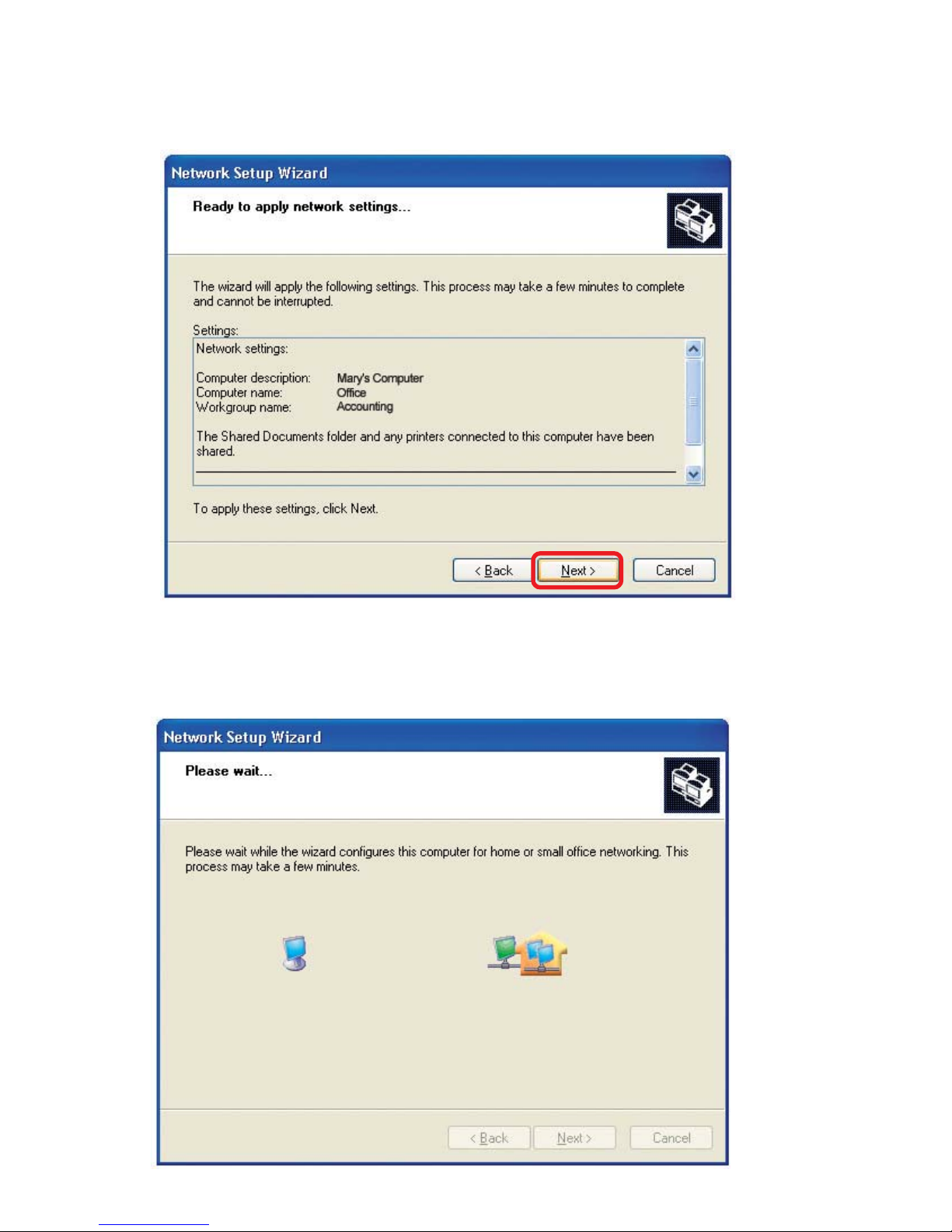

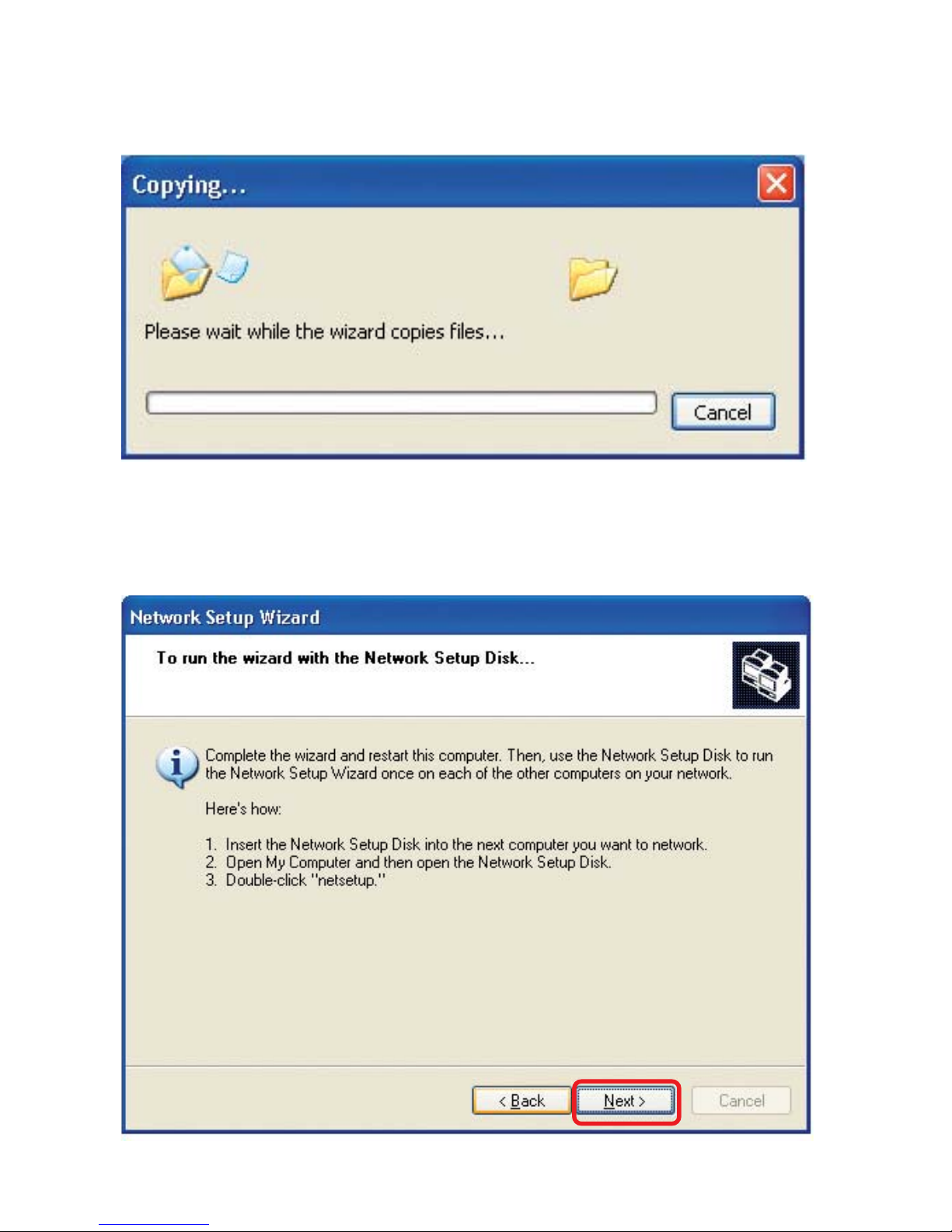

Please wait while the Network Setup Wizard applies the changes.

Networking Basics (continued)

When the changes are complete, click Next.
Please wait while the Network Setup Wizard configures the computer .

This may take a few minutes.

30

Networking Basics (continued)

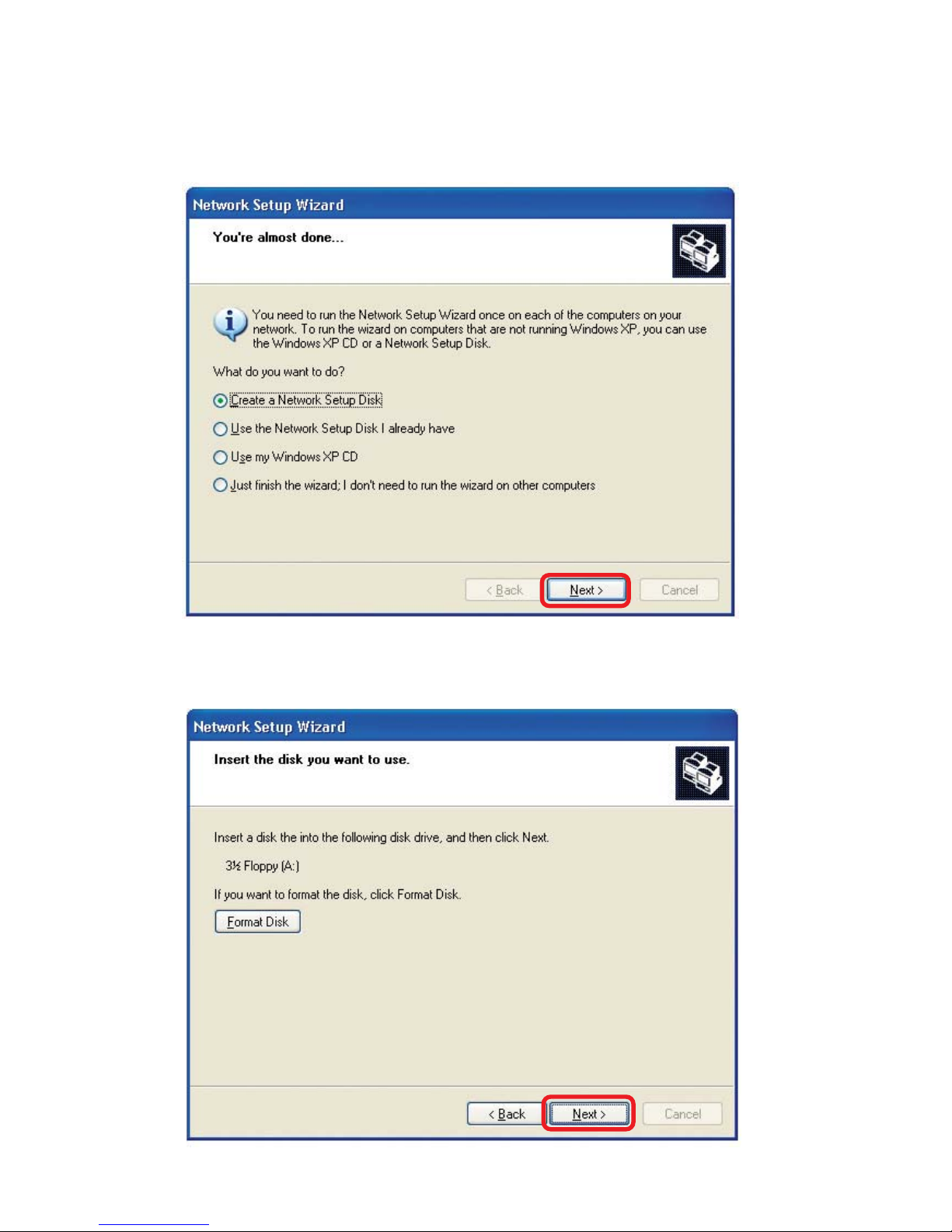

In the window below , select the option that fits your needs. In this example, Create a
Network Setup Disk has been selected. You will run this disk on each of the

computers on your network. Click Next.

Insert a disk into the Floppy Disk Drive, in this case drive A.

31

Networking Basics (continued)

Please read the information under Here’s how in the screen below . After you complete
the Network Setup Wizard you will use the Network Setup Disk to run the Network
Setup Wizard once on each of the computers on your network. To continue click Next.

32

Networking Basics (continued)

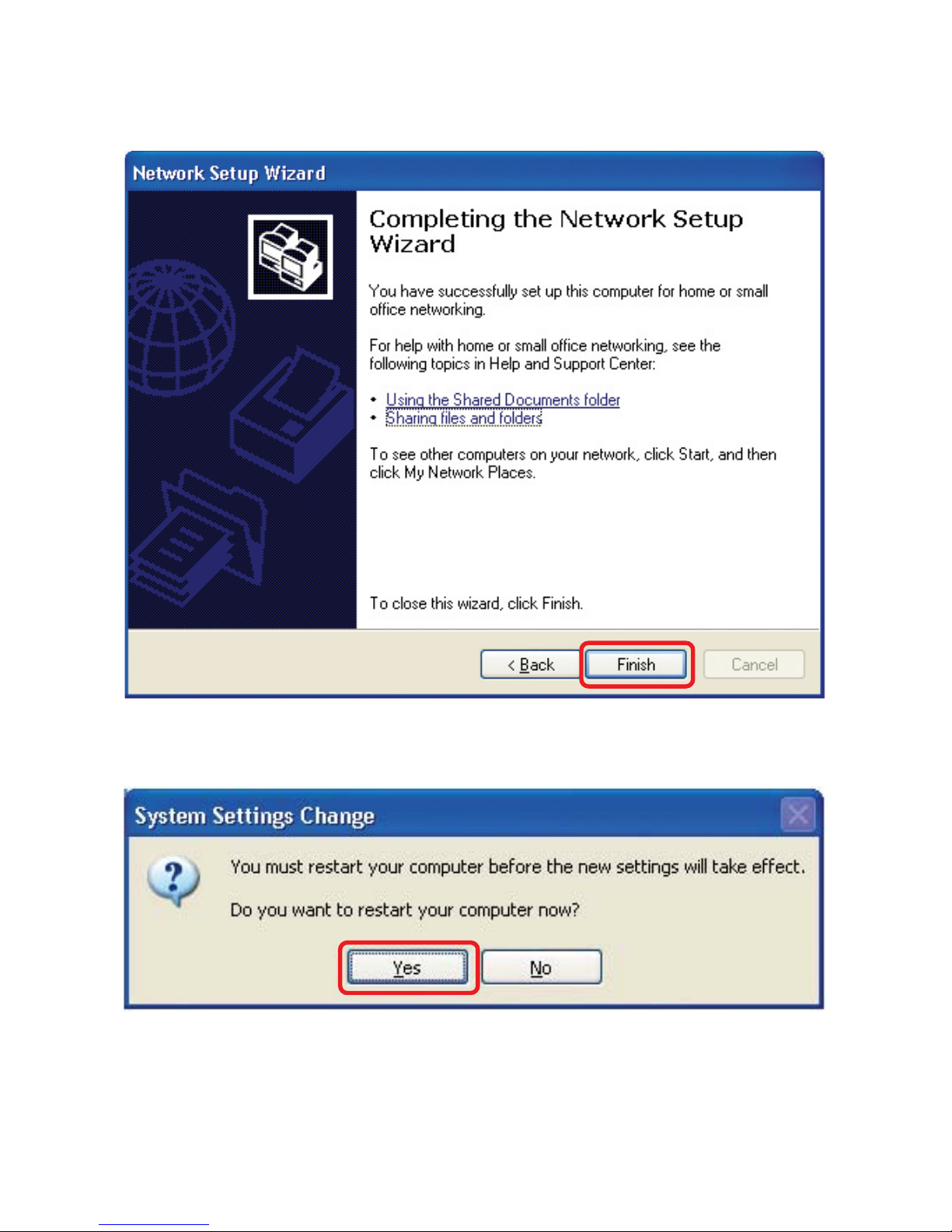

Please read the information on this screen, then click Finish to complete the
Network Setup Wizard.

The new settings will take effect when you restart the computer . Click Yes to restart
the computer.

Y ou have completed configuring this computer . Next, you will need to run the Network

Setup Disk on all the other computers on your network. After running the Network
Setup Disk on all your computers, your new wireless network will be ready to use.

33

!

Networking Basics (continued)

Naming your Computer

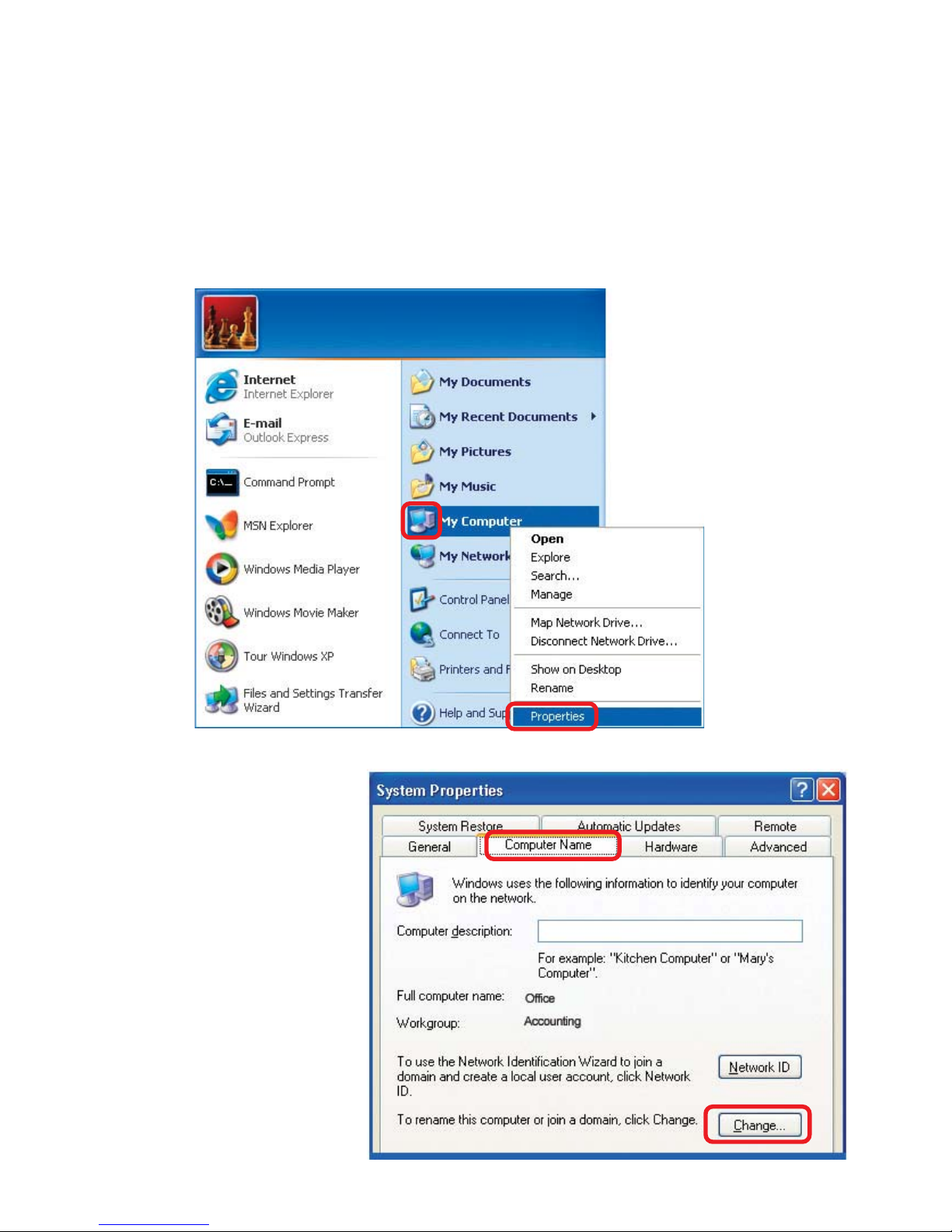

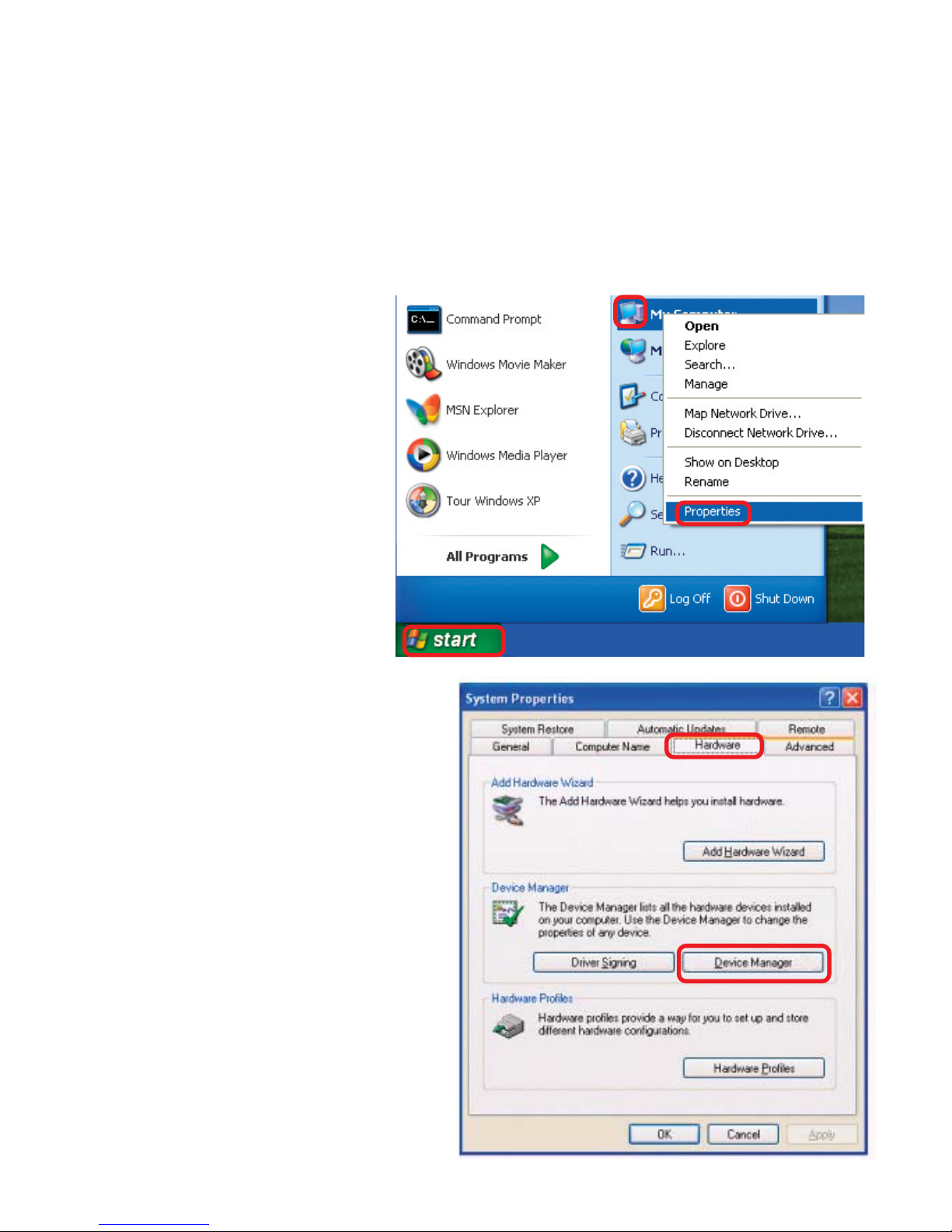

To name your computer, please follow these directions:In W indows XP:

Click Start (in the lower left corner of the screen)
Right-click on My Computer

Select Properties and click

!

!

!

!

!

Select the Computer
Name Tab in the System

Properties window .

You may enter a Com-
puter Description if you
wish; this field is optional.

To rename the computer
and join a domain, Click
Change.

34

Networking Basics (continued)

Naming your Computer

!

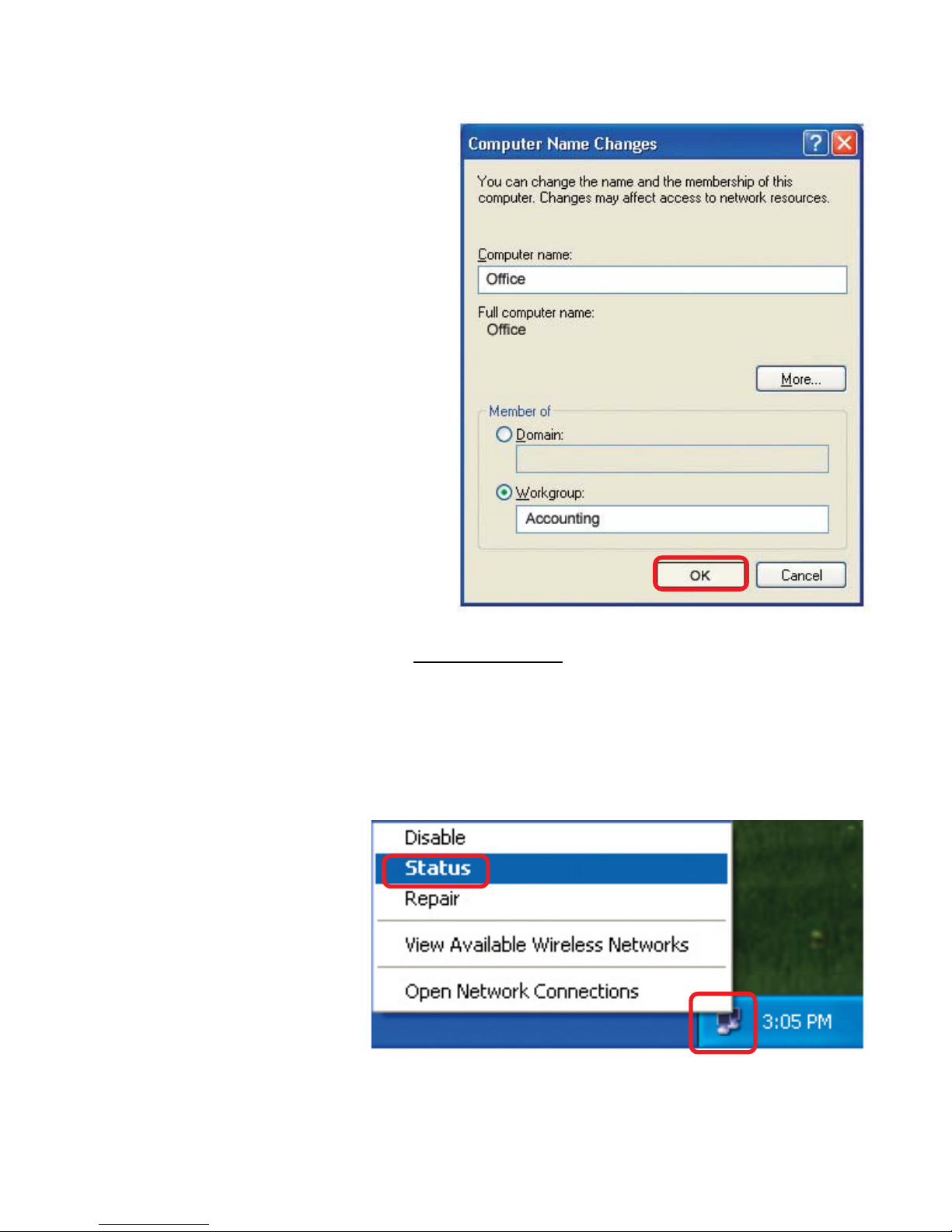

In this window , enter the

Computer name

Select Workgroup and enter
the name of the Workgroup

All computers on your network
must have the same
Workgroup name.

Click OK

!

!

!

Checking the IP Address in Windows XP

The wireless adapter-equipped computers in your network must be in the same IP
Address range (see Getting Started in this manual for a definition of IP Address Range.)
To check on the IP Address of the adapter, please do the following:

Right-click on the

Local Area
Connection icon

in the task bar

Click on Status

!

!

35

Networking Basics (continued)

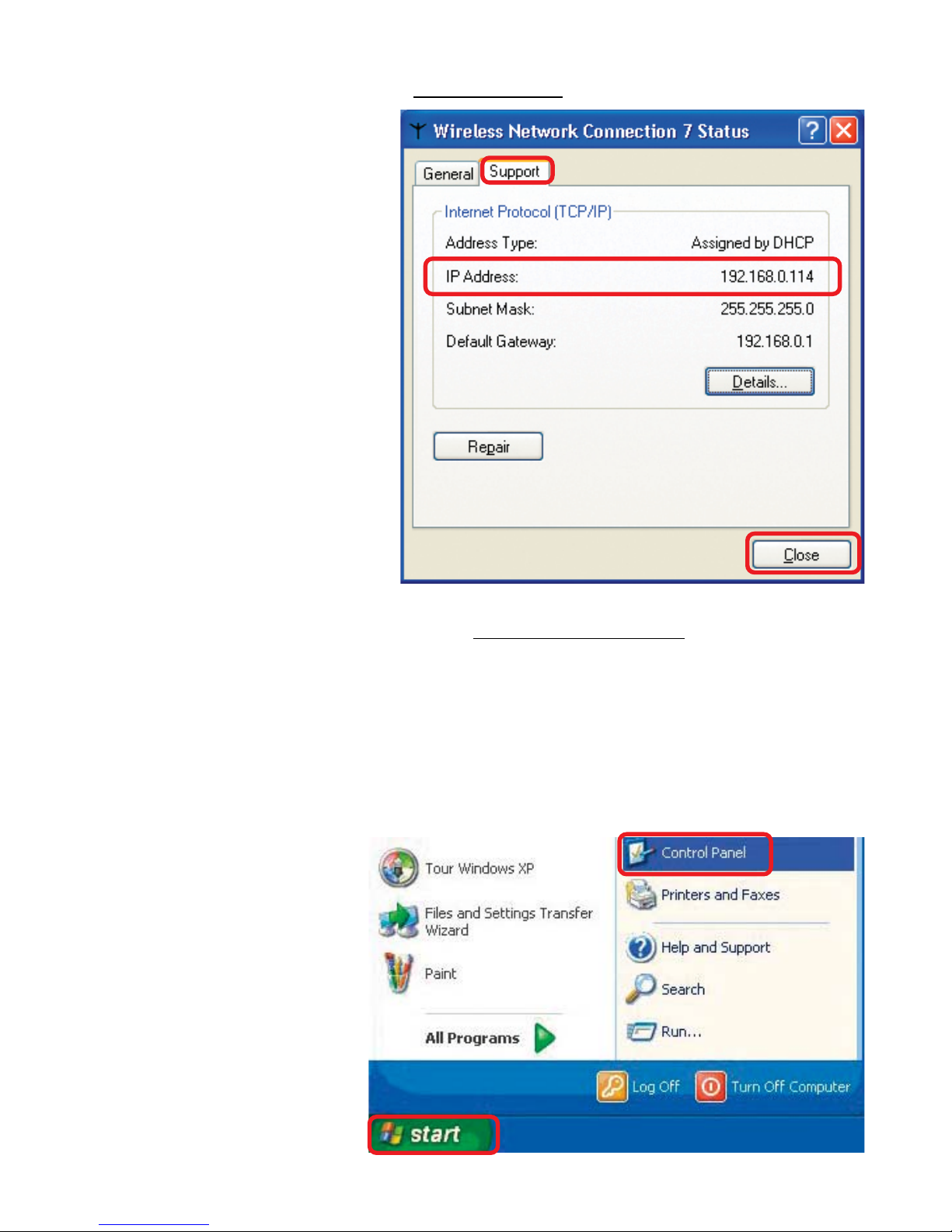

Checking the IP Address in

Windows XP

This window will appear .

Click the

Support tab

Click Close

!

!

Assigning a Static IP Address in Windows XP/2000

Note: Residential Gateways/Broadband Routers will automatically assign IP Ad­dresses to the computers on the network, using DHCP (Dynamic Host Configura­tion Protocol) technology. If you are using a DHCP-capable Gateway/Router you
will not need to assign Static IP Addresses.

If you are not using a DHCP capable Gateway/Router , or you need to assign a S tatic IP
Address, please follow these instructions:

!

!

Go to Start

Double-click on

Control Panel

36

Networking Basics (continued)

Assigning a Static IP Address in

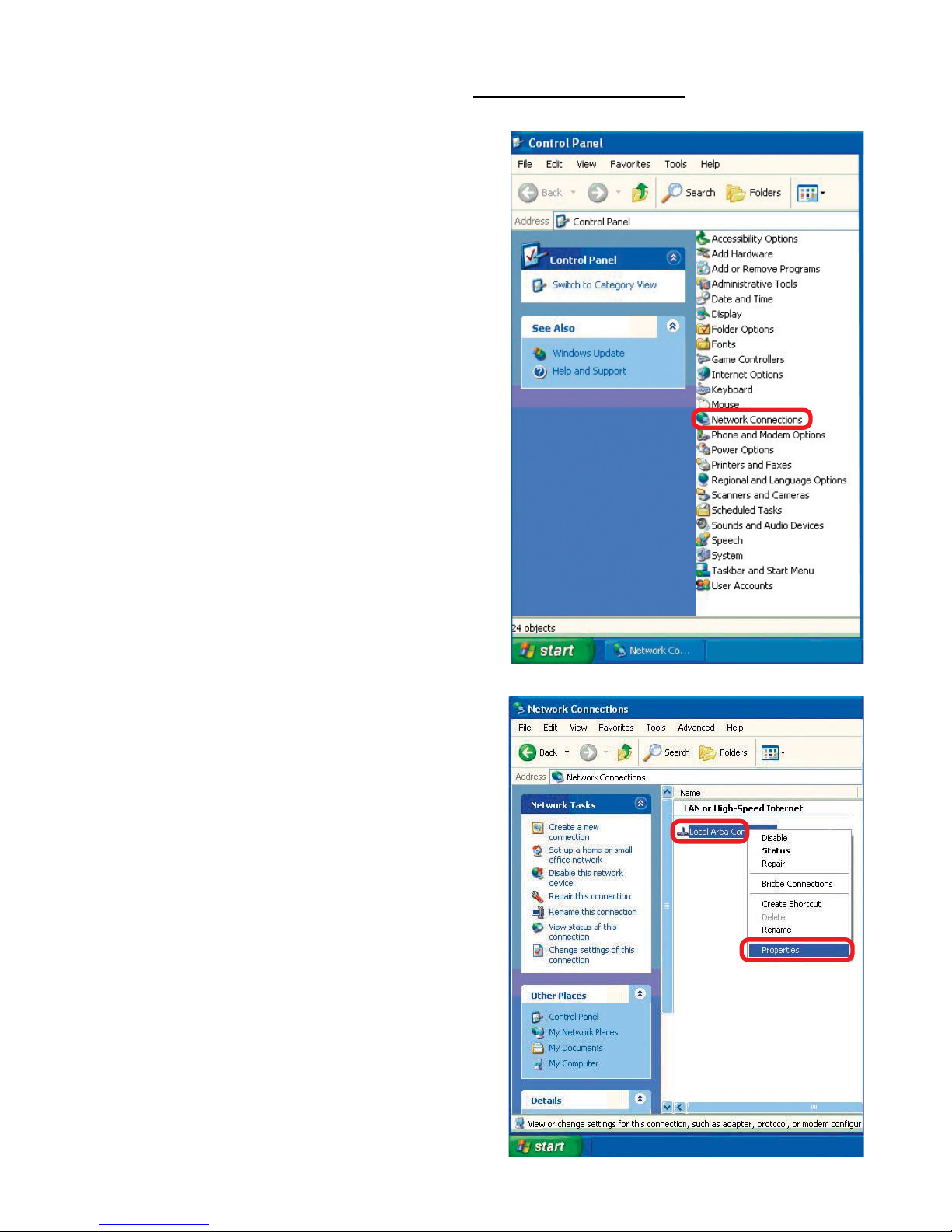

Windows XP/2000

!

Double-click on

Network
Connections

!

!

Double-click on

Properties

Right-click on Local Area
Connections

37

Select Use the following

DNS server address. Enter
the LAN IP Address of the
wireless router. (D-Link
wireless routers have a LAN
IP Address of 192.168.0.1)

Networking Basics (continued)

Assigning a Static IP Address
in Windows XP/2000

Y ou have completed the assignment of a Static IP Address. (Y ou do not need to assign
a Static IP Address if you have a DHCP-capable Gateway/Router.)

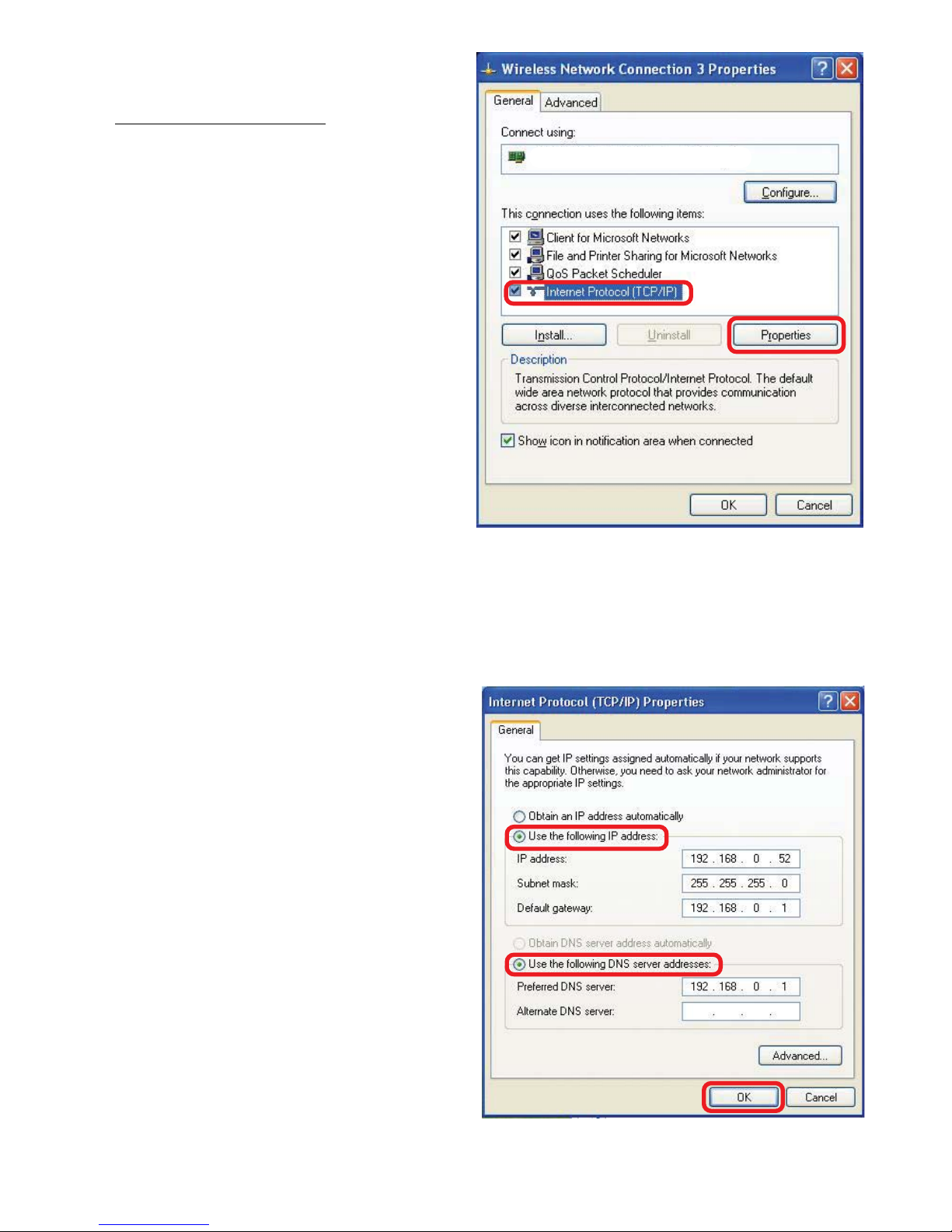

Click on Internet Protocol
(TCP/IP)

Click Properties

!

!

IP Address:

e.g., 192.168.0.2

Subnet Mask:

255.255.255.0

Default Gateway:

Enter the LAN IP Address of
the wireless router . (D-Link
wireless routers have a LAN IP
Address of 192.168.0.1)

In the window below , select Use the following IP Address. Input your IP
Address and subnet mask. (The IP Addresses on your network must be
within the same range. For example, if one computer has an IP Address of

192.168.0.2, the other computers should have IP Addresses that are
sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be the
same for all the computers on the network.)

!

!

Click OK

!

!

D-Link Air DWL-520 Wireless PCIAdapter

38

Networking Basics (continued)

Checking the Wireless Connection
by

Pinging in Windows XP and 2000*

Checking the Wireless Connection
by

Pinging in Windows Me and 98*

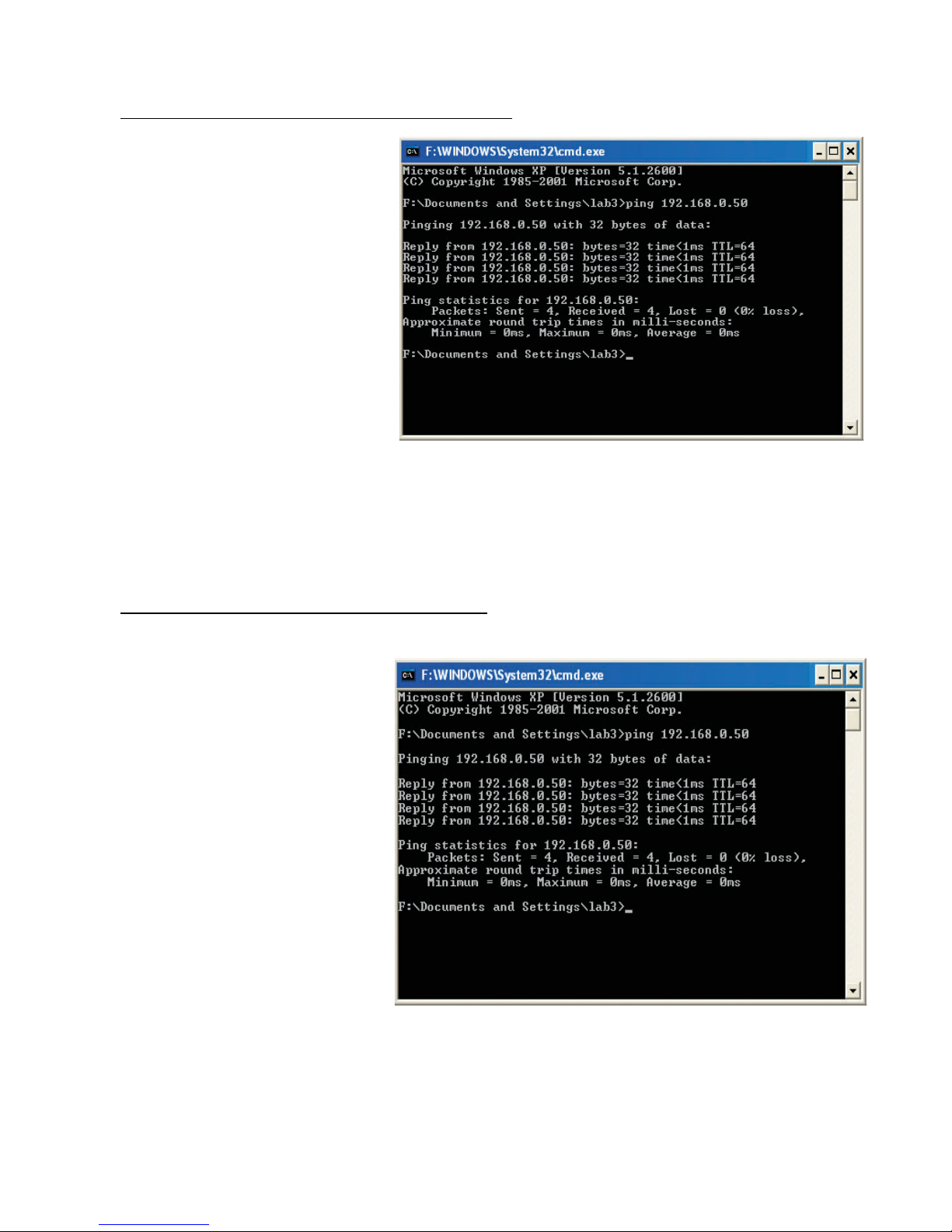

Go to Start > Run >
type cmd. A window
similar to this one
will appear . Type

ping
xxx.xxx.xxx.xxx,
where xxx is the IP
Address of the

Wireless Router or
Access Point. A
good wireless
connection will show
four replies from the
Wireless Router or
Access Point, as
shown.

Go to Start > Run
> type command.
A window similar to
this will appear .
Type ping

xxx.xxx.xxx.xxx
where xxx is the IP
Address of the

Wireless Router or
Access Point. A
good wireless
connection will
show four replies
from the wireless
router or access
point, as shown.

!

!

*Y ou may be pinging different IP Addresses than the ones pictured here, however the
procedure for pinging remains the same.)

39

1. Check that the drivers for the DWA-520 are installed properly.

Click Device
Manager

!

Select the

Hardware
Tab

!

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and
operation of the DWA-520. Read the following descriptions if you are having problems.
(The examples below are illustrated in Windows XP. If you have another operating sys­tem, these solutions will still apply although the appearance on your computer screen
may differ .)

!

Go to Start > My
Computer >
Properties

40

Troubleshooting (continued)

!

!

!

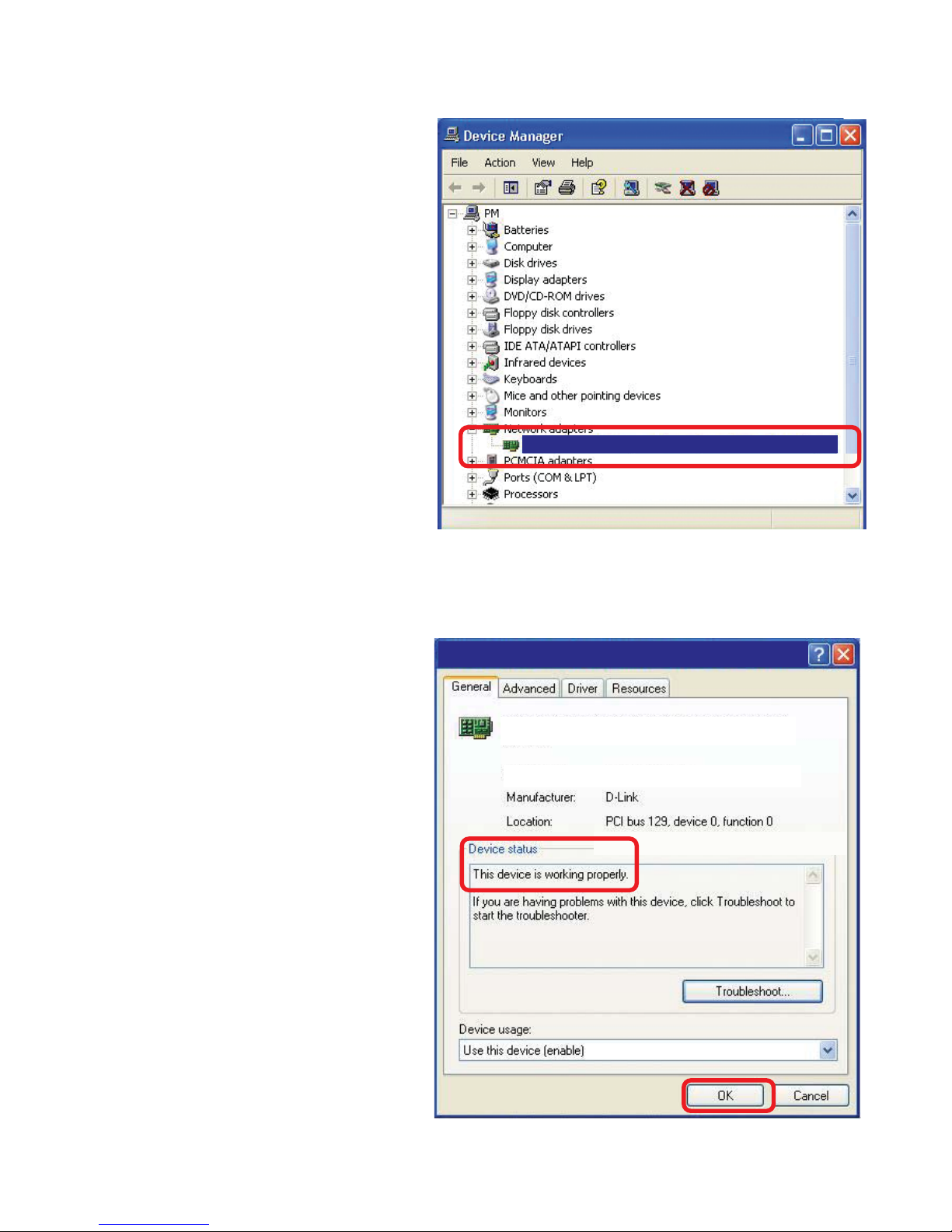

Double-click
on Network

Adapters

Right-click on D-Link Air
Plus Xtreme G DWL­G520 Wireless PCI
Adapter

Select Properties
to check that the
drivers are
installed properly

!

Look under Device
Status to check that the

device is working
properly

!

Click OK

D-Link AirPlus Xtreme G DWA-520

D-Link AirPlus Xtreme G DWA-520 Wireless PCI Adapter

D-Link AirPlus Xtreme G Wireless PCI Adapter

D-Link AirPlus Xtreme G Wireless PCI Adapter

TM

41

2. I cannot connect to the Access Point or the Wireless Router.

Make sure that the SSID on the DWA-520 Wireless PCI Adapter is
exactly the same as the SSID on the Access Point or Wireless Router.

Move the DWA-520 and Access Point or Wireless Router into the
same room and then test the wireless connection.

Disable all security settings. (WEP, MAC Address Control, AES)
Turn off your Access Point and the computer with the DWA-520. Turn

on the Access Point, and then turn on the computer with the DWA-520.
Refresh the DWA-520 Utility

Check to see if the DWA-520 PCI adapter is firmly inserted into the PCI
slot of your computer .

Troubleshooting (continued)

!

!

!

!

!

3. The DWA-520 Power and Link lights are not on.

!

4. I forgot my Encryption key .

Reset the Access Point to its factory default settings and restore the DWL­G520 Wireless PCI Adapter to the factory default settings. (The default settings
are listed in the Using the Configuration Utility section in this manual.)

!

Make sure that the DWA-520 Wireless PCI Adapter is properly seated in
the computer’s PCI slot.

If Windows does not detect the hardware upon insertion of the adapter,
make sure to completely remove drivers that were previously loaded. To
remove the drivers, do the following:

!

!

5. The computer does not recognize the DWA-520 Wireless PCI Adapter.

42

Troubleshooting (continued)

A. Under Tools> select Folder Options…> select View > under

Hidden files and folders > select Show hidden files and
folders

B. Uncheck Hide extension for known file types > click on

Apply

C. Search for the files DWLG520.INF and DWLG520.SYS.

Remove these files from the INF and SYSTEM32 (DRIVERS)
folders in the Windows directory. Note: Windows XP and
Windows 2000 will rename .inf files that have not received
WHQL certification into oem.inf files (e.g., oem1.inf.)

Check that the LED indicators for the broadband modem are indicating
normal activity . If not, there may be a problem with the broadband connection.

Check that the LED indicators on the wireless router are functioning properly .
If not, check that the AC power and Ethernet cables are firmly connected.

Check that the IP Address, subnet mask, gateway, and DNS settings are
correctly entered for the network

In Infrastructure mode, make sure the same Service Set Identifier (SSID)
is specified on the settings for the wireless clients and Access Points. The
SSID factory default setting for the D-LinkAir and AirPlus products is default.
(Double-click on the WLAN icon in the taskbar . The Link Info screen will
display the SSID setting.)

In Ad-Hoc mode, both wireless clients will need to have the same SSID.
Please note that it might be necessary to set up one client to establish a
BSS (Basic Service Set) and wait briefly before setting up other clients.
This prevents several clients from trying to establish a BSS at the same
time, which can result in multiple singular BSSs being established, rather
than a single BSS with multiple clients associated to it.

6. The computer with the DWA-520 installed is unable to connect to

the wireless network and/or the Internet.

!

!

!

!

!

43

Move the DWA-520 and Access Point or Wireless Router into the same
room and then test the wireless connection.

Change the channel of the Access Point.

Move devices within the line of sight

Check that the Network Connection for the wireless client is configured
properly . Select AP (Infrastructure) when connecting to an Access Point
and select Ad-Hoc mode when connecting without an Access Point.
Double-click on the WLAN icon in the taskbar > click on Configuration to
change the settings for the wireless adapter .

If Security is enabled, make sure that the correct encryption keys are
entered on both the DWA-520 and the Access Point. Double-click on the
WLAN icon in the taskbar > click Encryption. Check to see that the key
selected is set to the same key as other devices on the network.

!

!

!

!

!

Troubleshooting (continued)

7. How can I troubleshoot distance issues using the DWA-520.

44

S tandby mode = 4.66mA

IEEE 802.1 1b

IEEE 802.1 1g
IEEE 802.1 1

Technical Specifications

Standards

PCI 2.2

Bus Type:

!

Security:

802.1x

!

!

WPA/WPA2 (Wi-Fi Protected Access ), 64-,128-bit WEP with TKIP,
MIC, IV Expansion, Shared Key Authentication

Data Rates:

With Automatic Fallback

54Mbps; 48Mbps; 36Mbps; 24Mbps; 18Mbps; 12Mbps; 11Mbps;
9Mbps; 6Mbps; 5.5Mbps; 2Mbps; 1Mbps;108Mbps

!

Media Access Control:

CSMA/CA with ACK

!

Frequency Range:

2.4GHz ~ 2.4835GHz

!

Range:*

Indoors: Up to 328 feet (100 meters)

!

Outdoors: Up to 1,312 feet (400 meters)

!

PowerSave mode = 28mA

Transmit mode = 248mA

Power Consumption:

!
!

!

Modulation Technology:

Orthogonal Frequency Division Multiplexing (OFDM)

!

!

!

!

*Environmental factors may adversely affect range

45

Technical Specifications

Receiver Sensitivity:

54Mbps OFDM, 10% PER,-68dBm

48Mbps OFDM, 10% PER,-68dBm

11Mbps CCK, 8% PER, -82dBm

9Mbps OFDM, 10% PER,-87dBm

!

!

36Mbps OFDM, 10% PER,-75dBm

24Mbps OFDM, 10% PER,-79dBm

!

!

18Mbps OFDM, 10% PER,-82dBm
12Mbps OFDM, 10% PER,-84dBm

!
!

!

!

6Mbps OFDM, 10% PER,-88dBm

5.5Mbps CCK, 8% PER,-85dBm

!

2Mbps QPSK, 8% PER,-86dBm

!

!

1Mbps BPSK, 8% PER,-89dBm

!

Warranty:

3 years

!

0.12 lb. (55 grams)

!

Weight:

Physical Dimensions:

L = 4.64 inches (114.3mm)
W = 2.13 inches (54mm)
H = 0.34 inches (8.7mm)

!

!
!

Temperature

Operating: 0ºC to 55ºC (32ºF to 149ºF)

!

95% maximum, non-condensing

Humidity:

!

Internal Antenna Type:

Dipole with detachable reverse SMA connector

!

15dBm ± 2dB

Transmitter Output Power:

!

Certifications:

FCC:FCC Part 15B/C/MPE Taiwan: LP0002

!

46

Technical Support

Y ou can find software updates and user document ation on the D-Link website.
D-Link provides free technical support for customers within the United S tates and

within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

[phone]
24 hours a day , seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com
email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

[phone]
Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca
email:[email protected]

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

申請NCC 使用手冊必須包含之資訊:

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應
立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
