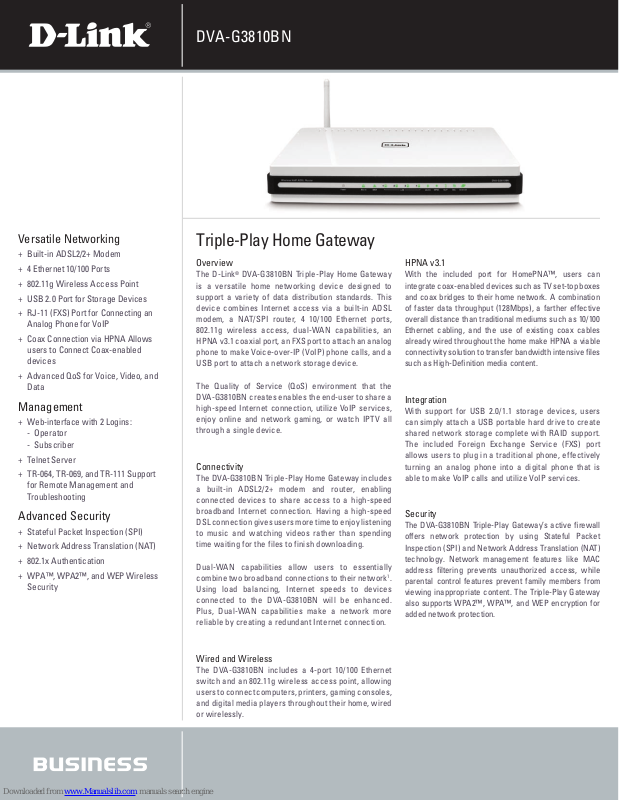

Page 1
DVA-G3810BN
Versatile Networking
+ Built-in ADSL2/2+ Modem
+ 4 Ethernet 10/100 Ports
+ 802.11g Wireless Access Point
+ USB 2.0 Port for Storage Devices
+ RJ-11 (FXS) Port for Connecting an
Analog Phone for VoIP
+ Coax Connection via HPNA Allows
users to Connect Coax-enabled
devices
+ Advanced QoS for Voice, Video, and
Data
Management
+ Web-interface with 2 Logins:
- Operator
- Subscriber
+ Telnet Server
+ TR-064, TR-069, and TR-111 Support
for Remote Management and
Troubleshooting
Advanced Security
+ Stateful Packet Inspection (SPI)
+ Network Address Translation (NAT)
+ 802.1x Authentication
+ WPA™, WPA2™, and WEP Wireless
Security
Triple-Play Home Gateway
Overview
The D-Link® DVA-G3810BN Triple-Play Home Gateway
is a versatile home networking device designed to
support a variety of data distribution standards. This
device combines Internet access via a built-in ADSL
modem, a NAT/SPI router, 4 10/100 Ethernet ports,
802.11g wireless access, dual-WAN capabilities, an
HPNA v3.1 coaxial port, an FXS port to attach an analog
phone to make Voice-over-IP (VoIP) phone calls, and a
USB port to attach a network storage device.
The Quality of Service (QoS) environment that the
DVA-G3810BN creates enables the end-user to share a
high-speed Internet connection, utilize VoIP services,
enjoy online and network gaming, or watch IPTV all
through a single device.
Connectivity
The DVA-G3810BN Triple-Play Home Gateway includes
a built-in ADSL2/2+ modem and router, enabling
connected devices to share access to a high-speed
broadband Internet connection. Having a high-speed
DSL connection gives users more time to enjoy listening
to music and watching videos rather than spending
time waiting for the files to finish downloading.
Dual-WAN capabilities allow users to essentially
combine two broadband connections to their network1.
Using load balancing, Internet speeds to devices
connected to the DVA-G3810BN will be enhanced.
Plus, Dual-WAN capabilities make a network more
reliable by creating a redundant Internet connection.
HPNA v3.1
With the included port for HomePNA™, users can
integrate coax-enabled devices such as TV set-top boxes
and coax bridges to their home network. A combination
of faster data throughput (128Mbps), a farther effective
overall distance than traditional mediums such as 10/100
Ethernet cabling, and the use of existing coax cables
already wired throughout the home make HPNA a viable
connectivity solution to transfer bandwidth intensive files
such as High-Definition media content.
Integration
With support for USB 2.0/1.1 storage devices, users
can simply attach a USB portable hard drive to create
shared network storage complete with RAID support.
The included Foreign Exchange Service (FXS) port
allows users to plug in a traditional phone, effectively
turning an analog phone into a digital phone that is
able to make VoIP calls and utilize VoIP services.
Security
The DVA-G3810BN Triple-Play Gateway’s active firewall
offers network protection by using Stateful Packet
Inspection (SPI) and Network Address Translation (NAT)
technology. Network management features like MAC
address filtering prevents unauthorized access, while
parental control features prevent family members from
viewing inappropriate content. The Triple-Play Gateway
also supports WPA2™, WPA™, and WEP encryption for
added network protection.
Wired and Wireless
The DVA-G3810BN includes a 4-port 10/100 Ethernet
switch and an 802.11g wireless access point, allowing
users to connect computers, printers, gaming consoles,
and digital media players throughout their home, wired
or wirelessly.
Page 2
DVA-G3810BN
Triple-Play Home Gateway
Technical Specifications
Product/Performance Specifications
Interface Features + 1 10/100 RJ-45 WAN Port + 4 10/100 RJ-45 LAN Ports
Standards + 802.11b + 802.11g
Antenna Type + 1 Dipole Antenna with 2dBi Gain for 2.4GHz + 1 Internal PIFA 1dBi Gain for 2.4 GHz
Security + Denial of Service (DoS) Protection: TCP RST, Ping Flood, ICMP Echo Storm, UDP Snork Attack, ICMP Smurf, UDP
Advanced Firewall Features + Stateful Packet Inspection (SPI) + Network Address Translation (NAT)
Wireless LAN + 802.1x Authentication + Wireless Protected Access (WPA™, WPA2™, WPA2-PSK)
Management + HTTP Web Server + Command Line Interface (CLI)
Adanced Routing + RIPv1 + RIPv2
QoS
With 802.1p QoS support, time-sensitive data will be placed
in priority queues, streamlining applications such as VoIP,
video streaming, and online gaming. The DVA-G3810BN
has a highly configurable QoS application menu, allowing
for Diffserv marking and queuing, Port-based QoS, and
Random Early Detection (RED) according to queue size.
+ 802.11g Wireless Access Point + ADSL Port
+ 1 FXS RJ-11 Port + HPNA v3.1 Coaxial Port
+ USB 2.0 Port for Network Attached Storage
+ 802.3 Ethernet + 802.3u Fast Ethernet
+ USB 2.0 + HPNA v3.1
+ ADSL (AA5: ITU-T I.303.5) + VoIP (SIP/SIP v2: RFC 3261, 3515, 2543)
+ 802.1p QoS
Fraggle, TCP Window Checks, Invalid TCP Options, TCP Flags, TCP 3WHS, TCP LAND, TCP 3SYN/UDP/ICMP Flood,
PROTOS Attacks, Short IP Packets, SynFlood Protection – SynCookies
+ IP Spoofing Attacks: FTP Bounce, Broadcast/Multicast Source IP Attack
+ Intrusion and Scanning Attacks: IP Source Route, ICMP Echo Reply without Request, ICMP Ping Sweep, TCP Stealth
Scan (FIN, XMAS, NULL), UDP Port, FTP Passive Attack, Loopback/Echo Chargen, Block Security Hazard ICMP
Messages
+ Reverse NAT
+ Support for Physical DMZ Interface
+ MAC Filtering
+ Multiple SSIDs Supporting Virtual APs + Wireless Distribution System (WDS)
+ Wireless Multimedia (WMM) + External RADIUS Server with Authentication
+ Telnet + TR-069
+ Domain Routing + IP Tunneling
+ GRE Tunneling
Remote Management
Support for remote management features such as
TR-064, TR-069, and TR-111 allow the ISP to contact the
DVA-G3180BN for automatic configuration, updates
and remote diagnostics, simplifying management and
increasing overall effectiveness while remaining relatively
transparent to the end-user.
Page 3
DVA-G3810BN
Triple-Play Home Gateway
Remote Upgrade + Fault Tolerance Backup Copy + Unattended Automatic Software Upgrade from a Remote Server
+ Manual Software Upgrade Accessible Through + Send System Information During Remote Upgrade
Web-based Management
+ User Notification Upon Major Events and + Web-based Management
Availability of an Updated Image
+ Remote Upgrade from WAN for Low Memory Platforms
DSL (ATM) + AAL5 (ITU-T I.363.5) + Multiple VC/PPP Connections
+ PVC Scanning + Classic IP (CLIP) and ARP over ATM, RFCs 1577, 2225
+ Multiple PPPoE Connections on a Single VC + PPP over AAL5 (PPPoATM), RFC 2364
+ OAM (ITU-T I.610) + Automatic Detection of DSL Up/Down Sync Speeds
Dual WAN + IPSec Support for Multiple WAN + Load Balancing
+ Policy Routing (DSCP)
Content Filtering + Customizable Filtering Policies per LAN Host + Web-based Filtering Service
+ Parental Control Service + URL Keyword-based Filtering
+ Parental Control via User Defined Blocked Sites
File Server + Dynamic Storage Recognition + FAT32/ext2/ext3 Disk Formatting
+ Partition Table Administration + Error Detection and Repair Utilities
+ File Backup and Restore + Global Mount/Umount Operation per Disk
+ Shared-level Access Control + RAID Support
+ Support for Windows Networking and Files Sharing
Universal Plug and Play + UPnP Based Auto-configuration + UPnP Based Port Forwarding
+ Software Stack for UPnP Devices + Internet Gateway Device (IGD) Protocol Implementation
+ Xbox® Live Compatibility
Voice over IP + RTP/RTCP, RFC 1889 + SDP, RFC 2327
+ RTP Payload for DTMF Digits RFC 2833 + SIP/SIPv2: RFCs 3261, 3515, 2543
+ Comfort Noise Generator (CNG) + VoIP QoS
+ Call/Hold/Invite Authentication + Three-way Conference
+ Message Waiting Indication
QoS + Diffserv (RFC2474/RFC2475) Marking and Queuing + Traffic Shaping – Bandwidth Management and Rate Limiting
According to Connection Type, Network Interface,
MAC, IP, Hostname, DSCP/ToS Value, Port Number,
and Application
+ ATM QoS – Support for Multiple PVCs, CBR, VBR, + Random Early Detection (RED) According to Queue and Size
and UBR
+ 802.1p + Queue Priority
+ Bandwidth Reservation + Port-based QoS
+ Ingress Traffic Policing
Page 4
DVA-G3810BN
Triple-Play Home Gateway
LEDs + Power + Status
+ WAN + LAN
+ Internet + HPNA
+ VoIP + DSL
Certifications + FCC Class B + FCC Part 68
+ RoHS + IC
+ ICES-003 + CUL
Operating Voltage + 12V DC +/- 5%
Current Consumption + Maximum 24W with Adapter
Temperature + Operating: 14°F to 113°F (-10°C to 45°C) + Storage: -40°F to 158°F (-40°C to 70°C)
Humidity + 5% ~ 90% (Non-condensing)
Warranty + 1-Year Limited
1
1
To utilize Dual-WAN capabilities, one connection must use the built-in DSL modem and the other connection must use an external modem.
2
1-Year Limited Warranty available in the USA and Canada only.
Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
