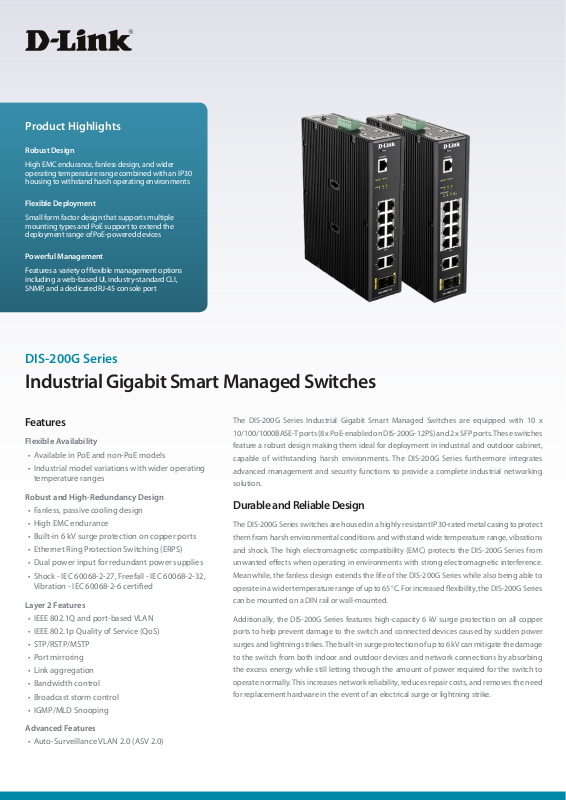

D-LINK 200G12S Datasheet

Page 1

Product Highlights

Robust Design

High EMC endurance, fanless design, and wider operating temperature range combined with an IP30 housing to withstand harsh operating environments

Flexible Deployment

Small form factor design that supports multiple mounting types and PoE support to extend the deployment range of PoE-powered devices

Powerful Management

Features a variety of exible management options including a web-based UI, industry-standard CLI, SNMP, and a dedicated RJ-45 console port

DIS-200G Series

Industrial Gigabit Smart Managed Switches

Features

Flexible Availability

• Available in PoE and non-PoE models

• Industrial model variations with wider operating temperature ranges

Robust and High-Redundancy Design

• Fanless, passive cooling design

• High EMC endurance

• Built-in 6 kV surge protection on copper ports

• Ethernet Ring Protection Switching (ERPS)

• Dual power input for redundant power supplies

• Shock - IEC 60068-2-27, Freefall - IEC 60068-2-32, Vibration - IEC 60068-2-6 certied

Layer 2 Features

• IEEE 802.1Q and port-based VLAN

• IEEE 802.1p Quality of Service (QoS)

• STP/RSTP/MSTP

• Port mirroring

• Link aggregation

• Bandwidth control

• Broadcast storm control

• IGMP/MLD Snooping

The DIS-200G Series Industrial Gigabit Smart Managed Switches are equipped with 10 x

10/100/1000BASE-T ports (8 x PoE-enabled on DIS-200G-12PS) and 2 x SFP ports. These switches

feature a robust design making them ideal for deployment in industrial and outdoor cabinet,

capable of withstanding harsh environments. The DIS-200G Series furthermore integrates

advanced management and security functions to provide a complete industrial networking

solution.

Durable and Reliable Design

The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect

them from harsh environmental conditions and withstand wide temperature range, vibrations

and shock. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from

unwanted eects when operating in environments with strong electromagnetic interference.

Meanwhile, the fanless design extends the life of the DIS-200G Series while also being able to

operate in a wider temperature range of up to 65 °C. For increased exibility, the DIS-200G Series

can be mounted on a DIN rail or wall-mounted.

Additionally, the DIS-200G Series features high-capacity 6 kV surge protection on all copper

ports to help prevent damage to the switch and connected devices caused by sudden power

surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage

to the switch from both indoor and outdoor devices and network connections by absorbing

the excess energy while still letting through the amount of power required for the switch to

operate normally. This increases network reliability, reduces repair costs, and removes the need

for replacement hardware in the event of an electrical surge or lightning strike.

Advanced Features

• Auto-Surveillance VLAN 2.0 (ASV 2.0)

Page 2

DIS-200G Series Industrial Gigabit Smart Managed Switches

High Redundancy and Reliability

The DIS-200G Series supports ERPS quick failover recovery for ring topologies

that ensures minimal downtime and avoids any loss of data in mission-critical

deployment settings. Meanwhile, the dual power input allows for a redundant

power supply to make sure the device continues to operate in the event of a

primary power supply failure.

Surveillance Trac Optimisation

The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This

automatically detects surveillance devices and puts them into a dedicated

surveillance VLAN, segmenting this type of trac from the rest of the

network. This provides increased security of surveillance data, and gives

the trac a higher priority through the switch, minimising the disruption or

delays on video streams. A single switch can be used for both surveillance and

data networks, removing the need for dedicated surveillance hardware while

simultaneously reducing maintenance costs.

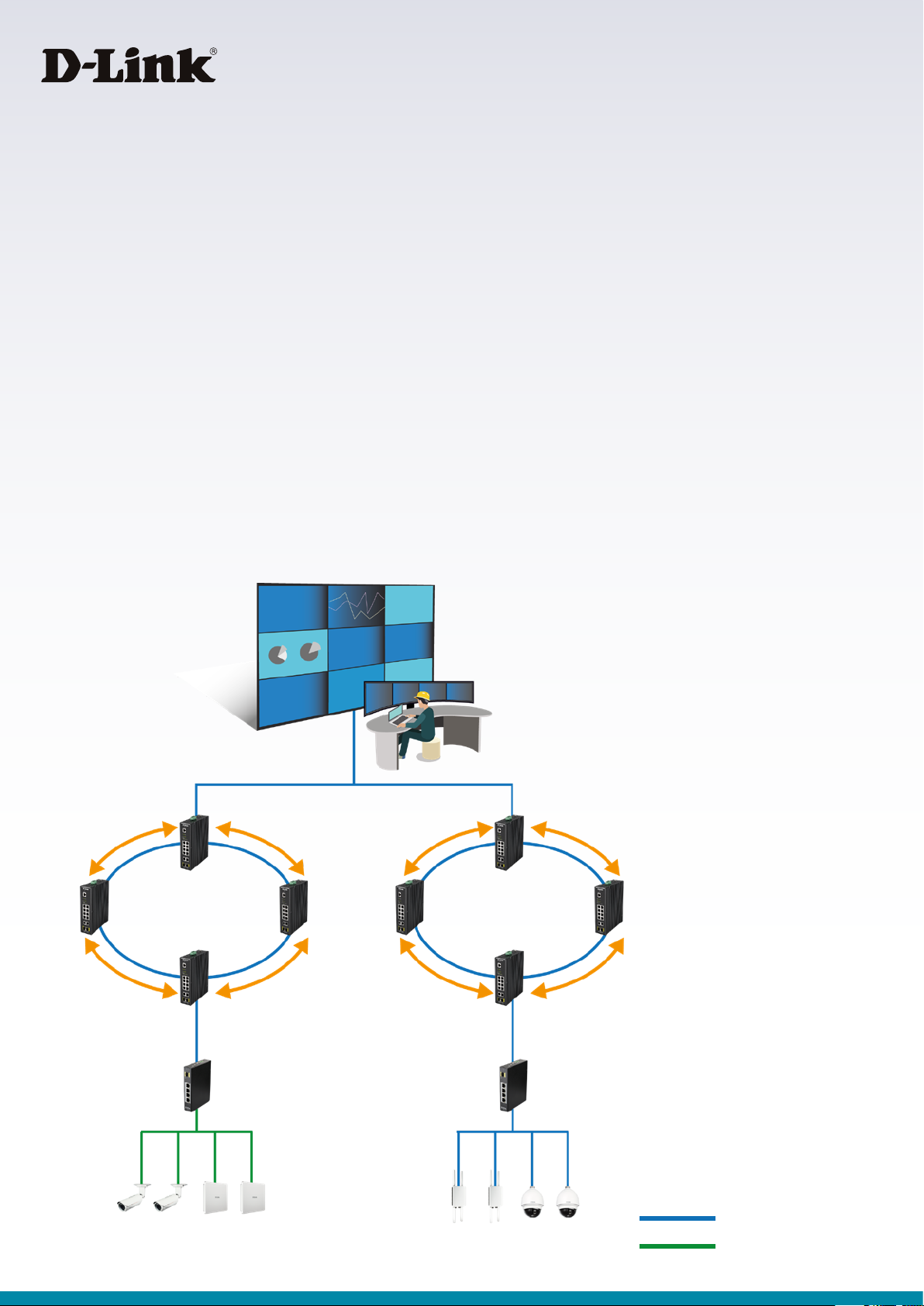

Deployment Scenario

Easy Troubleshooting

The DIS-200G Series features loopback detection and cable diagnostics to

help network administrators nd and solve network problems quickly and

easily. Loopback detection is used to detect loops created by a specic port

and automatically shuts down the aected port. Cable diagnostics helps

network administrators quickly examine the quality of the copper cables,

recognize the cable type, and detect cable errors.

Power over Ethernet Support

The DIS-200G-12PS SW is PoE-ready with a total PoE budget of 240 W1,

capable of supplying up to 30 W of power per port to connected PoE-enabled

devices. This eectively reduces deployment times, reduces cable clutter, and

eliminates the need for dedicated power supplies to allow PoE-devices to be

installed in remote locations.

Control Room

DIS-200G

ERPS Failover Rings

DIS-200G

DIS-100G

Outdoor PoE Surveillance/AP Indoor Surveillance/AP

Ethernet Data

Ethernet Data + PoE Power

Page 3

DIS-200G Series Industrial Gigabit Smart Managed Switches

Technical Specications

Ethernet DIS-200G-12S DIS-200G-12PS

• 10 x 10/100/1000BASE-T ports

Number of Ports

Port Functions

Media Interface Exchange • Auto-MDI/MDIX adjustment for all twisted pair ports

• 2 x SFP ports

• 1 x RJ-45 Console port

• IEEE 802.3 for Ethernet

• IEEE 802.3u for Fast Ethernet

• IEEE 802.3ab for Gigabit Ethernet

• IEEE 802.3z for Gigabit fibre

• IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS)

• IEEE 802.3az-compliant

• 8 x 10/100/1000BASE-T PoE ports

• 2 x 10/100/1000BASE-T ports

• 2 x SFP ports

• 1 x RJ-45 Console port

Performance

Switching Capacity • 24 Gbps

Maximum Forwarding Rate • 17.85 Mpps

MAC Address Table Size • Up to 8K entries

Transmission Method • Store-and-forward

PoE

PoE Standards • N/A • IEEE 802.3af/at PoE Capable Ports • N/A • Ports 1 to 8 PoE Power Budget • N/A • Max. 240 W

Physical

Diagnostic LEDs • SYS, ALM, PWR1/2/3, Link/Activity/Speed • SYS, ALM, PWR1/2/3, Link/Activity/Speed, PoE status,

PoE budget

Power Input • 12 to 48 V DC terminal block dual input

• 12 V DC 4-pin DIN single power input

Power Consumptions • Maximum: 10.26 W

• Standby: 5.94 W

Alarm Relay • 1 A at 24 V

Heat Dissipation • 35.01 BTU/hr • 887.16 BTU/hr (PoE on)

Weight • 1.63 kg (3.59 lbs)

Dimensions • 210 x 171.2 x 53 mm

Ventilation • Fanless

Operating Temperature • -40 to 65 °C (-40 to 149 °F)

Storage Temperature • -40 to 85 °C (-40 to 185 °F)

Operating Humidity • 0% to 95% RH, non-condensing

Storage Humidity • 0% to 95% RH, non-condensing

Material • IP30-rated metal casing

Installation • DIN rail/wall mountable

MTBF • 276,773 hours • 213,112 hours

Certifications • CE, FCC, BSMI

Safety • UL60950-1

EMI • CISPR 22, FCC Part 15B Class A

EMS • EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5, EN 61000-4-6 CS, EN 61000-4-8

Environmental Tests • IEC 60068-2-27 Shock, IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration

• 48 to 54 V DC terminal block dual input

• 54 V DC 4-pin DIN single power input

• Maximum: 260 W (PoE on)

• Maximum: 10.8 W (PoE off)

• Standby: 7.02 W

• 36.85 BTU/hr (PoE off)

• 1.76 kg (3.88 lbs)

Page 4

Software Features

DIS-200G Series Industrial Gigabit Smart Managed Switches

VLAN • IEEE 802.1Q tagged VLAN

• Port-based VLAN

• Auto-Surveillance VLAN 2.0 (ASV 2.0)

• Voice VLAN

• Asymmetric VLAN

L2 Features • Flow Control

• IEEE 802.3x Flow Control

• HDL Blocking Prevention

• Jumbo frames up to 9600 bytes

• IGMP Snooping

• IGMP v1/v2/v3

• Supports up to 256 IGMP snooping groups (shared with MLD snooping)

• IGMP Snooping Querier

• MLD Snooping

• MLD snooping v1/v2

• Supports up to 256 MLD snooping groups (shared with IGMP snooping)

• MLD Snooping Querier

• IEEE 802.3ad Link Aggregation

• Supports 6 groups per device, 8 ports per group

• Ethernet Ring Protection Switching (ERPS)

• G.8032 ERPSv1 single ring

Quality of Service (QoS) • IEEE 802.1p Quality of Service (QoS)

• 4 queues per port

• Queue handling

• Strict Priority Queue (SPQ)

• Weighted Round Robin (WRR)

• Port-based bandwidth control (rate limiting)

• Ingress: 100 kbps

• VLAN group

• Supports 128 static VLAN groups

• Max. 4094 VIDs

• GVRP

• Loopback detection

• LLDP

• Port mirroring

• One-to-One

• Many-to-One

• Statistics

• Tx Ok

• Tx Error

• Rx Ok

• Rx Error

• Spanning Tree Protocol (STP)

• IEEE 802.1D STP

• IEEE 802.1w RSTP

• IEEE 802.1s MSTP

Security • D-Link Safeguard

• Traffic segmentation

• Broadcast/Multicast/Unknown Unicast Storm Control

• DoS attack prevention

AAA • IEEE 802.1x Port-based access control

• Web-based access control

Management • Web-based UI (supports IPv4/IPv6)

• Client-based D-Link Network Assistant (DNA)

• Industry-standard CLI

• SNTP

• SNMP v1/v2c/v3

• SNMP trap

• Telnet server

OAM • Cable diagnostics • Optical transceiver Digital Diagnostics Monitoring (DDM)

Green Technology • Power saving by:

• Link status detection

• LED shut-off

• Port shut-off

• System hibernation

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

MIB/RFC Standards • RFC768 UDP

• RFC791 IP

• RFC792 ICMP

• RFC793 TCP

• RFC826 ARP

• RFC1213 MIB II

• RFC1493 Bridge MIB

• SSL

• SSH

• Port security

• RADIUS

• System Log

• DHCP client

• TFTP client

• LLDP

• D-Link Discovery Protocol (DDP)

• Dual images

• Dual configurations

• RFC1907 SNMPv2 MIB

• RFC2668 802.3 MAU MIB

• RFC4133 Entity MIB

• RFC4363 IEEE 802.1p MIB

• ZoneDefense MIB

• Private MIB

Page 5

DIS-200G Series Industrial Gigabit Smart Managed Switches

Accessories

SFP Transceivers

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver

DIS-S301SX

DIS-S302SX

DIS-S310LX

Power Supplies

DIS-H30-24

DIS-H60-24

DIS-N240-48

DIS-N480-48

The actual available PoE budget depends on the power supply connected to the switch. 240W PoE budget when powered by DIS-N480-48. 227W PoE budget when powered by DIS-N240-48..

• up to 550 m

• -40~85°C operating temperature

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver

• up to 2 km

• -40~85°C operating temperature

1-port Mini-GBIC SFP to 1000BaseLX Single-Mode Fibre Transceiver

• up to 10 km

• -40~85°C operating temperature

30W 24VDC Ultra Slim DIN Rail PSU

• Input: 85 ~ 264VAC

• Output: 21.6 ~ 29V DC

• Din rail TS-35/7.5 or 15 mountable

• -30~70°C operating temperature

60W 24VDC Ultra Slim DIN Rail PSU

• Input: 85 ~ 264VAC

• Output: 21.6 ~ 29V DC

• Din rail TS-35/7.5 or 15 mountable

• -30~70°C operating temperature

240W 48VDC DIN Rail PSU

• Input: 90 ~ 264VAC

• Output: 48 ~ 55V DC

• Din rail TS-35/7.5 or 15 mountable

• -20~70°C operating temperature

480W 48VDC DIN Rail PSU

• Input: 90 ~ 264VAC

• Output: 48 ~ 55V DC

• Din rail TS-35/7.5 or 15 mountable

• -20~70°C operating temperature

For more information: www.dlink.com

D-Link European Headquarters. D-Link (Europe) Ltd., First Floor, Artemis Building, Odyssey Business Park, West End Road, South Ruislip HA4 6QE, United Kingdom.

Specications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2019 D-Link Corporation. All rights reserved. E&OE.

Updated September 2019
