Tube Roller
User Manual
MX-T6-Pro LCD Digital Tube Roller
MX-T6-S Classic Tube Roller
Please read the User Manual carefully before use, and
follow all operating and safety instructions!
Technical specifications and outline are subject to change
without prior notice.
www.dlabsci.com
Page 2
Page 3
Contents
Preface ................................................................................. 1
Service ................................................................................. 1
Warranty .............................................................................. 1
1. Safety Instructions ....................................................... 2
2. Proper Use ................................................................... 3
3. Inspection .................................................................... 3
3.1 Receiving Inspection.............................................. 3
3.2 Listing of Items ...................................................... 3
4. Control and Display .................................................... 4
4.1 Control ................................................................... 4
4.2 Display ................................................................... 5
5. Operation ..................................................................... 6
6. Faults ........................................................................... 6
7. Maintenance and Cleaning .......................................... 7
8. Associated standards and regulations .......................... 7
9. Specifications .............................................................. 8
10. Ordering Informations ................................................. 9
Page 4
Page 5
1
Preface
Welcome to the “Tube Roller User Manual”. Users should
read this manual carefully, follow the instructions and
procedures, and beware of all the cautions when using this
instrument.
Service
When help needed, you can always contact the service
department of manufacturer for technical support in the
following ways:
Please provide the customer care representative with the
following information:
· Serial number ( on the rear panel )
· Certification
· Description of problem ( i.e., hardware or software )
· Methods and procedures adopted to resolve the
problems
· Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier.
You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.
2311 E. Locust Court, Ontario, CA 91761 United States.
Office: +1-747-230-5179
Fax: +1-909-230-5275
Sales contact: [email protected]
Service contact: [email protected]
www.dlabsci.com
DLAB Scientific Instrument Inc.
Page 6
2
1. Safety Instructions
Warning!
• Read the operating instructions carefully
before use.
• Ensure that only trained staff works with the
instrument.
Protective ground contact！
• Ensure the socket must be grounded
(protective ground contact) before use.
• When working wear personal safety guards to avoid
the risk of:
- Splashing liquids
- Broken glass containers
• Follow the safety instructions, guidelines and accident
prevention regulations.
• Do not touch the running parts, moving instrument
care not rolling your fingers.
• Set up the instrument in a spacious area on a stable,
clean, non-slip, dry and fireproof surface. Do not
operate the instrument in explosive atmospheres, with
hazardous substances or under water.
• If the instrument does not run smoothly, please
decrease the motor speed.
• Firmly secure the accessories and vessels in place to
avoid damage or risk.
• Preparation of samples may lead to dangerous
flammable. Only process samples that will not react
dangerous.
• Use the standard accessories listed in the “accessories”
section, and follow the instructions to use accessories
to ensure safety. Please switch off the power before
assembly of accessories, confirm the instrument and
accessories are intact before switch on each time.
• The instrument only be opened by expert， please
switch off before use.
• The voltage stated on the nameplate must correspond
to the mains voltage.
• Do not cover the instrument during running. Prevent
the collision and extrusion to instrument and
accessories.
• Keep away from high magnetic field.
Page 7
3
2. Proper Use
The instrument is designed for mixing sticky substance in
schools, laboratories or factories. It can be installed on a
variety of impeller, for different viscosity of the medium.
This instrument is not suitable for using in residential areas
or other constraints mentioned in Chapter 1.
Do not use the accessories recommended by the
manufacturer, or failure to use the instructions, may be
caused unsafe situation.
3. Inspection
3.1 Receiving Inspection
Unpack the instrument carefully and check for any damages
which may have arisen during transport. If it happens,
please contact manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not connect to the power line.
3.2 Listing of Items
Items
Qty
Main unit
1
Power cable
1
User manual
1
Table 1
Page 8
4
4. Control and Display
4.1 Control
Power switch
Rollers
LCD display
Speed / Timer control knob
Figure 1
Power switch
Speed /timer
control knob
LCD display
Mode switch button
Power/Overload
protection light
Speed/timer
light
Figure 2
Items
Default settings
Mode switch
button Mode
Shift speed and time display.
Speed /timer
control knob
Set speed and time by rotating
speed/timer control knob. Push on/off
to start/stop rotating function.
Speed/timer light
Speed/Timer
Green/Red LED display light. Different
colors of LED light show the value for
speed or time that LCD screen
currently displays. Green LED light
shows that LCD screen currently
displays speed. Red LED light shows
that LCD screen currently displays
time.
Power/Overload
protection light
Power/Overload
Green/Red LED display light.
LED light shows green when switch
on, LED light shows red when starts
overload protection. When the torque
reaches limited value, overload
protection function will be started. At
the same time overload protection light
flashes, while the system stops running.
Page 9
5
LCD display
LCD displays the real working state
and all setting values.
Power switch
I/O
Switch ON or OFF the instrument.
Table 2

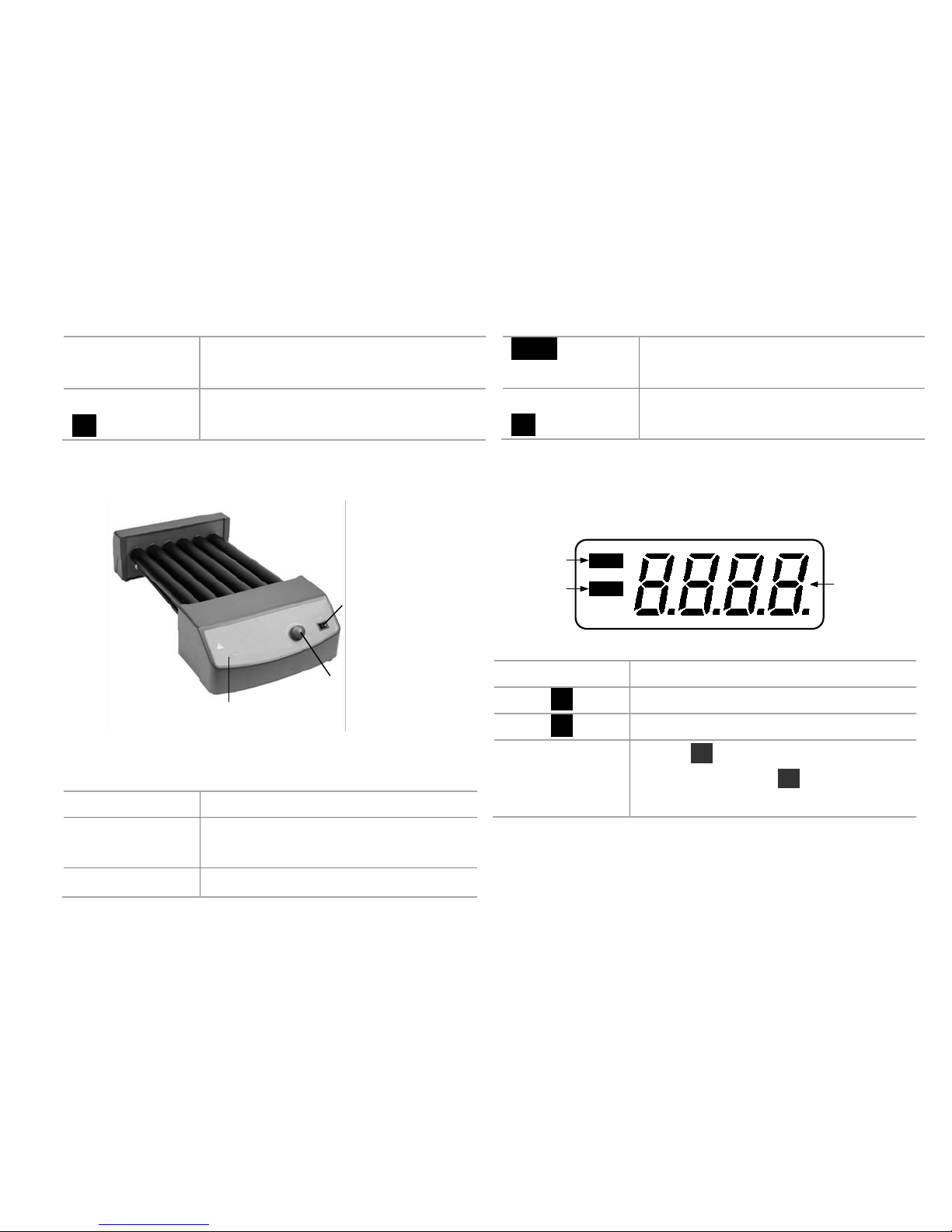

Power switch
Speed control knob
Power light
Figure 3
Items
Default settings
Speed control
knob
Rotating speed control knob to
start/stop rotating function.
Power light
Green LED display light.
Power
LED light shows green when switch
on.
Power switch
I/O
Switch ON or OFF the instrument.
Table 3
4.2 Display
Set
Err
Display
Faults
Set
Figure 3
Display
Descriptions
Set
Display when set target value.
Err
Display in case of error happening.
Display area
When Set display, this area shows
setting value; When Set disappears, this
area shows running value.
Table 4
Page 10
6
5. Operation
• Place the Rotator in safe and stable surface, ensure the
required operating voltage and power supply voltage
matched, and the socket must be earthed reliably.
• Connect the power cable.
• Switch ON instrument.
• The instrument begins self-checking.
• When initialization is over, LCD displays the last
running values of speed.
• Rotate the speed/timer control knob to set target speed.
a. Press the speed/timer control knob to start
rotating function. Press the speed/timer control knob
again to stop rotating function.
b. Press the mode switch button, LCD displays time,
and then rotating the speed/timer control knob to set
target time. Press the speed/timer control knob to start
rotating function at the set time. During operation,
motion can be stopped at any time by pressing the
speed/timer control knob. If the knob is pressed again,
motion will start again and the timer will restart
countdown. When the timer reaches zero, the unit will
be automatically halted and an alert will sound.
If these operations above are normal, the instrument is
ready to operate. If not, the instrument may be damaged
during transportation, please contact technical support of
manufacturer/supplier.
Note:
The set values can be altered at any time.
6. Faults
• Instrument cannot be powered ON when start rotating
function.
Check whether the power cable is connected.
• Rotating function suddenly stop
Power/overload protection light changed to red,
LCD displays “Er 03”, indicate the current failure
is “overload protection”.
Pressing the speed/timer control knob first to
close rotating function, and then restart rotating
function after lowered load. If rotating function
cannot start, then repeat the process and gradually
reduce load.
Page 11
7
7. Maintenance and Cleaning
• Proper maintenance can keep instrument working
properly and lengthen its lifetime.
• Do not spray cleanser into the instrument when
cleaning.
• Do not remove the power line when cleaning. Only
use recommended cleansers:
Dyes
Isopropyl alcohol
Construction
materials
Water containing tenside /
Isopropyl alcohol
Cosmetics
Water containing tenside /
Isopropyl alcohol
Foodstuffs
Water containing tenside
Fuels
Water containing tenside
• Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not damage the
instrument. Wear the proper protective gloves during
cleaning of the instrument.
Note:
• Electronic device cannot clean with cleanser.
• If you require maintenance service, must be
cleaned the instrument in advance to avoid
pollution of hazardous substances, and to
send back into original packing.
• If the instrument will not use for a long time,
please switch off and place in a dry, clean,
room temperature and stable location.
8. Associated standards and regulations
Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards:
EN 61326-1
Page 12
8
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
9. Specifications
Items
Specifications
LCD digital model
Classic model
Voltage [VAC]
100-240
Frequency [Hz]
50/60
Power [W]
30
25
Number of rollers
6
Roller size [length
x diameter, mm]
280 × 30
Motor type
DC motor
Speed range [rpm]
10-70
0-70
Speed display
LCD
Timer range [min]
1~1199
Timer display
LCD
Run type
Timer/Continuous
operation
Continuous
operation
Overall
Dimensions [mm]
470×260×120
Page 13
9
Items
Specifications
LCD digital model
Classic model
Weight [kg]
5.1
4.5
Permissible
ambient
temperature [°C]
5-40
Permissible
relative humidity
80%
Protection class
acc. to DIN
EN60529
IP21
Table 5
10. Ordering Informations
Cat. No.
Descriptions
823222017777
MX-T6-Pro LCD Digital Tube Roller,
variable speed, 6 rollers, 100V-240V,
50HZ/60HZ, US plug
823222117777
MX-T6-Pro LCD Digital Tube Roller,
variable speed, 6 rollers, 100V-240V,
50HZ/60HZ, Cn plug
823222217777
MX-T6-Pro LCD Digital Tube Roller,
variable speed, 6 rollers, 100V-240V,
50HZ/60HZ, Euro plug
823222317777
MX-T6-Pro LCD Digital Tube Roller,
variable speed, 6 rollers, 100V-240V,
50HZ/60HZ, UK plug
823220017777
MX-T6-S Classic Tube Roller, variable
speed, 6 rollers, 100V-240V,
50HZ/60HZ, US plug
823220117777
MX-T6-S Classic Tube Roller, variable
speed, 6 rollers, 100V-240V,
50HZ/60HZ, Cn plug
823220217777
MX-T6-S Classic Tube Roller, variable
speed, 6 rollers, 100V-240V,
50HZ/60HZ, Euro plug
823220317777
MX-T6-S Classic Tube Roller, variable
speed, 6 rollers, 100V-240V,
50HZ/60HZ, UK plug
Table 6
Page 14
2311 E. Locust Court, Ontario, CA 91761 United States.
Office: +1-747-230-5179
Fax: +1-909-230-5275
Sales contact: [email protected]
Service contact: [email protected]
www.dlabsci.com
DLAB Scientific Instrument Inc.
Loading...
