3
Thank you very much . . .
. . . for choosing one of our Home Theatre Systems. For your own safety and in order to learn
all about the functions available, please read this manual and keep it for future reference.
And if you once sell the unit please include the manual.
www.dk-digital.com
© 2006 Copyright, manufacturer: DK digital GmbH
2
Important Safety Instructions, please Read Carefully!
•
This unit is meant to reproduce audio
signals in 5.1- or stereo format. Using it in
any other way warranty invalidates the
warranty and you risk electric shock.
•
Never attempt to open the housings of
your surround speaker set or to service
the product beyond that described in this
manual. All servicing or repair must be
referred to qualified service personnel
authorised by us.
•
To avoid the risk of electric shock never
use the product in humid areas or near
water - e.g. near a bathtub, washbowl,
kitchen sink, in a wet basement or near a
swimming pool, or the like.
•
This unit is intended for use with the
mains voltage indicated on the unit’s
back label. Never try to use it with
different voltage supply.
•
Proper air circulation around the
housing - especially at the subwoofers
rear side - must be provided to avoid
overheating.
•
Never touch a power cord with wet hands
or use a damaged power cord. Otherwise
you face risk of life by electric shock.
•
If objects have fallen inside or liquid
has been spilt onto the product disconnect
the plug from the mains immediately and
consult qualified service personnel.
•
Never let children play with the unit or
stick anything into it. Otherwise the child
faces the risk of electric shock.
•
Do not place the unit near strong magnetic
fields, water or heat. It should not be
exposed to direct sunlight for a longer
period. Avoid positions with heavy dust or
poor ventilation. The unit should not be
exposed to mechanical vibrations or
shock.
•
If you put off your home cinema system to
standby, it is not separated from the
mains power system. Thus, put off the
devices with the POWER switches on the
back side of the devices or always pull the
power plugs out of the socket if you don’t
use the system for a longer period of time.
•
Never touch a power cord with wet hands!
Never use a damaged power cord to avoid
risk of life by electric shock.
•
After disconnection from the mains you
can use a soft damp cloth to clean the
housing. Don’t use strong cleansing
products.
3
Scope of delivery
1. Remote control handset 1 x
2. Subwoofer / main unit 1 x
3. Centre speaker 1 x
4. Front speaker 2 x
5. Surround speaker 2 x
6. This manual 1 x
7. Speaker cable
Setting up the system
You can mount the speakers of your new home cinema system on a plane and stable
surface. You can, however, also hang up the centre, surround and front boxes on the wall.
The back sides of the satellite boxes have an according hanging possibility. The stand of the
subwoofer should be located close to a properly connected power socket. In order to ensure
a sufficient ventilation, the subwoofer must not be operated behind curtains or the like.
Possible ventilation openings of the devices must not be covered by newspapers, curtains
etc. With regard to the electrical and acoustic characteristics, all satellite speakers are
identical and magnetically shielded.
4
Operating elements on the subwoofer
on the front . . .
1. IR - infrared sensor, receives the remote control signals
2. STANDBY - standby indicator, lights up red in standby mode
3. OPERATE - operation indicator, lights up green during operation,
flashed when the unit receives infrared signals.
5

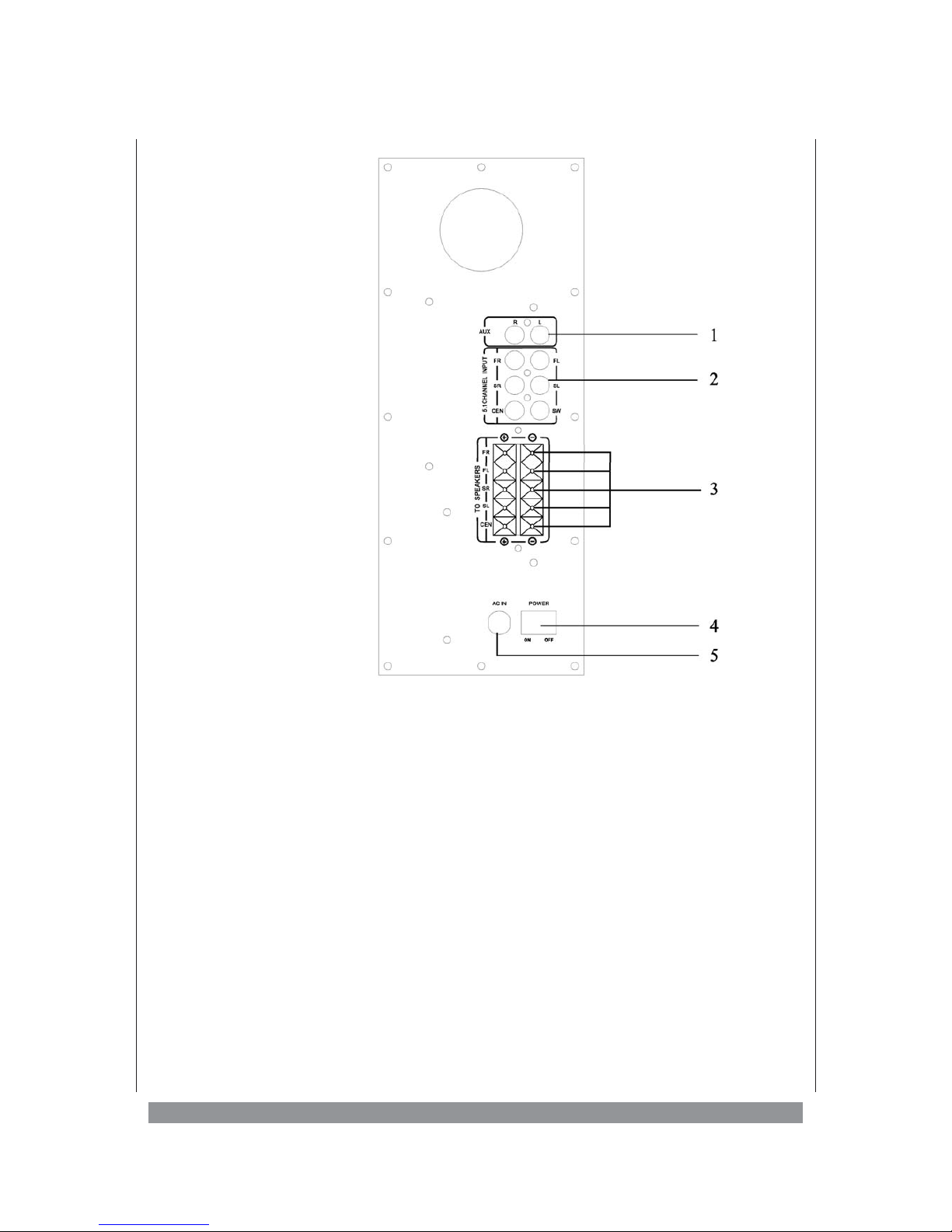

. . . and on the rear panel
1) AUX INPUT
Here you can connect stereo audio signals to the STEREO input (e.g. the audio output of a
TV set or a CD player).
2) 5.1 CH INPUT
FL Please connect here the input signal for the left front speaker.
FR Please connect here the input signal for the right front speaker.
SL Please connect here the input signal for the left surround speaker.
SR Please connect here the input signal for the right surround speaker.
CE Please connect here the input signal for the centre speaker.
SW Please connect here the input signal for the subwoofer.
3) SPEAKER OUTPUTS
To connect the speaker boxes to the subwoofer’s output terminals we recommend using the
speaker cables enclosed.
Front Right - Connect the right front speaker to the +/- terminals.
Front Left - Connect the left front speaker to the +/- terminals.
Surround Right - Connect the right surround speaker to the +/- terminals.
Surround Left - Connect the left surround speaker to the +/- terminals.
CENTER - Connect the centre speaker to the +/- terminals.
6
4) POWER ON/OFF
Using this power switch you connect the unit to the mains and activate it.
5) AC IN - Power Cable
Power cord for AC230V~ mains voltage.
Hook up
In order to avoid malfunctions and / or damage of the speakers or other connected
devices, please establish all connections while the device is switched off.
Please take care to connect the white marked wires of the speaker cable with the
red terminal of both the subwoofer and the speakers. Connect the black wire with
the black terminals. Otherwise the sound will be spoiled and the main unit or the
speakers may be seriously damaged.
Caution:
Please take care that the blank portion of wires
connected to the terminals never get in contact with
each other. Otherwise the resulting short circuit will
seriously damage the unit.
Before the connection please twist the strands.
Then open the speaker terminal and stick in the blank
wire. Then close the terminal.
7
Connecting the Speakers
1. Connect the left front speaker with the FL +/- terminals at the back side of the
subwoofer.
2. Connect the right front speaker with the FR +/- terminals at the back side of the
subwoofer.
3. Connect the right surround speaker with the SR +/- terminals at the back side of the
subwoofer.
4. Connect the left surround speaker with the SL +/- terminals at the back side of the
subwoofer.
5. Connect the centre speaker with the CEN +/- terminals at the back side of the subwoofer.
Connecting Audio Sources
1. Connect the 5.1 input (5.1 CHANNEL INPUT) at the subwoofer’s back panel to devices
providing audio signals via separated outputs for front, surround, centre, and
subwoofer, e. g. DVD players.
2. Connect the AUX input at the subwoofer’s back panel to stereo devices like television,
CD players, or cassette tapes.
The Remote Control
Take out the remote control handset from the package. Open the battery compartment.
Insert two batteries (1,5 V, size AAA). Please make sure the polarity matches the marks
inside the compartment. Otherwise the r/c will not work and may be damaged. Replace the
cover.
Should the r/c start to work unreliably replace both batteries. We recommend using alcaline
batteries.
Please point the r/c towards the main unit when calling up functions. No obstacles may
stand in the way between r/c and infrared sensor. The green operation LED will flash when
the unit receives signals from the remote control.
If you won’t use the r/c for a week or longer, please remove the batteries from the
compartment, to prevent damage by leakage.
Batteries must not be disposed by ordinary refuse disposal. Please lead empty
batteries towards appropriate collecting points. Never throw batteries into fire.
8
1 STANDBY:
Use this key to switch the unit on and off in
stand-by mode, provided the POWER
switch on the subwoofer’s rear panel is in ON
position (I).
2 SUB +/— :
Push the + or — button, to adjust the
subwoofer’s loudness.
3 CEN +/— :
Push the + or — button, to adjust the centre
speaker’s loudness.
4 VOLUME 56 :
Use these buttons to set the overall volume
of your home cinema.
5 INPUT 5.1 CH / AUX :
Press this button to toggle the active input
channel.
6 OUTPUT 5.1 CH / 2.1 :
Us this button to select the operating mode
2.1 (stereo with subwoofer) or 5.1 (all
speakers).
7 SUR +/— :
Push the + or — button, to adjust the rear
speaker’s loudness.
9
Operating the Home Cinema Set
1. Set the mains switch (POWER) on the backside of the subwoofer to the ON position (I).
The system is now in standby mode and the red pilot lamp (STANDBY) on the front side
lights up.
2. Push the STANDBY button on the remote control in order to switch on the system. The
green pilot lamp (OPERATION) will light up.
3. Push the INPUT button in order to activate the desired input, AUX or 5.1 channel.
4. You can choose between the operation mode 2.1 (stereo with subwoofer) or 5.1 (all
speakers) using the button OUTPUT.
5. You can set the overall volume with the help of the VOLUME 56 buttons on the remote
control. Push the 5 button to increase the volume and the 6 button to reduce the
volume. While you are changing the volume, the green pilot lamp is quickly blinking.
6. For adjusting the volume of the individual speakers to each other during operation, carry
out the following steps:
—
Set the overall volume to an appropriate level.
—
Push the CEN + or – button in order to change the volume of the centre speaker.
Push the SUR + or – button in order to change the volume of the surround speakers.
Push the SUB + or – button in order to change the volume of the subwoofer.
7. Push the STANDBY button on the remote control in order to switch the system into
standby mode. The red pilot lamp will light up. To save some energy we recommend to
switch off the POWER switch on the rear panel as well when the unit is not in use.
Disposal advice
When the operating life of this device has ended it must not be disposed as
domestic waste, but in accordance with national environmental guidelines.
10
Technical Specification
Output Power:
Subwoofer - 25 watts peak music output power
Front - 2 x 12,5 watts peak music output power
Centre - 12,5 watts peak music output power
Surround - 2 x 12,5 watts peak music output power
Operating voltage: - AC230V~ / 50 Hz
Dimensions:
Subwoofer - 160 (W) x 300 (D) x 300 (H) mm
Satellite speakers - 90 (W) x 100 (D) x 115 (H) mm
11
© 2006 Copyright • We reserve the right to correct errors and make technical
alterations. This manual is copyrighted. All rights reserved. Neither the manual as
a whole nor excerpts may be reproduced without our prior written permission.
DK digital GmbH
40878 Ratingen
Germany
