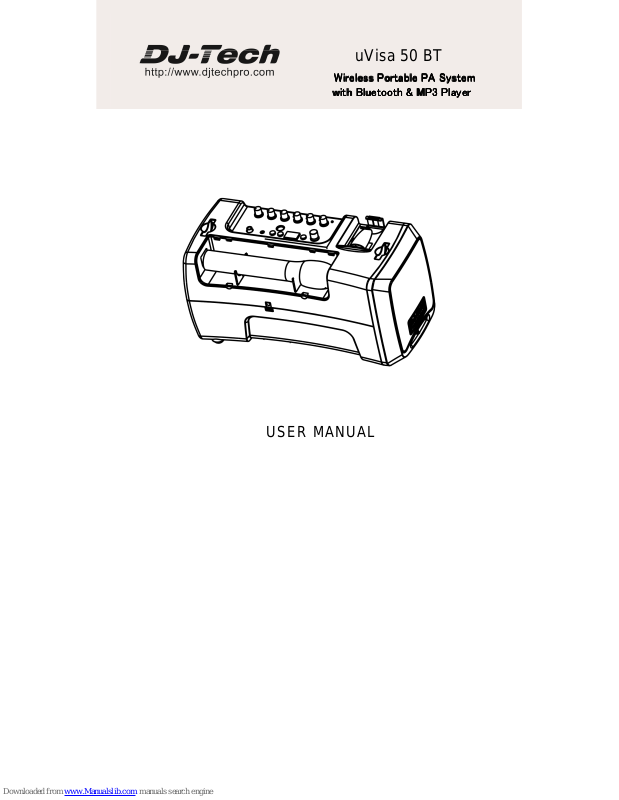

DJ-Tech uVisa 50 BT User Manual

USER MANUAL

uVisa 50 BT

Wireless Portable

Wireless PortableWireless Portable

Wireless Portable PPPPA

A A

A System

SystemSystem

System

with Bluetooth & MP3 Player

with Bluetooth & MP3 Playerwith Bluetooth & MP3 Player

with Bluetooth & MP3 Player

- 1 -

Contents

Features………….……………………………………………………..……..……...1
Important Safety Instructions……………….…….…………………..….….…...2

Function Description………………………….…………………............……......3

System Connect……………………………………………………….….………...6

Operation.……………………..………........….……………………....………......7

Specifications…………………………………..…………...……….…..……...….9

Features

 Five Channel Mixer
 Max Power Output 50 Watts
 USB Input with MP3 Player
 Bluetooth Receiver for Audio Streaming (Ver 2.1, A2DP)
 3.5mm Phone Jack Line Input (LINE IN)
 6.35mm Microphone Jack Input (MIC IN)
 178.5 MHz VHF Wireless Microphone Receiver (WIRELESS MIC)
 Individual Volume Control for Each Channel
 TalkOver for Microphone Priority with Indication Lamp
 Built-in Rechargeable Batteries with Charge Indication Lamp.
 External Adapter for AC to DC Power Input

- 2 -

The lightning flash with arrowhead symbol inside
an equilateral triangle is intended to alert User of
the presence of uninsulated ＂hazardous voltage
"within the product’s enclosure, which may be of
sufficient magnitude to induce a risk of electric
shock to persons.
The exclamation mark inside an equilateral
triangle is intended to alert user of the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.

This symbol means that this unit is double insulated.

An earth or ground connection is not required.

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE

RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO
QUALIFIED PERSONNEL.

1. Read these instructions.

2.Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation
openings. Install in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.

9. Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.

11. Only use attachments/accessories
specified by the manufacturer.

12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.

13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.

14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.

15. The apparatus shall not be exposed to
dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on
the apparatus.

16. The battery shall not be exposed to
excessive heat such as sunshine, fire or the
like.

17. The MAINS plug is used as the disconnect
device, which shall remain readily operable.

Portable Cart Warning

- 3 -

Function Description

Strap connecting buckle

Control panel

USB dock

Strap connecting buckle

Wireless microphone

display box

AC adapter input jack

Grille

Vent

Handle

Unit feet

Stand base Battery box
