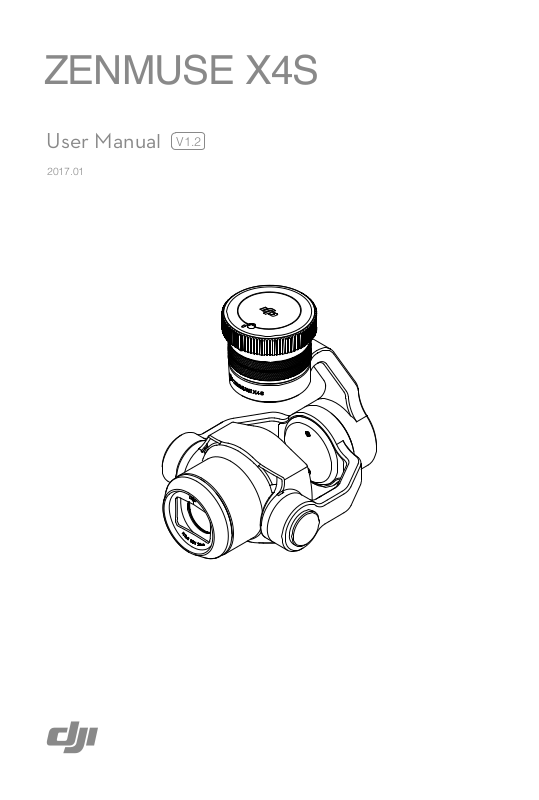

ZENMUSE X4S
User Manual
2017.01
V1.2
Searching for Keywords
Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe
Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to
begin a search.
Navigating to a Topic
View a complete list of topics in the table of contents.
Printing this Document
This document supports high resolution printing.
Read Before the First Flight
Legends
Warning Important Hints and Tips Reference
Using this manual
Read the following documents before using the ZENMUSE™ X4S.
1.Zenmuse X4S Quick Start Guide
2.Zenmuse X4S User Manual
We recommend reading the Zenmuse X4S Quick Start Guide, especially its Disclaimer and Safety
sections, to get familiar with all parts of the Zenmuse X4S. Refer to this Zenmuse X4S User Manual
for detailed information.
Getting more information
Visit the following webpage for more information about the Zenmuse X4S.
http://www.dji.com/zenmuse-x4s
2017 DJI. All Rights Reserved.
2
©
Contents
Read Before the First Flight
Legends
Using this manual
Getting more information
Contents
Product Prole
Introduction
In the Box
Overview
Installation
Read the information below before setting up your Zenmuse X4S
Supported Devices
Mounting the Zenmuse X4S to the aircraft
Mounting the Zenmuse X4S to the Inspire 2
Mechanical Range
Using the Remote Controller
DJI GO 4 App
Downloading
Launching the DJI GO 4 app
Camera Operation
Touch Interface
Basic Shooting
Taking Photos
Recording
Advanced Settings
Exposure Mode
Photo Styles
White Balance
List of Settings
Managing your Photos and Videos
Playback
Update Firmware
Method 1: Using the DJI Assistant 2
Method 2: Using the DJI GO 4 App
Appendix
Specications
2
2
2
2
3
4
4
4
4
5
5
5
5
5
6
6
7
7
7
8
8
8
8
9
9
9
9
10
10
11
11
12
12
12
12
12
2017 DJI. All Rights Reserved.
©
3
Product Prole
Introduction
Featuring a 1-inch CMOS sensor and large pixels measuring 2.4μm per pixel, the Zenmuse X4S
is capable of capturing 20 megapixel stills and capturing 11.6 stops of dynamic range. It can
record 4K/60 H.264 and 4K/30 H.265 videos at a 100Mbps bitrate. A variety of shooting modes are
available for a better shooting experience. 14 image Burst and AEB is available.
The Zenmuse X4S has an 8.8mm/F2.8-11 lens, which is compact with low distortion and a eld of
view of 84°.
When mounted on the INSPIRE™ 2, the 3-axis gimbal provides a stable platform for the camera to
get clear shots even during rapid maneuvering. The gimbal tilts the camera across a -130° to +40°
pitch angle and pans ± 320° in both directions. Live HD video from the camera is streamed to the
DJI GO™ 4 app.
In the Box
Check that all of the following items are in your package. If any item is missing, please contact DJI
or your local dealer.
Zenmuse X4S ×1
Overview
Zenmuse X4S
DJI Gimbal Connector2.0
Pan Motor
Tilt Motor
Camera
Lens
Carrying Case ×1
Document
Quick Start Guide
Roll Motor
2017 DJI. All Rights Reserved.
4
©
Installation
Read the information below before setting up your Zenmuse X4S
Supported Devices
The Zenmuse X4S can be attached to the following device, and will be compatible with other DJI
devices in the future.
DJI Inspire 2
Mounting the Zenmuse X4S to the aircraft
Mounting the Zenmuse X4S to the Inspire 2
Power off the aircraft before installation.
1. Remove the camera body cap from the Zenmuse X4S.
11
2. Press the gimbal and the camera release button on the Inspire 2. Rotate to remove the
Gimbal Cap from the Inspire 2.
3. Align the white dot on the gimbal with the red dot on the Inspire 2 and insert the gimbal.
4. Rotate the Gimbal Lock to the locked position (red dots aligned).
12
3 4
