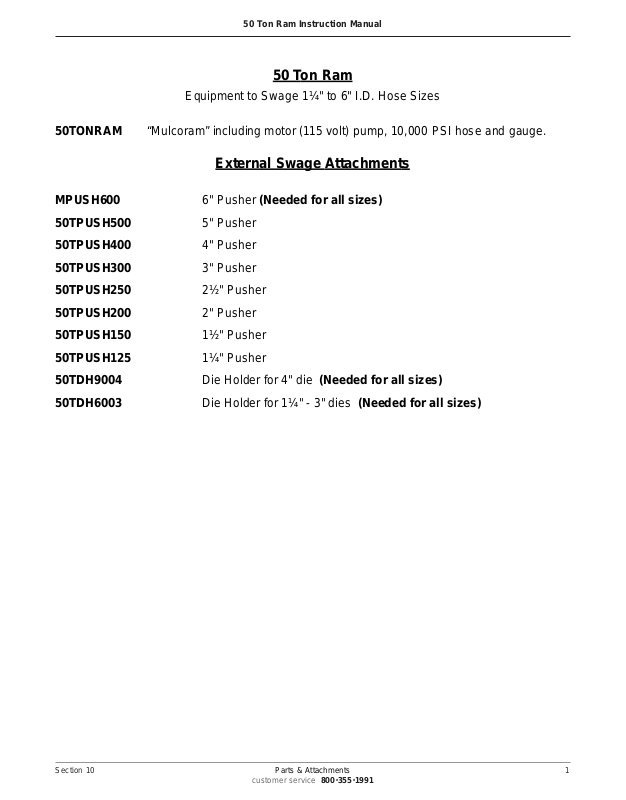

Page 1
50 Ton Ram Instruction Manual
50 Ton Ram
Equipment to Swage 1¼" to 6" I.D. Hose Sizes
50TONRAM “Mulcoram” including motor (115 volt) pump, 10,000 PSI hose and gauge.
External Swage Attachments
MPUSH600 6" Pusher (Needed for all sizes)
50TPUSH500 5" Pusher
50TPUSH400 4" Pusher
50TPUSH300 3" Pusher
50TPUSH250 2½" Pusher
50TPUSH200 2" Pusher
50TPUSH150 1½" Pusher
50TPUSH125 1¼" Pusher
50TDH9004 Die Holder for 4" die (Needed for all sizes)
50TDH6003 Die Holder for 1¼" - 3" dies (Needed for all sizes)
Parts & Attachments
customer service 800•355•1991
1Section 10
Page 2
50 Ton Ram Instruction Manual
50 Ton Ram
Equipment to Swage 1" through 4" Cam & Groove
MPUSH600 6" Pusher (needed for all sizes)
50TPUSH400 4" Pusher
50TDH9004 Die Holder for 4" die (needed for all sizes)
50TDH6003 Die Holder for 1¼" - 3" dies (fits into 50TDH9004)
100PUSHCG4E Pusher for 4" E
100PUSHCG4C Pusher for 4" C
100PUSHCG3 Pusher for 3" E (fits on 100PUSHCG2)
100PUSHCG2 Pusher for 2" C and E and 3" C (also use with 100PUSHCGRC and RE100PUSH)
100PUSHCG15 Pusher for 1½" C and E (consists of 100PUSHCG15A and RC150PUSHB)
100PUSHCG15A 1½" Pusher Adapter
RC150PUSHB 1½" Pusher
100PUSHCGRC Pusher for 1" C & G (fits inside the 100PUSHCG2)
RE100PUSH Pusher for 1" E (use with 100PUSHCG2)
150CGSPACE * Spacer Rings for 1½" C
100CGSPACE * Spacer Rings for 1" C
RST150SPACE 1½" S p acer Ring for NOS ferrules (use with 100PUSHCG15E)
RST200SPACE 2" S p acer Ring for NOS ferrules (use with 100PUSHCG2)
RST300SPACE 3" S p acer Ring for NOS ferrules (use with 100PUSHCG3)
Swage Dies Not Included
* Future designs may not require Spacer Rings.
Contact the Factory for more information.
2
customer service 800•355•1991
Parts & Attachments
Section 10
Page 3
50 Ton Ram Instruction Manual
Holedall Dies
Range
Min Max
x
3/4
9/16
x
2
1-7/8
10
13
x
1-11/16
x
4-5/16
x
7
6-1/2
x
9-1/2
x
12-3/8
4-1/2
6-15/16
12-15/16
10
16
x
x
x
x
x
4-1/4
6-7/16
9-1/2
12-3/8
15-1/2
2-1/8
4-9/16
* Dies will be invoiced for full selling price when shipped, credit will be issued when returned for full selling price
less rental charge. All freight charges are to be p aid by Customer. All dies are to be returned within 30 days.
Parts & Attachments
customer service 800•355•1991
3Section 10
Page 4
50 Ton Ram Instruction Manual
50 Ton Ram
Equipment to Internally Expand 1” - 6" I.D. Hose
For Use with Steel IX Fittings
50T-0073 Master IX Bar Adapter (needed for all sizes)
50T-0072 IX Master Plate (needed for all sizes) (this part is also 6" IX Adapter)
25RODLARGE IX Bar for 2" - 4" - Consists of the following:
25RDLG-A Large Rod (only for 25TONRAM)
25RDLG-B Nut (only for 15 and 25 Ton Rams)
25RODSMALL IX Bar for 1" and 1½" - Consists of the following:
25RDSML-A Small Pull Rod
25RDSML-B Small Pull Rod Adapter
25RDSML-C Nut for Small Rod
001-0083 IX Bar Adapter for 5" - 6"
001-0065 5" IX Adapter
001-0067 4" IX Adapter (needed for all sizes from 1¼" to 4")
M011-385 4" IXM64 Adapter (Goes into 001-0067)
25ADAPT300 3" IX Adapter
25ADAPT250 2½" IX Adapter
M011-384 2½" IX Adapter (IXM40 only) (use with 25ADAPT250)
25ADAPT200 2" IX Adapter
25ADAPT150 1½" IX Adapter
25ADAPT125 1¼" IX Adapter
25ADAPT100 1" IX Adapter
IXPLUG600 6" IX Plug
IXPLUG500 5" IX Plug
IXPLUG400 4" IX Plug
IXPLUG300 3" IX Plug
IXPLUG250 2½" IX Plug
IXPLUG200 2" IX Plug
IXPLUG150 1½" IX Plug
IXPLUG125 1¼" IX Plug
IXPLUG100 1" IX Plug
4
Parts & Attachments
customer service 800•355•1991
Section 10
Page 5
50 Ton Ram Instruction Manual
50 T on Ram
Equipment to Internally Expand “Flow Chief” Food Grade Fittings
001-0067 4" IX Adapter (needed for all sizes from 1¼" to 4")
50T-0073 Master IX Bar Adapter (needed for all sizes)
50T-0072 IX Master Plate (needed for all sizes) (this part is also 6" IX ADAPTER)
25RODLARGE IX Bar for 2" - 4"
25RDLG-A Large Rod (only for 25TONRAM)
25RDLG-B Nut (only for 15 and 25 Ton Rams)
25RODSMALL IX Bar for 1½"
25RDSML-A Small Pull Rod
25RDSML-B Small Pull Rod Adapter
25RDSML-C Nut for Small Rod
PFADAPT400 4" Sanitary End Adapter (Tri Clover style)
PFADAPT300 3" Sanitary End Adapter (Tri Clover style)
PFADAPT250 2½" Sanitary End Adapter (Tri Clover style)
PFADAPT200 2" Sanitary End Adapter (Tri Clover style)
PFADAPT150 1½" Sanitary End Adapter (Tri Clover style)
PFADAPT150-3A 1½" 3A Sanit ary End Adapter (T ri Clover style)
PFACNTA400 4" Bevel Seat Acme Nut Adapter (Must buy PFADAPT400 to use this part)
PFACNTA300 3" Bevel Seat Acme Nut Adapter (Must buy PFADAPT300 to use this part)
PFACNTA250 2½" Bevel Seat Acme Nut Adapter (Must buy PFADAPT250 to use this p art)
PFACNTA200 2" Bevel Seat Acme Nut Adapter (Must buy PFADAPT200 to use this part)
PFACNTA150 1½" Bevel Seat Acme Nut Adapter (Must buy PFADAPT150 to use this p art)
IXFDPLG400 4" Food Plugs
IXFDPLG300 3" Food Plugs
IXFDPLG287 3" Food Plug for 3A Fittings (for Stainless S teel Fittings)
IXFDPLG250 2½" Food Plugs
IXFDPLG200 2" Food Plugs
IXFDPLG187 2" Food Plug for 3A Fittings (for S t ainless S teel fittings)
IXFDPLG150 1½" Food Plugs
IXFDPLG137 1½" Food Plugs for 3A Fittings
25ADAPT150-3A 1½" Adapter (use with IXFDPLG137)
Parts & Attachments
customer service 800•355•1991
5Section 10
