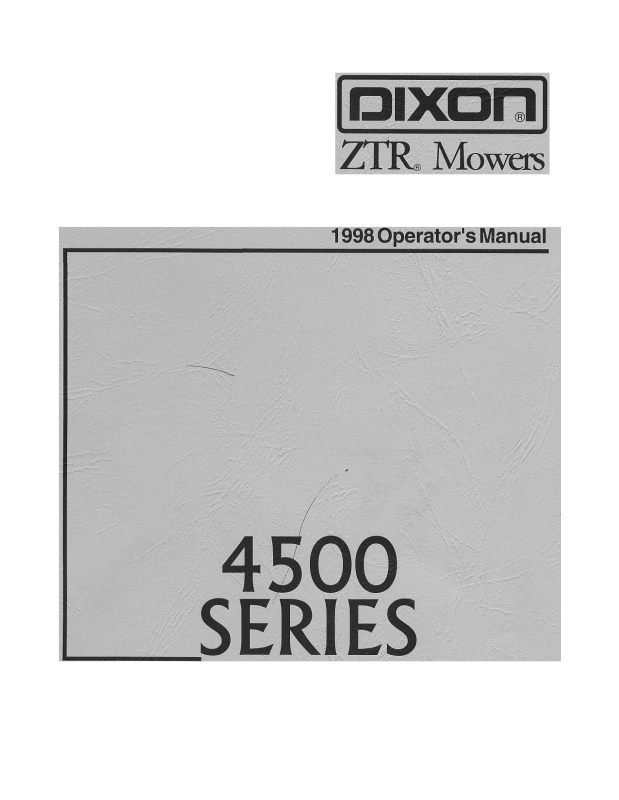

Page 1
Page 2
IMPORTANT: READ CAREFULLY
The Dixon® ZTR® Mower is both easy and fun to operate. However,
any power mower must be operated properly to be safe.
It is not a toy or a recreational vehicle.
Before you start to use the mower: read the operator's manual carefully, and
become completely familiar with the controls.
The information in this operator's manual applies to all
Dixon® ZTR® 4500 Series Model Mowers.
Your Dixon dealer will gladly provide a check-out ride,
and answer any questions.
See your dealer for warranty service, parts and repairs.
DIXON INDUSTRIES, INC.
A BLOUNT International Inc. Co.
PO BOX 1569
COFFEYVILLE KS 67337 0945
316251 2000
Page 3
INDEX
SAFETY ............................................................. Pages 1 - 6
WARRANTY POLICY ......................................... Page
........................................................................... 7
SPECIFICATIONS ..............................................Page
........................................................................... 8
SEAT ADJUSTMENT .........................................Page
........................................................................... 9
CONTROLS........................................................Pages 10-13
OPERATION INSTRUCTIONS ...........................Pages 14-19
CARE AND MAINTENANCE............................... Pages 20-30
STANDARD PARTS LIST................................... Page 31
TROUBLESHOOTING ........................................ Pages 32 - 34
4500 Series
Part No. 5863
mn1/98 MY98
Page 4
RIDING LAWNMOWERS, IF IMPROPERLY OPERATED,
CAN CAUSE SERIOUS INJURY OR DEATH
The most common causes of injury to the operator or bystander..
.read and understand this manual to prevent injuries.
Page 1
Page 5
SAFETY SYMBOLS:
SAFETY
SAFETY ALERT SYMBOL -
When you see this symbol,
BE ALERT to the potential for injury.
Follow recommended safety precautions and safe
operating practices.
Danger indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
Caution indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert
against unsafe practices.
Page 2
Page 6
The Engine Exhaust from this product contains chemicals known to the
This cutting mower is capable of amputating hands and feet, and throwing objects.
Failure to observe the following safety instructions could result in
serious injury or death.
GENERAL OPERATION:
• Read, understand, and follow all instructions in the manual and on the mower before starting.
• Only allow responsible adults, who are familiar with the instructions, to operate the mower.
• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown
by the blade.
• Be sure the area is clear of other people before mowing. Stop mower if anyone enters the
area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before
and while backing.
• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the
mower without either the entire grass catcher or the deflector in place.
• Slow down before turning.
• Never leave a running mower unattended. Always turn off blades, set parking brake, stop
engine, and remove key before dismounting.
• Turn off blades when not mowing.
• Stop engine before removing grass catcher or unclogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the mower while under the influence of alcohol or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the mower into a trailer or truck. Do not ride the
mower when loading & unloading.
WARNING:
State of California to cause cancer, birth defects or other reproductive harm.
Page 3
Page 7
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control and tip-over accidents,
which can result in severe injury or death.
All slopes require extra caution. If you cannot back up
the slope or if you feel uneasy on it, do not mow it.
DO
Mow across the slope with your Dixon ZTR - never up or down.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide
obstacles.
Use slow speed.
Use extra care with grass catchers or other attachments. These can change the stability of the
mower.
Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or
direction.
Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed
slowly down the slope.
DO NOT
Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could cause sliding.
Do not try to stabilize the mower by putting your foot on the ground.
Do not use grass catcher on steep slopes.
Page 4
Page 8
CHILDREN:
Children are attracted to lawn mowers and the mowing activity.
Tragic accidents can occur if the operator is not alert to the
presence of children.
NEVER assume children will stay where they were last seen.
• Keep children out of the mowing area and under the watchful care of another responsible adult.
• Be alert and turn mower off if a child enters the area.
• Before and during backing, look behind and DOWN for small children.
• Never carry children. They may fall off and be seriously injured or interfere with safe mower
operation.
• Never allow children to operate the mower.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may
obscure vision.
.
Page 5
Page 9
SERVICE:
• Use extra care in handling gasoline and other fuels. They are flammable and vapors are
explosive.
• Do not smoke.
• Use only an approved container.
• Never remove gas cap or add fuel with the engine running. Allow engine to cool before
refueling.
• Never refuel the mower indoors.
• Never store the mower or fuel container inside a building where there is an open flame.
• Never run a mower inside a closed area.
• Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good
condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Keep mower free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage. Allow
mower to cool before storing.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.
• Grass catcher components are subject to wear, damage, and deterioration, which could
expose moving parts or allow objects to be thrown. Frequently check components and
replace with original equipment parts, when necessary.
• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra
caution when servicing them.
• Batteries contain sulfuric acid. To prevent burns avoid contact with skin, eyes and clothing.
To prevent a fire or explosion keep sparks and open flames away from battery.
Before disconnecting the negative (-) ground cable, make sure all switches are OFF.
Page 6
Page 10
DIXON PROTECTION PLUS TWO YEAR LIMITED WARRANTY POLICY
This warranty policy applies to all ZTR 4500 Series mowers purchased on or after September 1,1997.
WARRANTY: The Dixon Protection Plus Warranty term is for a period of two (2) years from date of purchase.
DIXON ZTR MOWERS ARE WARRANTED AGAINST DEFECTS IN MATERIALS AND WORKMANSHIP AND
PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS INCLUDING LABOR COSTS. THIS WARRANTY IS
SUBJECT TO THE FOLLOWING CONDITIONS AND LIMITATIONS:
1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.
2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon warranty policy and
allowances. All warranty claims must be approved by Dixon Industries, Inc.
3. Mowers or accessories used for commercial applications are warranted for 90 days from date of purchase. Commercial
application is any use other than, or in addition to, mowing at owner's primary place of residence.
4. Battery warranty: Limited to 90 days from date of purchase.
5. Accessories Warranty (Grass Catchers, Snow Blades, Covers, etc.): Limited to 90 days from date of purchase.
6. Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or alteration. The use of parts
or components other than those supplied by Dixon Industries, Inc. VOIDS ALL WARRANTY.
7. The following items are not covered by this warranty policy:
(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon Dealer's place of business.
(b) Routine maintenance or adjustments.
(c) Belts / chains / sprockets / cutting blades.
(d) Engines -- All engines used on Dixon ZTR mowers are warranted by each individual engine manufacturer.
(e) Any costs or expense of providing substitute equipment while repair work is being performed on a warranted mower.
8.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular
purpose, are limited to the same duration of the express warranty, and to the extent permitted by law any and all implied
warranties are excluded. Liabilities for consequential damages under any and all warranties are excluded.
WARRANTY VALIDATION: At the time of sale, selling dealer must review each portion of this warranty document, complete the
information section below, secure customer's signature and send copy to Dixon Industries, Inc.
DATE OF PURCHASE______________________________Model _____________________ S/N DM- _________________
Page 7
Page 11
SPECIFICATIONS
CHASSIS:
BODY:
MOWER DECKS:
BLADE DRIVE:
TRANSMISSION:
ENGINE:
Model 451 5B:
Model 451 5K:
Models ZTR 4515Band4515K
Twin 12 gauge side frames and 7 gauge transmission and engine base plate.
All body parts are made of high density polyethylene. Dent and corrosion
resistant. Front body contains access panel for battery service.
36" Deck: 1 1 GA Laser Cut Fabricated - 36" Cut Width 42"
Deck: 13 GA Stamped Steel Construction - 42" Cut Width
Cut height approximately 1 " to 4" via 7 position lift handle.
Electric clutch.
Each rear wheel is independently driven by a HydroGear IZT hydrostatic drive.
15 HP Vanguard Briggs & Stratton, 4-Cycle, Single Cylinder, Overhead
Valve, Air-Cooled, Gasoline, Vertical Shaft With Cast Iron Cylinder
Sleeve, Oil Pump With Integral Oil Filter.
15 HP Kohler Command 15, 4-Cycle, Single Cylinder, Overhead Valve,
Air-Cooled, Gasoline, Pressure Lubricated, With Oil Filter, Vertical Shaft,
Aluminum Head and Block with Cast-Iron Cylinder Liner.
STARTING SYSTEM:
TIRES:
RECOMMENDED
TIRE PRESSURE:
CAPACITIES:
DIMENSIONS:
NOTE:
Electric by key switch operation with safety interlock blade drive.
Front 1 1 X 4.00 X 5 ribbed tread.
Rear 1 8 X 8.50 X 8 Multi-Trac
Front 16-21 Ibs.
Rear 8-1 4 Ibs.
Fuel 2.7 gallons total. Engine Briggs
& Stratton - 1 .50 quarts oil. Kohler - 2 quarts
oil with filter.
Width 44" Maximum Track Width
Height 42" to top edge of seat. Length
72" hitch tab to front bumper. Weight
Power Unit: 463 Ibs. w/36" Deck:
544 Ibs. w/42" Deck: 541 Ibs.
Additional information provided in service instructions under the individual component.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Page 8
Page 12
SEAT ADJUSTMENT INSTRUCTIONS
Models ZTR 4515B & ZTR 4515K
1. Place parking brake in ON position. (Pull brake lever up)
2. Raise and push seat assembly forward.
3. Loosen five nuts, P/N 3205, and slide seat forward or backward to desired position.
Re-tighten nuts, P/N 3205.
DO NOT operate mower without seat adjustments properly tightened.
4 Raise and push seat assembly and upper body rearward to closed position.
Page 9
Page 13
CONTROLS
Models ZTR 4515B and4515K
Page 10
Page 14
CONTROLS
All controls are described from operators position:
PARKING BRAKE:
The parking brake used on the ZTR 4500 Series Models is
designed to hold the mower from moving and is not intended for
use in stopping the mower while it is in motion. The engine will stop
if the parking brake is engaged while the control levers are in the
drive position.
TO SET PARKING BRAKE:
The parking brake is located on the right fender of Models
ZTR 4515B and ZTR 4515K.
To engage brake, pull lever up and to the rear. To release
brake, move lever forward and down.
NOTE: Always set parking brake before dismounting.
Release parking brake before moving mower.
TRANSMISSION DRIVE SYSTEM:
Allows the mower to turn on its own axis
"Zero Turning Radius". Each lever
controls one side of the mower.
NOTE: The pressure required to operate the mower is very light.
A minimum of 1/2 hour should be spent simply driving the
mower without the blade drive engaged.
Page 11
Page 15
TO GO FORWARD:
From neutral position, gently push both drive levers forward.
To increase speed, move levers farther forward.
CONTROLS:
TO GO BACKWARD:
From neutral position, gently pull both drive levers toward you.
TURNING:
Turning is controlled by moving one drive lever slightly forward or rearward of the other.
To turn left, move left lever rearward of the right lever.
To turn "square corners" move lever of desired direction to neutral.
To turn on mower's own axis (zero turning radius) stop and move one lever to reverse
position and the other to forward position.
BRAKING:
To brake mower, move both levers in direction opposite of travel, release levers to
neutral, set parking brake. Park only on level surfaces.
TWIN FUNCTION THROTTLE CONTROL:
Located on control panel to operator's right.
Throttle control for engine speed.
Choking for engine starting.
Throttle Control should be set to the MAXIMUM or wide open setting to insure adequate
cooling of the engine and to maintain mower deck blade speed while mowing.
Page 12
Page 16
BLADE DRIVE:
Located on control panel, on operator's right.
To engage the mower blades, move switch to
the rear and lift.
To disengage blades, move switch backward.
Switch is clearly marked "on and off".
CIRCUIT BREAKER:
Protection of the electrical system is by
(1)15 amp circuit breaker.
CONTROLS:
If circuit breaker trips, push button to reset.
If this condition repeats, consult dealer for
inspection and repair.
MOWER DECK CUT HEIGHT LIFT LEVER:
Located to the left of operator.
Controls the cutting height. Seven
positions of adjustment. Move lever in
and forward to lower. Move lever in
and back to raise. NOTE: Always use
high for transport.
Page 13
Page 17
OPERATION INSTRUCTIONS
The safe and successful operation of the ZTR 4500 Series Models will depend upon the
operator having the correct knowledge of all controls used on the mower and making good
judgements about the terrain to be mowed.
NEVER allow anyone to operate the mower without complete knowledge of all controls and
their functions.
During initial operation, "learning to drive", set throttle at slow speed.
Sound judgement by the owner will prevent accidents.
BEFORE OPERATING MOWER:
1. Read engine manufacturer's operating and maintenance
instructions.
2. Read and observe all safety instructions on your mower and in
the manual.
3. Check engine oil.
4. Check gas cap to be sure it is in place.
5. Be sure parking brake is on.
6. Be sure mower blade drive is off.
7. Know how to stop engine. (Turn key to off position)
Page 14
Page 18
TESTING OF SAFETY INTERLOCK SYSTEMS:
OPERATION INSTRUCTIONS
PARKING BRAKE SWITCH TEST:
CONTROL LEVER SWITCH TEST:
BLADE DRIVE SWITCH TEST:
SEAT SWITCH TEST:
•
a) Swing out control levers
b) Disengage blade drive switch
c) Put Parking brake in OFF position
d) Turn ignition switch to START
Engine should not turn over or attempt to
a) Disengage blade drive switch
b) Put parking brake in ON position
c) Swing control levers in
d) Turn ignition switch to START
Engine should not turn over or attempt to
start.
a) Put parking brake in ON position
b) Swing out control levers
c) Engage blade drive switch
d) Turn ignition switch to START
Engine should not turn over or attempt to
start.
a) In a SAFE AREA away from bystanders, start the
engine
b) Leave levers swung out and parking brake ON
c) Engage blade drive
d) Raise weight slightly off seat
ENGINE SHOULD STOP
e) Disengage blade drive
f) with engine running, put parking brake in OFF
position
g) Swing levers in
h) Engage blade drive
i) Raise weight slightly off seat.
ENGINE SHOULD STOP
NOTE: If Any Safety Check FAILS, Do Not Operate The Mower until the system has
been checked and repaired by an Authorized Dixon ZTR Dealer
Page 15
Page 19
OPERATION INSTRUCTIONS
The Dixon ZTR requires only two drive levers to control braking, turning, speed, and direction.
On initial operation, set throttle speed on slow & operate with mower blade "OFF".
To avoid "over-controlling" the mower, use a light touch on the drive levers. Slight
movements using fingertip control is all that is necessary.
Engage parking brake before starting engine.
STARTING INSTRUCTIONS:
1. Parking brake must be on, control levers swung out, and
blade drive disengaged.
2. Move throttle control to "Choke" position if engine is cold, full
throttle if warm.
3. Insert ignition key and turn to "Start" position. When engine
starts, release ignition key. Key will return to "Run" position.
4. Move throttle from "Choke" to desired speed position.
5. Release parking brake.
6. Swing levers in.
NOTE: While mowing throttle control should be set to the
MAXIMUM or wide open setting to insure adequate
cooling of the engine and to maintain mower deck blade
speed.
Engine cannot be restarted when blade drive is
engaged, the parking brake is off, or levers are swung
in.
Safety switches stop engine when operator leaves seat
while mower blade is engaged.
Always turn engine off when leaving mower. DO NOT
rely on safety switches.
Page 16
Page 20
OPERATION INSTRUCTIONS
MOWING WITH A MULCHING ATTACHMENT:
Mulching or recycling the grass clippings requires a totally different mowing approach than would be
normal when side discharging or bagging the grass. There may be instances or conditions where it is
not possible to hide all of the recycled or mulched clippings.
In order to achieve the best results, please read and follow the mulching tips listed below:
1. Set the engine speed control to the wide open or full setting.
2. Place the mower deck cut height selector in either the top or second notch. Never cut more
than 3/4" to 1" off the grass at any one time. Attempting to cut more grass will result in the
deck plugging and cause the engine to stall.
3. It may be necessary to cut the lawn twice to achieve acceptable mulching performance
especially on first cuttings or if the lawn is heavily fertilized.
4. Do Not Attempt To Cut Grass When It Is Wet. Mulching performance will be very poor under
wet grass conditions.
5. Maintain A Sharp Blade Throughout The Cutting Season. This is very important. Optimal
mulching performance cannot be obtained with a dull or nicked up blade.
6. Keep The Underside Of The Mower Deck Clean. Remove all grass and dirt buildup from the
underside of the pan, the baffles and deflectors after each use.
7. Alternate mower direction. This will evenly disperse the mulched grass clippings over the
lawn for even fertilization.
If the mulching quality of the mower does not seem to be satisfactory, try one or more of the
following tips:
1. Raise the height-of-cut setting on your mower.
2. It may be necessary to cut your grass more frequently.
3. Operate the mower at a slower ground speed.
4. Overlap cutting swaths instead of cutting a full swath with each pass.
5. Mow across the marginal areas a second time.
6. CUT HIGH - MOW OFTEN!
Page 17
Page 21
OPERATION INSTRUCTIONS
MOWING WITH A GRASS CATCHER ATTACHMENT:
In order to achieve optimum performance when mowing with a grass catching attachment, please read
and follow the tips listed below.
1. Some applications may require installation of an "Optional" weight box on the front of the mower
to offset cut grass weight.
2. Set engine speed control to the wide open or full setting.
3. Do Not Attempt To Cut Grass When It Is Wet. Wet grass will clog both the underside of the deck
and the attachment chutes. Empty bags often to prevent plugging.
4. If the grass is tall, place the mower deck cut height selector in the top or second notch. Initially
overlap cutting swaths instead of a full swath with each pass.
5. Keep The Underside Of The Mower Deck Clean. Frequent removal of dried grass and dirt will
greatly assist in bagging of the clippings.
6. Maintain Sharp Blades Throughout The Cutting Season. Some grass catching attachments
require "Hi-Lift" blades.
7. Operate the mower at a slower ground speed than when mowing without a grass catching
attachment.
• Watch for low hanging branches or other obstacles which might hit the catcher top while turning
or backing the mower.
• Use care when backing to avoid pushing the grass bags into the frame or "hot" exhaust muffler
of the engine.
• Disengage blade and stop engine prior to clearing grass from either the discharge chute or grass
catcher components.
• Keep all attachment bolts tight.
• Do Not operate the mower with the grass catching attachment partially removed.
Important:
• Do not leave clippings in the bags while the mower is stored.
• Damp grass clippings are a fire hazard if left in the bags.
Page 18
Page 22
OPERATION INSTRUCTIONS
SIDE DISCHARGE OF THE CLIPPINGS:
In order to achieve optimum performance when side discharging the grass clippings, please read and
follow the tips listed below.
Additional information can be found in the troubleshooting guide.
Be sure that deflector is properly installed on the discharge chute.
1. Set engine speed control to the wide open or full setting.
2. Do Not Attempt To Cut Grass When It Is Wet. Wet grass will clog the underside of the deck
and discharge area.
3. If the grass is tall, place the mower deck cut height lever in the top or second notch. Initially
overlap cutting swaths instead of a full swath with each pass. Some applications may require a
second cutting.
4. Keep The Underside Of The Mower Deck Clean. Frequent removal of dried grass and dirt will
allow the clippings to discharge correctly.
5. Maintain Sharp Blades Throughout The Cutting Season.
GRASS HEIGHT SUGGESTIONS:
Correct mowing height can reduce weeds and disease by 50 to 80%
The following grass cut heights are based on adequate moisture conditions and normal thatch buildup
in a healthy lawn. Some locations and applications may require slightly different cut heights. If in
doubt, consult your local lawn professional for assistance.
Page 19
Page 23
CARE AND MAINTENANCE
This portion of the ZTR 4500 Series Models owners manual deals with normal service items which can
be performed by the owner. Please remember that if you are in doubt as to the correct service
procedures to be followed, these and other service situations can be handled by a Dixon ZTR dealer
who is familiar with the service of your mower.
MAINTENANCE SCHEDULE:
To insure a long and trouble free service life on all the components used on the ZTR 4500
Series Models, a regular and thorough maintenance schedule should be followed. The
following items should be checked after the first (10) hours of operation and on a weekly
basis, or each (40) hours of use:
1. Drive system, belts and controls.
2. Mower deck belts.
3. Tire pressures.
4. Tightness of all nuts and bolts.
5. Battery fluid level.
6. Engine Oil.
Before performing any maintenance, shut off engine, allowto cool.
ENGINE: For engine operating and maintenance information, refer to the engine operating and
maintenance instructions furnished by the engine manufacturer, supplied with each
mower.
BATTERY: Check the fluid in the battery at frequent intervals.
Keep fluid level above the plates in each cell, using distilled water.
OFF-SEASON BATTERY STORAGE:
Identify each cable so cables can be reconnected to correct terminals.
Disconnect cables from terminals
ALWAYS disconnect ground cable first and reconnect last
Charge battery.
DO NOT remove battery from mower.
Clean top of battery and terminals with baking soda and water.
Page 20
Page 24
CARE AND MAINTENANCE
MOWER BLADE MAINTENANCE:
NOTE: Observe proper blade position prior to removal.
1. Safely raise front of mower.
2. Hold or block blade from turning.
3. Loosen blade nut and remove blade.
Wear heavy, thick gloves when holding onto mower blade,
avoid the sharp edge of the blade.
4. Tighten blade nut securely. Refer to diagram.
Page 21
Page 25
CARE AND MAINTENANCE
Page 22
BELT TENSION:
42" DECK: ENGINE TO MOWER DECK BELT: P/N 5861
No adjustment required.
Correct belt tension is maintained through a fixed engine location and a spring loaded
idler system.
A pulsing movement of the belt idler will be observed both during engagement of the
electric blade clutch and actual operation of the mower deck.
NOTE: Engagement of the electric blade clutch switch may - 'H'sce a sharp high
pitched chirp or squeal as the belt tension loading ir . v rbed by the idler
system. This is normal and not a sign of failure.
36" DECK: MOWER DECK DRIVE BELT: P/N 1300
42" DECK: MOWER DECK SERPENTINE BELT: P/N 6109
Adjustment procedure illustration below for 36" Mower Deck Drive Beit P/N 1300,
and 42" Mower deck Serpentine Belt P/N 6109:
Page 26
CARE AND MAINTENANCE
Page 23
FORWARD TRAVEL SPEED ADJUSTMENT
1. Drive machine until hydrostats have warmed up.
2. Drive on a smooth, level surface with both levers in top speed position.
3. If one side now drives slightly faster than the other, adjust lever stop washer P/N 5760
on that side to reduce forward range of control lever. If levers are now uneven at top
speed, loosen control lever mounting nut. Rotate lever to be even with other side and
tighten nut.
Page 27
CARE AND MAINTENANCE
NEUTRAL ADJUSTMENT
DRIVE MACHINE UNTIL HYDROSTATS HAVE WARMED UP. WITH ENGINE RUNNING AND THE
PARKING BRAKE OFF, SWING OUT THE CONTROL LEVERS. IF MACHINE STARTS TO CREEP,
FOLLOW THE INSTRUCTIONS BELOW.
1. Stop the engine, engage parking brake, and raise rear of frame with jack or blocks so that rear tires
do not contact the ground.
2. Swing out the control levers, start the engine and release the parking brake.
3. Raise the seat to access hydro control linkage. If right wheel creeps, adjust right side linkage, and
vice-versa. Use procedure below:
a. Loosen, but do not remove, the bolt in the control tube P/N 5540.
b. Loosen Jam nuts on ends of the
coupler P/N 7736.
c. If right wheel is creeping forward,
turn coupler counter clockwise
until neutral is achieved
(clockwise for left side). If right
wheel is creeping backward, turn
coupler clockwise until neutral is
achieved (counterclockwise for
left side).
d. Tighten jam nutsagainst coupler.
e. Tighten bolt in control tube.
4. Lower seat, release parking brake, and swing control levers in. If wheel creeps, repeat steps 3a & 3e.
5. Stop engine and remove rear of machine
from jack or blocks.
6. Drive machine with both levers in top
speed position. If one side now drives
slightly faster than the other, adjust lever
stop washer P/N 5760 on that side to
reduce forward range of control lever. If
levers are now uneven at top speed,
loosen control lever mounting nut. Rotate
lever to be even with other side and
tighten nut.
Page 24
Page 28
CARE AND MAINTENANCE
MOWER DECK LEVELING PROCEDURE:
1. Place mower on a smooth, level surface and check tire pressures to insure correct stance.
Tires should be inflated as follows:
Front: 16-21 Ibs
Rear: 8-14 Ibs
2. Turn each outer blade tip to align with the deck in a side to side manner.
3. Measure from the floor surface up to the bottom of the blade tip on the discharge side of the
mower. Retain this measurement. Move to the opposite side and check to see if that
measurement is the same. If adjustment is required, turn nut on one or both of the rear L-rods
until both measurements are equal.
4. Turn each outer blade tip to align with the deck in a front to rear manner.
5. Measure from the floor surface up to the bottom of the blade tips at both the front and rear of
the blades. Rear of blade tips should be level to 1/4" higher that the front of blade tips. If
adjustment is necessary, turn nut on front L-rod.
NOTE: This will place the mower deck in a base measurement position. Additional adjustment may
be required to achieve desired cut for the type of grass or conditions involved.
Page 25
Page 29
36" DECK REMOVAL
1. Place cut height lever in lowest cut position.
2. Loosen nut on belt idler shock mount until belt can be removed from electric
clutch pulley on the bottom of the engine.
3. Remove hair pin cotter and washer from one end of deck support cross shaft.
Note location of remaining shim washers used between chassis and mower deck
plates. Slide shaft from chassis and mower deck.
4. Remove hair pin cotter and washer from each deck L-rod. Remove L-rods from
lift arms. At this point, deck will drop down.
5. Carefully raise and support front of chassis. Slide mower deck to either side for
removal. (Reverse procedure to reinstall deck assembly)
CARE AND MAINTENANCE
Page 26
Page 30
42" DECK REMOVAL:
Page 27
1. Place cut height lever in lowest cut position.
2. Pull belt idler back to allow belt to be removed from idler pulley and electric clutch
pulley.
3. Remove hair pin cotter and washer from one end of deck support cross shaft.
Note location of remaining shim washers used between chassis and mower deck
plates. Slide shaft from chassis and mower deck.
4. Remove hair pin cotter and washer from each deck L-rod. Remove L-rods from
lift arms. At this point, deck will drop down.
5. Carefully raise and support front of chassis. Slide mower deck to either side for
removal. (Reverse procedure to reinstall deck assembly).
NOTE: When deck is reinstalled on frame, check that belt is correctly routed in
CARE AND MAINTENANCE
the groves of all pulleys and that belt idler is applying tension to the
back side of the belt.
Page 31
CARE AND MAINTENANCE
CAUTION HOT oil may cause burns. Allow engine to cool before draining oil.
CHANGING THE ENGINE OIL:
1. The "snap lock" oil drain valve is located on the left side of the engine crankcase.
2. Place a suitable container under the drain valve. The fitting of a short piece of
hose to the valve will help direct the oil.
3. Push the valve body in and twist \o clear the detent notch.
4. Pulling the valve body outward will start the flow of oil.
NOTE: Refer to engine manufacturers recommendations for frequency of oil changes.
Page 28
PLEASE DISPOSE OF USED OILS AT PROPER COLLECTION CENTERS.
-PROTECT YOUR ENVIRONMENT-
Page 32
OIL FILL:
CARE AND MAINTENANCE
1. Push the valve body in
and twist into the detent
notch.
2. Clean any spilled oil
from engine and
chassis.
3. Refill engine with type, and quantity of oil recommended by the engine
manufacturer in engine literature.
NOTE:
Oil changes require replacement of the oil filters. These filters can be obtained from
your authorized engine dealer.
The use of any other oil filter may cause damage to the engine.
Model ZTR 4515B
Briggs & Stratton Oil Filter: P/N 492 932
PLEASE DISPOSE OF USED OILS AT PROPER COLLECTION CENTERS. -
LUBRICATION:
CHASSIS: LOCATIONS:
SERVICE INTERVALS:
RECOMMENDED GREASE:
Model ZTR 4515K
Kohler Oil Filter: P/N 52 050 02
PROTECT YOUR ENVIRONMENT-
Number of grease zerks used: (4)
(1) each front wheel caster tube and each front wheel hub.
Every 50 hours of operation
Name brand wheel bearing or multi-purpose grease
Lubricate each front wheel to allow even distribution of grease
within the wheel, rotate or spin each front wheel after (3) pumps
of the grease gun. Repeat process until the appearance of
grease is noted completely around each caster axle.
Page 29
Page 33
WHEELS AND TIRES:
ELECTRICAL SYSTEMS:
CLEANING THE MOWER:
CARE AND MAINTENANCE
Correct tire pressure is important for correct operation of mower.
Front Tires 11X4.00X5 Air Pressure 16-21 Ibs.
Rear Tires 18X8.50X8 Air Pressure 8-1 4 Ibs.
NOTE: Check lug nuts periodically for tightness.
Keep all connections clean and tight.
Wash mower periodically. Clean above and below deck.
NOTE: Allow mower to coo! before washing. If bearings are
hot, they will draw moisture inside as they dry and cause
corrosion.
SERIAL NUMBERS:
The serial number is located on frame at rear of engine, it will
begin with DM.
WARRANTY:
PARTS/SERVICE:
Refer to Warranty Registration Form (P/N 5859).
See your Dixon dealer for replacement parts, warranty or
service.
PLEASE HELP PROTECT THE ENVIRONMENT BY AVOIDING ALL
CHEMICALS WHICH MAY DAMAGE OR CAUSE HARM TO PLANTS AND
ANIMALS IN YOUR AREA.
Page 30
Page 34
Model ZTR 451 5B:
15HP
Precleaner Foam Elem
ent P/N 272 403
Pre-Cleaner:
P/N 1208312
36" DECK:
42" DECK:
STANDARD SERVICE PARTS LIST
BLADES: Standard: P/N 1324
Hi-Lift: P/N 1351 Right Side
P/N 1352 LeftSide
BELTS: Engine To Mower Deck: P/N 1300
Engine To Transmission: P/N 5768
BLADES: Standard Hi-Lift: P/N 8688
Lo-Lift: P/N 6236
BELTS: Engine To Mower Deck: P/N 5861
Serpentine Belt: P/N 6109
Engine To Transmission: P/N 5768
BRIGGS & STRATTON FILTER PART NUMBERS:
Please refer to Briggs & Stratton Engine Operators Manual for correct service intervals for engine
oil changes and air filter maintenance.
Protect your engine investment, use only original equipment filters.
Model ZTR
Air Filter Cartridge:
Engine Oil Filter:
P/N 493 909
P/N 492 932
4515B: 15HP
Precleaner Foam
Element
Air Filter Cartridge: P/N 493 909
Engine Oil Filter: P/N 492 932
KOHLER FILTER PART NUMBERS:
Please refer to Kohler Engine Operators Manual for correct service intervals for engine oil changes
and air filter maintenance.
Protect your engine investment, use only original equipment filters.
Model ZTR 451 5K: 15HP
Air Filter Cartridge: P/N 1208310
Engine Oil Filter:
P/N 52 050 02
Page 31
Page 35
TROUBLESHOOTING
MOWER CUT QUALITY:
There are many variables that can effect the cut quality of any riding mower. Type and
conditions of grass, cut height setting, engine RPM and ground speed are some of the variables
that interact creating differences in cut quality. Examination of one or more of the above will
generally produce a quality cut.
The Troubleshooting Chart suggests practices and adjustments that may be helpful in
improving cut quality. Your Dixon ZTR dealer is also available to provide assistance to you.
SITUATION
Poor cut quality
Poor cut quality
CAUSES
Ground speed
Incorrect engine to
REMEDY
Reduce mowing speed
Refer to page 31 for part numbers
mower deck belt
Poor cut quality Engine RPM too low Increase engine RPM to maximum
Poor cut quality Dull or bent blade Sharpen or replace as required
Poor cut quality
Poor cut quality
Un-level mower deck
Grass buildup under
Refer to page 25 for
deck leveling
procedure
Clean out underside of mower deck
mower deck
Poor cut quality Improper blades Refer to page 31 for part numbers
Poor cut quality Uneven tire pressures
Refer to page 30 for
correct tire
pressures
Page 32
Page 36
DRIVE SYSTEM:
SITUATION CAUSES REMEDY
Mower creeps in
neutral position
Mower pulls to one
side or the other
Loss of power and
speed on both sides
Neutral adjustment
Forward travel speed
adjustment
Incorrect or worn drive
belt
Spring on idler arm
Refer to page 24 for procedure or
consult your dealer for repair
Refer to page 23 for procedure
Replace belt Replace spring Remove
missing or broken
cause of seizure and lubricate Consult
Idler arm will not pivot
Drive system
functions on one side
only
Internal malfunction
Incorrect or worn drive
belt
Spring on idler arm
missing or broken
Idler arm will not pivot
Internal malfunction
your dealer for repairs
Replace belt Replace spring Remove
cause of seizure and lubricate Consult
you dealer for repairs
Page 37
TROUBLESHOOTING
ELECTRICAL SYSTEM:
SITUATION CAUSES REMEDY
Starter will not
turn engine over
Starter will not
turn engine over
Battery discharge
Battery discharge
Circuit breaker
disengaged
Push button to reset Consult
your dealer for repair
Dead battery Charge battery
Poor connections on
battery
Tighten or replace as required
i
Battery water low
Wrong battery installed
in mower
Engine electrical system
not functioning correctly
Have electrical system checked by your
dealer
Battery discharge
Engine not being
operated at full throttle
increase engine RPM Contact your
dealer for information
NOTE: Electrical system failures are generally simple in nature, always check the obvious
first and then move onto the more complicated parts used.
Poor battery service, loose connections, corrosion, frayed or broken wiring, are more
likely than component failure.
Page 34
Page 38
DATE PURCHASED
MOWER MODEL
NUMBER
MOWER SERIAL NUMBER
PURCHASED FROM
DATE OIL CHANGED:
DATE ENGINE TUNED:
OWNER
INFORMATION
DIXON INDUSTRIES, INC.
A BLOUNT International Inc. Co.
PO BOX 1569
COFFEYVILLE KS 67337 0945
316251 2000
FAX 316 251 4117
Page 39
The Engine Exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
©Dixon and ZTR are registered trademarks of Dixon Industries, Inc.
DIXON INDUSTRIES, INC.
A BLOUNT International Inc. Co.
PO BOX 1569
COFFEYVILLE KS 67337 0945
316251 2000
4500 Series
Part No. 5863
MY98 mn1/98
Loading...
