Dixon 2700 User Manual
Model 2Model 2
Model 2
Model 2Model 2
700700
700
700700
Model YModel Y
Model Y
Model YModel Y
ear 200ear 200
ear 200
ear 200ear 200
ZTR®
44
4
44
IMPORTANT - READ CAREFULLY
The Dixon® ZTR® Mower is both easy and fun to
operate. However, any power mower must be operated properly to be safe. It is not a toy or a recreational vehicle. Before you start to use the mower,
read the operator’s manual carefully and become
completely familiar with the controls.
The information contained in this manual applies to
all Dixon® ZTR® Model 2700 Commercial Mowers.
Your Dixon dealer will gladly answer any questions.
See your dealer for warranty service, parts and
repairs.
INDEX
Page
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18
Operation Instructions. . . . . . . . . . . . . . . . . . . 19-26
Care & Maintenance. . . . . . . . . . . . . . . . . . . . . .27-38
Standard Service Parts List. . . . . . . . . . . . . . . . . . .39
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . .40-41
Model 2700
Part No. 12828-0603
3
SAFETY
RIDING LAWN MOWERS,
IF IMPROPERLY OPERATED,
CAN CAUSE SERIOUS INJURY OR DEATH.
The most common causes of injury to the operator or bystander...
BLADE CONTACT
TIP OVER
RUN OVER
BACK OVER
...read and understand this manual to prevent injuries.
4
SAFETY
Safety Alert Symbol
When you see this symbol,
BE ALERT to the potential for injury.
Follow recommended safety precautions
and safe operating practices.
DANGER
(highlighted in red)
indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING
(highlighted in orange)
indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
(highlighted in yellow)
indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used
to alert against unsafe practices.
5
SAFETY
Failure to observe the following safety
instructions could result in serious injury or death.
GENERAL OPERATION:
•Read, understand, and follow all instructions in the manual
and on the mower before starting.
•Only allow responsible adults, who are familiar with
the instructions, to operate the mower.
•Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade.
•Be sure the area is clear of other people before
mowing. Stop mower if anyone enters the area.
•NEVER carry passengers.
•Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
backing.
•Be aware of the mower discharge direction and do
not point it at anyone.
•Do not operate the mower without either the entire
grass catcher or the deflector in place.
•Slow down before turning.
•Never leave a running mower unattended. Always
turn off blades, set parking brake, stop engine and
remove key before dismounting.
6
SAFETY
GENERAL OPERATION (continued)
:
•Turn off blades when not mowing.
•Stop engine before removing grass catcher or unclogging
chute.
•Mow only in daylight or good artificial light.
•Do not operate the mower while under the influence of
alcohol or drugs.
•Watch for traffic when operating near or crossing roadways.
•Use extra care when loading or unloading the mower
into a trailer or truck. Do not ride the mower when
loading and unloading.
•Always wear safety goggles or safety glasses with side
shields when operating mower.
•Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mowerrelated injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
•Follow the manufacturer’s recommendation for wheel
weights and counterweights.
•Maintain or replace safety & instruction labels as needed.
WARNING:
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive
harm.
7
SAFETY
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra caution.
If you cannot back up the slope or if you feel uneasy
on it,
DO
•Mow across the slope with your Dixon ZTR - never up or
down.
•Remove obstacles such as rocks, tree limbs, etc.
•Watch for holes, ruts or bumps. Uneven terrain could
overturn the mower. Tall grass can hide obstacles.
do not mow it
!
•Use slow speed. Tires may lose traction on slopes even
though the brakes are functioning properly.
•Use extra care with grass catchers or other attachments.
These can change the stability of the mower.
•Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction.
8
SAFETY
SLOPE OPERATION (continued):
DO (continued)
•Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
down the slope.
•If front wheels lift off the ground, pull the levers
back to stabilize the mower.
DO NOT
•
Do not
slowly and gradually downhill, if possible.
•
Do not
The mower could suddenly turn over if a wheel is over
the edge of a cliff or ditch, or if an edge caves in.
turn on slopes unless necessary, and then, turn
mow near drop-offs, ditches, or embankments.
•
Do not
cause sliding.
•
Do not
on the ground.
•
Do not
mow on wet grass. Reduced traction could
try to stabilize the mower by putting your foot
use grass catcher on steep slopes.
9
SAFETY
CHILDREN:
Tragic accidents can occur if the operator is
not alert to the presence of children.
Children are attracted to lawn mowers and the
mowing activity.
NEVER assume children will stay where they
were last seen.
Be alert to avoid accidents.
•Keep children out of the mowing area and under the
watchful care of another responsible adult.
•Be alert and turn mower off if a child enters the
area.
•Before and during backing, look BEHIND and
DOWN for small children.
•Never carry children. They may fall off and be
seriously injured or interfere with the safe operation
of the mower.
•Never allow children to operate the mower.
•Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
10
SAFETY
SERVICE:
•Use extra care in handling gasoline and other fuels. They are
flammable and vapors are explosive.
Use only an approved container.
Never remove fuel cap or add fuel with engine running.
Allow engine to cool before refueling.
Do not smoke while refueling.
Never refuel the mower indoors.
Never store the mower or fuel container inside a building
where there is an open flame.
If fuel is spilled on clothing, change clothing immediately.
To prevent fire and explosion caused by static electricity:
Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers
on the ground away from your vehicle before filling.
When practical, remove fuel-powered equipment from
the truck or trailer and refuel it on the ground. If this is
not possible, then refuel such equipment on a trailer
with a portable container, rather than from a fuel
dispenser nozzle.
If a fuel dispenser nozzle must be used, keep the
nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
11
SAFETY
SERVICE (continued):
•Never run a mower inside a closed area. The exhaust fumes
are toxic.
•Keep nuts and bolts tight, especially blade attachment
bolts, and keep equipment in good condition.
•Never tamper with safety devices. Check their proper
operation regularly.
•Keep mower free of grass, leaves, or other debris buildup.
Clean up oil or fuel spillage. Allow mower to cool before
storing.
•Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
•Never make adjustments or repairs with the engine running unless otherwise specified.
•Grass catcher components are subject to wear, damage
and deterioration, which could expose moving parts or allow
objects to be thrown. Frequently check components and
replace with original equipment parts, when necessary.
•Mower blades are sharp and can cut. Wrap the blade(s) or
wear gloves, and use extra caution when servicing them.
•Batteries contain sulfuric acid. To prevent burns avoid
contact with skin, eyes and clothing. To prevent a fire or
explosion keep sparks and open flames away from battery.
•Before disconnecting the negative (-) ground cable, make
sure all switches are OFF.
12
DIXON LIMITED WARRANTY POLICY
COMMERCIAL MODELS - 2700 SERIES
DIXON ZTR MOWERS ARE WARRANTED AGAINST DEFECTS IN MATERIALS AND WORKMAN-
SHIP AND PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS
INCLUDING LABOR COSTS. THIS WARRANTY IS SUBJECT
TO THE FOLLOWING CONDITIONS AND LIMITATIONS.
1. Home Owner Application : This Dixon Warranty term is for a period of three (3) years from
date of purchase. Frame, body panels and fenders are warranted for the life of the mower.
2. Commercial Application: Defined as use other than, or in addition to, mowing at owner’s
primary place of residence. Units used in commercial application are warranted for a period of
one (1) year from the date of purchase or 750 hours, whichever comes first.
3. Warranty applies only to original retail purchaser of new and unusedmowers and accessories.
4. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with
Dixon warranty policy and allowances. All warranty claims must be approved by Dixon
Industries, Inc.
5. Battery Warranty: limited to 90 days from date of purchase.
6. Accessories Warranty (grass catchers, snow blades, covers, etc.): Limited to 90 days from
date of purchase.
7. Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or
alteration. The use of parts or components other than those supplied by Dixon Industries
VOIDS ALL WARRANTY .
8. The following items are not covered by this warranty policy:
(a) Pick up and delivery charges for transportation of mower to and from an authorized
Dixon dealer’s place of business.
(b) Routine maintenance or adjustments.
(c) Belts/blades/hydrostatic filters.
(d) Engines - All engines used on Dixon ZTR mowers are warranted by each individual
engine manufacturer.
(e) Any costs or expense of providing substitute equipment while repair work is being
performed on a warranted mower.
9. There is no other express warranty. Implied warranties, including those of merchantability and
fitness for a particular purpose are limited to the same duration of the express warranty and to
the extent permitted by law any and all implied warranties are excluded. Liabilities for
consequential damages under any and all warranties are excluded.
13
SPECIFICATIONS
Model 2700
CHASSIS:
SEAT:
MOWER DECK:
BLADE DRIVE:
DRIVE SYSTEM:
ENGINE:
STARTING SYSTEM:
TIRES:
11 GA - rectangular tube, 7 GA reinforcement
Designed for operator comfort with padded back & arm
rests. Seat is adjustable fore & aft. Mounted on operator
suspension system.
2 decks are available. Both decks are made of 10 GA
fabricated welded construction with 1/4 " reinforcement
plate. 3 blades combine for either a 60" or 72" cut width.
Deep deck with discharge tunnel. Cut height approximately 1.5"
to 6" via 10 position lift handle.
"V" Belt with Electric clutch

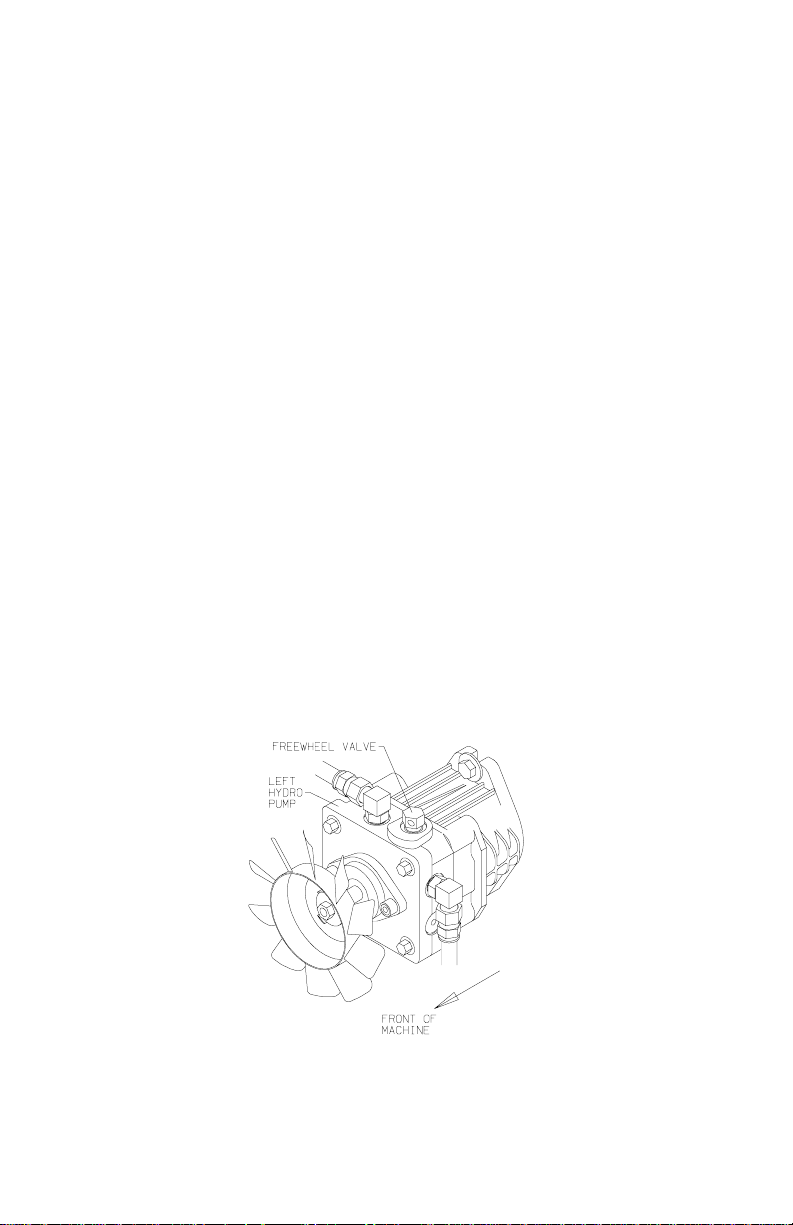

Each rear wheel is independently driven by a HydroGear
BDP-10A pump and White CE wheel motor.
27HP Kawasaki Twin, Liquid Cooled 4-Cycle, V-
Configuration, Overhead Valve, Gasoline, Horizontal
Shaft, Aluminum Head and Crankcase with Cast Iron
Liners, Full Pressure Lubrication/Full Flow Filter, Electric
Fuel Pump, Fixed Jet Carburetor, Electronic Ignition, InLine Fuel Filter, Dual Element Air Cleaner.
Electric by key switch operation with safety interlocks on
parking brake, blade drive clutch and control levers.
Front 13-6.5x6
Rear 23-10.5x12
RECOMMENDED
TIRE PRESSURE:
CAPACITIES:
DIMENSIONS:
Additional information provided in service instructions under the individual component.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Front 16-20 lbs.
Rear 8-14 lbs.
Fuel - 11 gallons (approx)
Hydrostat oil system - 4 quart with in-line 40 micron filter
Hydrostat oil recommendation - SAE 20W50 motor oil
Engine - 2 quart. SAE 10W30 motor oil
Width 73.5"(60" Deck), 85.5"(72" Deck)
Height 54"
Length 87"
Weight 1020 lbs.(60" Deck), 1054 lbs.(72" Deck)
14
Loading...
