Network Viedo Recorder
User Manual
The manual is applied to the following model:
Model No: NRM 310
Note: The manual is subject to change without notic
ii
Contents
Contents
Preface
Copyright ........................................................................................................................................iv
Disclaimer .......................................................................................................................................iv
Acknowledgements .....................................................................................................................iv
Regulatory Compliance Statements ......................................................................................iv
Declaration of Conformity .........................................................................................................iv
RoHS Compliance ...........................................................................................................................v
Safety Information .......................................................................................................................vi
Installation Recommendations ................................................................................................vi
Safety Precautions........................................................................................................................vii
Technical Support and Assistance........................................................................................viii
Conventions Used in this Manual ......................................................................................... viii
Chapter 1: Product Introduction
Overview ...........................................................................................................................................1
Key Features ................................................................................................................................. 1
Hardware Specications ..............................................................................................................3
Getting to Know NRM310 ...........................................................................................................5
Front Panel .................................................................................................................................... 5
Rear Panel...................................................................................................................................... 9
Chapter 2: Jumpers and Connectors
Before You Begin .........................................................................................................................11
Precautions ................................................................................................................................... 11
Jumper ............................................................................................................................................ 12
Locations of the Jumpers and Connectors ........................................................................ 13
Jumper Settings ........................................................................................................................... 15
Voltage Setup Selection (SW3) ............................................................................................15
Start-up Mode / Pre-Heater Control (SW2) .....................................................................15
PCI-104 VI/O Voltage Setting (JP4) ..................................................................................... 15
CMOS Input Voltage Select (SW1, JP5) .............................................................................15
Connectors .................................................................................................................................... 16
High speed board-to-board connector: COM Express Row A and Row B............16
High speed board-to-board connector: COM Express Row C and Row D ...........19
PCIe x16 (CN12) .........................................................................................................................22
PCI-104 Connector (CN7) .......................................................................................................24
Main board LED Indicator Connector (CN6, CN24) ......................................................25
RS422/485 Connector (CN19) .............................................................................................25
RS232 Connector (CN22, CN23) .........................................................................................26
RS232 Connector (CN21) ......................................................................................................26
GPIO Connector (CN20) ........................................................................................................27
LAN Connector (a. J11, J14 / b. J12, J15 / c. J7, J8) .......................................................27
LAN Connector (CN17) ..........................................................................................................28
VGA Connector (CN29) ..........................................................................................................28
HDMI Connector 1 (CN27) ....................................................................................................29
HDMI Connector 2 (CN28) ....................................................................................................29
GAL Programmer Pin Header (JP1) .........................................................................................
30
MCU Programmer Pin Header (JP2) .........................................................................................
30
iii
Contents
MCU COM Port (JP3) ............................................................................................................... 31
Serial-ATA Power Input (CN9, CN11, CN14, CN16) ....................................................... 31
Serial-ATA 2.0 (CN13, CN15) ................................................................................................. 32
Serial-ATA 3.0 (CN8, CN10) ................................................................................................... 32
USB connector (J13, J16) ..................................................................................................... 33
Pre-Heater Sensor Connector (J6) ..................................................................................... 33
USB Connectors (CN25) ......................................................................................................... 34
Mini-PCIe (WLAN1) (CN4) ..................................................................................................... 35
Mini-PCIe (WLAN2) (CN5) ..................................................................................................... 36
Mini-PCIe (WWAN) (CN3) ...................................................................................................... 37
Antenna Switch Connector (J2) ......................................................................................... 38
SIM CARD Connector For WLAN (CN1, CN2) .................................................................. 38
Power Input (CN18) ................................................................................................................ 39
Pre-heater Power Connector (J3)....................................................................................... 39
Line-in, Mic-in, Speaker (CN26) .......................................................................................... 40
Power On & SSD or HD Active LED .................................................................................... 40
WLAN & WWAN & LAN Active LED .................................................................................... 41
PSE LAN Active LED ............................................................................................................... 41
GPS Connector (J1) ................................................................................................................. 42
Port 80 Connector (J10) ........................................................................................................ 42
Bluetooth Connector (J4) ..................................................................................................... 43
RTC Battery Connector (J5) .................................................................................................. 43
Chapter 3: System Setup
Removing the Chassis Cover ................................................................................................... 44
Installing the Wi-Fi and GPRS/UMTS/HSDPA Modules ...................................................46
Installing SSD Drive .................................................................................................................... 47
Installing PCI-e Expansion Card ............................................................................................. 48
iv
Preface
PrefaCe
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and
describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and veried to comply with the limits for
a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which
case the user will be required to correct the interference (take adequate
measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable
European Union (CE) directives if it has a CE marking. For computer systems
to remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques.
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. No
part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written consent from
Divio Tec International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice
and does not represent commitment from Divio Tec International Co.,
Ltd. However, users may update their knowledge of any product in use by
constantly checking its manual posted on our website: http://www.Divio
Tec.com. Divio Tec shall not be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use of any product, nor for any
infringements upon the rights of third parties, which may result from such
use. Any implied warranties of merchantability or tness for any particular
purpose is also disclaimed.
Acknowledgements
NRM310 series is a trademark of Divio Tec International Co., Ltd. All other product
names mentioned herein are registered trademarks of their respective owners.
v
Preface
RoHS Compliance
Divio Tec RoHS Environmental Policy and Status Update
How to recognize Divio Tec RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the
sux “(LF)” will be added to the compliant product name.
All new product models launched after January 2013 will be RoHS compliant.
They will use the usual Divio Tec naming convention.
Divio Tec is a global citizen for building the digital
infrastructure. We are committed to providing green
products and services, which are compliant with
European Union RoHS (Restriction on Use of Hazardous
Substance in Electronic Equipment) directive 2011/65/
EU, to be your trusted green partner and to protect our
environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg)
< 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent
Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or
1,000ppm.
In order to meet the RoHS compliant directives, Divio Tec has established an
engineering and manufacturing task force in to implement the introduction
of green products. The task force will ensure that we follow the standard Divio
Tec development procedure and that all the new RoHS components and new
manufacturing processes maintain the highest industry quality levels for
which Divio Tec are renowned.
The model selection criteria will be based on market demand. Vendors and
suppliers will ensure that all designed components will be RoHS compliant.
vi
Preface
Board Level
? Component fee: Divio Tec will only charge for main components, such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex:
resistors, capacitors.
If RMA goods can not be repaired, Divio Tec will return it to the customer
without any charge.
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to nd out how you can ensure that your computer meets
safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
? Read all instructions carefully.
? Do not place the unit on an unstable surface, cart, or stand.
? Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specied by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly
necessary in order to provide balance stability.
The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get
into components and cause a malfunction. Use containers to keep small
components separated.
Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
• A Philips screwdriver
• A at-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your ngers can disconnect most of the connections. It is recommended
that you do not use needlenose pliers to disconnect connections as these
can damage the soft metal or plastic parts of the connectors.
vii
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it
or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40
o
C storage temperature as this may damage the
equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that
has been approved for use with the product and that it matches the
voltage and current marked on the product’s electrical range label.
The voltage and current rating of the cord must be greater than the
voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause re or electrical
shock.
14. Never open the equipment. For safety reasons, the equipment should
be opened only by qualied service personnel.
15. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the
purpose of this pin. If your outlet does not support this kind of plug,
contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the
appropriate safety standards including IEC 60825.
viii
Preface
Technical Support and Assistance
1. For the most updated information of Divio Tec products, visit Divio Tec’s
website at www.Divio Tec.com.
2. For technical issues that require contacting our technical support team or
sales representative, please have the following information ready before
calling:
– Product name and serial number
– Detailed information of the peripheral devices
– Detailed information of the installed software (operating system,
version, application software, etc.)
– A complete description of the problem
– The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with
care.
2. Maintenance: to keep the unit clean, use only approved cleaning
products or clean with a dry cloth.
3. CompactFlash: Turn o the unit’s power before inserting or removing a
CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not
observed, can cause personal injury. This will prevent injury to
yourself when performing a task.
Caution: Information to avoid damaging components or losing
data.
Note: Provides additional information to complete a task easily.
Battery - Safety Measures
Caution
• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
Safety Warning
This equipment is intended for installation in a Restricted Access
Location only.
Note: Remember to reset the date and time upon receiving the
product. You can set them in the AMI BIOS. Refer to chapter 4
for more information.
Resetting the Date and Time
1
Chapter 1: Product Introduction
ChaPter 1: ProduCt IntroduCtIon
Overview
Key Features
• High performance processor with Intel
®
Core™ i7 3517UE/ i5 3610ME
• Fanless and rugged design
• Support ignition signal for delay-time control
• Support software base RAID 0/ 1/ 5/ 10
• Isolation RS-232 / 422/ 485 / GPIO
• Four Removable 2.5” SSD tray
• DC power input with isolated protection
• Support 8 channels POE with IEEE802.3af for optional
• Support one PCI express by 8 expansion slot for optional
• Certied by EN50155 with TX grade temperature standard (SSD only)
2
Chapter 1: Product Introduction
NRM310 series is targeted for the rolling stock market with special design
scheme to meet the criteria of installation in the vehicle on the rolling stock.
They pass numerous environmental tests and are compliant EN50155
standard. Rapid transit system, metropolitan rail, commuter rail, high speed
rail, tram, and train will make the best use of nROK.
NRM310 series also oer the powerful computing platform with rack mount
form factor to install in the cabinet. It is packed with the eight PoE LAN ports
and multiple storage bays with SATA interface and RAID capability for large
media program. I/O connections are securely xed with locks, averting system
breakdown caused by loose ends. Wireless communication design is reserved
to supports GPS function and WiFi and WWAN connection.
3
Chapter 1: Product Introduction
Hardware Specications
CPU
• Intel
®
Core™ i7 3517UE 1.7GHz
• Intel
®
Core™ i5 3610ME 2.7GHz
Main Chipset
• Intel
®
QM77 chipsets
Memory
• 2GB DDR3 1333MHz SODIMM with ECC (up to 16GB)
Expansion
• 2x Mini-PCIe socket (PCIe + USB) for WLAN option
• 1x Mini-PCIe socket (USB) for 3.5G module option
• 1x GPS or GPS with dead reckoning option
I/O Interfaces - Front
• 7x LED for power, storage, WWAN, WLAN, GPS, LAN1 and LAN2
• Power on/ o switch
• 2x 10/ 100/ 1000 Ethernet with M12 connector and support iAMT8.0
• 8x 10/100/1000 PoE LAN (PoE optional) with M12 connector and support
IEEE802.3af
• 2x USB 3.0 type A connector
• 1x USB 2.0 with M12 connector
• 1x DB15 VGA connector
• 2x HDMI connector
• 2x DB9 RS-232 connector
• 1x DB9 RS-422/ 485 connector
• 1x DB9 female connector for GPI / GPO connector
Digital Input (source type: 0~30V)
Digital Output (sink type: 20mA max)
• 1x Line-in, 1x Line-out, 1x Mic-in
I/O Interfaces - Rear
• Power DC input
• 5x Antenna holes for WWAN/ WLAN/ GPS/ BT
Expandable Storage
• 4x 2.5” SATA SSD removable tray
Power Management
• Selectable boot-up & shut-down voltage for low power protection by
software
• Congurable, 8-level on/o delay time by software
• Status of ignition and low voltage status can be detected by software
System Management
• Watchdog timeout can be programmable by Software from 1 second to
255 seconds
• Tolerance 15% under room temperature 25°C
Operating System
• Windows 7 professional for embedded, Windows XP professional for
embedded
• WES 7P, WES 2009, Linux (kernel 2.6.X ) whether it support RAID function
4
Chapter 1: Product Introduction
System Dimensions
• 482.6mm (W) x 400mm (D) x 88mm (H) (19” x 15.75” x 3.46”)
Construction
• Sheet metal with heat sink
Environment
• Operating temperatures
Ambient with air: -40°C to 70°C (EN50155 Class TX)
• Storage temperatures: -40°C to 80°C
• Damp heat test: 55°C, 95% RH (non-operating, EN 50155)
• Relative humidity: 0% to 90% (non-condensing)
• Vibration (random):
Compliance with EN61373 Category 1 Class B
• Shock:
Compliance with EN61373 Category 1 Class B
Standards/ Certications
• CE
• FCC Class A
• Compliance with EN50155
5
Chapter 1: Product Introduction
Getting to Know NRM310
PoE LAN
LEDs
USB3.0
Mic
Line-out
Removable SSD Tray
Line-in
RS232USB2.0
HDMI GPIO
RS485/422
PWR switch LAN VGA
LAN 1-2 / PoE LAN 1-8 Connectors
Pin Denition Pin Denition
1 LAN1_MDI_1N 2 LAN1_MDI_1P
3 LAN1_MDI_2N 4 LAN1_MDI_3P
5 LAN1_MDI_3N 6 LAN1_MDI_2P
7 LAN1_MDI_4N 8 LAN1_MDI_4P
Front Panel
Connector pin denition
6
Chapter 1: Product Introduction
USB 2.0 Connector
Pin Denition Pin Denition
1 USB_D- 2 USB_D+
3 USB_VCC 4 USB_GND
5 USB_D- 6 USB_D+
7 USB_VCC 8 USB_GND
RS232 and RS485/422 Connectors
Pin Denition Pin Denition
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 NC
1 5
6 9
Connector pin denition Connector pin denition
RS232
RS485
Pin Denition Pin Denition
1 RS422_RX+ / RS485_+ 2 RS422_RX- / RS485_-
3 RS422_TX+ 4 RS422_TX-
5 GND 6 NC
7 NC 8 NC
9 NC 10 NC
7
Chapter 1: Product Introduction
Pin Denition Pin Denition
1 INPUT_1 PORT 2 INPUT_2 PORT
3 INPUT_3 PORT 4 INPUT_4 PORT
5 GND 6 OUTPUT_1 PORT
7 OUTPUT_2 PORT / 8 OUTPUT_3 PORT
9 OUTPUT_4 PORT 10 NC
1 5
6 9
GPIO Connector
Connector pin denition Connector pin denition
VGA
Pin Denition Pin Denition
1 RED 2 GREEN
3 BLUE 4 Gnd
5 Gnd 6 Gnd
7 Gnd 8 Gnd
9 VCC 10 Gnd
11 Gnd 12 DDCDAT
13 Hsync 14 Vsync
15 DDCCLK 16 OPEN
8
Chapter 1: Product Introduction

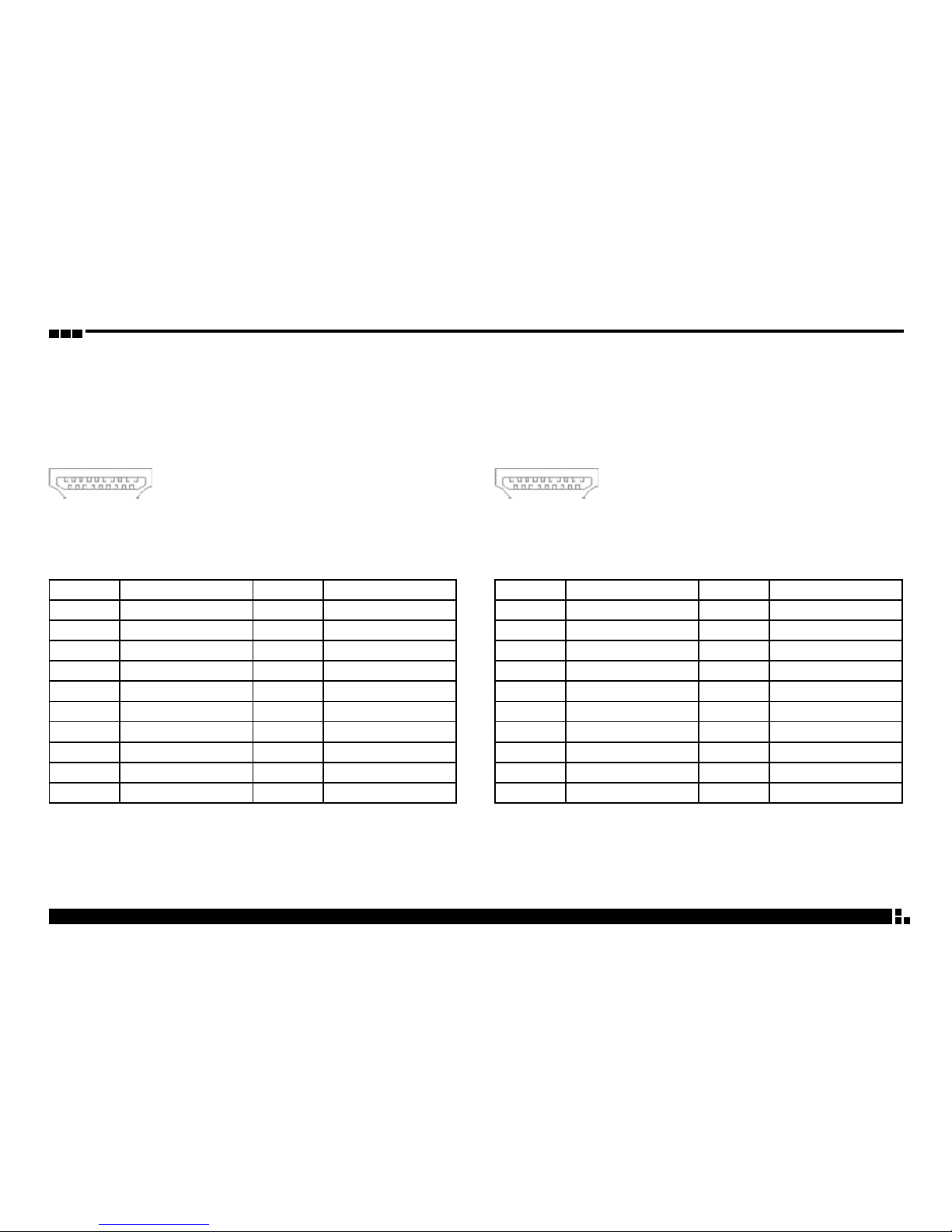

HDMI
Pin Denition Pin Denition
1 HDMI1_DATA2-P 2 GND
3 HDMI1_DATA2-N 4 HDMI1_DATA1-P
5 GND 6 HDMI1_DATA1-N
7 HDMI1_DATA0-P 8 GND
9 HDMI1_DATA0-N 10 HDMI1_CLK-P
11 GND 12 HDMI1_CLK-N
13 NC 14 NC
15 HDMI1_DDC_SCL 16 HDMI1_DDC_SDA
17 GND 18 VCC5
19 HDMI1_HPD_R
18
19
2
1
4
13
5
14
9
18
1
10
USB 3.0
Pin Denition Pin Denition
1 VCC 2 USB0-
3 USB0+ 4 GND
5 USB3_RX0- 6 USB3_RX0+
7 GND 8 USB3_TX0-
9 USB3_TX0+ 10 VCC
11 USB1- 12 USB1+
13 GND 14 USB3_RX1-
15 USB3_RX1+ 16 GND
17 USB3_TX1- 18 USB3_TX1+
Connector pin denition Connector pin denition
9
Chapter 1: Product Introduction
Getting to Know NRM310
Rear Panel
GPS
WWAN/
WLAN
WWA N BTWLAN
DC Input
24V/110V
DC Input 24V/110V (Circle Type Connector)
GPS/WWAN/WLAN/BT Module Antenna Mounting Hole
The antenna mounting holes are used to mount and connect antennas to
the GPS/WWAN/WLAN/BT module.
Pin Denition Pin Denition
1 VCC 2 VCC
3 V- 4 V-
5 Ignition V- 6 Ground
7 Ignition 8
10
Chapter 1: Product Introduction
Mechanical Dimensions
11
Chapter 2: Jumpers and Connectors
ChaPter 2: JumPers and ConneCtors
This chapter describes how to set the jumpers on the motherboard. Note that
the following procedures are generic for all NRM310 series.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep
small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
• A Philips screwdriver
• A at-tipped screwdriver
• A set of jewelers Screwdrivers
• A grounding strap
• An anti-static pad
▪ Using your ngers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect
connections as these can damage the soft metal or plastic parts of the
connectors.
▪ Before working on internal components, make sure that the power is o.
Ground yourself before touching any internal components, by touching
a metal object. Static electricity can damage many of the electronic
components. Humid environment tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of
static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by
discharges of static electricity. Working on the computers that are still
connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching
the bare metal chassis of the unit case, or the bare metal body of any
other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t ex or
stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
12
Chapter 2: Jumpers and Connectors
Jumper
A jumper is the simplest kind of electric switch. It consists of two metal
pins and a cap. When setting the jumpers, ensure that the jumper caps are
placed on the correct pins. When the jumper cap is placed on both pins, the
jumper is short. If you remove the jumper cap, or place the jumper cap on
just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin
jumpers look like when they are short (on) and open (o).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
13
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors
T h e
Top
14
Chapter 2: Jumpers and Connectors
Bottom View
15
Chapter 2: Jumpers and Connectors
Jumper Settings
(*) for default setting
Voltage Setup Selection (SW3)
Start-up Mode / Pre-Heater Control (SW2)
ON(*) OFF
SW3.1 GPI0 PULL UP 5V Don’t Care
SW3.2 GPI1 PULL UP 5V Don’t Care
SW3.3 GPI2 PULL UP 5V Don’t Care
SW3.4 GPI3 PULL UP 5V Don’t Care
ON OFF
SW2.1 Start up by PW Start up by Ignition(*)
SW2.2 Pre-Heater on Pre-Heater o
ON(*) OFF
SW3.5 GPO0 PULL UP 5V Don’t Care
SW3.6 GPO1 PULL UP 5V Don’t Care
SW3.7 GPO2 PULL UP 5V Don’t Care
SW3.8 GPO3 PULL UP 5V Don’t Care
PCI-104 VI/O Voltage Setting (JP4)
CMOS Input Voltage Select (SW1, JP5)
Pin No. Status Function Description
(1-3)(2-4) (*) Short +3.3V
(3-5)(4-6) Short +5V
Pin No. Status Function Description
1-2(*) Short* VBAT IN
2-3 Short Clear CMOS
Pin No. Status Function Description
1-2(*) Short* VBAT IN
2-3 Short Clear CMOS
16
Chapter 2: Jumpers and Connectors
Row A Row B Row A Row B
A1 GND B1 GND A56 PCIE_TX4- B56 PCIE_RX4A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 GPO3
A3 GBE0_MDI3+ B3 LPC_FRAME# A58 PCIE_TX3+ B58 PCIE_RX3+
A4 GBE0_LINK100# B4 LPC_AD0 A59 PCIE_TX3- B59 PCIE_RX3A5 GBE0_LINK1000# B5 LPC_AD1 A60 GND B60 GND
A6 GBE0_MDI2- B6 LPC_AD2 A61 PCIE_TX2+ B61 PCIE_RX2+
A7 GBE0_MDI2+ B7 LPC_AD3 A62 PCIE_TX2- B62 PCIE_RX2A8 GBE0_LINK# B8 LPC_DRQ0# A63 GPI1 B63 GPO3
A9 GBE0_MDI1- B9 LPC_DRQ1# A64 PCIE_TX1+ B64 PCIE_RX1+
A10 GBE0_MDI1+ B10 LPC_CLK A65 PCIE_TX1- B65 PCIE_RX1A11 GND B11 GND A66 GND B66 WAKE0#
A12 GBE0_MDI0- B12 PWRBTN# A67 GPI2 B67 WAKE1#
A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+
Com Express A&B Connector
Connectors
High speed board-to-board connector: COM Express Row A and Row B
A. Connector size: 2 x 110 = 220 pin-header
B. Connector location: J9A
Connector pin denition
17
Chapter 2: Jumpers and Connectors
Row A Row B Row A Row B
A14 GBE0_CTREF B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0A15 SUS_S3# B15 SMB_ALERT# A70 GND B70 GND
A16 SATA0_TX+ B16 SATA1_TX+ A71 LVDS_A0+ B71 LVDS_B0+
A17 SATA0_TX- B17 SATA1_TX- A72 LVDS_A0- B72 LVDS_B0A18 SUS_S4# B18 SUS_STAT# A73 LVDS_A1+ B73 LVDS_B1+
A19 SATA0_RX+ B19 SATA1_RX+ A74 LVDS_A1- B74 LVDS_B1A20 SATA0_RX- B20 SATA1_RX- A75 LVDS_A2+ B75 LVDS_B2+
A21 GND B21 GND A76 LVDS_A2- B76 LVDS_B2A22 SATA2_TX+ B22 SATA3_TX+ A77 LVDS_VDD_EN B77 LVDS_B3+
A23 SATA2_TX- B23 SATA3_TX- A78 LVDS_A3+ B78 LVDS_B3A24 SUS_S5# B24 PWR_OK A79 LVDS_A3- B79 LVDS_BKLT_EN
A25 SATA2_RX+ B25 SATA3_RX+ A80 GND B80 GND
A26 SATA2_RX- B26 SATA3_RX- A81 LVDS_ACK+ B81 LVSD_B_CLK+
A27 BATLOW# B27 WDT A82 LVDS_ACK- B82 LVSD_B_CLK+
A28 ATA_ACT# B28 HDA_SDIN2 A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL
A29 HDA_SYNC B29 HDA_SDIN1 A84 LVDS_I2C_DAT B84 VCC_5V_SBY
A30 HDA_RST# B30 HDA_SDIN0 A85 GPI3 B85 VCC_5V_SBY
A31 GND B31 GND A86 NC B86 VCC_5V_SBY
A32 HDA_BITCLK B32 SPKR A87 NC B87 VCC_5V_SBY
A33 HDA_SDOUT B33 I2C_CK A88 PCIE0_CK_REF+ B88 BIOS_DISABLE1#
A34 BIOS_DISABLE0# B34 I2C_DAT A89 PCIE0_CK_REF- B89 VGA_RED
A35 THRMTRIP# B35 THRM# A90 GND B90 GND
A36 USB6- B36 USB7- A91 SPI_POWER B91 VGA_GRN
A37 USB6+ B37 USB7+ A92 SPI_MISO B92 VGA_BLU
A38 USB_67_OC# B38 USB_4_5_OC# A93 GPO0 B93 VGA_HSYNC
A39 USB4- B39 USB5- A94 SPI_CLK B94 VGA_VSYNC
A40 USB4+ B40 USB5+ A95 SPI_MOSI B95 VGA_I2CCLK
A41 GND B41 GND A96 TPM_PP B96 VGA_I2CDAT
18
Chapter 2: Jumpers and Connectors
Row A Row B Row A Row B
A42 USB2- B42 USB3- A97 TYPE10# B97 SPI_CS#
A43 USB2+ B43 USB3+ A98 SER0_TX B98 RSVD
A44 USB_23_OC# B44 USB_0_1_OC# A99 SER0_RX B99 RSVD
A45 USB0- B45 USB1- A100 GND B100 GND
A46 USB0+ B46 USB1+ A101 SER1_TX B101 FAN_PWMOUT
A47 VCC_RTC B47 EXCD1_PERST# A102 SER1_RX B102 FAN_TACHIN
A48 EXCD0_CPPE# B48 EXCD1_CPPE# A103 LID# B103 SLEEP#
A49 ECCD0CPPE# B49 SYS_RESET# A104 VCC_12V B104 VCC_12V
A50 ECCD0CPPE# B50 CB_RESET# A105 VCC_12V B105 VCC_12V
A51 GND B51 GND A106 VCC_12V B106 VCC_12V
A52 PCIE_TX5+ B52 PCIE_RX5+ A107 VCC_12V B107 VCC_12V
A53 PCIE_TX5- B53 PCIE_RX5- A108 VCC_12V B108 VCC_12V
A54 GPIO0 B54 GPIO1 A109 VCC_12V B109 VCC_12V
A55 PCIE_TX4+ B55 PCIE_RX4+ A110 GND B110 GND
19
Chapter 2: Jumpers and Connectors
Row C Row D Row C Row D
C1 GND D1 GND C56 PEG_RX1- D56 PEG_TX1+
C2 GND D2 GND C57 TYPE1# D57 TYPE2#
C3 USB_SSRX0- D3 USB_SSTX0- C58 PEG_RX2+ D58 PEG_TX2+
C4 USB_SSRX0+ D4 USB_SSTX0+ C59 PEG_RX2- D59 PEG_TX2-
C5 GND D5 GND C60 GND D60 GND
C6 USB_SSRX1- D6 USB_SSTX1 C61 PEG_RX3+ D61 PEG_TX3+
C7 USB_SSRX1+ D7 USB_SSTX1+ C62 PEG_RX3- D62 PEG_TX3-
C8 GND D8 GND C63 RSVD D63 RSVD
C9 USB_SSRX2- D9 USB_SSTX2- C64 RSVD D64 RSVD
C10 USB_SSRX2+ D10 USB_SSTX2+ C65 PEG_RX4+ D65 PEG_TX4+
C11 GND D11 GND C66 PEG_RX4- D66 PEG_TX4C12 USB_SSRX3- D12 USB_SSTX3- C67 RSVD D67 GND
C13 USB_SSRX3+ D13 USB_SSTX3+ C68 PEG_RX5+ D68 PEG_TX5+
Com Express C&D Connector
High speed board-to-board connector: COM Express Row C and Row D
A. Connector size: 2 x 110 = 220 pin-header
B. Connector location: J9B
Connector pin denition
20
Chapter 2: Jumpers and Connectors
Row C Row D Row C Row D
C14 GND D14 GND C69 PEG_RX5- D69 PEG_TX5C15 DDI1_PAIR6+ D15 DDI1_CTRLCLK C70 GND D70 GND
C16 DDI1_PAIR6- D16 DDI1_CTRLDATA C71 PEG_RX6+ D71 PEG_TX6+
C17 RSVD D17 RSVD C72 PEG_RX6- D72 PEG_TX6C18 RSVD D18 RSVD C73 GND D73 GND
C19 PCIE_RX6+ D19 PCIE_RX6+ C74 PEG_RX7+ D74 PEG_TX7+
C20 PCIE_RX6- D20 PCIE_RX6- C75 PEG_RX7- D75 PEG_TX7C21 GND D21 GND C76 GND D76 GND
C22 PCIE_RX7+ D22 PCIE_RX7+ C77 RSVD D77 RSVD
C23 PCIE_RX7- D23 PCIE_RX7- C78 PEG_RX8+ D78 PEG_TX8+
C24 DDI1_HPD D24 RSVD C79 PEG_RX8- D79 PEG_TX8C25 DDI1_PAIR4+ D25 RSVD C80 GND D80 GND
C26 DDI1_PAIR4- D26 DDI1_PAIR0+ C81 PEG_RX9+ D81 PEG_TX9+
C27 RSVD D27 DDI1_PAIR0- C82 PEG_RX9- D82 PEG_TX9C28 RSVD D28 RSVD C83 RSVD D83 RSVD
C29 DDI1_PAIR5+ D29 DDI1_PAIR1+ C84 GND D84 GND
C30 DDI1_PAIR5- D30 DDI1_PAIR1- C85 PEG_RX10+ D85 PEG_TX10+
C31 GND D31 GND C86 PEG_RX10- D86 PEG_TX10C32 DDI2_CTRL_CLK D32 DDI1_PAIR2+ C87 GND D87 GND
C33 DDI2_CTRL_DATA D33 DDI1_PAIR2- C88 PEG_RX11+ D88 PEG_TX11+
C34 DDI2_DDC_AUX D34 DDI1_DDC_AUX C89 PEG_RX11- D89 PEG_TX11C35 RSVD D35 RSVD C90 GND D90 GND
C36 DDI3_CTRL_DATA D36 DDI1_PAIR3+ C91 PEG_RX12+ D91 PEG_TX12+
C37 DDI3_DDC_AUX D37 DDI1_PAIR3- C92 PEG_RX12- D92 PEG_TX12C38 DDI3_DDC_AUX D38 RSVD C93 GND D93 GND
C39 DDI3_PAIR0+ D39 DDI2_PAIR0+ C94 PEG_RX13+ D94 PEG_TX13+
C40 DDI3_PAIR0- D40 DDI2_PAIR0- C95 PEG_RX13- D95 PEG_TX13C41 GND D41 GND C96 GND D96 GND
21
Chapter 2: Jumpers and Connectors
Row C Row D Row C Row D
C42 DDI3_PAIR1+ D42 DDI2_PAIR1+ C97 RSVD D97 RSVD
C43 DDI3_PAIR1- D43 DDI2_PAIR1- C98 PEG_RX14+ D98 PEG_TX14+
C44 DDI3_HPD D44 DDI2_HPD C99 PEG_RX14- D99 PEG_TX14C45 RSVD D45 RSVD C100 GND D100 GND
C46 DDI3_PAIR2+ D46 DDI2_PAIR2+ C101 PEG_RX15+ D101 PEG_TX15+
C47 DDI3_PAIR2- D47 DDI2_PAIR2- C102 PEG_RX15- D102 PEG_TX15C48 RSVD D48 RSVD C103 GND D103 GND
C49 DDI3_PAIR3+ D49 DDI2_PAIR3+ C104 VCC_12V D104 VCC_12V
C50 DDI3_PAIR3- D50 DDI2_PAIR3- C105 VCC_12V D105 VCC_12V
C51 GND D51 GND C106 VCC_12V D106 VCC_12V
C52 PEG_RX0+ D52 PEG_TX0+ C107 VCC_12V D107 VCC_12V
C53 PEG_RX0- D53 PEG_TX0- C108 VCC_12V D108 VCC_12V
C54 TYPE0# D54 PEG_LANE_RV# C109 VCC_12V D109 VCC_12V
C55 PEG_RX1+ D55 PEG_TX1+ C110 GND D110 GND
22
Chapter 2: Jumpers and Connectors
PCIe x16 (CN12)
A. Connector size: PCI-E slot 164 pin
B. Connector location:
Row A Row B Row A Row B
A1 PRSNT1# B1 VCC12 A44 PERn6 B44 GND
A2 VCC12 B2 VCC12 A45 GND B45 PETp7
A3 VCC12 B3 CC12 A46 GND B46 PETn7
A4 GND B4 GND A47 PERp7 B47 GND
A5 TCK B5 SMCLK A48 PERn7 B48 PRSNT2#_3
A6 TDI B6 SMDAT A49 GND B49 GND
A7 TDO B7 GND A50 RSVD B50 PETp8
A8 TMS B8 VCC3 A51 GND B51 PETn8
A9 VCC3 B9 TRST# A52 PERp8 B52 GND
A10 VCC3 B10 3VSB A53 PERn8 B53 GND
A11 PERST# B11 WAKE# A54 GND B54 PETp9
A12 GND B12 VCC12 A55 GND B55 PETn9
A13 REFCLK+ B13 GND A56 PERp9 B56 GND
A14 REFCLK- B14 PETp0 A57 PERn9 B57 GND
A15 GND B15 PETn0 A58 GND B58 PETp10
A16 PERp0 B16 GND A59 GND B59 PETn10
A17 PERn0 B17 PRSNT2#_1 A60 PERp10 B60 GND
A18 GND B18 GND A61 PERn10 B61 GND
A19 VCC12 B19 PETp1 A62 GND B62 PETp11
A20 GND B20 PETn1 A63 GND B63 PETn11
Connector pin denition
23
Chapter 2: Jumpers and Connectors
Row A Row B Row A Row B
A21 PERp1 B21 GND A64 PERp11 B64 GND
A22 PERn1 B22 GND A65 PERn11 B65 GND
A23 GND B23 PETp2 A66 GND B66 PETp12
A24 GND B24 PETn2 A67 GND B67 PETn12
A25 PERp2 B25 GND A68 PERp12 B68 GND
A26 PERn2 B26 GND A69 PERn12 B69 GND
A27 GND B27 PETp3 A70 GND B70 PETp13
A28 GND B28 PETn3 A71 GND B71 PETn13
A29 PERp3 B29 GND A72 PERp13 B72 GND
A30 PERn3 B30 RSVD A74 GND B74 PETp14
A31 GND B31 PRSNT2#_2 A75 GND B75 PETn14
A32 VCC12 B32 GND A76 PERp14 B76 GND
A33 VCC12 B33 PETp4 A77 PERn14 B77 GND
A34 GND B34 PETn4 A78 GND B78 PETp15
A35 PERp4 B35 GND A79 GND B79 PETn15
A36 PERn4 B36 GND A80 PERp15 B80 GND
A37 GND B37 PETp5 A81 PERn15 B81 PCIE_CLK4P
A38 GND B38 PETn5 A82 GND B82 PCIE_CLK4N
A39 PERp5 B39 GND
A40 PERn5 B40 GND
A41 GND B41 PETp6
A42 GND B42 PETn6
A43 PERp6 B43 GND
24
Chapter 2: Jumpers and Connectors
PCI-104 Connector (CN7)
Connector location:
Pin A B C D
1 GND Reserved +5 AD00
2 VI/O AD02 AD01 +5V
3 AD05 GND AD04 AD03
4 C/BE0# AD07 GND AD06
5 GND AD09 AD08 GND
6 AD11 VI/O AD10 M66EN
7 AD14 AD13 GND AD12
8 +3.3V C/BE1# AD15 +3.3V
9 SERR# GND Reserved PA R
10 GND PERR# +3.3V Reserved
11 STOP# +3.3V LOCK# GND
12 +3.3V TRDY# GND DEV SEL#
13 FRAME# GND IRDY# +3.3V
14 GND AD16 +3.3V C/BE2#
15 AD18 +3.3V AD17 GND
Connector pin denition
Pin A B C D
16 AD21 AD20 GND AD19
17 +3.3V AD23 AD22 +3.3V
18 IDSEL0 GND IDSEL1 IDSEL2
19 AD24 C/BE3# VI/O IDSEL3
20 GND AD26 AD25 GND
21 AD29 +5V AD28 AD27
22 +5V AD30 GND AD31
23 REQ0# GND REQ1# VI/O
24 GND REQ2# +5V GNT0#
25 GNT1# VI/O GNT2# GND
26 +5V CLK0 GND CLK1
27 CLK2 +5V CLK3 GND
28 GND INTD# +5V RST#
29 +12V INTA# INTB# INTC#
30 -12V REQ3# GNT3# GND
25
Chapter 2: Jumpers and Connectors
Main board LED Indicator Connector (CN6, CN24)
A. Connector size: 2 x 7 = 14-pin header, (2.0mm pitch)
B. Connector location:
RS422/485 Connector (CN19)
A. Connector size: 2 x 5 = 10-pin header, (2.0mm pitch)
B. Connector location:
Pin Denition Pin Denition
1 SATA_ACT# 2 3.5G_LED#
3 GPS_LED# 4 LED_WLAN1#
5 LAN0_LED_ACT# 6 LAN_LED_ACT#
7 PreHeaterEnLED 8 PB
9 RST_L_Z 10 +V3.3ALW
11 GND 12 VCC5
13 GND 14 VCC3
Pin Denition Pin Denition
1 RS422_RX+/RS485_+ 2 RS422_RX-/RS485_-
3 RS422_TX+ 4 RS422_TX-
5 GND 6 NC
7 NC 8 NC
9 NC 10 NC
Connector pin denition Connector pin denition
26
Chapter 2: Jumpers and Connectors
RS232 Connector (CN22, CN23)
A. Connector size: 2 x 5 = 10-pin header, (2.0mm pitch)
B. Connector location:
RS232 Connector (CN21)
A. Connector size: 2 x 5 = 10-pin header, (2.0mm pitch)
B. Connector location:
Pin Denition Pin Denition
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 NC
Pin Denition Pin Denition
1 TX6 2 RX6
3 TX7 4 RX7
5 GND 6 TX8
7 RX8 8 TX9
9 RX9 10 NC
Connector pin denition Connector pin denition
27
Chapter 2: Jumpers and Connectors
GPIO Connector (CN20)
A. Connector size: 2 x 5 = 10-pin header, (2.0mm pitch)
B. Connector location:
LAN Connector (a. J11, J14 / b. J12, J15 / c. J7, J8)
A. Connector size: JST-1x4-180-2.5mm-MALE+JST-1x4-180-2.0mm-MALE
B. Connector location:
Pin Denition Pin Denition
1 INPUT_1 PORT 2 INPUT_2 PORT
3 INPUT_3 PORT 4 INPUT_4 PORT
5 GND 6 OUTPUT_1 PORT
7 OUTPUT_2 PORT / 8 OUTPUT_3 PORT
9 OUTPUT_4 PORT 10 NC
Pin Denition Pin Denition
1 LAN_MDI_0P_R 2 LAN_MDI_0N_R
3 LAN_MDI_1P_R 4 LAN_MDI_1N_R
Pin Denition Pin Denition
1 LAN_MDI_2P_R 2 LAN_MDI_2N_R
3 LAN_MDI_3P_R 4 LAN_MDI_3N_R
Connector pin denition Connector pin denition
a. 2.5mm MALE
b. 2mm MALE
28
Chapter 2: Jumpers and Connectors
LAN Connector (CN17)
A. Connector size: RJ-45
B. Connector location:
VGA Connector (CN29)
A. Connector size: DB15
B. Connector location:
Pin Denition Pin Denition
1 LAN1_MDI_1N 2 LAN1_MDI_1P
3 LAN1_MDI_2N 4 LAN1_MDI_2P
5 LAN1_MDI_3N 6 LAN1_MDI_3P
7 LAN1_MDI_4N 8 LAN1_MDI_4P
Pin Denition Pin Denition
1 RED 2 GREEN
3 BLUE 4 Gnd
5 Gnd 6 Gnd
7 Gnd 8 Gnd
9 VCC 10 Gnd
11 Gnd 12 DDCDAT
13 Hsync 14 Vsync
15 DDCCLK 16 OPEN
Connector pin denition Connector pin denition
29
Chapter 2: Jumpers and Connectors
18 18
19 19
2 2
1 1
HDMI Connector 1 (CN27)
Connector location:
HDMI Connector 2 (CN28)
Connector location:
Pin Denition Pin Denition
1 HDMI1_DATA2-P 2 GND
3 HDMI1_DATA2-N 4 HDMI1_DATA1-P
5 GND 6 HDMI1_DATA1-N
7 HDMI1_DATA0-P 8 GND
9 HDMI1_DATA0-N 10 HDMI1_CLK-P
11 GND 12 HDMI1_CLK-N
13 NC 14 NC
15 HDMI1_DDC_SCL 16 HDMI1_DDC_SDA
17 GND 18 VCC5
19 HDMI1_HPD_R
Pin Denition Pin Denition
1 HDMI2_DATA2-P 2 GND
3 HDMI2_DATA2-N 4 HDMI2_DATA1-P
5 GND 6 HDMI2_DATA1-N
7 HDMI2_DATA0-P 8 GND
9 HDMI2_DATA0-N 10 HDMI2_CLK-P
11 GND 12 HDMI2_CLK-N
13 NC 14 NC
15 HDMI2_DDC_SCL 16 HDMI2_DDC_SDA
17 GND 18 VCC5
19 HDMI2_HPD_R
Connector pin denition Connector pin denition
30
Chapter 2: Jumpers and Connectors
MCU Programmer Pin Header (JP2)
A. Connector size: 1 x 5 = 5-pin header
B. Connector location:
Pin Denition Pin Denition
1 +3.3ALW 2 C2D
3 MRST 4 C2CK
5 GND
Connector pin denition
GAL Programmer Pin Header (JP1)
A. Connector size: 1 x 6 = 6-pin header
B. Connector location:
Pin Denition Pin Denition
1 VCC3 2 GND
3 TCK 4 TDO
5 TDI 6 TMS
Connector pin denition
31
Chapter 2: Jumpers and Connectors
MCU COM Port (JP3)
A. Connector size: 1 x 3 = 3-pin header
B. Connector location:
Serial-ATA Power Input (CN9, CN11, CN14, CN16)
A. Connector size: 1 x 4 = 4-pin header
B. Connector location:
Pin Denition
1 TX
2 RX
3 GND
Connector pin denition
Pin Denition Pin Denition
1 VCC12 2 GND
3 GND 4 VCC5
Connector pin denition
32
Chapter 2: Jumpers and Connectors
Serial-ATA 2.0 (CN13, CN15)
A. Connector size: 1 x 7 = 7-pin SATA connector
B. Connector location:
Serial-ATA 3.0 (CN8, CN10)
A. Connector size: 1 x 7 = 7-pin SATA connector
B. Connector location:
Pin Denition Pin Denition
1 GND 2 SATA_TXP0 -
3 SATA_TXN0 4 GND
5 SATA_RXN0 6 SATA_RXP0
7 GND
Pin Denition Pin Denition
1 GND 2 SATA_TXP0 -
3 SATA_TXN0 4 GND
5 SATA_RXN0 6 SATA_RXP0
7 GND
Connector pin denition Connector pin denition
1 17 7
33
Chapter 2: Jumpers and Connectors
USB connector (J13, J16)
A. Connector size: JST-1x4-180-2.5mm-MALE+JST-1x4-180-2.0mm-MALE
B. Connector location:
Pin Denition Pin Denition
1 USB6- 2 USB6+
3 VCC5 4 Ground
Pin Denition Pin Denition
1 USB7- 2 USB7+
3 VCC5 4 Ground
Connector pin denition
a. 2.5mm MALE
b. 2mm MALE
Pre-Heater Sensor Connector (J6)
A. Connector size: 1 x 3 = 3-pin header
B. Connector location:
Pin Denition
1 3.3V
2 MCU ADC1
Connector pin denition
1
2
34
Chapter 2: Jumpers and Connectors
4
13
5
14
9
18
1
10
USB Connectors (CN25)
Connector location:
Connector pin denition
Pin Denition Pin Denition
1 VCC 2 USB0-
3 USB0+ 4 GND
5 USB3_RX0- 6 USB3_RX0+
7 GND 8 USB3_TX0-
9 USB3_TX0+ 10 VCC
11 USB1- 12 USB1+
13 GND 14 USB3_RX1-
15 USB3_RX1+ 16 GND
17 USB3_TX1- 18 USB3_TX1+
35
Chapter 2: Jumpers and Connectors
Mini-PCIe (WLAN1) (CN4)
Connector location:
Connector pin denition
Pin Denition Pin Denition
1 WAKE# 2 +V3.3S
3 NC 4 GND
5 NC 6 +V1.5S
7 CLKREQ# 8 NC
9 GND 10 NC
11 REFCLK- 12 NC
13 REFCLK+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 DISABLE#
21 GND 22 PERST#
23 PERn0 24 +3.3S
25 PERp0 26 GND
Pin Denition Pin Denition
27 GND 28 +V1.5S
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D-
37 NC 38 USB_D+
39 NC 40 GND
41 NC 42 LED_WWAN#
43 NC 44 LED_WLAN#
45 NC 46 LED_WPAN#
47 NC 48 +V1.5S
49 NC 50 GND
51 NC 52 +V3.3S
36
Chapter 2: Jumpers and Connectors
Mini-PCIe (WLAN2) (CN5)
Connector location:
Connector pin denition
Pin Denition Pin Denition
1 WAKE# 2 +V3.3S
3 NC 4 GND
5 NC 6 +V1.5S
7 CLKREQ# 8 USIM PWR
9 GND 10 USIM DATA
11 REFCLK- 12 USIM CLK
13 REFCLK+ 14 USIM RST
15 GND 16 NC
17 NC 18 GND
19 NC 20 DISABLE#
21 GND 22 PERST#
23 PERn0 24 +3.3S
25 PERp0 26 GND
Pin Denition Pin Denition
27 GND 28 +V1.5S
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D-
37 NC 38 USB_D+
39 NC 40 GND
41 NC 42 LED_WWAN#
43 NC 44 LED_WLAN#
45 NC 46 LED_WPAN#
47 NC 48 +V1.5S
49 NC 50 GND
51 NC 52 +V3.3S
37
Chapter 2: Jumpers and Connectors
Mini-PCIe (WWAN) (CN3)
Connector location:
Connector pin denition
Pin Denition Pin Denition
1 MIC + 2 +V3.3S
3 MIC - 4 GND
5 SPK + 6 NC
7 GND 8 USIM PWR
9 GND 10 USIM DATA
11 VCC_MSM26_DIG 12 USIM CLK
13 NC 14 USIM RST
15 GND 16 NC
17 NC 18 GND
19 NC 20 W_DISABLE#
21 GND 22 NC
23 NC 24 NC
25 NC 26 GND
Pin Denition Pin Denition
27 GND 28 NC
29 GND 30 NC
31 NC 32 NC
33 RESET 34 GND
35 GND 36 USB_D-
37 GND 38 USB_D+
39 +V3.3S 40 GND
41 +V3.3S 42 LED_WWAN#
43 GND 44 NC
45 NC 46 NC
47 NC 48 NC
49 NC 50 GND
51 NC 52 +V3.3S
38
Chapter 2: Jumpers and Connectors
Antenna Switch Connector (J2)
A. Connector size: JST-1x4-180-1mm-MALE
B. Connector location:
SIM CARD Connector For WLAN (CN1, CN2)
SIM (CN1) is for Mini-PCIe (CN3)
SIM (CN2) is for Mini-PCIe (CN4)
Connector location:
Connector pin denition
Connector pin denition
Pin Denition Pin Denition
1 VCC3 2 RF_BYPASS1
3 RF_BYPASS2 4 GND
Pin Denition Pin Denition
C1 Power Voltage C2 Reset Signal
C3 Clock Signal C5 GND
C6 VPP:Program Voltage C7 I/O
39
Chapter 2: Jumpers and Connectors
Power Input (CN18)
A. Connector size: 2 x 12 = 24-pin header
B. Connector location:
Connector pin denition
Pin Denition Pin Denition
1 GND 13 PSE 12V
2 GND 14 PSE 12V
3 GND 15 PSE 12V
4 GND 16 PSE 12V
5 GND 17 12V
6 GND 18 12V
7 GND 19 12V
8 GND 20 12V
9 GND 21 12V
10 GND 22 12V
11 GND 23 12V
12 AGND 24 IGNITION
1
1324
12
Pre-heater Power Connector (J3)
A. Connector size: JST-1x4-180-1mm-MALE
B. Connector location:
Connector pin denition
Pin Denition Pin Denition
1 VCC12 2 GND
3 GND 4 VCC12
40
Chapter 2: Jumpers and Connectors
Line-in, Mic-in, Speaker (CN26)
Connector location:
Power On & SSD or HD Active LED
Connector location:
Connector pin denition
Connector pin denition
Pin Denition Pin Denition
1 AGND 2 MICIN_L_CN
3 MIC_JD 4 AGND
5 MICIN_R_CN 6
22 SURR_OUT_L_CA
23 SURR_JD 24 AGND
25 SURR_OUT_R_CA
32 LINEIN_L_CN 33 LINEIN_JD
34 AGND 35 LINEIN_R_CN
LED No. Function Description
A1 POWER LED
A2 SATA LED
A3 GPS LED
A1 A3
41
Chapter 2: Jumpers and Connectors
A1 A1 B1A4 A4 B4
WLAN & WWAN & LAN Active LED
Connector location:
PSE LAN Active LED
Connector location:
Connector pin denition Connector pin denition
Connector pin denition
LED No. Function Description
A1 WWAN LED
A2 WLAN LED
A3 LAN0_LED
A4 LAN1_LED
LED No. Function Description
A1 PSE_A1_ACT#_LED
A2 PSE_A2_ACT#_LED
A3 PSE_A3_ACT#_LED
A4 PSE_A4_ACT#_LED
LED No. Function Description
B1 PSE_B1_ACT#_LED
B2 PSE_B2_ACT#_LED
B3 PSE_B3_ACT#_LED
B4 PSE_B4_ACT#_LED
42
Chapter 2: Jumpers and Connectors
GPS Connector (J1)
Connector size: 1 x 6 = 6-pin header
Connector location:
Connector pin denition
16
Pin Denition Pin Denition
1 GPS_BAT 2 GPS_LED#
3 SP_TX1 4 SP_RX1
5 GND 6 VCC3
Port 80 Connector (J10)
Connector size: 1 x 10 = 10-pin header
Connector location:
Connector pin denition
1
10
Pin Denition Pin Denition
1 GND 2 CB_RESET#
3 SIO_CLK 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 VCC3 10 VCC3
43
Chapter 2: Jumpers and Connectors
Bluetooth Connector (J4)
Connector size: 1 x 10 = 10-pin header
Connector location:
Connector pin denition
1
10
Pin Denition Pin Denition
1 GND 2 NC
3 BT_3.3V 4 NC
5 BT_AUDIO_EN_R 6 NC
7 NC 8 USB_2N_L
9 USB_2P_L 10 GND
1
2
RTC Battery Connector (J5)
Connector size: 1 x 2 = 2-pin header
Connector location:
Connector pin denition
Pin Denition
1 GND
2 VBAT1
44
Chapter 3: System Setup
ChaPter 3: system setuP
Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or
system damage.
1. The screws on the chassis are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use
Top View
Left Side View
Right Side View
45
Chapter 3: System Setup
Removing the Chassis Cover
2. Lift the cover upward then remove it from the chassis.
46
Chapter 3: System Setup
Installing the Wi-Fi and GPRS/UMTS/HSDPA Modules
1. The Mini PCI Express slot shown below is used to install a Wi-Fi, 3.5G
communication module such as GPRS, UMTS or HSDPA module.
WWA N
Mini PCI
Express slot
Wi-Fi
Mini PCI
Express slot
3. Insert the module into the mini PCI Express slot at a 45 degrees angle
until the gold-plated connector on the edge of the module completely
disappears inside the slot.
4. Push the module down then secure it with mounting screws.
5. Attach one end of the RF cable onto the module
47
Chapter 3: System Setup
2. Press the button to eject the SSD tray.
1. Open the cover on the right side of the panel. 3. Remove the SSD tray from the chassis, then place the SSD into the tray
and fasten the 4 screws.
Installing SSD Drive
48
Chapter 3: System Setup
Installing PCI-e Expansion Card
1. The PCI-e kit includes the following:
• Riser Bracket x 1
• PCI-e Card x 1
• Screw (50311F0102X00) x 3
• Screw (50311F0095X00) x 4
2. Fasten PCI-e card to the riser bracket with screw (50311F0102X00) x 3.
PCI-e card
50311F0102X00
50311F0095X00
Riser
Bracket
49
Chapter 3: System Setup
3. Plug PCI-e card into carrier PCA. 4. Fasten riser bracket with screw (50311F0095X00) x 4.
Loading...
