Page 1
CS-1

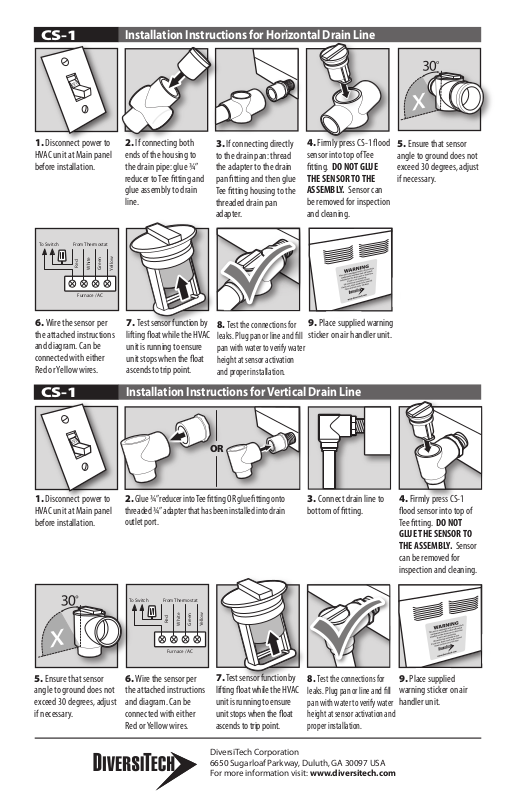

Installation Instructions for Horizontal Drain Line
OFF
1. Disconnect power to
HVAC unit at Main panel
before installation.
From ThermostatTo Switch
Red
White
Green
Furnace / AC
6. Wire the sensor per
the attached instructions
and diagram. Can be
connected with either
Red or Yellow wires.
FPS-T
CS-1
OFF
1. Disconnect power to
HVAC unit at Main panel
before installation.
2. If connecting both
ends of the housing to
the drain pipe: glue ¾”
reducer to Tee tting and
glue assembly to drain
line.
Yellow
7. Test sensor function by
lifting oat while the HVAC
unit is running to ensure
unit stops when the oat
ascends to trip point.
3. If connecting directly
to the drain pan: thread
the adapter to the drain
pan tting and then glue
Tee tting housing to the
threaded drain pan
adapter.
8. Test the connections for
leaks. Plug pan or line and ll
pan with water to verify water
height at sensor activation
and proper installation.
4. Firmly press CS-1 ood
sensor into top of Tee
tting. DO NOT GLUE
THE SENSOR TO THE
ASSEMBLY. Sensor can
be removed for inspection
and cleaning.
9. Place supplied warning
sticker on air handler unit.
Installation Instructions for Vertical Drain Line
OR
2. Glue ¾” reducer into Tee tting OR glue tting onto
threaded ¾” adapter that has been installed into drain
outlet port.
3. Connect drain line to
bottom of tting.
5. Ensure that sensor
angle to ground does not
exceed 30 degrees, adjust
if necessary.
4. Firmly press CS-1
ood sensor into top of
Tee tting. DO NOT
GLUE THE SENSOR TO
THE ASSEMBLY. Sensor
can be removed for
inspection and cleaning.
5. Ensure that sensor
angle to ground does not
exceed 30 degrees, adjust
if necessary.
From ThermostatTo Switch
Red
White
Green
Furnace / AC
6. Wire the sensor per
the attached instructions
and diagram. Can be
connected with either
Red or Yellow wires.
Yellow
7. Test sensor function by
lifting oat while the HVAC
unit is running to ensure
unit stops when the oat
ascends to trip point.
DiversiTech Corporation
6650 Sugarloaf Parkway, Duluth, GA 30097 USA
For more information visit: www.diversitech.com
8. Test the connections for
leaks. Plug pan or line and ll
pan with water to verify water
height at sensor activation and
proper installation.
9. Place supplied
warning sticker on air
handler unit.
Page 2
CS-1

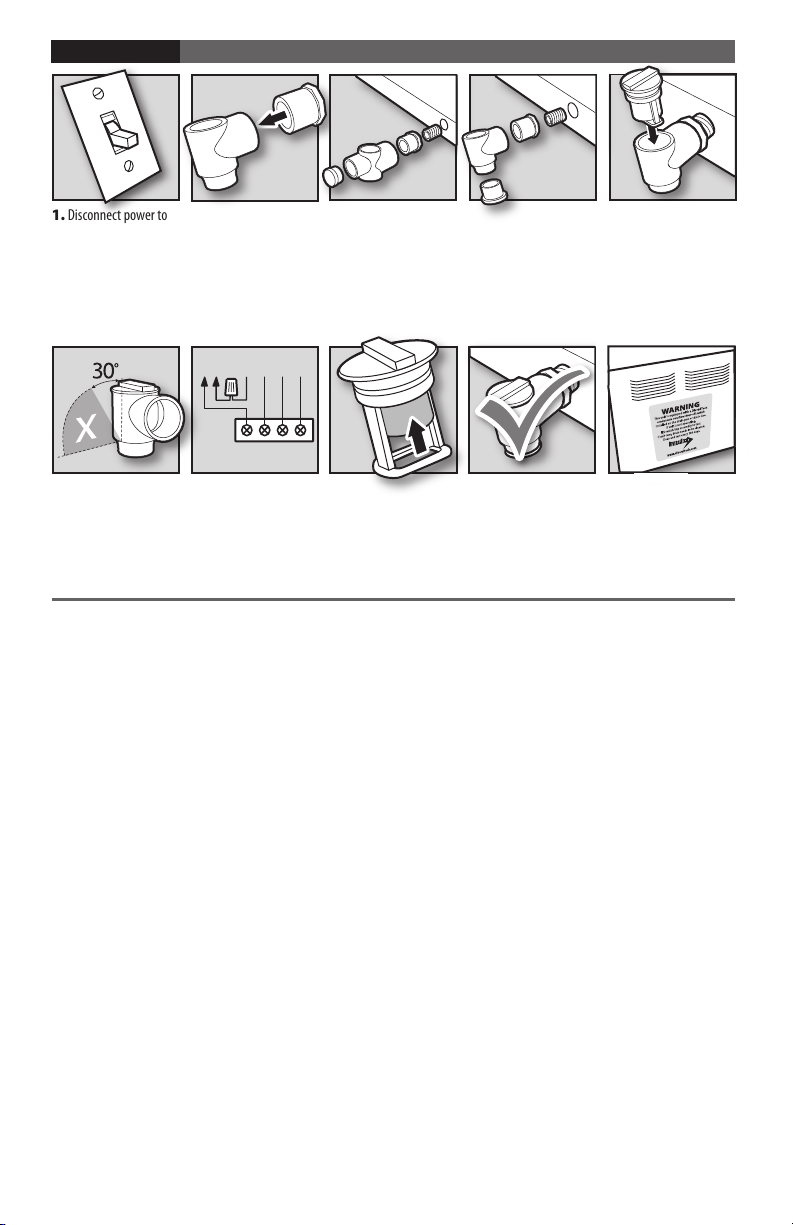

Installation Instructions for Plugged, Auxiliary Application
OFF
1. Disconnect power to
HVAC unit at Main panel
before installation.
2. Glue ¾” reducer into
horizontal or vertical Tee
tting OR onto threaded
¾” plug that has been
threaded into auxiliary
drain outlet port.
From ThermostatTo Switch
Red
Furnace / AC
6. Ensure that sensor
angle to ground does not
exceed 30 degrees, adjust
if necessary.
7. Wire the sensor per
the attached instructions
and diagram. Can be
connected with either
Red or Yellow wires.
WARRANTIES AND REMEDIES. DiversiTech Corporation (“Seller”) warrants that, at the time of shipment, the Products manufactured and sold by it hereunder will,
for a period of twelve (12) months from date of shipment, be free from defects in material and workmanship. Seller's obligations, and the purchaser and/or end user’s
(collectively “Buyer”) remedies, under this Warranty are limited to replacing and/or issuing an appropriate credit, at Seller's election, for any Products or parts thereof
which are demonstrated, to Seller's reasonable satisfaction, to have been defective at the time of shipment. Defective conditions in the Products caused by Buyer,
third parties, acts of God, abnormal use or stress of any other matters unrelated to Seller and beyond its reasonable control are specically excluded from coverage
under this Warranty.
Buyer agrees to notify Seller in writing within 30 days of the discovery of any defect which would give rise to a claim under the Warranty. Failure to so notify Seller
with respect to any claim shall result in the forfeiture by Buyer of coverage of that claim under the Warranty.
3. Option 1 - using the
horizontal Tee tting.
Glue the plug in the end
opening. Glue Tee tting
housing to the auxiliary
outlet port.
White
Green
Yellow
8. Test sensor function by
lifting oat while the HVAC
unit is running to ensure
unit stops when the oat
ascends to trip point.
4. Option 2 - using the
vertical Tee tting. Glue
the plug into the bottom
opening. Glue Tee tting
housing to the auxiliary
outlet port.
9. Test the connections for
leaks. Plug pan or line and ll
pan with water to verify water
height at sensor activation
and proper installation.
5. Firmly press CS-1
ood sensor into top of
Tee tting. DO NOT
GLUE THE SENSOR TO
THE ASSEMBLY. Sensor
can be removed for
inspection and cleaning.
10. Place supplied
warning sticker on air
handler unit.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PURPOSE. IN NO EVENT SHALL SELLER BE
LIABLE FOR LOSS OF USE, REVENUE OR PROFIT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES.
In the event that Buyer has a claim under this Warranty, Buyer will forward all relevant information (including a representative sample) and request authorization
from Seller's Sales Department to return the material. Seller will then determine whether the Product should be inspected at Buyer's facility (in which case, Seller
may supply its own inspector) or returned to Seller for inspection. If items are authorized to be returned to Seller's facility, they shall be packed in original or
equivalent packaging. All Products and parts therefore, not found defective by Seller will be returned to Buyer, transportation charges collect. In no event will Seller
be liable for any packaging expenses, inspection costs or labor charges incurred by Buyer in connection with the processing of claims under this Warranty or the return
of defective Products.
LIMITATION OF LIABILITY: The liability of Seller to Buyer arising out of the manufacture, sale, delivery, resale, repair or use of any of the Products, whether based on
a theory of contract or tort, shall not, in any event, exceed the cost of correcting defects or making replacements as required in the Warranty and such remedy shall be
to the exclusion of any and all other remedies, regardless of the legal theory under which liability is alleged. Seller’s warranty does not extend to any injury or
damage which results from or is in any way connected to the possession, sale, use, resale, transfer, misuse, misapplication or failure to inspect, maintain or repair the
Products. Seller shall not be responsible for any failure by Buyer to comply with any applicable federal, state or industry law or safety requirement regarding the
Product. Upon the expiration of the warranty period, all liability of Seller to Buyer shall terminate, and no action arising out of the sale of the Products may be
brought by the Buyer or user after expiration of the warranty period, regardless of the legal theory under which the action is brought. IN NO EVENT SHALL SELLER
BE LIABLE FOR LOSS OF USE, LOST REVENUES, LOST PROFITS, COSTS OR EXPENSES, (INCLUDING LEGAL FEES) OR FOR INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
CS-1 13.003
Page 3
CS-2

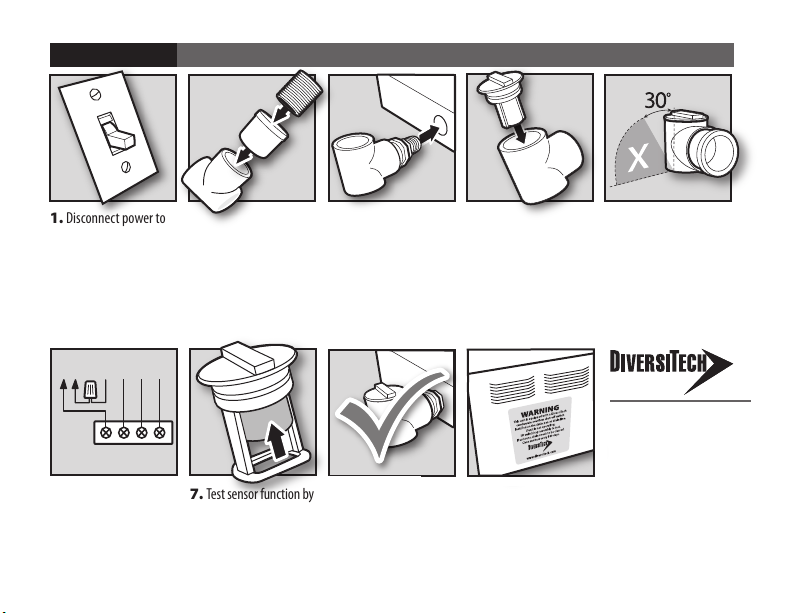

Installation Instructions for Auxiliary Drain Line
OFF
1. Disconnect power to
HVAC unit at Main panel
before installation.
From ThermostatTo Switch
Red
White
Green
Yellow
Furnace / AC
6. Wire the sensor per
the attached instructions
and diagram. Can be
connected with either
Red or Yellow wires.
2. Glue threaded bush
to 90° elbow tting and
install threaded nipple.
7. Test sensor function by
lifting oat while the HVAC
unit is running to ensure
unit stops when the oat
ascends to trip point.
3. Thread the 90° elbow
assembly into auxiliary
drain output port and
tighten into position to
ensure leak-free t.
8. Test the connections for
leaks. Plug pan or line and ll
pan with water to verify water
height at sensor activation
and proper installation.
4. Firmly press CS-2
sensor into the 90° elbow
tting. DO NOT GLUE
THE SENSOR TO THE
ASSEMBLY. Sensor can
be removed for inspection
and cleaning.
9. Place supplied warning
sticker on air handler unit.
5. Ensure that sensor
angle to ground does not
exceed 30 degrees, adjust
if necessary.
DiversiTech Corporation
6650 Sugarloaf Parkway
Duluth, GA 30097 USA
For more information visit:
www.diversitech.com
Page 4
WARRANTIES AND REMEDIES. DiversiTech Corporation (“Seller”) warrants that, at the time of shipment, the Products manufactured and sold by it
hereunder will, for a period of twelve (12) months from date of shipment, be free from defects in material and workmanship. Seller's obligations, and the
purchaser and/or end user’s (collectively “Buyer”) remedies, under this Warranty are limited to replacing and/or issuing an appropriate credit, at Seller's
election, for any Products or parts thereof which are demonstrated, to Seller's reasonable satisfaction, to have been defective at the time of shipment.
Defective conditions in the Products caused by Buyer, third parties, acts of God, abnormal use or stress of any other matters unrelated to Seller and beyond its
reasonable control are specically excluded from coverage under this Warranty.
Buyer agrees to notify Seller in writing within 30 days of the discovery of any defect which would give rise to a claim under the Warranty. Failure to so notify
Seller with respect to any claim shall result in the forfeiture by Buyer of coverage of that claim under the Warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PURPOSE. IN NO EVENT SHALL SELLER
BE LIABLE FOR LOSS OF USE, REVENUE OR PROFIT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES.
In the event that Buyer has a claim under this Warranty, Buyer will forward all relevant information (including a representative sample) and request
authorization from Seller's Sales Department to return the material. Seller will then determine whether the Product should be inspected at Buyer's facility (in
which case, Seller may supply its own inspector) or returned to Seller for inspection. If items are authorized to be returned to Seller's facility, they shall be
packed in original or equivalent packaging. All Products and parts therefore, not found defective by Seller will be returned to Buyer, transportation charges
collect. In no event will Seller be liable for any packaging expenses, inspection costs or labor charges incurred by Buyer in connection with the processing of
claims under this Warranty or the return of defective Products.
LIMITATION OF LIABILITY: The liability of Seller to Buyer arising out of the manufacture, sale, delivery, resale, repair or use of any of the Products, whether
based on a theory of contract or tort, shall not, in any event, exceed the cost of correcting defects or making replacements as required in the Warranty and
such remedy shall be to the exclusion of any and all other remedies, regardless of the legal theory under which liability is alleged. Seller’s warranty does not
extend to any injury or damage which results from or is in any way connected to the possession, sale, use, resale, transfer, misuse, misapplication or failure to
inspect, maintain or repair the Products. Seller shall not be responsible for any failure by Buyer to comply with any applicable federal, state or industry law or
safety requirement regarding the Product. Upon the expiration of the warranty period, all liability of Seller to Buyer shall terminate, and no action arising out
of the sale of the Products may be brought by the Buyer or user after expiration of the warranty period, regardless of the legal theory under which the action
is brought. IN NO EVENT SHALL SELLER BE LIABLE FOR LOSS OF USE, LOST REVENUES, LOST PROFITS, COSTS OR EXPENSES, (INCLUDING LEGAL
FEES) OR FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
CS-2 13.003
Page 5
CS-3
Installation Instructions for Drain Pan
From ThermostatTo Switch
OFF
Red
White
Furnace / AC
Green
Yellow
1. Disconnect power to
HVAC unit at Main panel
before installation.
4. Test sensor function by
lifting oat while the HVAC
unit is running to ensure unit
stops when the oat ascends
to trip point.
2. Attach CS-3 ood
sensor to drain with
“Easy Clip” Bracket.
5. Plug pan or line and ll
pan with water to verify water
height at sensor actuation.
Raise or lower sensor to
adjust the actuation height
and tighten nut.
DiversiTech Corporation
6650 Sugarloaf Parkway, Duluth, GA 30097 USA
For more information visit: www.diversitech.com
3. Wire the sensor per
the attached instructions
and diagram. Can be
connected with either
Red or Yellow wires.
6. Place supplied
warning sticker on air
handler unit.
Page 6
WARRANTIES AND REMEDIES. DiversiTech Corporation (“Seller”) warrants that, at the time of shipment, the Products
manufactured and sold by it hereunder will, for a period of twelve (12) months from date of shipment, be free from defects in
material and workmanship. Seller's obligations, and the purchaser and/or end user’s (collectively “Buyer”) remedies, under this
Warranty are limited to replacing and/or issuing an appropriate credit, at Seller's election, for any Products or parts thereof
which are demonstrated, to Seller's reasonable satisfaction, to have been defective at the time of shipment. Defective
conditions in the Products caused by Buyer, third parties, acts of God, abnormal use or stress of any other matters unrelated to
Seller and beyond its reasonable control are specically excluded from coverage under this Warranty.
Buyer agrees to notify Seller in writing within 30 days of the discovery of any defect which would give rise to a claim under the
Warranty. Failure to so notify Seller with respect to any claim shall result in the forfeiture by Buyer of coverage of that claim
under the Warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PURPOSE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOSS OF USE, REVENUE
OR PROFIT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES.
In the event that Buyer has a claim under this Warranty, Buyer will forward all relevant information (including a representative
sample) and request authorization from Seller's Sales Department to return the material. Seller will then determine whether
the Product should be inspected at Buyer's facility (in which case, Seller may supply its own inspector) or returned to Seller for
inspection. If items are authorized to be returned to Seller's facility, they shall be packed in original or equivalent packaging. All
Products and parts therefore, not found defective by Seller will be returned to Buyer, transportation charges collect. In no event
will Seller be liable for any packaging expenses, inspection costs or labor charges incurred by Buyer in connection with the
processing of claims under this Warranty or the return of defective Products.
LIMITATION OF LIABILITY: The liability of Seller to Buyer arising out of the manufacture, sale, delivery, resale, repair or use of
any of the Products, whether based on a theory of contract or tort, shall not, in any event, exceed the cost of correcting defects
or making replacements as required in the Warranty and such remedy shall be to the exclusion of any and all other remedies,
regardless of the legal theory under which liability is alleged. Seller’s warranty does not extend to any injury or damage which
results from or is in any way connected to the possession, sale, use, resale, transfer, misuse, misapplication or failure to inspect,
maintain or repair the Products. Seller shall not be responsible for any failure by Buyer to comply with any applicable federal,
state or industry law or safety requirement regarding the Product. Upon the expiration of the warranty period, all liability of
Seller to Buyer shall terminate, and no action arising out of the sale of the Products may be brought by the Buyer or user after
expiration of the warranty period, regardless of the legal theory under which the action is brought. IN NO EVENT SHALL
SELLER BE LIABLE FOR LOSS OF USE, LOST REVENUES, LOST PROFITS, COSTS OR EXPENSES, (INCLUDING LEGAL FEES)
OR FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
CS-3 13.003
Loading...
