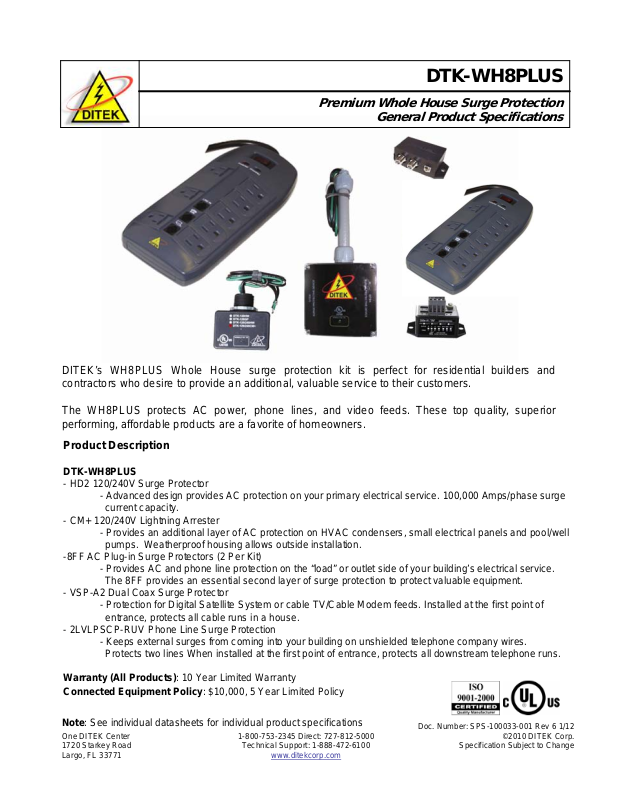

Ditek DTK-WH8PLUS Specsheet

DTK-WH8PLUS

Premium Whole House Surge Protection

General Product Specifications

DITEK’s WH8PLUS Whole House surge protection kit is perfect for residential builders and
contractors who desire to provide an additional, valuable service to their customers.

The WH8PLUS protects AC power, phone lines, and video feeds. These top quality, superior
performing, affordable products are a favorite of homeowners.

Product Description

DTK-WH8PLUS

- HD2 120/240V Surge Protector

- Advanced design provides AC protection on your primary electrical service. 100,000 Amps/phase surge

current capacity.

- CM+ 120/240V Lightning Arrester

- Provides an additional layer of AC protection on HVAC condensers, small electrical panels and pool/well

pumps. Weatherproof housing allows outside installation.

-8FF AC Plug-in Surge Protectors (2 Per Kit)

- Provides AC and phone line protection on the “load” or outlet side of your building’s electrical service.

The 8FF provides an essential second layer of surge protection to protect valuable equipment.

- VSP-A2 Dual Coax Surge Protector

- Protection for Digital Satellite System or cable TV/Cable Modem feeds. Installed at the first point of

entrance, protects all cable runs in a house.

- 2LVLPSCP-RUV Phone Line Surge Protection

- Keeps external surges from coming into your building on unshielded telephone company wires.

Protects two lines When installed at the first point of entrance, protects all downstream telephone runs.

Warranty (All Products): 10 Year Limited Warranty
Connected Equipment Policy: $10,000, 5 Year Limited Policy

Note: See individual datasheets for individual product specifications

One DITEK Center
1720 Starkey Road
Largo, FL 33771

1-800-753-2345 Direct: 727-812-5000

Technical Support: 1-888-472-6100

www.ditekcorp.com

Doc. Number: SPS-100033-001 Rev 6 1/12

©2010 DITEK Corp.

Specification Subject to Change
