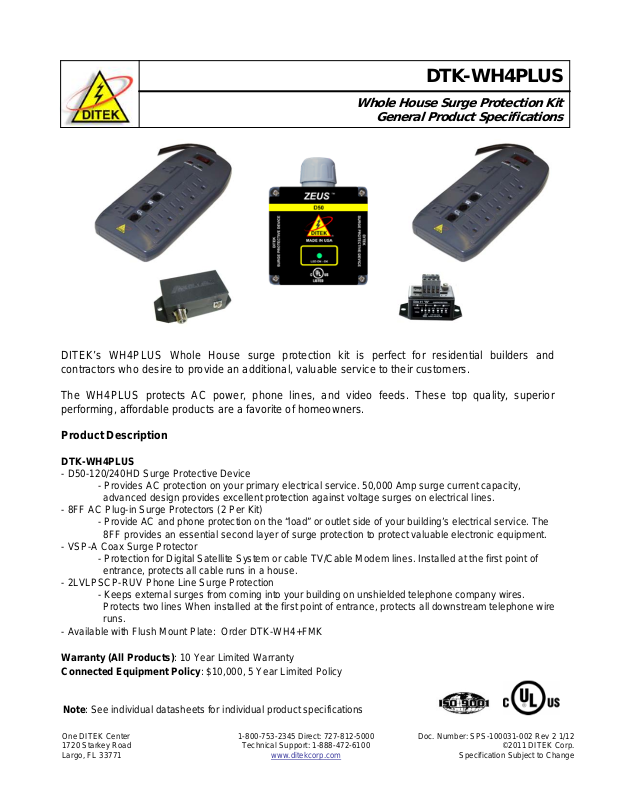

Ditek DTK-WH4PLUS Specsheet

DTK-WH4PLUS

Whole House Surge Protection Kit

General Product Specifications

DITEK’s WH4PLUS Whole House surge protection kit is perfect for residential builders and
contractors who desire to provide an additional, valuable service to their customers.

The WH4PLUS protects AC power, phone lines, and video feeds. These top quality, superior
performing, affordable products are a favorite of homeowners.

Product Description

DTK-WH4PLUS

- D50-120/240HD Surge Protective Device

- Provides AC protection on your primary electrical service. 50,000 Amp surge current capacity,

advanced design provides excellent protection against voltage surges on electrical lines.

- 8FF AC Plug-in Surge Protectors (2 Per Kit)

- Provide AC and phone protection on the “load” or outlet side of your building’s electrical service. The

8FF provides an essential second layer of surge protection to protect valuable electronic equipment.

- VSP-A Coax Surge Protector

- Protection for Digital Satellite System or cable TV/Cable Modem lines. Installed at the first point of

entrance, protects all cable runs in a house.

- 2LVLPSCP-RUV Phone Line Surge Protection

- Keeps external surges from coming into your building on unshielded telephone company wires.

Protects two lines When installed at the first point of entrance, protects all downstream telephone wire
runs.

- Available with Flush Moun t Plate: Order DTK-WH4+FMK

Warranty (All Products): 10 Year Limited Warranty
Connected Equipment Policy: $10,000, 5 Year Limited Policy

Note: See individual datasheets for individual product specifications

One DITEK Center
1720 Starkey Road
Largo, FL 33771

1-800-753-2345 Direct: 727-812-5000

Technical Support: 1-888-472-6100

www.ditekcorp.com

Doc. Number: SPS-100031-002 Rev 2 1/12

©2011 DITEK Corp.

Specification Subject to Change
