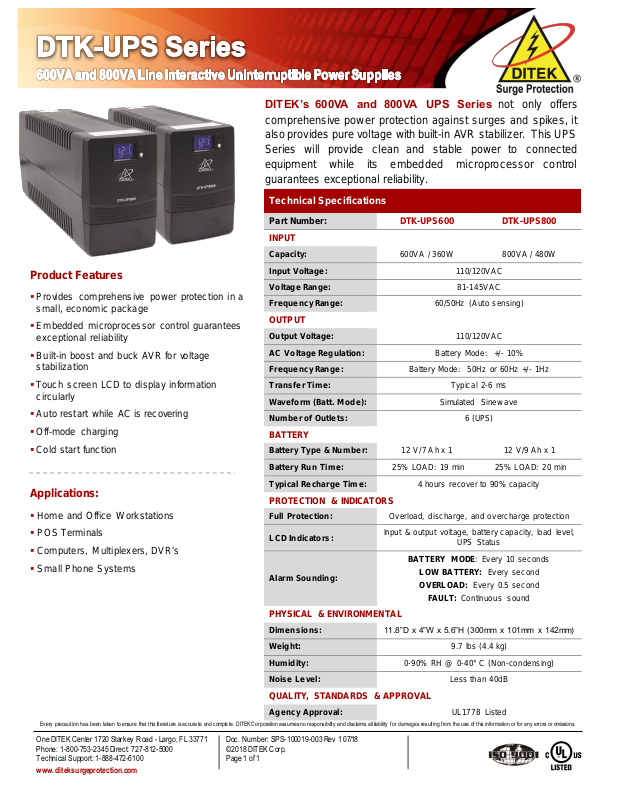

Ditek DTK-UPS600, DTK-UPS800 Specsheet
Every precaution has been taken to ensure that this literature is accurate and complete. DITEK Corporation assumes no responsibility an d disclaims all liability for da mage s resulting from th e use of this information or for any errors or omission s.
One DITEK Center 1720 Starkey Road - Largo, FL 33771
Phone: 1-800-753-2345 Direct: 727-812-5000
Technical Support: 1-888-472-6100
www.diteksurgeprotection.com
Doc. Number: SPS-100019-003 Rev 1 07/18
©2018 DITEK Corp.
Page 1 of 1
Technical Specifications
Part Number:
DTK-UPS600
DTK-UPS800
INPUT
Capacity:
600VA / 360W
800VA / 480W
Input Voltage:
110/120VAC
Voltage Range:
81-145VAC
Frequency Range:
60/50Hz (Auto sensing)
OUTPUT
Output Voltage:
110/120VAC
AC Voltage Regulation:
Battery Mode: +/- 10%
Frequency Range:
Battery Mode: 50Hz or 60Hz +/- 1Hz
Transfer Time:
Typical 2-6 ms
Waveform (Batt. Mode):
Simulated Sinewave
Number of Outlets:
6 (UPS)
BATTERY
Battery Type & Number:
12 V/7 Ah x 1
12 V/9 Ah x 1
Battery Run Time:
25% LOAD: 19 min
25% LOAD: 20 min
Typical Recharge Time:
4 hours recover to 90% capacity
PROTECTION & INDICATORS
Full Protection:
Overload, discharge, and overcharge protection
LCD Indicators:
Input & output voltage, battery capacity, load level,
UPS Status
Alarm Sounding:
BATTERY MODE: Every 10 seconds
LOW BATTERY: Every second
OVERLOAD: Every 0.5 second
FAULT: Continuous sound
PHYSICAL & ENVIRONMENTAL
Dimensions:
11.8”D x 4”W x 5.6”H (300mm x 101mm x 142mm)
Weight:
9.7 lbs (4.4 kg)
Humidity:
0-90% RH @ 0-40° C (Non-condensing)
Noise Level:
Less than 40dB
QUALITY, STANDARDS & APPROVAL
Agency Approval:
UL1778 Listed
DITEK’s 600VA and 800VA UPS Series not only offers
comprehensive power protection against surges and spikes, it
also provides pure voltage with built-in AVR stabilizer. This UPS
Series will provide clean and stable power to connected
equipment while its embedded microprocessor control
guarantees exceptional reliability.
Product Features
Provides comprehensive power protection in a
small, economic package
Embedded microprocessor control guarantees
exceptional reliability
Built-in boost and buck AVR for voltage
stabilization
Touch screen LCD to display information
circularly
Auto restart while AC is recovering
Off-mode charging
Cold start function
Applications:
Home and Office Workstations
POS Terminals
Computers, Multiplexers, DVR’s
Small Phone Systems
