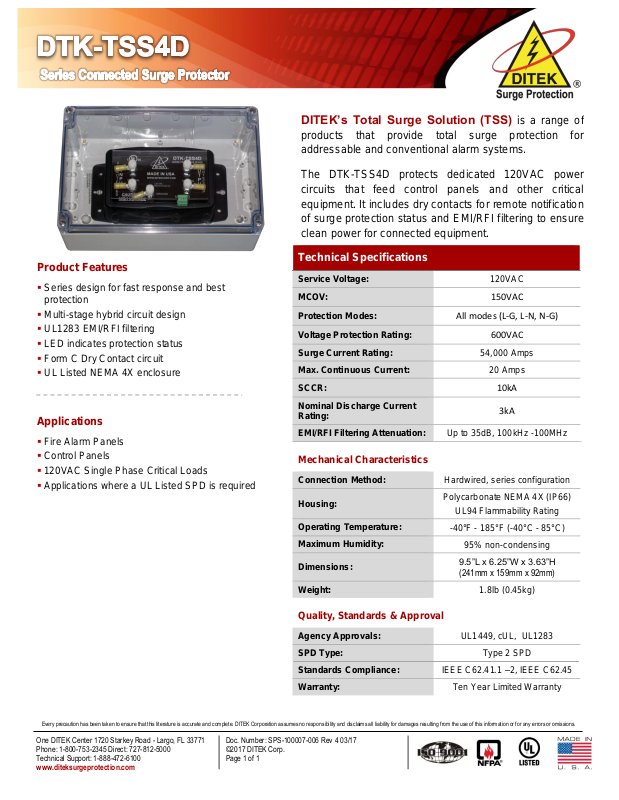

Ditek DTK-TSS4D Specsheet

Every precaution has been taken to ensure that this literature is accurate and complete. DITEK Corporation assumes no responsibility and disclaims all liability for damages resulting from the use of this information or for any errors or omissions.

One DITEK Center 1720 Starkey Road - Largo, FL 33771
Phone: [phone] Direct: 727-812-5000
Technical Support: 1-888-472-6100

www.diteksurgeprotection.com

Doc. Number: SPS-100007-006 Rev 4 03/17
©2017 DITEK Corp.
Page 1 of 1

Technical Specifications

Service Voltage:

120VAC

MCOV:

150VAC

Protection Modes:

All modes (L-G, L-N, N-G)

Voltage Protection Rating:

600VAC

Surge Current Rating:

54,000 Amps

Max. Continuous Current:

20 Amps

SCCR:

10kA

Nominal Discharge Current
Rating:

3kA

EMI/RFI Filtering Attenuation:

Up to 35dB, 100kHz -100MHz

Mechanical Characteristics

Connection Method:

Hardwired, series configuration

Housing:

Polycarbonate NEMA 4X (IP66)

UL94 Flammability Rating

Operating Temperature:

-40°F - 185°F (-40°C - 85°C)

Maximum Humidity:

95% non-condensing

Dimensions:

9.5”L x 6.25”W x 3.63”H

(241mm x 159mm x 92mm)

Weight:

1.8lb (0.45kg)

Quality, Standards & Approval

Agency Approvals:

UL1449, cUL, UL1283

SPD Type:

Type 2 SPD

Standards Compliance:

IEEE C62.41.1 –2, IEEE C62.45

Warranty:

Ten Year Limited Warranty

DITEK’s Total Surge Solution (TSS) is a range of

products that provide total surge protection for
addressable and conventional alarm systems.

The DTK-TSS4D protects dedicated 120VAC power
circuits that feed control panels and other critical
equipment. It includes dry contacts for remote notification
of surge protection status and EMI/RFI filtering to ensure
clean power for connected equipment.

Applications

 Fire Alarm Panels
 Control Panels
 120VAC Single Phase Critical Loads
 Applications where a UL Listed SPD is required

Product Features

 Series design for fast response and best

protection

 Multi-stage hybrid circuit design
 UL1283 EMI/RFI filtering
 LED indicates protection status
 Form C Dry Contact circuit
 UL Listed NEMA 4X enclosure
