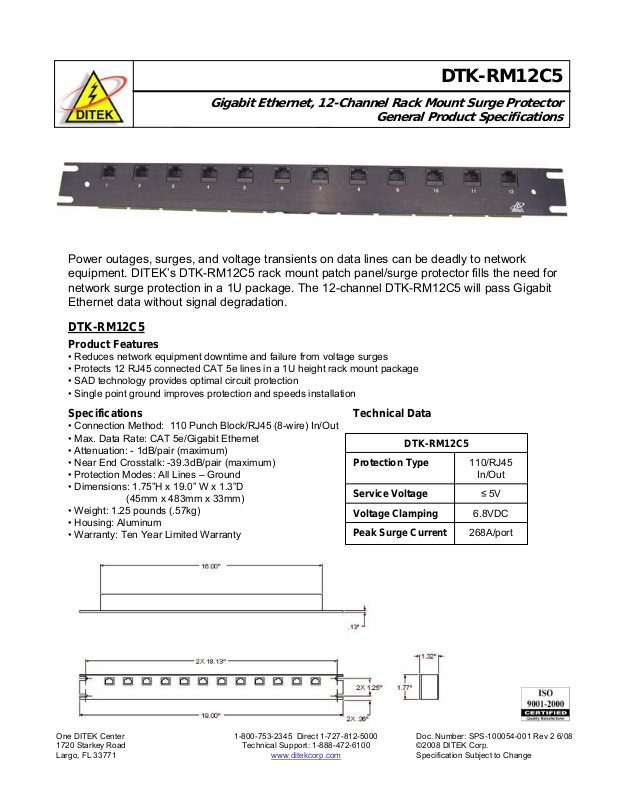

Ditek DTK-RM12C5 Specsheet

DTK-RM12C5

Gigabit Ethernet, 12-Channel Rack Mount Surge Protector

General Product Specifications

Power outages, surges, and voltage transients on data lines can be deadly to network equipment. DITEK’s DTK-RM12C5 rack mount patch panel/surge protector fills the need for network surge protection in a 1U package. The 12-channel DTK-RM12C5 will pass Gigabit Ethernet data without signal degradation.

DTK-RM12C5

Product Features

• Reduces network equipment downtime and failure from voltage surges

• Protects 12 RJ45 connected CAT 5e lines in a 1U height rack mount package

• SAD technology provides optimal circuit protection

• Single point ground improves protection and speeds installation

Specifications

• Connection Method: 110 Punch Block/RJ45 (8-wire) In/Out

• Max. Data Rate: CAT 5e/Gigabit Ethernet

• Attenuation: - 1dB/pair (maximum)

• Near End Crosstalk: -39.3dB/pair (maximum)

• Protection Modes: All Lines – Ground

• Dimensions: 1.75”H x 19.0” W x 1.3”D (45mm x 483mm x 33mm)

• Weight: 1.25 pounds (.57kg)

• Housing: Aluminum

• Warranty: Ten Year Limited Warranty

Technical Data

DTK-RM12C5

Protection Type 110/RJ45

In/Out

Service Voltage ≤ 5V Voltage Clamping 6.8VDC

268A/portPeak Surge Current

One DITEK Center 1720 Starkey Road Largo, FL 33771

1-800-753-2345 Direct 1-727-812-5000

Technical Support: 1-888-472-6100

www.ditekcorp.com
