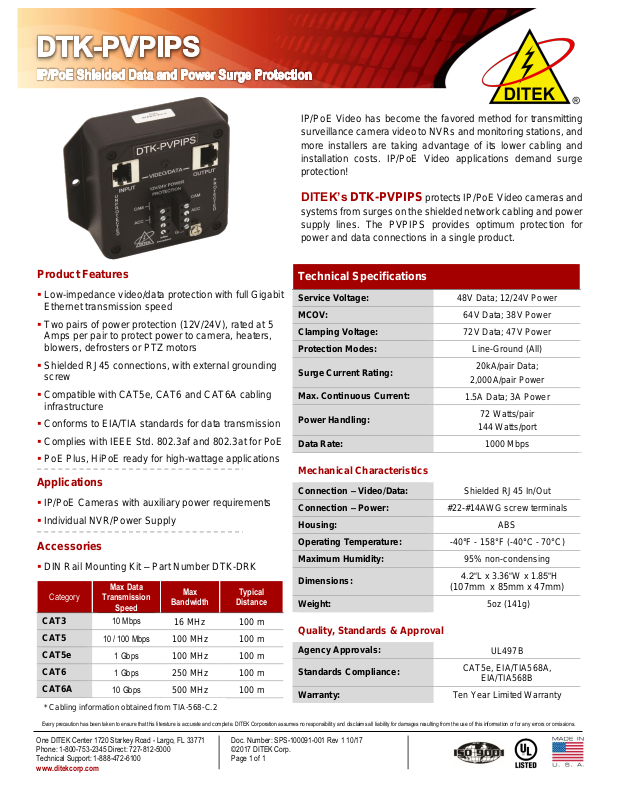

Ditek DTK-PVPIPS Specsheet
Every precaution has been taken to ensure that this literature is accurate and complete. DITEK Corporation assumes no responsibility and disclaims all liability for damages resulting from the use of this information or for any errors or omissions.
Doc. Number: SPS-100091-001 Rev 1 10/17
©2017 DITEK Corp.
Page 1 of 1
One DITEK Center 1720 Starkey Road - Largo, FL 33771
Phone: 1-800-753-2345 Direct: 727-812-5000
Technical Support: 1-888-472-6100
www.ditekcorp.com
Technical Specifications
Service Voltage:
48V Data; 12/24V Power
MCOV:
64V Data; 38V Power
Clamping Voltage:
72V Data; 47V Power
Protection Modes:
Line-Ground (All)
Surge Current Rating:
20kA/pair Data;
2,000A/pair Power
Max. Continuous Current:
1.5A Data; 3A Power
Power Handling:
72 Watts/pair
144 Watts/port
Data Rate:
1000 Mbps
Mechanical Characteristics
Connection – Video/Data:
Shielded RJ45 In/Out
Connection – Power:
#22-#14AWG screw terminals
Housing:
ABS
Operating Temperature:
-40°F - 158°F (-40°C - 70°C)
Maximum Humidity:
95% non-condensing
Dimensions:
4.2“L x 3.36“W x 1.85“H
(107mm x 85mm x 47mm)
Weight:
5oz (141g)
Quality, Standards & Approval
Agency Approvals:
UL497B
Standards Compliance:
CAT5e, EIA/TIA568A,
EIA/TIA568B
Warranty:
Ten Year Limited Warranty
Category
Max Data
Transmission
Speed
Max
Bandwidth
Typical
Distance
CAT3
10 Mbps
16 MHz
100 m
CAT5
10 / 100 Mbps
100 MHz
100 m
CAT5e
1 Gbps
100 MHz
100 m
CAT6
1 Gbps
250 MHz
100 m
CAT6A
10 Gbps
500 MHz
100 m
IP/PoE Video has become the favored method for transmitting
surveillance camera video to NVRs and monitoring stations, and
more installers are taking advantage of its lower cabling and
installation costs. IP/PoE Video applications demand surge
protection!
DITEK’s DTK-PVPIPS protects IP/PoE Video cameras and
systems from surges on the shielded network cabling and power
supply lines. The PVPIPS provides optimum protection for
power and data connections in a single product.
Product Features
Low-impedance video/data protection with full Gigabit
Ethernet transmission speed
Two pairs of power protection (12V/24V), rated at 5
Amps per pair to protect power to camera, heaters,
blowers, defrosters or PTZ motors
Shielded RJ45 connections, with external grounding
screw
Compatible with CAT5e, CAT6 and CAT6A cabling
infrastructure
Conforms to EIA/TIA standards for data transmission
Complies with IEEE Std. 802.3af and 802.3at for PoE
PoE Plus, HiPoE ready for high-wattage applications
Applications
IP/PoE Cameras with auxiliary power requirements
Individual NVR/Power Supply
Accessories
DIN Rail Mounting Kit – Part Number DTK-DRK
