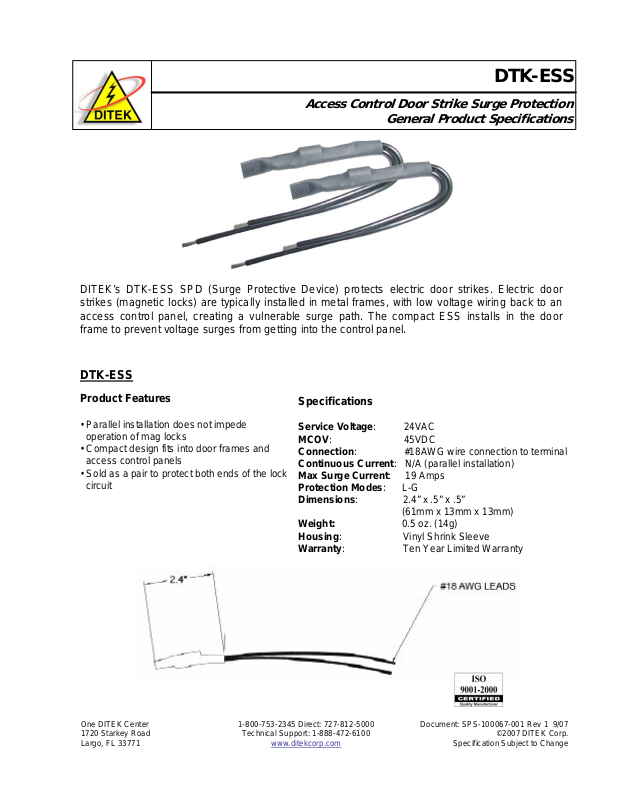

Ditek DTK-ESS Specsheet

DTK-ESS

Access Control Door Strike Surge Protection

General Product Specifications

DITEK’s DTK-ESS SPD (Surge Protective Device) protects electric door strikes. Electric door strikes (magnetic locks) are typically installed in metal frames, with low voltage wiring back to an access control panel, creating a vulnerable surge path. The compact ESS installs in the door frame to prevent voltage surges from getting into the control panel.

DTK-ESS

Product Features

• Parallel installation does not impede operation of mag locks

• Compact design fits into door frames and access control panels

• Sold as a pair to protect both ends of the lock circuit

Specifications

Service Voltage: 24VAC MCOV: 45VDC Connection: #18AWG wire connection to t e rminal Continuous Current: N/A (parallel installation) Max Surge Current: 19 Amps Protection Modes: L-G Dimensions: 2.4” x .5” x .5”

(61mm x 13mm x 13mm)

Weight: 0.5 oz. (14g) Housing: Vinyl Shrink Sleeve Warranty: Ten Year Limited Warranty

One DITEK Center 1720 Starkey Road Largo, FL 33771

1-800-753-2345 Direct: 727-812-5000

Technical Support: 1-888-472-6100

www.ditekcorp.com

Document: SPS-100067-001 Rev 1 9/07

Specification Subject to Change
