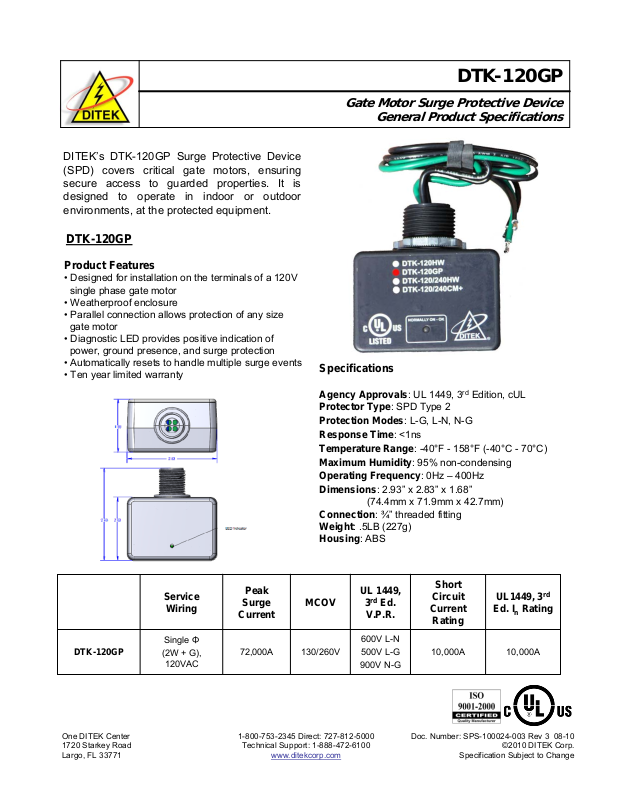

Ditek DTK-120GP Specsheet

DITEK’s DTK-120GP Surge Protective Device (SPD) covers critical gate motors, ensuring secure access to guarded properties. It is designed to operate in indoor or outdoor environments, at the protected equipment.

DTK-120GP

Product Features

• Designed for installation on the terminals of a 120V single phase gate motor

• Weatherproof enclosure

• Parallel connection allows protection of any size gate motor

• Diagnostic LED provides positive indication of power, ground presence, and surge protection

• Automatically resets to handle multiple surge events

• Ten year limited warranty

DTK-120GP

Gate Motor Surge Protective Device

General Product Specifications

Specifications

Agency Approvals: UL 1449, 3 Protector Type: SPD Type 2

Protection Modes: L-G, L-N, N-G Response Time: <1ns Temperature Range: -40°F - 158°F (-40°C - 70°C) Maximum Humidity: 95% non-condensing Operating Frequency: 0Hz – 400Hz Dimensions: 2.93” x 2.83” x 1.68”

(74.4mm x 71.9mm x 42.7mm)

Connection: ¾” threaded fitting Weight: .5LB (227g) Housing: ABS

Edition, cUL

DTK-120GP

One DITEK Center 1720 Starkey Road Largo, FL 33771

Service

Wiring

Single Φ

(2W + G),

120VAC

Peak

Surge

MCOV

Current

72,000A

1-800-753-2345 Direct: 727-812-5000

Technical Support: 1-888-472-6100

130/260V

www.ditekcorp.com

UL 1449,

V.P.R.

600V L-N 500V L-G

900V N-G

Ed.

Short

Circuit

Current

UL1449, 3

Ed. InRating

Rating

10,000A

Doc. Number: SPS-100024-003 Rev 3 08-10

Specification Subject to Change

10,000A
