Installation Instruction
1
UNPACKING INSTRUCTIONS
! Carefully open the carton, remove contents and lay out on cardboard or other
protective surface to avoid damage.
! Check package contents against the Supplied Parts List in the next page to assure
that all components were received undamaged. Do not use damaged or defective
parts.
! Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
! Install and operate this device with care. Please read this instruction before
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
! Please call a qualified installation contractor for help if you don't understand these
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

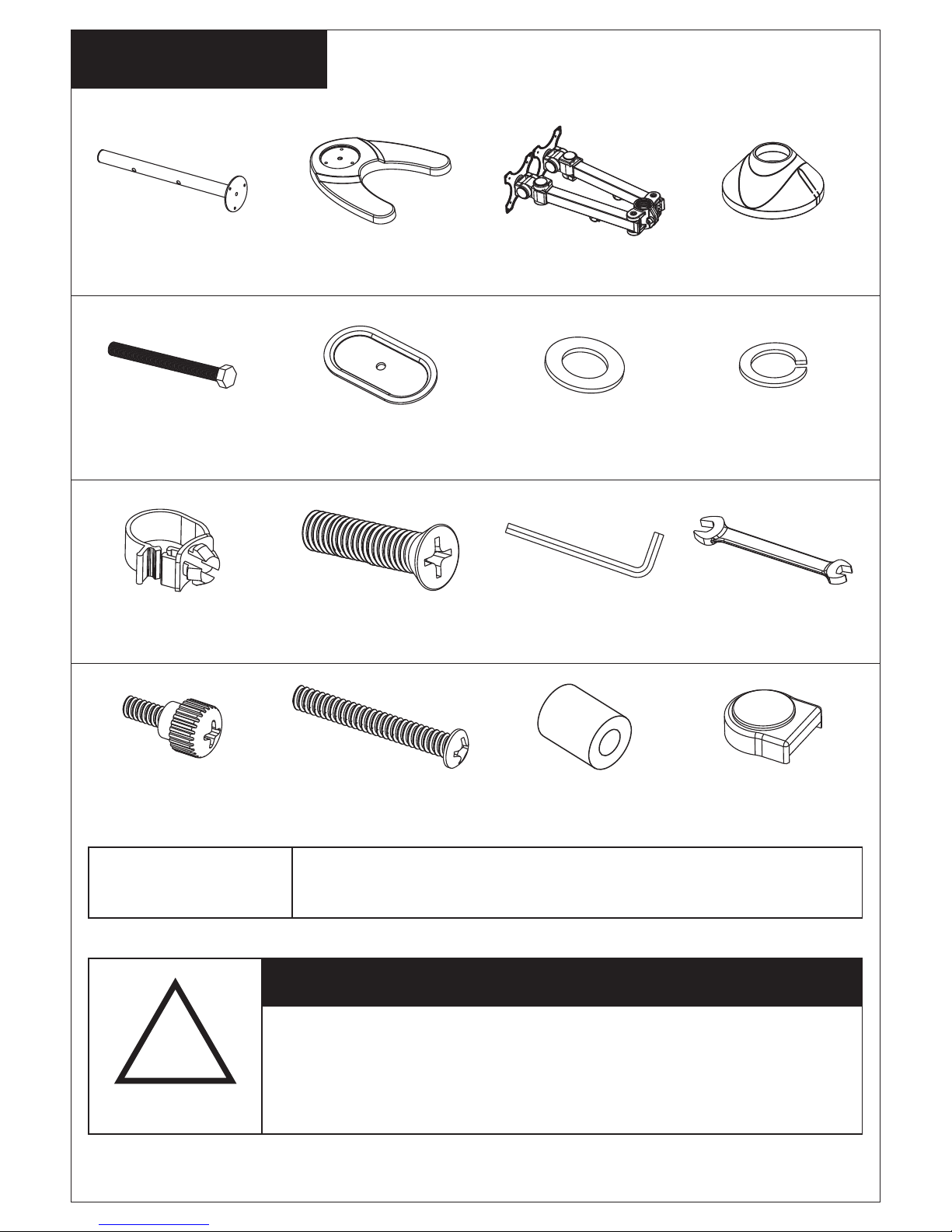

Supplied Par ts List
2
CAUTION!
WARNING
!
This monitor desktop mount must be securely
installed to the horizontal desk. If the mount is
not properly installed it may fall, resulting in
possible injury and/or damage.
Tools Required
Phillips Screwdriver
(1) 35mm Pole-a (1) Monitor Arm-c
(2)Wire Clip-i (3)M6x29 Bolt-j (1)Allen Key-k
(1) Weighted Base-b
(2)Spare Cover-p
(1) Plastic Cover-d
(1)Support Plate-f(1)M10 Bolt-e
(1)Wrench-l
(8)M4 Space-o
(8)M4x12
Thumb Bolt-m
(8)M4x30 Bolt-n
(1)M10 Washer-g (1)Spring Washer-h
Step 1
Mounting the base according to your requirement
3
Option 2 Option 3
Option 1
a
b
d
j
The stand can be used with the weighted
metal base or there is a desk attachment
provided (as drawings on the bottom)
allowing you to mount the stand on a desk.
This is very simple to install and just
requires a hole drilling (10mm diameter) in
your desk and clamping with the bolt and
large washer.
a
d
a
d
b
j
f
e
g
h
f
e
g
h
4
Step 3
Mount the Monitor to VESA Plate
c
k
Install monitor arm to the pole,
please make sure the wire clip
in the downside. Fasten the
bolt by supplied Allen Key(k).

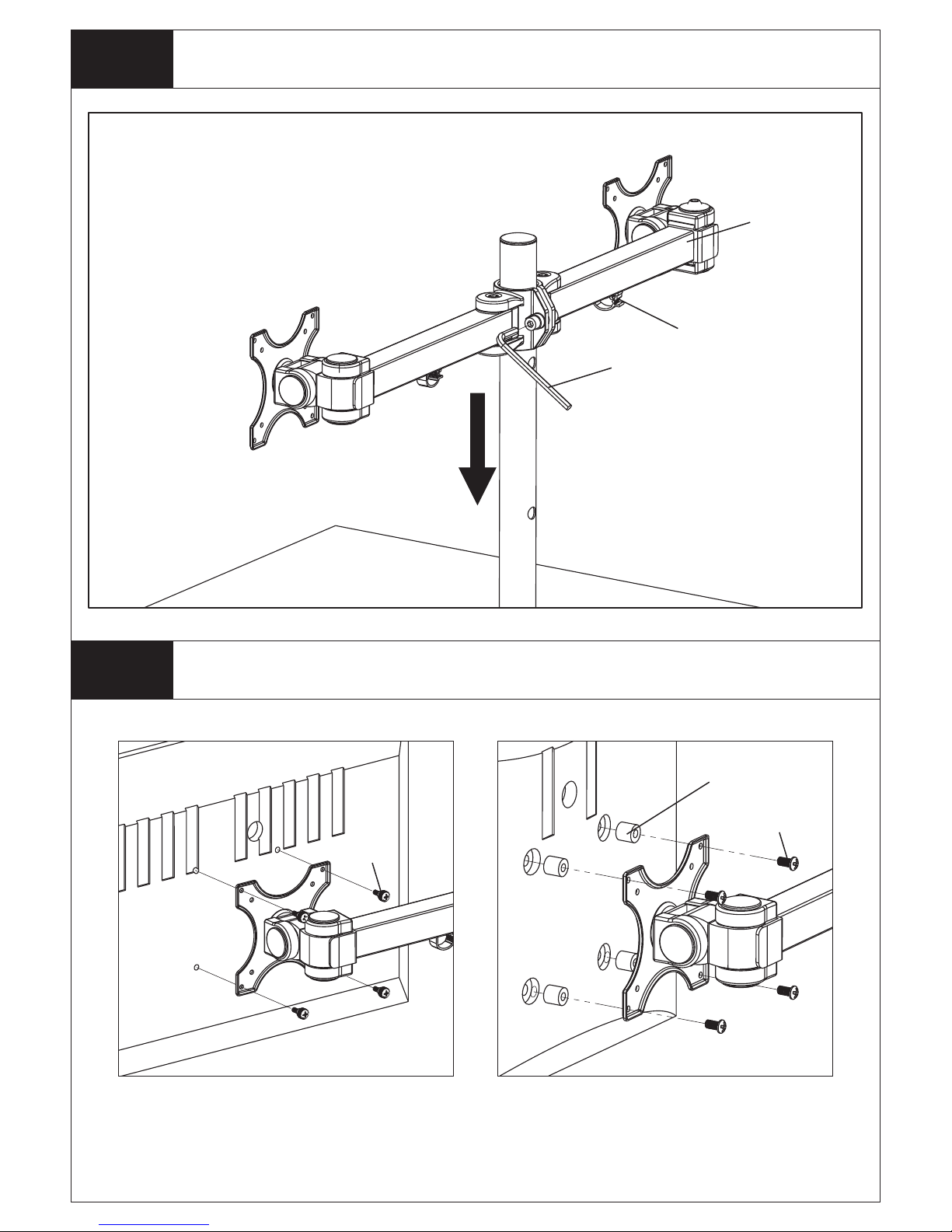

Step 2
Install Monitor Arm to the Pole
For Curved Back Monitor
o
n
Wire Clip
For Flat Back Monitor
m
Step 4
Step 5

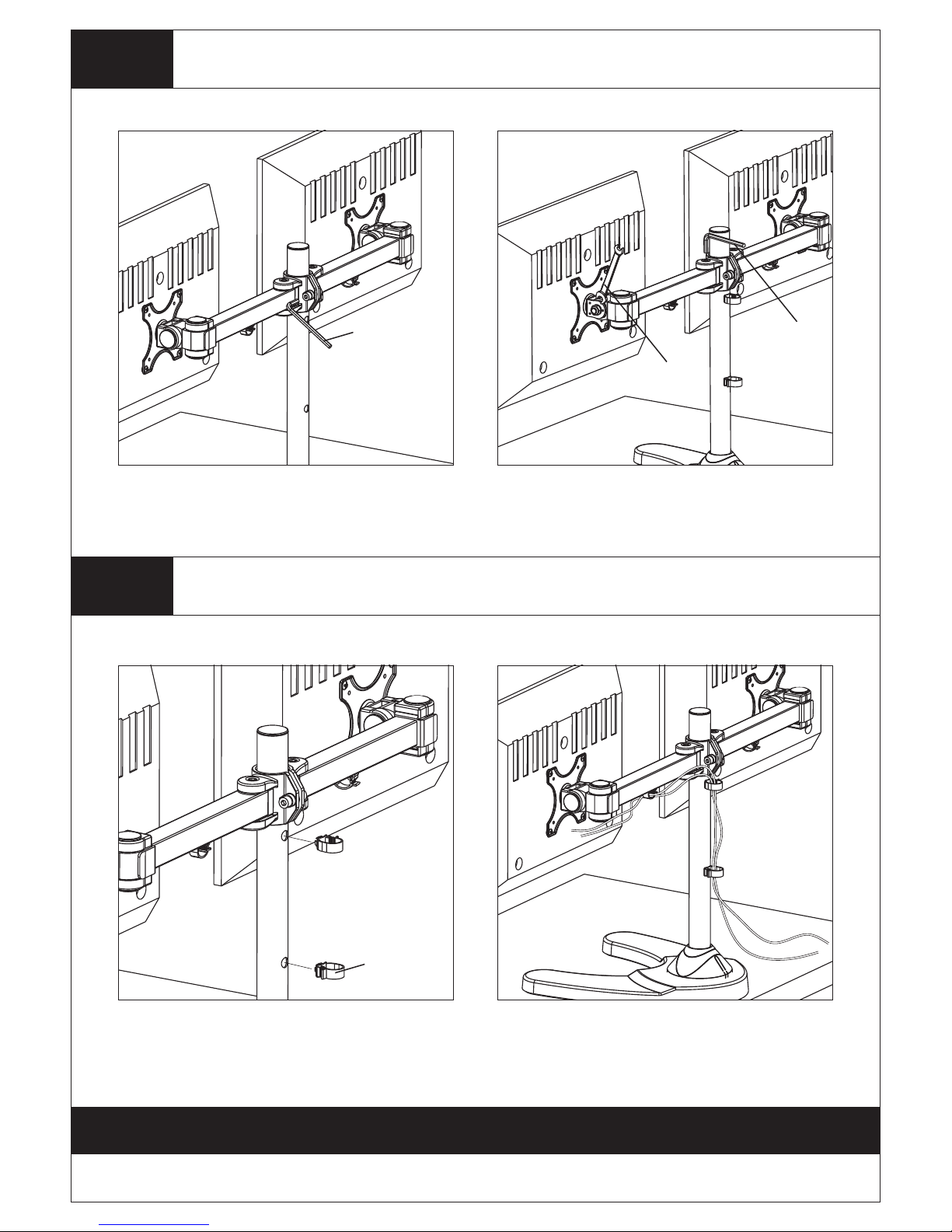

Do the Necessary Adjustment
Install the Wire Clips & Manage the Wires
5
Thank you for choosing our products!
k
k
l
i
Use the Wrench(l) to tighten the nut
if the tilt angle can not be fixed.
Use the Allen Key(k) to do the
necessary adjustment of mount.
