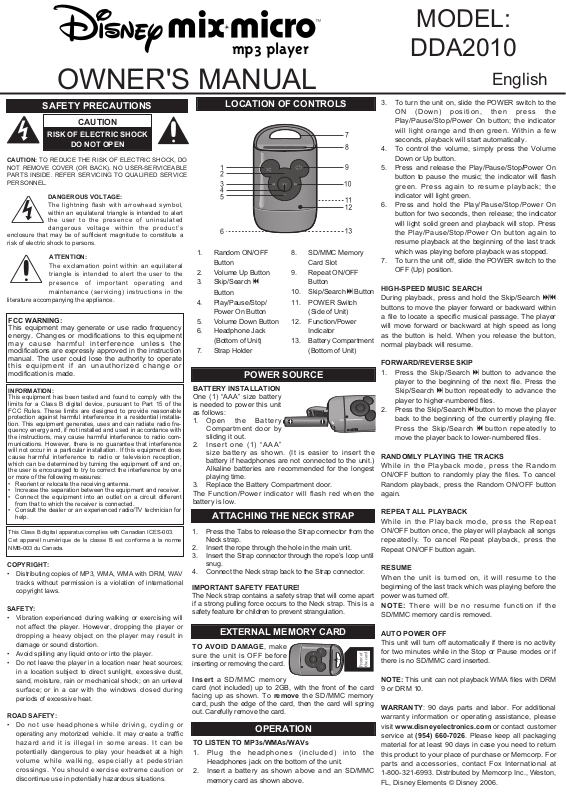

Disney DDA2010 user Manual
nq4 qmbzfs
MODEL:
DDA2010
OWNER'S MANUAL
SAFETY PRECAUTIONS
AUTION
C
RISK OF ELECTRIC SHOCK
DO NOT OPEN
C
AUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
N
OT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
DANGEROUS VOLTAGE:
T
he lightning flash with arrowhead symbol,
w
ithin an equilateral triangle is intended to alert
t
he user to the presence of uninsulated
d
e
nclosure that may be of sufficient magnitude to constitute a
r
isk of electric shock to persons.
literature accompanying the appliance.
FCC WARNING:
This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment
may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate
this equipment if an unauthorized change or
modification is made.
INFORMATION:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio com
munications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
•
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
COPYRIGHT:
• Distributing copies of MP3, WMA, WMA with DRM, WAV
tracks without permission is a violation of international
copyright laws.
SAFETY:
• Vibration experienced during walking or exercising will
not affect the player. However, dropping the player or
dropping a heavy object on the player may result in
damage or sound distortion.
• Avoid spilling any liquid onto or into the player.
• Do not leave the player in a location near heat sources;
in a location subject to direct sunlight, excessive dust,
sand, moisture, rain or mechanical shock; on an unlevel
surface; or in a car with the windows closed during
periods of excessive heat.
ROAD SAFETY:
• Do not use headphones while driving, cycling or
operating any motorized vehicle. It may create a traffic
hazard and it is illegal in some areas. It can be
potentially dangerous to play your headset at a high
volume while walking, especially at pedestrian
crossings. You should exercise extreme caution or
discontinue use in potentially hazardous situations.
angerous voltage within the product’s
ATTENTION:
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
-
OCATION OF CONTROLS
L
1
. Random ON/OFF
Button
2. Volume Up Button
3. Skip/Search
Button
4. Play/Pause/Stop/
Power On Button
5. Volume Down Button
6. H
eadphone Jack
(Bottom of Unit)
7. Strap Holder
o
8
. SD/MMC Memory
Card Slot
9. Repeat ON/OFF
Button
10. Skip/Search
11. POWER Switch
(Side of Unit)
12. Function/Power
Indicator
13. B
attery Compartment
(Bottom of Unit)
n Button
POWER SOURCE
BATTERY INSTALLATION
One (1) “AAA” size battery
is needed to power this unit
as follows:
1. Open the Battery
Compartment door by
sliding it out.
2. Insert one (1) “AAA”
size battery as shown. (It is easier to insert the
battery if headphones are not connected to the unit.)
Alkaline batteries are recommended for the longest
playing time.
Replace the Battery Compartment door.
3.
The Function/Power indicator will flash red when the
battery is low.
ATTACHING THE NECK STRAP
Press the Tabs to release the Strap connector from the
1.
Neck strap.
Insert the rope through the hole in the main unit.
2.
3. Insert the Strap connector through the rope’s loop until
snug.
4. Connect the Neck strap back to the Strap connector.
IMPORTANT SAFETY FEATURE!
The Neck strap contains a safety strap that will come apart
if a strong pulling force occurs to the Neck strap. This is a
safety feature for children to prevent strangulation.
EXTERNAL MEMORY CARD
TO AVOID DAMAGE, make
sure the unit is OFF before
inserting or removing the card.
Insert a SD/MMC memory
card (not included) up to 2GB, with the front of the card
facing up as shown. To
card, push the edge of the card, then the card will spring
out. Carefully remove the card.
remove the SD/MMC memory
OPERATION
TO LISTEN TO MP3s/WMAs/WAVs
1. Plug the headphones (included) into the
2. Insert a battery as shown above and an SD/MMC
Headphones jack on the bottom of the unit.
memory card as shown above.
English
3. To turn the unit on, slide the POWER switch to the
ON (Down) position, then press the
Play/Pause/Stop/Power On button; the indicator
will light orange and then green. Within a few
seconds, playback will start automatically.
4. To control the volume, simply press the Volume
Down or Up button.
5
. Press and release the Play/Pause/Stop/Power On
b
utton to pause the music; the indicator will flash
green. Press again to resume playback; the
indicator will light green.
6. Press and hold the Play/Pause/Stop/Power On
button for two seconds, then release; the indicator
will light solid green and playback will stop. Press
the Play/Pause/Stop/Power On button again to
resume playback at the beginning of the last track
which was playing before playback was stopped.
7. To turn the unit off, slide the POWER switch to the
OFF (Up) position.
HIGH-SPEED MUSIC SEARCH
During playback, press and hold the Skip/Search n/o
buttons to move the player forward or backward within
a file to locate a specific musical passage. The player
will move forward or backward at high speed as long
a
s the button is held. When you release the button,
normal playback will resume.
FORWARD/REVERSE SKIP
1. Press the Skip/Search n button to advance the
player to the beginning of the next file. Press the
Skip/Search
player to higher-numbered files.
2. Press the Skip/Search
back to the beginning of the currently playing file.
Press the Skip/Search
move the player back to lower-numbered files.
RANDOMLY PLAYING THE TRACKS
While in the Playback mode,
ON/OFF button to randomly play the files. To cancel
Random playback, press the Random ON/OFF button
again.
REPEAT ALL PLAYBACK
While in the Playback mode, press the Repeat
ON/OFF button once, the player will playback all songs
repeatedly. To cancel Repeat playback, press the
Repeat ON/OFF button again.
RESUME
When the unit is turned on, it will resume to the
beginning of the last track which was playing before the
power was turned off.
NOTE: There will be no resume function if the
SD/MMC memory card is removed.
AUTO POWER OFF
This unit will turn off automatically if there is no activity
for two minutes while in the Stop or Pause modes or if
there is no SD/MMC card inserted.
NOTE: This unit can not playback WMA files with DRM
9 or DRM 10.
WARRANTY: 90 days parts and labor. For additional
warranty information or operating assistance, please
visit www.disneyelectronics.com or contact customer
service at
material for at least 90 days in case you need to return
this product to your place of purchase or Memcorp. For
parts and accessories, contact Fox International at
1-800-321-6993. Distributed by Memcorp Inc., Weston,
FL, Disney Elements © Disney 2006.
n button repeatedly to advance the
o button to move the player
o button repeatedly to
press the Random
(954) 660-7026. Please keep all packaging
