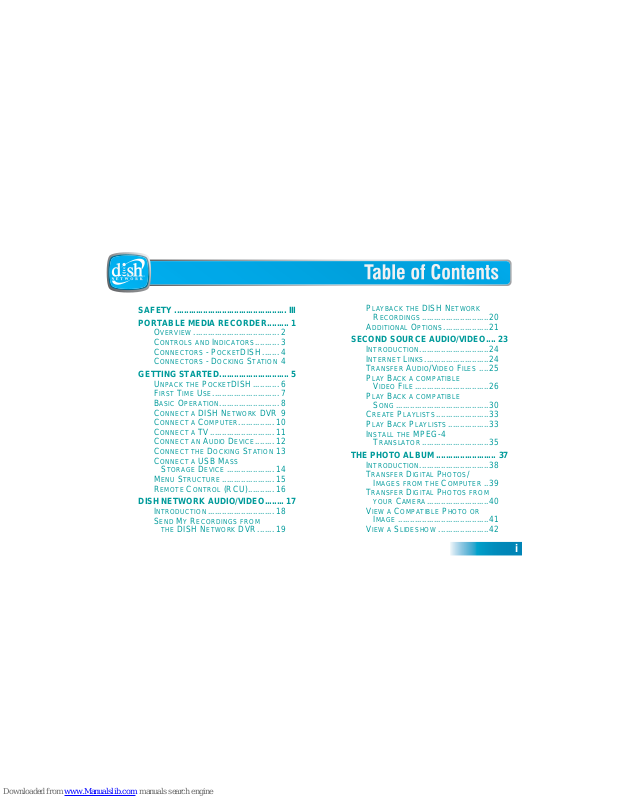

Dish Network PocketDISH User Manual

i

SAFETY ............................................... III

PORTABLE MEDIA RECORDER......... 1

O

VERVIEW .................................... 2

C

ONTROLS AND INDICATORS.......... 3

C

ONNECTORS - POCKETDISH....... 4

C

ONNECTORS - DOCKING STATION 4

GETTING STARTED............................. 5

U

NPACK THE POCKETDISH........... 6

F

IRST TIME USE............................ 7

B

ASIC OPERATION......................... 8

C

ONNECT A DISH NETWORK DVR 9

C

ONNECT A COMPUTER............... 10

C

ONNECT A TV...........................11

C

ONNECT AN AUDIO DEVICE........ 12

C

ONNECT THE DOCKING STATION 13

C

ONNECT A USB MASS

S

TORAGE DEVICE .................... 14

M

ENU STRUCTURE...................... 15

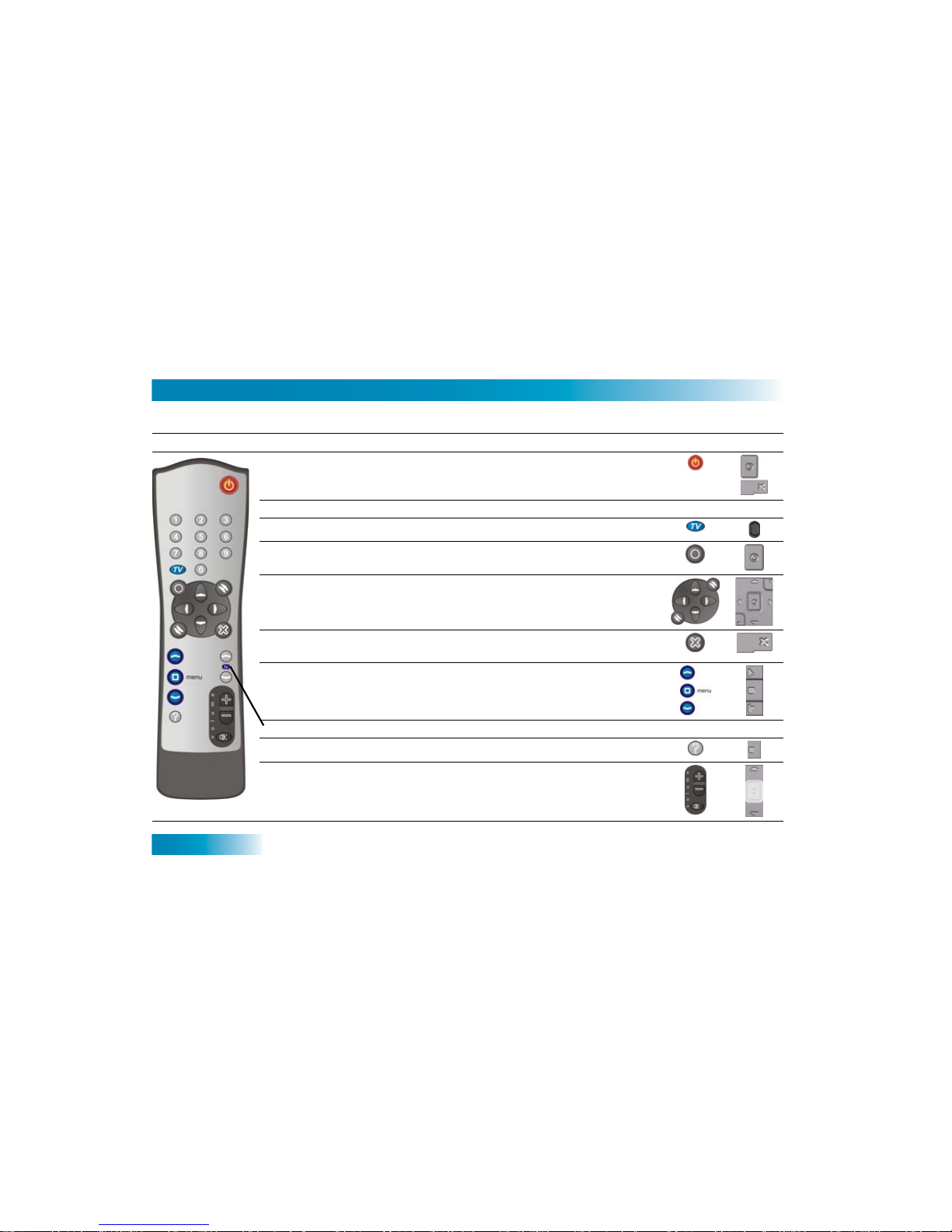

R

EMOTE CONTROL (RCU)........... 16

DISH NETWORK AUDIO/VIDEO........ 17

I

NTRODUCTION............................ 18

S

END MY RECORDINGS FROM

THE DISH NETWORK DVR....... 19

P

LAYBACK THE DISH NETWORK

R

ECORDINGS............................20

A

DDITIONAL OPTIONS...................21

SECOND SOURCE AUDIO/VIDEO.... 23

I

NTRODUCTION.............................24

I

NTERNET LINKS...........................24

T

RANSFER AUDIO/VIDEO FILES ....25

P

LAY BACK A COMPATIBLE

VIDEO FILE...............................26

P

LAY BACK A COMPATIBLE

S

ONG.......................................30

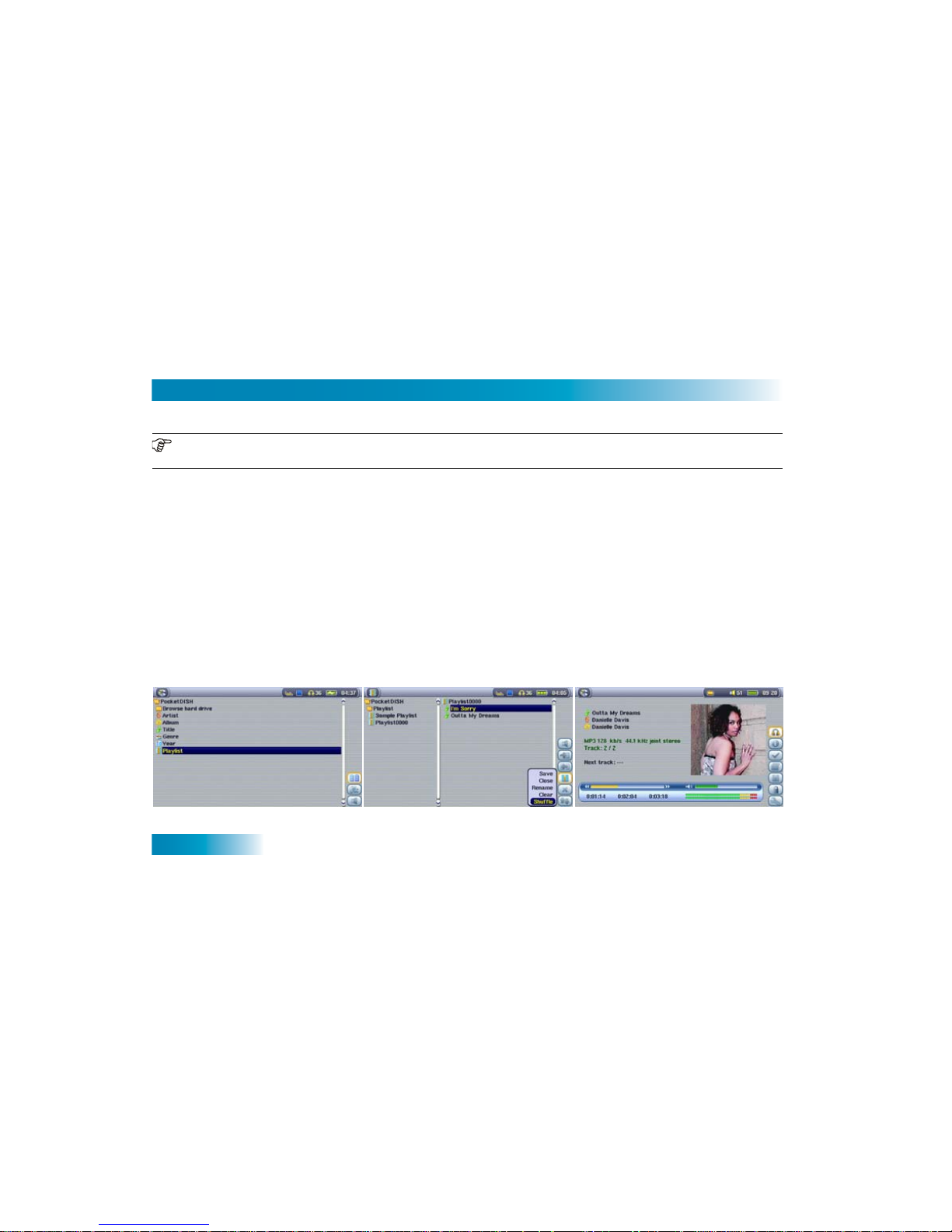

C

REATE PLAYLISTS......................33

P

LAY BACK PLAYLISTS.................33

I

NSTALL THE MPEG-4

TRANSLATOR............................35

THE PHOTO ALBUM ......................... 37

I

NTRODUCTION.............................38

T

RANSFER DIGITAL PHOTOS/

IMAGES FROM THE COMPUTER ..39

T

RANSFER DIGITAL PHOTOS FROM

YOUR CAMERA..........................40

V

IEW A COMPATIBLE PHOTO OR

IMAGE ......................................41

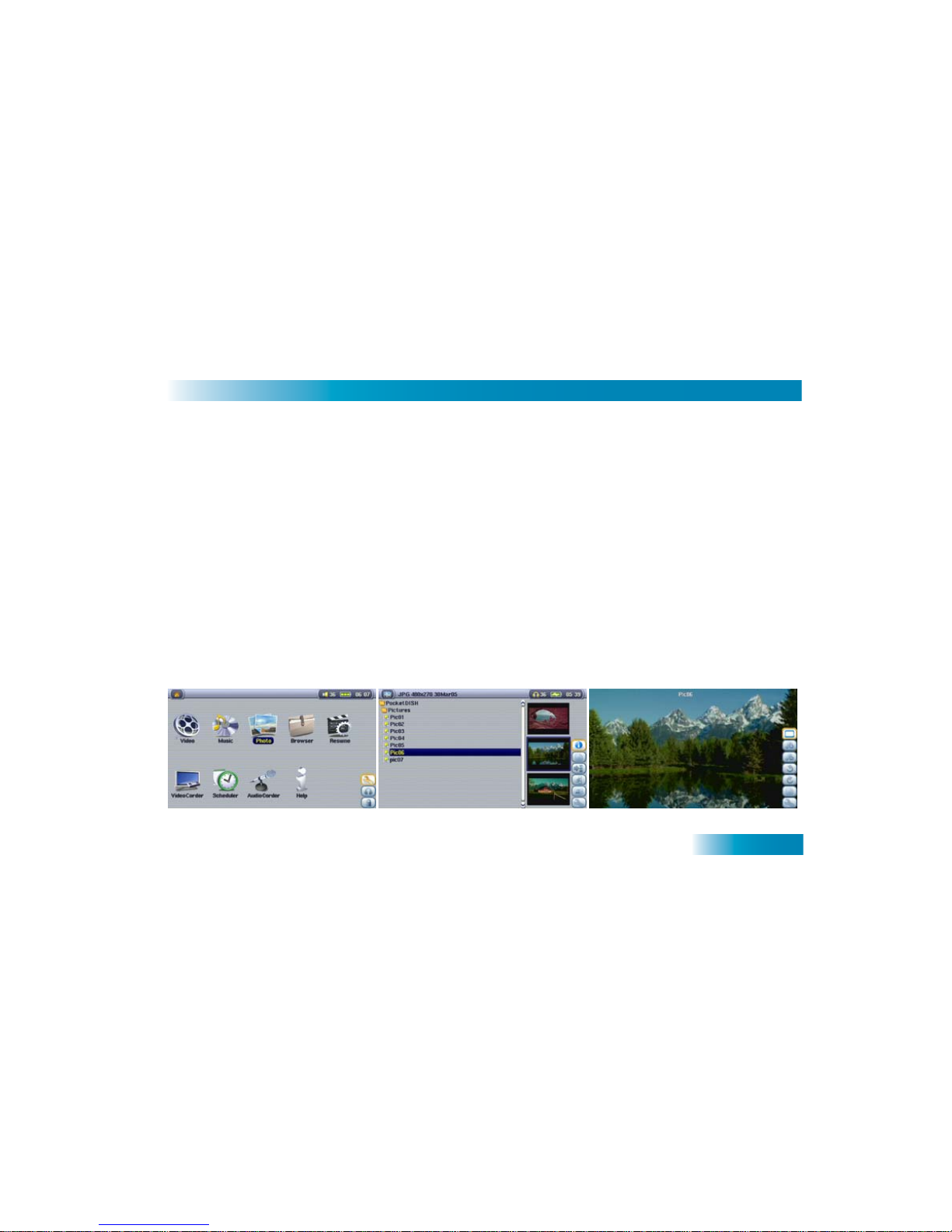

V

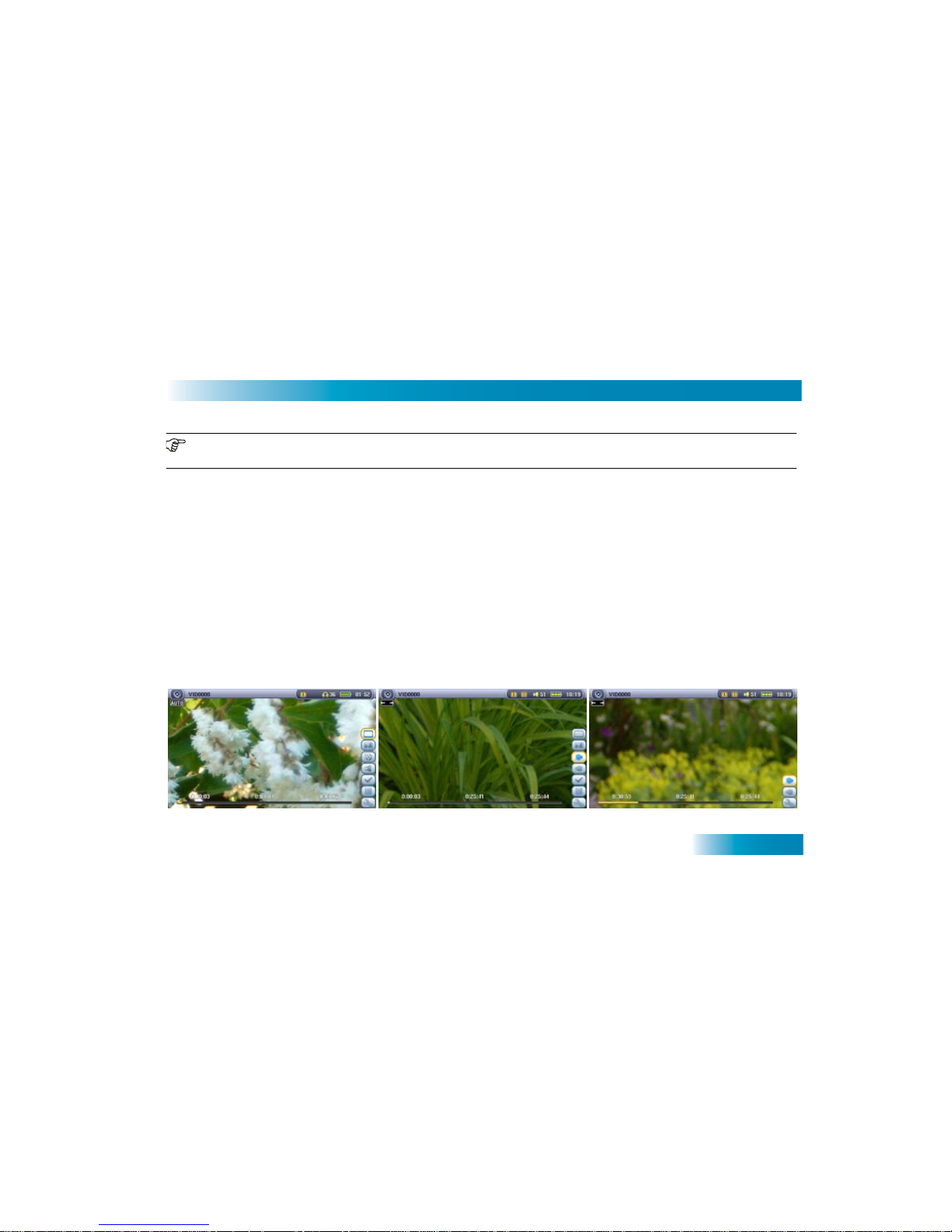

IEW A SLIDESHOW .....................42

ii

Table of contents

THE BROWSER.................................. 45

D

ESCRIPTION.............................. 46

H

OW TO USE THE BROWSER....... 47

THE VIDEOCORDER.......................... 49

D

ESCRIPTION.............................. 50

O

PERATION................................. 51

T

HE VIDEOCORDER

S

ETTINGS MENU ...................... 52

V

IDEO EDITING............................ 53

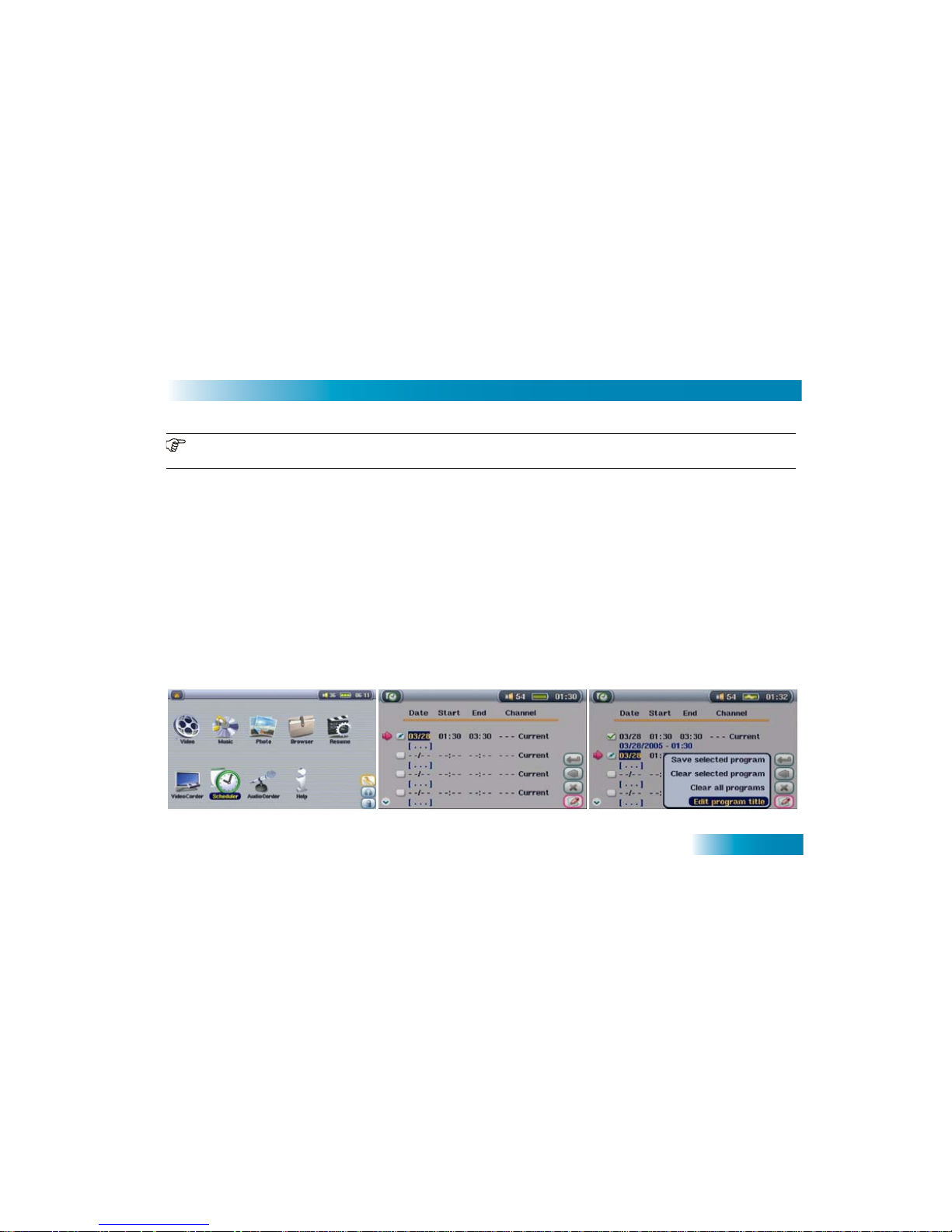

THE SCHEDULER.............................. 55

D

ESCRIPTION.............................. 56

O

PERATION................................. 57

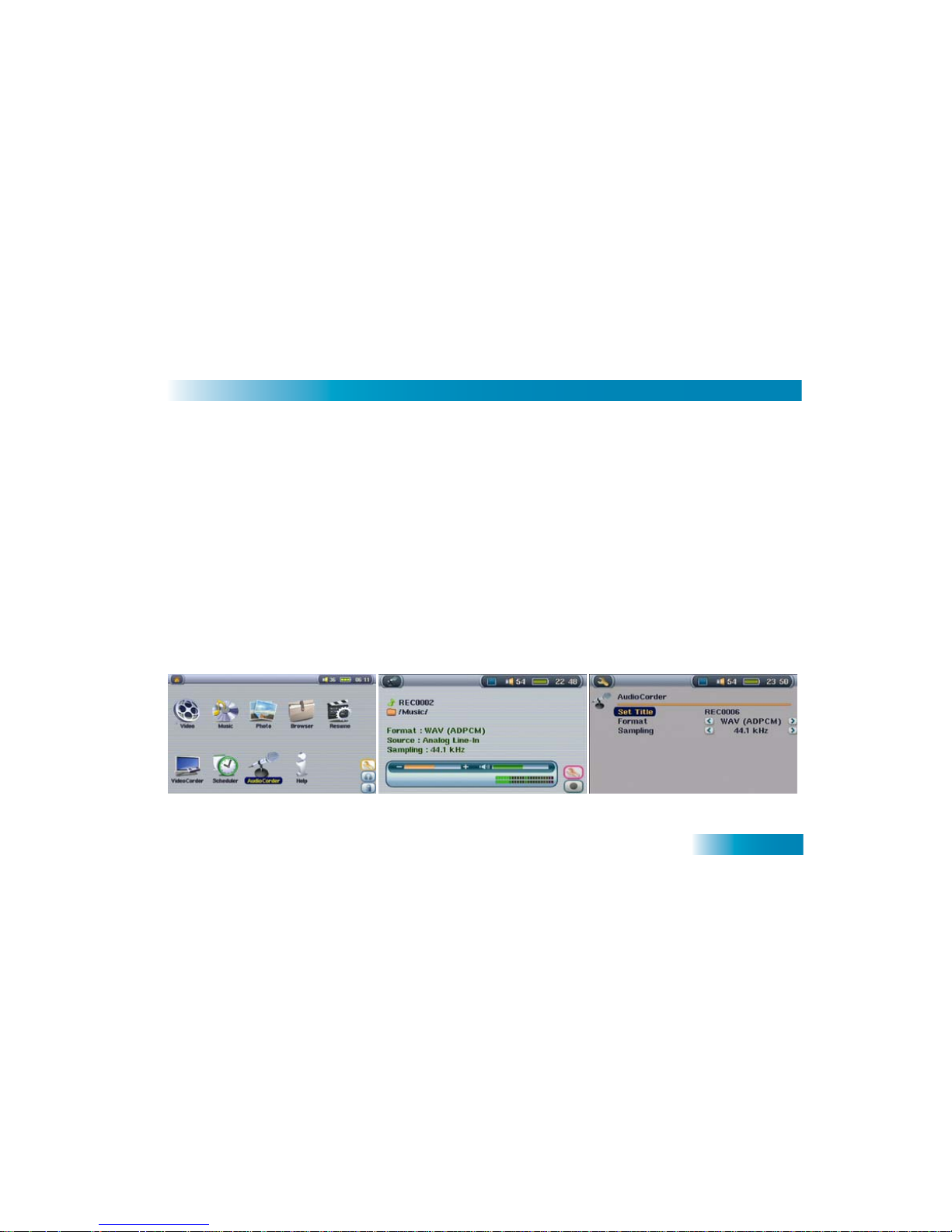

THE AUDIOCORDER......................... 59

D

ESCRIPTION.............................. 60

O

PERATION................................. 61

I

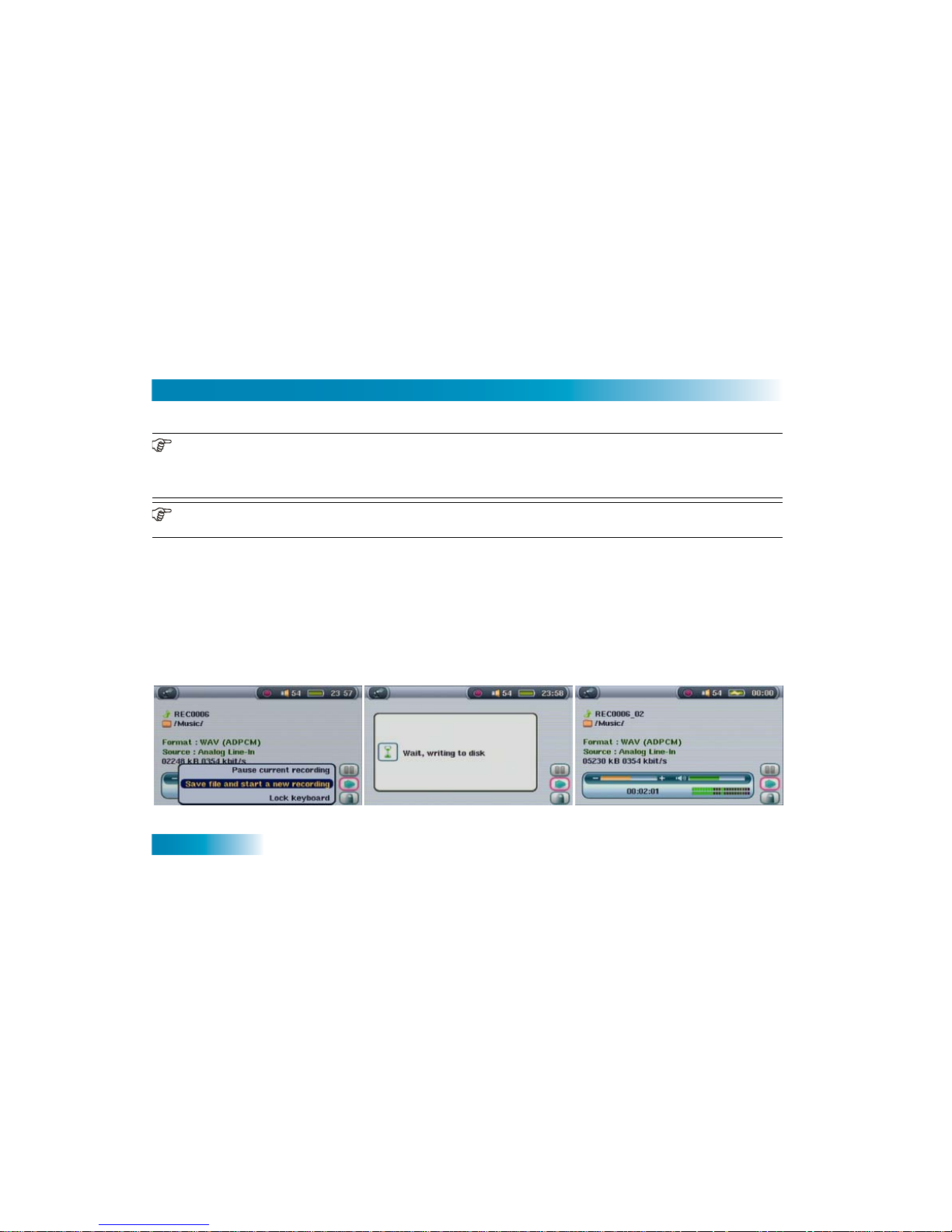

NCREMENTAL RECORDING........... 62

E

DITING...................................... 63

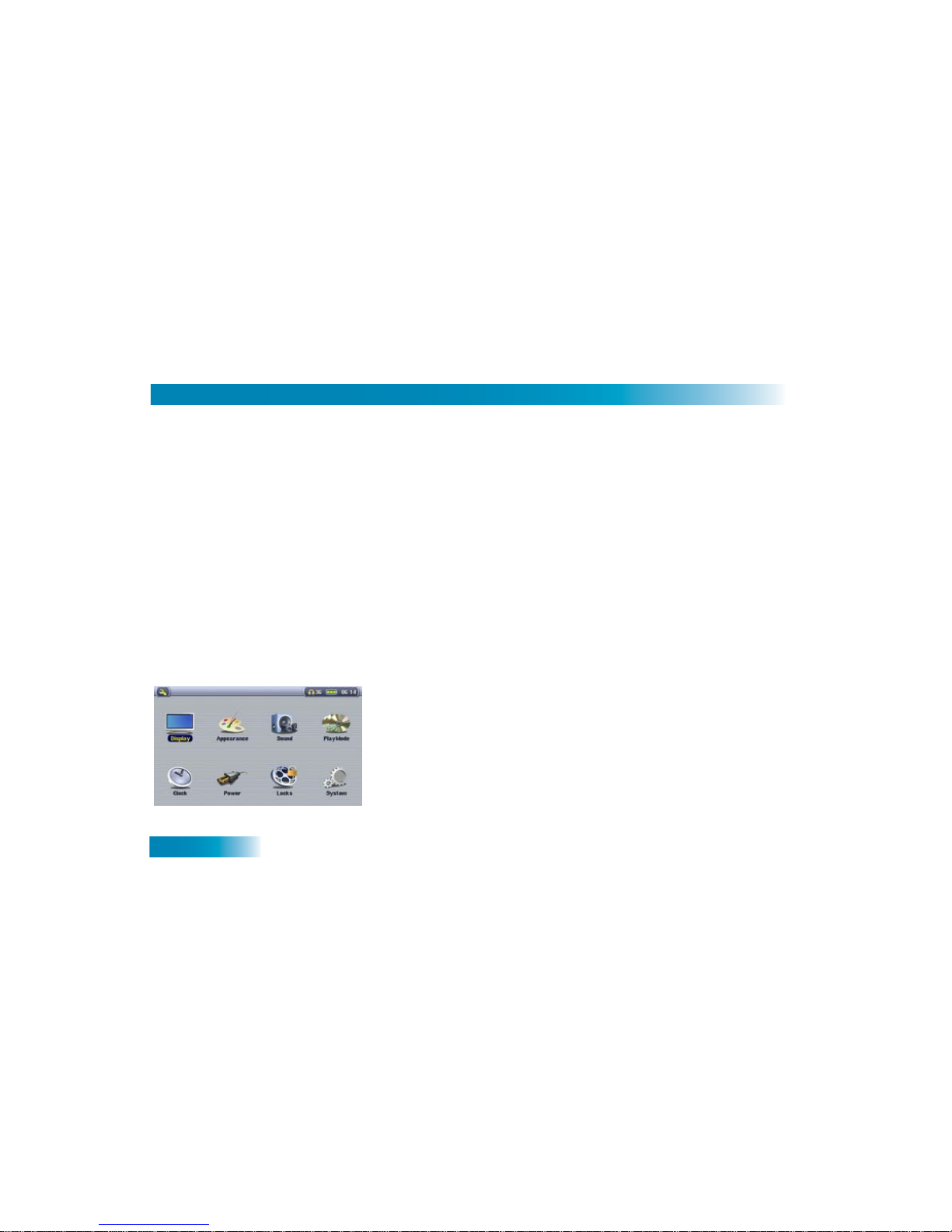

SYSTEM SETUP................................. 65

D

ESCRIPTION.............................. 67

D

ISPLAY MENU ........................... 67

A

PPEARANCE MENU.................... 67

S

OUND MENU ............................. 68

P

LAYMODE MENU....................... 68

C

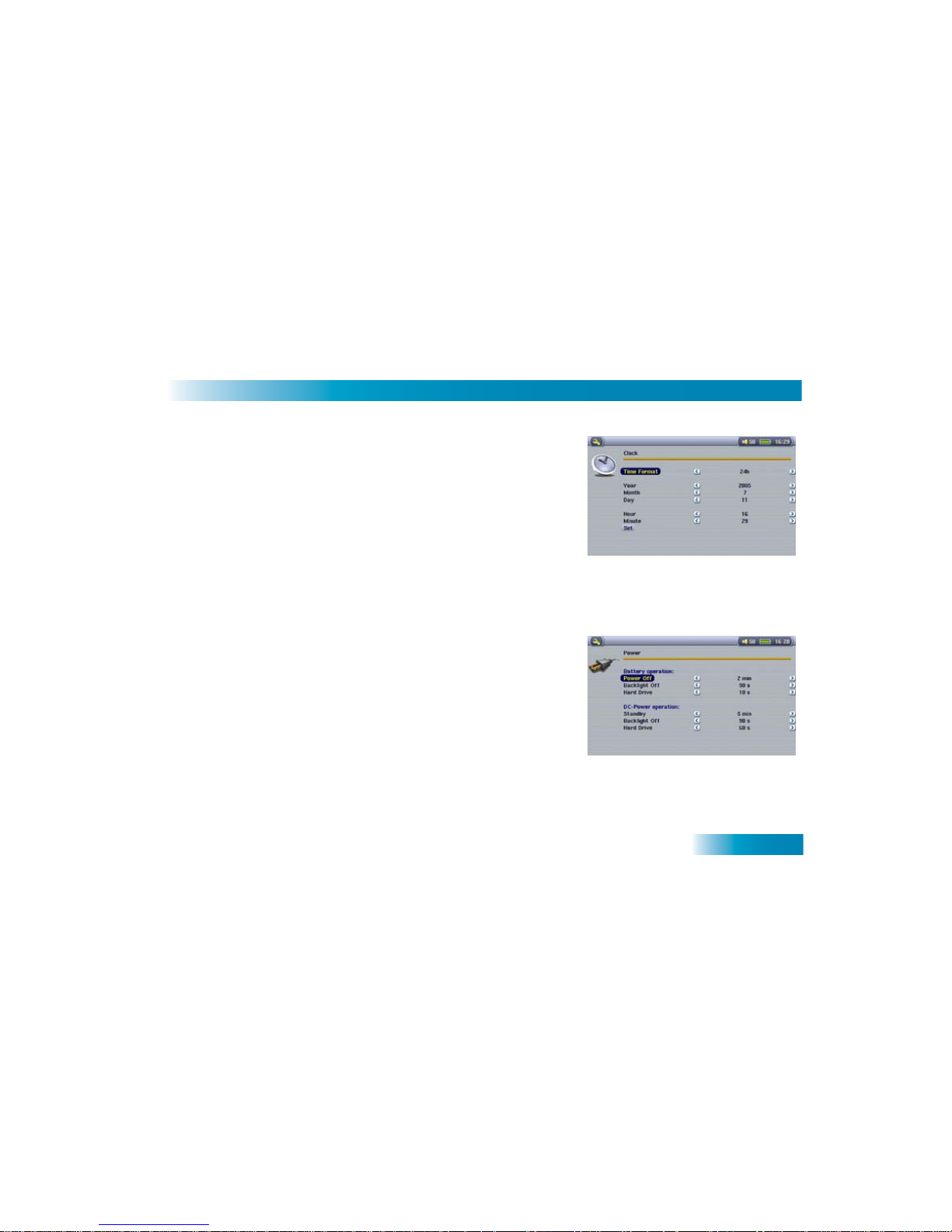

LOCK MENU.............................. 69

P

OWER MENU............................. 69

L

OCKS MENU.............................. 70

S

YSTEM MENU.............................70

I

NSTALL A PERSONAL

W

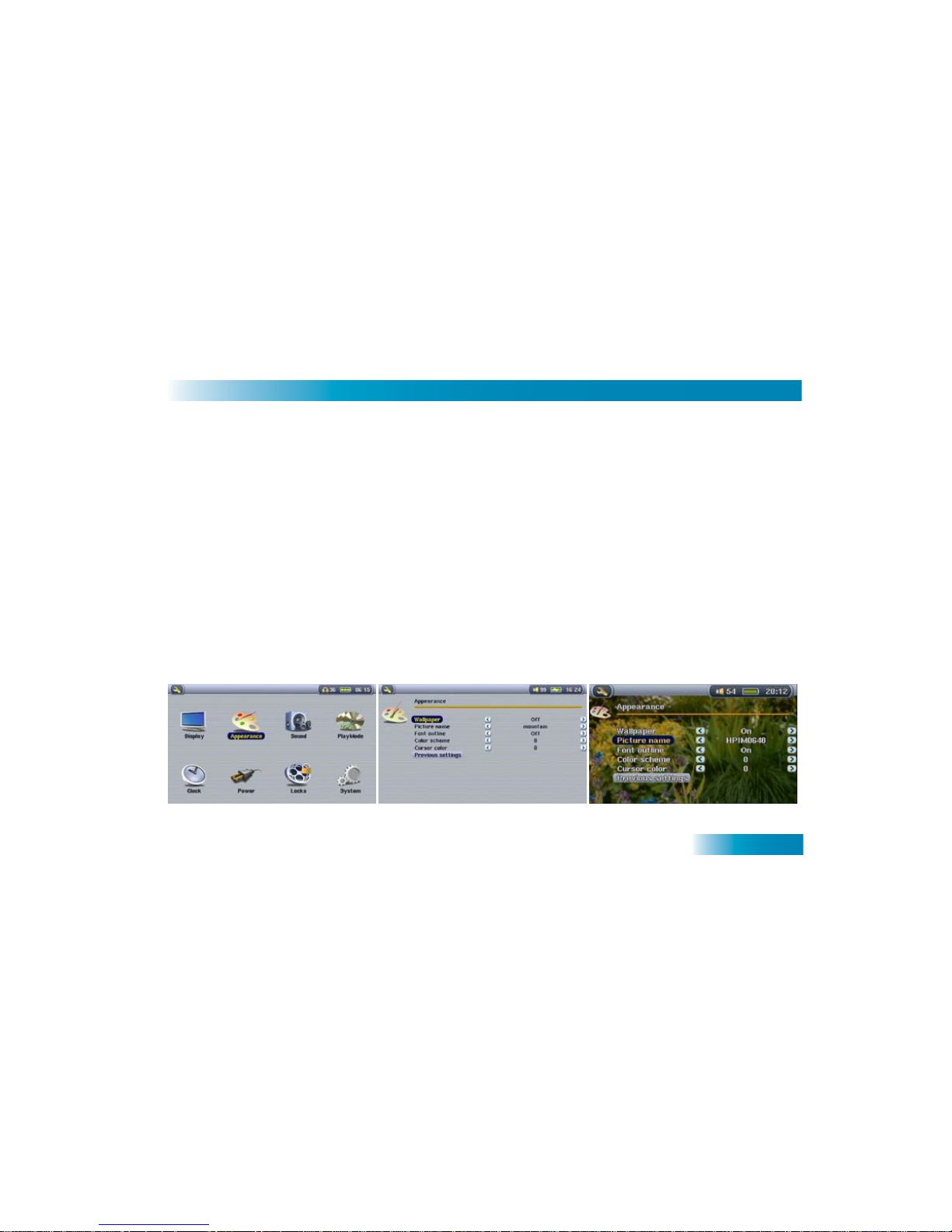

ALLPAPER..............................71

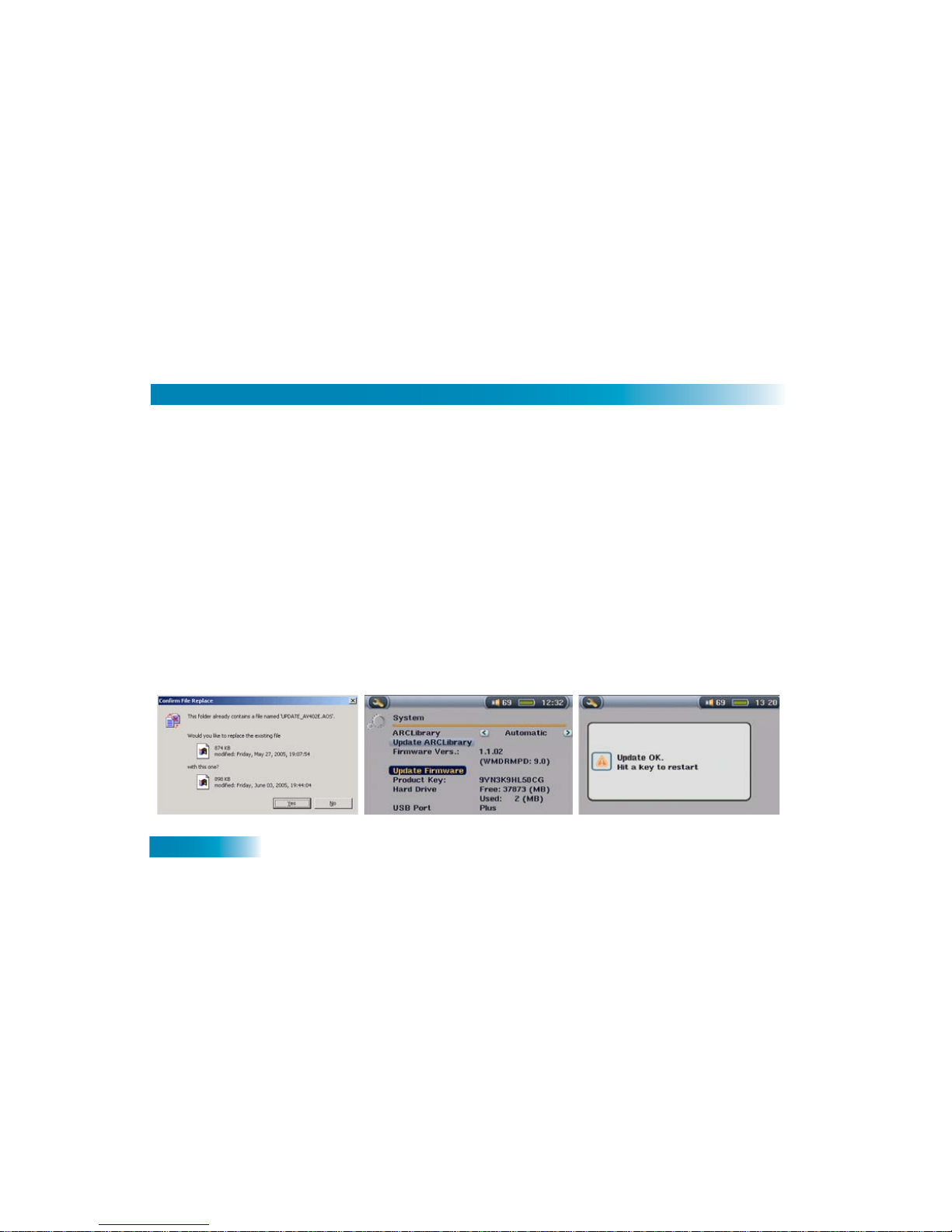

S

OFTWARE UPGRADES

FROM THE INTERNET.................72

TROUBLESHOOTING........................ 73

APPENDIX ........................................ A-1

iii

SAFETY

SAFETY CONVENTIONS

Throughout this user guide, there may be blocks of text indicated by symbols and printed in a
different way than the surrounding text. These blocks of text require the attention of the reader to
avoid hazardous situations. The hazard levels are indicated as:

BATTERY SAFETY

Your PocketDISH has a rechargeable Lithium Ion (Li-Ion) battery.

This warning indicates a hazardous situation which, if not avoided, could result in serious injury.

This caution indicates a situation which, if not avoided, could damage the equipment or other properties.

This note indicates additional information to make you aware of possible problems and information of
any importance to help you to understand, to use and to maintain the PocketDISH.

The Li-Ion battery is a high capacity power source.
For your safety:

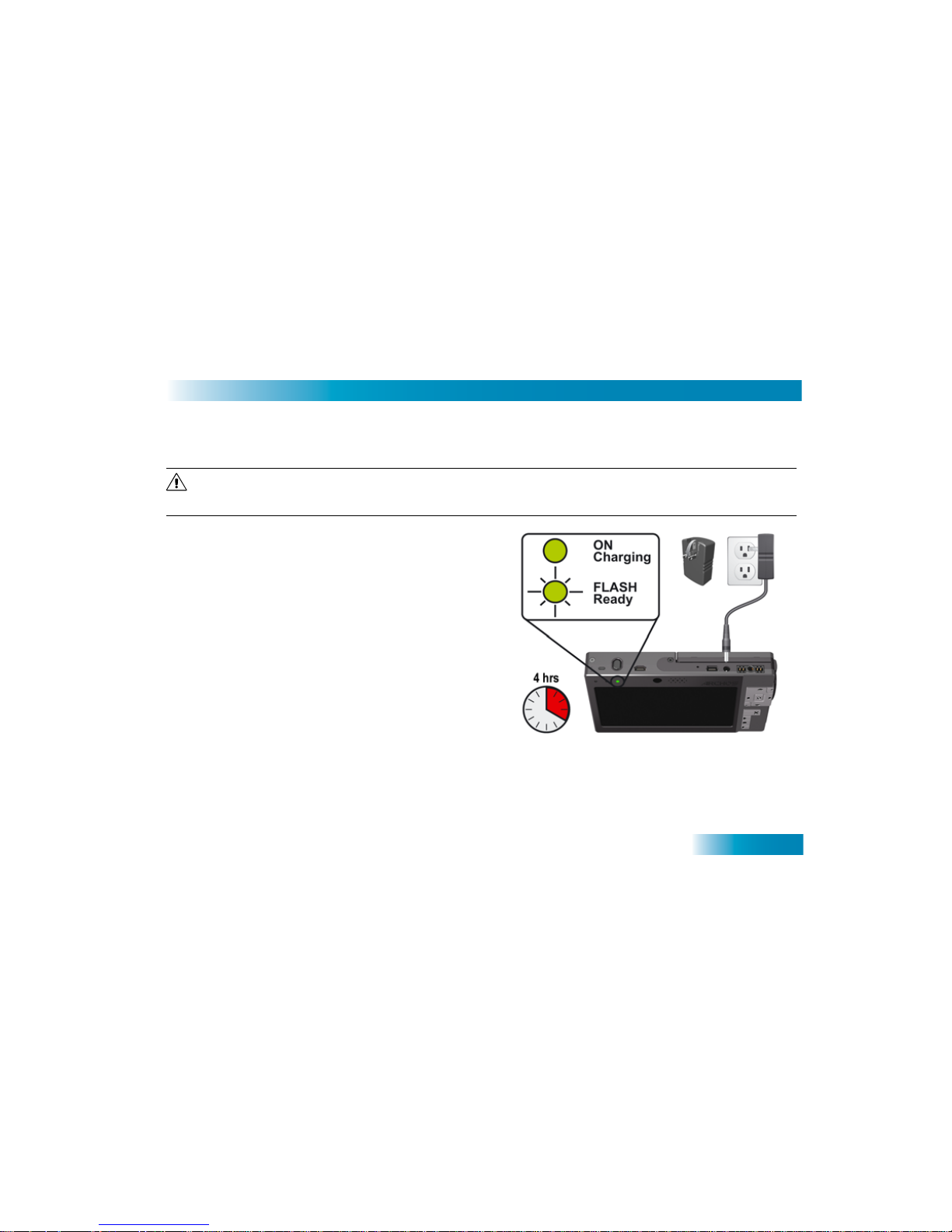

• To charge the Li-Ion battery, only use the AC/DC adapter that came with the PocketDISH.

• Never leave the PocketDISH in a hot environment like your car. Ambient temperature may not exceed

140F/60

O

C.

Failing to do so can cause permanent damage to equipment and can result in serious personal injury.

Important Safety Precautions

iv

Safety

GENERAL SAFETY

1 Carefully read and understand the warranty terms in the back of this manual.
2 Heed all warnings and follow all instructions.
3 Do not use this product near water or in extreme cold.
4 Clean only with a dry cloth.
5 Do not install near any heat sources such as radiators, heat registers, stoves, or other

equipment (including amplifiers) that produce heat.

6 Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from this product.

7 Use only attachments/accessories specified by the manufacturer.
8 Disconnect the AC/DC adapter from the power during lightning storms or when unused

for long periods of time.

9 To help avoid possible damage to the PocketDISH electronics, do not expose the

PocketDISH to excessive vibration, or any magnetic objects, such as speakers, electric
motors, transformers, etc.

10 Refer all servicing to qualified service personnel. Servicing is required when this product

or its accessories have been damaged in any way, such as the power cord or plug is
damaged, liquid has been spilled or objects have fallen into the product, the product has
been exposed to rain, or to moisture, does not operate normally, or has been dropped.

Do not expose the AC/DC adapter to rain or excessive moisture to avoid the risk of shock or permanent
damage.

v

Safety

AVOID HEARING DAMAGE

SAFE USE

SAFE BATTERY HANDLING

SAFE DISPOSAL

Your PocketDISH respects the current regulations for limiting the output volume of consumer audio
devices to a safe level while using the headphones that came with the PocketDISH. Permanent damage
to your ears will occur if headphones or ear buds are used at a high volume level. Over time you might
get used to a higher volume level that may sound normal, but the risk of permanent damage to your ears
is still present. Set the volume level of your PocketDISH to a safe level before permanent damage to
your ears has occurred. If you start to hear ringing in your ears, reduce the volume level or stop using
the headphones or ear buds.

Do not use headphones or ear buds while you drive. The use of headphones or ear buds can be
disruptive or distracting when you have to pay attention. Therefore the use of headphones or ear buds is
not recommended while you drive or even if you are just a pedestrian. Please note that in some areas
the use of headphones or ear buds is considered to be illegal.

• Never leave loose Li-Ion batteries in a hot environment like your car.

• Do not put loose Li-Ion batteries in a pocket, bag, or drawer where they could short-circuit against

other items. Prevent battery tabs for short circuit.

• Do not place loose Li-Ion batteries on any conductive surface, such as a metal-topped table.

• Keep loose Li-Ion batteries WELL out of reach of children and pets!

• Only buy original replacement or extra batteries.

Your PocketDISH has a rechargeable Lithium Ion (Li-Ion) battery. Dispose of the PocketDISH and its
batteries in accordance with local regulations. Make sure the Li-Ion battery is fully discharged before
disposal to avoid the possibility of a short-induced fire after disposal.

vi

Safety

NOTES

1

PORTABLE MEDIA RECORDER

This chapter gives you an overview and a description of your Portable Media
Recorder.

•OVERVIEW

•CONTROLS AND INDICATORS

•CONNECTORS - POCKETDISH

•CONNECTORS - DOCKING STATION

Portable Media Recorder

About Your PocketDISH

2

Chapter 1

OVERVIEW

Features include the following:

• Video Recorder & Player:

DISH Network content,
and MPEG-4.

• Music Recorder & Player:

DISH Network content,
MP3, WMA and WAV.

• Photo Viewer/Slideshow:

JPG, JPEG, BMP.

• Scheduler:

to set your timers for
scheduled recording.

• Built-in Help:

Additional on-screen
information.

• Built-in Microphone:

To make digital (voice)
recordings

• Built-in Hard Drive:

USB Mass Storage Device
for any file type.

3

Portable Media Recorder

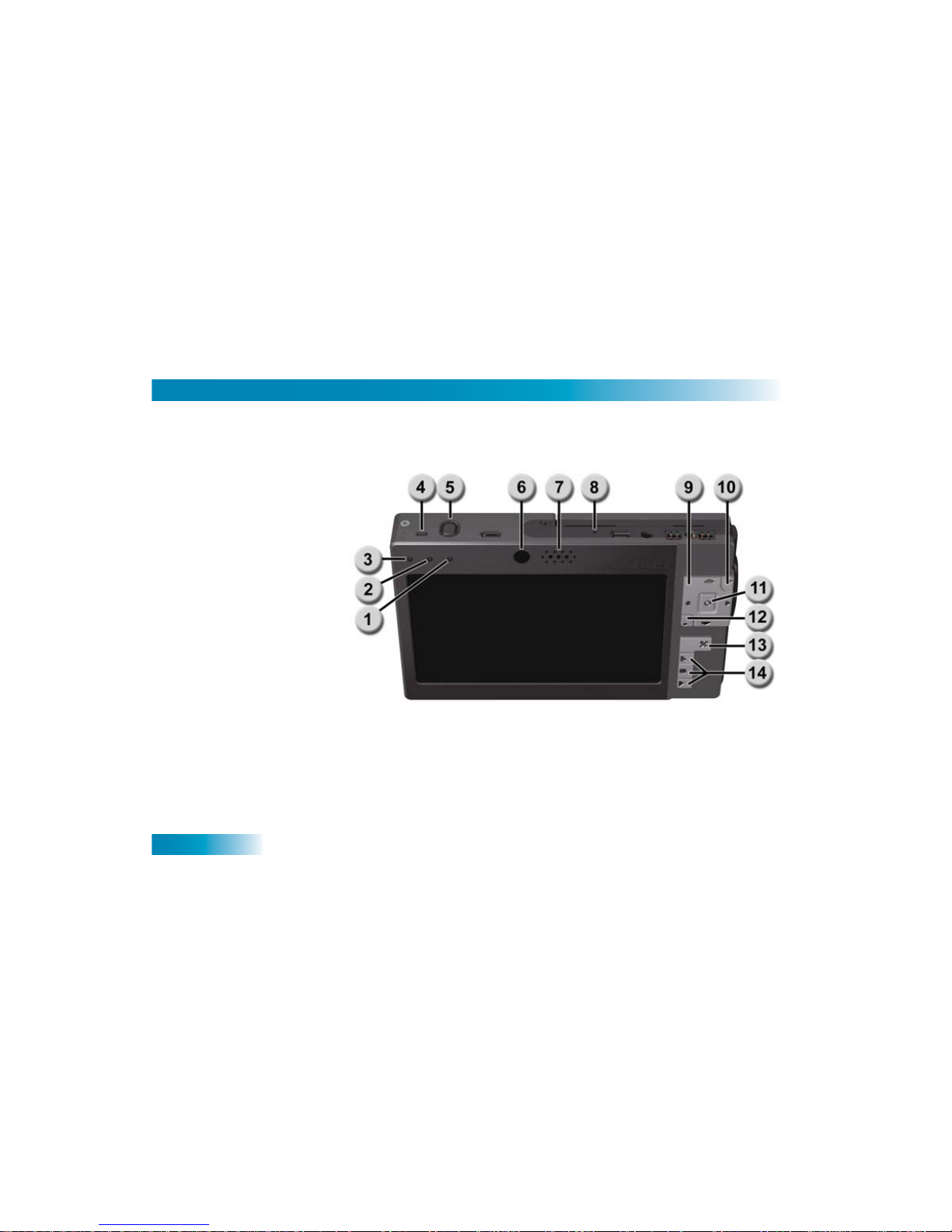

CONTROLS AND INDICATORS

1

CHG: a solid light

indicates

that the PocketDISH is connected to the battery

charger. If charging is complete, the light flashes.

2

HDD:

indicates

that the hard drive is active.

3

ON: indicates that the PocketDISH is turned on.

4

TV OUT: shows that the screen content is displayed on a TV.

5

TV/LCD key: switches between the PocketDISH screen and a TV.

6

Remote control eye: receives the commands from the remote control.

7

Speaker: reproduces the audio.

8

MIC: to make digital (voice) recordings.

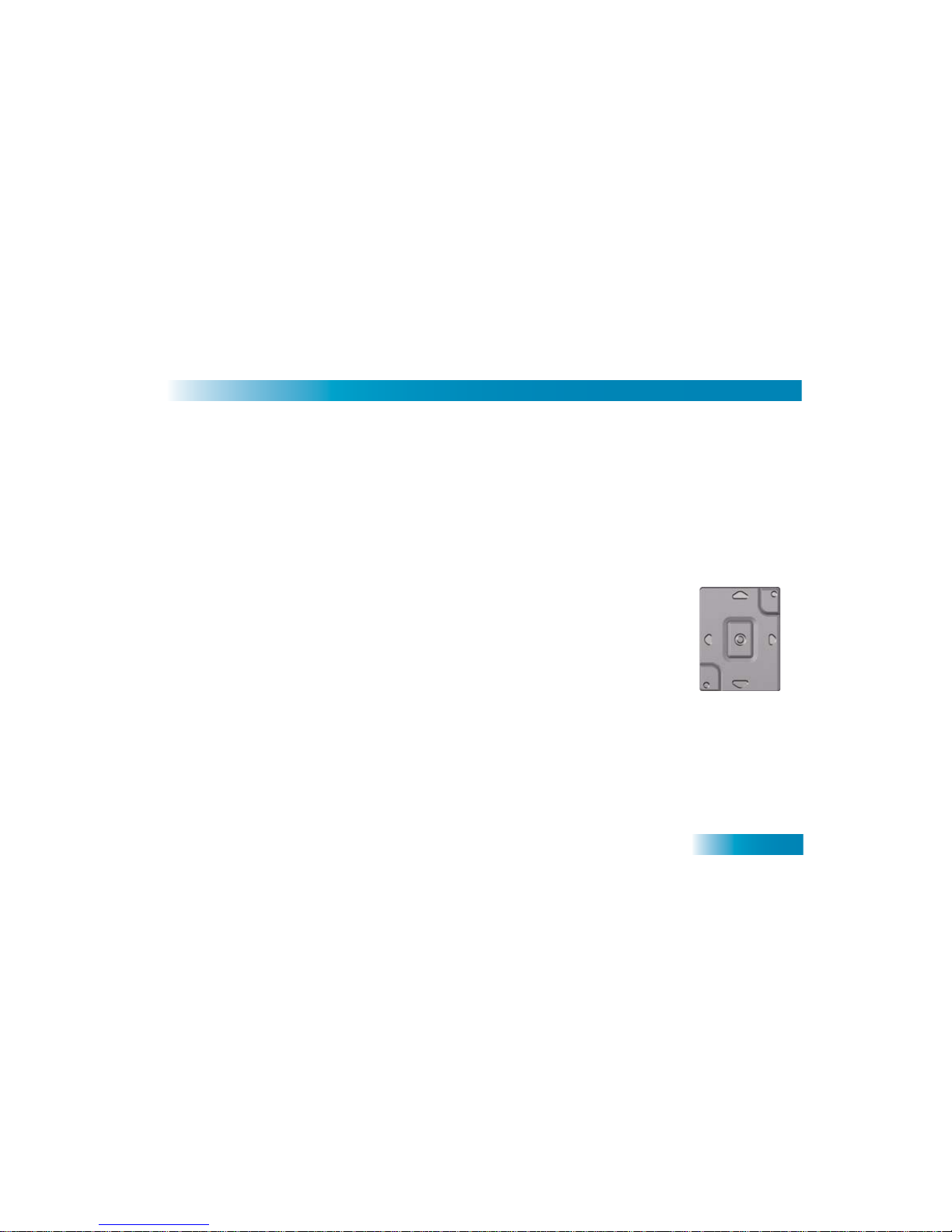

9 : moves the cursor left or right.

Previous, Next: makes a selection, advances or reverses quickly through a fil e.

: moves the cursor up or down or increases/decreases the volume (+/-).

10

Page Up: moves the cursor up one page. Skips video and music ahead 30
seconds.

11

ON: press and hold to turn on PocketDISH.
Play: starts the playback of a selection.
Enter: acknowledges a selection.

12

Page Down: moves the cursor down one page. Skips video and music back
30 seconds.

13

OFF: press and hold to turn off PocketDISH.
Stop: stops the playback of a selection.
Escape: quits a selection without saving.

14

Upper, Cent er and Bottom Setup keys: to open and navigate through the Se tup
menus, sub-menus and options to personalize your settings.

4

Chapter 1

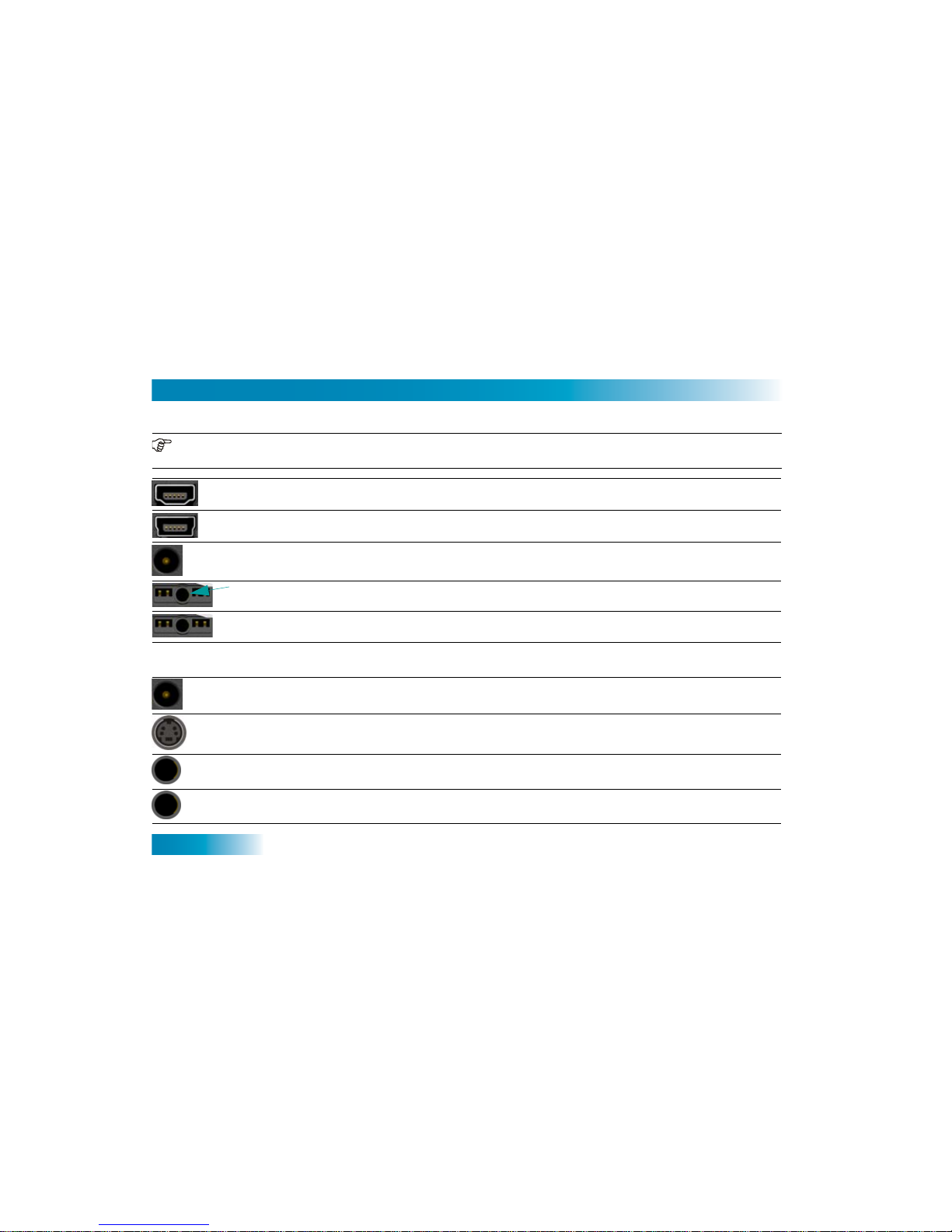

CONNECTORS - POCKETDISH

CONNECTORS - DOCKING STATION

The USB Host and Device connector types used on the PocketDISH are: USB Mini Type A (USB-A) and
USB Mini Type B (USB-B).

USB-A (Host): connect USB (mass storage device) compatible equipment, like a
camcorder, digital photo camera or a USB flash drive.

USB-B (Device): connect to a DISH Network DVR or computer.

DC IN (Power): connect to the AC/DC power adapter that came with the PocketDISH.

Headphones/AV: connect to the headphones that came with the PocketDISH.
Multi-connection: install the multi-connector for use with other multimedia devices or

connect to the Archos FM Radio & Remote Control (not included).

DC IN (Power): connect to the AC/DC power adapter that came with the PocketDISH.
Video: record video only from any S-Video source. For recording the audio, also connect

the analog AV-cable to the AV in connector.
A V out: send the audio and video from the PocketDISH to a TV.

A V in: record audio and video from any audio or video device onto the PocketDISH.

5

GETTING STARTED

Use this information to get started and connect your PocketDISH to other devices.

•UNPACK THE POCKETDISH

•FIRST TIME USE

•BASIC OPERATION

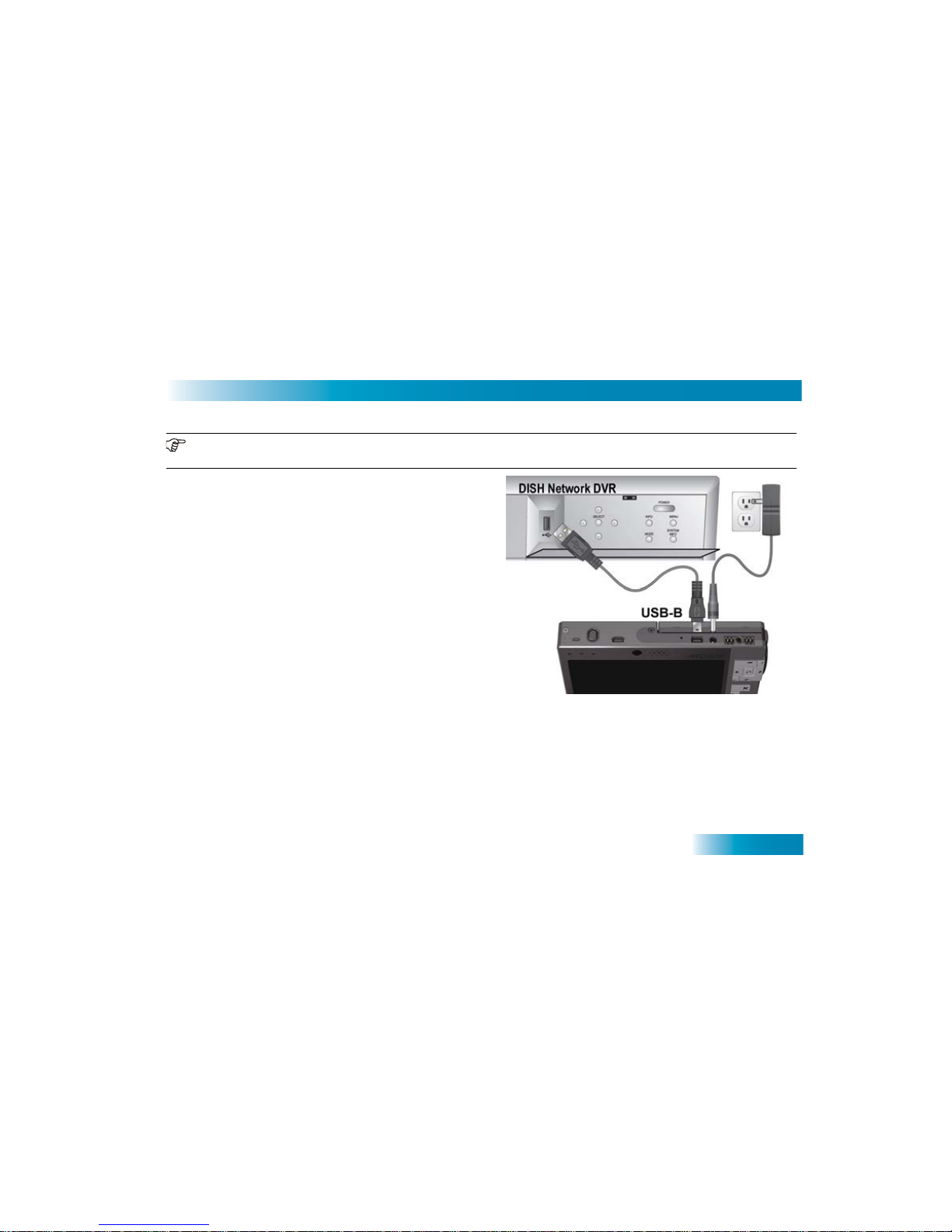

•CONNECT A DISH NETWORK DVR

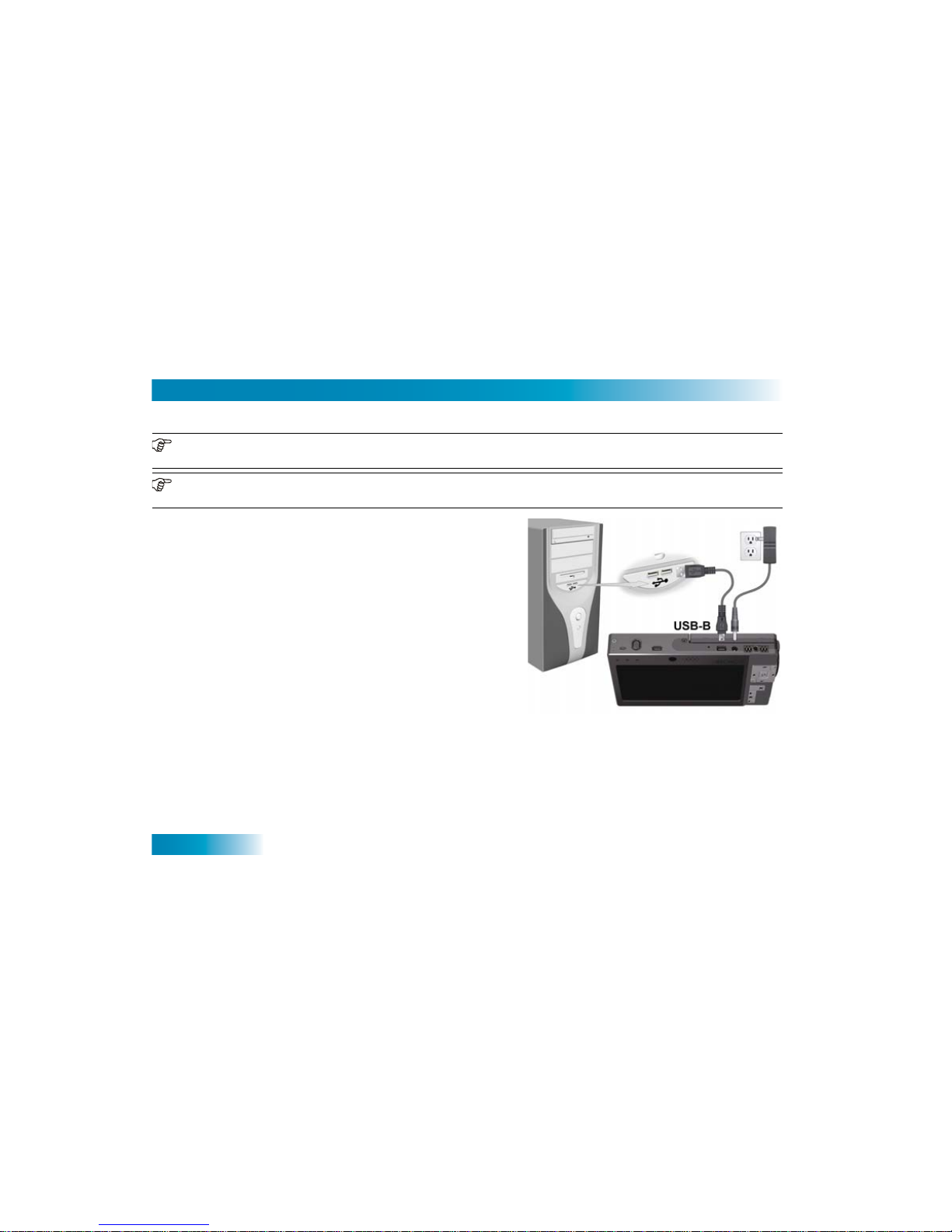

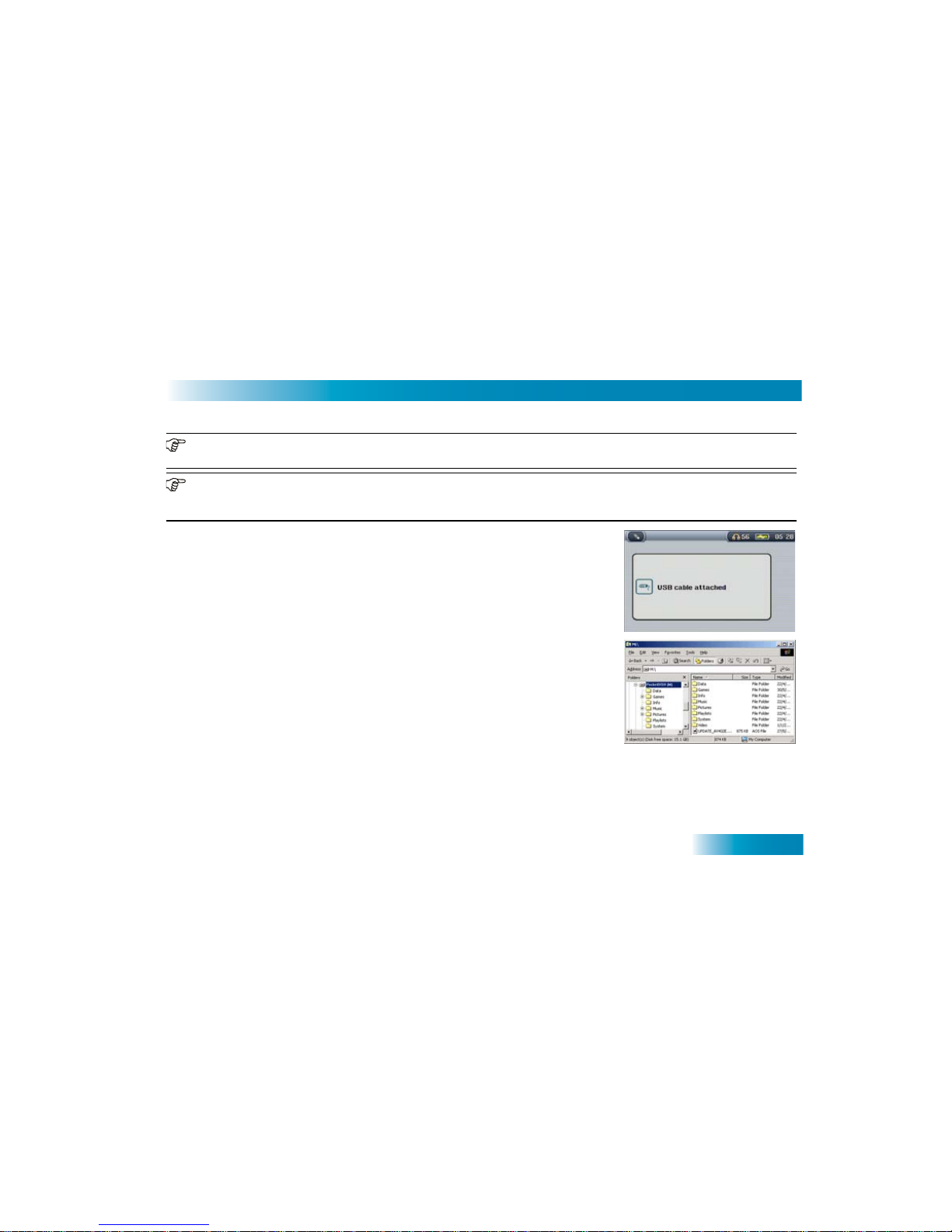

•CONNECT A COMPUTER

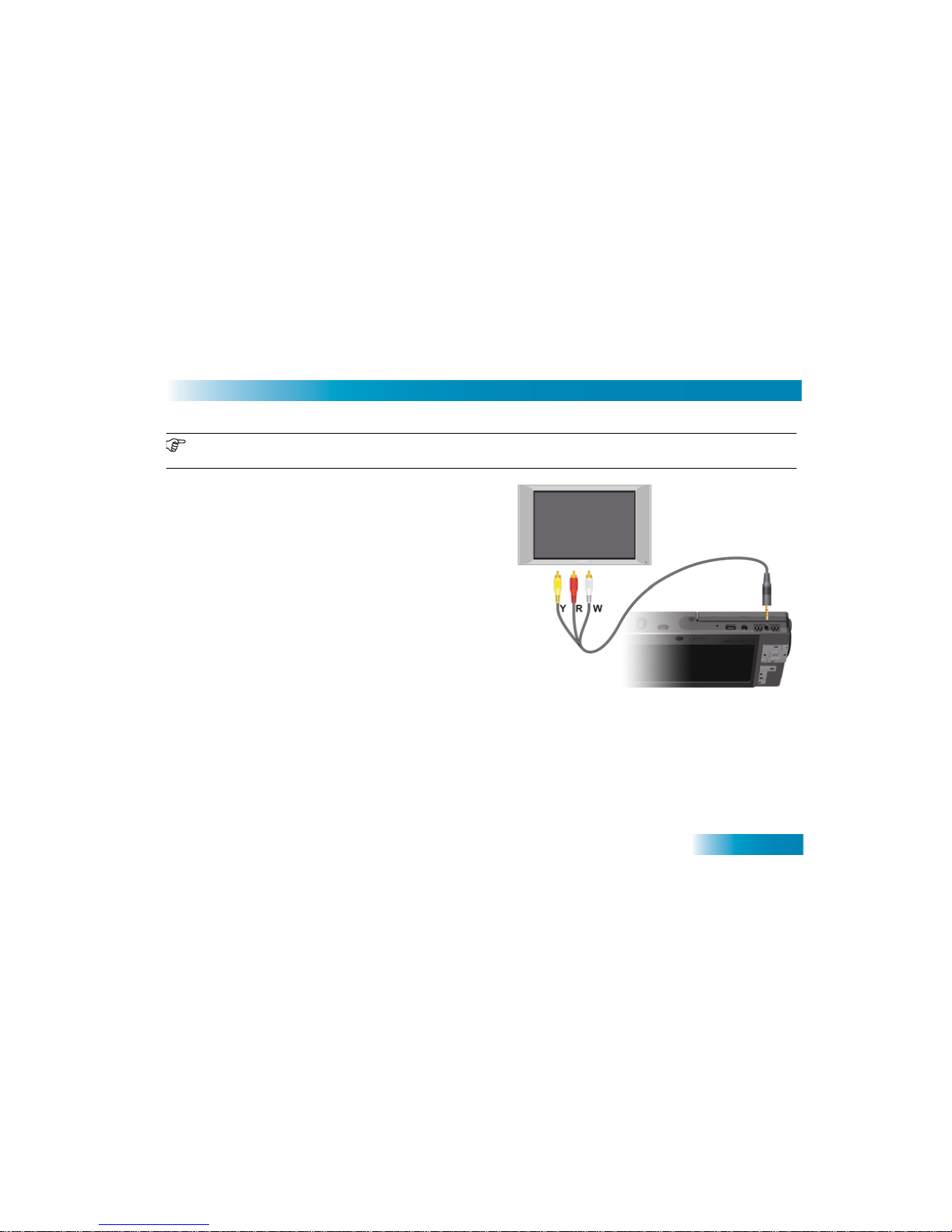

•CONNECT A TV

•CONNECT AN AUDIO DEVICE

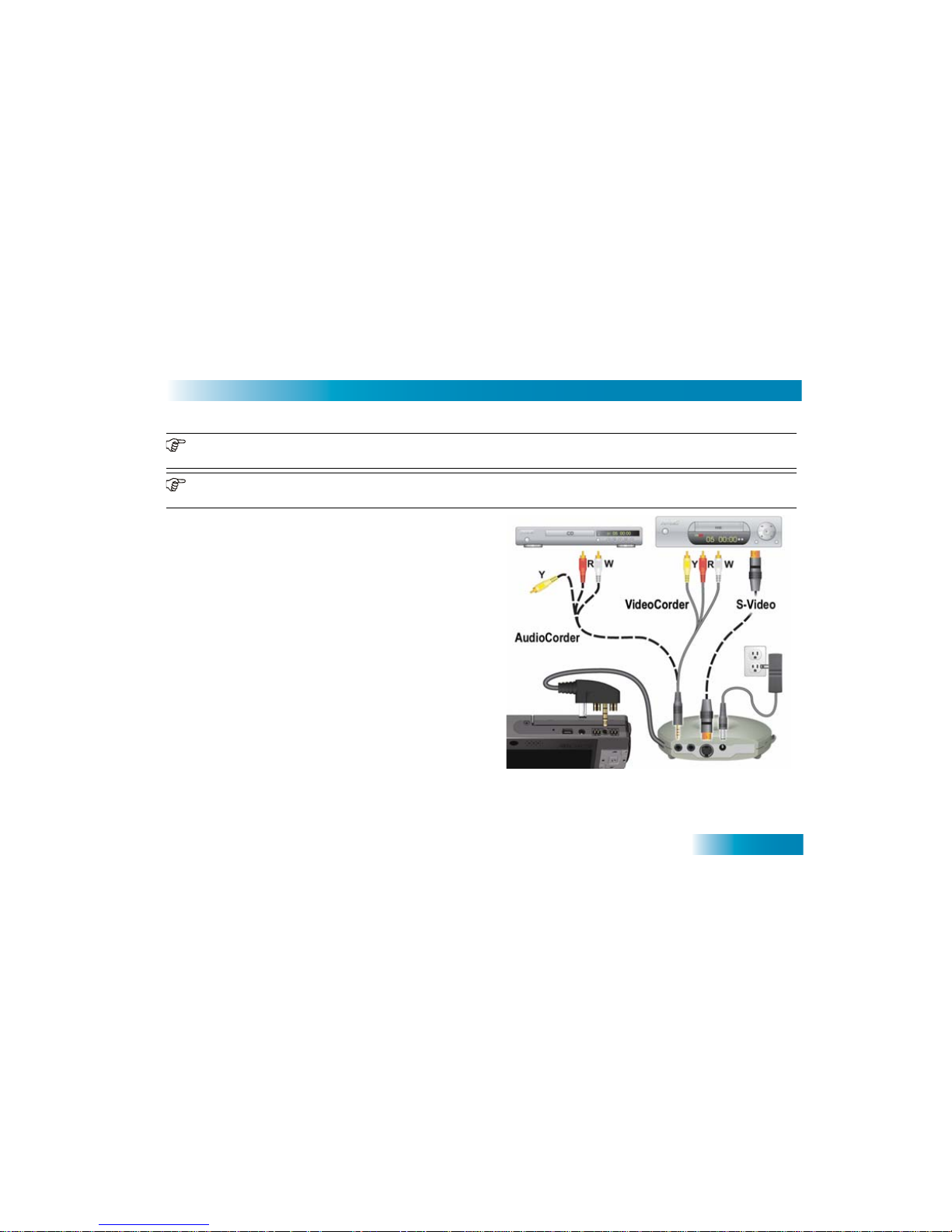

•CONNECT THE DOCKING STATION

•CONNECT A USB MASS STORAGE DEVICE

•MENU STRUCTURE

•REMOTE CONTROL (RCU)

Getting Started

Connections and Setup

6

Chapter 2

UNPACK THE POCKETDISH

Carefully unpack the contents of the box and confirm that all the parts are included. Examine all
parts for damage that may have occurred during shipment. If you find any damage, stop
unpacking the box and contact the store where you bought the PocketDISH.

Keep the plastic packaging away from children. The plastic packaging may cling to the nose and mouth
and cause suffocation.

Keep the packaging materials for a period of time. In case of warranty claims, return the PocketDISH in
the original packaging to protect the electronics. Failing to do so might void the warranty.

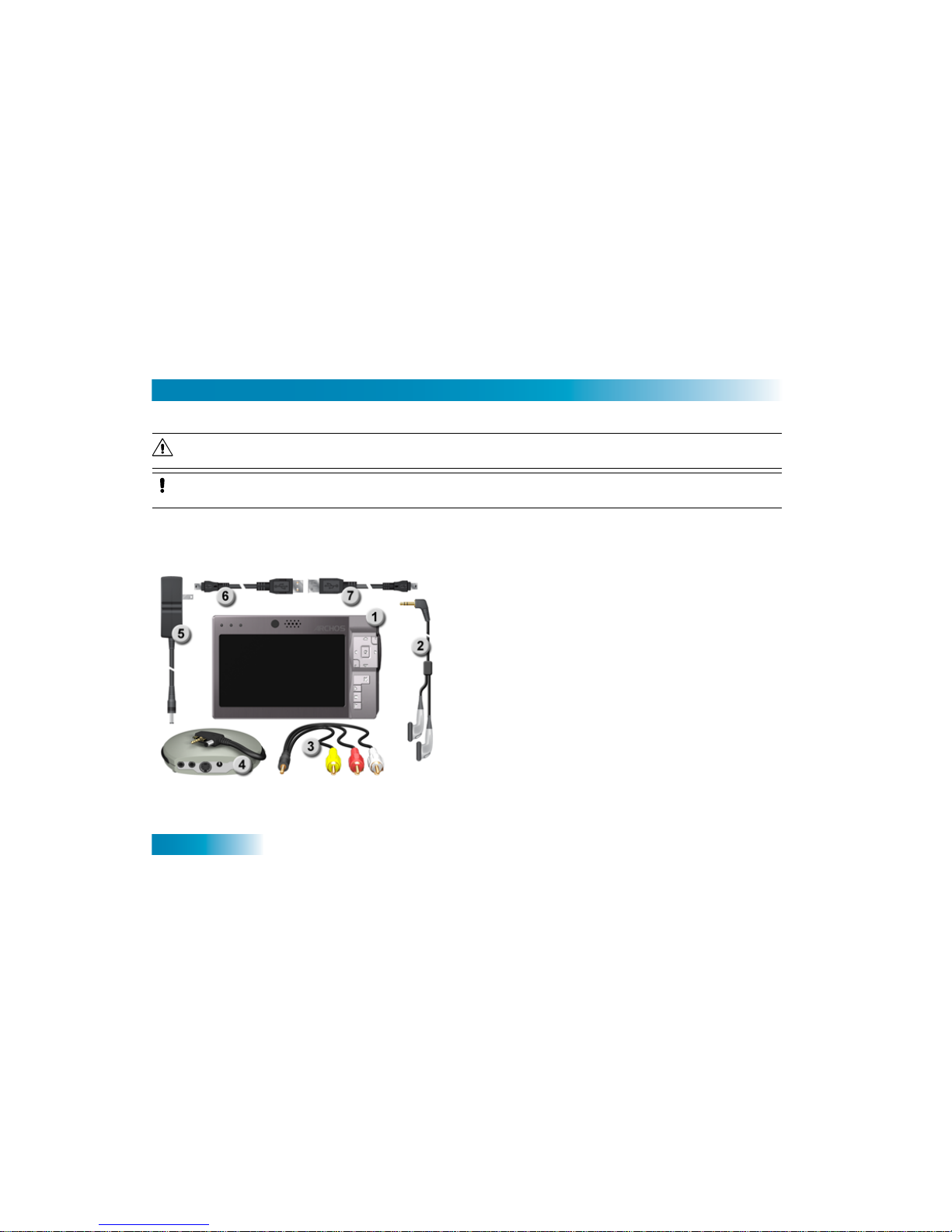

CONTENTS OF THE BOX

1 PocketDISH
2 Headphones
3 Analog A V (audio/video) cable (2)

red = right (R), white = left (L), yellow = video
4 Docking station
5 AC/DC adapter
6 USB cable
7 USB adapter cable
8 Documentation (not shown)
9 Remote Control with batteries (not shown)
10 Protective carrying case (not shown)

7

Getting Started

FIRST TIME USE

Your PocketDISH has a rechargeable Li-Ion battery. Before first use, charge the battery
according the given instructions.

The Li-Ion battery is a high capacity power source. Do not use another battery charger or AC/DC adapter.
For your safety, charge the Li-Ion battery only with the AC/DC adapter that came with the PocketDISH.
Failing to do so can cause permanent damage to equipment and can result in serious personal injury.

1 On the PocketDISH, install the DC plug into the

DC IN power socket.
2 On the AC/DC adapter, flip down the pins.
3 Insert the AC plug into a 110Vac/60Hz wall

socket (power).
4 On the PocketDISH, note that the CHG indicator

comes on.
5 Wait until the CHG indicator starts to flash.

This can take up to 4 hours. Now the battery is

charged and the PocketDISH is ready for use.
6 Remove the AC plug from the 110Vac/60Hz

wall socket.
7 Remove the DC plug from the DC IN power

socket.

8

Chapter 2

BASIC OPERATION

The PocketDISH has a battery saver which shuts down the display or the entire PocketDISH after a
certain period of time. Y ou can change these settings in the Setup - Power menu. Note that any change
will influence battery power life span.

ON

1 Press ON for at least four seconds.

• The ON indicator comes on.

• Al low the PocketDISH time for the
desktop to display.

• If the PocketDISH doe s not start up
or shuts down immediately, use the
AC/DC adapter to power the
PocketDISH and charge the battery.

• When initially connected to power,
PocketDISH comes on and goes into
standby automatically.

OFF

1 Press OFF for at least four seconds.

• T he shut down screen displays.

• Allow the PocketDISH time to shut
down.

2 Connect the AC/DC adapter as

described to make sure that the battery
stays charged and ready for use.

BASIC NAVIGATION

1 Use the  keys to navigate.
2 Press ON to access a feature.
3 Press OFF to exit a feature.

POWER SETTINGS - BATTERY SAVING

1 Press any Setup key to open the Setup

menus.

2 Use the upper and bottom Setup key to

highlight the Display setup screen
option.

3 Press the center Setup key and use the

 keys to highlight the Power
icon and press ON.

4 Use the  keys to navigate through

the Battery and DC-power operation
settings for Power Off, Standby,

Backlight Off and Hard Drive.
5 Use the  keys to change the setting.
6 Press OFF to activate the settings and

exit the menu.

9

Getting Started

CONNECT A DISH NETWORK DVR

When connected to an external device, the PocketDISH uses more energy than normal. Therefore
always connect the PocketDISH to power to prevent an unwanted shutdown.

1 Connect the PocketDISH to power.
2 Turn the DVR and the PocketDISH on.
3 On the DVR, locate the USB port and connect

the USB cable.

4 On the PocketDISH, locate the USB-B port

and connect the USB cable.

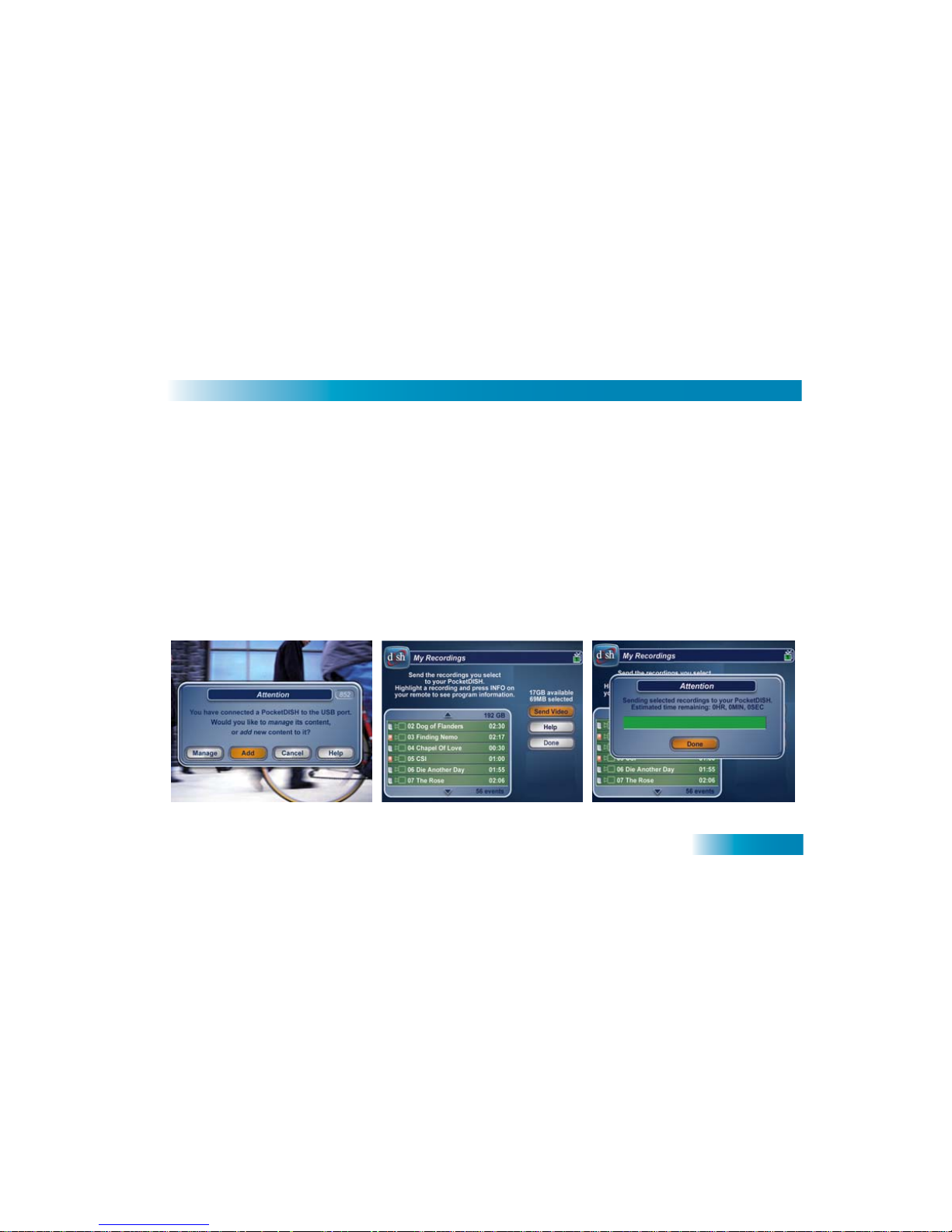

5 On the DVR, the USB connection pop-up

displays.

6 On the PocketDISH, the "USB cable attached"

pop-up displays. The PocketDISH keys are
temporarily disabled.

7 Now you can send the selected files from the

DVR to the PocketDISH or manage the content
on the PocketDISH via the DVR.

8 Using the DISH Network remote control:

a Highlight Add and press SELECT if you want to

send DISH Network content to the
PocketDISH.

b Highlight Manage and press SELECT if you

want to view or delete content on the
PocketDISH.

10

Chapter 2

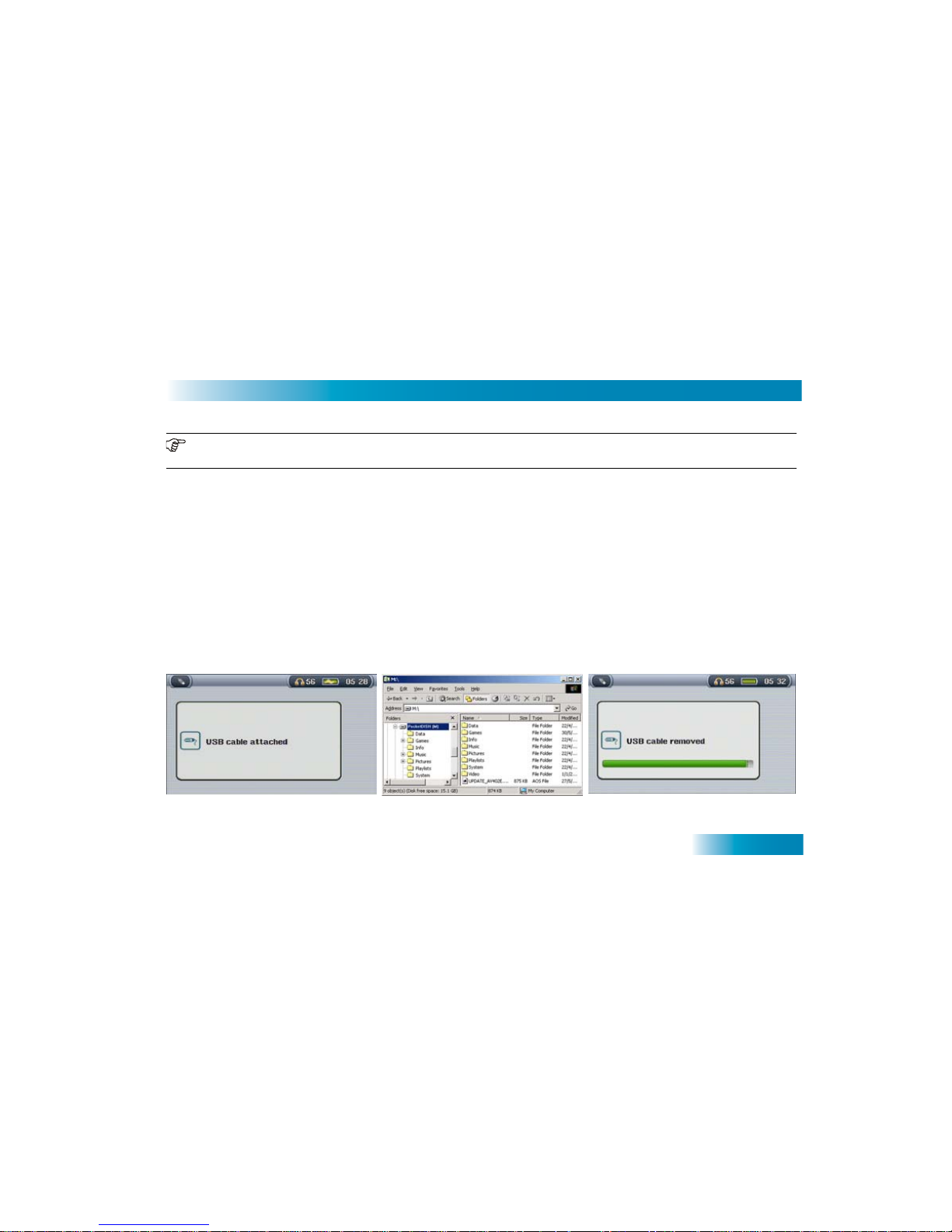

CONNECT A COMPUTER

When connected to an external device, the PocketDISH uses more energy than normal. Therefore
always connect the PocketDISH to power to prevent an unwanted shutdown.

The PocketDISH is compatible with Windows ME/2000/XP and Mac OS 10.2.4 or higher. Note that on
some Windows versions the PocketDISH may display in the Windows Explorer as a Removable Disk.

1 Connect the PocketDISH to power.
2 Turn the comput er an d the PocketD ISH on.
3 On the computer:

a Close all programs.
b Locate the USB port and connect the USB cable.

4 On the PocketDISH:

a Locate the USB-B port and connect the USB cable.

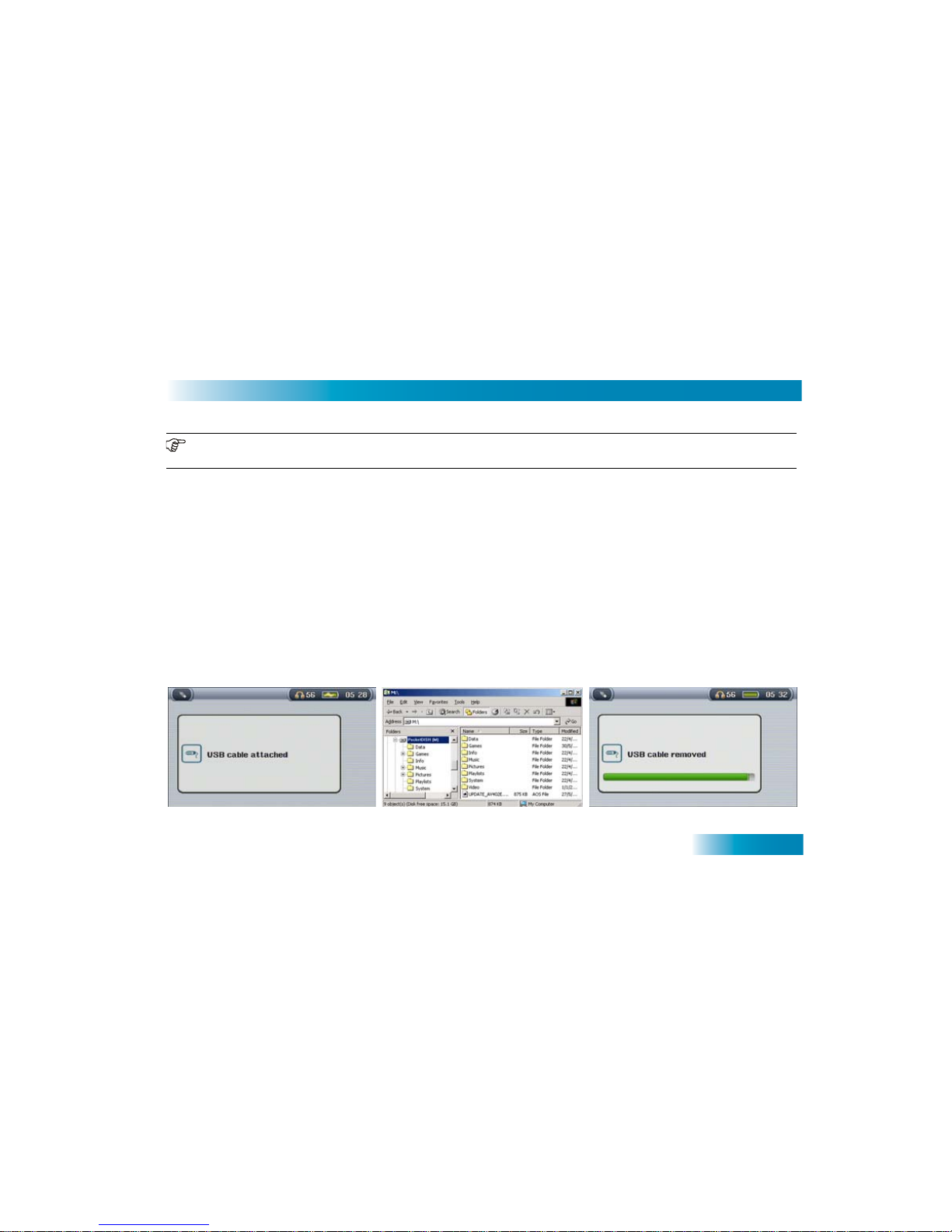

b Now the "USB cable attached" pop-up displays.
c The PocketDISH keys are temporarily disabled.

WINDOWS PC

5 Open Windows Explorer and locate the PocketDISH

drive.

6 Double click the PocketDISH drive to get full access

to its hard drive as if you are working on your PC.

MAC

5 On the desktop, locate the PocketDISH icon.
6 Double click the PocketDISH icon to get full access to

its hard drive as if you are working on your Mac.

11

Getting Started

CONNECT A TV

When connected to an external device, the PocketDISH uses more energy than normal. Therefore
always connect the PocketDISH to power to prevent an unwanted shutdown.

1 Connect the PocketDISH to power.
2 Turn the PocketDISH on.

PLAYBACK

3 Install the analog AV-cable directly in the AV

connection (center jack) of the PocketDISH.

4 On your TV, locate the red (R), white (L) and

yellow (video) RCA connectors (In).

5 Connect the RCA connectors of the analog

A V-cable. Match the colors with the applicable
connectors on your TV.

6 Press the TV/LCD key for at least three seconds

to toggle between LCD and TV. When TV is
selected, the TV OUT indicator comes on.

RECORDING (VIDEOCORDER, SCHEDULER)

For detailed instructions, please refer to Getting
Started - Connect the Docking Station on page 13.

(Y):

YELLOW CONNECTOR TO VIDEO

(R):

RED CONNECTOR TO AUDIO RIGHT

(W):

WHITE CONNECTOR TO AUDIO LEFT

12

Chapter 2

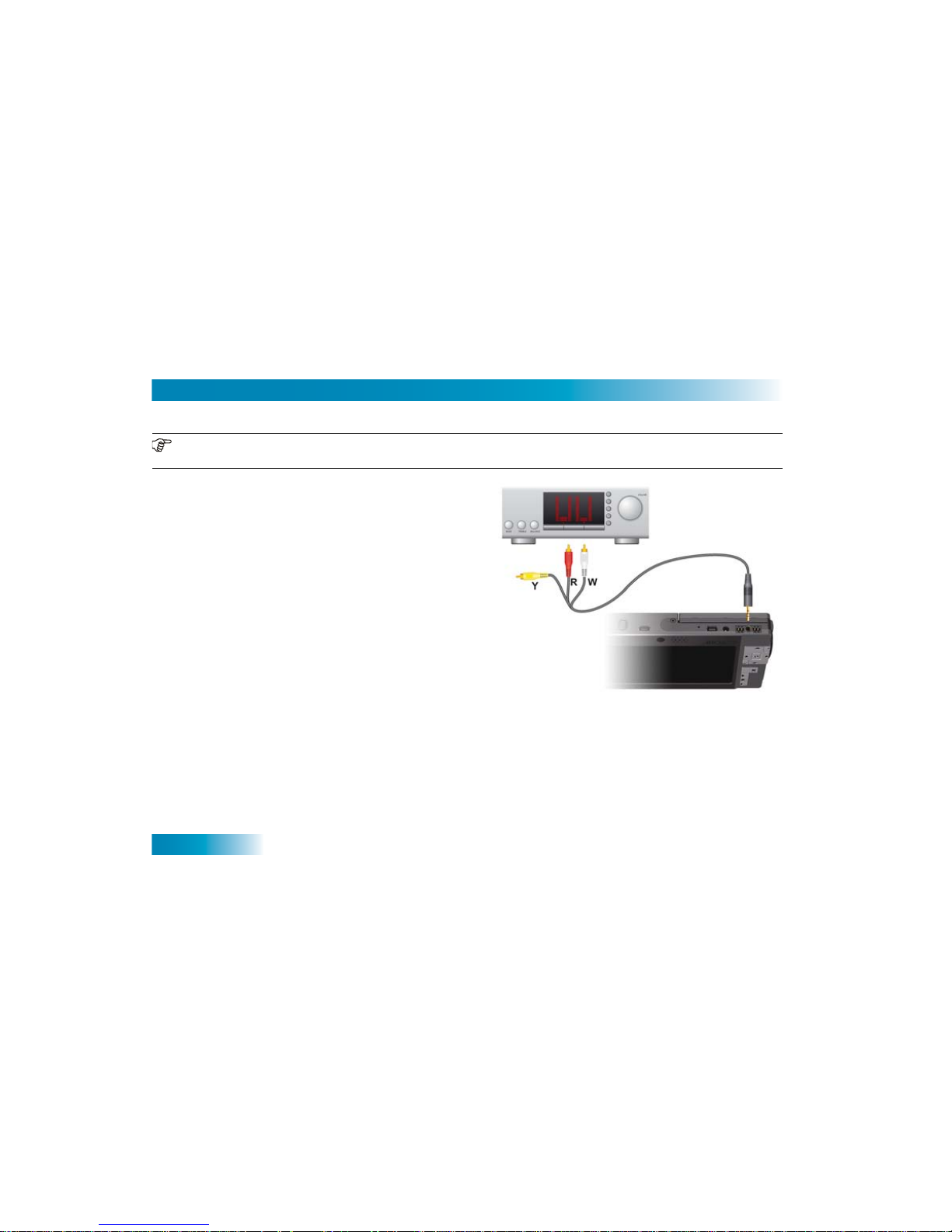

CONNECT AN AUDIO DEVICE

When connected to an external device, the PocketDISH uses more energy than normal. Therefore
always connect the PocketDISH to power to prevent an unwanted shutdown.

1 Connect the PocketDISH to power.
2 Turn the PocketD ISH on .

PLAYBACK

3 Install the analog AV-cable directly in the AV

connection (center jack) of the PocketDISH.

4 On your audio device, locate the red (R) and

white (L) RCA connectors (In).

5 Connect the RCA connectors of the analog

AV cable. Match the colors with the applicable
connectors on your audio device.

6 Do not install the yellow (video) connector.

RECORDING (AUDIOCORDER, SCHEDULER)

For detailed instructions, please refer to Getting
Started - Connect the Docking Station on page 13.

(Y):

YELLOW CONNECTOR

-

NOT USED

(R):

RED CONNECTOR TO AUDIO RIGHT

(W):

WHITE CONNECTOR TO AUDIO LEFT

13

Getting Started

CONNECT THE DOCKING STATION

When connected to an external device, the PocketDISH uses more energy than normal. Therefore
always connect the PocketDISH to power to prevent an unwanted shutdown.

Y ou can record in S-Vi deo quality when using the S-Video connection. Note that the connection operates
as an S-Video In connection only. Do not forget to connect the analog AV-cable for the audio as well.

1 Connect the PocketDISH to the docking station.
3 Connect the analog AV-cable to the docking

station (AV in).
4 Connect the docking station (DC in) to power.
5 Turn the PocketDISH ON.

RECORDING (AUDIOCORDER)

6 On your audio device, locate the red (R) and

white (L) RCA connectors (Out).
7 Connect the RCA connectors of the analog

AV-cable. Match the colors with the applicable

connectors on your audio device.
8 Do not install the yellow (video) connector.

RECORDING (VIDEOCORDER, SCHEDULER)

6 On your video device, locate the red (R), white (L)

and yellow (video) RCA connectors (Out).
7 Connect the RCA connectors of the analog

AV-cable. Match the colors with the applicable

connectors on your

video device

.

(Y):

YELLOW CONNECTOR

- FOR V

IDEO

(R):

RED CONNECTOR TO AUDIO RIGHT

(W):

WHITE CONNECTOR TO AUDIO LEFT

14

Chapter 2

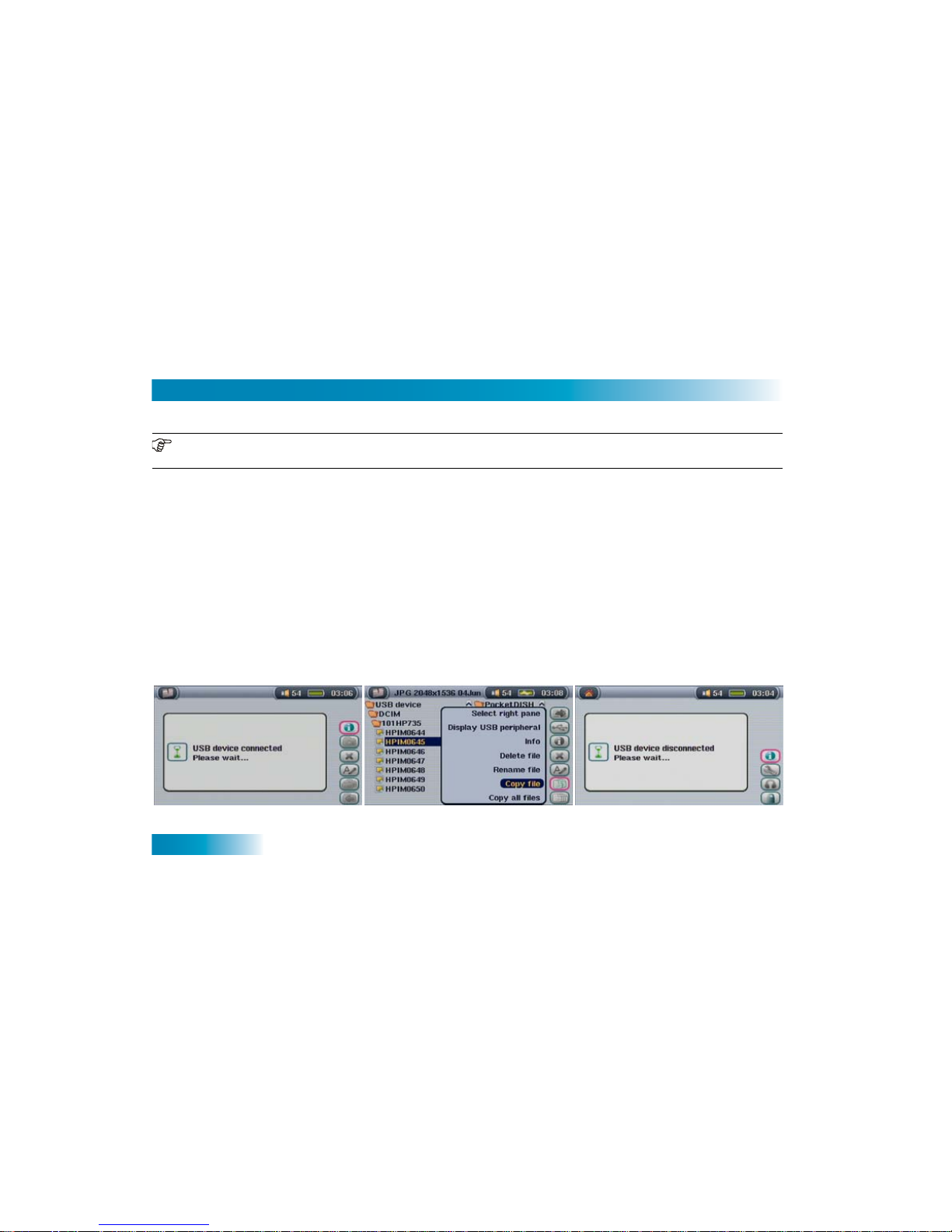

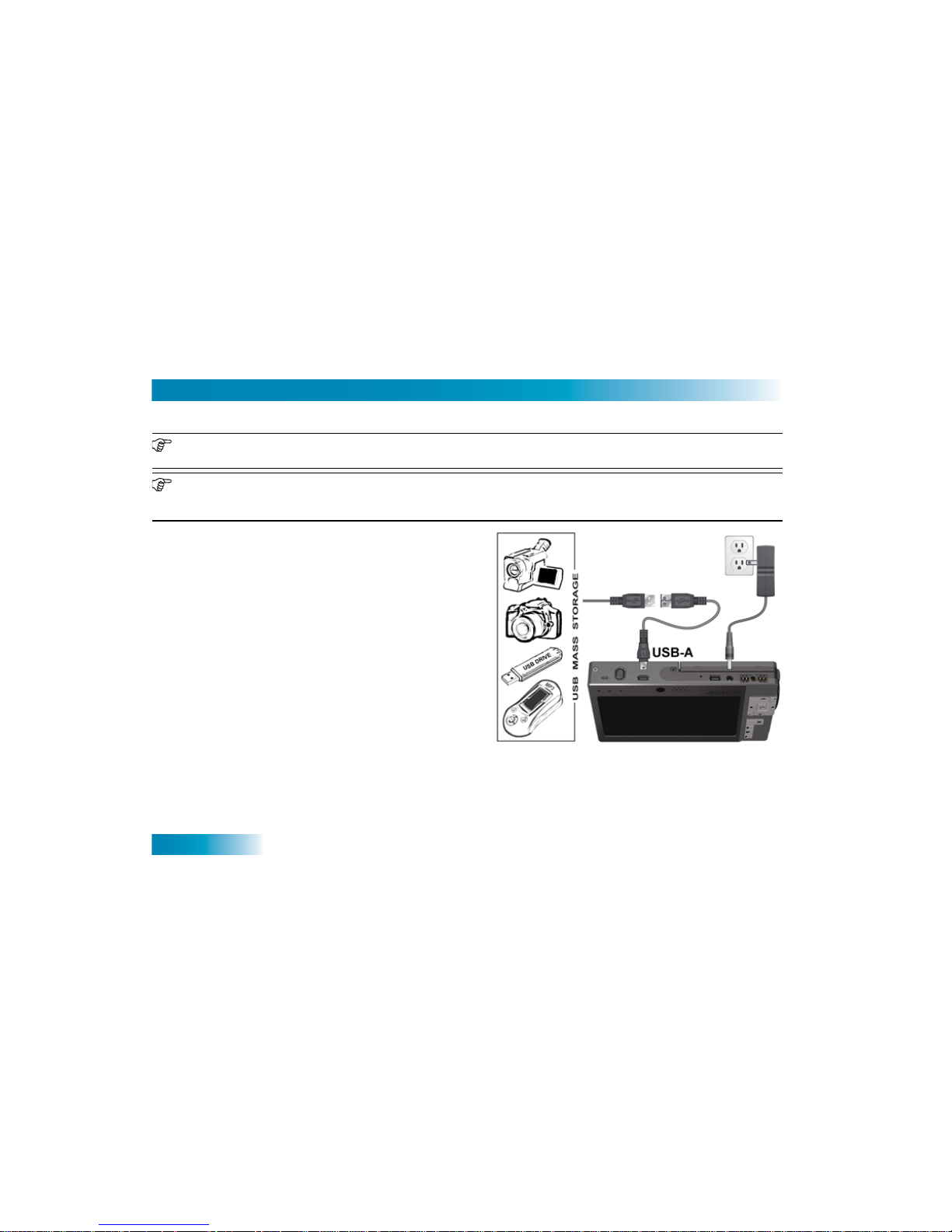

CONNECT A USB MASS STORAGE DEVICE

A USB mass storage device is a digital multimedia device that can communicate with another multimedia
device. For example, connecting to a computer without the need to install additional software.

Consult the user’s guide that came with your USB flash drive, MP3 player, digital photo or video camera
if it is compliant with the USB mass storage device protocol. If yes, the PocketDISH can get the files
from it.

1 Connect the PocketDISH to power.
2 Turn the PocketD ISH an d the USB de vi ce on .
3 Connect the USB adapter cable to the USB

cable.

4 On the USB device, locate the USB port and

connect the USB cable.

5 On the PocketDISH, locate the USB-A port

and connect the USB adapter cable.

6 Allow the two devices time to recognize each

other.

7 On the PocketDISH:

a The "USB device connected - Please wait ..."

pop-up displays.

b Wait until the browser screen displays.
c Now you can send files from the USB device

to the PocketDISH.

15

Getting Started

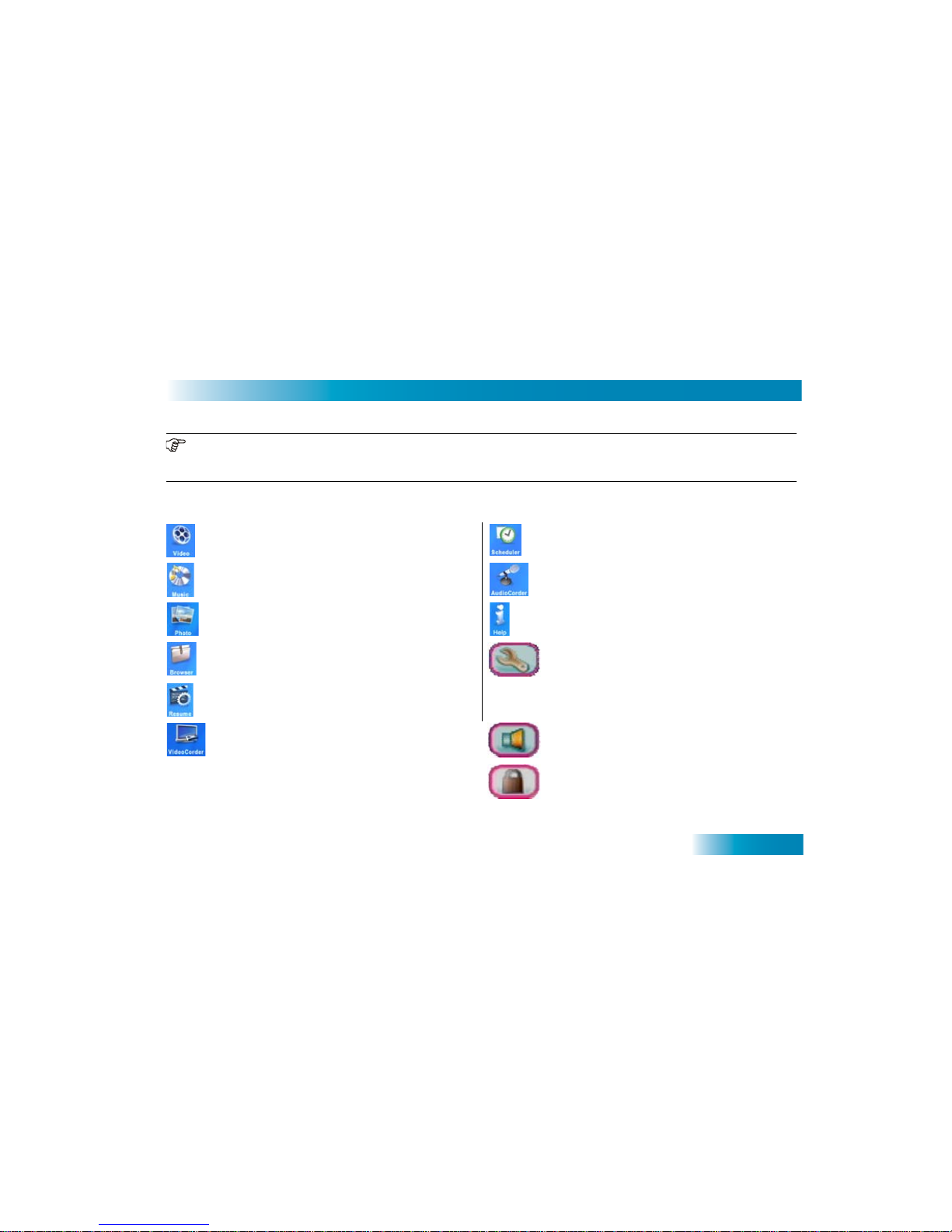

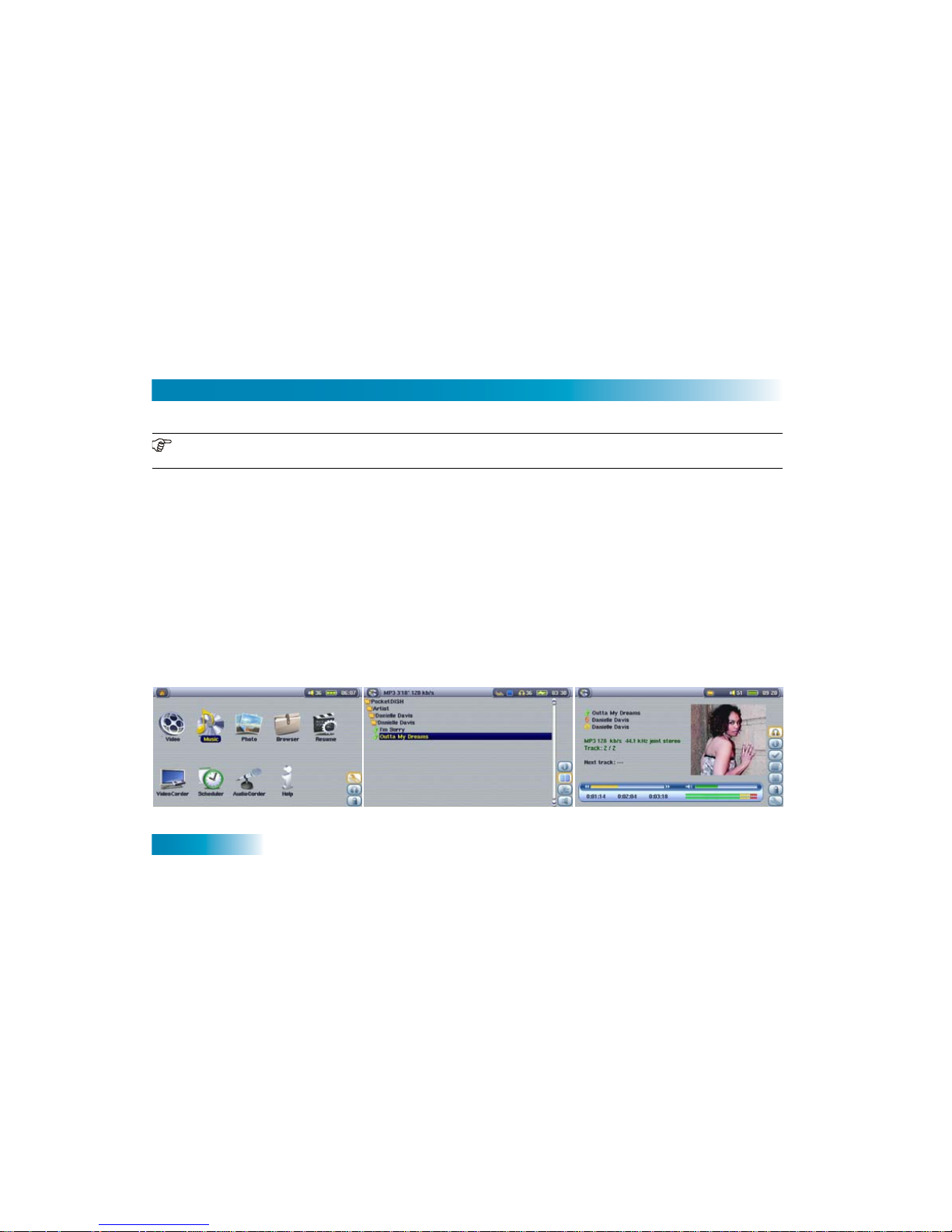

MENU STRUCTURE

The operation of your PocketDISH is done via options and setup menus. The options and setup
menus shown on the desktop (which appears directly after power up) are:

Some menus have sub-menus which may be displayed at the right side of your screen. With the Setup keys,

depending on the menu, you can lock and unlock the keys, access additional file info, delete or rename a

file, hide/show thumbnails, start a recording manually or create another folder to organize your files.

Video: the folder that holds the video
files.

Scheduler: access the scheduler
from where you can set your timers.

Music: access the ArcLibrary that
holds the folders for the audio files.

AudioCorder: access the audio
recorder.

Photo: the folder that holds the digital
photos and images.

Help: access the on-screen help.

Browser: displays all folders and files

on the hard drive.

Setup: access the setup menu to
personalize the system settings. You
can modify the Display, Appearance,
Sound, PlayMode, Clock, Power,
Rating locks and System settings.

Resume: continue from the last
played audio or video file.

VideoCorder: access the video
recorder.

Built-in speaker on/off: to switch the
speaker on or off (headset only).

Lock keyboard:

locks or unlocks the

keys for use. The

 keys still

function to set the volume.

16

Chapter 2

REMOTE CONTROL (RCU)

RCU Function RCU A V500E

Standby/ON: when on AC power, turn PocketDISH on or put
in standby.
OFF: when on battery power, shut down the PocketDISH.

Number keys: enter numerical data. 0 - 9
TV:

switches between the PocketDISH screen or a TV.

Play: starts the playback of a selection.
Enter: acknowledges a selection.

Page Up: moves the cursor up one page.

: to move the cursor Left, Right, Up or Down.

Page Down: moves the cursor down one page.
Stop: stops the playback of a selection.

Escape: quits a selection without saving.
Upper, Center and Bottom Setup keys: to open and navigate

through the Setup screens.

Up and Down: not used.
?: opens the Setup menu.

Volume +/-: increases or decreases the sound level.
Volume Mute: turns off the sound temporarily.

17

DISH NETWORK AUDIO/VIDEO

This chapter helps you learn to send and playback DISH Network audio and video
recordings.

•INTRODUCTION

•SEND MY RECORDINGS FROM THE DISH NETWORK DVR

•PLAYBACK THE DISH NETWORK RECORDINGS

•ADDITIONAL FEATURES

DISH Network Audio/Video

Send and Playback

18

Chapter 3

INTRODUCTION

It is possible to send your recorded programs from your compatible DISH Network DVR onto the
PocketDISH when connected with the USB cable. Please note that recorded content from the
DISH Network audio will also appear in the Video folder of the PocketDISH.

You can send anything you have recorded on your DISH Network receiver to your PocketDISH
(including Pay-Per-View) except high definition programming. If you try to send high definition
programming to your PocketDISH, the receiver will display an error message.

After you connect the PocketDISH to your compatible DISH Network DVR, a pop-up menu
displays that asks you what you want to do: Manage or Add the PocketDISH content.

If you select and confirm the Add option, you can access the “My Recordings” list of the DISH
Network DVR, which is where you can send files to the PocketDISH.

When connected, you can access the PocketDISH content from the DISH Network DVR’s
Multimedia option in the Main Menu.

For the recordings available in the "My Recordings" list of the DISH Network DVR, it is only possible to
send content from this list to the PocketDISH, and not vice-versa.

19

DISH Network Audio/Video

SEND MY RECORDINGS FROM THE DISH NETWORK DVR

1 Use the USB cable to connect the PocketDISH to the DISH Network DVR.
2 On the DVR’s PocketDISH pop-up, select Add. The “My Recordings” list displays.
3 On the DVR’s remote control, use UP and DOWN ARROW and SELECT to choose the

recordings that you want to send to your PocketDISH. Before each selected event, a mark in

the check box displays.
4 Press RIGHT ARROW to highlight Send Video and press SELECT.
5 On the TV , the “Sending selected recordings to your PocketDISH” pop-up displays.
6 Allow the DVR time to send the chosen recordings until DONE displays.
7 On the DVR’s remote control, press SELECT.

CONNECT THE POCKETDISH SELECT RECORDINGS SENDING RECORDINGS IS DONE

20

Chapter 3

PLAYBACK THE DISH NETWORK RECORDINGS

BASIC OPERATION

The PocketDISH always remembers where you stopped the last file for playback. On the desktop, select
Resume to start playback from that point forward.

1 Turn the PocketD ISH on .
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Video icon (also used for playback of DISH Network audio recordings).
4 Press ON to view the folder content.
5 Highlight the DISH Network folder and press ON to view the video files.
6 Highlight the desired video file.
7 Press ON to playback the DISH Network video or audio file.
8 Press OFF to end playback.

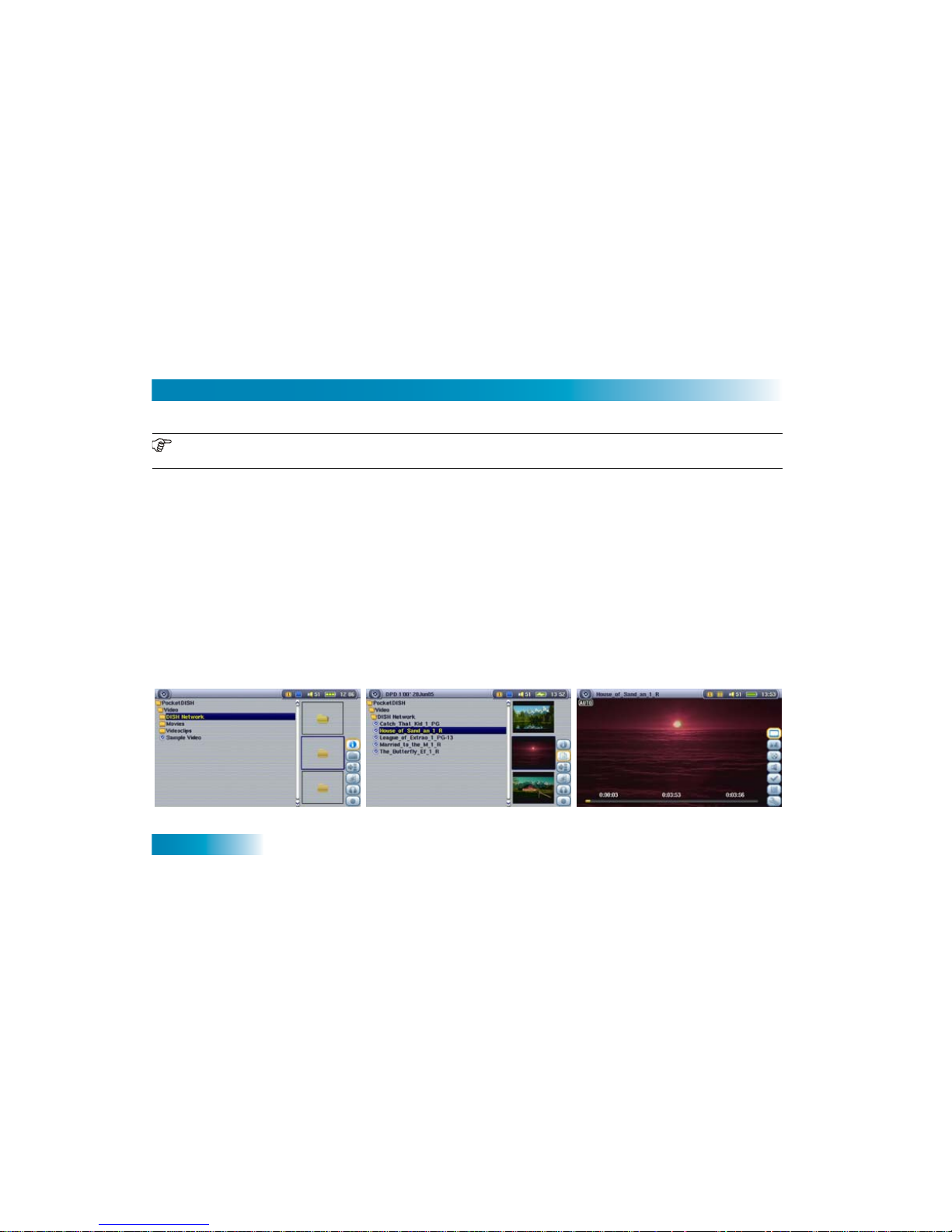

SELECT DISH NETWORK SELECT YOUR FILES PLAYBACK YOUR VIDEO

21

DISH Network Audio/Video

ADDITIONAL OPTIONS

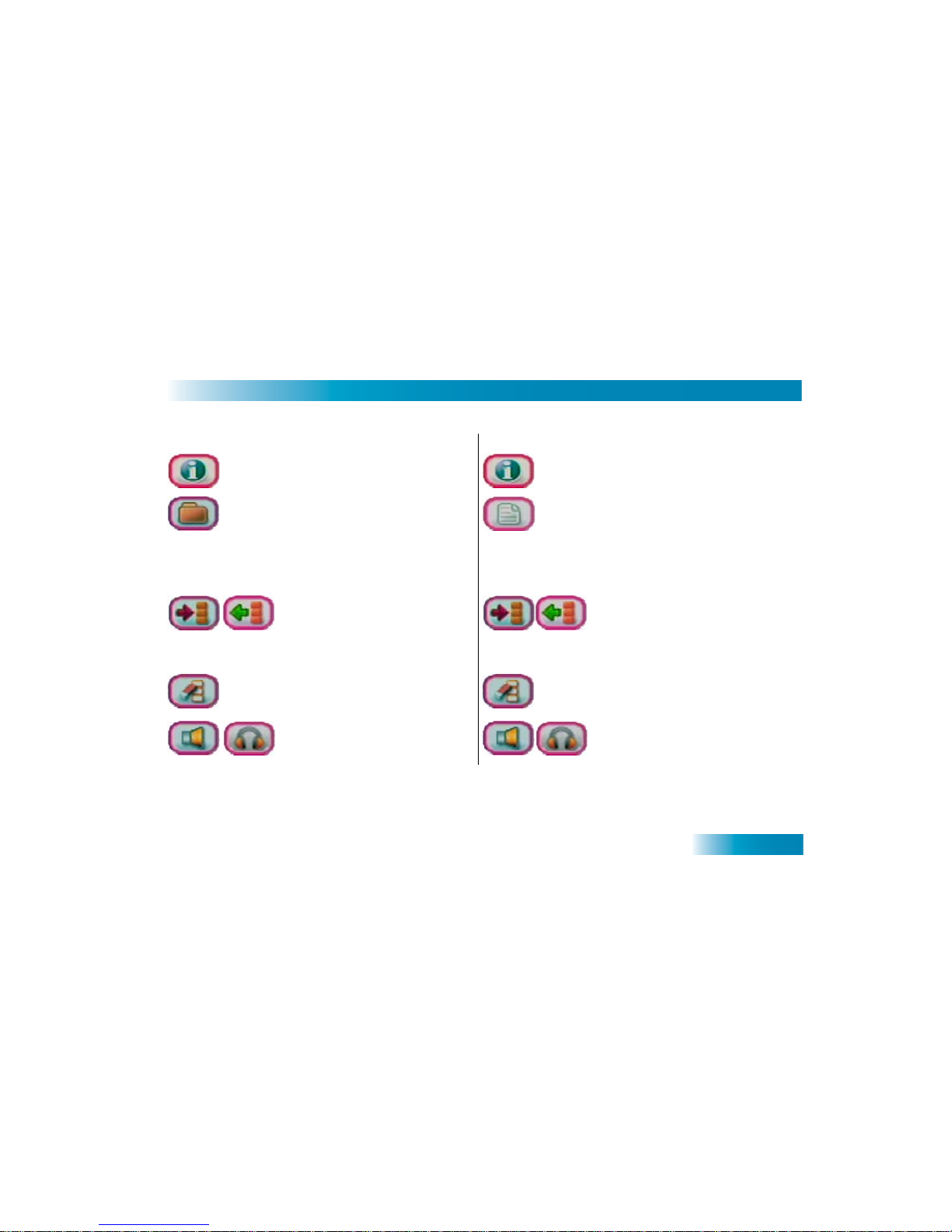

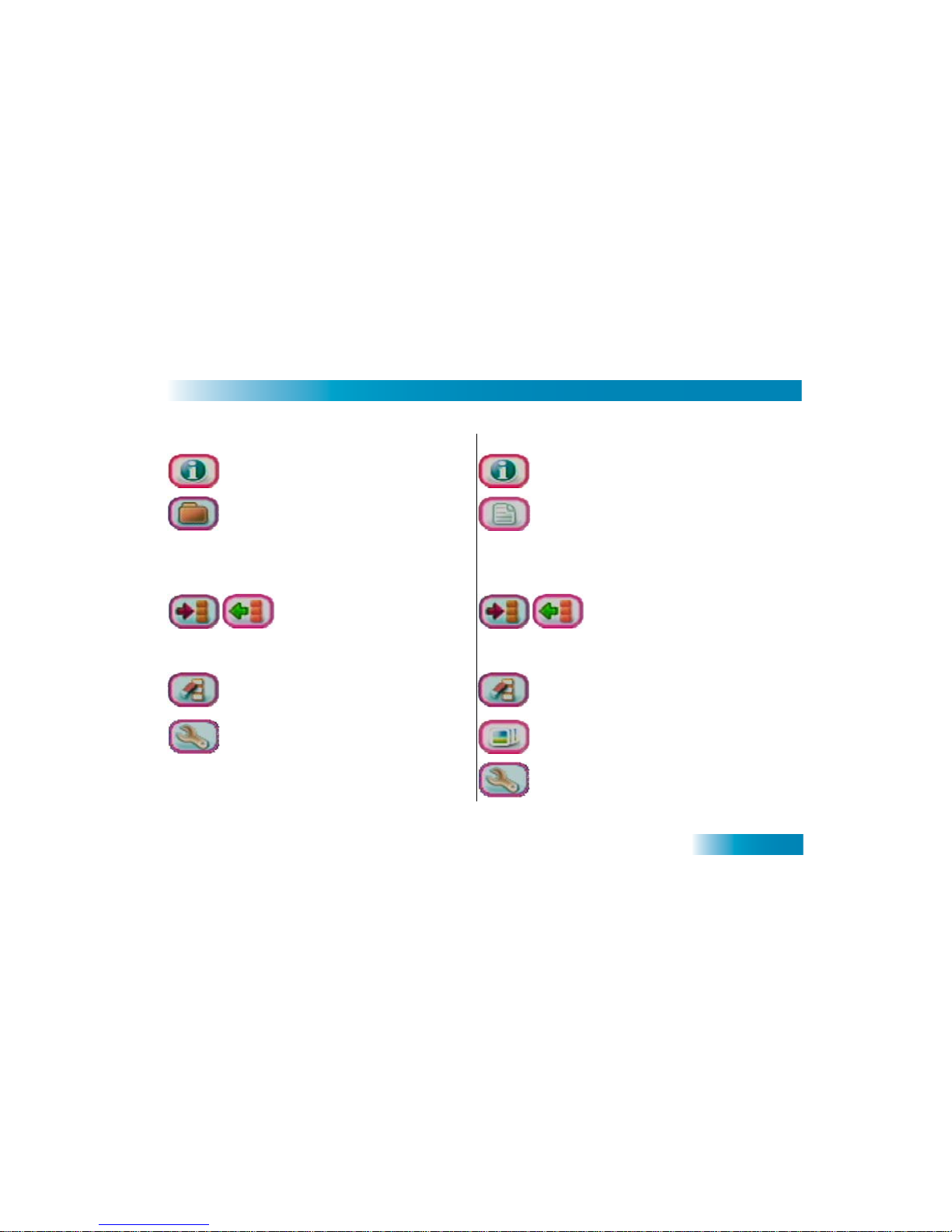

WHEN A FOLDER IS HIGHLIGHTED WHEN A FILE IS HIGHLIGHTED

• Info: displays additional information. • Info: displays additional information.

• Folder management: accesses the

folder options (if available).

• File management: accesses the file

options (if available).

- Create: makes a new folder. - Delete: deletes the file.

- Rename: renames the file.

- Create Folder: makes a new folder.

- Delete: deletes the folder and
its content.

- Rename: renames the folder.

• Hide thumbnails: display

only the folder and file
names.

• Show thumbnails: display

the available thumbnails.

• Hide thumbnails: display only

the folder and file names.

• Show thumbnails: display the

available thumbnails.

• Reset thumbnails: delete the current

thumbnails and replace them with
new ones.

• Reset thumbnails: delete the current

thumbnails and replace them with new
ones;

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

• VideoCorder: access the

VideoCorder menu.

• VideoCorder: access the VideoCorder

menu.

22

Chapter 3

SPECIAL KEY FUNCTIONS

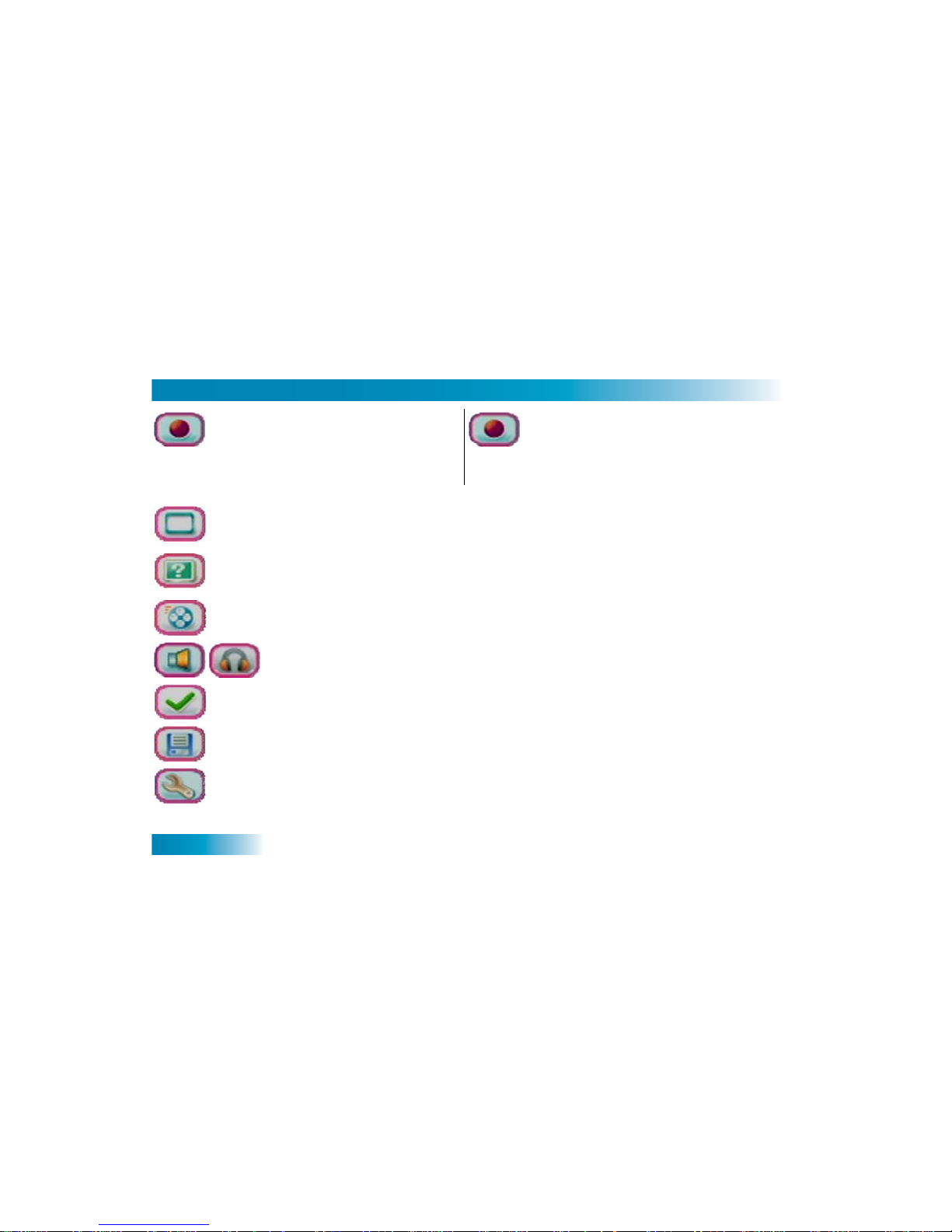

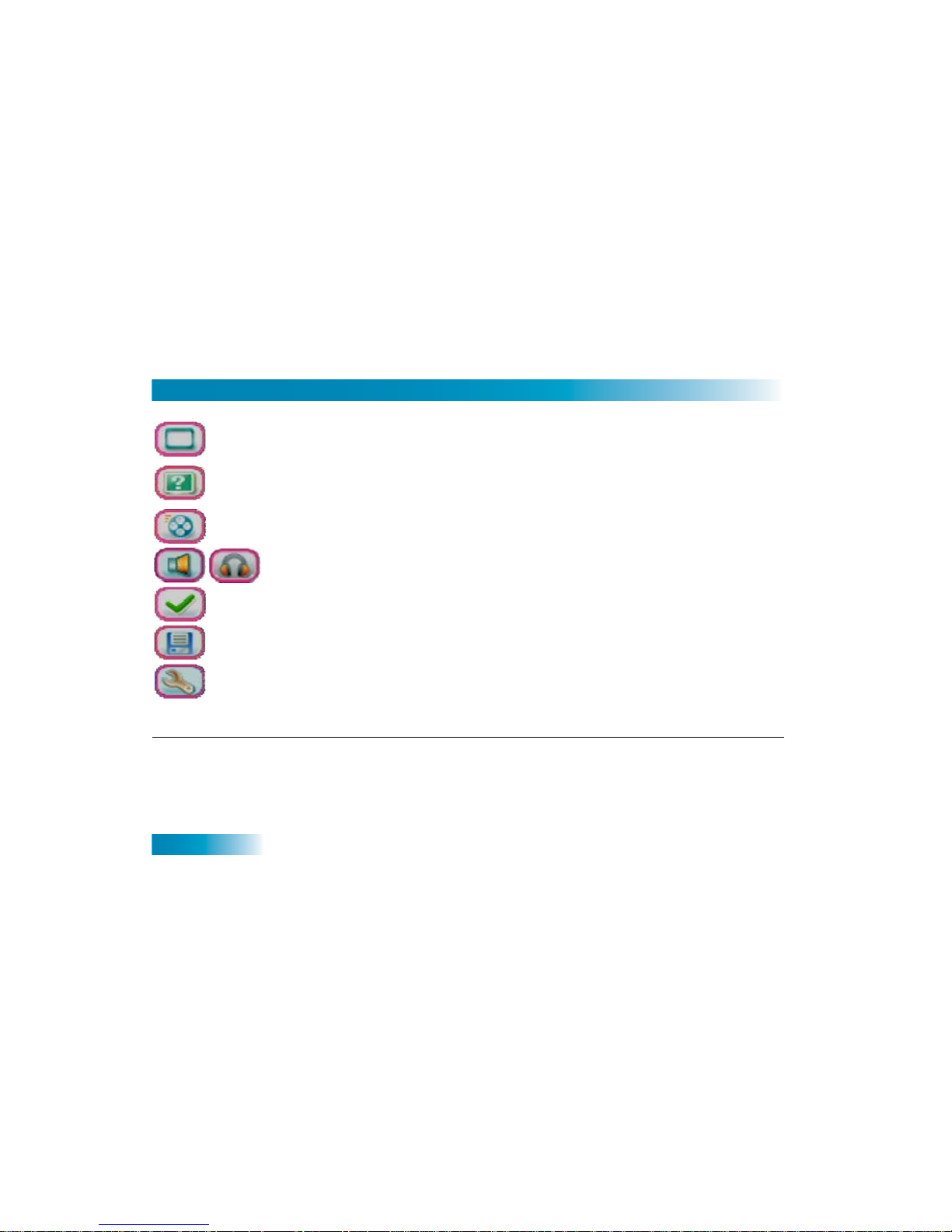

WHEN VIEWING VIDEO

• Hide text overlay: remove the on-screen menu temporarily. Depending on the

Video settings, the on-screen menu can disappear automatically after a period of
time.

• Video format: set to Auto (best playback size with respect to source), Maximized

image (scaled playback with respect to source, some clipping mi ght occur) or Full
picture format (playback in original size, no clipping or scaling).

• Video speed: set Normal speed (default) or slow motion (1/2, 1/4 or 1/8). Notice

that the sound is muted during playback in slow motion.

• Built-in speaker on/off: to switch the speaker on or off (headset only).

• Set bookmark: set a bookmark manually. You can always start future playback

from this point forward.

• Save frame as thumbnail: save the current scene as a thumbnail for presentation

in the video browser.

• Video settings: access the PlayMode (Single, Folder, All), Repeat & Shuffle

(Normal, Repeat), Sound (Bass Boost, Bass, Treble, Balance) and LCD (LCD
Brightness, Video OSD) settings.

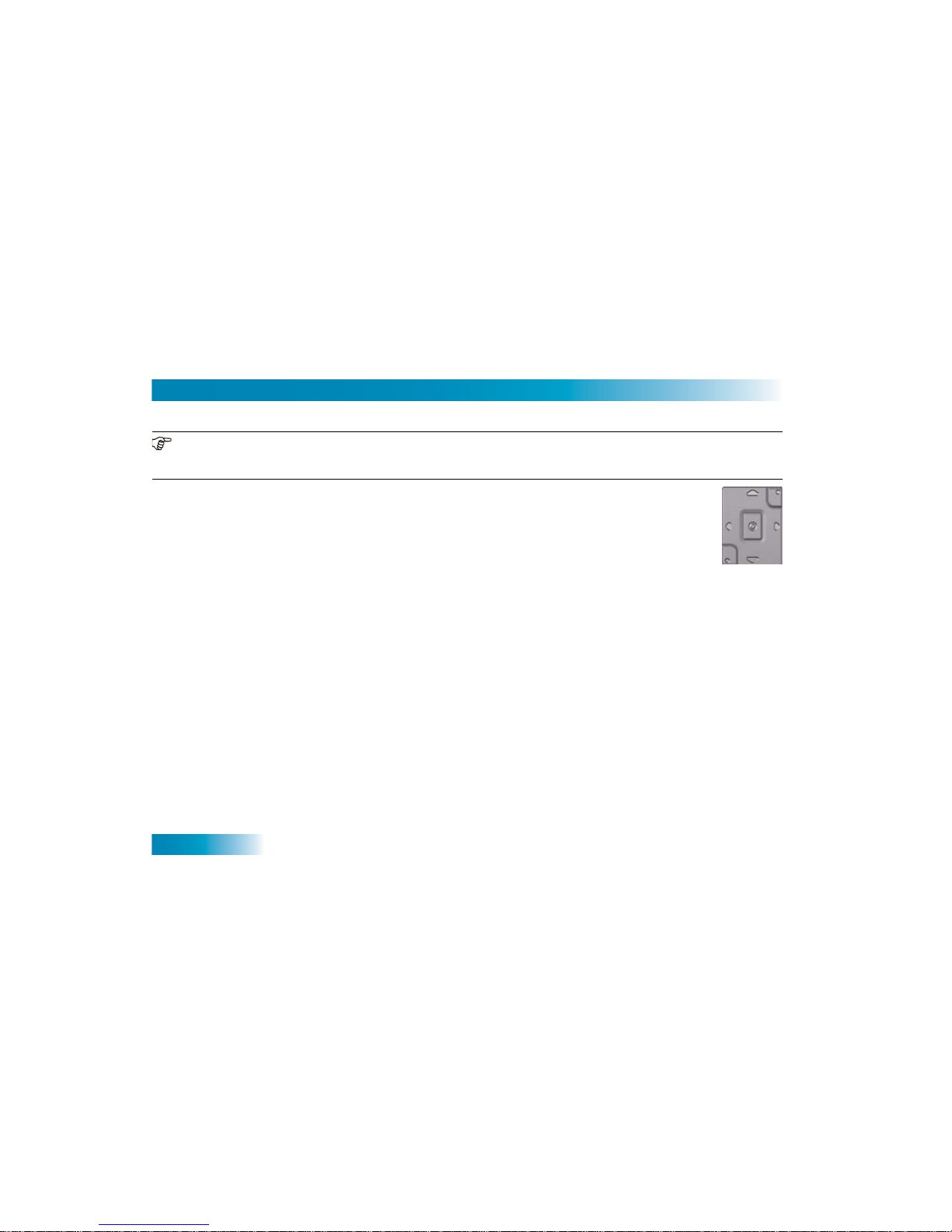

ON key:

• Pause: pauses the playback.

• Play: continues from pause.

 keys (press and hold):

• Fast Forward: advance

quickly through a file.

• Fast Reverse: reverse quickly

through a file.

keys (press and hold):

• Volume: increases or

decreases the volume.

23

SECOND SOURCE AUDIO/VIDEO

This chapter gives you the procedure to send audio or video files from different
multimedia devices and play them back on the PocketDISH.

•INTRODUCTION

•INTERNET LINKS

•TRANSFER AUDIO/VIDEO FILES

•PLAY BACK A COMPATIBLE VIDEO FILE

•PLAY BACK A COMPATIBLE SONG

•CREATE AND PLAY BACK PLAYLISTS

•INSTALL THE MPEG-4 TRANSLATOR

Second Source Audio/Video

Send and Play Back

24

Chapter 4

INTRODUCTION

With your PocketDISH you can transfer video files from your computer, your camcorder, USB
flash drive or any other multimedia device which operates as a USB mass storage device.

The PocketDISH can support the DISH Network and DivX/XviD simple profile MPEG-4 format. If
you encounter a format that is not supported, it is possible to convert the file into a format that the
PocketDISH will play back.

On the hard drive of the PocketDISH you will find a set of PC tools (MPEG-4 Translator) that you
can use to convert video files into a playable format. You have to transfer the folder onto your
computer, so you can inst all the conversion tools.

Detailed instructions are given in the next chapter.

INTERNET LINKS

In addition to the play back of DISH Network content, the PocketDISH can also play back DivX/XviD

simple profile MPEG-4 encoded video files from other sources.

www.archos.com,
www.pocketdish.com

To get more information about your PocketDISH and its available

accessories.
www.apple.com Get more information for iTunes and Mac.
www.divx.com Get more information about the DivX video compression/downloads.
www.xvid.org Get more information about the XviD video compression/downloads.
www.virtualdub.com Get more information about VirtualDub video conversion/downloads.
www.free-codecs.com Get the latest compression/decompression (codecs) plug-ins.
www.digital-digest.com

Get the latest information about digi t al au dio a nd vi deo d evelopme nt s.

25

Second Source Audio/Video

TRANSFER AUDIO/VIDEO FILES

Note that the PocketDISH can display on your computer under different names. Possible names are
PocketDISH or Removable Disk.

1 Onto your PC, shut down all programs before you start.
2 Use the USB cable to connect the PocketDISH to the PC.
3 Turn the PocketDISH on. Wait until the USB pop-up displays.
4 Your PC should recognize the PocketDISH.
5 Open Windows Explorer and notice that the PocketDISH displays as a drive.
6 Locate the folder in which you keep the Audio and Video files you want to transfer.
7 Copy the required files into the correct folders on the PocketDISH.
8 In the PC system tray (next to the clock), locate and click the "Sa fely Re move Hardwar e" icon.
9 Disconnect the PocketDISH and wait until the automatic file update is completed.

POCKETDISH CONNECTED COPY YOUR FILES (FOLDERS)SAFE DISCONNECT

26

Chapter 4

PLAY BACK A COMPATIBLE VIDEO FILE

BASIC OPERATION

The PocketDISH always remembers where you stopped the last file for playing back. On the desktop,
select Resume to start the playback from that point forward.

1 Turn the PocketDISH on.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Video icon.
4 Press ON to access the content.
5 Highlight the desired video file.
6 Press ON to play back the video file.
7 Press OFF to end the playback.

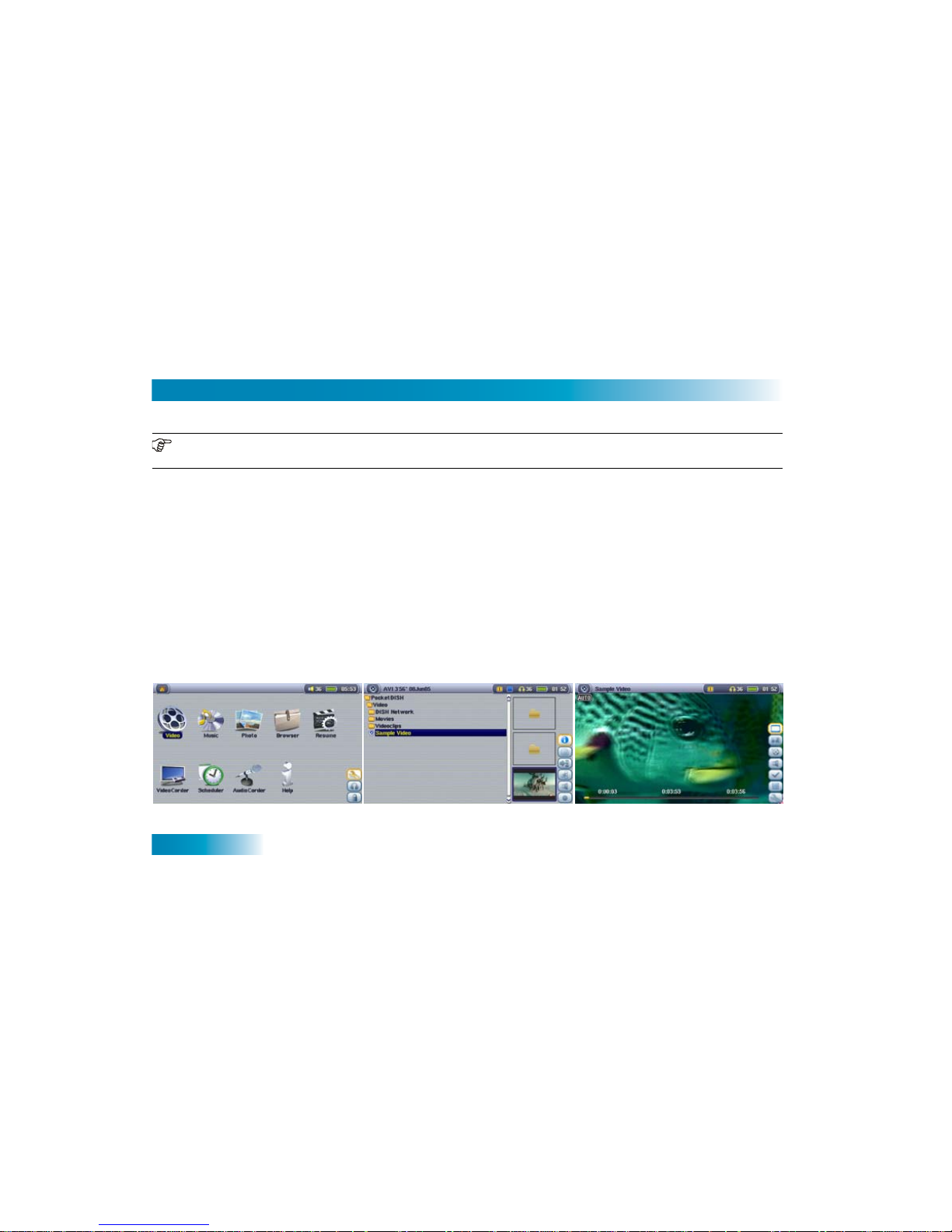

SELECT VIDEO SELECT YOUR FILE PLAY BACK YOUR VIDEO

27

Second Source Audio/Video

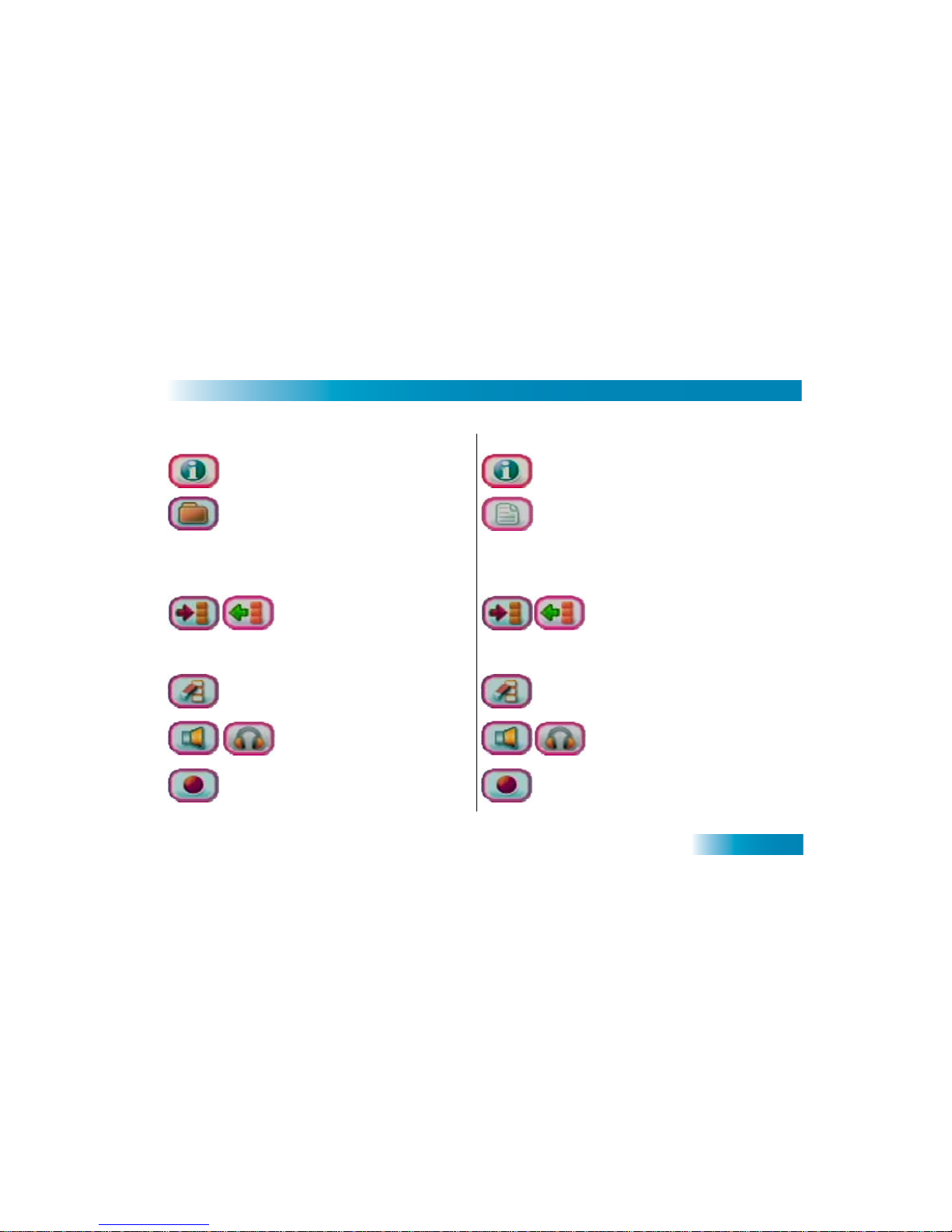

Additional Options

WHEN A FOLDER IS HIGHLIGHTED WHEN A FILE IS HIGHLIGHTED

• Info: displays additional information. • Info: displays additional information.

• Folder management: accesses the

folder options (if available).

• File management: accesses the file

options (if available).

- Create: makes a new folder. - Delete: deletes the file.

- Rename: renames the file.

- Create Folder: makes a new
folder.

- Delete: deletes the folder and its
content.

- Rename: renames the folder.

• Hide thumbnails: display

only the folder and file
names.

• Show thumbnails: display

the available thumbnails.

• Hide thumbnails: display only

the folder and file names.

• Show thumbnails: display the

available thumbnails.

• Reset thumbnails: delete the current

thumbnails and replace them with
new ones.

• Reset thumbnails: delete the current

thumbnails and replace them with new
ones.

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

28

Chapter 4

• VideoCorder: access the VideoCorder

menu.

• VideoCorder: access the VideoCorder

menu.

WHEN VIEWING VIDEO

• Hide text overlay: remove the on-screen menu temporarily. Depending on the

Video settings, the on-screen menu can disappear automatically after a period of
time.

• Video format: set to Auto (best playback size with respect to source), Maximized

image (scaled playback with respect to source, some clipping mi ght occur) or Full
picture format (play back in original size, no clipping or scaling).

• Video speed: set Normal speed (default) or slow motion (1/2, 1/4 or 1/8). Notice

that the sound is muted during play back in slow motion.

• Built-in speaker on/off: to switch the speaker on or off (headset only).

• Set bookmark: set a bookmark manually. You can always start a future playback

from this point forward.

• Save frame as thumbnail: save the current scene as a thumbnail for presentation

in the video browser.

• Video settings: access the PlayMode (Single, Folder, All), Repeat & Shuffle

(Normal, Repeat), Sound (Bass Boost, Bass, Treble, Balance) and LCD (LCD
Brightness, Video OSD) settings.

29

Second Source Audio/Video

SPECIAL KEY FUNCTIONS

ON key:

• Pause: pauses the playback.

• Play: continues from pause.

 keys (press and hold):

• Fast Forward: advance

quickly through a file.

• Fast Reverse: reverse quickly

through a file.

 keys (press and hold):

• Volume: increases or

decreases the volume.

30

Chapter 4

PLAY BACK A COMPATIBLE SONG

BASIC OPERATION

The PocketDISH always remembers where you stopped the last file for playing back. On the desktop,
select Resume to start the playback from that point forward.

1 Turn the PocketDISH on.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Music icon and press ON to access the content.
4 Make your selection from the ArcLibrary (music list).
5 Press ON to access the content.
6 Highlight the desired song.
7 Press ON to play back the song.
8 Press OFF to end the playback.

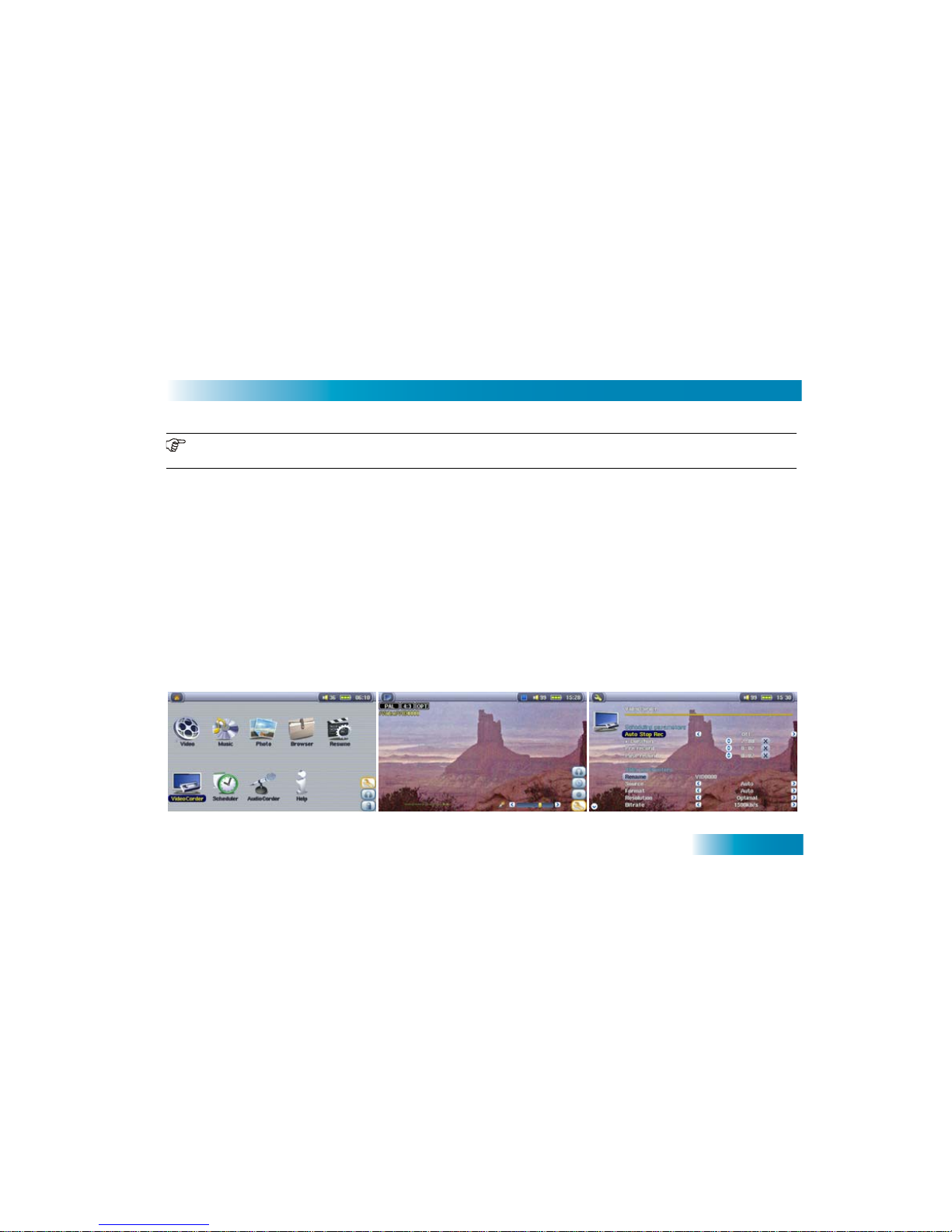

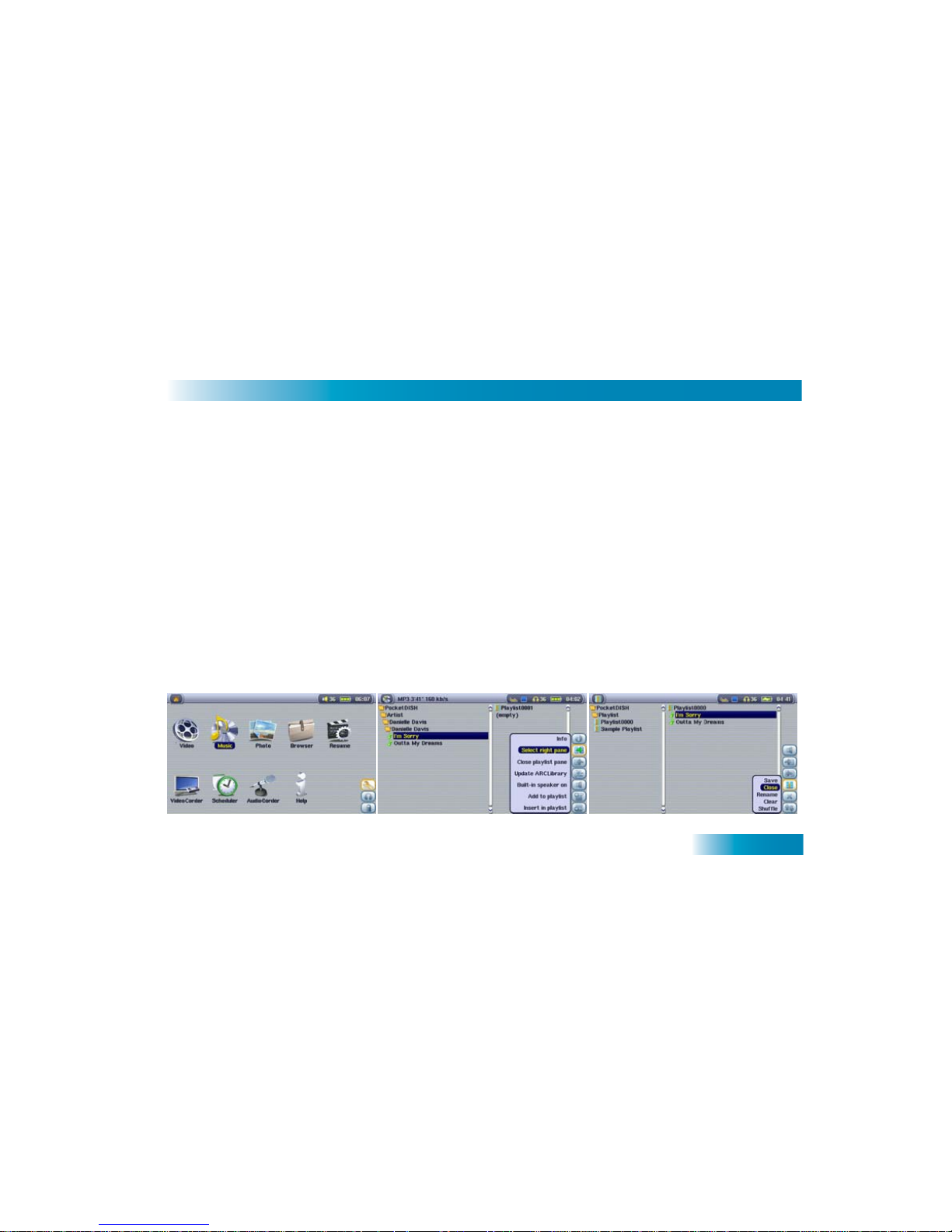

SELECT MUSIC SELECT YOUR SONG (ARCLIBRARY) PLAY BACK YOUR SONG

31

Second Source Audio/Video

Additional Options

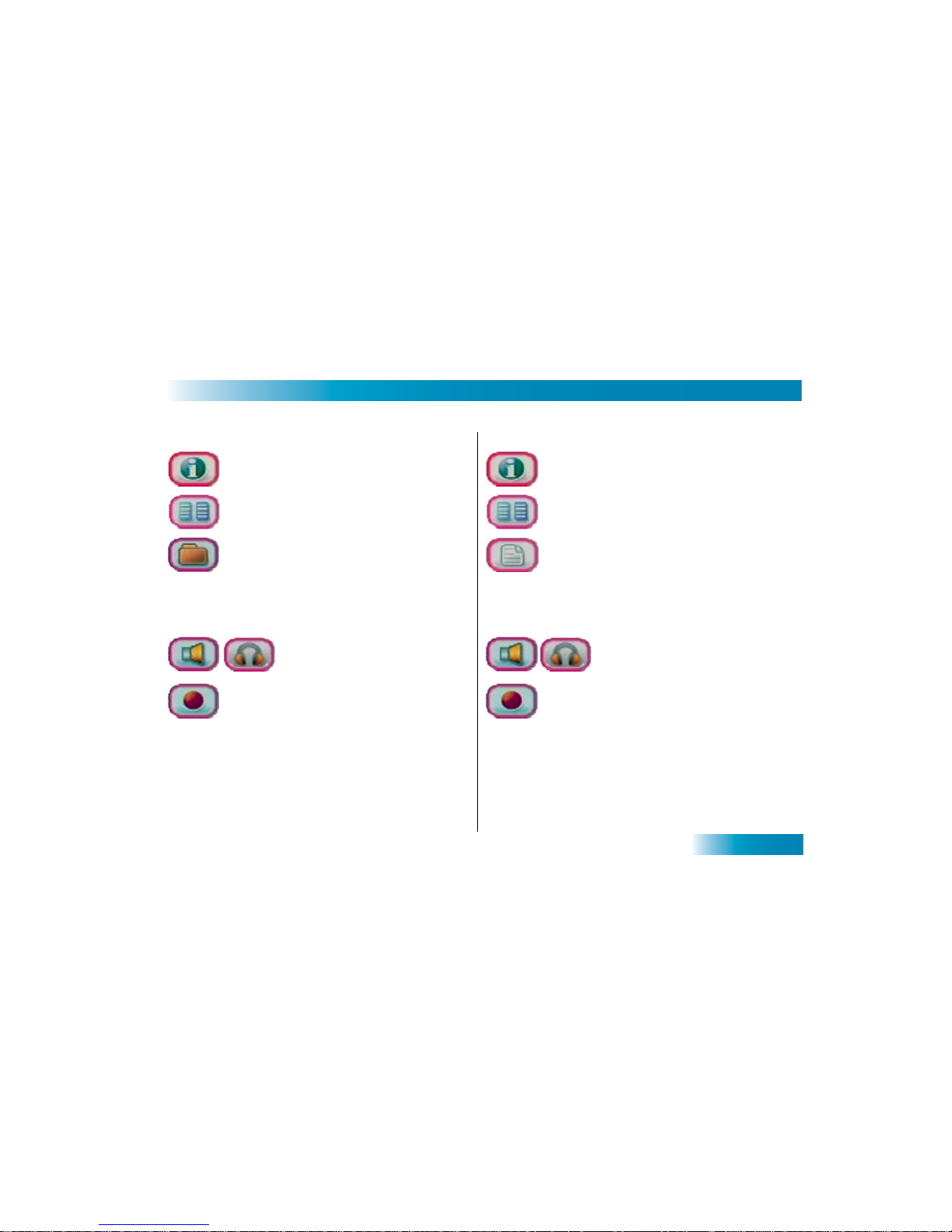

W

HEN A FOLDER IS HIGHLIGHTED (BROWSE HARD DRIVE

)

WHEN A SONG IS HIGHLIGHTED

• Info: to show additional information. • Info: to show additional information.

• Open playlist pane: opens the playlist. • Open playlist pane: opens the playlist.

• Folder management: accesses the

folder options (if available).

• File management: accesses the file

options (if available).

- Create: makes a new folder. - Delete: deletes the file.

- Rename: renames the file.

- Create Folder: makes a new folder .

- Delete: deletes the folder and
its content.

- Rename: renames the folder.

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

• Built-in speaker on/off: to

switch the speaker on or off
(headset only).

• AudioCorder: access the AudioCorder

menu.

• AudioCorder: access the AudioCorder

menu.

32

Chapter 4

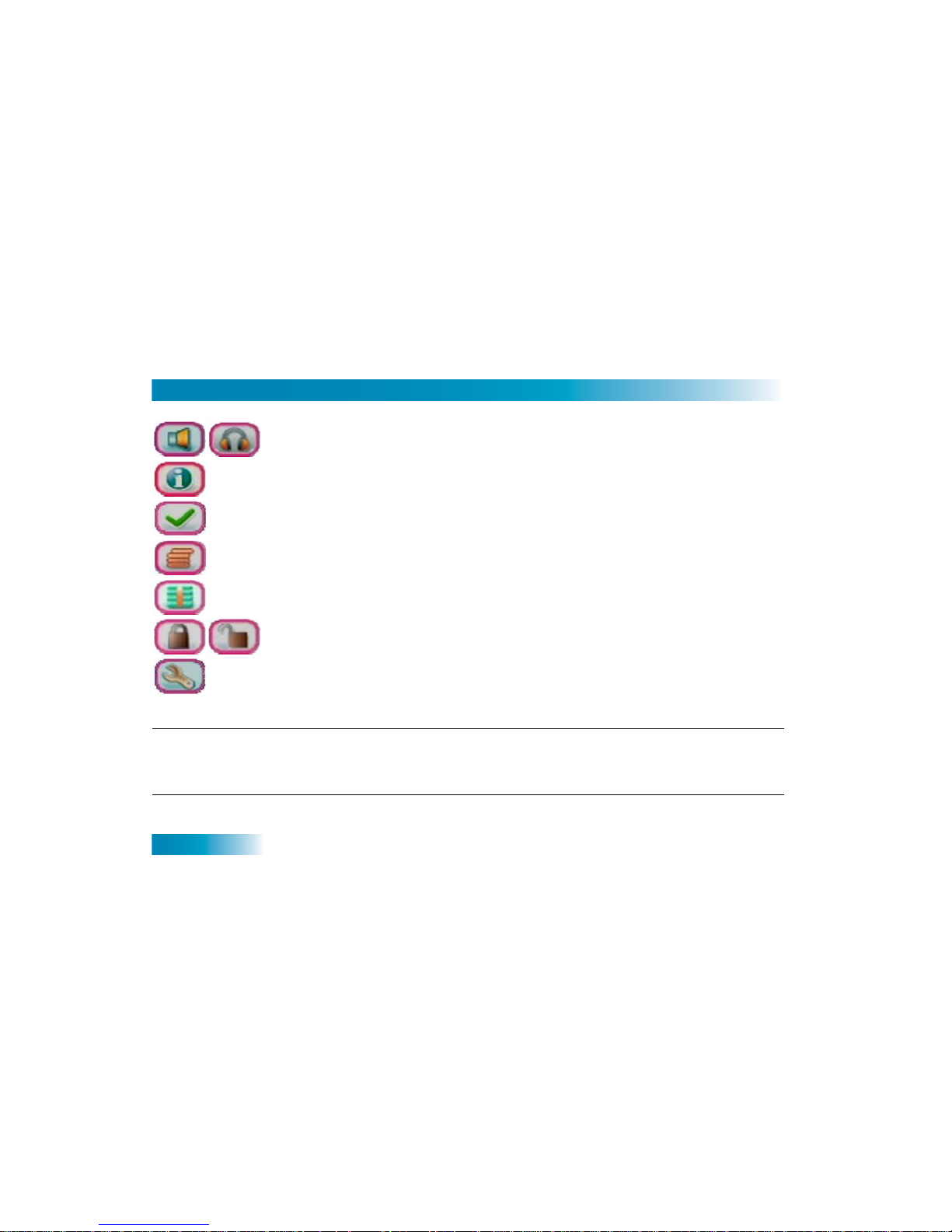

SPECIAL KEY FUNCTIONS

WHEN PLAYING SONGS

• Built-in speaker on/off: to switch the speaker on or off (headset only).

• Current song info: displays additional information.

• Set bookmark: set a bookmark manually. You can always start a future playback

from this point forward.

• Display ArcLibrary: displays the ArcLibrary from where you can select your music

files for playing back.

• Display playlist editor: opens the playlist editor.

• Lock keyboard: locks or unlocks the keys for use. The  keys still function to

set the volume.

• Audio settings: access the PlayMode (Single, Folder, All), Repeat & Shuffle

(Normal, Repeat, Shuffle) Intro duration, BassBoost, Bass, Treble and Balance
settings.

ON key:

• Pause: pauses the playback.

• Play: continues from pause.

 keys (PlayMode: All):

• Previous: starts the previous

song.

• Next: starts the next song.

 keys (press and hold):

• Volume: increases or

decreases the volume.

OFF key:

• End the playback.

Page Up key:

• Fast Forward through a song.

Page Down key:

• Fast Reverse through a song.

33

Second Source Audio/Video

CREATE PLAYLISTS

1 Turn the PocketDISH on.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Music icon and press ON to access the content.
4 Press the upper Setup key to access the Setup menus.
5 Use the upper and bottom Setup key to select the "Open playlist pane" option.
6 Press the center Setup key to access the Playlist menu and select the desired song.
7 Use the Setup keys to add the song to the Playlist.
8 Highlight the next song and use the Setup keys to add. Repeat this step for additional songs.
9 When you have finished, press the upper Setup key to select the "Select right pane" option

and press the center Setup key.
10 Use the Setup keys to select "Playlist management" and press the center Setup key.
11 Highlight the Save option, press the center Setup key and save the playlist.
12 Use the Setup keys to select "Playlist management" and press the center Setup key.
13 Highlight the Close option, press the center Setup key to exit.

SELECT MUSIC SELECT AND ADD YOUR FILES CLOSE THE PLAYLIST

34

Chapter 4

PLAY BACK PLAYLISTS

Before a song from the Playlist plays back, you can change the playback sequence. Press the upper
Setup key to access the Setup menu. Highlight the option Playlist management and se lect Shu ffle.

1 Turn the PocketDISH on.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Music icon and press ON to access the content.
4 Highlight Playlist and press ON.
5 Highlight the desired playlist for playing back and press ON.
6 If desired, use the Setup keys to select "Playlist management" highlight Shuffle and press

the center Setup key.
7 Press ON again to play back the songs in the selected Playlist.
8 Press OFF to end the playback.

SELECT PLAYLIST SHUFFLE YOUR PLAYLIST PLAY BACK FROM THE PLAYLIST

35

Second Source Audio/Video

INSTALL THE MPEG-4 TRANSLATOR

When connected to an external device, the PocketDISH uses more power than normal. Therefore,
connect the PocketDISH to power to prevent an unwanted shutdown.

The MPEG-4 Translator is only available for personal computers (PC) with a Windows Operating
System. Note that on some Windows versions the PocketDISH may display in the Windows Explorer as
a Removable Disk. For Mac there are conversion tools available for purchase from the Internet.

1 Connect the PocketDISH to power.
2 Turn the computer and the PocketDISH on.
3 On the PocketDISH:

a. Locate the USB-B port and connect the USB cable.
b. Now the "USB cable attached" pop-up displays.
c. The PocketDISH keys are temporarily disabled.

4On the PC:

a. Close all programs.
b. Locate the USB port and connect the USB cable.
c. Create two new folders:

- C:\PocketDISH\source

- C:\PocketDISH\codec\divx

d. On the PocketDISH drive, locate the folder:

PocketDISH drive\Data\Installation software.

e. Copy the folder and its contents to

C:\PocketDISH\source.

36

Chapter 4

WINDOWS MEDIA PLAYER 9

1 In the folder C:\PocketDISH\source\Installation Software\Windows Media Player 9, double click

your language and locate the .exe or XP.exe (Windows XP only) file.
2 Double click the .exe file and follow the on-screen instructions.

DIVX CODEC

1 On www.divx.com, click the DivX tab and follow the on-screen instructions to download the

free standard DivX codec into C:\PocketDISH\source\codec\divx.
2 Shut down all programs including e-mail, internet and anti-virus programs before

installation.
3 In the folder

C:\PocketDISH\source\codec\divx

locate the .exe file.

4 Double click the .exe file and follow the on-screen instructions.

VIRTUALDUB PROGRAM

For a seamless installation with the MPEG-4 Translator, install VirtualDub in its default folder.
C:\Program Files\VirtualDub when prompted.

1 In the folder

C:\PocketDISH\source\Installation Software\VirtualDub, locate the .exe file.

2 Double click the .exe file and follow the on-screen instructions.

MPEG-4 TRANSLATOR

1 In folder C:\PocketDISH\source\Installation Software\MPEG4-Translator, locate the .exe file

that suits your language.
2 Double click the .exe file and follow the on-screen instructions.

37

THE PHOTO ALBUM

This chapter gives you the procedure to transfer photos or image s from different
multimedia devices and play them back on the PocketDISH.

•INTRODUCTION

•TRANSFER DIGITAL PHOTOS/IMAGES FROM THE COMPUTER

•TRANSFER DIGITAL PHOTOS FROM YOUR CAMERA

•VIEW A COMPATIBLE PHOTO OR IMAGE

•VIEW A SLIDESHOW

The Photo Album

Transfer and Play Back

38

Chapter 5

INTRODUCTION

With your PocketDISH you can transfer digital photos from your computer, camera, camcorder,
USB flash drive or any other multimedia device which operates as a mass storage device.

The PocketDISH cannot handle all digital formats, but most of the JPEG and BMP formatted
photos from any camera are supported. If you encounter a format that is not supported, it is
possible to convert the file with use of commercially available programs such as Adobe
Photoshop and Paint Shop Pro into a format that the PocketDISH will playback.

When you convert a photo to JPEG or BMP, make sure you use the RGB color or Greyscale
mode setting. Consult the user’s guide that came with the program for detailed instructions.

If you have photos that are not digitally available to you, you can use a scanner to digitalize them.
Once you saved the scanned photo as.jpg or.bmp, you can transfer it to the PocketDISH for
viewing. Consult the user’s guide that came with the scanner for detailed instructions.

Once the photos are transferred to the PocketDISH, it is possible to view them separately or in a
slideshow.

To display the photos on a TV , it is recommended you change the Photo browser - Image Display
settings to Progressive to avoid screen flickering.

In addition to the playback of DISH Network content, the PocketDISH can also display photos or images

from other sources. These photos need to be either in JPEG (.jpg) or BMP (.bmp) format.

39

The Photo Album

TRANSFER DIGITAL PHOTOS/IMAGES FROM THE COMPUTER

Note that the PocketDISH can display on your computer under different names. Possible names are
PocketDISH or Removable Disk.

1 On your PC, shut down all programs before you start.
2 Use the USB cable to connect the PocketDISH to the PC.
3 Turn the PocketDISH on and wait until the “USB cable attached” pop-up displays.
4 Open Windows Explorer and notice that the PocketDISH displays as a drive.
5 Locate the folder in which you keep the photos and images you want to transfer.
6 Copy the desired files into the Pictures folder on the PocketDISH.
7 In the PC system tray (next to the clock), locate and click the “Safely Remove Hardware” icon.
8 Disconnect the PocketDISH and wait until the automatic file update is completed.

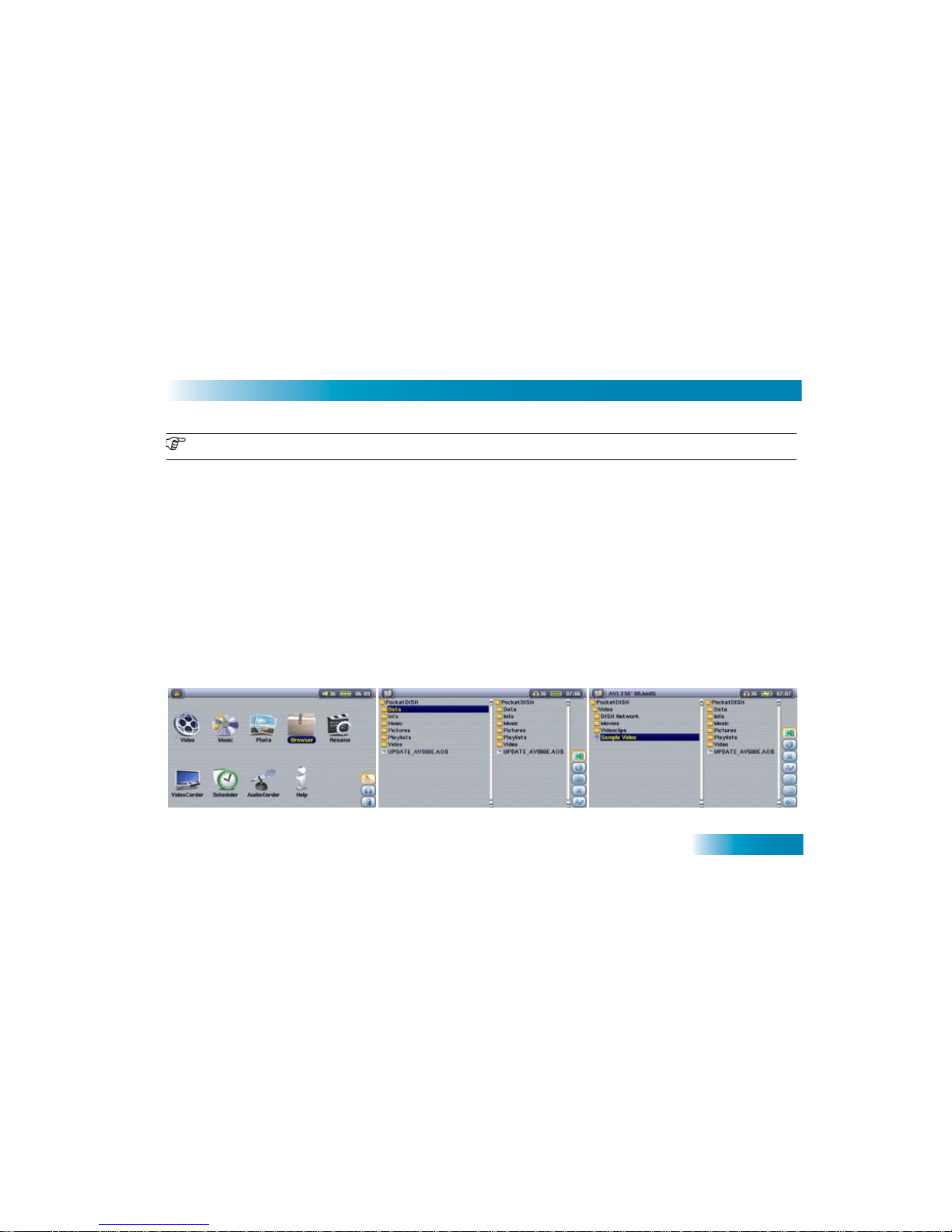

POCKETDISH CONNECTED TRANSFER YOUR FILES (FOLDERS)SAFE DISCONNECT

40

Chapter 5

TRANSFER DIGITAL PHOTOS FROM YOUR CAMERA

With your PocketDISH you can transfer digital photos and images from your computer, camera,

camcorder, USB flash drive or any other multimedia device which operates as a mass storage device.

1 Connect the PocketDISH to your camera as described in Getting Started - Connect a USB

Mass Storage Device on page 14.

2 On the PocketDISH, in the left browser section (USB device), use the  and ON keys to

locate the photos.
3 Use the Setup keys to activate the right section (PocketDISH) and highlight the Pictures folder.
4 Press ON and select the desired folder.
5 Use the Setup keys to activate the lef t sectio n and h ig hligh t th e pho to that you want to transfer.
6 Use the Setup keys to highlight “Copy file” or “Copy all files” as desired.
7 Press the center Setup key to execute the transfer from your camera to the PocketDISH,

notice that the “Copying File: file name” pop-up displays. Wait for the transfer to complete.
8 Turn the camera OFF and notice that the “USB device disconnected - Please Wait...” pop-up

displays. Now you safely can remove the USB cable.

CAMERA (USB DEVICE) CONNECTED TRANSFER YOUR FILES (FOLDERS)SAFE DISCONNECT

41

The Photo Album

VIEW A COMPATIBLE PHOTO OR IMAGE

BASIC OPERATION

1 Turn the PocketDISH on, allow the PocketDISH time for the desktop to display.
2 Highlight the Photo icon and press ON to access the content.

SETTING UP THE DISPLAY (ONLY IF THE DISPLAY FLICKERS)

1 Press the bottom Setup key and highlight the Photo browser settings.
2 Press the center Setup key to open the Photo browser settings.
3 Highlight Image Display and change the setting to Progressive to prevent screen flickering.
4 Press OFF to exit the Photo browser settings.

VIEWING A SINGLE PHOTO

1 Highlight the desired photo.
2 Press ON to view the photo.
3 Press OFF to exit the Photo viewer.

SELECT PHOTO SELECT YOUR PHOTO VIEW YOUR PHOTO

42

Chapter 5

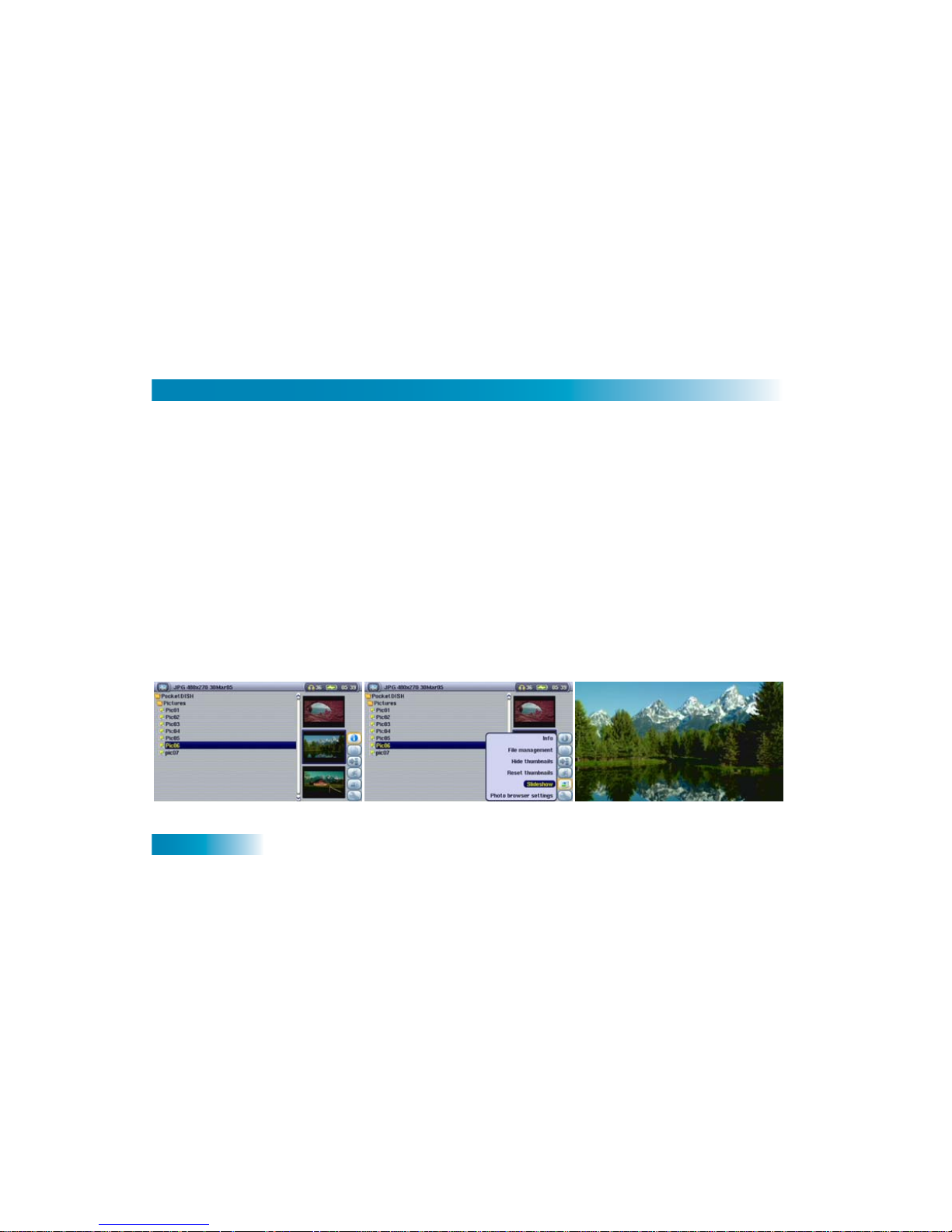

VIEW A SLIDESHOW

BASIC OPERATION

1 Turn the PocketDISH on , all ow th e Po cketDISH time for the desktop to display.
2 Highlight the Photo icon and press ON to access the content.

SETTING UP THE SLIDESHOW (ONLY IF THE DISPLAY FLICKERS)

1 Press the bottom Setup key and highlight the Photo browser settings.
2 Press the center Setup key to open the Photo browser settings.
3 Highlight Image Display and change the setting to Progressive.
4 Highlight Picture Pause and select the desired viewing time.
5 Press OFF to exit the Photo browser settings.

VIEWING THE SLIDESHOW

1 Highlight a photo and press the bottom Setup key. Highlight the Slideshow option.
2 Press the center Setup key to view the slideshow.
3 Press OFF to exit the Slideshow.

SELECT PHOTO SELECT SLIDESHOW VIEW YOUR SLIDESHOW

43

The Photo Album

Additional Features

WHEN A FOLDER IS HIGHLIGHTED WHEN A FILE IS HIGHLIGHTED

• Info: displays additional information. • Info: displays additional information.

• Folder management: accesses the

folder options (if available).

• File management: accesses the file

options (if available).

- Create: makes a new folder. - Delete: deletes the file.

- Rename: renames the file.

- Create Folder: makes a new folder.

- Delete: deletes the folder and
its content.

- Rename: renames the folder.

• Hide thumbnails: display

only the folder and file
names.

• Show thumbnails: display

the available thumbnails.

• Hide thumbnails: display only

the folder and file names.

• Show thumbnails: display the

available thumbnails.

• Reset thumbnails: delete the current

thumbnails and replace them with
new ones.

• Reset thumbnails: delete the current

thumbnails and replace them with new
ones.

• Photo browser settings: opens

the Photo browser settings menu.

• Slideshow: starts the Slideshow from

the selected photo forward.

• Photo browser settings: opens

the Photo browser settings menu.

44

Chapter 5

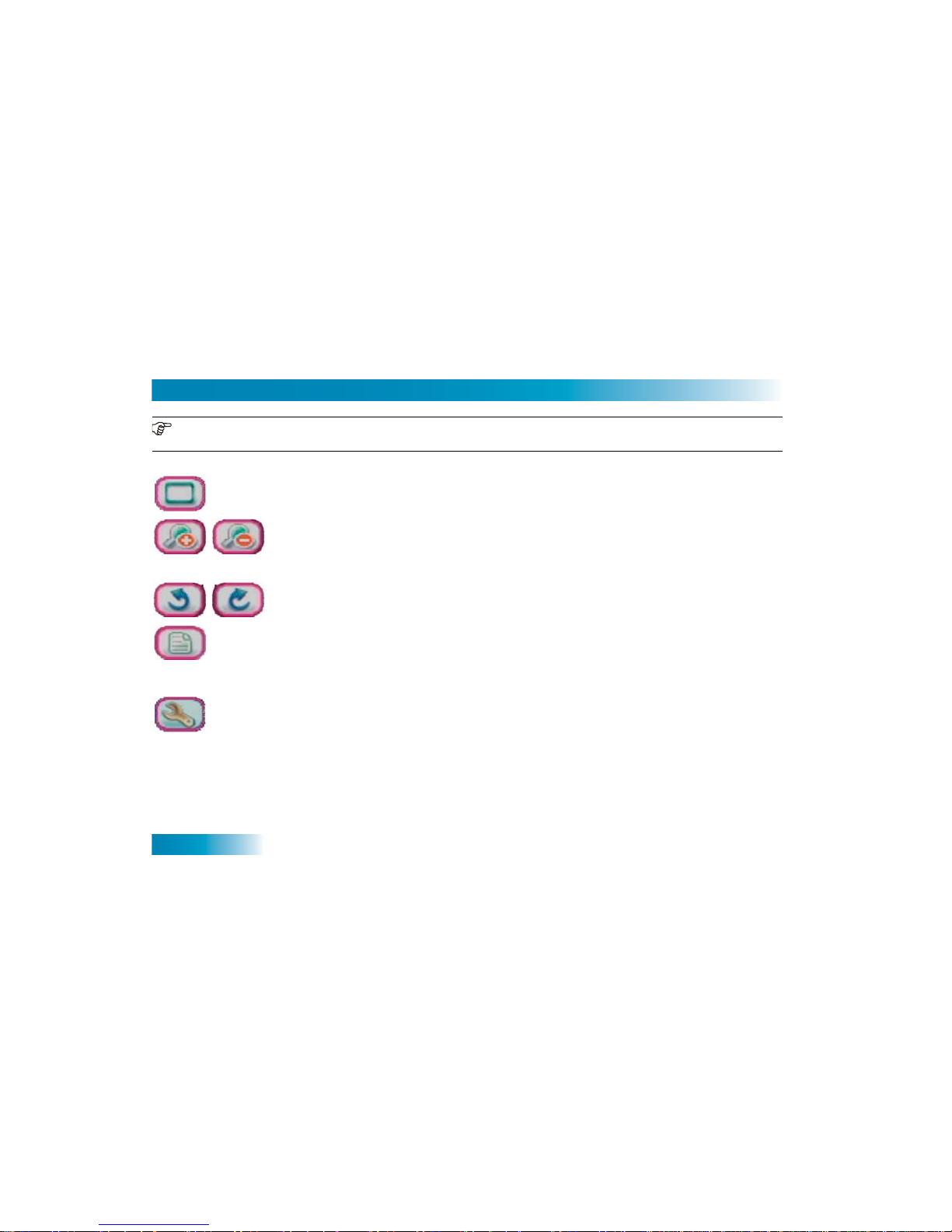

Magnifying a photo might result in a poorer quality when viewing. This is related to the resolution of the
original photo size. The bigger the file size, the better the magnification view will be.

WHEN VIEWING PHOTOS

• Hide text overlay: removes the on-screen menu temporarily

(1-Pic view only)

.

• Zoom in: magnifies the photo up to three times (refer to the + marks in the

display).

• Zoom out: minimizes the photo. Note that beyond original si ze, more photos are

shown, up to 9 at a time.

• Rotate Picture: rotates the photo count er-clockwise

(1-Pic view only)

.

• Rotate Picture: rotates the photo clockwise

(1-Pic view only)

.

• File management: accesses the file options (if available).

- Info: displays additional information.

- Save as wallpaper: saves and activates the current photo as a desktop background.

- Delete: deletes the file.

• Display settings: opens the Display settings menu, Image Display (Progressive or

Interlaced), Picture Pause (2-30 seconds), Pictures to display (1, 4 or 9 at a time).

45

THE BROWSER

This chapter gives you the description and operation for the PocketDISH Browser.

•DESCRIPTION

•HOW TO USE THE BROWSER

•ADDITIONAL FEATURES

The Browser

Description and Operation

46

Chapter 6

DESCRIPTION

Y ou can use the Browser to access any file type as if you are using a computer . The file operating
system is much like Microsoft Windows Explorer.

The out-of-the box file system already has some system folders which can have sub-folders for
easy navigation and file retrieval. The system folders are:

• Data: holds any file as if you are using a USB flash drive.

• Info: holds all on-screen help information.

• Music: holds the songs that you have transferred or the audio that you have recorded with the use

of the AudioCorder.

• Pictures: holds the photos (images) that you have transferred.

• Playlists: holds the playlists for easy listening of your songs.

• Video: holds the DISH Network video files that you have transferred or the video that you have

recorded with the use of the VideoCorder.

You can extend the file system with your own created main folders and sub-folders as desired.

47

The Browser

HOW TO USE THE BROWSER

BASIC OPERATION

Do not delete the system folders. They are directly connected to the icons on the desktop.

1 Turn the PocketDISH on.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Browser icon.
4 Press ON to access the folder list.
5 Use the Setup keys to edit the files and folders as desired.
6 Make your selections as applicable. Please note that unsupported file formats can been seen

in the folder, but the PocketDISH will not play or display the file content. These files can be
viewed or played once transferred to a computer, which has the programs that go with the file
(for example, *.doc is used by Microsoft Word).

7 To exit the application, press OFF repeatedly until the desktop displays.

SELECT BROWSER SELECT YOUR FOLDER SELECT/PLAYBACK YOUR FILE

48

Chapter 6

Additional Options

WHEN A FOLDER IS HIGHLIGHTED WHEN A FILE IS HIGHLIGHTED

• Select left pane: activate s

left column for selections.

• Select right pane: activates

right column for selections.

• Select left pane: activates left

column for selections.

• Select right pane: activates

right column for selections.

• Info: displays additional information. • Info: displays additional information.

• Create folder: makes a new folder.

• Delete file: deletes the file.

• Delete folder: deletes the folder and

its content.

• Rename file: renames the file.

• Rename folder: renames the folder.

• Copy file: copies a file to the active

folder in the other pane.

• Copy all files: copies all files of the

selected folder to the active folder in
the other pane.

• Move files: moves the selection to

another location.

49

THE VIDEOCORDER

This chapter gives you the description and operation of the VideoCorder.

•DESCRIPTION

•OPERATION

•THE VIDEOCORDER SETTINGS MENU

•VIDEO EDITING

The VideoCorder

Description and Operation

50

Chapter 7

DESCRIPTION

PocketDISH can record video from almost any source using the docking station and the analog
AV-cable. When you use the analog AV-cable, make sure you use the source’s Line-out
connection (which is not amplified).

USING THE DOCKING STATION

With the docking station connected to power, you can make video recordings from almost any
video source that has a video out connection.

FILE EDITING

The PocketDISH lets you edit your own recorded files. Y ou can cut out a section from a re cording
that you want to keep. Note that your original file is kept without any change.

FILE LOCATION

All recordings are stored in the Video folder. You can access this folder from the desktop by
selecting the Video icon.

Y ou can record in S-Video quality when using the S-Video connection. Note that the connection operates
as an S-Video In connection only. Do not forget to connect the analog AV-cable for the audio as well.

51

The VideoCorder

OPERATION

If scheduled recordings are present, leave the PocketDISH in standby and connected to power and video
source. If you switch off the PocketDISH without power connected, the Scheduler will not fire.

1 Connect the PocketDISH as described in Getting Started - Connect the Docking Station on

page 13.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the VideoCorder icon and press ON.
4 In the pre-record screen, if necessary, use the  keys to set the recording level. Make sure

that the level indicator does not stay in the yellow area. Too much indication will result in

distorted audio. Best results can be obtained by making and judging some test recordings.
5 Use the Setup keys to open the VideoCorder Settings menu.
6 In the VideoCorder Settings menu, make the desired selections to personalize your recording.
7 Press OFF to return to the pre-record screen and press the bottom Setup key.
8 Highlight the Record icon and press the center Setup key to start the recording.
9 Press OFF to exit the session.

SELECT VIDEOCORDER DEFINE THE RECORDING LEVEL SET THE RECORDING NAME/SOURCE

52

Chapter 7

THE VIDEOCORDER SETTINGS MENU

You can change the VideoCorder settings to suit your preferences.

SCHEDULING PARAMETERS

Auto Stop Rec Off (stop manually), On (Stop after the duration as set in the next option).
Duration Set the duration of the program you want to record (see Auto Stop Rec).
Pre-record Not used.
Post record Not used.

VIDEO PARAMETERS

Rename Press ON to rename the recording.
Source Auto, Composite [yellow RCA], S-Video, Black & White.
Format (Aspect ratio) Auto, 4:3, 5;3, 16:9, 2.35.
Resolution TV (optimize for TV viewing), LCD (optimize for PocketDISH viewing)
Bitrate Sets the video quality of the recording. Higher bitrates give better picture

quality but use more disk space.

Sampling S ets the audio quality of the recording. Higher sampling rates give better

audio quality but use more disk space.
Brightness Lightens or darkens the video.
Contrast Sharpens or fades the video color differences.
Saturation Sets the intensity for the color (known as hue).
Hue Sets the actual color of the video. In daily life Hue is understood as the

normal names of color. (for example: red, green, yellow and blue).
Reset Deletes the personal settings and restores the factory default values.

53

The VideoCorder

VIDEO EDITING

You can only edit the analog recordings, which have been made with use of the analog AV-cable
(VideoCorder or Scheduler). You cannot edit transferred songs.

1 Connect PocketDISH to power.
2 On the desktop, highlight the Video icon and press ON.

3 Use the  keys to highlight the recording that you want to edit and press ON.
4 Use the  keys to locate the start point for the section that you want to edit.

5 Press the ON key (to pause the playback).
6 Use the Setup keys to select the start point for cutting (Set a mark-in here option).

7 Use the  keys to locate the end point for the section that you want to edit.
8 Use the Setup keys to select the end point for cutting (Set a mark-out here option).

9 Use the Setup keys to save the section that you want to keep (Keep selected part) or remove

(Remove selected part). Note that the original file is untouched.

PLAYBACK VIDEO (VIDEOCORDER) SET A MARK-IN HERE SET A MARK-OUT HERE

54

Chapter 7

NOTES

55

THE SCHEDULER

This chapter gives you the description and operation of the Scheduler.

•DESCRIPTION

•OPERATION

The Scheduler

Description and Operation

56

Chapter 8

DESCRIPTION

With the PocketDISH you can make timed recordings from any video source. The Scheduler
contains the timers which you can set with use of the number keys on the PocketDISH remote
control or with the  keys.

The Scheduler does not start or program your video source (for example a VCR). You have to set the
timer of your video source also, using the same time as on the PocketDISH Scheduler.

57

The Scheduler

OPERATION

If you use the Scheduler, you must connect the PocketDISH to power and the video source. If you
switch off the PocketDISH without power connected, the Scheduler will not fire.

1 Connect the PocketDISH to power and a video source using the docking station.
2 Allow the PocketDISH time for the desktop to display.
3 Highlight the Scheduler icon and press ON to access the timers.

4 Select a timer and press the  key to open the timer.
5 Use the PocketDISH remote control to make the settings. It is also possible to use the

 keys to make the desired settings.
6 Press the upper Setup key to open the Setup menu.
7 Use the Setup keys to save, clear or edit the program title for the timer.
8 Press OFF to exit the Scheduler.

SELECT SCHEDULER SET THE TIMER SAVE/EDIT THE TIMER

58

Chapter 8

NOTES

59

THE AUDIOCORDER

This chapter gives you the description and operation of the AudioCorder.

•DESCRIPTION

•OPERATION

•INCREMENTAL RECORDING

•EDITING

The AudioCorder

Description and Operation

60

Chapter 9

DESCRIPTION

PocketDISH can record audio from almost any source using the docking station and the analog
AV-cable. When you use the analog AV-cable, make sure you use the source’s Line-out
connection (which is not amplified).

USING THE DOCKING STATION AND ANALOG AV-CABLE

With the docking station connected to power, you can make audio recordings from almost any
audio source that has a Line-out connection.

INCREMENTAL RECORDING

While recording the "Save file and start a new recording" option lets you stop a current recording
and instantly start a new one (for example, breaking up a lengthy track or a live concert into
separate digital files).

FILE EDITING

The PocketDISH lets you edit your own recorded files. Y ou can cut out a section from a re cording
that you want to keep. Note that your original file is kept without any change.

FILE LOCATION

All recordings are stored in the Music folder. You can access this folder from the desktop by
highlighting the Music icon. Select the folder "Browse hard drive" to locate the recordings.

61

The AudioCorder

OPERATION

1 Connect the PocketDISH as described in Getting Started - Connect the Docking Station on

page 13.
2 Allow the PocketDISH time for the desktop to display.
3 On the desktop, highlight the AudioCorder icon and press ON.
4 In the pre-record screen, if necessary, use the  keys to set the recording level.
5 Press the center Setup key to access the AudioCorder Settings menu.
6 In the AudioCorder Settings menu, use the  keys to select:

a. The Set Title option. Press ON to rename the recording.
b. The recording Format (WAV PCM = best quality, WAV ADPCM = good quality)

c. The Sampling rate (the higher the value, the better the quality, the bigger the file size).
7 Press OFF to return to the pre-record screen and press the bottom Setup key.
8 Highlight the Start recording option. Press the center Setup key to start the recording.
9 Press OFF to exit the session.

SELECT AUDIOCORDER DEFINE THE RECORDING LEVEL SET THE RECORDING NAME/SOURCE

62

Chapter 9

INCREMENTAL RECORDING

1 To end the current recording and start a new one instantly, press the bottom Setup key.
2 Select Save file and start a new recording. The "Wait, writing to disk" pop-up displays and the

next recording is started.

3 To pause the recording:

a. Press the bottom Setup key to open the Setup menu.
b. Highlight the Pause current recording option.
c. Press the center Setup key.

4 When you want to continue the same recording, press center Setup key again (Resume).

Once the recordings have been completed, you can rename the files. Highlight the Music icon, "Browse
hard drive

"

(folder), the recording that you want to rename, then use the Setup keys to rename the
recordings. Once the PocketDISH is connected to the compu ter , you also can use the computer to rename
the files or folders.

You can only make use of the Incremental recording feature during recording. You can use it to breakup
the running recording into several separate recordings.

S

TOP CURRENT/START NEXT SONG SAVING THE CURRENT SONG RECORDING THE NEXT SONG

63

The AudioCorder

EDITING

You can only edit the analog recordings, which have been made with use of the analog AV-cable. You
cannot edit transferred songs.

1 On the desktop, highlight the Music icon and press ON.
2 Highlight the Browse hard drive folder and press ON.
3 Use the  keys to highlight the recording that you want to edit.
4 Press the bottom Setup key to open the Setup menu.
5 Highlight the File management option and press the center Setup key.
6 Highlight the Edit option.The recording starts to playback.
7 Use the  keys to locate the start point for the section that you want to edit.
8 Use the Setup keys to select the start point for cutting (Set Cut-in point).
9 Use the  keys to locate the end point for the section that you want to edit.
10Use the Setup keys to select the end point for cutting (Set Cut-out point).
11 Use the Setup keys to save the cut recording. Note that the original file is untouched.

SELECT THE EDIT OPTION SELECT CUT-IN/CUT-OUT SAVE THE EDITED FRAGMENT.

64

Chapter 9

NOTES

65

SYSTEM SETUP

This chapter explains how to personalize and set up your PocketDISH.

•DESCRIPTION

•SOUND MENU

•POWER MENU

•PLAYMODE MENU

•DISPLAY MENU

•DISPLAY APPEARANCE MENU

•LOCKS MENU

•SYSTEM MENU

•INSTALL A PERSONAL WALLPAPER

•SOFTWARE UPGRADES FROM THE INTERNET

System Setup

Description and Operation

66

Chapter 10

DESCRIPTION

From the desktop, you can use the Setup menu to personalize your PocketDISH. You can open
the Setup menu with the Setup keys on the right side of the LCD screen.

The Setup menu gives access to:

• Display: sets the Language, the TV settings and the Video Output.

• Appearance: sets the look and feel of the on-screen menus.

• PlayMode: tells the PocketDISH how to playback the files .

• Sound: sets your sound preferences.

• Clock: sets the local time.

• Power: sets the Battery and DC-power options.

• Locks: sets the age-based view ratings and allows for locking and unlocking the system and

changing the password. The DISH Network DVR password is not the same as on PocketDISH.

• System: set, upgrade and review the system data (firmware).

THE SETUP MENU

67

System Setup

DISPLAY MENU

APPEARANCE MENU

In the Display menu, you can set:

• Language: sets the menu language.

• Action Icon Help: sets the Setup menu explanation on or off.

• TV Standard: sets the NTSC (USA) or PAL (Europe) standard.

• TV Format: sets the aspect ratio 4:3, 16:9 or Wi de screen (PAL).

• Video Output: selects the PocketDISH or TV set for viewing.

• LCD Brightness: sets the intensity of the LCD screen. The

battery lasts longer on a lower setting.

With the LCD Stability option, you can reduce the LCD
flickering.

THE DISPLAY MENU

In the Appearance menu, you can set:

• Wallpaper: selects a personal background as defined in the

Picture name option.

• Picture name: selects a JPEG picture as a wallpaper.

• Font outline: emphasizes the black on-screen text.

• Color scheme: selects another pre-defined menu header color.

• Cursor color: selects another pre-defined cursor color.

With the Previous settings option, you can delete th e changes
and recall the latest settings.

THE APPEARANCE MENU

68

Chapter 10

SOUND MENU

PLAYMODE MENU

In the Sound menu, you can set your personal preferences for:

• Volume: sets the overall sound level.

• Bass Boost: increases the current Bass level.

• Bass: sets the lower sound frequencies.

• Treble: sets the higher sound frequencies.

• Balance: sets the balance between the left and right speaker.

With the Reset option you can return to the initial factory
settings.

THE SOUND MENU

In the Audio playback you can set your preferences for:

• PlayMode: sets the playback mode to Single, Folder, All, Queue

(during the playback of the song, you can select the next so ng for
playback), or Scan (plays back only the intro of each song).

• Repeat/Shuffle: sets the playback order to Normal, Repeat or

Shuffle.

• Intro duration: sets playback time for each intro.

In the Video playback you can set your preferences for:

• PlayMode: sets the playback mode Single, Folder and All.

• Repeat/Shuffle: sets the playback to Normal or Repeat.

THE PLAYMODE MENU

69

System Setup

CLOCK MENU

POWER MENU

In the Clock menu, you can set the local time:

• Time Format: sets the 24 hour or 12 hour clock.

• Year: sets the current year.

• Month: sets the current month.

• Day: sets the current day.

• Hour: sets the current hour.

• Minute: sets the current minute.

Use the Set option to confirm the changes before they become
active.

THE CLOCK MENU

In the Power menu, you can set the power save mode for
battery operation as well as for DC-power operation:

• Power Off: Battery operation only, sets the inactive usage time

before the PocketDISH completely shuts down automatically.

• Backlight Off: sets the inactive usage time before the

PocketDISH turns off the display only.

• Hard Drive: sets the inactive usage time before the PocketDIS H

turns off the hard drive only. Note that this setting will affect the
response time for file access.

• Standby: DC-Power operation only, sets the inactive usage time

before the PocketDISH goes into standby automatically.

THE POWER MENU

70

Chapter 10

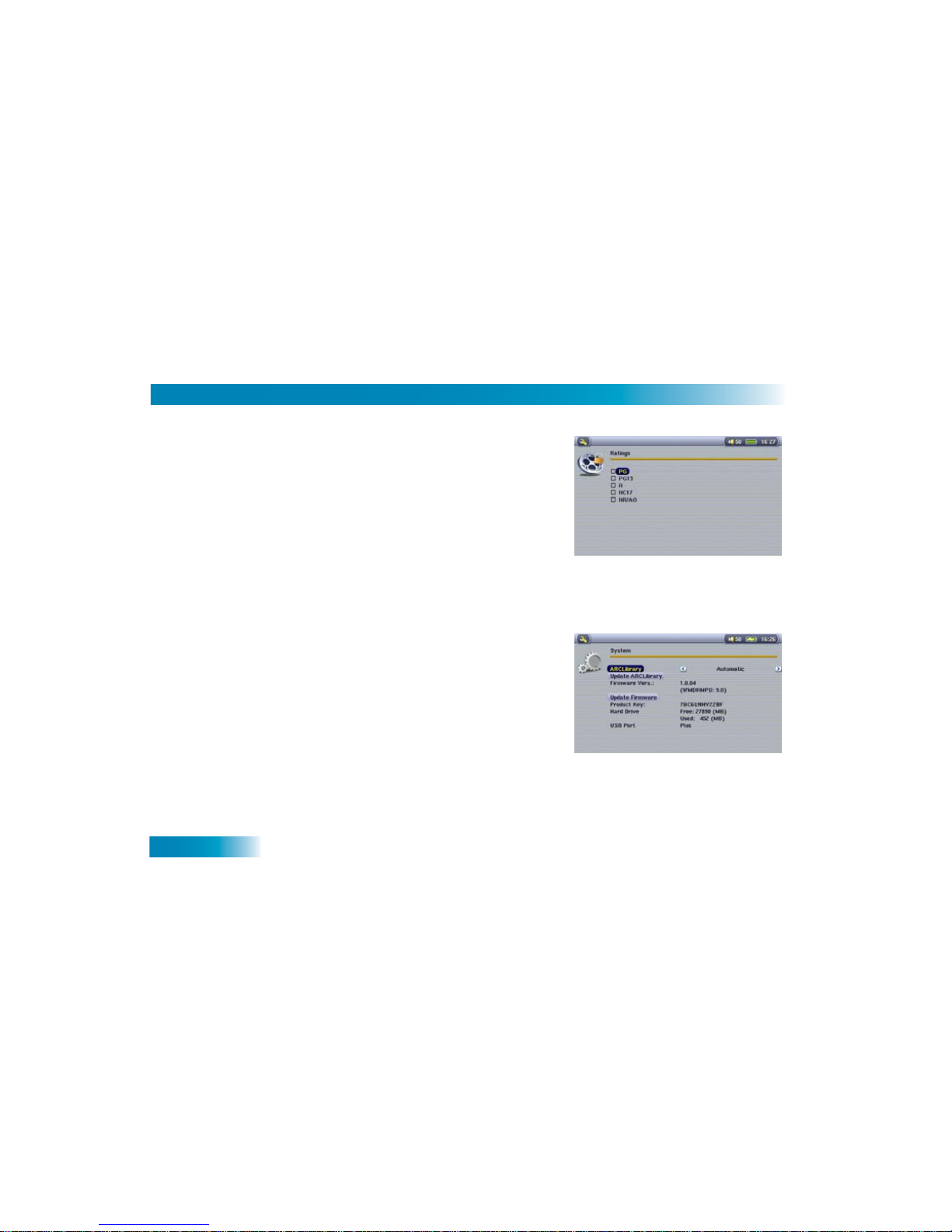

LOCKS

SYSTEM MENU

In the Locks menu, you can set your Ratings, Lock and Unlock
the system and change your password. The Ratings are:

• PG: Parental Guidance suggested (may not be for all ages).

• PG13: Parents strongly cautioned (not for under age 13).

• R: Restricted, guidance suggested (may not be for under age

17).

• NC17: Not for under age 17.

• NR/AO: Not Rated - Adults Only.

With the Set new password option, you can change the password.

THE SYSTEM MENU

In the System menu, you can set or review:

• ArcLibrary: set the update method.

With the Update ArcLibrary option, you can manually update the
file system after you have transferred files to the PocketDISH.

• Firmware version: to review the current software version.

With the Update Firmware option, you can manually update the
software version once it is downloaded in the PocketDISH.

• Product key: to review the product key that is required when

you need help from the Customer Service Center.

• Hard Drive: to review the Free/Used status of the hard drive.

• USB Port: to review the USB port status.

THE SYSTEM MENU

71

System Setup

INSTALL A PERSONAL WALLPAPER

1 Look up a photo (image) as described in the The Photo Album - View a Compatible Photo or

Image on page 41.

2 When the photo is on-screen, press the upper Setup key to open the Setup menu.
3 Select File management, press the center key, highlight Save as wallpaper and press the

center key again.

4 Press OFF repeatedly to exit the session.

TO CHANGE THE WALLPAPER SETTINGS

1 On the desktop, press the upper Setup key to access the Setup menus.
2 Use the upper or lower Setup key to highlight the Display setup screen option and press the

center Setup key.
3 In the Setup menu, highlight the Appearance option and press ON.
4 In the Appearance menu, choose your wallpaper (Wallpaper: On, Picture name: as desired).
5 Change the Font outline, Color scheme and Cursor color as appropriate.
6 Press OFF repeatedly until the desktop displays.

SELECT APPEARANCE MENU SELECT WALLPAPER SELECT PICTURE NAME

72

Chapter 10

SOFTWARE UPGRADES FROM THE INTERNET

1 Download the latest software version from www.archos.com. to your computer.
2 Connect the PocketDISH to the computer. Note that the "USB cable attache d" p op -up disp lays.
3 On the computer, locate the PocketDISH drive and double click.
4 Note that a file called UPDATE_AV500E.AOS is present.
5 On the computer, unzip the new software and copy it onto the PocketDISH drive.
6 When prompted, overwrite the current file.
7 In the PC system tray (next to the clock), locate and click the "Safely Remove Hardware" icon.
8 Safely disconnect the USB cable from the PocketDISH.
9 On the desktop, use the Setup keys to highlight the Setup menu icon and press the center

Setup key. Then highlight the System icon and press ON.
10 Highlight Update Firmware and press ON. Allow PocketDISH time to update the software.
11 When the "Update OK." pop-up displays, press ON and wait until the desktop displays.

CONFIRM FILE REPLACEMENT SELECT UPDATE FIRMWARE UPDATE FINISHED

73

TROUBLESHOOTING

This chapter provides help for questions or problems you may have.

•POWER

•DISH NETWORK

•CONNECTIONS

•FILES

•MULTIMEDIA

•COMPUTER

•IF NOTHING HELPS

Troubleshooting

Tips and Tricks

74

Chapter 11

Power

Question Possible Cause How to Resolve

1 The battery does not last

as long as I expected.

The unit has been connected
to an external device.

•

When connected to an
external device, the
PocketDISH uses more
power than normal.
Therefore, always connect
the PocketDISH to power to
prevent an unwanted
shutdown.

2 The PocketDISH switches

off automatically.

The battery power is low. •

Connect the AC/DC adapter
that came with the
PocketDISH.

Power settings are set to save
battery power.

a.Turn on the PocketDISH.
b.Press the center Setup key

to open the Setup menu.
c.Highlight the Power icon.
d.Press ON once.
e.Set the Battery / DC power

operation options to a

convenient value.
f. Press OFF twice or until the

desktop displays.

75

Troubleshooting

Question Possible Cause How to Resolve

3 The display turns black

after a few seconds.

Power settings are set to save
battery power.

a.Turn on the PocketDISH.

b.Press the center Setup key

to open the Setup menu.
c.Highlight the Power icon.
d.Press ON once.
e.Set the Battery / DC power

operation options to a

convenient value.
f. Press OFF twice or until the

desktop displays.

4 It seems that the battery

does not charge.

You did not use the correct
AC/DC adapter.

•

You can only use the AC/DC

adapter that came with the

PocketDISH.

You did not install the AC/DC
adapter correctly.

•

On the PocketDISH, make

sure the CHG indicator is on.

•

Make sure the connections

are made correctly.

General power failure. •

Check your circuit breaker

and make sure power is

available.

76

Chapter 11

DISH Network

Question Possible Cause How to Resolve

4 It seems that the battery

does not charge.

Li-Ion battery is worn out. •

Please contact our Customer
Service Center.

5 Can I use PocketDISH and

AC/DC adapter abroad?

•

Yes you can. The AC/DC
adapter can be used between
100Vac-240Vac / 50Hz-60Hz.

Question Possible Cause How to Resolve

1 I cannot transfer the DISH

Network content from the
PocketDISH to another
device.

DISH Network content is
encrypted and meant for
private use only.

•

This is normal. The content
that you have subscribed to
cannot be transferred to
another device.

2 I cannot find my DISH

Network audio recordings.

These recordings are listed in
the Video folder of the
PocketDISH.

•

This is normal. On the DVR,
the

DISH Network audio
recordings are also saved in
the “My Recordings” list.

3 I don’t hear any sound from

my headset.

The in-line volume control of
the headset is set to minimum.

•

Adjust the in-line volume
control to a higher level until
sound is heard.

The PocketDISH volume is set
too low or minimum.

•

On PocketDISH, use the



key

to increase the volume.

77

Troubleshooting

Connections

Question Possible Cause How to Resolve

1 There seems to be no

connection between
devices.

Your cable might be damaged. •

Use another cable.

2 The USB cable does not fit

between the external
device and the
PocketDISH.

You did not use the USB
adapter cable.

•

Install the USB adapter cable
between the external device
and the PocketDISH.

3 I cannot record from my TV

or audio device.

You have made the wrong
connections.

a.Install the docking station

first.

b.Install the AV -cable into the

AV in connection.

c.Match the colors of the red

and white RCA connectors.

4 I don’t hear any sound from

my headset.

The in-line volume control of
the headset is set to minimum.

•

Adjust the in-line volume
control to a higher level until
sound is heard.

The PocketDISH volume is set
too low or minimum.

•

On PocketDISH, use the



key

to increase the volume.

78

Chapter 11

Question Possible Cause How to Resolve

5 The PocketDISH content

does not display on my
TV screen.

You have made the wrong
connections.

a.Install the docking station

first.

b.Install the AV-cable into the

AV out connection.

c.Match the colors of the RCA

connectors.

On the PocketDISH, you did
not select the correct Video out
option.

a.Press and hold the TV/LCD

key for at least three
seconds.

b.Now the TV screen displays.
c.Use the PocketDISH keys or

the PocketDISH remote
control as usual to select
your video.

d.On shut down, the

PocketDISH automatically
reverts to its own LCD
screen.

6 Are USB hubs supported?

•

The PocketDISH will only
work correctly when directly
connected to the computer’s
USB connector.

79

Troubleshooting

Files

Question Possible Cause How to Resolve

1 I cannot play a video or

audio file.

You have a file format that is
not supported by the
PocketDISH.

•

Use the MPEG-4 translator or
Windows Media Player to
convert your multimedia file
into a playable format.

•

PocketDISH only supports
the formats as specified in
this manual.

You are limited by the Locks. •

Enter your password to view
the file.

2 I cannot see a file but I

know it must be there.

You have a file format that is
not supported by the
PocketDISH.

•

On the desktop, highlight the
Browser icon and review the
folder. Unsupported files
should be transferred to and
kept in the Data folder (mass
storage).

3 I cannot play i-Tunes You have purchased protected

(Apple-only encrypted) music.

•

There is no solution.

80

Chapter 11

Multimedia

Question Possible Cause How to Resolve

1 I cannot transfer files from

my external device (e.g.
camera) to the
PocketDISH.

The external device is not a
USB generic mass storage
device as it asks for drivers to
operate correctly.

•

You only can transfer files
from generic USB mass
storage devices to the
PocketDISH.

•

Transfer the files first to a
computer and from there onto
the PocketDISH.

2 I cannot synchronize with

Windows Media Player.

You only can synchronize from
Windows Media Player to your
PocketDISH.

•

In Windows Media Player
locate the Sync tab and follow
the on-screen instructions.

Question Possible Cause How to Resolve

3 I cannot translate a file into

a format for the
PocketDISH.

Windows Media Player cannot
translate the file because it is a
protected file.

•

There is no solution for this
issue.

81

Troubleshooting

Computer

If your problem or question is not listed in this section, please refer to the user’s guide that came with
your computer or consult your computer retailer for advice.

Question Windows Mac

1 Which operating system is

supported?

Microsoft Windows ME/2000/
XP or higher.

Mac OS 10.2.4 or higher

2 Which USB drivers do I

need?

The PocketDISH acts as a
mass storage device that is
recognized by the listed
operating systems.

The PocketDISH acts as a
mass storage device that is
recognized by the listed
operating systems.

3 The computer does not

recognize the PocketDISH.

Make sure the USB drivers that
come with the computer’s
operating system are installed
completely.

Make sure the USB drivers that
come with the Mac operating
system are installed
completely.

82

Chapter 11

Question Windows Mac

4 File transfer seems to be

slow.

Your computer might only be
USB 1.1 compatible which has
a lower transfer speed than
USB 2.0.

Your computer might only be
USB 1.1 compatible which has
a lower transfer speed than
USB 2.0.

5 Where can I get additional

technical support?

www.microsoft.com www.apple.com

6 My PocketDISH or

computer has strange file
names.

You have not disconnected the
PocketDISH properly .

In the PC
system tray (next to the clock),
locate and click the "Safely
Remove Hardware" icon.

Y ou have not disconnected the
PocketDISH properly. In the
Finder, please use the Eject
button that displays behind the
PocketDISH drive.

7 On the PocketDISH, I see

files that I did not create.

This is normal, sometimes the
computer transfers files for
proper operation of the
devices.

This is normal, sometimes the
computer transfers files for
proper operation of the
devices.

8 I have trouble installing

Windows Media Player 10.

You are not running
Windows XP or higher. Use
Windows Media Player 9 or
upgrade to Windows XP.

You cannot use the Windows
Media Player, please use the
Mac iTunes player together
with the iTunes plug-in that you
can download from
www.archos.com.

83

Troubleshooting

If nothing helps

Question Possible Cause How to Resolve

1 The PocketDISH is frozen,

none of the buttons work.

You have activated the “Lock
keyboard” option.

•

Press the bottom Setup ke y
until the padlock icon is
highlighted.

•

Press the center Setup key to
unlock the keys.

•

Do a reset by pressing and
holding OFF for at least
10 seconds, or until the
PocketDISH shuts down, then
turn the PocketDISH back on
and try again.

•

If you still need assistance
after you have consulted the
troubleshooting section, call
Customer Service Center at:
1-877-300-8879 (toll free).

2 I forgot my Password. •

Call the Customer Service
Center at:
1-877-300-8879 (toll free).

84

Chapter 11

NOTES

A-1

APPENDIX A-1

This appendix informs you about warranties, compliance and agreements.

•EXTENT OF LIMITED WARRANTY

•LIMITATIONS OF WARRANTY

•LIMITATIONS OF LIABILITY

•LOCAL LAW

• FCC COMPLIANCE

•SOFTWARE DOWNLOADS

• LCD PIXEL POLICY

•COPYRIGHT AND TRADEMARKS

Warranty, Compliance and Agreements

A-2

Appendix

A

EXTENT OF LIMITED WARRANTY

Archos warrants to the original end user customer that Archos products will be free from defects in materials
and workmanship for the duration of two years, which begins on the date of purchase by the customer.
Customer is responsible for maintaining proof of date of purchase.

For software products, Archos' limited warranty applies only to a failure to execute programming instructions.
Archos does not warrant that the operation of any product will be uninterrupted or error free.

Archos' limited warranty covers only those defects which arise as a result of normal use of the product, and
do not apply to any:

• damage from misuse or neglect,

• improper or inadequate maintenance or modification,

• software, interfacing, media, parts, or supplies not provided or supported by Archos, or

• operation outside the product's specifications,

• theft.

If Archos receives, during the applicable warranty period, notice of a defect in any hardware product, which is
covered by Archos' warranty, Archos shall either repair or replace the defective product at Archos' option.

If Archos is unable to repair or replace, as applicable, a defective product which is covered by Archos'
warranty, Archos shall within a reasonable time after being notified of the defect, refund the purchase price
for the product.

Archos shall have no obligation to repair, replace or refund until the customer returns the defective product to
Archos.

Any replacement product may be either new or like-new, provided that it has functionality at least equal to
that of the product being replaced.

Archos' limited warranty is only valid in the country of purchase.

This Limited Warranty is a legal document. Keep it in a safe place. Remember to retain your Proof of
Purchase for warranty service. Any items returned without a copy of the Proof of Purchase will be
considered out of warranty.

A-3

Appendix

LIMITATIONS OF WARRANTY

The Archos products contemplated hereunder are provided "As Is". To the extent allowed by local law,
neither Archos nor its third party suppliers make any other warranty or condition of any kind, whether express
or implied, with respect to the Archos products, and specifically disclaim the implied warranties or conditions
of merchantability, satisfactory quality, fitness for a particular purpose, title and noninfringement.

To the extent allowed by law, EchoStar makes no warranty, expressed or implied, as to the PocketDISH,
including but not limited to any warranties or conditions of merchantability, satisfactory quality, fitness for a
particular purpose, title and noninfringement.

LIMITATIONS OF LIABILITY

To the extent allowed by local law, the manufacturer remedies provided in this Warranty Statement are the
customer's sole and exclusive remedies.

To the extent allowed by local law, except for the obligations specifically set forth in this Warranty Statement,
in no event shall EchoStar, Archos or its third party suppliers be liable for direct, indirect, special, incidental,
or consequential damages, whether based on contact, tort, or any other legal theory and whether advised of
the possibility of such damages.

LOCAL LAW

This Warranty Statement gives the customer specific legal rights. The customer may also have other rights
that vary from state to state in the United States, from province to province in Canada, and from country to
country elsewhere in the world.

To the extent that this Warranty Statement is inconsistent with local law, this Warranty Statement shall be
deemed modified to be consistent with such local law. Under such local law, certain disclaimers and
limitations of this Warranty Statement may not apply to the customer.

A-4

Appendix

For example, some states in the United States, as well as some governments outside the United States
(including provinces in Canada), may:

• preclude the disclaimers and limitations in this Warranty Statement from limiting the statutory rights of a

consumer (e.g., the United Kingdom),

• otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations, or

• grant the customer additional warranty rights, specify the duration of implied warranties which the

manufacturer cannot disclaim, or not allow limitations on the duration of implied warranties.

FCC COMPLIANCE

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

• Reorient or relocate the receiving antenna,

• Increase the separation between the equipment and receiver,

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected,

• Consult the dealer or an authorized service center technician for help.

Modifications not authorized by the manufacturer or EchoStar Technologies Corporation may void users
authority to operate this device. FCC Part 15 - Operation is subject to the following two conditions:

1 This device may not cause harmful interference.
2 This device must accept any interference received inclu ding interfere nce that ma y caus e und esired ope ration.

A-5

Appendix

SOFTWARE DOWNLOADS

EchoStar Technologies Corporation will make available software updates to keep your PocketDISH
as up-to-date as technically possible. EchoStar Technologies Corporation makes no warranties with respect
to the use of the supplied software downloads and specifically disclaims any implied warranties, including
without limitation any warranties of merchantability, fitness for a particular purpose, title or noninfringement.

EchoStar Technologies Corporation reserves the right, for whatever reason, to revise, change or modify the
software that can be used by your PocketDISH without the obligation to notify or warrant any person or
organization of such change. Therefore, please check the downloads that come via the EchoStar satellite or
visit the internet site www.archos.com, on a regular basis, for the latest software available.

LCD PIXEL POLICY

The LCD screen on your PocketDISH unit has been manufactured to rigorous standards to provide
a high quality viewing experience. Nevertheless, your LCD screen may have slight imperfections. This is not
particular to the Archos screen, but to all devices which have LCD screens regardless of the original
manufacturer of the LCD. Each screen pixel contains three dot elements (Red, Blue, and Green). One or all
of the dots in a given pixel may be stuck on or stuck off. A single dot stuck off is the least noticeable. All three
dots of a pixel stuck on is the most noticeable. Archos guarantees that its PocketDISH screen will
have no more than 1 defective pixel (regardless if that pixel has one or more defective dots). This means that
during the period of guarantee for your country or jurisdiction, if the screen on your product has two or more
defective pixels, Archos will repair or replace your PocketDISH unit at its cost. Thus, one
defective pixel is not grounds for replacement or repair of the product.

A-6

Appendix

COPYRIGHT AND TRADEMARKS

© 2005 EchoStar Technologies Corporation. All rights reserved worldwide. This user’s guide has been
provided pursuant to an agreement containing restrictions on its use. This user’s guide is also covered by
Federal Copyright Law.

No part of this user’s guide may be copied, distributed, transmitted, stored in a retrieval system or translated
into any human or computer language, in any form or by any other means, electronically, mechanically,
magnetically, manually or otherwise or disclosure to third parties without the express written permission of
EchoStar Technologies Corporation.

EchoStar Technologies Corporation is possibly in the possession of patents, requests for patent approval,
trademarks, copyrights and other intellectual property with respect to the contents within this user manual.
The submission of this User’s guide does not imply you have any license or other legal right for the use of
the here above mentioned without the express written permission of EchoStar Technologies Corporation.

All other trademarks are the property of their respective owners or companies.

IF YOU NEED ASSISTANCE

1 Call the Archos Customer Service Center at

1-877-300-8879 (toll free)

.

2 A Customer Service Representative will assist you.
3

Returned equipment must be packaged properly, using either the original shipping materials or the
packaging in which the replacement equipment is shipped. Include a copy of the Proof of Purchase. Any items
returned without a copy of the Proof of Purchase will be considered out of warranty. Follow the instructions
given to you by the Customer Service Representative.
