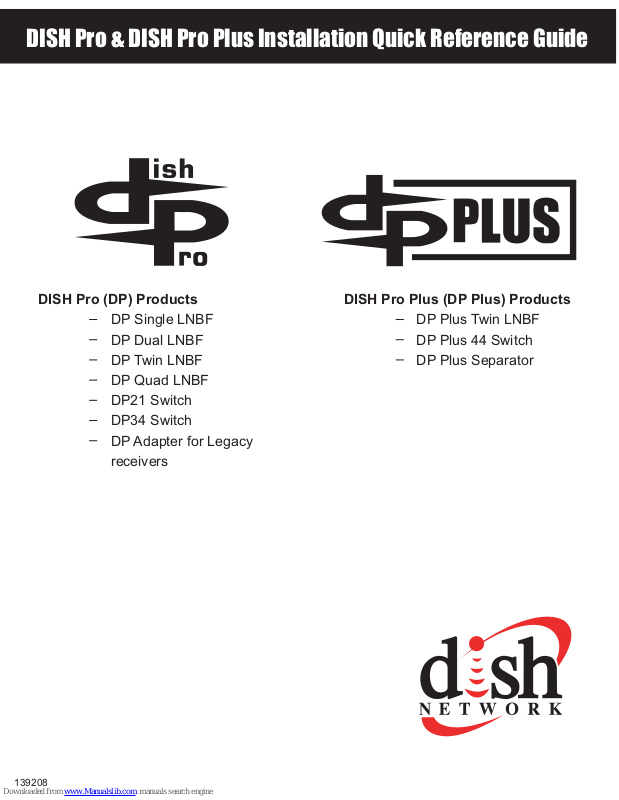

Page 1
DISH Pro & DISH Pro Plus Installation Quick Reference Guide
DISH Pro (DP) Products
DP Single LNBF
DP Dual LNBF
DP Twin LNBF
DP Quad LNBF
DP21 Switch
DP34 Switch
DP Adapter for Legacy
receivers
DISH Pro Plus (DP Plus) Products
DP Plus Twin LNBF
DP Plus 44 Switch
DP Plus Separator
139208
Page 2

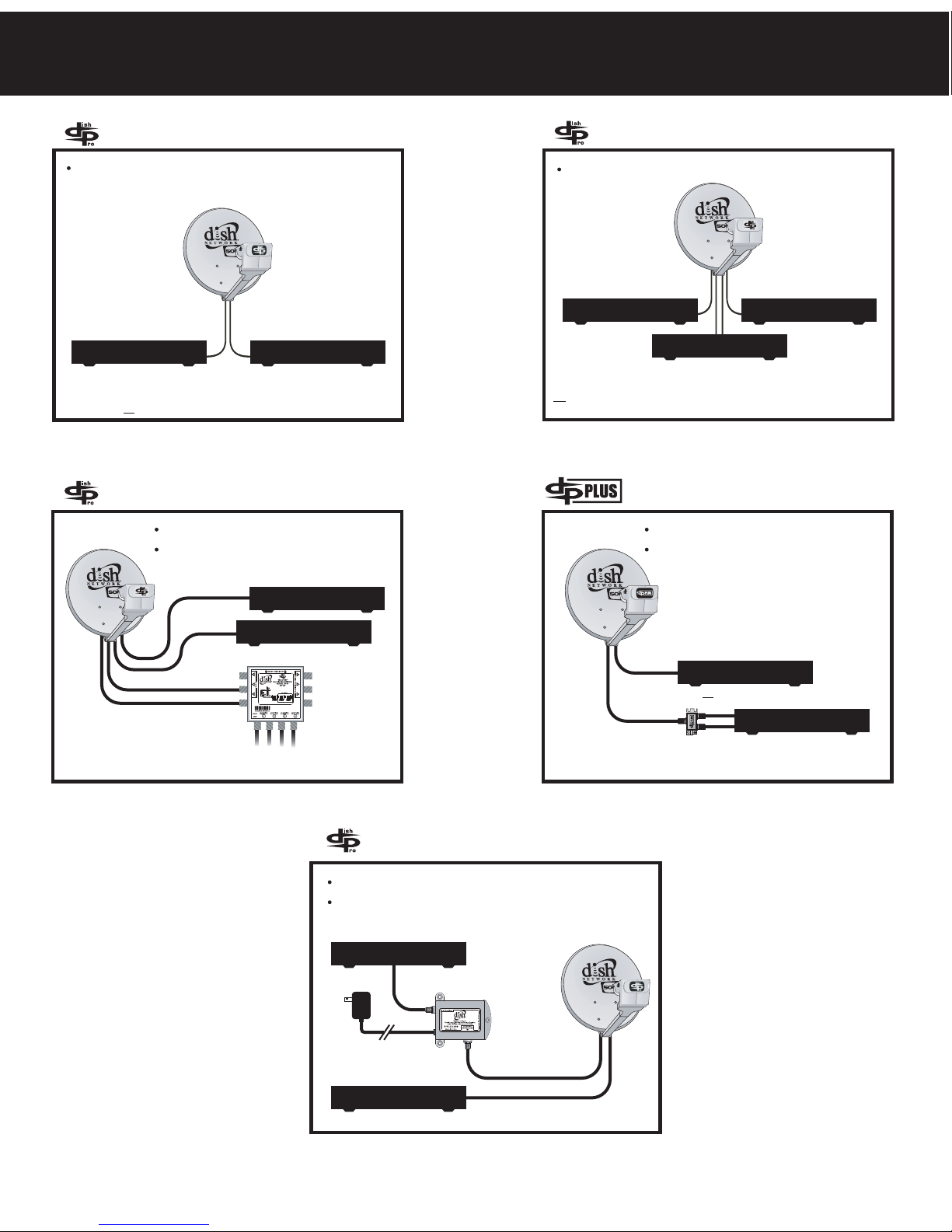

TWO ORBITAL LOCATIONS
Two Orbital Locations, 2 Tuners Two Orbital Locations, 4 Tuners
(1) DP Twin on a DISH 500
DISH 500
DP SINGLE TUNER DP SINGLE TUNER
Or one DP Plus Dual Tuner Receiver
Two Orbital Locations, 6 Tuners
DISH 500
(1) DP Quad on a DISH 500
(1) DP34 Switches
DP SINGLE TUNER
(1) DP Quad on a DISH 500
DISH 500
DP SINGLE TUNER DP SINGLE TUNER
DP PLUS DUAL TUNER
Or any combination of DP Single and DP Plus Dual-Tuner Receivers
with a maximum of 4 Tuner Inputs
Two Orbital Locations
using a DP Plus Twin
DISH 500
(1) DP Plus Twin on a DISH 500
(1) DP Plus Separator
DP SINGLE TUNER
To Receiver Tuner Inputs
(1) DP Twin on a DISH 500
(1) DP Adapter for each Legacy Receiver
LEGACY TUNER
DP SINGLE TUNER
Or Legacy Receiver
DP PLUS DUAL TUNER
Single Legacy receiver installations are not supported.
Two Orbital Locations with a
Legacy Receiver
DISH 500
Grounding according to the National Electric Code (NEC) and all local electrical codes is required.
DP SINGLE TUNER
Page 3

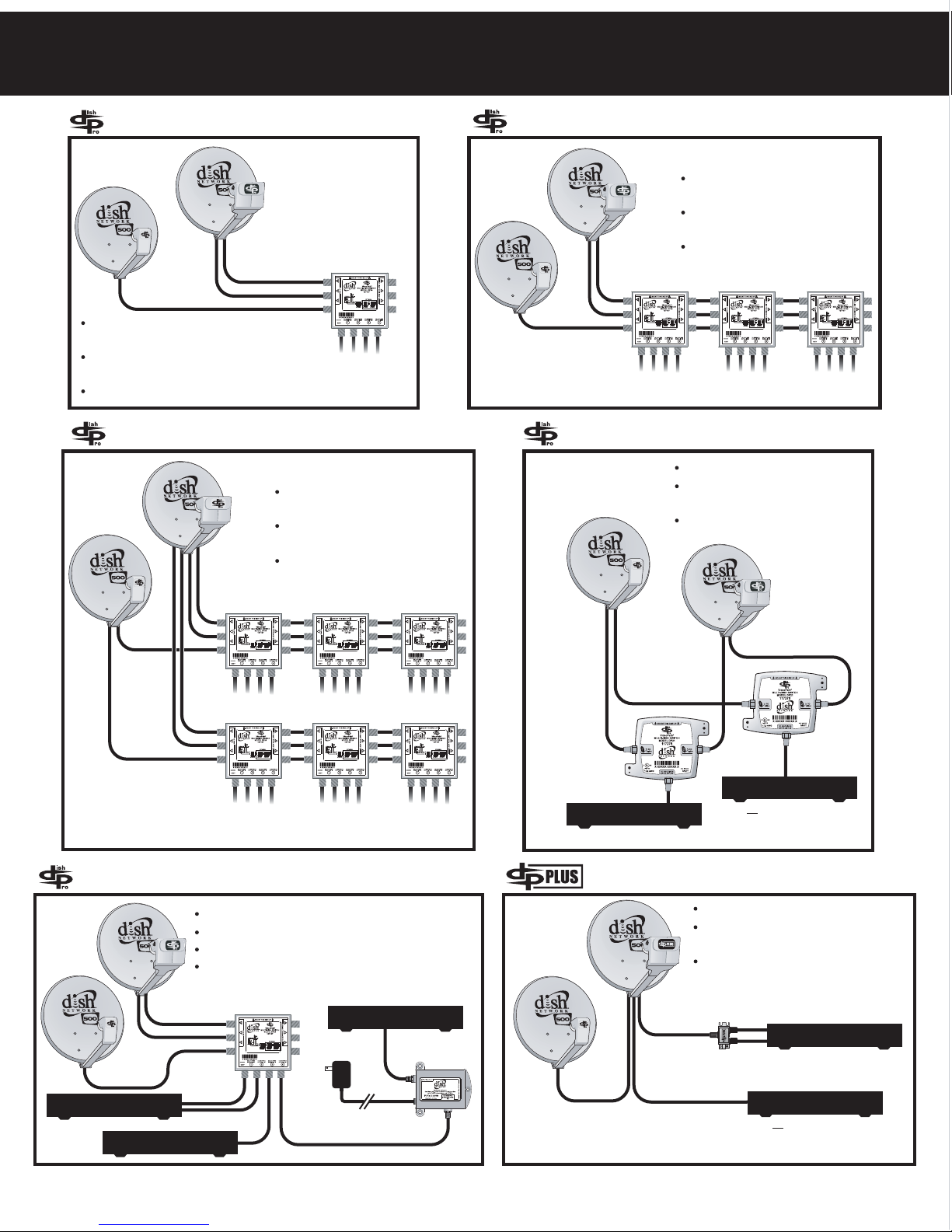

THREE ORBITAL LOCATIONS
Three Orbital Locations, up to 4 Tuners
DISH 500
(1) DP Twin on a DISH 500
(or two DP Dual LNBFs)
(1) DP Dual on a DISH 500
with I-Bracket
(1) DP34 Switch
DISH 500
Three Orbital Locations, up to 24 Tuners
DISH 500
(1) DP Quad on a DISH 500
DISH 500
(or two DP Dual LNBFs)
(1) DP Dual on a DISH 500
with I-Bracket
Up to (6) DP34 Switches
To Receiver
Tuner Inputs
Three Orbital Locations, up to 12 Tuners
DISH 500
(1) DP Twin on a DISH 500
DISH 500
Each switch must have a connected receiver to supply power
(or two DP Dual LNBFs)
(1) DP Dual on a DISH 500
with I-Bracket
Up to (3) DP34 Switches
To Receiver Tuner Inputs
Three Orbital Locations, up to 2 Tuners
(1) DP Twin on a DISH 500
(1) DP Dual on a DISH 500
DISH 500
with I-Bracket
(2) DP21 Switches
DISH 500
To Receiver Tuner Inputs
To Receiver Tuner Inputs
Each switch must have a connected receiver to supply power
Three Orbital Locations with a Legacy Receiver
(1) DP Twin on a DISH 500
DISH
500
DP PLUS DUAL TUNER
DP SINGLE TUNER
(1) DP Dual on a DISH 500 with I-Bracket
(1) DP34 Switch
(1) DP Adapter for each Legacy Receiver
LEGACY TUNER
DP SINGLE TUNER
DP SINGLE TUNER
Or Legacy Receiver
with an adapter
Three Orbital Locations, with DP Plus Twin
DISH 500
DISH 500
Single Legacy installations are not supported. Installations with
two Legacy receivers cannot view the third orbital location.
(1) DP Plus Twin on a DISH 500
(1) DP Dual on a DISH 500
with I-Bracket
(1) DP Plus Separator
DP PLUS DUAL TUNER
DP SINGLE TUNER
Or Legacy Receiver
Grounding according to the National Electric Code (NEC) and all local electrical codes is required.
Page 4

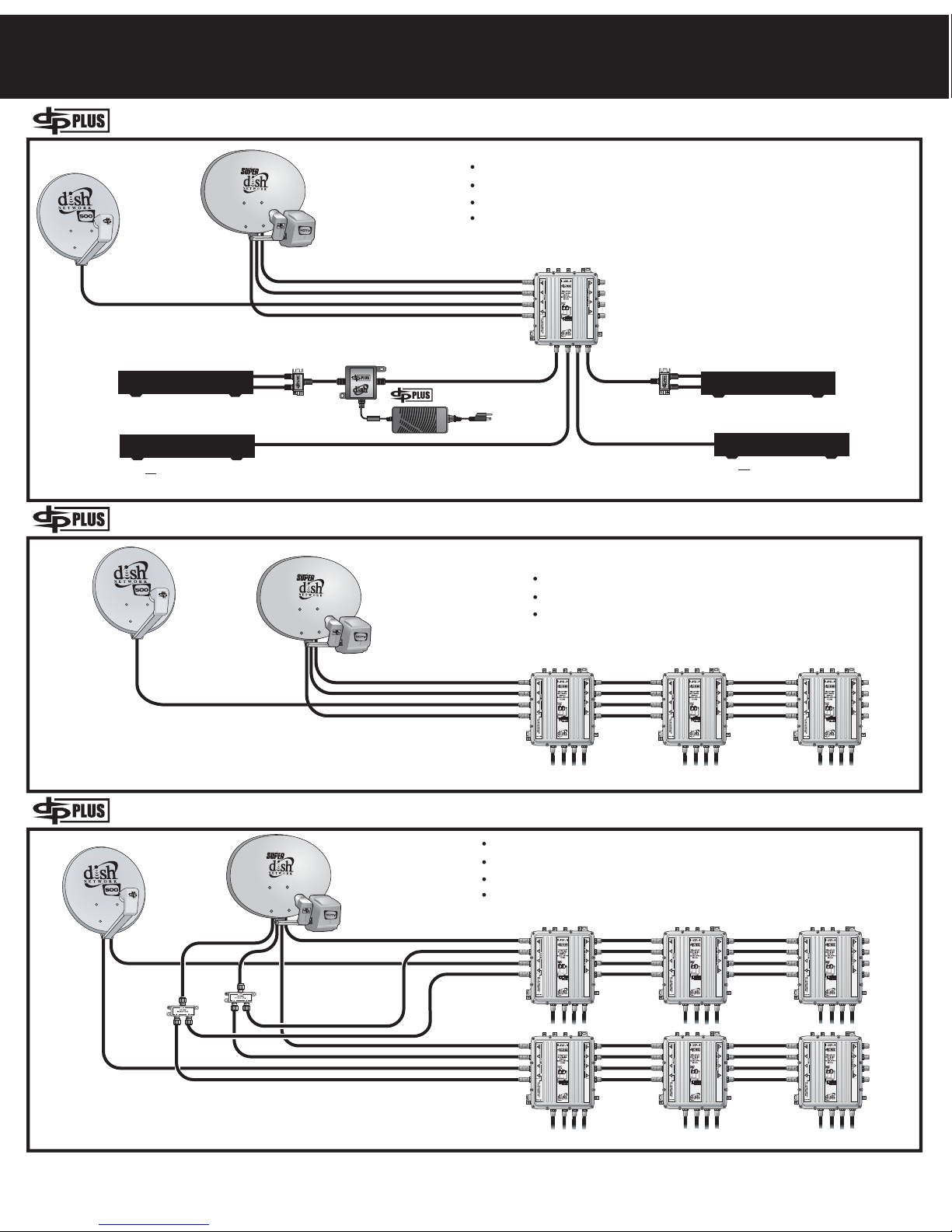

FOUR ORBITAL LOCATIONS
DP Plus 44 Switch Connectivity
DISH 500
61.5° or 148°
DP PLUS DUAL TUNER
DP SINGLE TUNER
Or Legacy Receiver
Each DP Plus 44 Switch requires a Power Inserter on port 1
SuperDISH
(1) SuperDISH (110°, 119°, 105° or 110°, 119°, 121°)
(1) DP Dual on DISH 500 with I-Bracket (61.5° or 148°)
(1) DP Plus 44 Switch with Power Inserter
DP Plus Separator(s) as needed for single cable/dual tuner
installations
DP Plus 44
110° or 119°
105° or 121° FSS to Port 4
Power Inserter
See DP Plus 44 User's Guide for dish to switch connecting requirements
Four Orbital Locations, up to 24 Tuners
SuperDISH
(1) SuperDISH (110°, 119°, 105° or 110°, 119°, 121°)
(1) DP Dual on DISH 500 with I-Bracket (61.5° or 148°)
Up to (3) DP Plus 44 Switches
DP PLUS DUAL TUNER
DP SINGLE TUNER
Or Legacy Receiver
when used with Legacy receivers
DISH 500
Each DP Plus 44 Switch requires a Power Inserter on port 1
DISH 500
DP Plus 44 DP Plus 44 DP Plus 44
105° or 121° FSS to Port 4
To Receiver Tuner Inputs
Four Orbital Locations, up to 48 Tuners
SuperDISH
105° or 121° FSS
To Receiver
Tuner Inputs
105° or 121° FSS to Port 4
(1) SuperDISH (110°, 119°, 105° or 110°, 119°, 121°)
(1) DP Dual on DISH 500 with I-Bracket (61.5° or 148°)
(2) DP-approved Splitters for any single port SuperDISH LNBs
Up to (6) DP Plus 44 Switches
DP Plus 44 DP Plus 44 DP Plus 44
to Port 4
Each DP Plus 44 Switch requires a Power Inserter on port 1
Grounding according to the National Electric Code (NEC) and all local electrical codes is required.
To Receiver Tuner Inputs
Page 5
DISH Pro & DISH Pro Plus Installation Considerations
LNBFs AND SWITCHES
• DISH Pro LNBFs work with DISH Pro Plus switches. The DISH Pro Plus Twin functions the same as a
DISH Pro Twin LNBF when connected to any DISH Pro Plus switch.
• Legacy LNBFs and switches can not be used with DISH Pro or DISH Pro Plus LNBFs and switches.
• The maximum recommended cable length is 200 feet from the LNBFs to the furthest DISH Pro or
DISH Pro Plus receiver (150 feet for Legacy receivers).
• When mounting switches, position according to instructions on the label.
• Use drip loops to direct water away from F-connectors.
LEGACY RECEIVER INSTALLATIONS
• The DISH Pro Adapter must be used to connect any Legacy satellite receivers to a DISH Pro LNBF or
Switch.
o Legacy Receivers include:
Models 1000, 2000, 3000, 4000, 5000
Models 2700/2800/3700, 3800/3900, 4700/4900, 6000 (SuperDISH compatible)
DISHPlayer Models 7100, 7200
All OEM-equivalent models (e.g. RCA, JVC, Phillips)
• The DISH Pro Adapter is NOT needed when a Legacy receiver is directly connected to a
DISH Pro Plus LNBF or Switch.
DISH PRO PLUS (DP PLUS) RECEIVERS
DP Plus receivers can be connected with a single cable to DP Plus switches or LNBFs when used with a
DP Plus Separator. See the “Receiver LNBF/Switch Compatibility Chart” for details.
SINGLE-CABLE, DUAL-TUNER INSTALLATIONS
• Three DISH Pro Plus components must be connected together for this type of installation:
o DISH Pro Plus LNBF or Switch
o DISH Pro Plus Separator
o DISH Pro Plus (dual-tuner) receiver
• Two single-tuner receivers cannot be connected to a DP Plus Separator – they are not DISH Pro Plus
receivers.
INSTALLATION MATERIALS
Materials used in a DISH Pro or DISH Pro Plus installation must be rated to 2150 MHz and pass
DiSEqC 22 KHz tone. These materials include:
• RG-6 cable • Line amps
• Ground blocks • Barrel connectors
• Diplexers • Wall plates
• Splitters • Surge protectors
DISH Network Retailers, please refer to the latest “DISH Pro Approved Accessories List” located on the
Retailer Care Site.
FOR MORE INFORMATION (available on the Retailer Care Site):
• “Quick Facts” and “Installation Considerations” documents for:
o DISH Pro Plus Technology
o DISH Pro Plus 44 Switch
o DISH Pro Plus Twin
o DISH Pro Plus Separator
o Single-Cable, Dual-Tuner Installations
• Installation Guides
• Distribution Diagrams
Copyright © 2005 EchoStar Technologies Corporation, Englewood, Colorado 80112. All rights reserved.
Rev. 03/28/05
Page 6
LNBF & Switch Connectivity Chart
DISH Pro Plus 44
DISH Pro Plus Twin
Switch
DISH Pro Switches
DISH Pro LNBFs
Legacy LNBFs or
Switches
DP Plus Separator
DISH Pro Plus
Receiver with
DISH Pro Receiver
DISH Pro Plus
Receiver
Legacy Receiver
Receiver & LNBF/Switch Compatibility Chart
Dual using DP Plus Twin’s
input port
Yes
DP34-Yes, but DP34(s) will not have DP
Plus capabilities or 4
No
th
orbital location
disabled. DP Plus capabilities
will occur with`in the DP Plus
---
Yes – LNBF’s input port will be
Yes – DP Single or DP
Yes Yes
using DP Plus Twin’s input port
--- Yes
Yes – DP Single or DP Dual
No No
DP Single, DP Dual,
DP Twin, DP Quad
DISH Pro LNBFs DISH Pro Switches DISH Pro Plus LNBF DISH Pro Plus Switches
DP21
DP34
No No No Yes Yes
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
Yes Yes, with DP Adapter Yes, with DP Adapter Yes
Single, Dual, Twin, Quad
SW21, SW42, SW44,
Legacy LNBFs &
SW64, SWAJ
Switches
DP Single, DP Dual
DP Twin, DP Quad
DISH Pro LNBFs DISH Pro Switches DISH Pro Plus LNBFs
DP21
DP34
DP Plus Twin DP Plus 44
switch
No
No
Two, but only viewing 110° and 119°
One, with additional receiver.
DP Plus Twin DP Plus 44
DP34-Yes, but DP34(s) will not have DP
Plus capabilities or 4
Yes – LNBF’s input port will be disabled.
DP Plus capabilities will occur within the
DP Plus switch
DISH Pro Plus
Yes
orbital location
Yes
th
No
Switches
