Dish Network DISH 1000.2 Installation Manual

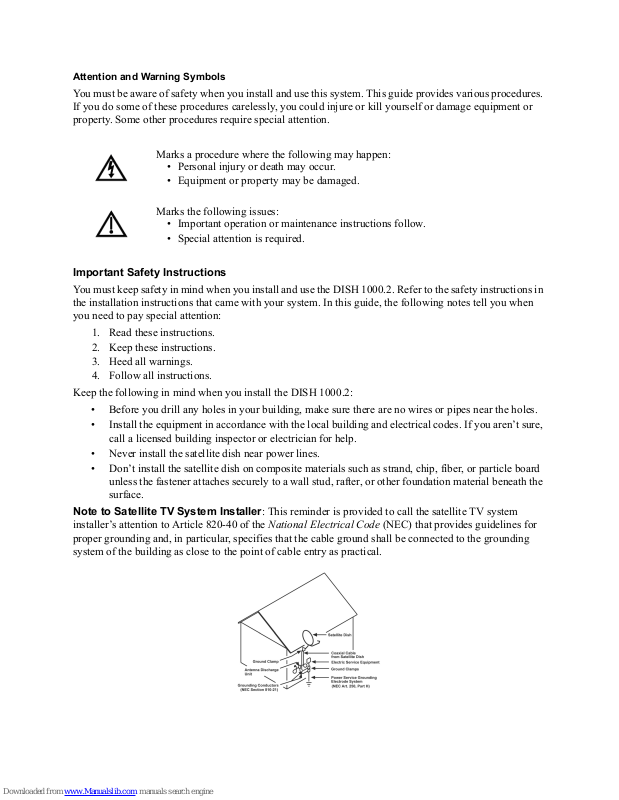

Attention and Warning Symbols

You must be aware of safety when you install and use this system. This guide provides various procedures.
If you do some of these procedures carelessly, you could injure or kill yourself or damage equipment or
property. Some other procedures require special attention.

Marks a procedure where the following may happen:

• Personal injury or death may occur.

• Equipment or property may be damaged.

Marks the following issues:

• Important operation or maintenance instructions follow.

• Special attention is required.

Important Safety Instructions

You must keep safety in mind when you install and use the DISH 1000.2. Refer to the safety instructions in
the installation instructions that came with your system. In this guide, the following notes tell you when
you need to pay special attention:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

Keep the following in mind when you install the DISH 1000.2:

• Before you drill any holes in your building, make sure there are no wires or pipes near the holes.

• Install the equipment in accordance with the local building and electrical codes. If you aren’t sure,
call a licensed building inspector or electrician for help.

• Never install the satellite dish near power lines.

• Don’t install the satellite dish on composite materials such as strand, chip, fiber, or particle board
unless the fastener attaches securely to a wall stud, rafter, or other foundation material beneath the
surface.

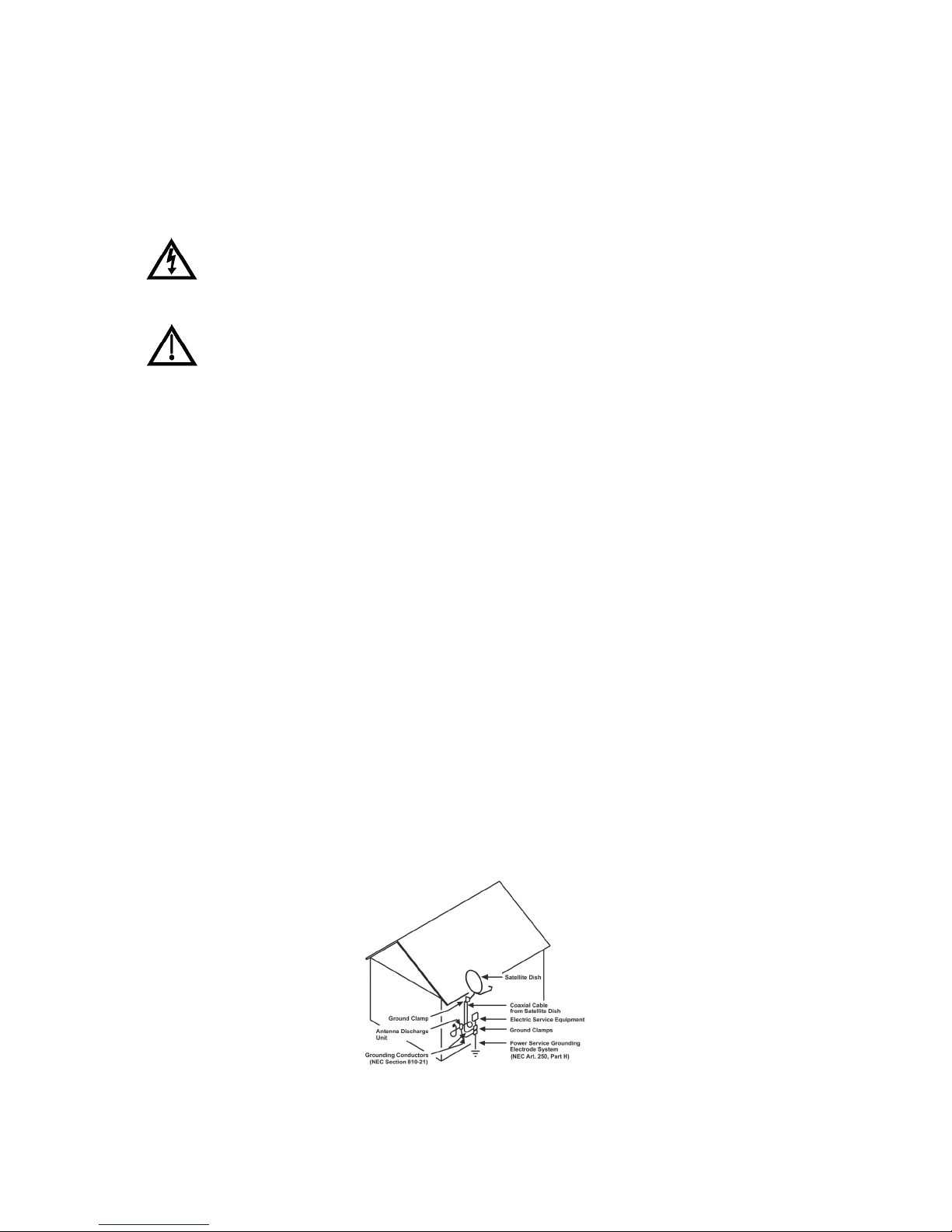

Note to Satellite TV System Installer: This reminder is provided to call the satellite TV system
installer’s attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building as close to the point of cable entry as practical.

Installation Instructions

Attention! These installation instructions are intended for use by qualified professional

technicians due to the complexity of the installation and compliance to national/local
building and electrical codes.

Overview

These instructions guide you through the installation of a DISH Network DISH 1000.2 antenna, which
consists of a reflector assembly and a DISH Pro Plus 1000.2 LNBF. The DISH 1000.2 is capable of
receiving digital television signals from three DBS satellite locations: 110°W, 119°W, and 129°W. These
instructions cover wall mounting only. For other mounting options (for example, pole mounting, or non­penetrating mounting), see the Retailer Care Site at retailer.echostar.com.

Installation Considerations

While all DISH Network satellite receivers can be connected to the DISH 1000.2, the following models
may not detect and will not support the 129°W location: 1000, 2000, 3000, 4000, 5000, JVC-DVHS (IRR),
and the DishPlayer 7100/7200.

This installation supports Legacy receivers, but there must be at least one DISH Pro or DISH Pro Plus
receiver in the installation. Legacy receivers are receivers which do not have the DISH Pro or DISH Pro
Plus logo (shown below).

About the System

The DISH Pro Plus 1000.2 LNBF provides reception from the 110°W, 119°W, and 129°W orbital
locations, and provides an LNBF input port to receive programming from another satellite. The following
LNBF types can be connected to the LNBF input port: DISH Pro Single, DISH Pro Dual, or DISH
Network bandstacked LNBFs.

The LNBF assembly supports connection of up to three satellite receivers in any of the following
combinations:

• Single-cable connection to DISH Pro Plus (dual-tuner) receivers, when each input is used with a DISH
Pro Plus Separator.

• Single-cable connection to DISH Pro receivers.

• Single-cable connection to a Legacy receiver provided that a DISH Pro or DISH Pro Plus receiver is
also connected and powered at all times. No DISH Pro Adapter is required.

Page 1

Quick Installation Instructions

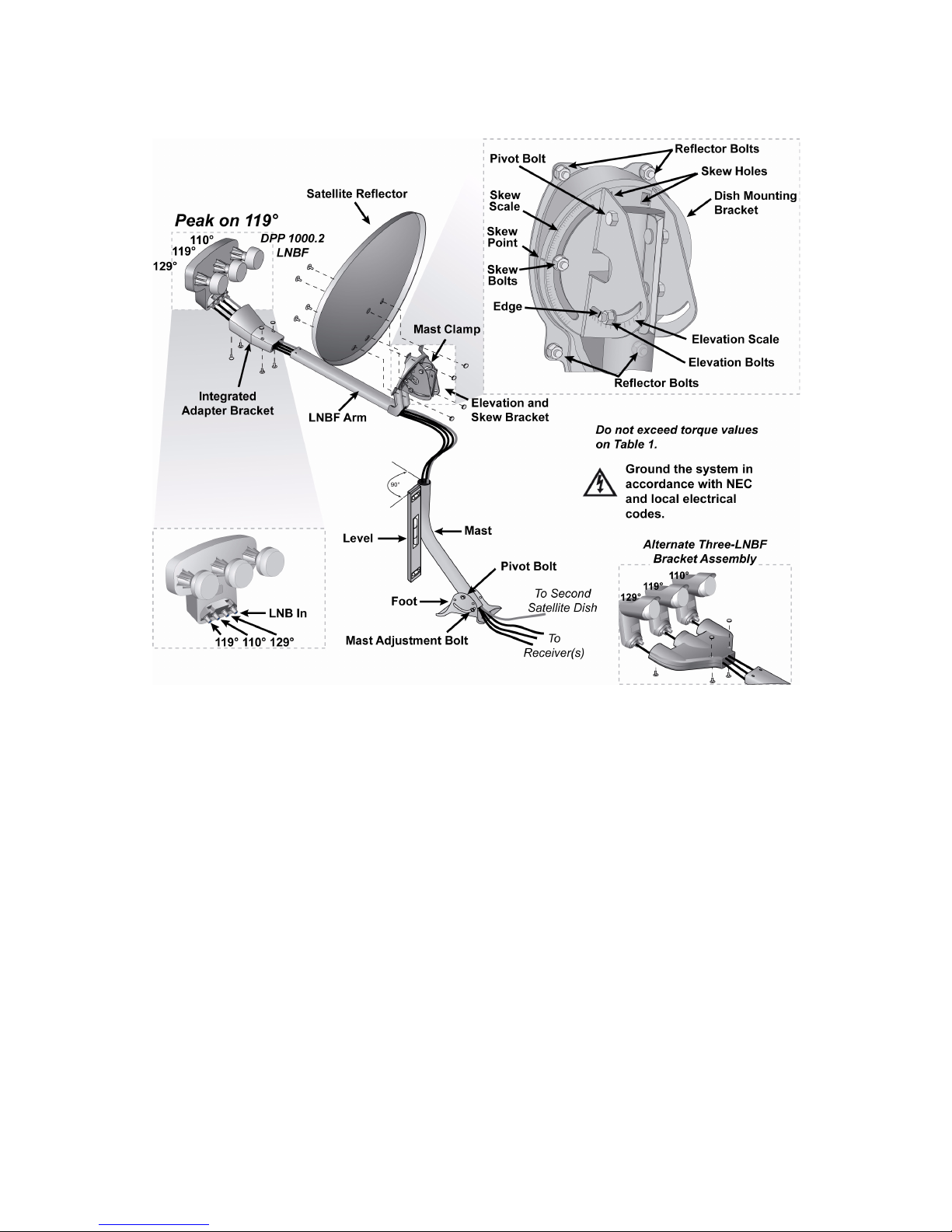

Figure 1. DISH 1000.2 Antenna Installation Overview

1. Find Azimuth/Elevation/Skew angles for your location (instructions on page 3 and tables on page 10).

2. Find a location for the dish antenna with a clear line of sight and a sturdy mounting surface (page 3, step 1).

3. Mount the mast, making sure it is absolutely vertical (page 3, steps 2 and 3).

4. Assemble the dish antenna, setting the skew and elevation angles in the process. Use additional skew bolts for
skew angles greater than 110 or less than 70 (page 3, steps 4-6).

5. Mount the dish antenna on the mast and point the dish to the azimuth angle (page 4, step 7).

6. Run cables between the dish antenna and the receiver(s), leaving a service loop around the Mast Clamp (page 5,
step 1).

7. Using a peaking meter attached to the DPP 1000.2 LNBF

PORT 1, peak the dish on 119°W using transponder 11

or higher for maximum strength. Tighten all bolts (see Table 1) and re-confirm maximum signal (page 5, steps 2-

5).

Note: The 1000.2 Three-LNBF Bracket with three DP Dual (or DP Single) LNBFs can be used in place of the

Integrated Adapter Bracket and DPP 1000.2 LNBF.

8. Connect the receiver cable(s) to the DPP 1000.2 LNBF

PORT 1 (and PORT 2 and PORT 3, as necessary)

(page 6, step 6) and receiver. Some restrictions apply when connecting Legacy receivers. See page 7.

9. Run

Check Switch test and confirm 110°W, 119°W, and 129°W reception (page 6, steps 7-9).

10. Take a software download, if you didn’t already (page 7, step 10).

11. Run a

Check Switch test and confirm 110ºW, 119ºW, 129° reception (page 7, step 11).

12. Install additional receiver(s), if necessary (page 7, step 12).

13. If applicable, connect a second satellite dish to the DPP 1000.2 LNBF’s

LNB IN port (page 8, steps 1-4).

Page 2

Locating the Dish Antenna

Use the Angles Tables starting on page 10 to find the azimuth, elevation, and skew angles using the ZIP
code from your location. Write the angles in the space provided below.

Azimuth: Elevation: Skew:

Using these azimuth and elevation angles, find a mounting location for the satellite dish where it can be
pointed towards the satellites located at these angles. Use a compass and the azimuth angle to find the
direction along the horizon that the dish should be pointed. Then use the elevation angle to find out how
high the satellites are in the sky from your location. Make sure nothing blocks the line of sight between the
dish and the satellites. Make sure this line of sight will not be blocked by future growth of nearby trees or
other foliage. Also make sure your mounting location provides sufficient clearance to rotate the reflector as
needed to point toward the satellites.

Assembling and Mounting the Dish

Follow these instructions to assemble the satellite dish, mount it, and point it in the direction of the
satellites.

Using the azimuth and elevation angles, find a location for the satellite dish where it can be
pointed towards the satellites located at these angles. Make sure nothing blocks the line of sight
between the dish and the satellites.

Mount the mast to a solid surface so that the dish antenna cannot move or be bumped out of
alignment. Keep in mind that physical and environmental conditions can block your satellite
dish’s ability to receive a clear satellite signal. Never mount to a tree or a public utility pole.

Align the top part of the mast so that it is absolutely vertical. If the top part of the mast is off
vertical by only a few degrees, it will be difficult or maybe even impossible for you to find the
satellites. Take at least two readings with a level, on the upper mast, that are 90 degrees apart
from one another (see Figure 1).

Loosen both skew bolts and set the skew by rotating the dish mounting bracket to align the mark
with the required angle on the skew scale which you wrote above. Tighten the skew bolts
securely. See Table 1 for the required torque values. After the skew is set, do not try to fine-
tune the skew angle when aiming the dish.

Note: If your skew angle is at the extreme ends of the scale (greater than 110 or less than 70),

insert nuts and bolts from the hardware pack into the additional skew holes. These additional
skew holes provide greater stability to the dish at these extreme angles. See Figure 2.

Page 3

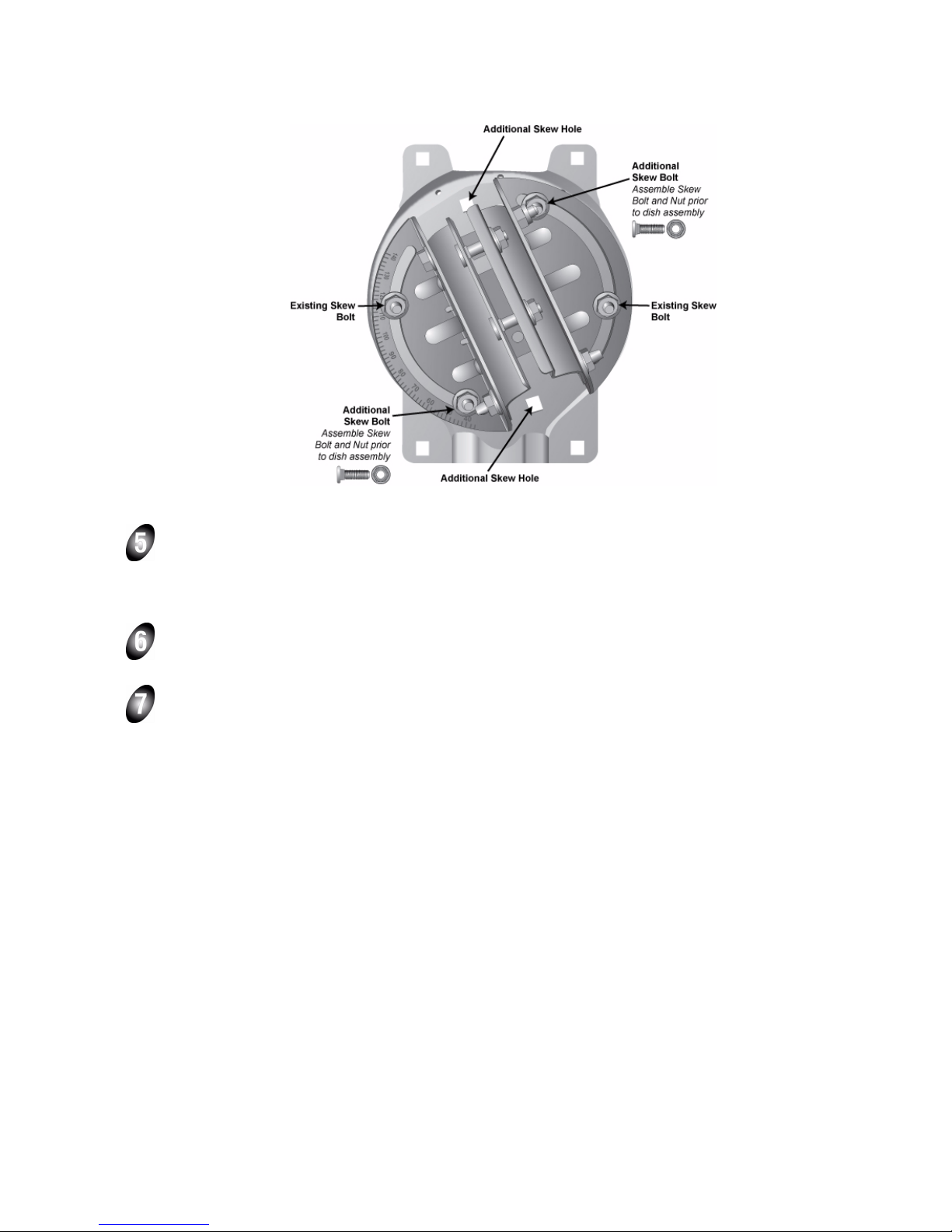

Figure 2. Additional skew holes for use with extreme skew angles

Assemble the satellite dish as shown in Figure 1, except do not attach the LNBF at this time.

Note: The Three-LNBF Bracket and three DP Dual (or DP Single) LNBFs can be used instead

of the Integrated Adapter Bracket and the DPP 1000.2 LNBF. The Three-LNBF Bracket is not
interchangeable with the W-Bracket from the DISH 1000.

Set the elevation by loosening then tilting the dish mounting bracket to align the edge with the
required angle on the elevation scale. Tighten the elevation bolts snugly to prevent movement.

Slide the dish assembly down onto the mast. Make sure the pivot bolt rests on the top of the
mast and that the mast is fully inserted into the tab. Turn the dish assembly so that it points in
the general direction of the satellites, using the azimuth angle you wrote on page 3.

Page 4

Installing the Receivers

Use the steps below while referring to Figure 1.

Run RG-6 coaxial cables from the DISH 1000.2 antenna to the receiver location(s) using the
following cable requirements. Grounding, other devices, and in-home cabling must also meet
these requirements.

• RG-6 coaxial cable rated for at least 950 to 2150 MHz must be used in this installation. Do
not use existing cables such as RG-59 as it may cause signal loss. Also, be sure that any
outdoor connections are made using waterproof F-connectors rated for 2150 MHz or greater.

• The length of the RG-6 cable from any receiver and farthest dish connected in the system
must not be longer than:

- 200 feet for DISH Pro or DISH Pro Plus receivers.

- 100 feet for Legacy receivers.

• The cable length between the DISH 1000.2 and a connected compatible LNBF must be 80
feet or less.

The cable’s center conductor must not extend past the rim of the F-connector more than
the thickness of a nickel.

Tighten all outdoor cable connections up to the torque values recommended by the
manufacturer to ensure seal against moisture. Damage caused by over-tightening is not
covered by the limited warranty. Tighten all indoor coaxial cable connections to the
receiver only by hand. If you use a wrench, you may over-tighten the connections and
damage your equipment.

Connect a temporary cable to a peaking meter. Thread the other end of the cable through the
LNBF arm and bracket. Connect the temporary cable to
attach the LNBF to the bracket with two screws. If using the Three-LNBF bracket and three DP
Dual (or DP Single) LNBFs, connect the temporary cable from the peaking meter to the 119°W
(center) LNBF. Attach the LNBFs to the bracket using the included screws.

Note: If the peaking meter does not produce at least 600 mA to power the DPP 1000.2 LNBF,

connect
connect the Three-LNBF bracket with a Dual or Single LNBF for peaking on 119°W.

PORT 2 of the LNBF to the SATELLITE IN port of a powered receiver, or temporarily

PORT 1 of the DPP 1000.2 LNBF and

Peak the dish for the strongest possible signal on the 119°W satellite signal using the azimuth
and elevation settings you wrote on page 3. Do not adjust the skew.

Note: If you cannot find the 119°W signal, try adjusting the elevation up or down one or two

degrees. Ensure you are peaking the dish using transponder 11 or higher.

With the peaking meter still connected, tighten the mast clamp and elevation bolts using the
torque values listed in Table 1 on page 6. Re-confirm signal strength after tightening the bolts.

Page 5

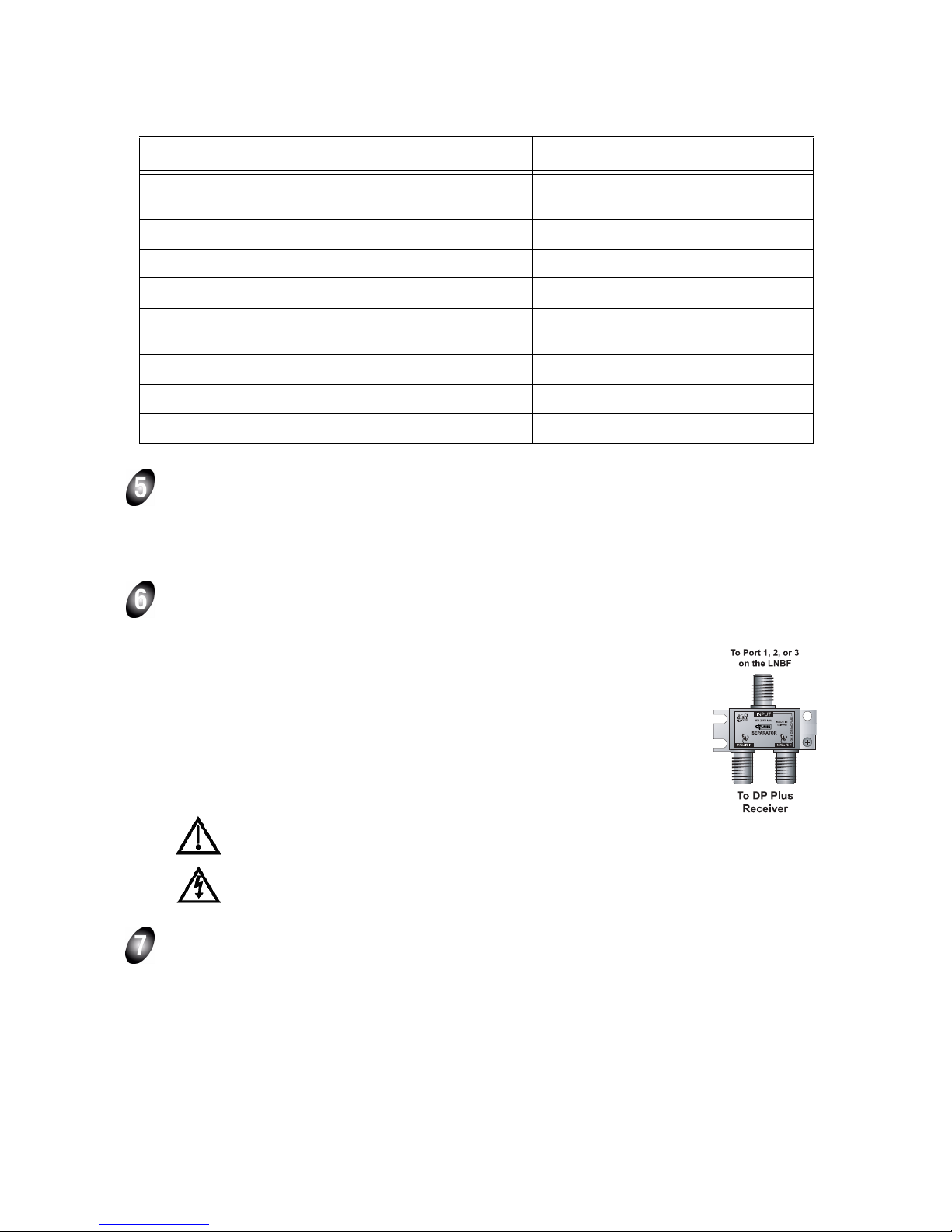

Table 1: Torque Values

Location Torque Value (ft-lbs unless otherwise noted)

Mast pivot through bolt (ensure no mast deformation occurs during
tightening)

Mast locking nuts 12

Reflector mounting bolts 6

Clamp locking bolts 6

Clamp pivot through bolt (ensure no mast deformation occurs
during tightening)

Elevation adjustment locking nuts 12

Skew adjustment locking nuts 12

LNB and bracket attachment hardware Handtight

24 in-lbs

24 in-lbs

Remove the temporary cable used for peaking the dish. Thread the cable(s) from the receiver(s)
through the LNBF arm and bracket. Connect these cables to

PORT 1, PORT 2 and PORT 3, as

applicable.

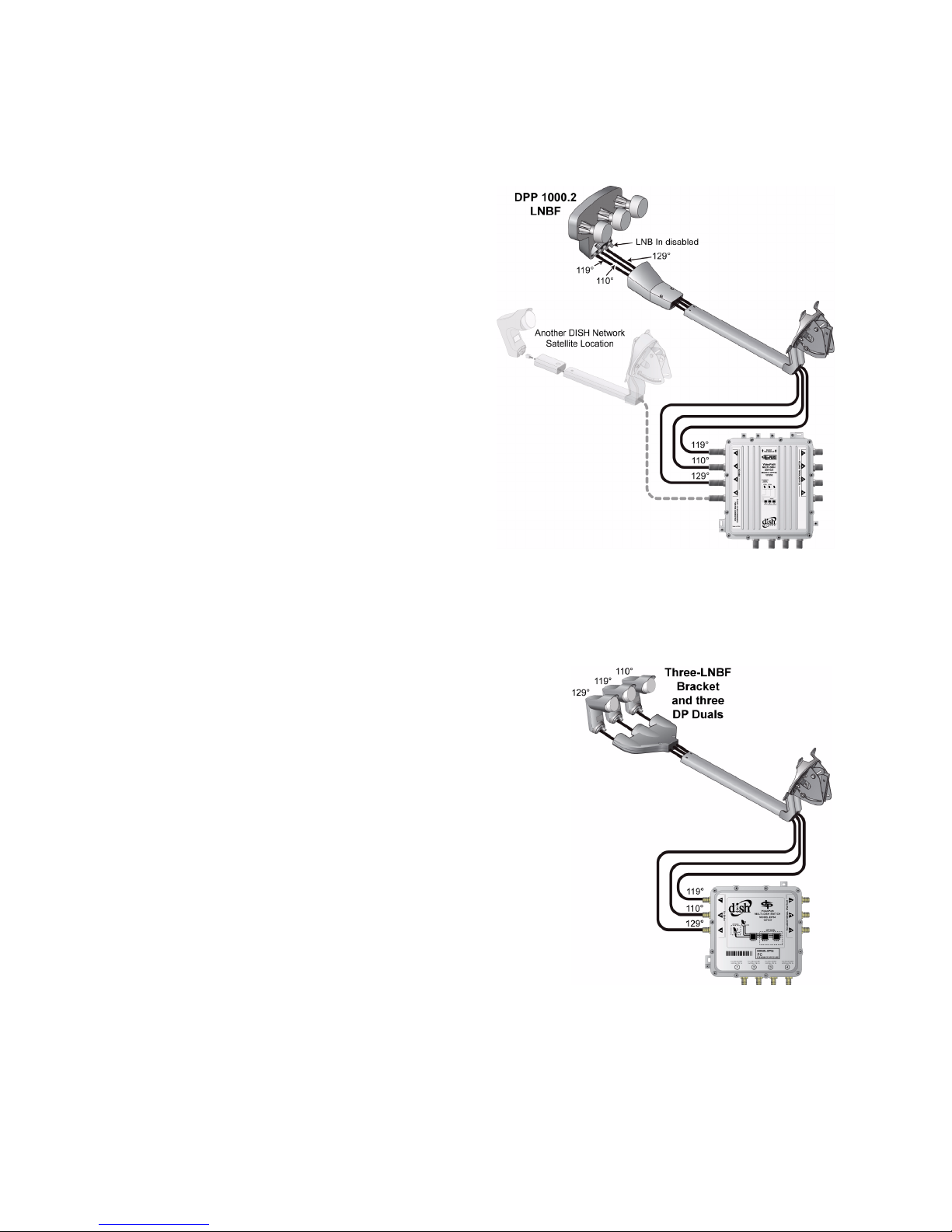

Note: If using the Three-LNBF Bracket with DP Dual (or DP Single) LNBFs, refer to the section

Connecting to a Switch on page 9 and the switch’s installation instructions for additional details.

Connect a cable from DPP 1000.2 LNBF
Pro Plus (dual-tuner) satellite receiver’s

PORT 1 (or PORT 2 or PORT 3) to a DISH Pro or DISH

SATELLITE IN connection(s). If a Legacy receiver is

present, it should be installed last.

To connect DISH Pro Plus (dual-tuner) receivers with a single cable, install a
DISH Pro Plus Separator as follows:

a. Connect a cable from the DPP 1000.2 LNBF output (

P

ORT 3) to the DISH Pro Plus Separator Input.

b. Connect cables between the receiver’s

SATELLITE IN 1 and SATELLITE IN 2

PORT 1, PORT 2, or

to SATELLITE IN 1 and SATELLITE IN 2 respectively on the DISH Pro Plus
Separator.

You must use a DISH Pro Plus Separator in a single-cable/dual­tuner receiver installation. A splitter or other device will not work in this configuration.

Tighten all indoor coaxial cable connections to the receiver only by hand. If you use a
wrench, you may over-tighten the connections and damage your equipment.

Connect the receiver(s) to the TV(s) and display the

Point Dish screen (if not shown, for most

receivers, press MENU-6-1-1 on the remote control).

Page 6

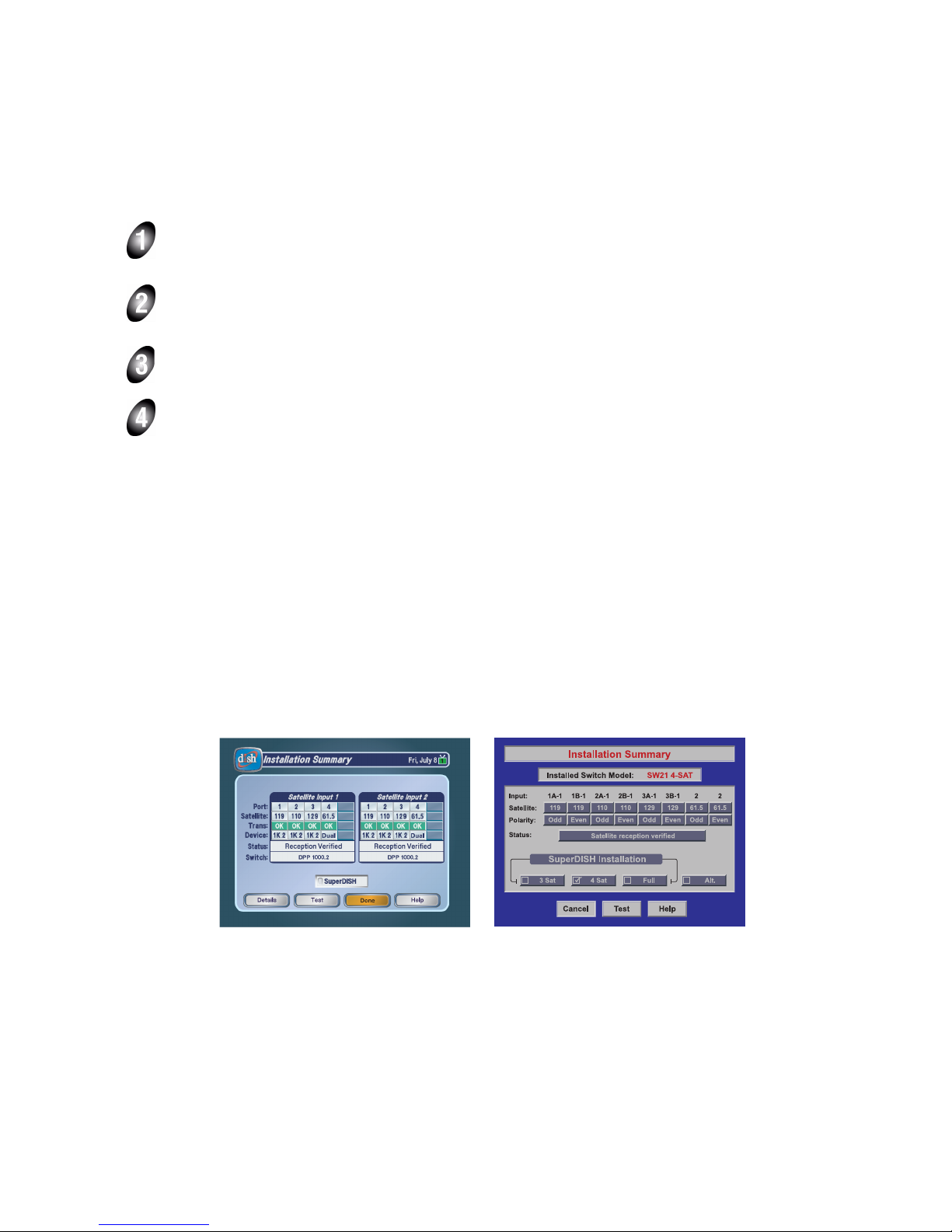

From the
and 6000, select the
On all other Legacy models, select

Point Dish screen, run Check Switch. On Legacy receiver models 2800, 3900, 4900,

SuperDISH Installation-3Sat option prior to running the Check Switch test.

Test. When the Check Switch procedure finishes, you should

see an Installation Summary screen similar to the ones shown below. Make sure the summary
screen shows reception from the 119°W, 110°W, and 129°W satellites on all available satellite
tuners. Also confirm the LNBF is correctly identified as a
some models may identify this LNBF as a
receivers will identify the LNBF as

Note: On some models, you might not see signal from 129°W until after you take a software

DPP Twin or DPP Triple, which is OK). Legacy

SW64.

DPP 1000.2 (factory software on

download and run a Check Switch in steps 10 and 11. Legacy receiver models 1000, 2000, 3000,
4000, 5000, 7100, 7200, and JVC-DVHS (IRR) may not detect and will not support the 129°W
location.

Note: If you are using the Three-LNBF Bracket, your Installation Summary screen will vary

depending on the connected switch. Make sure the summary screen shows reception from the
119°W, 110°W, and 129°W satellites on all available satellite tuners.

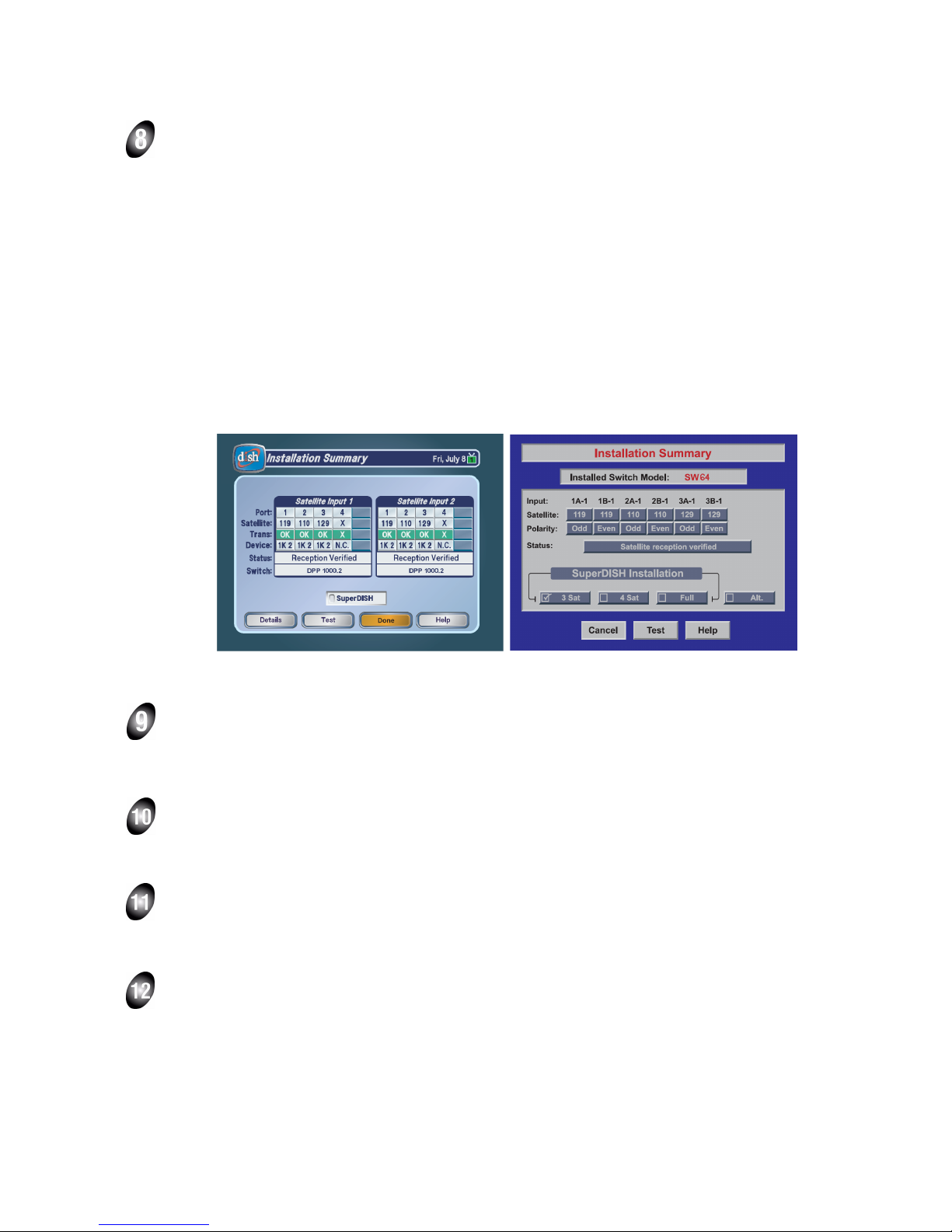

DISH Pro/DISH Pro Plus Legacy
Installation Summary Installation Summary

Exit the

Installation Summary screen to display the Point Dish/Signal screen. Make sure the

signal strength bar is green and locked for the 119°W, 110°W, and 129°W satellites.

Note: You might not see signal from 129°W until after you take a software download and run a

Check Switch in steps 10 and 11.

Exit the

Point Dish/Signal screen and follow the on-screen instructions for taking a receiver

software download. Do not disturb the receiver during the process of downloading software. If
exiting the

Point Dish screen does not start the download process, turn off the receiver for at

least 20 minutes (on most receivers) to allow the receiver to take a software download.

Run

Check Switch again and confirm reception for all three satellites on all available satellite

tuners. Your Installation Summary screen should be similar to the ones shown above in step 8.
Some software on some models may identify the DPP 1000.2 LNBF as a

DPP 1K.2. This

identification is OK.

If installing an additional receiver, follow steps 6-11. Make sure the summary screen shows
reception from the 110°W, 119°W, and 129°W satellites. Keep in mind that a DISH Pro or DISH
Pro Plus receiver must remain connected and powered at all times to power the DPP 1000.2
LNBF.

Page 7

Connecting a Second Satellite Dish

After completing the previous sections to install the DISH 1000.2, use these instructions to add a fourth
satellite location from a second dish to the DISH 1000.2. The LNBF from the second dish must be a DISH
Pro Single or DISH Pro Dual looking at a DBS satellite location, or a DISH Network bandstacked LNBF.

Install and peak the second dish antenna using a peaking meter and the instructions that came
with that dish antenna. Skip any steps regarding taking a receiver software upgrade since this
was done in the previous section of the DISH 1000.2 Installation Instructions.

Run cable from the second dish antenna location to the DISH 1000.2, referring to the cable
requirements stated in step 1 on page 5.

Connect the coaxial cable between the LNBF on the second dish and the

LNB IN port on the DPP

1000.2 LNBF. Refer to figure 1 on page 2.

From the

Switch

6000, select the
all other Legacy models, select

Point Dish screen (accessed by pressing MENU-6-1-1 on most receivers), run Check

again on all connected receivers. On Legacy receiver models 2800, 3900, 4900, and

SuperDISH Installation-4Sat option prior to running the Check Switch test. On

Test. When the Check Switch procedure finishes, you should

see a summary screen similar to one of those shown below.

The DISH Pro/DISH Pro Plus summary screen below is similar to what should be shown for
DISH Pro and DISH Pro Plus receivers connected to the DISH 1000.2 when a second dish is
connected to the

LNB IN port. Make sure the summary screen shows reception from the 119°W,

110°W, and 129° satellites and the fourth satellite location on all available satellite tuners. If not,
re-peak the DISH 1000.2 or the second dish as needed to achieve the required signal levels.
Confirm the installed LNBF on the second dish is correctly identified.

The Legacy summary screen below is similar to what should be shown for Legacy receiver
models 2800, 3900, 4900 or 6000 connected to the DISH 1000.2 when a second dish is
connected to the

LNB IN port. Make sure the summary screen shows reception from 110°W,

119°W, 129° satellites and the fourth satellite location on all available satellite tuners. Note that
these receivers identify the DISH 1000.2 as

SW21 4-Sat in this configuration, which is OK.

DISH Pro/DISH Pro Plus Legacy
Installation Summary Installation Summary

Note: Legacy receiver models 1000, 2000, 3000, 4000, 5000, 7100, 7200 and JVC-DVHS (IRR)

may not detect and will not support signals from DISH Network bandstacked FSS LNBFs or
129°, and will not support a fourth satellite location connected to the

Page 8

LNB IN port.

Connecting to a Switch

Connecting the DPP 1000.2 LNBF to a DPP44 Switch

The DPP 1000.2 LNBF can be connected to provide
119°W, 110°W and 129°W satellite signals to a DISH
Pro Plus 44 switch. Refer to the instructions provided
with the switch for additional considerations and
instructions. Signal for a fourth satellite location must
be provided directly from the fourth satellite
location’s LNBF to the DPP switch. The
on the DPP 1000.2 LNBF must not be connected. In
this installation, the DPP 1000.2 LNBF defaults to the
following settings:

•

PORT 1 - 119°W

•

PORT 2 - 110°W

•

PORT 3 - 129°W

•

LNB IN - Disabled when DPP 1000.2 LNBF is

connected to a switch. When connected to a
switch, any LNBF connected to the
must be disconnected from the DPP 1000.2 LNBF
and connected directly to the switch.

LNB IN port

LNB IN port

Note: The DPP 1000.2 LNBF is NOT compatible with DISH Pro switches in any installation.

Connecting three DP Dual (or DP Single) LNBFs to a Switch when using the Three­LNBF Bracket

When using the Three-LNBF Bracket on the DISH 1000.2 with
three DP Dual (or DP Single) LNBFs, the LNBFs must be
connected to a switch to provide 119°W, 110°W and 129°W to
the installed receivers. Follow the LNBF and switch installation
instructions for additional considerations.

Note: Legacy LNBFs and switches can be used with the Three-

LNBF Bracket. Follow all instructions for that equipment if you
choose to use Legacy LNBFs and switches.

Page 9

Dish Pointing Angles

Use the tables below as follows:

1. Find the ZIP code for your location.

2. Find the row that contains the ZIP code or the first three digits of the ZIP code. For example, the
correct row for ZIP code 80112 is 801XX.

3. Write down the number in the AZ column in the “Azimuth” blank on page 3.

4. Write down the number in the EL column in the “Elevation” blank on page 3

5. Write down the number in the SK column in the “Skew” blank on page 3.

.

ZIP

CODE

RANGE

00001 118 15 71

00002 121 12 78

00003 118 17 69

00004 121 16 73

00006 122 15 76

00007 117 9 78

00008 141 26 83

00010 116 11 71

00011 122 17 74

00013 163 44 89

00019 162 42 89

00020 165 45 90

00022 157 43 85

00025 161 41 89

00028 161 43 88

00031 163 47 88

00032 165 48 89

00033 163 43 89

00034 157 41 86

00035 160 41 88

00037 158 42 86

00038 160 42 87

00039 157 42 86

00040 165 45 90

00044 163 44 90

00047 160 43 87

00048 159 43 86

00049 157 41 85

00050 157 41 85

00051 163 44 89

00052 163 44 89

00054 157 41 85

00055 157 41 86

AZ EL SK

ZIP

CODE

RANGE

00058 165 45 90

00065 162 43 88

00087 243 36 139

00097 243 38 142

00116 221 44 128

00119 224 43 130

00120 224 43 130

00124 221 42 127

00125 257 17 125

00126 256 19 126

00127 259 18 128

00128 254 19 126

00130 258 18 127

00132 257 18 126

00133 256 19 126

00134 259 18 128

00135 257 18 126

00136 258 18 126

00137 259 17 126

00138 259 17 127

00139 255 19 127

00140 256 19 127

00141 259 18 127

00145 256 19 127

00147 256 19 127

00148 259 17 126

00151 260 17 128

00152 248 26 131

00155 246 27 131

00156 246 27 130

00157 246 27 130

00159 254 21 130

00160 216 28 113

AZ EL SK

ZIP

CODE

RANGE

00161 214 28 113

00164 205 29 109

00165 207 29 110

00166 207 29 110

00168 255 20 127

00169 255 20 127

00170 254 20 126

00172 255 20 127

00173 255 20 127

00174 255 20 127

00176 255 20 127

00177 255 20 127

00179 255 20 127

00180 255 20 127

00181 254 20 127

00182 254 20 127

00183 255 20 127

00184 255 20 127

00185 254 20 127

00186 254 20 126

00187 254 20 126

00188 213 49 125

00189 213 49 124

00190 254 20 126

00191 254 20 126

00192 254 20 126

00195 154 36 86

00198 122 16 75

00199 180 50 100

00200 179 51 100

00201 183 50 103

00203 167 47 91

00205 166 46 91

AZ EL SK

Page 10

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

00206 167 48 90

00214 165 49 89

00215 165 49 89

00216 166 49 90

00217 167 47 91

00218 161 43 88

00219 191 42 107

00222 240 36 137

00223 243 37 141

00225 243 36 139

00226 244 38 142

00228 244 37 142

00229 240 36 137

00232 240 38 139

00234 244 37 141

00236 168 39 93

00238 222 42 128

00241 213 28 112

00243 227 41 130

00246 175 34 97

00250 190 45 107

00252 191 48 108

00255 206 43 116

00257 156 38 86

00258 158 38 87

00259 159 40 87

00260 158 37 88

00266 178 42 99

00267 158 33 88

00268 161 36 90

00270 159 36 89

00276 177 37 98

00277 159 33 89

00278 158 38 87

00279 177 37 98

00280 163 44 89

00281 177 40 99

00282 178 40 99

00283 238 27 125

00284 252 20 126

00285 250 24 129

00286 245 30 133

00401 250 24 129

00501 252 23 130

00544 252 23 130

006XX 268 27 157

007XX 268 27 157

008XX 270 26 158

009XX 268 27 157

010XX 252 22 128

011XX 252 22 128

012XX 251 22 128

013XX 252 22 128

014XX 253 21 128

015XX 253 22 129

016XX 253 22 129

017XX 254 21 129

018XX 254 21 129

019XX 255 21 129

020XX 255 21 129

021XX 255 21 129

022XX 255 21 129

023XX 255 21 129

024XX 255 21 129

025XX 255 21 130

026XX 256 21 130

027XX 254 21 129

028XX 254 22 129

029XX 254 22 129

030XX 254 21 128

031XX 254 21 128

032XX 254 21 127

033XX 254 21 128

034XX 252 21 128

035XX 254 20 127

036XX 252 21 128

037XX 253 21 127

038XX 254 20 128

039XX 255 20 128

040XX 255 20 128

041XX 256 20 128

042XX 255 20 127

043XX 257 19 128

044XX 259 18 127

045XX 256 19 128

046XX 259 18 128

047XX 259 17 126

048XX 258 19 128

049XX 257 19 127

050XX 253 21 127

051XX 252 22 127

052XX 251 22 127

053XX 252 22 128

054XX 252 21 126

055XX 254 21 129

056XX 252 21 126

057XX 251 22 127

058XX 253 20 126

059XX 254 20 126

060XX 251 22 129

061XX 251 22 129

062XX 253 22 129

063XX 253 22 129

064XX 252 23 129

065XX 251 23 129

066XX 251 23 129

067XX 251 23 129

068XX 251 23 129

069XX 250 23 129

070XX 250 24 129

071XX 250 24 129

072XX 250 24 129

073XX 250 24 129

074XX 249 24 129

075XX 250 24 129

076XX 250 24 129

077XX 250 24 129

Page 11

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

078XX 248 24 129

079XX 249 24 129

080XX 248 25 130

081XX 248 25 129

082XX 249 25 130

083XX 248 25 130

084XX 249 25 130

085XX 248 25 129

086XX 248 25 129

087XX 249 24 130

088XX 248 24 129

089XX 248 24 129

100XX 250 24 129

101XX 250 24 129

102XX 250 24 129

103XX 250 24 129

104XX 250 24 129

105XX 250 23 129

106XX 250 24 129

107XX 250 24 129

108XX 250 24 129

109XX 252 24 129

110XX 250 24 129

111XX 250 24 129

112XX 250 24 129

113XX 250 24 129

114XX 250 24 129

115XX 250 24 129

116XX 250 24 129

117XX 250 23 129

118XX 250 24 129

119XX 252 23 130

120XX 250 23 127

121XX 250 23 127

122XX 250 23 127

123XX 250 23 127

124XX 249 23 128

125XX 250 23 128

126XX 249 23 128

127XX 249 24 128

128XX 250 22 127

129XX 250 22 125

130XX 246 24 126

131XX 245 24 126

132XX 246 24 126

133XX 247 23 126

134XX 247 23 126

135XX 247 23 126

136XX 248 23 125

137XX 247 24 127

138XX 246 24 127

139XX 246 24 127

140XX 241 26 125

141XX 241 26 125

142XX 241 26 125

143XX 241 26 124

144XX 243 25 125

145XX 243 25 125

146XX 243 25 125

147XX 241 26 125

148XX 244 25 126

149XX 244 25 126

150XX 239 28 126

151XX 239 28 126

152XX 239 28 126

153XX 239 28 126

154XX 240 28 127

155XX 241 28 127

156XX 240 28 127

157XX 241 27 126

158XX 241 27 126

159XX 241 27 127

160XX 239 28 126

161XX 238 28 125

162XX 240 27 126

163XX 240 27 125

164XX 238 27 125

165XX 238 27 125

166XX 242 27 127

167XX 242 26 126

168XX 243 26 127

169XX 244 25 126

170XX 244 26 128

171XX 244 26 128

172XX 244 27 128

173XX 244 26 128

174XX 245 26 128

175XX 246 26 129

176XX 246 26 129

177XX 245 26 127

178XX 245 26 128

179XX 246 25 128

180XX 247 25 128

181XX 247 25 129

182XX 247 25 128

183XX 247 24 128

184XX 247 24 128

185XX 247 25 128

186XX 247 25 128

187XX 247 25 128

188XX 246 25 127

189XX 248 25 129

190XX 248 25 129

191XX 248 25 129

192XX 248 25 129

193XX 247 26 129

194XX 248 25 129

195XX 246 25 128

196XX 246 25 129

197XX 247 26 129

198XX 247 26 129

199XX 247 26 130

200XX 245 27 129

201XX 244 27 129

202XX 245 27 129

203XX 245 27 129

204XX 245 27 129

Page 12

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

205XX 245 27 129

206XX 245 27 130

207XX 245 27 129

208XX 245 27 129

209XX 245 27 129

210XX 245 26 129

211XX 245 26 129

212XX 245 26 129

214XX 245 27 130

215XX 242 28 128

216XX 247 26 130

217XX 244 27 129

218XX 248 26 131

219XX 247 26 129

220XX 244 27 129

221XX 244 27 129

222XX 245 27 129

223XX 245 27 129

224XX 245 28 130

225XX 245 28 130

226XX 243 28 129

227XX 243 28 129

228XX 241 28 129

229XX 242 29 129

230XX 245 28 131

231XX 245 28 131

232XX 244 28 130

233XX 247 27 131

234XX 247 27 132

235XX 247 28 132

236XX 246 28 132

237XX 247 28 132

238XX 245 28 131

239XX 243 29 130

240XX 240 30 129

241XX 240 30 129

242XX 236 32 128

243XX 238 31 129

244XX 241 29 129

245XX 241 30 130

246XX 236 31 128

247XX 238 31 128

248XX 237 31 128

249XX 239 30 128

250XX 237 30 127

251XX 237 30 127

252XX 237 30 127

253XX 237 30 127

254XX 243 27 128

255XX 235 31 127

256XX 236 31 127

257XX 235 31 127

258XX 237 31 128

259XX 238 30 128

260XX 238 29 126

261XX 237 30 127

262XX 239 29 128

263XX 238 29 127

264XX 238 29 127

265XX 239 29 127

266XX 238 30 128

267XX 241 28 128

268XX 241 28 128

270XX 239 31 130

271XX 239 31 130

272XX 241 31 131

273XX 241 31 131

274XX 241 31 131

275XX 242 30 132

276XX 242 30 132

277XX 242 30 131

278XX 244 29 132

279XX 246 28 133

280XX 238 32 131

281XX 239 32 131

282XX 238 32 131

283XX 242 31 132

284XX 244 31 133

285XX 245 29 133

286XX 237 32 130

287XX 235 33 129

288XX 235 33 129

289XX 233 34 129

290XX 239 33 132

291XX 239 33 132

292XX 239 33 132

293XX 237 33 130

294XX 241 33 134

295XX 242 32 133

296XX 236 34 130

297XX 238 32 131

298XX 238 34 132

299XX 240 34 134

300XX 233 35 130

301XX 232 36 129

302XX 233 36 130

303XX 233 35 130

304XX 238 35 133

305XX 234 34 130

306XX 235 35 131

307XX 231 35 128

308XX 237 34 132

309XX 237 34 132

310XX 235 36 132

311XX 233 35 130

312XX 235 35 131

313XX 239 34 134

314XX 239 34 134

315XX 238 35 134

316XX 237 36 134

317XX 235 37 133

318XX 233 36 131

319XX 233 37 131

320XX 239 36 135

321XX 240 36 137

322XX 240 36 136

323XX 235 38 134

Page 13

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

324XX 233 38 133

325XX 230 40 131

326XX 239 37 136

327XX 241 36 138

328XX 241 36 138

329XX 243 36 139

330XX 244 37 142

331XX 244 37 142

332XX 244 37 142

333XX 244 37 141

334XX 244 37 141

335XX 240 37 138

336XX 240 38 138

337XX 239 38 138

338XX 241 37 138

339XX 241 38 140

342XX 240 38 138

344XX 239 37 137

346XX 239 38 137

347XX 240 37 138

349XX 244 36 140

350XX 228 37 128

351XX 228 37 128

352XX 228 37 128

354XX 227 38 128

355XX 227 37 127

356XX 227 37 127

357XX 229 36 127

358XX 229 36 127

359XX 230 36 128

360XX 231 38 130

361XX 230 38 130

362XX 230 36 129

363XX 232 38 132

364XX 229 39 130

365XX 228 40 130

366XX 228 40 130

367XX 228 38 129

368XX 232 37 130

369XX 227 39 129

370XX 227 35 126

371XX 228 35 126

372XX 228 35 126

373XX 231 35 128

374XX 231 35 128

375XX 222 38 124

376XX 236 32 129

377XX 233 33 128

378XX 233 33 128

379XX 233 34 128

380XX 223 37 124

381XX 222 38 124

382XX 223 36 124

383XX 224 37 125

384XX 226 36 126

385XX 230 34 127

386XX 222 38 125

387XX 222 40 125

388XX 225 38 126

389XX 222 39 125

390XX 223 40 127

391XX 223 40 127

392XX 223 40 127

393XX 226 39 128

394XX 225 41 129

395XX 226 41 130

396XX 223 41 127

397XX 225 39 127

399XX 233 35 130

400XX 230 33 125

401XX 228 34 125

402XX 228 33 125

403XX 232 32 126

404XX 231 33 126

405XX 231 32 126

406XX 230 33 125

407XX 232 33 127

408XX 234 32 128

409XX 233 33 127

410XX 232 32 125

411XX 234 31 126

412XX 235 31 127

413XX 233 32 127

414XX 233 32 127

415XX 235 31 128

416XX 235 32 127

417XX 234 32 127

418XX 234 32 127

420XX 224 36 124

421XX 229 34 126

422XX 227 35 125

423XX 226 34 124

424XX 225 35 124

425XX 231 33 126

426XX 231 34 127

427XX 229 34 125

430XX 233 30 125

431XX 234 30 125

432XX 233 30 125

433XX 233 30 124

434XX 234 29 123

435XX 231 30 123

436XX 232 29 123

437XX 236 29 126

438XX 235 29 125

439XX 237 29 126

440XX 236 28 124

441XX 236 28 124

442XX 236 28 125

443XX 236 28 125

444XX 237 28 125

445XX 238 28 125

446XX 237 29 125

447XX 237 29 125

448XX 234 29 124

449XX 234 29 124

450XX 231 31 124

Page 14

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

451XX 232 31 125

452XX 231 32 125

453XX 231 31 124

454XX 231 31 124

455XX 231 31 124

456XX 234 31 126

457XX 236 30 126

458XX 231 30 123

459XX 231 32 125

460XX 227 32 123

461XX 227 32 123

462XX 227 32 123

463XX 225 31 121

464XX 225 31 120

465XX 227 31 121

466XX 227 31 121

467XX 228 31 122

468XX 228 31 122

469XX 228 31 122

470XX 230 32 124

471XX 228 33 124

472XX 228 32 124

473XX 229 31 123

474XX 227 33 123

475XX 226 34 123

476XX 226 34 123

477XX 225 34 123

478XX 225 33 122

479XX 226 32 122

480XX 233 28 122

481XX 232 29 122

482XX 233 28 123

483XX 233 28 122

484XX 232 28 122

485XX 232 28 122

486XX 230 28 120

487XX 232 28 121

488XX 230 29 121

489XX 230 29 121

490XX 228 30 121

491XX 227 31 121

492XX 231 29 122

493XX 228 29 120

494XX 226 30 120

495XX 228 29 120

496XX 227 28 119

497XX 230 27 119

498XX 224 28 117

499XX 221 28 115

500XX 211 35 115

501XX 212 34 116

502XX 211 34 116

503XX 211 35 116

504XX 212 33 115

505XX 210 34 114

506XX 213 33 116

507XX 215 33 116

508XX 210 36 115

509XX 211 35 116

510XX 206 35 113

511XX 206 35 113

512XX 206 34 112

513XX 208 34 113

514XX 208 35 114

515XX 208 36 114

516XX 209 36 115

520XX 217 33 117

521XX 215 32 116

522XX 216 33 117

523XX 216 33 117

524XX 216 33 117

525XX 214 35 117

526XX 216 34 118

527XX 218 33 118

528XX 218 33 118

530XX 222 30 118

531XX 222 31 119

532XX 222 31 119

534XX 224 31 119

535XX 219 32 118

537XX 220 31 118

538XX 217 32 117

539XX 219 31 117

540XX 213 31 114

541XX 222 29 117

542XX 223 29 118

543XX 223 29 117

544XX 218 30 116

545XX 218 29 115

546XX 217 31 116

547XX 215 31 115

548XX 215 30 114

549XX 221 30 117

550XX 212 31 114

551XX 211 31 113

553XX 210 32 113

554XX 211 31 113

555XX 210 32 113

556XX 216 28 113

557XX 212 29 112

558XX 213 29 113

559XX 214 32 115

560XX 210 33 114

561XX 207 33 112

562XX 206 32 112

563XX 208 31 112

564XX 208 31 111

565XX 204 31 110

566XX 208 29 111

567XX 203 30 109

570XX 204 34 111

571XX 205 34 112

572XX 204 33 110

573XX 202 35 110

574XX 199 33 109

575XX 197 35 108

576XX 194 34 107

Page 15

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

577XX 191 36 106

580XX 202 31 109

581XX 203 31 109

582XX 201 30 108

583XX 198 31 107

584XX 199 32 108

585XX 194 33 106

586XX 191 33 105

587XX 193 31 105

588XX 189 32 103

590XX 181 35 100

591XX 181 36 100

592XX 185 32 102

593XX 186 34 103

594XX 175 34 97

595XX 177 33 99

596XX 174 35 97

597XX 174 36 97

598XX 170 35 95

599XX 169 34 94

600XX 223 31 119

601XX 223 32 119

602XX 223 31 120

603XX 223 31 120

604XX 223 32 120

605XX 223 32 120

606XX 223 31 120

607XX 223 31 120

609XX 223 32 121

610XX 220 32 118

611XX 220 32 119

612XX 218 33 118

613XX 221 33 119

614XX 219 34 119

615XX 220 33 119

616XX 221 33 119

617XX 222 33 120

618XX 224 33 121

619XX 223 33 121

620XX 220 35 121

622XX 221 35 121

623XX 217 35 119

624XX 223 34 122

625XX 222 34 121

626XX 220 34 120

627XX 220 34 120

628XX 223 35 122

629XX 223 36 123

630XX 219 36 121

631XX 220 35 121

633XX 218 36 120

634XX 216 35 118

635XX 214 35 117

636XX 219 36 121

637XX 221 36 122

638XX 222 37 123

639XX 220 37 122

640XX 212 37 117

641XX 211 37 117

644XX 210 36 116

645XX 210 37 116

646XX 212 36 117

647XX 211 38 118

648XX 212 39 119

649XX 211 37 117

650XX 216 37 119

651XX 216 37 119

652XX 215 36 119

653XX 213 37 118

654XX 217 37 120

655XX 217 37 120

656XX 214 38 120

657XX 215 38 120

658XX 214 38 119

660XX 210 38 116

661XX 210 37 117

662XX 210 37 117

664XX 207 38 115

665XX 207 38 115

666XX 209 38 116

667XX 211 39 117

668XX 208 39 116

669XX 204 38 113

670XX 205 40 115

671XX 205 40 115

672XX 206 40 115

673XX 209 39 117

674XX 205 39 114

675XX 202 40 113

676XX 201 39 112

677XX 198 40 110

678XX 199 41 112

679XX 198 42 111

680XX 206 36 113

681XX 207 36 114

683XX 206 37 114

684XX 206 37 114

685XX 206 37 114

686XX 204 36 112

687XX 203 36 112

688XX 201 37 111

689XX 201 38 112

690XX 198 39 110

691XX 196 38 109

692XX 197 37 109

693XX 192 38 107

700XX 225 42 129

701XX 225 42 129

703XX 223 43 129

704XX 224 42 129

705XX 220 43 127

706XX 219 44 126

707XX 222 42 128

708XX 222 42 128

710XX 217 42 124

711XX 216 42 123

712XX 220 41 125

Page 16

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

713XX 220 42 126

714XX 218 43 125

716XX 219 40 124

717XX 217 41 123

718XX 215 41 122

719XX 216 41 122

720XX 218 39 123

721XX 218 39 123

722XX 218 40 122

723XX 221 38 124

724XX 220 38 123

725XX 218 38 122

726XX 215 39 121

727XX 213 40 120

728XX 215 40 121

729XX 213 40 120

730XX 207 42 117

731XX 207 42 117

733XX 210 47 121

734XX 209 43 118

735XX 206 43 116

736XX 203 43 115

737XX 205 41 115

738XX 202 42 114

739XX 198 42 112

740XX 209 41 117

741XX 209 41 118

743XX 211 40 118

744XX 211 41 119

745XX 211 42 119

746XX 208 41 116

747XX 212 42 120

748XX 209 42 118

749XX 213 41 120

750XX 210 44 120

751XX 211 44 120

752XX 210 44 120

753XX 210 44 120

754XX 211 43 120

755XX 214 42 122

756XX 215 43 122

757XX 213 44 122

758XX 213 44 122

759XX 216 44 124

760XX 209 44 119

761XX 209 44 119

762XX 208 44 119

763XX 206 44 117

764XX 207 45 118

765XX 210 46 121

766XX 210 45 121

767XX 210 45 121

768XX 206 47 118

769XX 204 47 117

770XX 215 46 124

772XX 215 46 124

773XX 215 45 124

774XX 214 46 124

775XX 216 46 125

776XX 217 45 125

777XX 217 45 125

778XX 213 46 122

779XX 212 47 123

780XX 209 48 121

781XX 210 48 122

782XX 209 48 121

783XX 212 49 124

784XX 213 49 124

785XX 213 50 125

786XX 210 47 121

787XX 210 47 121

788XX 206 49 119

789XX 212 46 123

790XX 199 44 113

791XX 199 44 112

792XX 202 44 114

793XX 199 46 113

794XX 200 46 113

795XX 204 46 116

796XX 204 46 117

797XX 200 48 114

798XX 196 50 112

799XX 192 49 109

800XX 190 41 106

801XX 191 41 107

802XX 190 41 106

803XX 190 41 106

804XX 188 41 105

805XX 190 40 106

806XX 191 40 106

807XX 194 39 108

808XX 193 41 108

809XX 191 42 107

810XX 194 42 108

811XX 189 43 106

812XX 189 42 106

813XX 185 44 103

814XX 185 43 104

815XX 183 42 103

816XX 186 41 104

820XX 190 39 105

821XX 177 37 99

822XX 190 38 105

823XX 185 39 103

824XX 181 37 101

825XX 181 38 101

826XX 186 38 103

827XX 188 36 104

828XX 184 36 102

829XX 180 40 100

830XX 177 38 99

831XX 179 39 99

832XX 175 39 97

833XX 171 39 95

834XX 175 38 97

835XX 166 36 93

836XX 167 38 93

Page 17

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

ZIP

CODE

RANGE

AZ EL SK

837XX 168 39 93

838XX 166 34 93

840XX 178 41 99

841XX 177 41 98

842XX 176 41 98

843XX 176 40 98

844XX 176 41 98

845XX 181 43 101

846XX 177 43 99

847XX 177 45 98

850XX 181 49 100

852XX 181 49 101

853XX 178 49 99

855XX 184 49 103

856XX 184 50 103

857XX 183 50 103

859XX 184 48 103

860XX 180 47 101

863XX 179 48 100

864XX 176 47 97

865XX 184 46 103

870XX 189 46 107

871XX 190 46 107

872XX 190 46 107

873XX 186 46 104

874XX 186 45 104

875XX 190 45 107

877XX 192 44 108

878XX 189 47 106

879XX 190 48 107

880XX 189 49 107

881XX 196 46 111

882XX 196 47 112

883XX 193 47 109

884XX 195 44 110

885XX 192 49 109

889XX 173 47 95

890XX 172 46 95

891XX 173 47 96

893XX 171 43 95

894XX 165 43 91

895XX 164 43 90

897XX 164 44 90

898XX 170 41 94

900XX 168 49 92

902XX 168 49 92

903XX 168 49 92

904XX 168 49 91

905XX 168 49 92

906XX 168 49 92

907XX 168 49 92

908XX 168 49 92

910XX 168 49 92

911XX 168 49 92

912XX 168 49 92

913XX 168 49 91

914XX 168 49 91

915XX 168 49 92

916XX 168 49 92

917XX 169 49 92

918XX 168 49 92

919XX 172 51 94

920XX 171 50 93

921XX 171 50 93

922XX 173 49 95

923XX 170 49 93

924XX 170 49 93

925XX 170 49 93

926XX 169 49 92

927XX 169 49 92

928XX 169 49 92

930XX 167 49 91

931XX 166 49 90

932XX 165 47 90

933XX 167 48 91

934XX 163 48 89

935XX 168 48 92

936XX 165 46 90

937XX 165 46 90

938XX 165 46 90

939XX 162 46 87

940XX 160 45 87

941XX 159 45 86

942XX 161 44 88

943XX 160 45 87

944XX 160 45 87

945XX 160 45 87

946XX 160 45 87

947XX 160 45 87

948XX 160 45 87

949XX 159 45 86

950XX 161 46 87

951XX 160 46 87

952XX 162 45 88

953XX 163 45 89

954XX 159 44 86

955XX 157 42 85

956XX 161 44 88

957XX 162 44 88

958XX 161 44 88

959XX 161 43 88

960XX 159 42 87

961XX 163 43 89

967XX 101 41 33

968XX 100 40 33

970XX 157 37 87

971XX 156 37 86

972XX 157 37 87

973XX 156 37 86

974XX 156 39 86

975XX 157 40 86

976XX 161 40 88

977XX 161 39 89

978XX 163 37 91

979XX 166 38 92

980XX 157 35 88

981XX 156 34 87

Page 18

ZIP

CODE

RANGE

982XX 156 34 88

983XX 156 35 87

984XX 156 35 87

985XX 155 35 87

986XX 157 36 87

988XX 160 34 90

989XX 160 36 89

990XX 164 34 92

991XX 163 34 91

992XX 164 34 92

993XX 162 36 91

994XX 165 36 92

995XX 119 15 71

996XX 118 15 71

997XX 119 11 76

998XX 136 22 81

999XX 139 25 82

AZ EL SK

Page 19

Notes

Page 20

Radio Interference

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired
operation.

Modifying this receiver may void your authority to use the equipment. This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con­nected.

• Consult the dealer or an experienced radio/TV technician for help.

If none of the remedies stops the radio interference, you should contact a licensed radio/television techni­cian, your satellite dealer or call the Customer Service Center at 1-800-333-3474, for assistance.

Copyright Notice

Copyright © 2006 EchoStar Technologies Corporation, Englewood, Colorado 80112. All rights reserved.
The information in this guide may change without notice. We may issue revisions to tell you about such

changes.
Please send comments or questions about this guide to: Technical Publications, EchoStar Technologies

Corporation, 94 Inverness Terrace East, Englewood, Colorado 80112. Email: [email protected].
Part Number: 151255
Printed in the United States of America.
DISH Network is a registered trademark of EchoStar Satellite L.L.C. For information about DISH

Network, please visit our web site at www.dishnetwork.com.

We acknowledge all product names, trade names, or corporate names we mention in this Installation Guide
to be the proprietary property of the registered owners.
