Dirt Devil DDQC205 User Manual

MANUAL

Model # DDQC205

2

TABLE OF
CONTENTS

Quick Start Assembly 6

How to 8

Insert mop pad 8
Fill the steam water tank 8
Fill the solution bottle 9
Steam clean the floors 10
Sanitise floor surfaces 11
Quick clean floors 13
Clean microfibre cleaning pads 14
Care & clean 15
Storage 16

Troubleshooting 18

3

WARNING

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.
IF USED COM MERCIALLY WARRANTY IS VOID.

When using the steam cleaner, basic safety precautions should always be observed,
including the following:

IMPORTANT: Please refer to floor manufacturer’s care recommendations before use and
test the steam cleaner on a discrete area of flooring to begin with.

When using the steam cleaner, basic safety precautions should always be observed,
including the following:

WARNING: The steam cleaner head gets very hot during operation.
WARNING: Danger of scalding

1. Do not leave the steam cleaner unattended when plugged in. Turn off and unplug the
product from the socket when not in use.

2. Only use the steam cleaner indoors. Keep the steam cleaner away from rain and moisture.

3. Always unplug the steam cleaner and allow it to cool before connecting or
disconnecting accessories.

4. Children should be supervised to ensure that they do not play with the appliance.

5. This appliance is not intended for use by children and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.

6. The appliance should only be used as described in this User Guide.

7. Only Dirt Devil recommended accessories should be used with this appliance.

8. Do not use this steam cleaner if it has been dropped, damaged, left outdoors or
dropped into water. Do not use this steam cleaner with a damaged cord or plug. If
the supply cord is damaged call us on AU: 1300 361 505 / NZ: 0800 800 900 for your
nearest Dirt Devil authorised Service Agent.

9. Do not pull or carry this appliance by the cord. Do not use the cord as a handle, close a
door on the cord or pull the cord around sharp edges or corners. Do not run the steam
cleaner over the cord. Keep the cord away from heated surfaces.

10. Do not unplug the product by pulling on the cord.

11. Do not handle the plug or the steam cleaner with wet hands.

12. Do not use without the water tank cap in place. Ensure that the water tank cap has
been screwed down fully before use.

13. Do not touch any hot areas on the steam cleaner. It is normal for the steam cleaner
to heat up during operation.

14. Accessories will become hot during use – allow them to cool down before handling.

15. Do not use the steam cleaner to treat any items of clothing that are still being worn
on the body.

4

16. The force and heat of the steam may have an adverse effect on some materials.
Always check whether a surface is suitable for treatment with the steam and cleaning
solution by carrying out a test beforehand on a concealed area.

17. The steam cleaner must be kept level during operation.

18. Never immerse the steam cleaner in water or in other liquids.

19. Do not operate the steam cleaner without water in the tank. Always top up with water
in good time.

20. Always remove the mains plug from the socket and allow the steam cleaner to cool
down completely before topping up with water.

21. Never aim the steam cleaner at people, animals or plants (there is a risk of scalding).
Never touch the steam jet from a short distance with your hands. Do not aim the steam
cleaner at electrical items or wires.

22. Keep hair, loose clothing, fingers and all parts of the body away from openings.

23. Never fill the water tank with anything other than water. Never put additives (such as
perfume, stain remover or products containing alcohol) in the water tank as they may
damage the steam cleaner or make it dangerous to use.

24. Only carry the steam cleaner by the carry handle.

25. Store the steam cleaner in a cool, dry area.

26. Do not use an extension cord with this product.

27. Using improper voltage may result in damage to the steam cleaner and possible injury
to the user. The correct voltage is listed on the rating label.

28. Do not use your steam cleaner if it is damaged or faulty. Please make sure that the
product is unplugged from the mains and call the Dirt Devil Service Line
on AU: 1300 361 505 / NZ: 0800 800 900.

29. Do not use the unit on leather, wax polished furniture or floors, synthetic fabrics, velvet
or other delicate steam or water sensitive materials.

30. Do not use on acrylic and non-sealed surfaces.

31. In wet rooms, e.g. bathrooms, connect the appliance to sockets with an RCD adaptor
(Earth leakage circuit breaker) connected in series.

32. The device should not be used to clean electrical appliances such as ovens,
microwaves, televisions and electrical heating systems etc.

33. Keep the unit on the floor.

34. Empty the water tank and cleaning solution bottle when the steam cleaner is not in use.

35. Do not overfill the tanks. Do not exceed the maximum prescribed filling level.
Please use the jug included.

36. Always show these instructions to a third party if you are passing the steam cleaner
on to them.

37. Please ensure all parts are correctly fitted before using the product.

38. Take extra care when cleaning on the stairs.

39. Keep cleaning area well lit.

40. Please refer to the manufacturer's care recommendations before use and test the
steam cleaner on a discrete area of flooring to begin with. Do not use steam cleaner
on non-sealed floor surfaces.

5

WARNING: Always switch off and unplug the steam cleaner from the electrical outlet
before assembling, opening or emptying the water tank and cleaning solution bottle, or
before connecting/disconnecting any accessories.

IMPORTANT: The liquid or steam must not be directed towards equipment containing
electrical components, such as the interior of ovens.

IMPORTANT: We recommend the use of a Residual Current Device with a Residual
Current rating of 30mA or less.

WARNING: Never leave the steam cleaner in one spot on any surface for an extended
period of time as this may damage the floor surface.

IMPORTANT: This steam cleaner IS NOT suitable for floating
floorboards and unsealed floors – please check with your floor
manufacturer first prior to use.

IMPORTANT: Only use Dirt Devil branded cleaning solution with this steam cleaner.
Other cleaning solutions may damage the solution bottle.

DAMAGE TO THE STEAM CLEANER CAUSED AS A DIRECT RESULT
OF NOT ADHERING TO THE GENERAL SAFETY INFORMATION AND THE
INSTRUCTIONS IN THIS USER GUIDE INVALIDATES THE WARRANTY.

This machine is intended for household use only, and NOT for commercial
or industrial use.

PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.

6

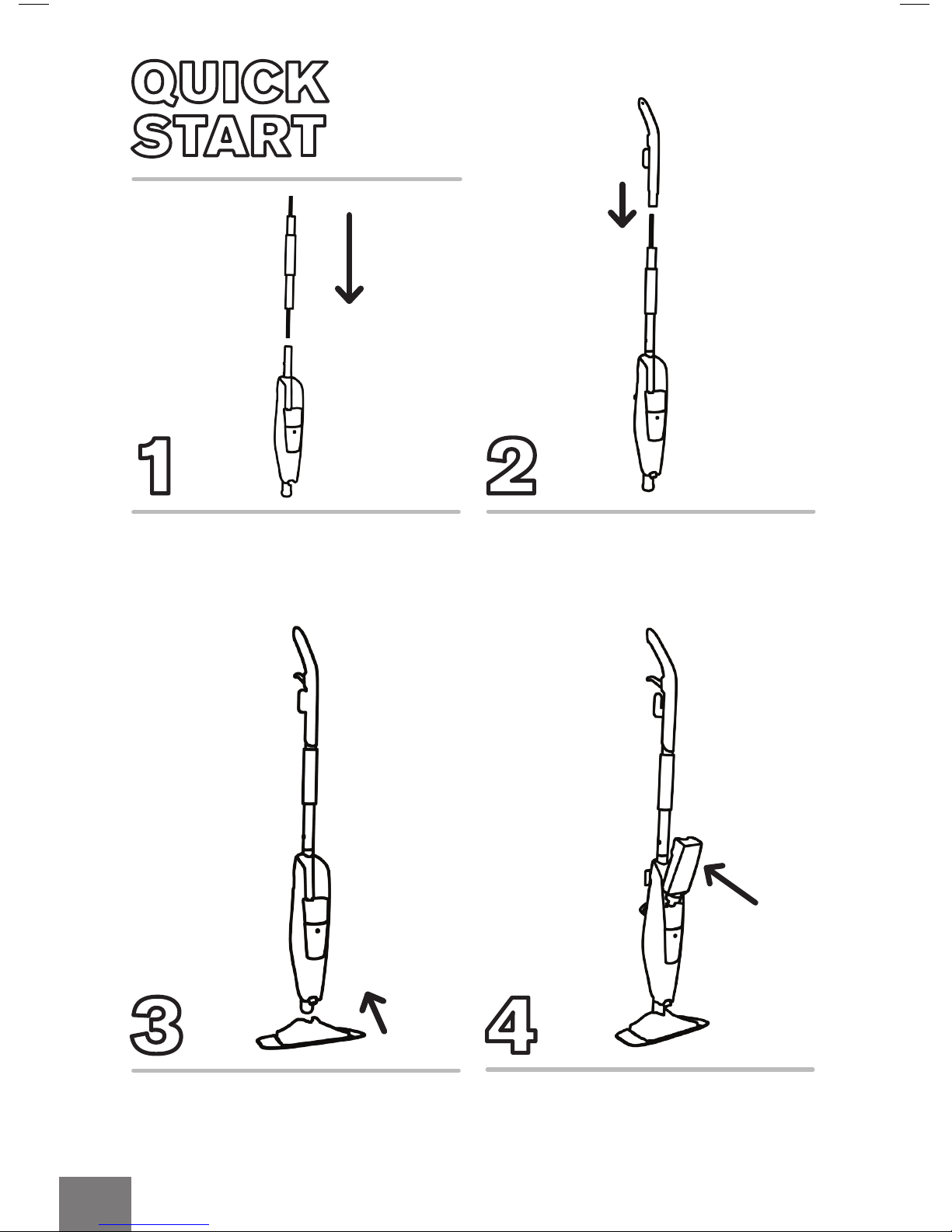

POP THE HANDLE ONTO THE
BODY. IT'LL CLICK.

THEN INSERT THE HANDLE
GRIP ONTO THE HANDLE.
IT'LL CLICK TOO.

POP ON THE MOP HEAD. TIP THE SOLUTION BOTTLE IN

EXACTLY LIKE THIS AND PUSH
DOWN. IT'LL CLICK.

77

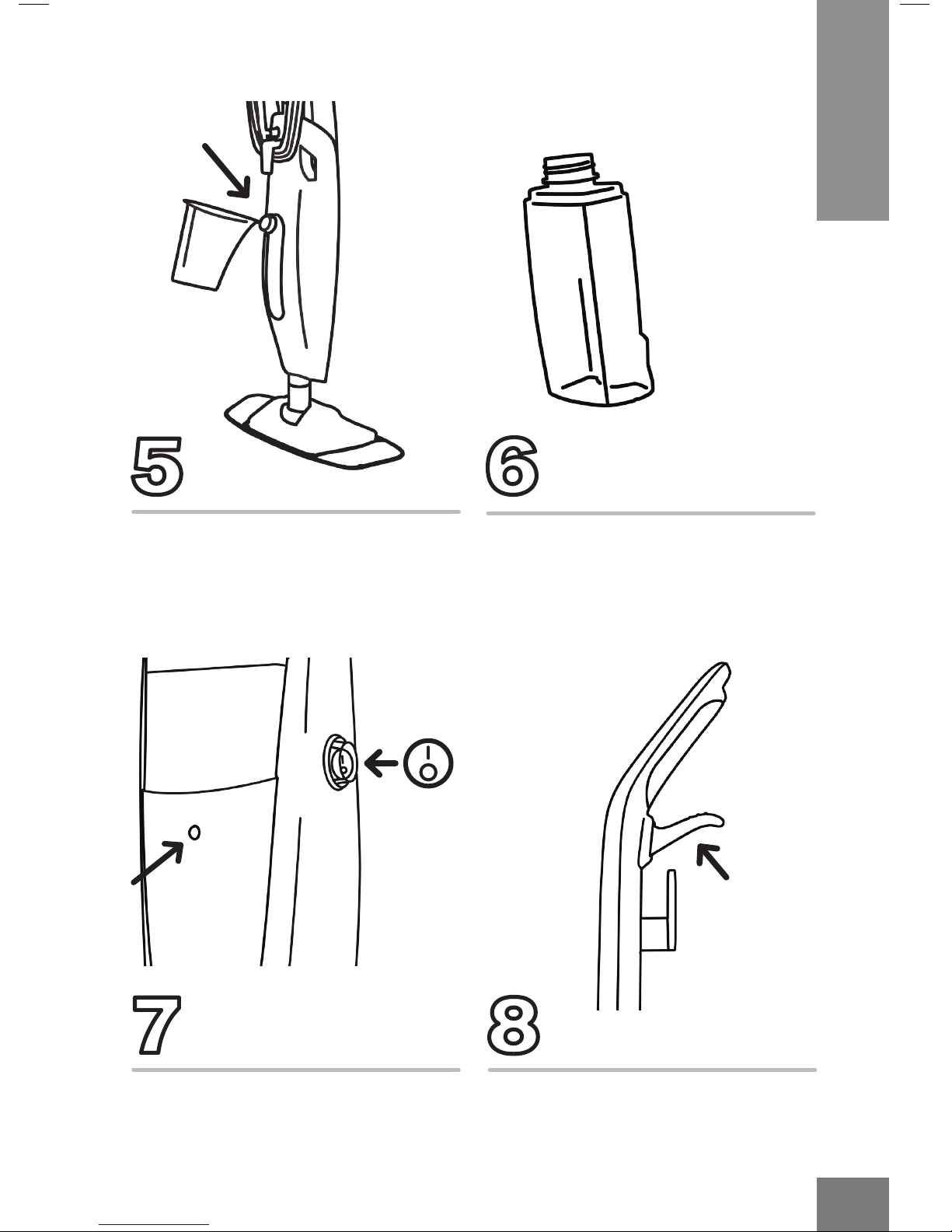

QUICK START

ADD WATER IN THE BACK
TANK FOR STEAM CLEANING.

ADD CLEANING SOLUTION
IN THE FRONT BOTTLE FOR
SPRAY CLEANING.

PLUG IN AND TURN ON.
THE STEAM LIGHT WILL TURN
GREEN WHEN IT IS READY.

FOR QUICK MESSES WITH
NO STEAM, JUST PULL THE
SPRAY TRIGGER WITHOUT
PLUGGING IN.

POWE R

ONLY USE
DIRT DEVIL
BRAND
CLEANING
SOLUTION

8

To reduce the risk of personal injury - Unplug
before cleaning or servicing.

WARNING

1. Pull out the steam

water tank cap.

1. Slide one side in pocket and

then the other.

2. Fill cup with clean
water and add it
to the steam water
tank.

NOTE: In hard water areas, or to prevent calcium and mineral deposits from accumulating on the heating element
and mop head, you may use distilled or demineralised water in place of tap water.

FILL THE STEAM WATER TANK

INSERT MOP PAD

3. Replace the steam
water tank cap.

79

HOW TO

1. Tilt the solution tank out exactly
like this and pull up.

3. Pour solution into
the solution tank.

ONLY USE DIRT DEVIL BRAND
CLEANING SOLUTION

2. Unscrew the solution tank cap.

4. Replace solution tank cap.

5. Replace the
solution tank
by pressing the
bottle down then
pushing it back
exactly like this.

FILL THE SOLUTION BOTTLE

WARNING

To reduce the risk of personal injury - Unplug before
cleaning or servicing.

IMPORTANT

IMPORTANT

Never use the STEAM+CLEAN without a cleaning pad
properly attached to the mop head.

Check the steam water tank to ensure there is adequate
water in the tank.

STEAM CLEAN FLOORS

10

1. Vacuum floors before

steam cleaning.

2. Plug in then press the power
switch on your Steam+Clean.
The steam light will turn
green when it's ready.

3. Steam will start to flow
from the base and wet
the cleaning pad.

4. Tilt the handle back to clean
the floor area.

POWE R

SANITISE FLOOR SURFACES

1. Vacuum floors before
sanitizing.

3. Use steam alone on your
Steam+Clean, Do not use
cleaning solution.

2. Plug in then press the power
switch on your Steam+Clean.
The steam light will turn
green when it's ready.

4. With cleaning pad attached, run
a minimum of 4 strokes at a
medium pace (5-7 seconds per
80cm stroke) across same area.
Allow to air dry.

WARNING

Never leave the Steam Mop in one spot on any surface for
an extended period of time with a damp or wet cleaning
pad attached as this may damage the floor surface.

CAUTION

IMPORTANT

Cleaning pad and mop head may be hot.

Do not store unit with a damp or wet
microfibre cleaning pad attached.

POWE R

HOW TO

711

NOTE: For best results: The cleaning pad should be
changed when it gets too wet or if it is noticeably dirty.

SANITISE FLOOR SURFACES CONT.

7. Then carefully remove the mop
pad from the steam mop head.

6. Unplug and let the unit cool.

5. Turn off when finished.

12

POWE R

WARNING

Never leave the product on the floor with a damp or
wet cleaning pad still attached when not in use.

QUICK CLEAN FLOORS

IMPORTANT

Never use the STEAM+CLEAN without a cleaning
pad properly attached to the mop head.

IMPORTANT

Check the solution tank to ensure there is adequate
solution in the tank.

1. Vacuum floors before cleaning.

3. Pull the spray trigger to
dispense cleaning solution
as you clean.

2. Tilt the handle back to clean
the floor area.

4. Carefully remove the

dirty mop pad.

WARNING

Never leave the product on the floor with a damp or
wet cleaning pad still attached when not in use.

HOW TO

713

CLEAN MICROFIBRE CLEANING PADS

CAUTION

Never use bleach or fabric softener.

IMPORTANT

IMPORTANT

Only use liquid detergent or soap.

Wash microfibre cleaning pads regularly. As with any
fabric, dirt particles can cause the fibers to break down.
Therefore regular cleaning will help preserve the cleaning
efficiency of the microfibre cleaning pads.

NOTE: To avoid picking up lint from the
cleaning pads, wash separately.
Cleaning pads may be machine tumble dried
on low heat, or place them in a garment bag.

To ensure long life and continued cleaning ability, proper care of your microfibre cleaning
pad is required.

1. Toss in the washing machine
with mild detergent after each
use or when dirty. Air dry for
24 hours or until dry.

2. With use, sometimes a thread
will loosen. Simply trim any
loose threads with a pair of
sharp scissors.

14

WARNING

To reduce the risk of personal injury - Unplug before
cleaning or servicing.

STEAM+CLEAN
CARE & CLEANING

WARNING

To reduce risk of personal injury - Unplug before
cleaning or servicing.

Any other servicing should be done by a Dirt Devil authorised service agent. If appliance is not
working as it should, has been dropped, damaged, left outdoors, or dropped into water, call us
on AU: 1300 361 505 / NZ: 0800 800 900.

2. Any water remaining in the
water tank should be emptied
before storing.

3. Wipe down exterior with
a damp or dry, soft cloth.

Carefully remove the cleaning pad from the mop
head, as mop pad may be hot.

CAUTION

1. Always unplug and allow your
Steam+Clean to cool completely
before emptying, storing or
removing the pad.

HOW TO

715

16

STORE YOUR STEAM+CLEAN

1. Never store the Steam+Clean

while it's still plugged in.

3. Empty solution from the

solution tank before storing.

2. Once cooled down, empty water
from the Steam water tank
before storing.

HOW TO

717

ANY OTHER SERVICING SHOULD BE DONE BY A DIRT DEVIL AUTHORISED SERVICE AGENT.
If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, call us on AU: 1300 361 505 / NZ: 0800 800 900.

4. Twist the quick-release upper
cord wrap to face upwards.
Wrap cord on cord hooks for
convenient storage.

5. Store upright in a protected,

dry area. Keep water fill cup
handy for future use.

Any other servicing should be done by a Dirt Devil authorised service agent. If appliance is not
working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it
to a service center prior to continuing use.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

Cleaner
won’t run

1. Power cord not firmly
plugged into outlet.

1. Plug unit in firmly.

2. Blown fuse or tripped
breaker.

2. Check fuse or breaker in home. Replace fuse/
reset breaker in home.

3. Needs service. 3. Call AU: 1300 361 505 / NZ: 0800 800 900

Reduced steam
or no steam

1. Water tank is empty. 1. Fill water tank.

Product worked
intermittently and
then stopped
steaming

1. Not enough water in the
steam water tank.

1. Fill steam water tank.

Cleaning pad is
very wet and no
longer picking
up dirt

1. Cleaning pad is saturated. 1. Change pad.

Product left white
spot on floor

1. Product left in
one spot too long.

1. Never leave the product on the floor
with a damp or wet cleaning pad still

attached when not in use.

2. Hard water. 2. Use distilled water.

Product will
not dispense
cleaning solution
from front nozzle.

1. Not enough solution in the
solution tank.

1. Fill solution tank.

1. Solution not dispensing
when trigger is pulled and
tank is full.

2a. Tank not fully seated.

2b. Solution spray nozzle is clogged. Gently clean

tip of spray nozzle with finger nail and test spray
again. If still clogged, remove spray nozzle by
turning spray nozzle 1/4 turn counter clockwise
and remove from unit. Clean inside surfaces of
spray nozzle with cotton swab and warm water or
gently clean with a straightened paper clip.

To reduce the risk of personal injury - Unplug before cleaning or servicing.

WARNING

18

Model no.: DDQC205

Wattage: 1200W – 1400W

Voltage: 220-240V ~ 50Hz

Cord length: 6m

Water tank capacity: 200ml

Solution bottle capacity: 450ml

Steam preparation time: 20 seconds

Steam run time: 13 minutes

Subject to technical change without notice.

This product

meets applicable

regulatory

requirements

Indoor

Use

Read

Instructions

Distributed by Techtronic Industries Australia Pty. Ltd.

31 Gilby Road, Mt Waverley

Victoria, 3149, Australia

www.dirtdevil.com.au

Service Line:
AU: 1300 361 505 / NZ: 0800 800 900

LET’S GO.
