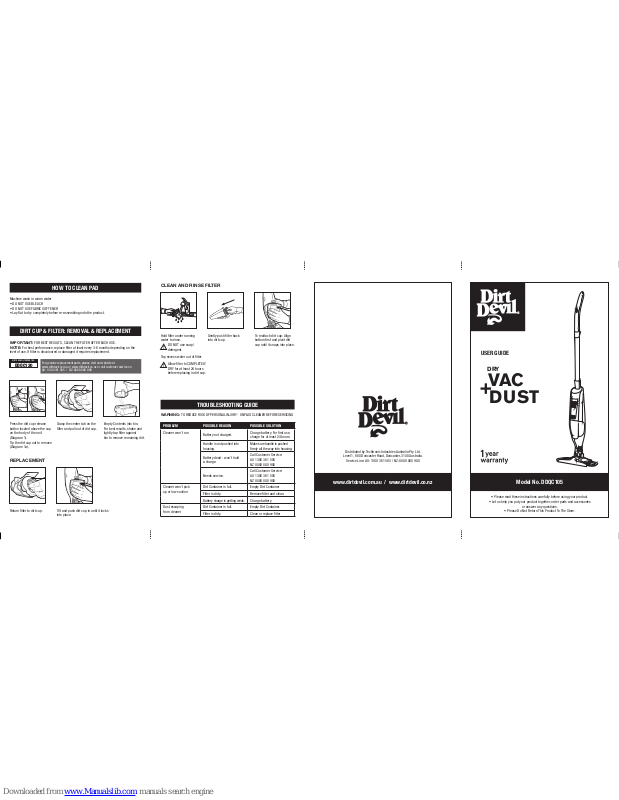

Page 1
Model No. DDQC105
www.dirtdevil.com.au / www.dirtdevil.co.nz
USER GUIDE
• Please read these instructions carefully before using your product.
• Let us help you put your product together, order parts and accessories
or answer any questions.
• Please Do Not Return This Product To The Store.
Distributed by Techtronic Industries Australia Pty. Ltd.
Level 1, 660 Doncaster Road, Doncaster, 3108 Australia.
Service Line: AU: 1300 361 505 / NZ: 0800 800 900
Machine wash in warm water
• DO NOT USE BLEACH
• DO NOT USE FABRIC SOFTENER
• Lay at to dry completely before re-assembling onto the product.
IMPORTANT: FOR BEST RESULTS, CLEAN THE FILTER AFTER EACH USE.
NOTE: For best performance, replace lter at least every 3-6 months depending on the
level of use. If lter is discoloured or damaged it requires replacement.
WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING
REPLACEMENT
CLEAN AND RINSE FILTER
Press the dirt cup release
button located above the cup
on the body of the unit
(Diagram 1).
Tip the dirt cup out to remove
(Diagram 1a).
Hold lter under running
water to rinse.
DO NOT use soap/
detergent.
Tap excess water out of lter.
Allow lter to COMPLETELY
DRY for at least 24 hours
before replacing in dirt cup.
Grasp the center tab on the
lter and pull out of dirt cup.
Gently push lter back
into dirt cup.
Empty Contents into bin.
For best results, shake and
lightly tap lter against
bin to remove remaining dirt.
To reattach dirt cup: Align
bottom rst and pivot dirt
cup until it snaps into place.
HOW TO CLEAN PAD
TROUBLESHOOTING GUIDE
DIRT CUP & FILTER: REMOVAL & REPLACEMENT
For genuine replacement parts, please visit our website at
www.dirtdevil.com.au / www.dirtdevil.co.nz or call customer service on
AU: 1300 361 505 / NZ: 0800 800 900
1.
1a.
Return lter to dirt cup. Tilt and push dirt cup in until it locks
into place.
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Cleaner won’t run
Battery not charged.
Charge battery. For rst use,
charge for at least 24 hours.
Handle is not pushed into
housing.
Make sure handle is pushed
rmly all the way into housing.
Battery dead - won’t hold
a charge.
Call Customer Service:
AU 1300 361 505
NZ 0800 800 900
Needs service.
Call Customer Service:
AU 1300 361 505
NZ 0800 800 900
Cleaner won’t pick
up or low suction
Dirt Container is full. Empty Dirt Container
Filter is dirty. Remove lter and clean.
Battery charge is getting weak. Charge battery.
Dust escaping
from cleaner
Dirt Container is full. Empty Dirt Container.
Filter is dirty. Clean or replace lter
DRY
VAC
DUST
DDQC120
DIRT DEVIL FILTER PART NO.
Page 2
DIRT DEVIL SERVICE LINE:
Monday-Friday 8:30am – 5:00pm EST.
Australia: 1300 361 505 www.dirtdevil.com.au
New Zealand: 0800 800 900 www.dirtdevil.co.nz
WARNING: Product assembly may include small parts. Small parts can present
a choking hazard.
WARRANTY
To assist with any warranty claims, attach your sales receipt to this Owner’s manual as
verication of date of purchase. This will be required for warranty service of your Dirt Devil
®
product.
For quick reference, please record your product information below.
Model Number:
DDQC105
Serial No. (located on side of machine):
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions should always be observed, including
the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the vacuum cleaner before disconnecting or connecting to the charger.
3. Always unplug the vacuum cleaner before emptying dirt container and removing/reinserting
lter and/or SWIPES pad.
4. Children should be supervised to ensure that they do not play with the appliance.
5. This appliance is not intended for use by children and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
6. Cleaning and maintenance shall not be made by children.
7. The appliance should only be used as described in this user guide.
8. Only Dirt Devil recommended consumables should be used with this appliance.
9. Do not use this vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into
water. Do not use this vacuum cleaner with a damaged charger.
10. Do not pull or carry charger by the cord. Do not use the cord as a handle, close a door on the
cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the
cord. Keep the cord away from heated surfaces.
11. Do not handle the charger or the vacuum cleaner with wet hands.
12. Keep hair, loose clothing, ngers and all parts of the body away from openings and moving parts.
13. Do not pick up any hot coals, ash, cigarette butts, matches or any hot, smoking or burning objects.
14. Do not pick up any ammable or combustible materials (lighter uid, petrol, kerosene etc.)
or use in the presence of explosive liquids or vapours.
15. Do not vacuum harmful or toxic material (chlorine, bleach, ammonia, drain cleaner etc.).
16. Do not vacuum hard or sharp objects such as glass, nails, screws, coins etc.
17. Do not vacuum plaster dust, concrete dust or any other building or vitreous materials.
18. Do not vacuum baking soda or any other powder-based carpet refresher or deodoriser.
19. Store the vacuum cleaner in a cool, dry area.
20. Do not put any objects into openings. Do not use with any openings blocked and do not
restrict airow. Keep all openings free of dust, lint, hair or anything that might reduce airow.
21. Do not use the vacuum cleaner with a blocked lter and without the lter in place.
22. Take extra care when positioning the vacuum cleaner on the stairs.
23. Keep vacuuming area well lit.
WARNING: The vacuum cleaner is a very powerful unit. Always switch off and unplug the
vacuum cleaner from charger before assembling, opening or emptying the dirt container and
before removing/reinserting lter and/or SWIPES pad.
IMPORTANT: If the inlet is blocked, switch off the vacuum cleaner and remove the blockage(s)
before re-starting the vacuum cleaner.
IMPORTANT: It is very important that the lter is kept clean to obtain maximum performance
from your vacuum cleaner. Not cleaning and not replacing your lter regularly can reduce the
suction power and cause overheating and permanent damage to the vacuum cleaner.
DAMAGE TO THE VACUUM CLEANER CAUSED AS A DIRECT RESULT OF NOT ADHERING
TO THE GENERAL SAFETY INFORMATION AND THE INSTRUCTIONS IN THIS USER GUIDE
INVALIDATES THE WARRANTY
This vacuum cleaner is intended for household use only and NOT for commercial
or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.
1. Insert the handle into the body of the unit and rmly push
in until it locks into place (Diagram 1)
NOTE: SOME MODELS COME ASSEMBLED
Use the storage hook to hang Vac anywhere.
Slide one side in pocket and
then the other.
Connect charger to the outlet. Plug charger end into the
charger plug inlet at the back
of the unit.
Use the Dirt Devil microbre
cloths to pick up ne debris
like dirt, dust and pet hair.
Use vacuum to suck up any
left over debris. For best
results, wash the microbre
cloth after every use.
NOTE: The indicator light
will come on to indicate
that the appliance is
charging. It will go off
when charging has been
completed.
To turn vac on: Press and
release the vac power
button located in the handle.
To turn vac off: Press and
release the vac power
button again.
1. Hanging Loop
2. Power Button (ON/OFF)
3. Upper Handle
4. Dirt Container Release Button
5. Dirt Container
6. Frame for Cleaning Pad
7. Vacuum Nozzle
8. Microbre Pad
9. Charger
10. Charging Light
11. Charger Plug Inlet
FEATURES
TECHNICAL SPECIFICATIONS
GENERAL SAFETY INFORMATION
CHARGING
HOW TO ASSEMBLE
STORAGE
HOW TO OPERATE
FOR BEST RESULTS, USE DIRT DEVIL DRY SWIPES MICROFIBRE PADS.
1
2
3
5
6
8
9
10
11
4
7
VACUUM CLEANER
Voltage 10.8V Ni-MH
Filter Washable
Weight 1.75kg
Run Time 7 minutes
Charging Time 12 hours
CHARGER
Voltage Input 100-240V~50/60Hz
Voltage Output 15V d.c 0.15A
Only suitable for battery supplied with
Dirt Devil DRY VAC + DUST:
model no. DDQC105
WARNING: This product is intended for dry pick up only. Do not attempt to vacuum
up any liquids with this cleaner.
DDQC150
DIRT DEVIL SWIPES PART NO.
