Direct Voltage 5 Axis User Manual

5 Axis Breakout Board Interface Adapter

Direct Voltage LLC

EMAIL:[e-mail] WEB: HTTP://directvoltage.com

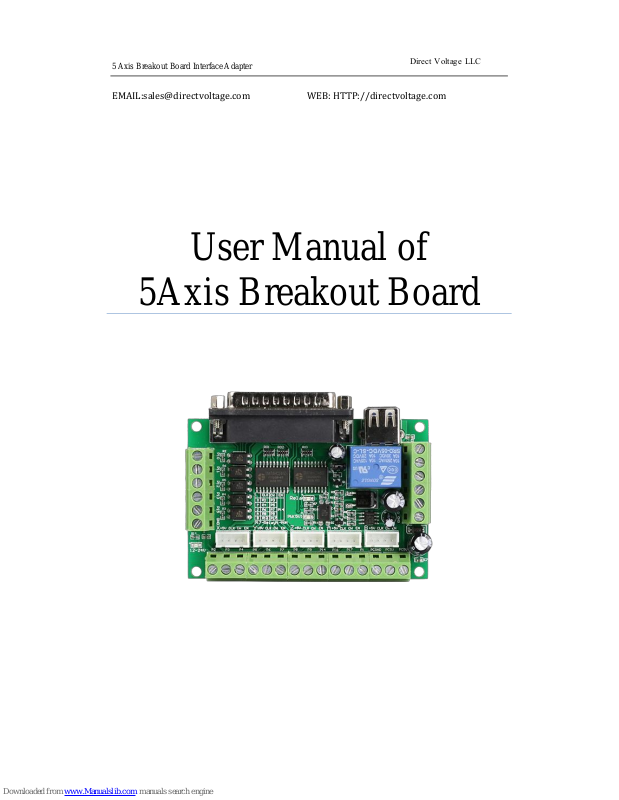

User Manual of

5Axis Breakout Board

5 Axis Breakout Board Interface Adapter

Direct Voltage LLC

ECG Safety Statement

Direct Voltage LLC is not liable or responsible for any accidents, injuries, equipment damage,
property damage, loss of money or loss of time resulting from improper use of electrical or
mechanical or software products sold on this website or other Direct Voltage LLC sales resources.

Since Direct Voltage LLC basically provide OEM machine builders components to build their
machines for their own use or third party use it is their responsibility to maintain certify and
comply the end user products built base on out components sold on this website or other Direct
Voltage LLC sales resources.

Assembling electrical CNC machine component like power supplies, motors, drivers or other
electrical components involve dealing with high voltage like AC alternative current or DC direct
current which is extremely dangerous and need high attention & essential experience and
knowledge of software, electricity, electro-mechanics or mechanics.

For technical question please contact us at [e-mail] before purchase.

2016 Direct Voltage LLC

All Rights Reserved

5 Axis Breakout Board Interface Adapter

Direct Voltage LLC

Contents

1 Introduction and Features .......................................................................................................... 1

1.1 Introduction ................................................................................................................... 1

1.2 Features ......................................................................................................................... 1

2 Specifications ............................................................................................................................ 1

3 Interfaces ................................................................................................................................... 2

4 Wiring Diagram for Reference .................................................................................................. 3

5 MACH3 Software Settings ....................................................................................................... 3

5 Axis Breakout Board Interface Adapter

Direct Voltage LLC

1

1 Introduction and Features

1.1 Introduction

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase
stepper driver controller, such as M542, M542H, MA860H, 2M542, 2M982, DM542(A),
DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any
1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3,
EMC2, KCAM4, etc.

1.2 Features

 Maximum support 5-axis stepper motor driver controllers
 Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
 USB power supply and peripherals powered phase are separated to protect computer security.
 All the signals are opto-isolated which can protect your computer security.
 5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
 Wide input voltage range: 12-24V, and with anti-reverse function.
 One relay output control interface, accessed by the spindle motor or the air pump, water

pump, etc.

 Output 0-10V analog voltage for inverter to control the spindle speed.

2 Specifications

Electrical properties(ambient temperature Tj = 25︒C)

Input Power

USB port to directly get power from PC and

12-24V power supply(optional)

Compatible Stepper Motor Driver

Max 5 2-phase Microstep controllers

Driver type

Pulse and Direction signal control

Net/Total Weight

Approx 75g

Dimensions

90 * 70 * 20mm (L*W*H)
