External Wall
Internal Wall
Plates
Triple
penetration
only shown
for diagram
purposes
Weatherized
Cap

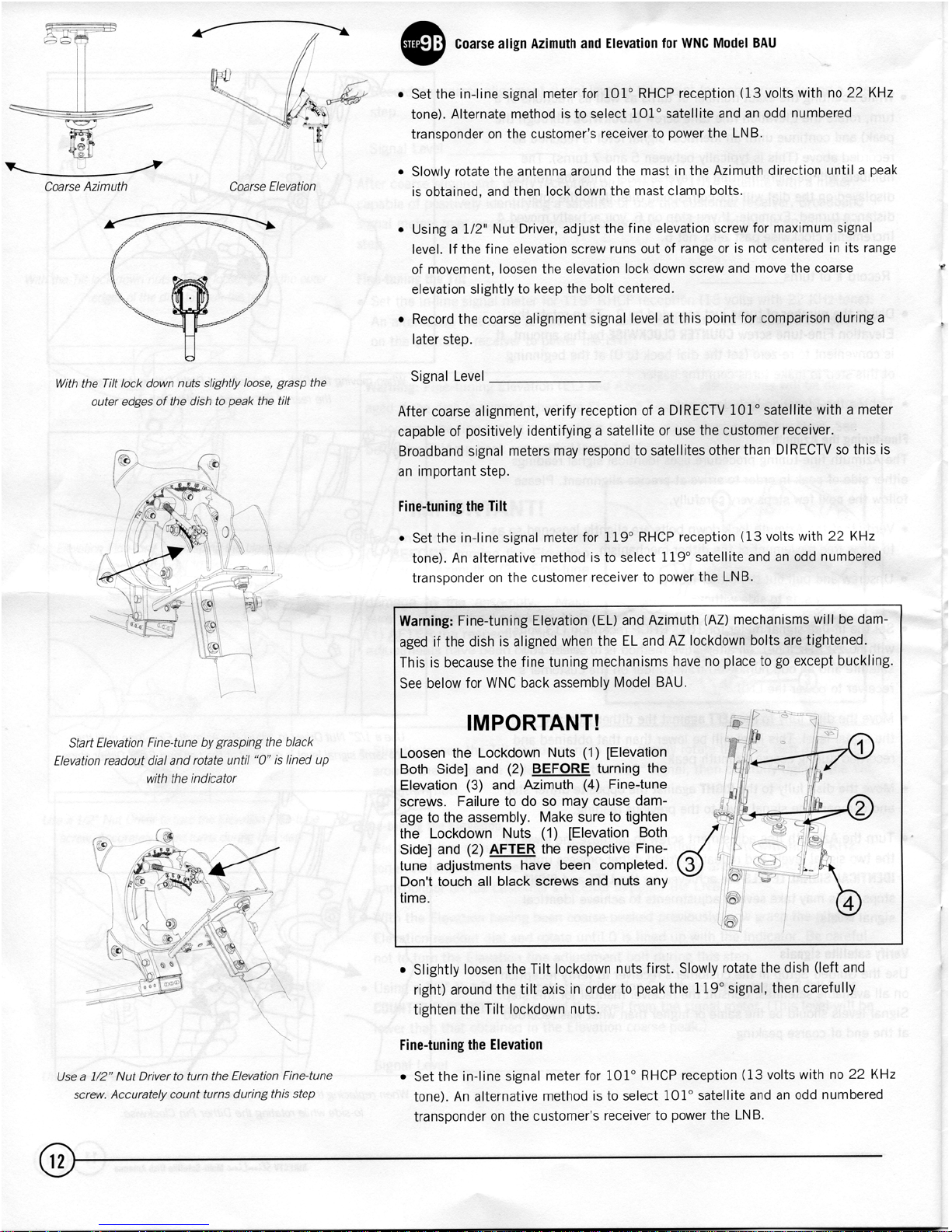

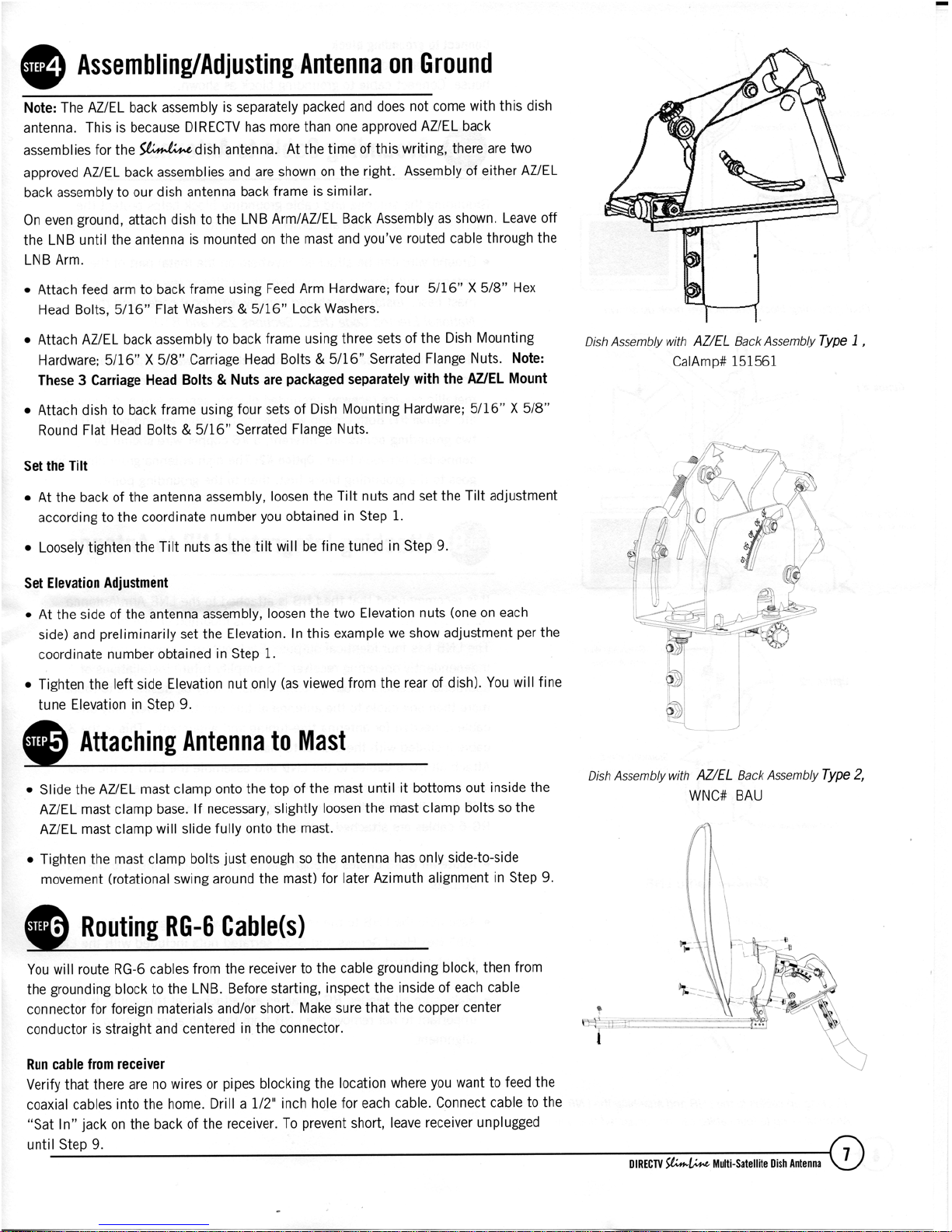

KaKu
99°-101°-103°
For use up to 4 Tuners
Note: In this scenario BBC’s must be
Installed on all KaKu HD IRD tuners
BBC
BBC
BBC
Black Ground Wire
Indicates # 17ga
CCS Bond
Green Bonding Wire
Indicates # 10ga
Solid Copper
Weather Seal identifier
Service
Panel
SAT/VHF/UHF
VHF/
UHF
SAT
Diplexer
A Diplexer can not be used
in a KaKu cable run
Off Air Antenna has to be directly
connected to the IRD or HDTV via its
own independent Cable Run
All Outdoor F-Connectors
must be tightened to no less
than 30 inch lbs to include
LNB’s
Bonding
“The following grounding diagrams illustrate only a few examples of ways to bond a DIRECTV system
and may not meet bonding requirements in every municipality within the United States. It is the
responsibility of the installer/technician performing the installation to know and follow all local, state
and federal grounding regulations within the area he or she is working.”
4 Version 3 April 2008
Page 17
Service
Panel
Satellite In Ports
Phone
Out to TV
Off Air In
Video
S-Video
120V
Video
SWM 1
SWiM Integrated LNB Installation
KaKu HD DVR SWiM compatible IRD
Single tuner SWiM compatible IRD
4 way single port DC power passing
splitter rated from 2-2150MHz
BBC’s are not required in this scenario
Internal
Wall Plates
External Wall
Black Ground Wire
Indicates # 17ga
CCS Bond
Green Bonding
Wire Indicates #
10ga Solid Copper
SWM
IRD
Satellite In Ports
Phone
Out to TV
Off Air In
Video
S-Video
120V
Video
SWM-1
Terminator
on unused
ports
Weather Seal identifier
All Outdoor F-Connectors
must be tightened to no less
than 30 inch lbs to include
LNB’s
2
HD
DVR
Distance between
the Power Inserter
and the SWiM
switch can not
exceed 150 ft
Bonding
“The following grounding diagrams illustrate only a few examples of ways to bond a DIRECTV system
and may not meet bonding requirements in every municipality within the United States. It is the
responsibility of the installer/technician performing the installation to know and follow all local, state
and federal grounding regulations within the area he or she is working.”
Terminator
on unused
ports
Splitters can be installed exterior of the
residence, however port termination and
weather sealing rules still apply
5 Version 4 Decemberl 2008
Page 18
Tripod Towers
Portable or Permanent Tripods
for smaller Dishes or Off-air Antennas
¯ Sturdy steel construction
¯ Zinc / galvanized surfaces
resist rust
¯ Mount on roofs, decks or
any sturdy surface
PVTP2-2
PVTP3-2
PVTP5-2
¯ Swivel feet rotate to
accommodate pitched
surfaces
Includes Tripod only - reflector, LNB and
center support tube are shown
for illustration purposes
¯ Can be used as a
portable tripod for RV use
¯ All models accommodate
up to 2.0” mast pipe
ds\specifications\pvtp5-2
Product Description
These tripods are very sturdy and have multiple uses. They can be used as supports for off-air
VHF/UHF antennas and they can be used as supports for satellite antennas. The tripods can be
permanently bolted to building surfaces or even concrete with the proper anchor bolts which you
provide.
The tripods collapse to a bundle that can be stowed in RVs or even carried in passenger vehicles if a
portable antenna stand is needed in a mobile application.
We highly recommend that a sealing material is used under the feet if the tripod is mounted on a roof
surface. We suggest that you use our EZP10, PV2626, PV2632 or some similar flexible sealing pad
material that will prevent roof leaks.
T
TOLL FREE 1-866-470-0887 • INTERNATIONAL +1-501-955-0033 • WWW.PERFECTVISIONMFG.COM
June 16, 2011
Page 19
Securing bolts
are ½” hex head drive
Tripod Towers
B
A
Product Specifications
PVTP2-2
PVTP3-2
PVTP5-2
(radius)
C
Mechanical
A B C Leg Dia.
PVTP2-2
PVTP3-2
PVTP5-2
20 3/4” 9 3/4” 15” 1.0”
32 3/8” 12 5/8” 18” 1.25”
54 1/2” 20” 27.25” 1.25”
Related Products
EZP10 Sealing pads and six hex head lag screws. This kit is to be used with the PVTP2
tripod.
PV2626 Black flexible tacky sealant in a 3 3/4” wide layer on a roll. Very useful sealant that
can be used for many jobs other than sealing tripods. You can also use this to seal
entrance holes and can be used as a moisture barrier for connectors.
PV2632 Same as PV2626 except the roll is narrower at 1 ½” wide.
TOLL FREE 1-866-470-0887 • INTERNATIONAL +1-501-955-0033 • WWW.PERFECTVISIONMFG.COM
May 11, 2011
